NRE150

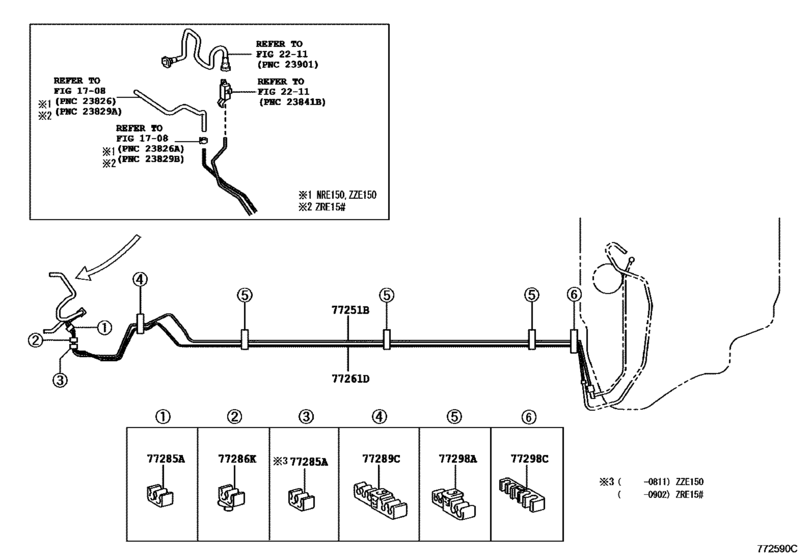

Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) 7
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-02470 | Tube, Fuel Main |
| 77261 | 77261-02380 | Tube, Fuel Tank To Canister |
| 77285 | 77285-42110 | Support, Fuel Return And Main Tube |
| 77286 | 77286-20190 | Clamp, Fuel Tube, No.1 - FUEL TUBE, NO.2 |
| 77289 | 77298-68010 | Clamp, Fuel Tube, No.1 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| 77298 | 77298-12120 | Clamp, Fuel Tube, No.4 |
| OEM | Part name | Category |
|---|---|---|
| 77251-02470 | Tube, Fuel Main | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
| 77261-02380 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
| 77285-42110 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
| 77286-20190 | Clamp, Fuel Tube, No.1 - FUEL TUBE, NO.2 | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
| 77298-12120 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
| 77298-68010 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([06.2007 - ] FUEL TUBE (0706- )NRE150,ZRE15#,ZZE150) |
