Search › Model › NRE150

NRE150

Toyota AURIS-COROLLA · 2008 · 4,170 parts · 346 categories

4,170 items

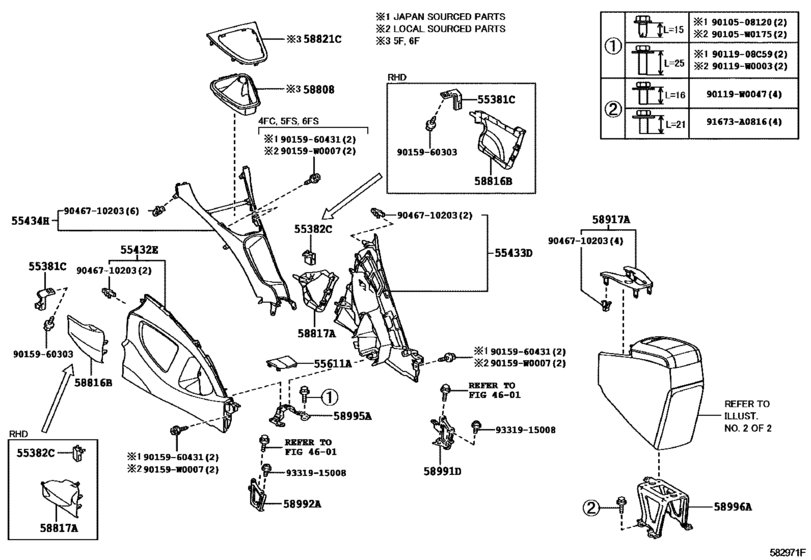

Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA) 62

#	OEM	Part name
55381	55381-02050	Bracket, Finish Panel Mounting, No.1
55382	55382-02030	Bracket, Finish Panel Mounting, No.2
55432	55432-02070-B0	Panel, Instrument Panel Finish, Lower No.1
55432	55432-02080-B0	Panel, Instrument Panel Finish, Lower No.1
55432	55432-02100-B0	Panel, Instrument Panel Finish, Lower No.1
55433	55433-02070-B0	Panel, Instrument Panel Finish, Lower No.2
55433	55433-02080-B0	Panel, Instrument Panel Finish, Lower No.2
55433	55433-02100-B0	Panel, Instrument Panel Finish, Lower No.2
55434	55434-02080-B0	Panel, Instrument Panel Finish, Lower Center
55434	55434-02090-B0	Panel, Instrument Panel Finish, Lower Center
55434	55434-02110-B0	Panel, Instrument Panel Finish, Lower Center
55611	55611-02010-B0	Tray, Instrument Panel Under
55611	55611-02020-B0	Tray, Instrument Panel Under
55630	55630-12010-B0	Holder, Rear Console Box, Cup
58808	58808-02130-B0	Cover Sub-Assy, Shifting Hole
58808	58808-02240-B0	Cover Sub-Assy, Shifting Hole
58815	58815-02090	Carpet, Console Box
58815	58815-02100	Carpet, Console Box
58815	58815-02200	Carpet, Console Box
58816	58816-02010-B0	Insert, Console Box
58817	58817-02010-B0	Insert, Console Box, Front No.2
58821	58821-02270	Panel, Console, Upper
58821	58821-02290	Panel, Console, Upper
58821	58821-02300	Panel, Console, Upper
58905	58905-02680-B2	Door Sub-Assy, Console Compartment
58907	58907-02040-B0	Hinge Sub-Assy, Console Compartment Door
58908	58908-33030	Lock Sub-Assy, Console Compartment Door
58910	58910-02040-B0	Box Assy, Console, Rear
58910	58910-02060-B0	Box Assy, Console, Rear
58910	58910-02260-B1	Box Assy, Console, Rear
58917	58917-02120-B0	Cover, Console Box, Rear
58917	58917-02130-B0	Cover, Console Box, Rear
58917	58917-02140-B0	Cover, Console Box, Rear
58917	58917-02150-B0	Cover, Console Box, Rear
58917	58917-02160-B1	Cover, Console Box, Rear
58917	58917-02162-B1	Cover, Console Box, Rear
58917	58917-02161-B1	Cover, Console Box, Rear
58917	58917-02170-B1	Cover, Console Box, Rear
58917	58917-02171-B1	Cover, Console Box, Rear
58917	58917-02172-B1	Cover, Console Box, Rear
58991	58991-02010	Bracket, Console Box Mounting, Upr Rh
58992	58992-02010	Bracket, Console Box Mounting, Upr Lh
58995	58995-02010	Bracket, Console Box Mounting, No.1
58996	58996-02040	Bracket, Console Box Mounting, No.2
58996	58996-02120	Bracket, Console Box Mounting, No.2
90105	90105-W0175	New Genuine Part
90119	90119-W0003	New Genuine Part
90119	90119-W0047	New Genuine Part
90119	91631-60816	BOLT
90119	90119-W0037	Bolt, W/washer
90159	90159-W0007	SCREW WWASHER TAPP
91673	91673-A0816	BOLT FLANGE
9011908	90119-08C59	New Genuine Part
9010508120	90105-08120	New Genuine Part
9015960303	90159-60303	SCREW
9015960431	90159-60431	SCREW
9046710203	90467-10203	Direct
9054104079	90541-04079	Cushion(For Glove Compartment Door)
9167380616	91673-80616	Bolt, W/washer
9331915008	93319-15008	SCREW
9356054012	93560-54012	Screw
9356855014	93568-55014	Screw

OEM	Part name	Category
55381-02050	Bracket, Finish Panel Mounting, No.1	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55382-02030	Bracket, Finish Panel Mounting, No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55432-02070-B0	Panel, Instrument Panel Finish, Lower No.1	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55432-02080-B0	Panel, Instrument Panel Finish, Lower No.1	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55432-02100-B0	Panel, Instrument Panel Finish, Lower No.1	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55433-02070-B0	Panel, Instrument Panel Finish, Lower No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55433-02080-B0	Panel, Instrument Panel Finish, Lower No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55433-02100-B0	Panel, Instrument Panel Finish, Lower No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55434-02080-B0	Panel, Instrument Panel Finish, Lower Center	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55434-02090-B0	Panel, Instrument Panel Finish, Lower Center	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55434-02110-B0	Panel, Instrument Panel Finish, Lower Center	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55611-02010-B0	Tray, Instrument Panel Under	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55611-02020-B0	Tray, Instrument Panel Under	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
55630-12010-B0	Holder, Rear Console Box, Cup	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58808-02130-B0	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58808-02240-B0	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58815-02090	Carpet, Console Box	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58815-02100	Carpet, Console Box	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58815-02200	Carpet, Console Box	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58816-02010-B0	Insert, Console Box	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58817-02010-B0	Insert, Console Box, Front No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58821-02270	Panel, Console, Upper	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58821-02290	Panel, Console, Upper	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58821-02300	Panel, Console, Upper	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58905-02680-B2	Door Sub-Assy, Console Compartment	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58907-02040-B0	Hinge Sub-Assy, Console Compartment Door	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58908-33030	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58910-02040-B0	Box Assy, Console, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58910-02060-B0	Box Assy, Console, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58910-02260-B1	Box Assy, Console, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02120-B0	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02130-B0	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02140-B0	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02150-B0	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02160-B1	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02161-B1	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02162-B1	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02170-B1	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02171-B1	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58917-02172-B1	Cover, Console Box, Rear	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58991-02010	Bracket, Console Box Mounting, Upr Rh	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58992-02010	Bracket, Console Box Mounting, Upr Lh	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58995-02010	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58996-02040	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
58996-02120	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90105-08120	New Genuine Part	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90105-W0175	New Genuine Part	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90119-08C59	New Genuine Part	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90119-W0003	New Genuine Part	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90119-W0037	Bolt, W/washer	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90119-W0047	New Genuine Part	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90159-60303	SCREW	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90159-60431	SCREW	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90159-W0007	SCREW WWASHER TAPP	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90467-10203	Direct	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
90541-04079	Cushion(For Glove Compartment Door)	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
91631-60816	BOLT	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
91673-80616	Bolt, W/washer	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
91673-A0816	BOLT FLANGE	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
93319-15008	SCREW	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
93560-54012	Screw	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
93568-55014	Screw	Console Box & Bracket ([02.2007 - 12.2009] (0702-0912)5D ; (0702-1001)3D ; (0912-1001)ZRE15 1..HTWC ; (0912-1001)ADE150..RHD..5 D ; (0912-1001)ND E150..5D..6FS..TERRA)
