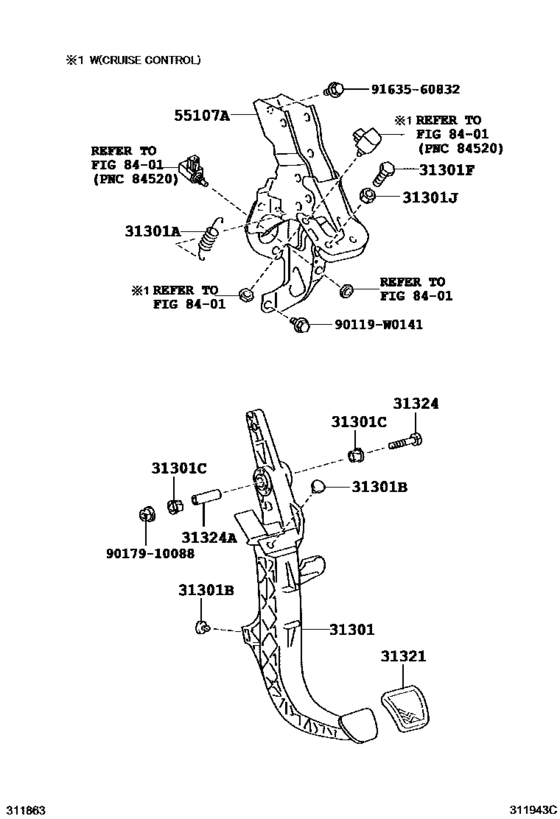

| 31311-12370 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 31311-12371 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 31321-42010 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 55107-12270 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 55107-12271 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90101-10039 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90101-10369 |
Bolt(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90119-W0141 |
New Genuine Part |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90179-10088 |
Nut |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90387-10003 |
Collar, Clutch Pedal Shaft |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90507-14047 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 91635-60832 |
New Genuine Part |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
| 94130-61000 |
Nut(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([06.2007 - ] (0706-1210)ZRE151..SOL,TERRA ; (0706- )NRE150 ,ZZE150 ; (0706- )ZRE151..5F,6F. .RS,RT) |
