Search › Model › NRE150

NRE150

Toyota AURIS-COROLLA · 2008 · 4,170 parts · 346 categories

4,170 items

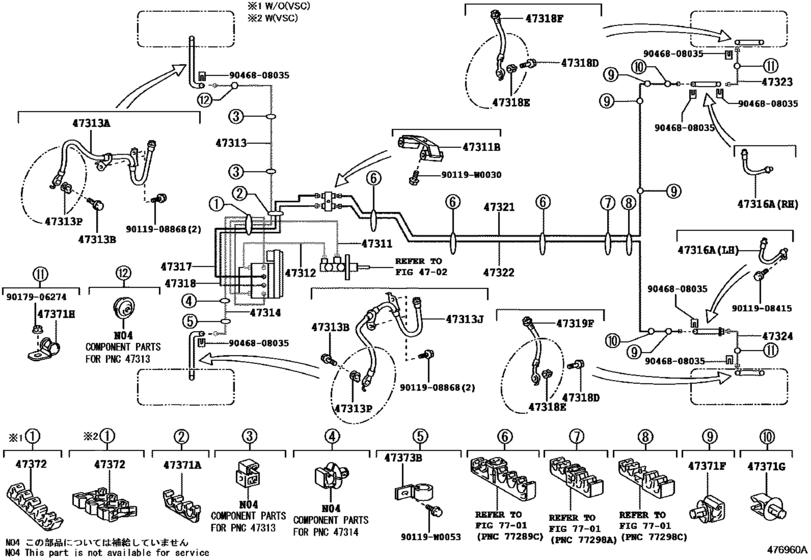

Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD) 55

#	OEM	Part name
47311	47311-02370	Tube, Front Brake, No.1
47311	47311-02390	Tube, Front Brake, No.1
47311	90412-10255	Way, No.1(For Front Brake Tube)
47312	47312-02240	Tube, Front Brake, No.2
47312	47312-02260	Tube, Front Brake, No.2
47313	47313-02310	Tube, Front Brake, No.3
47313	47313-02320	Tube, Front Brake, No.3
47313	47313-02720	Tube, Front Brake, No.3
47313	47313-02740	Tube, Front Brake, No.3
47313	90947-W2012	Hose, Flexible, No.1(For Front)
47313	90947-W2027	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-W2013	Hose, Flexible, No.2(For Front)
47313	90947-W2028	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-02350	Tube, Front Brake, No.4
47314	47314-02351	Tube, Front Brake, No.4
47314	47314-02360	Tube, Front Brake, No.4
47314	47314-02361	Tube, Front Brake, No.4
47314	47314-02690	Tube, Front Brake, No.4
47314	47314-02691	Tube, Front Brake, No.4
47314	47314-02700	Tube, Front Brake, No.4
47314	47314-02701	Tube, Front Brake, No.4
47316	90947-W2014	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)
47316	90947-W2015	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)
47316	90947-W2025	Hose, Flexible(For Rear Brake Tube)
47316	90947-W2026	Hose, Flexible(For Rear Brake Tube)
47317	47317-02230	Tube, Front Brake, No.7
47317	47317-02240	Tube, Front Brake, No.7
47318	47318-02250	Tube, Front Brake, No.8
47318	47318-02260	Tube, Front Brake, No.8
47318	90947-W2016	Hose, Flexible(For Rear Brake Tube)
47318	90947-W2024	Hose, Flexible(For Rear Rh)
47321	47321-02170	Tube, Rear Brake, No.1
47321	47321-02340	Tube, Rear Brake, No.1
47322	47322-02170	Tube, Rear Brake, No.2
47322	47322-02350	Tube, Rear Brake, No.2
47323	47323-02080	Tube, Rear Brake, No.3
47323	47323-02140	Tube, Rear Brake, No.3
47324	47324-02080	Tube, Rear Brake, No.4
47324	47324-02130	Tube, Rear Brake, No.4
47371	90464-00868	Clamp, Brake Tube, No.1
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D29	Clamp(For Clutch Tube)
47371	90461-10837	Clamp, Brake Tube, No.6
47372	90464-00885	Clamp, Brake Tube, No.1
47372	90464-00900	Clamp, Brake Tube, No.2
47373	90461-10781	Clamp, Brake Tube, No.6
90119	90119-W0030	New Genuine Part
90119	90119-W0053	New Genuine Part
9011908415	90119-08415	New Genuine Part
9011908868	90119-08868	BOLT WWASHER
9017906274	90179-06274	Nut
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part

OEM	Part name	Category
47311-02370	Tube, Front Brake, No.1	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47311-02390	Tube, Front Brake, No.1	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47312-02240	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47312-02260	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47313-02310	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47313-02320	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47313-02720	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47313-02740	Tube, Front Brake, No.3	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02350	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02351	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02360	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02361	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02690	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02691	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02700	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47314-02701	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47317-02230	Tube, Front Brake, No.7	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47317-02240	Tube, Front Brake, No.7	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47318-02250	Tube, Front Brake, No.8	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47318-02260	Tube, Front Brake, No.8	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47321-02170	Tube, Rear Brake, No.1	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47321-02340	Tube, Rear Brake, No.1	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47322-02170	Tube, Rear Brake, No.2	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47322-02350	Tube, Rear Brake, No.2	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47323-02080	Tube, Rear Brake, No.3	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47323-02140	Tube, Rear Brake, No.3	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47324-02080	Tube, Rear Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47324-02130	Tube, Rear Brake, No.4	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90119-08415	New Genuine Part	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90119-W0030	New Genuine Part	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90119-W0053	New Genuine Part	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90179-06274	Nut	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90412-10255	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90461-10837	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90464-00885	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90464-00900	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90468-08035	CLIP	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2012	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2013	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2014	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR LH)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2015	Hose, Flexible(For Rear Brake Tube) - FLEXIBLE(FOR REAR RH)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2016	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2024	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2025	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2026	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2027	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90947-W2028	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([02.2007 - ] (0702- )NRE150,ZRE15#,ZZE150..LHD)
