NP80

Toyota STARLET · 1989 · 4,661 parts · 214 categories

4,661 items

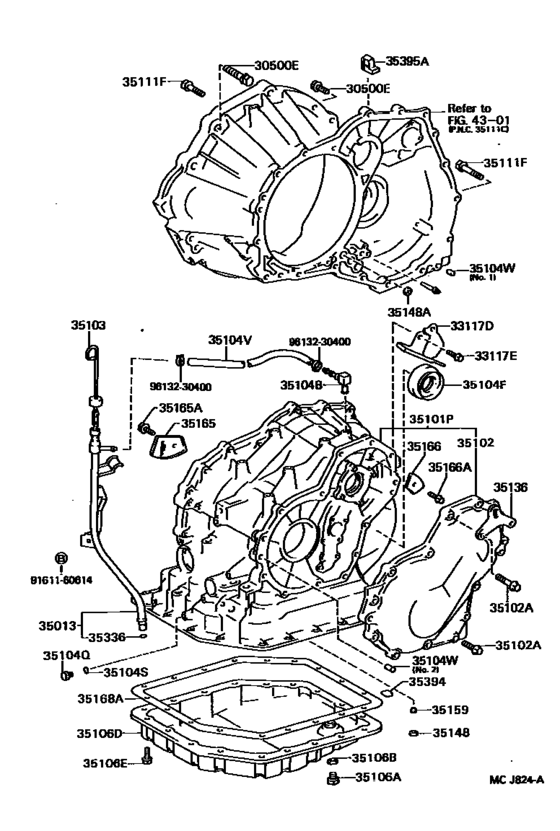

Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC) 50

#	OEM	Part name
30500	90105-10077	Bolt(For Transaxle Case Protector)
30500	90119-12168	Bolt(For Transaxle & Engine Setting)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
30500	91621-60614	Bolt(For Transaxle & Engine Setting)
33117	33117-12030	Protector, Transaxle Case
33117	90105-08040	Bolt(For Plate Bolt Lock)
33117	91641-H0820	Bolt
35013	35013-10130	Tube Sub-Assy, Transmission Oil Filler
35101	35101-16020	Case & Cover Sub-Assy, Transaxle
35101	35101-16021	Case & Cover Sub-Assy, Transaxle
35101	35101-16022	Case & Cover Sub-Assy, Transaxle
35102	35102-16030	Cover Sub-Assy, Transaxle Rear
35102	35102-16031	Cover Sub-Assy, Transaxle Rear
35102	90105-08065	Bolt (For Overdrive Support)
35102	90105-08068	Bolt (For Transaxle Rear Cover Setting)
35102	91551-C0835	Bolt (For Rear Differential Carrier)
35103	35103-10090	Gage Sub-Assy, Transmission Oil Level
35103	35103-10100	Gage Sub-Assy, Transmission Oil Level
35104	90930-03101	Plug, Breather, No.1 (Atm)
35104	90311-34013	Seal, Oil, No.2(For Transaxle Case)
35104	90311-34026	Oil Seal, Front Drive Shaft, Lh
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90447-11019	Hose (For Breather Plug)
35104	90250-10007	Pin, Straight (For Transfer Chain Case)
35104	90250-10021	Pin, Straight (For Transaxle Case)
35104	90250-11001	Pin, Straight (For Transaxle Case)
35106	90341-10006	Plug (For Transfer Oil Pan)
35106	90341-10011	Drain Plug (No Type)
35106	35178-30010	Drain Plug Gasket
35106	35106-12070	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-08066	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35136	35136-10030	Hanger, Transmission,no.1
35136	35136-16020	Hanger, Transmission,no.1
35148	35148-16010	Gasket (For Automatic Transfer Case)
35148	35148-12010	Gasket, Governor Apply, No.2
35159	35159-20010	Gasket, Brake Drum
35165	35165-12010	Plate, Transmission Case, No.1
35165	90105-06049	Bolt(For Transmission Case No.2 Plate)
35166	35166-12010	Plate, Transmission Case, No.3
35168	35168-12020	Gasket, Automatic Transaxle Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-12020	Strainer, Governor Oil
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
33117-12030	Protector, Transaxle Case	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35013-10130	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35101-16020	Case & Cover Sub-Assy, Transaxle	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35101-16021	Case & Cover Sub-Assy, Transaxle	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35101-16022	Case & Cover Sub-Assy, Transaxle	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35102-16030	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35102-16031	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35103-10090	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35103-10100	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35106-12070	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35136-10030	Hanger, Transmission,no.1	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35136-16020	Hanger, Transmission,no.1	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35148-12010	Gasket, Governor Apply, No.2	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35159-20010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35165-12010	Plate, Transmission Case, No.1	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35166-12010	Plate, Transmission Case, No.3	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35168-12020	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
35395-12020	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-06049	Bolt(For Transmission Case No.2 Plate)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-08065	Bolt (For Overdrive Support)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-08066	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-08068	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90250-10007	Pin, Straight (For Transfer Chain Case)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90250-10021	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90250-11001	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90311-34013	Seal, Oil, No.2(For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90311-34026	Oil Seal, Front Drive Shaft, Lh	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90341-10006	Plug (For Transfer Oil Pan)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90447-11019	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
90930-03101	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
91551-C0835	Bolt (For Rear Differential Carrier)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
91621-60614	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([12.1989 - ] A242E,A242L (8912- )4FC)
