Search › Model › NP80

NP80

Toyota STARLET · 1989 · 4,661 parts · 214 categories

← Back to categories

4,661 items

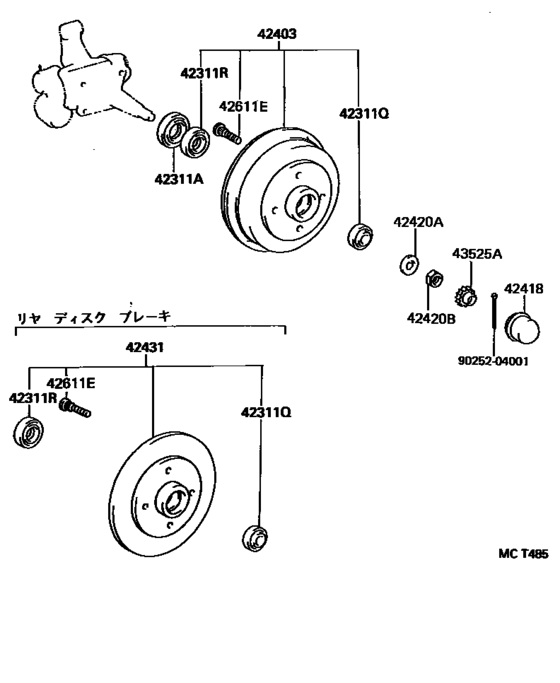

Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80) 15

#	OEM	Part name
42311	90311-38037	Seal, Oil (For Rear Axle Shaft)
42311	90366-17010	Bearing (For Rear Axle Shaft Outer)
42311	90368-17017	Bearing (For Rear Axle Shaft Outer)
42311	90366-27001	Bearing (For Rear Axle Shaft Inner)
42403	42043-10030	Drum Sub-Assy, Rear Brake
42403	42043-19015	Drum Sub-Assy, Rear Brake
42403	42403-10060	Drum Sub-Assy, Rear Brake
42403	42403-19015	Drum Sub-Assy, Rear Brake
42418	43514-10030	Cap, Rear Hub Grease
42420	90214-16010	Washer, Claw (For Rear Axle Shaft)
42420	90170-16137	Nut, Hexagon (For Drive Pinion Extension Shaft)
42420	94125-41600	Nut (For Rear Axle Shaft)
42611	90942-02047	Bolt, Hub
43525	43525-20011	Cap, Front Wheel Adjusting Lock
9025204001	90252-04001	CLIP

OEM	Part name	Category
42043-10030	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
42043-19015	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
42403-10060	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
42403-19015	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
43514-10030	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
43525-20011	Cap, Front Wheel Adjusting Lock	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90170-16137	Nut, Hexagon (For Drive Pinion Extension Shaft)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90214-16010	Washer, Claw (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90252-04001	CLIP	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90311-38037	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90366-17010	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90366-27001	Bearing (For Rear Axle Shaft Inner)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90368-17017	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)
94125-41600	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([09.1994 - ] (9409- )EP82,NP80)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 214
Collected: 2026-08-04
