NLP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 3,424 parts · 197 categories

← Back to categories

3,424 items

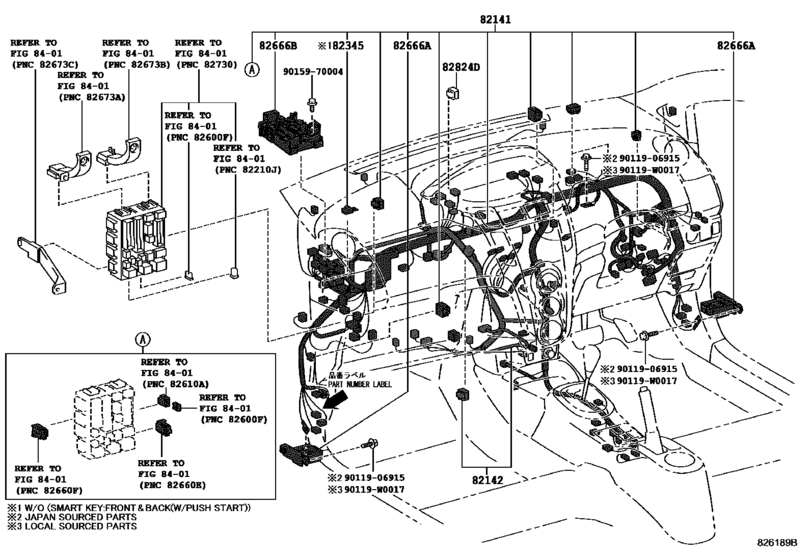

Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD) 19

#	OEM	Part name
82141	82141-0U830	Wire, Instrument Panel
82141	82141-0U831	Wire, Instrument Panel
82141	82141-0U840	Wire, Instrument Panel
82141	82141-0U841	Wire, Instrument Panel
82141	82141-0U850	Wire, Instrument Panel
82141	82141-0U851	Wire, Instrument Panel
82141	82141-0U860	Wire, Instrument Panel
82141	82141-0U861	Wire, Instrument Panel
82142	82142-0D300	Wire, Instrument Panel, No.2
82142	82142-0D320	Wire, Instrument Panel, No.2
82142	82142-0D340	Wire, Instrument Panel, No.2
82345	82345-32010	Diode
82666	82666-52080	Holder, Connector No.2
82666	82666-52100	Holder, Connector No.3
82824	90980-11849	Connector, Wiring Harness
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
9011906915	90119-06915	BOLT W-WASHER
9015970004	90159-70004	SCREW WWASHER

OEM	Part name	Category
82141-0U830	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U831	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U840	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U841	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U850	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U851	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U860	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82141-0U861	Wire, Instrument Panel	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82142-0D300	Wire, Instrument Panel, No.2	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82142-0D320	Wire, Instrument Panel, No.2	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82142-0D340	Wire, Instrument Panel, No.2	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82345-32010	Diode	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82666-52080	Holder, Connector No.2	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
82666-52100	Holder, Connector No.3	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
90119-06390	BOLT WWASHER	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
90119-W0017	New Genuine Part	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
90159-70004	SCREW WWASHER	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)
90980-11849	Connector, Wiring Harness	Wiring & Clamp ([11.2005 - ] INSTRUMENT PANEL (0511- )FRP..RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 48
Category: 197
Collected: 2026-08-04
