NLP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 3,424 parts · 197 categories

← Back to categories

3,424 items

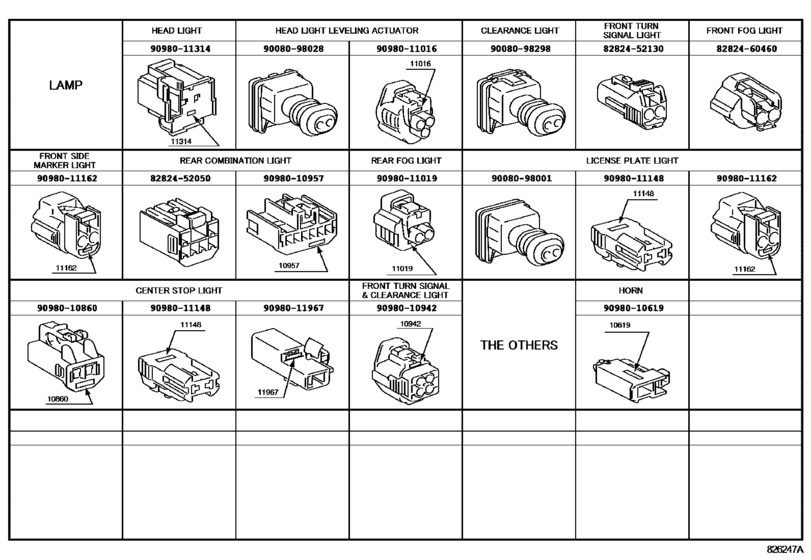

Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP) 16

#	OEM	Part name
8282452050	82824-52050	Connector, Wiring Harness
8282452130	82824-52130	Connector, Wiring Harness
8282460460	82824-60460	Connector, Wiring Harness
9008098001	90080-98001	New Genuine Part
9008098028	90080-98028	New Genuine Part
9008098298	90080-98298	New Genuine Part
9098010619	90980-10619	Housing, Connector
9098010860	90980-10860	HOUSING CONNECTOR
9098010942	90980-10942	Housing, Connector
9098010957	90980-10957	HOUSING CONNECTOR
9098011016	90980-11016	Housing, Connector
9098011019	90980-11019	HOUSING, CONNECTOR
9098011148	90980-11148	Housing, Connector
9098011162	90980-11162	Housing, Connector
9098011314	90980-11314	HOUSING, CONNECTOR
9098011967	90980-11967	Housing, Connector Male (For Indicator Lamp Wire)

OEM	Part name	Category
82824-52050	Connector, Wiring Harness	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
82824-52130	Connector, Wiring Harness	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
82824-60460	Connector, Wiring Harness	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90080-98001	New Genuine Part	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90080-98028	New Genuine Part	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90080-98298	New Genuine Part	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-10619	Housing, Connector	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-10860	HOUSING CONNECTOR	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-10942	Housing, Connector	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-10957	HOUSING CONNECTOR	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-11016	Housing, Connector	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-11019	HOUSING, CONNECTOR	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-11148	Housing, Connector	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-11162	Housing, Connector	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-11314	HOUSING, CONNECTOR	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)
90980-11967	Housing, Connector Male (For Indicator Lamp Wire)	Wiring & Clamp ([11.2005 - ] CONNECTOR (0511- )FRP)

Source: Public OEM parts-catalog data
Variants: 2 / 48
Category: 197
Collected: 2026-08-04
