NLP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 3,424 parts · 197 categories

← Back to categories

3,424 items

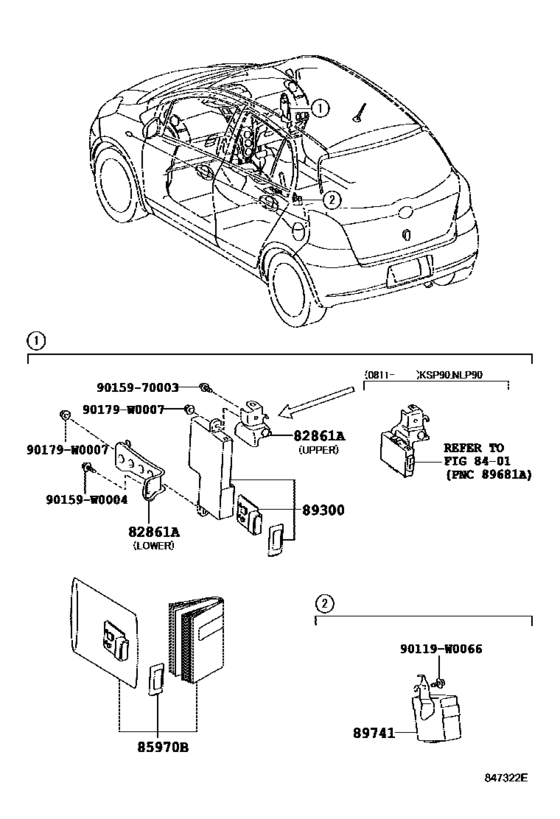

Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD) 15

#	OEM	Part name
82861	82861-0D020	Bracket, Computer Integration, No.1
85970	85970-52020	Relay Assy, Double Lock Door Control
89300	89300-52013	Box Assy, Ecu Aggregation
89300	89300-52014	Box Assy, Ecu Aggregation
89300	89300-52030	Box Assy, Ecu Aggregation
89300	89300-52052	Box Assy, Ecu Aggregation
89300	89300-52053	Box Assy, Ecu Aggregation
89741	89740-0D011	Receiver, Door Control
89741	89741-0D031	Receiver, Door Control
89741	89741-0D041	Receiver, Door Control
90119	90119-W0066	New Genuine Part
90159	90159-W0004	New Genuine Part
90179	90179-W0007	Nut (For Rear Wiper Arm Setting)
90179	90179-06115	Nut (For Rear Wiper Arm Setting)
9015970003	90159-70003	Bolt, W/washer

OEM	Part name	Category
82861-0D020	Bracket, Computer Integration, No.1	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
85970-52020	Relay Assy, Double Lock Door Control	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89300-52013	Box Assy, Ecu Aggregation	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89300-52014	Box Assy, Ecu Aggregation	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89300-52030	Box Assy, Ecu Aggregation	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89300-52052	Box Assy, Ecu Aggregation	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89300-52053	Box Assy, Ecu Aggregation	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89740-0D011	Receiver, Door Control	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89741-0D031	Receiver, Door Control	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
89741-0D041	Receiver, Door Control	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
90119-W0066	New Genuine Part	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
90159-70003	Bolt, W/washer	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
90159-W0004	New Genuine Part	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
90179-06115	Nut (For Rear Wiper Arm Setting)	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
90179-W0007	Nut (For Rear Wiper Arm Setting)	Wireless Door Lock ([11.2005 - ] W(DOUBLE LOCKING) (0511- )FRP..RHD)
