NLP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 3,424 parts · 197 categories

3,424 items

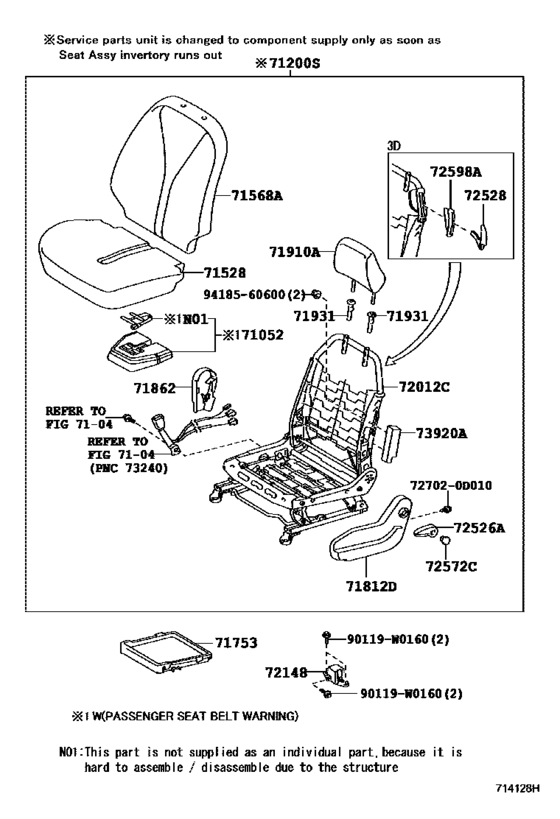

Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD) 54

#	OEM	Part name
71052	71051-0D010	Pad Sub-Assy, Front Seat Cushion Sensor, Rh
71200	71200-0DJ40-B5	Seat Assy, Front Lh
71200	71200-0DJ40-E1	Seat Assy, Front Lh
71200	71200-0DL70-B2	Seat Assy, Front Lh
71200	71200-0DL90-B1	Seat Assy, Front Lh
71200	71200-0DL91-B0	Seat Assy, Front Lh
71200	71200-0DJ30-B5	Seat Assy, Front Lh
71200	71200-0DJ30-E1	Seat Assy, Front Lh
71200	71200-0DL60-B2	Seat Assy, Front Lh
71200	71200-0DL80-B1	Seat Assy, Front Lh
71200	71200-0DL81-B0	Seat Assy, Front Lh
71528	71528-0D280-B4	Pad, Front Seat Cushion W/cover, Lh
71528	71528-0D280-E0	Pad, Front Seat Cushion W/cover, Lh
71528	71528-0D360-B1	Pad, Front Seat Cushion W/cover, Lh
71528	71528-0D370-B0	Pad, Front Seat Cushion W/cover, Lh
71568	71568-0D500-B4	Pad, Front Seat Back W/cover, Lh
71568	71568-0D500-E0	Pad, Front Seat Back W/cover, Lh
71568	71568-0D620-B1	Pad, Front Seat Back W/cover, Lh
71568	71568-0D640-B0	Pad, Front Seat Back W/cover, Lh
71568	71568-0D641-B0	Pad, Front Seat Back W/cover, Lh
71568	71568-0D480-B4	Pad, Front Seat Back W/cover, Lh
71568	71568-0D480-E0	Pad, Front Seat Back W/cover, Lh
71568	71568-0D560-B1	Pad, Front Seat Back W/cover, Lh
71568	71568-0D580-B0	Pad, Front Seat Back W/cover, Lh
71568	71568-0D581-B0	Pad, Front Seat Back W/cover, Lh
71753	71753-0D070	Tray, Front Seat Under
71812	71812-0D070-B2	Shield, Front Seat Cushion, Lh
71812	71812-0D070-E0	Shield, Front Seat Cushion, Lh
71862	71862-0D040-B2	Shield, Front Seat Cushion, Inner Lh
71862	71862-0D040-E0	Shield, Front Seat Cushion, Inner Lh
71910	71910-0D190-B2	Headrest Assy, Front Seat
71910	71910-0D220-B0	Headrest Assy, Front Seat
71910	71910-0D660-B4	Headrest Assy, Front Seat
71910	71910-0D660-E0	Headrest Assy, Front Seat
71931	71930-0D011-B1	Support, Front Seat Headrest
71931	71930-0D011-E0	Support, Front Seat Headrest
71931	71931-0D010-B1	Support, Front Seat Headrest
71931	71931-0D010-E0	Support, Front Seat Headrest
72012	72020-0D370	Adjuster Sub-Assy, Front Seat, Lh
72012	72020-0D360	Adjuster Sub-Assy, Front Seat, Lh
72148	72148-52010	Bracket, Front Inner Seat Track, Lower Rear Lh
72148	72148-52060	Bracket, Front Inner Seat Track, Lower Rear Lh
72526	72526-0D140-B0	Handle, Reclining Adjuster Release, Lh
72526	72526-0D140-E0	Handle, Reclining Adjuster Release, Lh
72528	72527-0D010-B2	Handle, Reclining Adjuster Memory, Rh
72528	72527-0D010-E0	Handle, Reclining Adjuster Memory, Rh
72572	72572-0D010-B2	Cap, Reclining Adjuster Knob, Rh
72572	72572-0D010-E0	Cap, Reclining Adjuster Knob, Rh
72598	72597-0D010-B2	Bezel, Reclining Remote Control
72598	72597-0D010-E0	Bezel, Reclining Remote Control
73920	73920-0D020	Air Bag Assy, Front Seat, Lh
90119	90119-W0160	New Genuine Part
727020	72702-0D010	Bracket Sub-assy, Rear Seat Back Striker
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71051-0D010	Pad Sub-Assy, Front Seat Cushion Sensor, Rh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DJ30-B5	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DJ30-E1	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DJ40-B5	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DJ40-E1	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DL60-B2	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DL70-B2	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DL80-B1	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DL81-B0	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DL90-B1	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71200-0DL91-B0	Seat Assy, Front Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71528-0D280-B4	Pad, Front Seat Cushion W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71528-0D280-E0	Pad, Front Seat Cushion W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71528-0D360-B1	Pad, Front Seat Cushion W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71528-0D370-B0	Pad, Front Seat Cushion W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D480-B4	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D480-E0	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D500-B4	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D500-E0	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D560-B1	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D580-B0	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D581-B0	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D620-B1	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D640-B0	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71568-0D641-B0	Pad, Front Seat Back W/cover, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71753-0D070	Tray, Front Seat Under	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71812-0D070-B2	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71812-0D070-E0	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71862-0D040-B2	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71862-0D040-E0	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71910-0D190-B2	Headrest Assy, Front Seat	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71910-0D220-B0	Headrest Assy, Front Seat	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71910-0D660-B4	Headrest Assy, Front Seat	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71910-0D660-E0	Headrest Assy, Front Seat	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71930-0D011-B1	Support, Front Seat Headrest	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71930-0D011-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71931-0D010-B1	Support, Front Seat Headrest	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
71931-0D010-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72020-0D360	Adjuster Sub-Assy, Front Seat, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72020-0D370	Adjuster Sub-Assy, Front Seat, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72148-52010	Bracket, Front Inner Seat Track, Lower Rear Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72148-52060	Bracket, Front Inner Seat Track, Lower Rear Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72526-0D140-B0	Handle, Reclining Adjuster Release, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72526-0D140-E0	Handle, Reclining Adjuster Release, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72527-0D010-B2	Handle, Reclining Adjuster Memory, Rh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72527-0D010-E0	Handle, Reclining Adjuster Memory, Rh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72572-0D010-B2	Cap, Reclining Adjuster Knob, Rh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72572-0D010-E0	Cap, Reclining Adjuster Knob, Rh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72597-0D010-B2	Bezel, Reclining Remote Control	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72597-0D010-E0	Bezel, Reclining Remote Control	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
72702-0D010	Bracket Sub-assy, Rear Seat Back Striker	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
73920-0D020	Air Bag Assy, Front Seat, Lh	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
90119-W0160	New Genuine Part	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
94185-60600	Nut, Wire Adjusting, No.1	Front Seat & Seat Track ([11.2005 - ] LH-W(SRS SIDE AIR BAG) (0511- )FRP..RHD)
