NLP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 3,424 parts · 197 categories

3,424 items

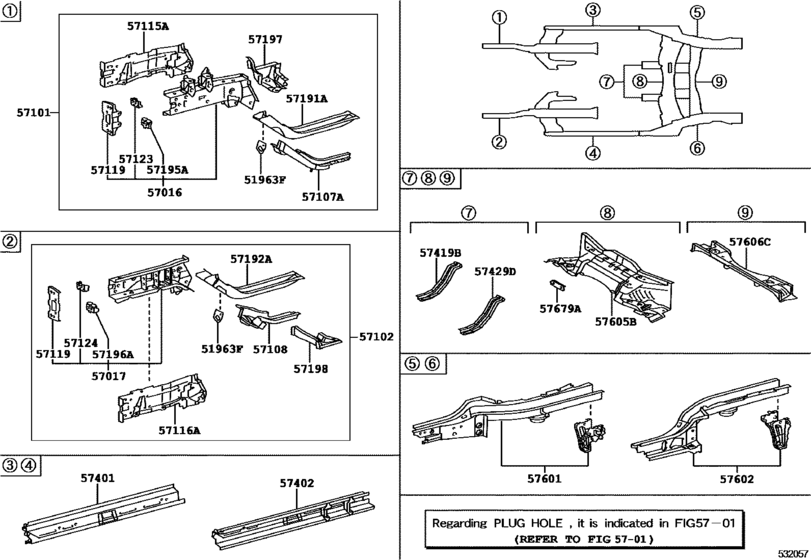

Floor Side Member ([11.2005 - ] (0511- )FRP) 29

#	OEM	Part name
51963	51963-52050	Hook, Transport
57016	57016-52080	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-52090	Reinforcement Sub-Assy, Front Side Member, Lh
57101	57101-52090	Member Sub-Assy, Front Side, Rh
57102	57102-52200	Member Sub-Assy, Front Side, Lh
57107	57107-0D050	Plate Sub-Assy, Front Side Member, No.2 Rh
57108	57108-0D050	Bracket Sub-Assy, Strut Bar, Lh
57115	57025-52010	Member Sub-Assy, Front Side, Outer Rh
57116	57026-52010	Member Sub-Assy, Front Side, Outer Lh
57119	57119-0D010	Plate, Front Side Member, Front
57119	57129-0D010	Plate, Front Side Member, Front
57123	57123-0D010	Support, Front Side Member, Rh
57124	57124-0D010	Support, Front Side Member, Lh
57191	57191-52020	Member, Front Side, Inner Rear Rh
57192	57192-52020	Member, Front Side, Inner Rear Lh
57195	57195-0D010	Reinforcement, Front Side Member, Front Rh
57196	57196-0D010	Reinforcement, Front Side Member, Front Lh
57197	57197-0D030	Box, Torque, Front Rh
57198	57198-0D030	Box, Torque, Front Lh
57401	57401-52160	Member Sub-Assy, Main Floor Side, Rh
57402	57402-52180	Member Sub-Assy, Main Floor Side, Lh
57419	57419-0D040	Reinforcement, Front Floor Under, Rear
57429	57429-0D040	Reinforcement, Front Floor Under, Rear Lh
57601	57601-52250	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-52300	Member Sub-Assy, Rear Floor Side, Lh
57605	57605-52130	Member Sub-Assy, Rear Floor Cross, No.1
57605	57605-52112	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-52190	Member Sub-Assy, Rear Floor Cross, No.2
57679	57679-52030	Retainer, Rear Floor Crossmember

OEM	Part name	Category
51963-52050	Hook, Transport	Floor Side Member ([11.2005 - ] (0511- )FRP)
57016-52080	Reinforcement Sub-Assy, Front Side Member, Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57017-52090	Reinforcement Sub-Assy, Front Side Member, Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57025-52010	Member Sub-Assy, Front Side, Outer Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57026-52010	Member Sub-Assy, Front Side, Outer Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57101-52090	Member Sub-Assy, Front Side, Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57102-52200	Member Sub-Assy, Front Side, Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57107-0D050	Plate Sub-Assy, Front Side Member, No.2 Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57108-0D050	Bracket Sub-Assy, Strut Bar, Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57119-0D010	Plate, Front Side Member, Front	Floor Side Member ([11.2005 - ] (0511- )FRP)
57123-0D010	Support, Front Side Member, Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57124-0D010	Support, Front Side Member, Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57129-0D010	Plate, Front Side Member, Front	Floor Side Member ([11.2005 - ] (0511- )FRP)
57191-52020	Member, Front Side, Inner Rear Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57192-52020	Member, Front Side, Inner Rear Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57195-0D010	Reinforcement, Front Side Member, Front Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57196-0D010	Reinforcement, Front Side Member, Front Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57197-0D030	Box, Torque, Front Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57198-0D030	Box, Torque, Front Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57401-52160	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57402-52180	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57419-0D040	Reinforcement, Front Floor Under, Rear	Floor Side Member ([11.2005 - ] (0511- )FRP)
57429-0D040	Reinforcement, Front Floor Under, Rear Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57601-52250	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57602-52300	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([11.2005 - ] (0511- )FRP)
57605-52112	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([11.2005 - ] (0511- )FRP)
57605-52130	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([11.2005 - ] (0511- )FRP)
57606-52190	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([11.2005 - ] (0511- )FRP)
57679-52030	Retainer, Rear Floor Crossmember	Floor Side Member ([11.2005 - ] (0511- )FRP)
