NCP165

Toyota PROBOX-SUCCEED · 2014 · 2,584 parts · 168 categories

← Back to categories

2,584 items

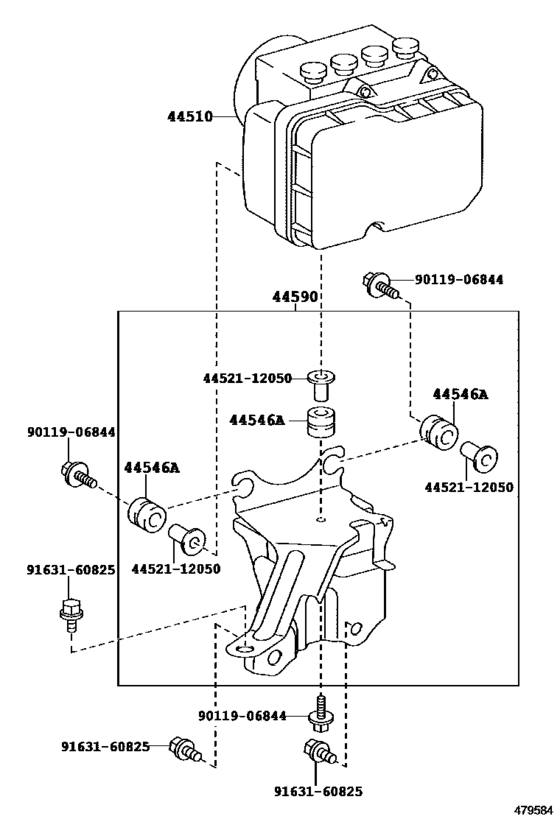

Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- )) 7

#	OEM	Part name
44510	44050-52L90	Actuator Assy, Brake
44510	44050-52L91	Actuator Assy, Brake
44546	44546-12110	Cushion, Brake Actuator Bolt
44590	44590-52230	Bracket Assy, Brake Actuator
4452112050	44521-12050	Collar, Brake Actuator Case, No.1
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9163160825	91631-60825	BOLT WWASHER

OEM	Part name	Category
44050-52L90	Actuator Assy, Brake	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))
44050-52L91	Actuator Assy, Brake	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))
44521-12050	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))
44546-12110	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))
44590-52230	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))
91631-60825	BOLT WWASHER	Brake Tube & Clamp ([09.2014 - ] ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ (1409- ))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 168
Collected: 2026-08-04
