Search › Model › NCP160

NCP160

Toyota PROBOX-SUCCEED · 2014 · 2,352 parts · 164 categories

2,352 items

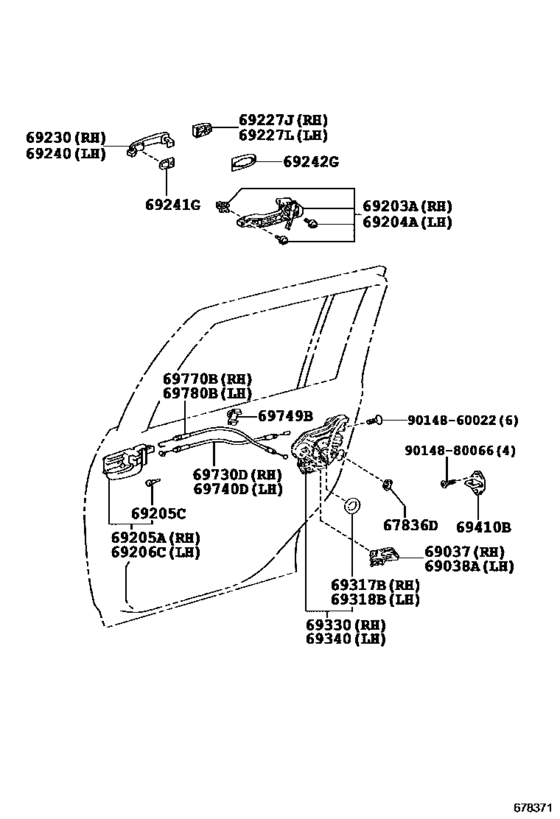

Rear Door Lock & Handle ([09.2014 - ] (1409- )) 32

#	OEM	Part name
67836	67836-12040	Cover, Rear Door Lock Child Protection, Rh
69037	69037-30010	Cover Sub-Assy, Rear Door Lock, Rh
69038	69038-30010	Cover Sub-Assy, Rear Door Lock, Lh
69203	69203-52010	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-52010	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-12200-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69206	69206-12200-C0	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-42070-A9	Cover, Rear Door Outside Handle, Rh
69227	69227-42070-C2	Cover, Rear Door Outside Handle, Rh
69227	69227-42070-J2	Cover, Rear Door Outside Handle, Rh
69227	69227-42070-P0	Cover, Rear Door Outside Handle, Rh
69227	69227-42070-Q4	Cover, Rear Door Outside Handle, Rh
69227	69227-42070-Y5	Cover, Rear Door Outside Handle, Rh
69230	69211-12220-A9	Handle Assy, Front Door, Outside Rh
69230	69211-12220-C2	Handle Assy, Front Door, Outside Rh
69230	69211-12220-J0	Handle Assy, Front Door, Outside Rh
69230	69211-12220-P0	Handle Assy, Front Door, Outside Rh
69230	69211-12220-Q4	Handle Assy, Front Door, Outside Rh
69230	69211-12220-Y5	Handle Assy, Front Door, Outside Rh
69241	69241-48020	Pad, Rear Door Outside Handle, Front
69242	69242-52020	Pad, Front Door Outside Handle, Rear
69317	69318-51010	Seal, Front Door Lock Hole, Rh
69330	69050-52270	Lock Assy, Rear Door, Rh
69340	69060-52300	Lock Assy, Rear Door, Lh
69410	69410-20110	Plate Assy, Front Door Lock Striker
69730	69730-52260	Cable Assy, Rear Door Lock Remote Control, Rh
69749	69749-32040	Clamp, Front Door Lock Link
69770	69770-52140	Cable Assy, Rear Door Inside Locking, Rh
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880066	90148-80066	SCREW HEXALOBULAR

OEM	Part name	Category
67836-12040	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69037-30010	Cover Sub-Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69038-30010	Cover Sub-Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69050-52270	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69060-52300	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69203-52010	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69204-52010	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69205-12200-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69206-12200-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69211-12220-A9	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69211-12220-C2	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69211-12220-J0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69211-12220-P0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69211-12220-Q4	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69211-12220-Y5	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69227-42070-A9	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69227-42070-C2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69227-42070-J2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69227-42070-P0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69227-42070-Q4	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69227-42070-Y5	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69241-48020	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69242-52020	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69410-20110	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69730-52260	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69749-32040	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
69770-52140	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
90148-60022	BOLT	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
90148-80066	SCREW HEXALOBULAR	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([09.2014 - ] (1409- ))
90541-04027	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([09.2014 - ] (1409- ))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 164
Collected: 2026-08-04
