Search › Model › NCP145

NCP145

Toyota PORTE-SPADE · 2012 · 3,696 parts · 247 categories

← Back to categories

3,696 items

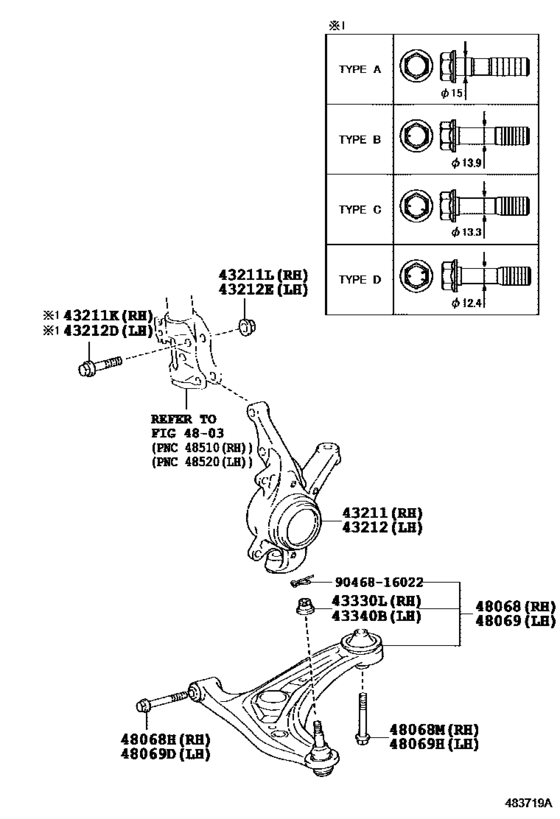

Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- )) 14

#	OEM	Part name
43211	43211-52050	Knuckle, Steering, Rh
43211	90109-15001	Bolt (For Rear Axle Carrier)
43211	90109-15002	Bolt (For Steering Knuckle Rh)
43211	90109-15003	Bolt (For Steering Knuckle Rh)
43211	90109-15004	Bolt (For Steering Knuckle Rh)
43211	90179-15004	Nut (For Steering Knuckle Rh)
43212	43212-52050	Knuckle, Steering, Lh
43330	90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)
48068	48068-59145	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90119-14086	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90119-14145	Bolt(For Front Suspension Lower Arm No.2 Rh)
48068	90119-14152	Bolt(For Front Suspension Lower Arm No.2 Rh)
48069	48069-59135	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
9046816022	90468-16022	CLIP

OEM	Part name	Category
43211-52050	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
43212-52050	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
48068-59145	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
48069-59135	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90109-15001	Bolt (For Rear Axle Carrier)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90109-15002	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90109-15003	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90109-15004	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90119-14086	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90119-14145	Bolt(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90119-14152	Bolt(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90179-15004	Nut (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))
90468-16022	CLIP	Front Axle Arm & Steering Knuckle ([07.2012 - ] (1207- ))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 247
Collected: 2026-08-04
