Search › Model › NCP141

NCP141

Toyota PORTE-SPADE · 2012 · 2,982 parts · 189 categories

2,982 items

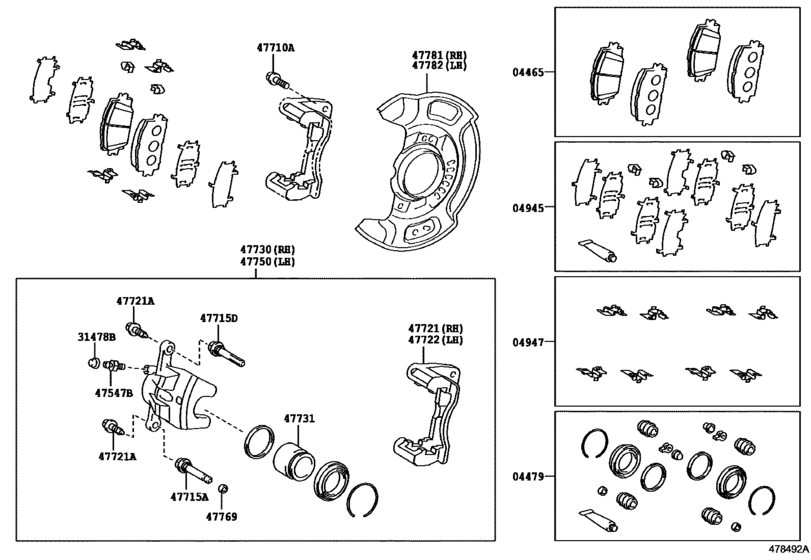

Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- )) 22

#	OEM	Part name
4465	04465-12640	Pad Kit, Disc Brake, Front
4465	04465-52260	Pad Kit, Disc Brake, Front
4479	04478-12120	Cylinder Kit, Disc Brake, Front
4479	04478-52070	Cylinder Kit, Disc Brake, Front
4945	04945-52130	Shim Kit, Anti Squeal, Front
4947	04947-42050	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-12A10	Pin, Main(For Front Disc Brake Cylinder Slide)
47715	47715-52190	Pin, Main(For Front Disc Brake Cylinder Slide)
47721	47721-52191	Mounting, Front Disc Brake Cylinder, Rh
47721	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47722	47722-52191	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-12B00	Cylinder Assy, Front Disc Brake, Rh
47730	47730-52191	Cylinder Assy, Front Disc Brake, Rh
47731	47731-52190	Piston, Front Disc Brake
47750	47750-12B00	Cylinder Assy, Disc Brake, Lh
47750	47750-52191	Cylinder Assy, Disc Brake, Lh
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47781	47781-52030	Cover, Disc Brake Dust, Front Rh
47782	47782-52030	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-12640	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
04465-52260	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
04478-12120	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
04478-52070	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
04945-52130	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
04947-42050	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47715-12A10	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47715-52190	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47721-52191	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47722-52191	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47730-12B00	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47730-52191	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47731-52190	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47750-12B00	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47750-52191	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47781-52030	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
47782-52030	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([07.2012 - ] (1207- ))
