Abs modulator (RH) 7

#	OEM	部品名
1	57101-S2A-003	Rubber - ABS MOUNTING
2	57102-S2A-003	Bolt - ABS MOUNTING
3	57110-SL0-Z03	Modulator assy
4	57115-SL0-003	Bracket - MODULATOR
5	57116-SL0-000	Bracket - MODULATOR
6	57119-SL0-900	Guard - MODULATOR
7	90170-SL0-000	Bolt - FLANGE, 10X50

Accelerator sensor (RH) 5

#	OEM	部品名
1	17256-PD6-000	Rubber - RESONATOR MOUNTING
2	36614-PR7-000	Bracket comp. - ACTUATOR
3	36641-PP8-000	Collar - ACTUATOR MOUNT
4	37970-PR7-J01	Bracket assy - ACCELERATOR SENSOR
5	37996-PR7-J00	Cover - ACCELERATOR SENSOR

Air cleaner (3.0L) 32

#	OEM	部品名
1	17210-PR7-A50	Cover comp. - AIR CLEANER
1	17210-PR7-A02	Cover comp. - AIR CLEANER
2	17212-PN3-000	Rubber, AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING
4	17220-PR7-A00	Element assy. - AIR CLEANER
4	17220-PR7-505	ELEMENT ASSY, AIR
5	17225-PR7-A40	Tube comp - AIR FLOW
7	17241-PR7-A01	Case comp. - AIR CLEANER
8	17243-PR7-G12	Duct comp - AIR INTAKE
9	17246-PR7-G10	Joint - AIR INTAKE PIPE
10	17247-PR7-A10	Tube - RESONATOR CONNECTING
11	17249-PR7-A00	Collar - AIR DUCT
12	17250-PR7-A01	Chamber assy - RESONATOR
13	17255-PR7-A00	Stay a - AIR CLEANER
14	17256-PD6-000	Rubber - RESONATOR MOUNTING
16	17256-PR7-000	Stay b - AIR CLEANER
17	17257-PR7-A30	Stay c - AIR CLEANER
18	17259-PE0-661	Collar - MOUNTING
19	17259-PR7-A00	Stay - AIR INTAKE DUCT
20	17260-PE0-660	Rubber - MOUNTING
21	17273-PR7-G03	Label - AIR CLEANER
22	17281-PR7-A01	Branch - SIDE
23	17314-PR7-A01	Clamp - AIR CLEANER
24	17315-PR7-A01	Clamp - AIR FLOW TUBE
25	90001-PR7-A00	Bolt-washer - 6X25 (DACRO COATING)
26	90091-PE2-000	Bolt-washer - 5X25
27	90602-P5A-003	Clamp - TUBE (D25)
28	90802-PR7-A01	Rivet - 6MM
28	90677-SL0-003	Clip - TRUNK LINING
29	91405-679-004	Clamp - TUBE (D17)
29	91405-PM5-004	Clamp - TUBE (D17)

Air conditioner (COMPRESSOR) 26

#	OEM	部品名
1	38801-P45-G01	Valve sub assy. - SAFETY
2	38810-P9K-E01	Compressor comp. - DENSO
3	38812-PH1-003	Ring b - SNAP
4	38812-671-003	Ring a - SNAP
5	38816-PH1-003	Clip - LEAD WIRE
6	38827-PH7-003	Screw-washer - 5X8
7	38829-PR3-003	Bolt - WASHER HEAD
8	38838-PR7-A01	Valve - SUCTION SERVICE
9	38839-PR7-A01	O-ring
10	38840-PC1-003	Bolt b
11	38900-PR7-A04	Clutch set
12	38912-PH1-N01	Plate set - WASHER
13	38920-PR7-A02	Belt - COMPRESSOR (MITSUBOSHI)
13	38920-PR7-305	Belt
13	38920-PR7-A04	Belt - COMPRESSOR (BANDO)
14	38924-PR7-A01	Stator set
15	38926-PR7-A00	Stay - IDLE PULLEY
16	38930-PR7-A01	Bracket - COMPRESSOR
17	38934-PR7-A00	Bolt - COMPRESSOR ADJUSTING
18	38936-PR7-A00	Nut - SPECIAL, 8MM
19	38942-PR7-A00	Pulley comp - IDLE
20	38944-PM3-000	Collar - IDLE PULLEY (10X17X15.5)
21	38945-PM3-000	Cover - BEARING
22	38946-PR7-A01	Shaft - IDLE PULLEY
23	90017-PE0-000	Washer - 10MM
24	90058-PG6-000	Nut-washer - 10MM

Air conditioner (CONDENSER) 15

#	OEM	部品名
1	19017-PK1-004	Clip - HARNESS(T.RAD)
2	57358-SB0-800	Mount a - PUMP BRACKET
3	80101-SL0-A02	Condenser comp. - R.
4	80107-SL0-A00	Rubber - CONDENSER MOUNTING
5	80111-SL0-A02	Condenser comp. - L.
6	80141-SL0-A00	Stay - COUPLER
7	80142-SL0-A01	Collar - CONDENSER
8	80143-SL0-A00	Collar - DISTANCE
9	80151-SL0-A01	Motor - COOLING FAN
10	80152-SL0-A01	Fan comp - COOLING
11	80160-SL0-A01	Shroud comp.
12	80191-SL0-A03	Duct - R. CONDENSER
13	80196-SL0-A03	Duct - L. CONDENSER
14	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
15	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)

Air conditioner (HOSES/PIPES; RH) 28

#	OEM	部品名
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80310-SL0-A02	Hose comp. - SUCTION
3	80315-SL0-A02	Hose comp. - DISCHARGE
4	80321-SL0-013	Pipe a - SUCTION
5	80325-SL0-A02	Pipe a - DISCHARGE
6	80327-SL0-023	Pipe c - DISCHARGE
7	80331-SL0-A02	Pipe a - CONDENSER
8	80333-SL0-A03	Pipe c - CONDENSER
9	80341-SL0-033	Pipe - RECEIVER
10	80351-SL0-901	Receiver comp
10	80351-SL0-305	Receiver
11	80352-SL0-A01	Bracket - LIQUID TANK
12	80362-SL0-A01	Clamp a - AIR CONDITIONER PIPE
13	80363-SL0-A00	Clamp - AIR CONDITIONER PIPE (FUEL TANK)
14	80364-SL0-A01	Clamp b - AIR CONDITIONER PIPE
15	80366-SL0-A02	Bracket a - AIR CONDITIONER PIPE
16	80367-SL0-A02	Bracket b - AIR CONDITIONER PIPE
17	80371-SL0-A01	Clamp - DISCHARGE PIPE
18	80381-SL0-A01	Clamp - RECEIVER PIPE
19	80440-SL0-901	Switch - TRI PRESSURE
20	80865-SL0-003	Cap - VALVE (H)
21	80866-SL0-003	Cap - VALVE(L)
22	80871-SL0-900	O-ring - 5/8"
23	80872-SL0-900	O-ring - 1/2"
24	80873-SL0-900	O-ring - 8MM
25	80874-SL0-900	O-ring - 3/8"
26	91531-SL0-A01	Clip - CONDENSER PIPE
27	91580-SL0-A01	Clamp - CONDENSER PIPE

Air conditioner (SENSOR) 3

#	OEM	部品名
2	80520-SL0-A01	Sensor assy - AMBIENT
3	80530-SL0-A01	Aspirator assy.
4	90102-SE0-010	Bolt assy. c - BUMPER

Air pump 9

#	OEM	部品名
1	18760-PR7-003	Pump assy. - AIR
2	18761-PR7-000	Base comp. - AIR PUMP
3	18762-PCX-003	Grommet
4	18763-PCX-003	Screw
5	18785-PR7-000	Hose a - SECOND AIR DISCHARGE
6	18798-PR7-000	Hose e - SECOND AIR SUCTION
7	19517-KM9-000	Clip - WATER HOSE
8	90322-S10-003	Nut - CAP, 8MM
9	91536-SR3-003	Clip - SUCTION PIPE (BLACK)

Alternator (DENSO) 21

#	OEM	部品名
1	31100-PR7-J01	Alternator assy - CLG18) (DENSO
2	31101-PY3-J01	Rotor assy.
3	31105-PR7-A01	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR
6	31118-PT0-003	Bush - INSULATION
7	31119-PR7-A01	Bush - INSULATION
8	31127-PR7-A02	Rectifier assy.
9	31135-PR7-A02	Cover - RR. END
10	31138-PD1-004	Cover - BEARING
11	31141-PR7-A01	Pulley
12	31142-PD1-004	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68
14	31146-PT0-003	Screw
15	31147-PT0-003	Screw-washer
16	31147-P13-003	Screw
17	31148-PT0-003	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER
19	31150-PR7-J01	Regulator assy
20	90231-PD1-014	Nut-washer - 5MM
21	90232-PR7-A01	Nut - HEX., 8MM

Alternator bracket 11

#	OEM	部品名
1	31110-PR7-A12	Belt - ALTERNATOR (MITSUBOSHI)
2	31112-PR7-A01	Bracket comp. - ALTERNATOR
3	31113-PR7-A00	Plate - ALTERNATOR ADJUSTER
4	31114-PR7-A00	Bolt - ALTERNATOR TENSIONER
5	31116-PR7-A00	Bracket b - ALTERNATOR
6	31117-PR7-A02	Hanger - ENGINE
7	31120-PR7-A00	Grommet - ACG BRACKET
8	31125-PR7-A00	Cover comp. - BELT
9	37845-PR7-A00	Stay - CRANK CYLINDER SENSOR COUPLER
10	90016-PA9-000	Bolt - FLANGE, 10X90
11	90043-PR7-A00	Bolt - ADJUSTING, 8X80

Auto air conditioner control 2

#	OEM	部品名
1	79610-SL0-A02	COMPUTER ASSY., AUTO AIR CONDITIONER
3	79670-SL0-A01	Bulb - NEO WEDGE (14V 100MA)

Auto radio/antenna/ speaker 23

#	OEM	部品名
2	39113-SL0-901	Knob - VOLUME (A)
3	39114-SL0-901	Knob - VOLUME (B)
4	39115-SL0-901	Knob assy - VOLUME
5	39116-SL0-921	Knob assy - TUNER
6	39117-SL0-003	Knob - BALANCE CONTROL
7	39118-SL0-003	Knob - TREBLE
8	39119-SL0-003	Knob - BASS
9	39130-SL0-A00	Enclosure assy. - R. FR. (BOSE)
10	39135-SL0-A00	Enclosure assy. - L. FR. (BOSE)
11	39140-SL0-A02	Enclosure assy. - WOOFER (BOSE)
12	39150-SL0-G04	Antenna assy - MOTOR
13	39151-SL0-003	Bracket - MOTOR ANTENNA
14	39152-SL0-A01	Mast assy.
15	39153-SL0-G03	Motor assy.
16	39154-SR4-013	Nut
17	39156-SL0-013	Insulator
18	39160-SL0-A02	Sub feeder - GLASS ANTENNA
20	39168-SL0-A01	Cylinder
21	39170-SD4-A00	Valve - RR. MOTOR ANTENNA DRAIN
22	39179-SL0-G02	Tube comp
23	90101-SA4-000	Screw - TAPPING, 4X12
25	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)
27	91555-SM4-003	Clip - COUPLER (RED)

Battery 20

#	OEM	部品名
1	31500-SL0-E81	Battery assy - 80D26L-MF) (PANASONIC
2	31512-SL0-010	Plate - BATTERY SETTING
3	31513-SL4-000	Bolt - BATTERY SETTING (220MM)
4	31521-SL0-000	Box assy, BATTERY
5	31542-SA5-665	Plug - VENT (MF) (PANASONIC)
6	32410-SL0-003	Cable assy - STARTER
7	32411-SL0-000	Bracket e - STARTER
8	32412-SL0-000	Bracket f - STARTER
9	32414-SL0-000	Bracket c - STARTER CABLE
10	32416-SL0-000	Bracket a - STARTER
11	32417-SL0-000	Bracket b - STARTER CABLE
12	32600-SL0-003	Cable assy - EARTH
13	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)
14	32601-SK7-900	Bolt - BATTERY TERMINAL
15	32601-SL0-000	Bracket d - STARTER CABLE
16	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)
17	32602-SK7-900	Nut - BATTERY TERMINAL
18	32749-PR7-J00	Clamp - STARTER CABLE
19	90307-SL0-000	Washer - ALUMINIUM, 20MM
20	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Body structure components 27

#	OEM	部品名
1	11299-PR7-J00	Guard - ENGINE UNDER
2	50110-SL0-000	Rod - R. CENTER
3	50120-SL0-000	Rod - L. CENTER
4	60822-SL0-010	Hook - FR. TRACTION
5	60831-SL0-000	Hook - R. FR. TIE DOWN
6	60931-SL0-000	Hook - L. FR. TIE DOWN
8	61175-SL0-000	Pin - STEERING HANGER BEAM
9	74262-SL0-000	Cover - R. RR. UNDER
10	74619-SJ6-000	Shelter - L. OUTLET
11	74622-SL0-020	Insulator - RR. CENTER BULKHEAD
12	74623-SL0-010	Insulator - ENGINE MAINTENANCE LID
13	74657-SL0-000	Hook - TIE DOWN
14	74662-SL0-000	Cover - L. RR. UNDER
15	74690-SL0-T00	Bracket comp. - RR. SHOCK ABSORBER
16	74692-SL0-020	Bracket comp. - R. DUMPER BAR UPPER
17	74693-SL0-020	Bracket comp. - L. DUMPER BAR UPPER
18	74701-SL0-010	Fender - R. RR. INNER
19	74713-SL0-000	Cover - FR. FLOOR UNDER
20	74716-SL0-000	Plate - FR. CENTER BULKHEAD TIE
21	74751-SL0-010	Fender - L. RR. INNER
22	75450-SM4-000	Outlet assy - RR. AIR
23	90114-SZ3-000	Screw-washer - 5X20
24	90133-SL0-000	Bolt - INSULATOR, 6MM
25	90161-SL0-000	Bolt - FLANGE, 10X30
26	90661-SJ8-003	Grommet - SCREW, 5MM
27	90663-SB0-003	Grommet - SCREW, 5MM(YELLOW)
28	91545-SE0-003	Clip assy. - 8MM

Brake lines (ABS; RH) 43

#	OEM	部品名
1	01464-SL0-J00	Hose set - R. FR. BRAKE
2	01465-SL0-J00	Hose set - L. FR. BRAKE
3	01466-SL0-J00	Hose set - R. RR. BRAKE
4	01468-SL0-J00	Hose set - L. RR. BRAKE
5	17712-SA0-000	Grommet - FUEL PIPE
6	46210-SL0-003	Valve assy. - PROPORTIONING
7	46215-SL0-000	Bracket - PROPORTIONING VALVE
8	46330-SL0-J01	Pipe comp. c - BRAKE
9	46331-SL0-010	Pipe comp. e - R. BRAKE
10	46340-SL0-900	Pipe comp. d - BRAKE
11	46341-SL0-003	Protector - BRAKE PIPE
12	46361-SL0-J00	Pipe comp. e - L. BRAKE
13	46372-SL0-N00	Pipe comp. s - BRAKE
14	46373-SL0-N00	Pipe comp. t - BRAKE
15	46374-SL0-N00	Pipe comp. u - BRAKE
16	46375-SL0-N00	Pipe comp. v - BRAKE
17	46376-SL0-N00	Pipe comp. w - BRAKE
18	46377-SL0-N00	Pipe comp. x - BRAKE
19	46378-SL0-N01	Pipe comp. y - BRAKE
20	46379-SL0-N01	Pipe comp. z - BRAKE
21	46380-SH3-000	Grommet a - BRAKE PIPE
22	46382-SA0-300	Grommet a - BRAKE PIPE
23	46390-SL0-J00	Rubber - PIPE CLAMP
24	46391-SL0-010	Clip A - BRAKE PIPE
25	46392-SE0-000	Clip - BRAKE PIPE
26	46392-SL0-003	Clip d
27	46392-SM4-961	Clip - BRAKE PIPE
28	46393-SL0-020	Clip b - BRAKE PIPE
29	46394-SL0-000	Clip c - BRAKE PIPE
30	46395-SL0-J00	Clamp - BRAKE PIPE
31	46395-SM4-951	Clip - BRAKE PIPE
32	46396-SL0-003	Clip - BRAKE PIPE
33	46428-SL0-020	Bracket - R. FR. BRAKE HOSE
34	46429-SL0-020	Bracket - L. FR. BRAKE HOSE
35	46438-SL0-010	Bracket - R. RR. BRAKE HOSE
36	46439-SL0-010	Bracket - L. RR. BRAKE HOSE
37	46460-SL0-000	Joint - BRAKE TWO WAY
38	46462-SE0-000	Bolt - OIL
39	46470-SL0-J00	Joint - BRAKE SIX WAY
40	46472-568-000	Packing - OIL BOLT
41	46475-SL0-J01	Bracket - SIX WAY JOINT
42	46977-SL0-J01	Clip - CLUTCH & BRAKE
43	90651-538-000	Clip - BRAKE HOSE

Brake master cylinder/ master power 19

#	OEM	部品名
2	46100-SL0-954	Cylinder assy. MASTER (NISSIN)
3	46138-SM4-003	Packing
4	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
5	46185-SE0-003	Seal - ROD
6	46191-634-000	Gasket - MASTER CYLINDER BRACKET
7	46400-SL0-J02	Power assy. - MASTER (7"+8")
8	46512-S70-000	Pin - PEDAL
9	46660-SM4-013	Tank - RESERVE
10	46662-SL0-003	Cap assy. - RESERVOIR
11	46665-ST5-003	Band - RESERVE TANK
12	46666-SE3-013	Filter - MASTER CYLINDER
13	46669-SE3-003	Seal - RESERVE TANK
14	46911-S70-003	Pin, LOCK(8MM)
15	57173-SB0-801	O-ring - CONNECTOR
16	57515-SM4-013	Bolt comp - STOPPER
17	57520-SL0-953	Piston assy. - PRIMARY
18	57540-SL0-953	Piston assy. - SECONDARY
19	57560-SD4-003	Guide assy - PISTON
20	57562-SF1-003	Circlip

Camshaft/timing belt 18

#	OEM	部品名
1	14111-PR7-A10	Camshaft - INTAKE (FR.)
2	14121-PR7-A10	Camshaft - EX. (FR.)
3	14211-PR7-A10	Camshaft - INTAKE (RR.)
4	14221-PR7-A10	Camshaft - EX. (RR.)
5	14260-PR7-A01	Pulley comp - TIMING BELT DRIVEN (FR. IN.)
6	14270-PR7-A01	Pulley comp - TIMING BELT DRIVEN
7	14290-PR7-A01	Pulley comp - TIMING BELT DRIVEN (RR. EX.)
8	14400-PR7-A01	BELT, TIMING (UNITTA)
9	14510-PR7-A01	Adjuster comp - TIMING BELT
10	14516-PR7-A00	Spring comp - TIMING BELT ADJUSTER
11	37840-PR7-A03	Sensor assy, CYLINDER CRANK
12	90016-P0G-A00	Bolt - SPECIAL TIMING BELT ADJUSTER
13	90021-PL2-000	Bolt - FLANGE, 6X20
14	90031-PV0-003	Bolt-washer - 10X30
14	90031-PV0-305	Bolt-washer (10x30)
15	90401-634-000	Rubber - TIMING BELT ADJUSTER
16	90501-MB7-610	Washer - 10.3X25
17	91213-PR7-A01	Oil seal - 29X43X8

Canister/fuel strainer (2) 27

#	OEM	部品名
1	16010-SL0-933	Strainer set - FUEL
2	16712-SF4-J30	Cushion - FUEL STRAINER
3	16918-SL0-931	Stay - FUEL STRAINER
4	16919-SK7-930	Band - FUEL STRAINER
5	16922-SH3-930	Rubber - MOUNTING
6	16923-SL0-930	Collar - DISTANCE
7	17300-S05-J01	Canister assy
8	17315-S84-A02	Filter, Canister
9	17372-SL0-961	Tube a - DRAIN (AT)
10	17373-SL0-A61	Tube - FILTER DRAIN (AT)
11	17374-SL0-960	Tube - FILTER DRAIN (AT)
12	17378-SL0-A60	Stay - FILTER DRAIN (AT)
13	17701-SA7-930	Rubber - FUEL PIPE INSULATOR
14	17723-SL0-931	Hose - PRESSURE REGULATOR RETURN (280MM)
15	17740-SL0-030	Pipe comp - FUEL RETURN
16	17742-S84-A01	Joint - DRAIN TUBE
17	17745-SL0-000	Stay - RETURN PIPE CLAMP
18	17746-SL0-930	Clamp - RETURN PIPE
19	53729-SS0-003	Clip - RETURN HOSE
20	90008-PD6-010	Bolt - BANJO, 12MM
20	90008-PP4-E02	Bolt - BANJO, 12MM
21	90009-PE2-010	Bolt - SEALING, 6MM
21	90009-RMX-010	Bolt,sealing 6mm
22	90428-PD6-003	Washer - SEALING, 12MM
23	90430-PD6-003	Washer - SEALING, 6MM
24	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
25	91591-SL0-951	Clamp - FUEL TUBE

Cd changer 9

#	OEM	部品名
1	39118-SZ3-003	Tray - MAGAZINE
2	39119-S3V-A01	Magazine assy. - CD
3	39180-SL0-003	Changer unit - CD
4	39181-SL0-000	Stay - L. CD CHANGER
5	39182-SL0-000	Stay - R. CD CHANGER
6	39183-SL0-000	Bar - CD CHANGER PROTECTION
7	39184-SL0-000	Bracket assy - R. CD CHANGER
8	39185-SL0-000	Bracket assy - L. CD CHANGER
9	39186-SL0-000	Bracket - CD CHANGER

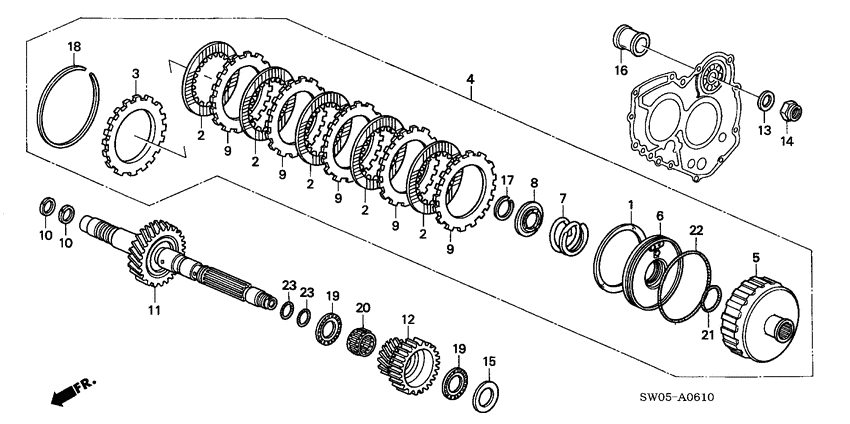

Clutch (LOW HOLD/THIRD) 30

#	OEM	部品名
1	22537-PR9-003	Spring - CLUTCH DISK
2	22537-PX4-003	Spring - CLUTCH DISK (L-H) (NIPPON HATSUJO)
3	22540-PR9-000	Piston comp - THIRD CLUTCH
4	22543-PX4-003	Plate - LOW CLUTCH
5	22544-PR9-013	Disk - SECOND CLUTCH
6	22545-PX4-A03	Disk - SECOND CLUTCH
7	22555-PX4-003	Plate - CLUTCH END (5) (2.5MM)
7	22557-PX4-003	Plate - CLUTCH END (7) (2.7MM)
7	22552-PX4-003	Plate - CLUTCH END (2) (2.2MM)
7	22559-PX4-003	Plate - CLUTCH END (9) (2.9MM)
7	22554-PX4-003	Plate - CLUTCH END (4) (2.4MM)
7	22556-PX4-003	Plate - CLUTCH END (6) (2.6MM)
7	22551-PX4-003	Plate - CLUTCH END (1) (2.1MM)
7	22558-PX4-003	Plate - CLUTCH END (8) (2.8MM)
7	22553-PX4-003	Plate - CLUTCH END (3) (2.3MM)
8	22570-PR9-000	Piston comp - CLUTCH (L-H)
9	22573-PR9-000	Seat - RETURN SPRING (L-H)
10	22575-PR9-003	Spring - CLUTCH RETURN (L-H)
11	22650-PR9-010	Clutch assy. - THIRD
12	22651-PR9-013	Guide comp - THIRD CLUTCH
13	22652-PR9-004	Spring - THIRD CLUTCH RETURN
14	22653-PR9-000	Seat - THIRD RETURN SPRING
15	22653-PX4-003	Plate - CLUTCH (2.3MM)
16	22655-PR9-003	Guide comp - CLUTCH (L-H)
17	22660-PR9-000	Clutch assy - L-H
18	90603-PG4-000	Circlip - EXTERNAL, 43MM
19	90605-PX4-000	Ring - SNAP, 129MM
20	91001-PX4-003	Bearing - BALL, 40X68X9 (NTN)
21	91302-PG4-003	O-ring - 42.8X2.2 (ARAI)
22	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch (LOW/TOP) 42

#	OEM	部品名
1	22500-PR9-010	Clutch assy. - LOW
2	22511-PR9-013	Guide comp - LOW CLUTCH
3	22520-PR9-000	Piston comp - LOW CLUTCH
4	22537-PX4-003	Spring - CLUTCH DISK (L-H) (NIPPON HATSUJO)
5	22538-PG4-003	Spring - LOW CLUTCH DISK
6	22540-PR9-000	Piston comp - THIRD CLUTCH
7	22542-PR9-004	Spring - LOW CLUTCH RETURN
8	22545-PX4-003	Disk - SECOND CLUTCH
9	22558-PX4-003	Plate - CLUTCH END (8) (2.8MM)
9	22553-PX4-003	Plate - CLUTCH END (3) (2.3MM)
9	22555-PX4-003	Plate - CLUTCH END (5) (2.5MM)
9	22557-PX4-003	Plate - CLUTCH END (7) (2.7MM)
9	22552-PX4-003	Plate - CLUTCH END (2) (2.2MM)
9	22559-PX4-003	Plate - CLUTCH END (9) (2.9MM)
9	22554-PX4-003	Plate - CLUTCH END (4) (2.4MM)
9	22556-PX4-003	Plate - CLUTCH END (6) (2.6MM)
9	22551-PX4-003	Plate - CLUTCH END (1) (2.1MM)
10	22634-PR9-003	Plate - CLUTCH END (4) (2.4MM)
10	22636-PR9-003	Plate - CLUTCH END (6) (2.6MM)
10	22631-PR9-003	Plate - CLUTCH END (1) (2.1MM)
10	22638-PR9-003	Plate - CLUTCH END (8) (2.8MM)
10	22633-PR9-003	Plate - CLUTCH END (3) (2.3MM)
10	22635-PR9-003	Plate - CLUTCH END (5) (2.5MM)
10	22637-PR9-003	Plate - CLUTCH END (7) (2.7MM)
10	22632-PR9-003	Plate - CLUTCH END (2) (2.2MM)
10	22639-PR9-003	Plate - CLUTCH END (9) (2.9MM)
11	22643-PR0-003	Plate a - SECOND CLUTCH
12	22648-PR9-000	Seat - RETURN SPRING
13	22652-PR9-004	Spring - THIRD CLUTCH RETURN
14	22653-PR9-000	Seat - THIRD RETURN SPRING
15	22653-PX4-003	Plate - CLUTCH (2.3MM)
16	22670-PR9-010	Clutch assy - TOP) (###
17	22671-PR9-013	Guide comp - CLUTCH (TOP)
18	22674-PR9-003	Disk - CLUTCH (TOP)
19	90603-PA9-000	Circlip - EXTERNAL, 40MM
20	90603-PG4-000	Circlip - EXTERNAL, 43MM
21	90605-PF4-000	Ring - SNAP, 125MM
22	90605-PX4-000	Ring - SNAP, 129MM
23	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)
24	91302-PG4-003	O-ring - 42.8X2.2 (ARAI)
25	91303-PF4-004	O-ring - 110X2.2 (NOK)
26	91303-PX4-004	O-ring - 114X2.2 (NOK)

Clutch master cylinder (RH) 2

#	OEM	部品名
11	46921-SF1-980	Plate - MASTER CYLINDER HOLE
13	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER

Combination switch (RH; 1) 17

#	OEM	部品名
1	35010-SL0-U10	Cylinder set - KEY
2	35100-SL0-U11	Lock assy - STEERING
3	35102-SP0-003	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED
5	35105-SL0-A12	Ring - IGNITION KEY ILLUMINATION
6	35106-SL0-003	Cover a - ILLUMINATION RING
7	35107-SL0-013	Cover b - ILLUMINATION RING
8	35113-SL0-G01	Key - BLANK (MAIN)
8	35114-SL0-G01	Key - BLANK (SUB)
10	35130-SL0-003	Switch comp - STEERING
12	35252-SL0-A00	Cushion - SWITCH LEVER
13	35254-SL0-A00	Cushion - SHIFT LEVER SWITCH
14	35505-692-003	Bulb - 14V 1.4W
15	53271-SL0-003	Cam - TURN SIGNAL SWITCH
16	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
17	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
18	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)

Console (RH) 30

#	OEM	部品名
1	19034-MB3-000	Grommet - RADIATOR SETTING
2	35505-692-003	Bulb - 14V 1.4W
3	39600-SL0-A01	Lighter assy - CIGARETTE
4	66418-579-000	Stopper - GLOVE BOX LID
5	77132-SL0-010	Bracket - RR. CONSOLE
6	77152-SL0-A00	Bracket - R. ASHTRAY OUTER
7	77157-SL0-A00	Bracket - L. ASHTRAY OUTER
11	77710-SL0-A01	Inner comp. - FR. ASHTRAY
12	77721-SD4-Y01	Protector - CIGARETTE LIGHTER
13	77731-SL0-013	Outer comp - ASHTRAY
14	77732-SL0-G01	Panel - ASHTRAY
17	83408-SL0-A90	Hinge - FR. ARMREST
18	83409-SL0-A90	Hinge - RR. ARMREST
19	83411-SL0-A90	Lock - ARMREST
21	83413-SL0-A90	Lock - COVER
24	83421-SL0-N90	Cover - FR.
25	83422-SL0-N90	Cover - RR.
26	83423-SL0-N90	Tray - ARMREST
27	83424-SL0-N90	Tray - ARMREST LOWER
28	83426-SL0-A90	Hinge assy - SLIDE
30	90144-SP0-000	Screw - TAPPING, 4X16 (PO)
31	90146-SL0-A90	Screw - TAPPING, 4X10
32	90146-SP0-000	Screw - TAPPING, 4X12 (PO)
33	90147-SL0-A90	Bolt - HEX., 4X8
34	90148-SL0-A90	Screw - TAPPING, 4X12
35	90302-SA4-003	Nut - SPRING, 4MM
36	90651-SL0-A90	Nut - CENTER PANEL
38	90666-SD4-003	Clip - FITTING
39	91555-SM4-003	Clip - COUPLER (RED)
40	91641-SM4-003	Grommet - SCREW, 4MM

Control box cover 7

#	OEM	部品名
1	36020-PR7-J02	Cover
2	36034-PR7-J02	Stay comp
3	36037-PR7-A02	Bracket - IGNITION TIMING ADJUSTER
4	36361-PR7-A01	Tank comp. - VACUUM
5	36620-PR7-A01	Plate
6	90041-PH2-004	Screw-washer - 5X8
7	90041-PR7-A01	Screw-washer - 6X12

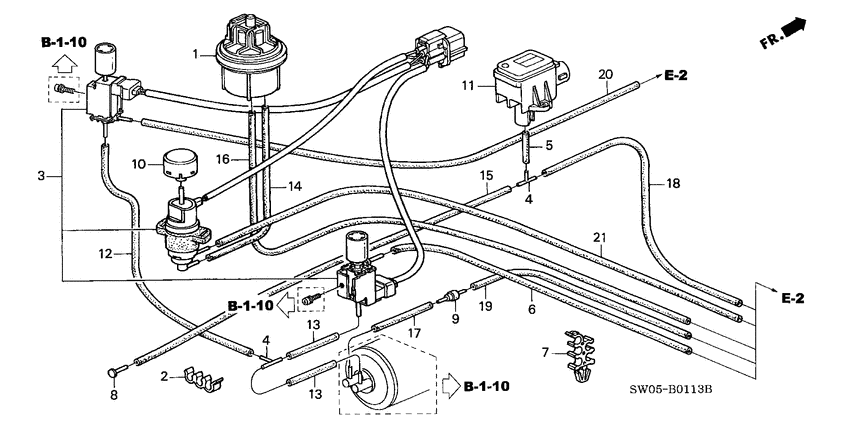

Control box tubing (3.0L; 2) 11

#	OEM	部品名
1	17290-PR7-A01	Valve assy. - CONTROL
2	17361-PC6-000	Clamp - TUBE, 7.5X3
3	36003-PR7-000	Valve set - SOLENOID
4	36010-PA6-004	Joint - THREE WAY
5	36013-PG7-661	Holder - SOLENOID, 3.5MM
6	36013-PR7-A01	Tube - CHAMBER CONTROL SOLENOID
7	36024-PM8-A01	Holder - TUBE
8	36034-PM6-901	Plug - SEALING
9	36145-PM4-004	Valve - CHECK
10	36194-PD2-661	Filter assy - AIR
11	37830-P13-003	Sensor assy - MAP

Control unit (ECU) 18

#	OEM	部品名
1	28100-PR7-E03	Control unit - AT
2	32165-SL0-000	Holder - CONNECTOR
3	35150-SL0-A01	Controller - ILLUMINATION (NS)
4	35154-SL0-A01	Controller assy - ILLUMINATION
5	37735-PR7-A01	Control unit - RADIATOR FAN
6	37820-PR7-U71	Control module - ENGINE
8	38370-SL0-013	Control unit - POWER WINDOW
9	38371-SL0-000	Bracket - POWER WINDOW COUPLER
10	39400-SL0-A01	Relay assy - MAIN
12	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
12	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
15	39900-SL0-053	Tcs unit
16	39940-S30-003	Sensor assy - ACCELERATION
19	90662-SB2-003	Grommet - SCREW, 5MM
20	91565-SD5-003	Clip - COUPLER(NATURAL)
27	39797-SE3-003	Relay assy - POWER (4P) (DENSO) (056700-85700)
28	39797-SX0-003	Relay assy - POWER (4P) (MITSUBA)
30	39500-SL0-A11	Control assy. - INTERLOCK

Control unit (EPS; RH) 18

#	OEM	部品名
1	35258-SL0-J01	Holder - FLASHER RELAY
2	38200-SL0-013	Box assy - FUSE
3	38205-SL0-G01	Label - FUSE
4	38235-SA5-003	Puller - FUSE (SUMITOMO)
5	38300-SL0-013	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
6	38301-SL0-J00	Holder - COUPLER (RH)
7	38380-SL0-E02	Control unit - AUTO DOOR LOCK
8	38600-SL0-E01	Control unit - INTEGRATED
9	39792-SL0-020	Bracket - UNIT
10	39795-SL0-020	Cover - UNIT
11	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)
11	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
13	39980-SL0-A03	Eps unit
13	39980-SL0-073	Eps unit
14	39982-SL0-000	Bracket b - EPS UNIT
15	53740-SL0-010	Bracket a - POWER UNIT (RH)
16	53742-SL0-010	Bracket c - POWER UNIT (RH)
17	53743-SL0-000	Bracket d - POWER UNIT

Control unit (PHONE/RELAY/ FUSE; RH) 25

#	OEM	部品名
1	38100-SP0-911	Horn assy - LOW
3	38192-SZ3-003	Cover - MULTI RELAY
5	38211-SM4-003	Fuse - BLOCK (30A)
6	38212-SM4-003	Fuse - BLOCK (40A)
7	38213-SM4-003	Fuse - BLOCK (50A)
8	38250-PCX-A01	Case assy. - ELECTRONIC CONTROL SENSOR
9	38251-PR7-000	Bracket - SENSOR
10	38251-SL0-N33	Cover assy. - UPPER (S)
11	38255-PCX-A01	Sensor assy - EC
12	38310-SL0-J00	Bracket - SECURITY HORN
13	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)
14	39762-S73-A01	Relay assy - LIGHT (DENSO) (4P NO.305)
15	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
16	39794-PR7-003	Contactor assy.
17	39794-S04-003	Relay assy - POWER (4P) (MICRO ISO) (MITSUBA)
17	39794-S04-014	Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA)
17	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
17	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)
18	39796-SL0-003	Relay assy - POWER (4P) (MITSUBA) (RC-2200) (GRAY)
19	90138-SM4-003	Bolt-washer - 8X14
20	90153-SB2-003	Screw-washer - 5X10
29	90114-SM4-900	Bolt - 6X15
30	38150-SR3-K01	Horn assy - HIGH
32	39794-SDA-A01	Relay assy - POWER(MICRO ISO) (MITSUBA)
32	39794-SDA-A04	Relay assy - POWER(MICRO ISO) (MATSUSHITA)

Control unit (RESISTOR) 15

#	OEM	部品名
1	16717-PR7-J01	Resistor assy. - FUEL PUMP
2	16718-PR7-A01	Stay - FUEL PUMP RESISTOR
3	30700-SL0-003	Resistor assy.
4	30701-PR7-000	Bracket - RESISTOR
6	37950-P5A-A02	Detection unit - MISFIRE
7	37955-PR7-A31	Bracket - MISFIRE DETECTION UNIT
8	38181-SL0-013	Cover - UPPER (A)
9	38211-SM4-003	Fuse - BLOCK (30A)
10	38212-SM4-003	Fuse - BLOCK (40A)
11	38214-SS1-003	Fuse - BLOCK (60A)
12	38220-SL0-003	Fuse - BLOCK (120A)
13	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)
14	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
15	90153-SB2-003	Screw-washer - 5X10
25	90114-SM4-900	Bolt - 6X15

Cooling fan 9

#	OEM	部品名
1	19812-PR7-A02	Motor - COOLING FAN
2	19813-PR7-A02	Fan comp - COOLING
3	19815-PR7-A00	Shroud comp. - ENGINE ROOM FAN
4	32175-647-920	Clip - WIRE HARNESS
4	30701-883-000	Clip, high tension cord (8mm)
5	36619-PC6-004	Rubber - MOUNTING
6	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)
7	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)
8	90501-PR7-A00	Collar - DISTANCE

Countershaft 55

#	OEM	部品名
1	23220-PR9-010	Countershaft comp.
2	23421-PR9-000	Gear - COUNTERSHAFT LOW
3	23423-PR9-003	Clutch assy. - ONE WAY
4	23426-PR9-000	Hub - CLUTCH (L-H)
5	23427-PR9-000	Gear - PARKING
6	23441-PR9-000	Gear - COUNTERSHAFT SECOND
7	23451-PR9-000	Gear - COUNTERSHAFT THIRD
8	23471-PR9-000	Gear - COUNTERSHAFT FOURTH
9	23531-PR9-000	Gear - COUNTERSHAFT REVERSE
10	23565-PR9-000	Selector - REVERSE GEAR
11	23566-PR9-000	Hub - SELECTOR
12	23929-PX4-700	Washer - SPRING, 24MM
13	90202-PR9-010	Nut - HEX., 24MM
14	90405-PR9-000	Washer - THRUST, 44X56X1.5
15	90414-PR9-000	Collar b - DISTANCE, 38X44X41 (35.44-35.455)
15	90416-PR9-000	Collar d - DISTANCE, 38X44X41 (35.47-35.485)
15	90418-PR9-000	Collar f - DISTANCE, 38X44X41 (35.5-35.515)
15	90413-PR9-000	Collar a - DISTANCE, 38X44X41 (35.425-35.44)
15	90415-PR9-000	Collar c - DISTANCE, 38X44X41 (35.455-35.47)
15	90417-PR9-000	Collar e - DISTANCE, 38X44X41 (35.485-35.5)
16	90431-PR9-000	Retainer - COTTER (2.97/3.00)
16	90433-PR9-000	Retainer - COTTER (3.03/3.06)
16	90435-PR9-000	Retainer - COTTER (3.09/3.12)
16	90432-PR9-000	Retainer - COTTER (3.00/3.03)
16	90434-PR9-000	Retainer - COTTER (3.06/3.09)
17	90453-PR9-000	Cotter - 31.5MM (2.275-2.3)
17	90448-PR9-000	Cotter - 31.5MM (2.15-2.175)
17	90443-PR9-000	Cotter - 31.5MM (2.025-2.05)
17	90455-PR9-000	Cotter - 31.5MM (2.325-2.35)
17	90450-PR9-000	Cotter - 31.5MM (2.2-2.225)
17	90445-PR9-000	Cotter - 31.5MM (2.075-2.1)
17	90452-PR9-000	Cotter - 31.5MM (2.25-2.275)
17	90447-PR9-000	Cotter - 31.5MM (2.125-2.15)
17	90442-PR9-000	Cotter - 31.5MM (2.0-2.025)
17	90454-PR9-000	Cotter - 31.5MM (2.3-2.325)
17	90449-PR9-000	Cotter - 31.5MM (2.175-2.2)
17	90444-PR9-000	Cotter - 31.5MM (2.05-2.075)
17	90456-PR9-000	Cotter - 31.5MM (2.35-2.375)
17	90451-PR9-000	Cotter - 31.5MM (2.225-2.25)
17	90446-PR9-000	Cotter - 31.5MM (2.1-2.125)
17	90441-PR9-000	Cotter - 31.5MM (1.975-2.0)
18	90456-PW4-000	Washer - THRUST, 28X56X3.5
19	90501-PR9-000	Collar - REVERSE GEAR
20	90510-PR9-000	Collar - COUNTERSHAFT LOW GEAR (L:62.6/62.65)
20	90509-PR9-000	Collar - COUNTERSHAFT LOW GEAR (L:62.5/62.55)
21	90511-PR9-000	Collar - DISTANCE, 18MM
22	91011-PW4-003	Bearing - NEEDLE, 34X40X20
23	91023-PW4-003	Needle - THRUST, 37X57X2.5
24	91026-PR9-003	Bearing - NEEDLE, 37X43X16 (NTN)
25	91028-PR9-003	Bearing - NEEDLE, 44X52X24.5
26	91032-PR9-003	Needle - THRUST, 44X76X5
27	91033-PR9-003	Needle - THRUST, 44X83X6
28	91101-PR9-003	Bearing - NEEDLE, 35X41X23 (NTN)
29	91307-PL5-003	O-ring - 34.2X1.9
30	91308-PW4-003	O-ring - 21.8X1.9

Crankshaft/pulley 12

#	OEM	部品名
1	13014-P0G-800	Washer set - THRUST
2	13310-PR7-J00	Crankshaft comp.
3	13324-PR7-J01	Bearing d - MAIN (YELLOW) (TAIHO)
3	13321-PR7-J01	BEARING A - MAIN (BLACK) (TAIHO)
3	13323-PR7-J01	Bearing c - MAIN (GREEN) (TAIHO)
3	13325-PR7-J01	Bearing e - MAIN (PINK) (TAIHO)
3	13322-PR7-J01	Bearing b - MAIN (BROWN) (TAIHO)
4	13621-PR7-A01	Pulley - TIMING BELT DRIVE
5	13622-PR7-A00	Plate - TIMING BELT GUIDE
6	13811-PR7-A11	Pulley comp - CRANKSHAFT
7	90019-PR7-A01	Bolt-washer - 16X49
8	90704-PH7-000	Key, SPECIAL

Cross beam 30

#	OEM	部品名
1	50200-SL0-010	Beam assy - RR.
2	50205-SL0-J00	Rod comp. a - RR. BEAM
2	50205-SL0-A00	Rod comp. a - RR. BEAM
3	50206-SL0-J01	Rod comp. b - RR. BEAM
3	50206-SL0-010	Rod comp. b - RR. BEAM
4	50210-SL0-000	Bracket assy - R. RR. BEAM
5	50220-SL0-000	Bracket assy - L. RR. BEAM
6	50250-SL0-020	Beam - FR.
7	50300-SL0-010	Beam - FR. CROSS
8	50310-SL0-010	Bracket assy - R. FR. CROSS
9	50315-SL0-000	End a - FR. CROSS BRACKET
10	50317-SL0-000	End b - R. FR. CROSS BRACKET
11	50318-SL0-000	End b - L. FR. CROSS BRACKET
12	50320-SL0-010	Bracket assy - L. FR. CROSS
13	90161-SL0-000	Bolt - FLANGE, 10X30
14	90162-SL0-000	Bolt - STUD, 10X40
15	90163-SL0-000	Bolt - FLANGE, 10X40
16	90165-SL0-000	Bolt - FLANGE, 10X35
17	90166-SL0-000	Bolt - FLANGE, 10X110
18	90167-SL0-010	Bolt - FLANGE, 10X70
19	90168-SL0-010	Bolt - FLANGE, 10X105
20	90169-SL0-000	Bolt - FLANGE, 10X25
20	90168-SP0-000	Bolt - FLANGE, 10X25
21	90174-SL0-000	Bolt - FLANGE, 12X105
22	90175-SL0-010	Bolt - STUD, 12X60
23	90177-SL0-000	Bolt - FLANGE, 12X175
24	90365-SL0-000	Nut - FLANGE, 10MM
25	90367-SL0-000	Nut - FLANGE, 12MM
26	90554-SL0-000	Washer - PLAIN, 12MM
27	90555-SL0-000	Washer - PLAIN, 10MM

Cylinder block/oil pan 32

#	OEM	部品名
1	11000-PR7-J11	Block assy - CYLINDER
2	11105-PH3-000	Cap - SEALING, 35MM
3	11116-PR7-A00	Orifice - OIL CONTROL
4	11117-PR7-A00	Orifice - OIL CONTROL
5	11126-PK1-003	Bolt - SEALING, 22MM
6	11130-PH7-010	Bridge comp - BEARING CAP
7	11200-PR7-A01	Pan comp - OIL
8	11220-PR7-A00	Cover - BEARING CAP
9	11251-P0G-A00	Packing comp. - OIL PAN
10	11301-PH7-010	Case - OIL SEAL
11	11711-PL2-000	Plate comp. a - BREATHER COVER
12	11712-PL2-000	Plate comp. b - BREATHER COVER
14	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)
15	90004-PL2-J01	Bolt - FLANGE, 11X136.5
16	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
17	90009-PH7-003	Bolt - FLANGE, 9X86
18	90013-PH7-003	Bolt-washer - 10X56
19	90014-PH7-003	Bolt-washer - 10X41
20	90029-PH7-004	Bolt - PLUG, 10MM (SATO RASHI)
21	90030-PH7-000	Bolt - BREATHING
22	90040-PH7-000	Bolt - BREATHING
23	90041-PA5-000	Bolt - STUD, 6X28
24	90052-PH7-000	Bolt - FLANGE, 6X22
25	90481-463-000	Washer - 10.2MM
26	90701-679-000	Dowel pin - 8X10
27	90715-PH7-000	Dowel pin - 13X37
28	91214-PL2-004	Oil seal - 80X98X10 (ARAI)
28	91214-PNA-014	Oil seal - 80X98X10 (ARAI)
28	91214-PL2-003	Oil seal
29	91301-PR7-A00	O-ring - 28.7X3.5
30	91305-PH7-003	O-ring - 12.5X2.4
31	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)

Cylinder head (FRONT) 25

#	OEM	部品名
1	12100-PR7-000	Head assy - FR. CYLINDER
2	12204-PR7-305	Guide - IN. VALVE (OS)
3	12205-PR7-305	Guide - EX. VALVE (OS)
4	12206-PH7-300	Bolt - SEALING, 16MM
5	12207-PC6-300	Washer - SEALING, 16MM
6	12208-PG6-300	Screw - SEALING
7	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
8	12211-PZ1-004	Seal b - VALVE STEM(NOK)
9	12235-PR7-A00	Pipe comp - EX. FR. CAM HOLDER
10	12236-PR7-A00	Pipe comp - IN. FR. CAM HOLDER
11	12251-PR7-A01	Gasket - CYLINDER HEAD (ISHINO GASKET)
12	12513-PR7-A00	Rubber comp - HEAD COVER SEAL
13	90004-PE2-005	Bolt - SEALING, 10MM
14	90004-PT2-000	Bolt - FLANGE, 6X35
14	90003-PT2-000	Bolt - FLANGE, 6X35
15	90005-PH7-003	Bolt-washer - 11X164
16	90007-PR7-A00	Bolt - FLANGE, 8X52
17	90014-PR7-A01	Bolt a - HEAD COVER
18	90015-PR7-A00	Bolt b - HEAD COVER
19	90021-P0G-A00	Bolt - STUD, 8X41
20	90401-PE2-003	Washer - SEALING, 10MM
21	90701-679-000	Dowel pin - 8X10
22	90719-PH7-000	Dowel pin - 13X37
23	91308-PH9-000	O-ring - 8.8X1.9
23	91302-GE0-000	O-ring (8.8x1.9)

Cylinder head (REAR) 21

#	OEM	部品名
1	12204-PR7-305	Guide - IN. VALVE (OS)
2	12205-PR7-305	Guide - EX. VALVE (OS)
3	12208-PG6-300	Screw - SEALING
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)
6	12251-PR7-A01	Gasket - CYLINDER HEAD (ISHINO GASKET)
7	12300-PR7-000	Head assy - RR. CYLINDER
8	12435-PR7-A00	Pipe comp - EX. RR. CAM HOLDER
9	12436-PR7-A00	Pipe comp - CAM HOLDER
10	12513-PR7-A00	Rubber comp - HEAD COVER SEAL
11	90004-PE2-005	Bolt - SEALING, 10MM
12	90005-PH7-003	Bolt-washer - 11X164
13	90007-PR7-A00	Bolt - FLANGE, 8X52
14	90014-PR7-A01	Bolt a - HEAD COVER
15	90015-PR7-A00	Bolt b - HEAD COVER
16	90021-P0G-A00	Bolt - STUD, 8X41
17	90401-PE2-003	Washer - SEALING, 10MM
18	90701-679-000	Dowel pin - 8X10
19	90719-PH7-000	Dowel pin - 13X37
20	91308-PH9-000	O-ring - 8.8X1.9
20	91302-GE0-000	O-ring (8.8x1.9)

Cylinder head cover 22

#	OEM	部品名
1	12030-PR7-010	Packing set - HEAD COVER
2	12310-PR7-J00	Cover comp. - FR. CYLINDER HEAD
3	12320-PR7-J01	Cover comp. - RR. CYLINDER HEAD
4	12341-PR7-A01	Packing - CYLINDER HEAD COVER
5	12343-PR7-A00	Packing b - HEAD COVER
6	12351-PR7-A00	Packing c - FR. HEAD COVER
7	12352-PR7-A00	Packing c - RR. HEAD COVER
8	12510-PR7-J00	Cover, FR. IGNITION COIL
9	12511-PR7-A00	Packing - FR. IGNITION COIL COVER
10	12520-PR7-J00	Cover, RR. IGNITION COIL
11	12521-PR7-A00	Packing - RR. IGNITION COIL COVER
12	12590-PR7-A00	Collar - COIL COVER
13	15610-PR7-A00	Cap assy. - OIL FILLER
14	15613-PR7-A00	Packing - OIL FILLER
15	32743-PR7-A00	Stay - R. ENGINE HARNESS TIMING BELT COVER
16	32753-PR7-J00	Stay - EGR SENSOR COUPLER
17	36537-PR7-A00	Stay e - RR. SENSOR OXYGEN
18	36538-PR7-A00	Stay d - FR. SENSOR OXYGEN
19	90017-PR7-A00	Bolt a - COIL COVER
20	90212-PR3-000	Nut - HEAD COVER
21	90213-PK2-000	Nut - CAP, 6MM
22	90442-PR7-A00	Washer - HEAD COVER

Differential 51

#	OEM	部品名
1	41233-PR9-010	Gear - FINAL DRIVEN
2	41251-PR8-000	Plate - CLUTCH
3	41252-PR8-000	Disk - CLUTCH
4	41268-PR8-000	Shim h - 112MM (2.6MM)
4	41263-PR8-000	Shim c - 112MM (1.6MM)
4	41270-PR8-000	Shim j - 112MM (3.0MM)
4	41265-PR8-000	Shim e - 112MM (2.0MM)
4	41267-PR8-000	Shim g - 112MM (2.4MM)
4	41262-PR8-000	Shim b - 112MM (1.4MM)
4	41269-PR8-000	Shim i - 112MM (2.8MM)
4	41264-PR8-000	Shim d - 112MM (1.8MM)
4	41266-PR8-000	Shim f - 112MM (2.2MM)
4	41261-PR8-000	Shim a - 112MM (1.2MM)
5	41310-PR8-000	Case set - DIFFERENTIAL
6	41321-PR8-000	Cover - DIFFERENTIAL CASE
7	41380-PR8-000	Washer - 90MM
8	41400-PR8-000	Washer - 102MM
9	41405-PR8-000	Washer - 60MM
10	41483-PR8-000	Shim c - 75MM (1.76MM)
10	41505-PR9-000	Shim y - 75MM (2.42MM)
10	41500-PR8-000	Shim t - 75MM (2.27MM)
10	41495-PR8-000	Shim o - 75MM (2.12MM)
10	41490-PR8-000	Shim j - 75MM (1.97MM)
10	41485-PR8-000	Shim e - 75MM (1.82MM)
10	41502-PR9-000	Shim v - 75MM (2.33MM)
10	41497-PR8-000	Shim q - 75MM (2.18MM)
10	41492-PR8-000	Shim l - 75MM (2.03MM)
10	41487-PR8-000	Shim g - 75MM (1.88MM)
10	41482-PR8-000	Shim b - 75MM (1.73MM)
10	41504-PR9-000	Shim x - 75MM (2.39MM)
10	41499-PR8-000	Shim s - 75MM (2.24MM)
10	41494-PR8-000	Shim n - 75MM (2.09MM)
10	41489-PR8-000	Shim i - 75MM (1.94MM)
10	41484-PR8-000	Shim d - 75MM (1.79MM)
10	41501-PR9-000	Shim u - 75MM (2.30MM)
10	41496-PR8-000	Shim p - 75MM (2.15MM)
10	41491-PR8-000	Shim k - 75MM (2.00MM)
10	41486-PR8-000	Shim f - 75MM (1.85MM)
10	41481-PR8-000	Shim a - 75MM (1.70MM)
10	41503-PR9-000	Shim w - 75MM (2.36MM)
10	41498-PR8-000	Shim r - 75MM (2.21MM)
10	41493-PR8-000	Shim m - 75MM (2.06MM)
10	41488-PR8-000	Shim h - 75MM (1.91MM)
11	41581-PR8-000	Plate - STOPPER
12	41600-PR8-000	Carrier sub assy. - PLANETARY
13	41650-PR8-000	Gear set - CENTRAL
14	41661-PR8-000	Clip - STOPPER
15	41696-PR8-000	Spring - PLATE
16	90017-PR8-000	Bolt - SPECIAL, 8MM
17	91121-PR8-008	Bearing - TAPER, 55X90X23 (NTN)
18	91122-PR8-008	Bearing - SPECIAL TAPER, 45X75X24

Door lining 23

#	OEM	部品名
2	34257-SD4-000	Plate - COURTESY LIGHT
3	34258-SG9-G01	Lens - DAIICHI
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
5	35190-SL0-A01	Switch assy - REMOTE CONTROL MIRROR
10	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
12	72121-SL0-003	Stay - R. INSIDE UPPER
13	72122-SL0-003	Stay - R. INSIDE LOWER
14	72123-SL0-003	Spring - INSIDE
15	72124-SL0-003	Screw - STAY
16	72127-SL0-003	Sponge
17	72161-SL0-003	Stay - L. INSIDE UPPER
18	72162-SL0-003	Stay - L. INSIDE LOWER
19	72334-SL0-003	Clip - DOOR WEATHERSTRIP
20	72335-SL0-J11	Weatherstrip - R. DOOR INNER
21	72375-SL0-J11	Weatherstrip - L. DOOR INNER
25	83521-SL0-A00	Seal - R. DOOR OUTLET
37	83571-SL0-A00	Seal - L. DOOR OUTLET
54	90131-SL0-000	Screw - TAPPING, 5X14
55	90132-SE3-003	Screw - TAPPING, 4X12
56	90144-SM4-003	Screw - 4X12
57	90662-SB2-003	Grommet - SCREW, 5MM
58	90672-SL0-003	Grommet - SCREW, 4MM
66	90148-SP0-000	Screw - TAPPING

Driveshaft/half shaft 27

#	OEM	部品名
1	42017-SL0-000	Boot set - DRIVESHAFT
1	42017-SL0-020	BOOT SETJOINT CO
2	42310-SL0-000	Driveshaft assy. - R. RR.
3	42311-SL0-900	Driveshaft assy. - L. RR.
4	42320-SL0-300	Joint comp - INBOARD
5	42320-SL0-900	Joint comp - INBOARD
6	42330-SL0-300	Joint comp - OUTBOARD
7	42333-SL0-300	Spring - PRESSURE
8	42334-SL0-300	Cap - SPRING
9	42335-SL0-300	Ring - OUTER STOPPER
10	44319-SL0-300	Set ring - 32X2.4
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44336-SL0-300	Ring a - STOPPER
14	44338-SL0-300	Circlip - 30MM
15	44500-SL0-901	Shaft assy - HALF (AT)
16	44511-SL0-901	Support comp - HALF SHAFT BEARING (AT)(###)
17	44517-SL0-020	Cover - HALF SHAFT HEAT
18	90161-SG0-000	Bolt - BEARING SUPPORT, 8X1.25
19	90162-SG0-000	Bolt - FLANGE, 8X25
20	90162-SL0-A01	Bolt - FLANGE, 8X30
21	90366-SP0-003	Nut - SPINDLE (26MM)
22	91055-SA7-000	Circlip - INTERNAL, 64MM
23	91057-SL0-008	Bearing - HALF SHAFT (NTN)
24	91260-SL0-004	Seal - HALF SHAFT OUTER (ARAI)
25	91262-SL0-003	Seal - HALF SHAFT INNER (NOK)
25	91262-SL0-004	Seal - HALF SHAFT INNER (ARAI)

Duct (RH) 5

#	OEM	部品名
1	77410-SL0-010	Duct - CENTER
2	77421-SL0-000	Duct - DRIVER SIDE AIR CONDITIONER
3	77422-SL0-000	Duct - DRIVER AIR CONDITIONER JOINT
4	77431-SL0-N90	Duct - PASSENGER SIDE AIR CONDITIONER
5	90001-SL0-000	Screw - TAPPING, 4X12

Egr valve 6

#	OEM	部品名
1	18011-PR7-A00	Valve set - EGR
2	18712-PR7-A00	Passage - EGR
3	18713-PR7-A01	Packing - EGR PASSAGE
4	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)
5	18717-PR7-A01	Pipe comp - EGR
6	18721-PR7-A01	Packing - EGR PIPE (ISHINO GASKET)

Emblems/caution labels 9

#	OEM	部品名
1	17669-SL0-A00	Label - FUEL FILLER CAUTION (PREMIUM UNLEADED GASOLINE)
2	19043-P5A-U00	Label - COOLANT INFORMATION
4	42760-SL0-G34	Plate - TIRE PRESSURE CAUTION
6	69313-SL0-T00	Label - ROOF INFORMATION
7	74625-SL0-T00	Label - ENGINE MAINTENANCE LID INFORMATION
8	75700-SL0-A51	Emblem - FR. CENTER (A)
10	77875-S84-G80	Label - SRS CAUTION
12	81459-SP1-A21	Label - PRETENSIONER CAUTION
13	75701-SL0-A01	Emblem - RR. CENTER (A)

Engine assy./transmission assy. 4

#	OEM	部品名
1	10002-PR7-A02	General assy. - CYLINDER BLOCK
2	10004-PR7-G00	Engine sub assy. - FR. CYLINDER HEAD
3	10005-PR7-G00	Engine sub assy. - RR. CYLINDER HEAD
4	20021-PR9-030	Transmission assy - AT

Engine mounts 16

#	OEM	部品名
1	50805-SL0-980	Rubber - TRANSMISSION MOUNTING (AT)
2	50810-SL0-981	Rubber - RR. ENGINE MOUNTING (AT)
3	50820-SL0-980	Rubber - SIDE ENGINE MOUNTING (AT)
5	50840-SL0-900	Rubber assy. - FR. ENGINE MOUNTING
6	50842-SL0-000	Insulator - FR. ENGINE MOUNTING RUBBER HEAT
7	90165-SL0-000	Bolt - FLANGE, 10X35
8	90170-SL0-000	Bolt - FLANGE, 10X50
9	90163-SL0-000	Bolt - FLANGE, 10X40
10	90174-SL0-000	Bolt - FLANGE, 12X105
11	90178-SL0-000	Bolt - FLANGE, 12X115
12	90180-SL0-000	Bolt - FLANGE, 12X50
13	90191-SL0-000	Bolt - FLANGE, 12X125
14	90363-SL0-000	Nut - YOKE, 12MM
15	90364-SL0-000	Nut - FLANGE, 12MM
16	90367-SL0-000	Nut - FLANGE, 12MM
17	90554-SL0-000	Washer - PLAIN, 12MM

Engine wire harness/clamp 34

#	OEM	部品名
1	30120-PR7-A01	Igniter unit - NEC/ELESYS) (MC-8430
2	30505-PR7-A01	Condenser comp. - SHOWA
3	30530-PR7-A01	Sensor assy - KNOCK (MATSUSHITA)
4	30531-PR7-A01	Sub cord - KNOCK SENSOR
5	30532-PR7-A01	Holder - KNOCK SENSOR SUB CORD
6	32110-PR7-G11	Harness - ENGINE WIRE
7	32126-PR7-J00	Holder comp - INJECTOR HARNESS
8	32131-PR7-J00	Holder - IGNITION HARNESS
9	32132-PH7-000	Clamp a - OIL PRESSURE WIRE HARNESS
10	32740-PR7-A10	Clamp - L. ENGINE WIRE HARNESS
11	32741-PR7-A00	Clamp - RR. ENGINE WIRE HARNESS
12	32742-PR7-J00	Clamp - FR. ENGINE HARNESS ALTERNATOR BRACKET
13	32744-PH3-000	Clamp - ENGINE SUB CORD
14	32744-PR7-J00	Clamp - FR. ENGINE HARNESS SPOOL VALVE
15	32745-PR7-A00	Stay - RR. ENGINE WIRE HARNESS
16	32746-PR7-J00	Clamp - R. ENGINE WIRE HARNESS BULKHEAD STAY
18	32747-PR7-A00	Clamp - ENGINE HARNESS TRANSMISSION
19	32755-PR7-000	Clamp - ENGINE HARNESS STARTER
20	32759-PR7-A00	Stay - ENGINE HARNESS LINING BRACKET
21	37750-PH2-014	Thermo unit - DENSO
22	37760-PH7-003	Sensor assy - RADIATOR FAN CONTROL (MATSUSHITA)
23	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
24	37872-PK1-000	Cover - TW SENSOR
25	90121-PG4-000	Bolt - FLANGE, 12X70
26	90405-PR7-A00	Collar - TERMINAL
27	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)
27	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
28	91307-611-000	O-ring (13.5X1.4)
28	91307-PH7-660	O-ring (13.5X1.4)
29	91506-PH7-003	Clip - WIRE HARNESS (BLACK)
30	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
31	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
44	90114-SM4-900	Bolt - 6X15
45	91577-SM4-003	Holder - BRACKET(NATURAL)

Exhaust manifold (3.0L) 16

#	OEM	部品名
1	17888-SS0-003	Clip - ACTUATOR WIRE
2	18100-PR7-A00	Manifold assy - FR. EX.
3	18110-PR7-A00	Manifold assy - RR. EX.
4	18115-PR7-A02	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
5	18120-PR7-000	Cover - FR. EX. MANIFOLD
6	18130-PR7-000	Cover a - RR. EX. MANIFOLD
7	18131-PR7-A00	Cover b - RR. EX. MANIFOLD
9	36531-PR7-003	Sensor - FR. PRIMARY OXYGEN
10	36532-PR7-003	Sensor - RR. OXYGEN
12	36535-PR7-A01	Stay c - RR. SENSOR OXYGEN
13	90015-PT0-J00	Bolt-washer - 8X14
14	90020-PR7-003	Bolt - FLANGE, 8X12
15	90065-PC1-300	Bolt - STUD, 10X34.5
16	90212-PD2-003	Nut - SELF-LOCK, 8MM
16	90212-RCA-A01	Nut - SELF-LOCK, 8MM
17	91506-PM3-003	Clip - WIRE HARNESS

Exhaust pipe (2) 30

#	OEM	部品名
1	18030-SL0-J71	Silencer set - EX.
2	18160-PR7-J50	Converter comp. - FR.
3	18181-PR7-J50	Cover - FR. CONVERTER LOWER
4	18182-PR7-J50	Cover comp. - FR. CONVERTER UPPER
5	18183-PR7-J50	Cover - RR. CONVERTER LOWER
6	18184-PR7-000	Cover comp. - RR. CONVERTER UPPER
7	18190-PR7-J50	Converter comp. - RR.
8	18212-SA5-004	Gasket - EX. PIPE (NIPPON LEAKLESS)
8	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
9	18215-SL0-A00	Rubber - EX. MOUNTING
10	18215-SL0-A10	Rubber - EX. MOUNTING
11	18229-SH3-X30	Gasket - EX. FLEXIBLE (50.8MM-64MM)
12	18230-SA0-930	Spring - FLEXIBLE JOINT
13	18231-SR3-A22	Bolt b - FLEXIBLE JOINT
14	18231-SR3-J01	Bolt a - FLEXIBLE JOINT
15	18282-SL0-A30	Bracket - RR. EX. MOUNTING
16	18282-SL0-J71	Bracket - FR. EX. MOUNTING
17	18310-SL0-A52	Finisher - EX. PIPE
18	18510-SL0-A51	Pipe a - FR. EX.
19	18520-SL0-J71	Pipe a - RR. EX.
20	36533-P13-A00	Clamp a - OXYGEN SENSOR
21	36536-PR7-000	Stay - OXYGEN SENSOR CORD
22	36541-PR7-J51	Sensor - FR. SECONDARY OXYGEN
23	36542-PR7-J51	Sensor - RR. SECONDARY OXYGEN
24	36543-PR7-003	Clip - OXYGEN SENSOR
25	74650-SL0-010	Baffle - RR. FLOOR HEAT
26	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
27	90115-SL5-A00	Nut - FLANGE, 6MM
28	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
29	90212-SA5-003	Nut - SELF-LOCK, 10MM

Floor mat 9

#	OEM	部品名
1	78815-SD4-A80	Nut - PUSH
2	83331-SL0-010	Duct - R. HEATER LOWER
9	84272-SL0-020	Plate - SIDE STEP
11	84501-SL0-A02	Insulator - CENTER BULKHEAD
18	90106-SA7-000	Screw-washer - 4X12
18	90133-SJ6-020	Screw-washer - 4X12 (PO)
19	90194-SL0-000	Nut - PUSH, 2.4MM
20	90654-SA5-003	Clip - JOINT COVER
22	91641-SL0-003	Grommet assy - GARNISH

Front brake 28

#	OEM	部品名
1	01463-SL0-J01	Caliper set - FR.
2	43352-SM4-951	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW
4	44200-SL0-008	Bearing assy - FR. HUB UNIT
5	44304-SL0-000	Cap - FR. HUB
6	44353-SL0-000	Pulser - FR.
7	44600-SL0-020	Hub comp - FR. AXLE
8	45018-SL0-Z00	Caliper sub assy. - R. FR.
9	45019-SL0-Z00	Caliper sub assy. - L. FR.
10	45022-SL0-J02	Pad set - FR.
11	45213-SL0-J01	Piston - 34MM
12	45216-SL0-003	Piston - 40MM
13	45227-SL0-013	Spring - PAD
14	45228-SL0-003	Shim - OUTER PAD
15	45235-SL0-003	Pin a
16	45237-SL0-003	Retainer
17	45240-SM4-003	Bolt - FLANGE, 10X24
18	45251-SL0-J00	Disk - FR. BRAKE
19	45255-SL0-N00	Guard - R. FR. SPLASH
20	45256-SL0-N00	Guard - L. FR. SPLASH
21	45262-SL0-003	Pin b
22	90107-SL0-000	Bolt - CALIPER MOUNTING
23	90113-SD4-902	Bolt - WHEEL (SAGA)
23	90113-SD4-901	Bolt - WHEEL (MEIRA)
24	90164-SL0-005	Bolt - FR. HUB UNIT, 10X75
25	90366-SP0-003	Nut - SPINDLE (26MM)
26	90369-SL0-003	Nut - SELF-LOCK, 10MM
27	91352-SL0-003	O-ring - 73X1.3

Front bulkhead 3

#	OEM	部品名
37	77158-SL0-A00	Tube - CENTER PIN
38	90306-SL0-013	Nut - POP, 6MM
39	90756-SL0-003	Rivet - POP, 4.8MM

Front bumper 39

#	OEM	部品名
4	71105-SL0-G01	Garnish - FR. LICENSE PLATE
7	71110-SL0-010	Spoiler - FR. AIR
11	71120-SL0-010	Stay - R. FR. BUMPER BEAM
12	71125-SL0-010	Stay - L. FR. BUMPER BEAM
14	71130-SL0-010	Beam comp - FR. BUMPER
15	71140-SL0-010	Frame comp - FR. BUMPER CENTER UPPER
17	71148-SG9-600	Nut
18	71151-SL0-010	Plate - FR. BUMPER CENTER UPPER
19	71152-SL0-020	Seal - FR. BUMPER PLATE CENTER
20	71155-SL0-000	Frame, R. FR. BUMPER
21	71156-SL0-000	Frame, L. FR. BUMPER
22	71160-SL0-000	Plate - R. FR. BUMPER SIDE UPPER
23	71162-SL0-010	Seal assy, R. HEADLIGHT
24	71163-SL0-010	Seal, R. FR. HEADLIGHT
25	71165-SL0-000	Plate, L. FR. BUMPER SIDE UPPER
26	71167-SL0-010	Seal assy, L. HEADLIGHT
27	71168-SL0-010	Seal - L. FR. HEADLIGHT
28	71170-SL0-020	Absorber, FR. BUMPER
29	71172-SL0-000	Extension - R. FR. BUMPER LOWER
30	71173-SL0-000	Pipe - FR. BUMPER ABSORBER
31	71177-SL0-000	Extension - L. FR. BUMPER LOWER
32	71201-SL0-003	Tape a - R. FR. BUMPER
33	71202-SL0-003	Tape b - R. FR. BUMPER
34	71251-SL0-003	Tape a - L. FR. BUMPER
35	71252-SL0-003	Tape b - L. FR. BUMPER
36	71572-S2A-A00	Box - BUMPER BEAM
37	90104-SL0-010	Bolt - BUMPER PLATE, 5X17
38	90111-SL0-000	Screw - CORNER SLIDE TAPPING
39	90129-SL0-000	Bolt-washer - 8X25 (WITH GUIDE)
40	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
40	90111-SM4-003	Bolt - BUMPER
41	90149-SA0-003	Bolt - BUMPER
42	90305-SH3-000	Nut - AIR SPOILER CLIP
43	90306-SL0-013	Nut - POP, 6MM
44	90319-SL0-000	Nut - CLIP, 8MM
45	90323-SE0-000	Nut - CLIP, 6MM
46	90661-SJ8-000	Grommet - SCREW, 5MM
48	91503-SZ3-003	Clip A
50	91577-SR2-003	Clip - TRUNK LID GARNISH

Front door locks 19

#	OEM	部品名
1	72112-SL0-E50	Lock assy - R. DOOR
2	72113-SL0-003	Rod - LOCK KNOB
4	72117-SL0-003	Protector - R. DOOR LOCK
5	72118-SL0-003	Snap
6	72132-SL0-003	Cable - INSIDE HANDLE
8	72137-SS0-003	Holder
9	72144-SL0-003	Striker assy - DOOR
10	72152-SL0-E50	Lock assy - L. DOOR
11	72154-SL0-A01	Anti-switch assy. - L.
12	72157-SL0-003	Protector - L. DOOR LOCK
13	72630-SE3-003	Crank assy - R. RR. DOOR LOCK
14	72670-SE3-003	Crank assy, L. RR. DOOR LOCK
15	90121-SL0-000	Bolt - LOCK STRIKER
16	90123-SL0-000	Bolt-washer - 6X40 (SOCKET)
17	91555-SM4-003	Clip - COUPLER (RED)
18	91558-SE3-003	Clip - HOOD WIRE
19	91568-SL0-003	Clip - WIRE HARNESS
20	91569-SK7-003	Clip - WIRE HARNESS (NATURAL) (50MM)
22	72136-SL0-000	Shim - DOOR STRIKER

Front door panels 26

#	OEM	部品名
3	67224-SL0-010	Patch - R. DOOR MIRROR
4	67226-SL0-010	Stay - DOOR MIRROR COUPLER
5	67264-SL0-010	Patch - L. DOOR MIRROR
6	67410-SL0-003	Hinge a - DOOR
7	67450-SL0-003	Hinge b - DOOR
8	72141-SL0-000	Spring set - LOCK KEY
9	72142-SL0-000	Stopper - DOOR
10	72145-SL0-013	Cylinder - R. DOOR
11	72146-SL0-013	Cylinder - L. DOOR
12	72310-SL0-023	Weatherstrip - R. DOOR LOWER
13	72318-SL0-013	Weatherstrip - LOWER OUTER
14	72321-SL0-000	Seal - R. FR. DOOR HOLE (DRIVER SIDE)
15	72340-SL0-013	Checker comp. - R. DOOR
16	72341-SL0-003	Pin - DOOR CHECKER
17	72342-SL0-003	Bush
18	72343-SL0-003	Cover - R. CHECKER
19	72350-SL0-023	Weatherstrip - L. DOOR LOWER
20	72361-SL0-900	Seal - L. FR. DOOR HOLE (PASSENGER SIDE)
21	72380-SL0-013	Checker comp. - L. DOOR
22	72383-SL0-003	Cover - L. CHECKER
23	90119-SL0-010	Bolt-washer - 8X35
24	90120-SL0-010	Bolt-washer - 8X56
25	90672-SL0-003	Grommet - SCREW, 4MM
26	91530-SH4-003	Clip - DOOR WEATHERSTRIP
27	91530-SL0-003	Clip A
33	90001-SG0-003	Clip - DOOR WEATHERSTRIP

Front door windows/ regulator 27

#	OEM	部品名
2	72210-SL0-013	Regulator assy - R. DOOR POWER
3	72212-SL0-003	Rail assy - R. FR. DOOR GLASS GUIDE
4	72213-SL0-003	Rail assy - R. RR. DOOR GLASS GUIDE
5	72214-SL0-003	Slider assy. - DOOR GLASS GUIDE
6	72215-SL0-003	Slider assy. - DOOR GLASS GUIDE
7	72240-SL0-003	Holder assy. R. FR. SASH
11	72244-SL0-000	Bolt - DOOR ADJUST
12	72245-SL0-000	Plate - DOOR GLASS STOPPER
13	72246-SL0-000	Stopper - DOOR GLASS UPPER
14	72248-SL0-004	Stabilizer - DOOR GLASS
15	72250-SL0-013	Regulator assy - L. DOOR POWER
16	72252-SL0-003	Rail assy - L. FR. DOOR GLASS GUIDE
17	72253-SL0-003	Rail assy - L. RR. DOOR GLASS GUIDE
18	72280-SL0-003	Holder assy. L. FR. SASH
22	73300-SL0-J11	Glass assy - R. DOOR (GREEN) (ASAHI)
23	73304-SL0-000	Spacer a - FR. DOOR GLASS (0.5MM)
23	73305-SL0-000	Spacer b - FR. DOOR GLASS (0.3MM)
24	73350-SL0-J11	Glass assy - L. DOOR (GREEN) (ASAHI)
25	75318-SB2-000	Nut - DOOR GLASS STOPPER
26	75319-SB2-000	Washer - DOOR GLASS
27	75736-SL0-000	Emblem - SIDE (NSX)
28	76221-SL0-003	Cover - R. FR. SASH HOLDER
29	76271-SL0-003	Cover - L. FR. SASH HOLDER
30	90001-SB2-000	Bolt-washer - 6X17
31	90115-SL0-010	Bolt b - DOOR
32	90126-SL0-000	Bolt - DOOR ADJUST
34	91555-SM4-003	Clip - COUPLER (RED)

Front fenders (RH) 19

#	OEM	部品名
3	60500-SL0-030	Plate assy. - SST HOLD
4	60511-SL0-020	Plate - SST HOLD
5	74101-SL0-030	Fender - R. FR. INNER
6	74102-SL0-020	Cover, R. FR. INNER FENDER
7	74103-SL0-000	Clip
8	74147-SL0-010	Duct, RADIATOR
9	74151-SL0-030	Fender, L. FR. INNER
10	74152-SL0-020	Cover, L. FR. INNER FENDER
11	74174-SL0-010	Cushion - SPACE SAVER TIRE
12	74176-SL0-010	Cap - SPACE SAVER TIRE HOLDER PIPE
13	90106-SL0-000	Bolt-washer - 6X26
14	90121-SA7-000	Screw - TAPPING, 5X16
15	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)
15	90111-SM4-003	Bolt - BUMPER
16	90312-SS1-003	Washer - NYLON
17	90344-692-003	Nut - CLIP, 6MM
18	90666-P1E-003	Clip - 5MM
19	91545-SE0-003	Clip assy. - 8MM
20	91577-SR2-003	Clip - TRUNK LID GARNISH

Front shock absorber 24

#	OEM	部品名
1	06511-SL0-601	Absorber kit - FR. SHOCK
1	06511-SL0-961	Absorber kit - FR. SHOCK
2	51401-SL0-983	Spring - FR.
2	51401-SL0-963	Spring - FR.
3	51601-SL0-612	Absorber assy - R. FR. SHOCK
3	51601-SL0-963	Absorber assy - R. FR. SHOCK
4	51602-SL0-612	Absorber assy - L. FR. SHOCK
4	51602-SL0-963	Absorber assy - L. FR. SHOCK
5	51621-SD4-004	Washer - SHOCK ABSORBER MOUNTING (SHOWA)
6	51631-SL0-003	Rubber - SHOCK ABSORBER MOUNTING
7	51675-SL0-013	Base, SHOCK ABSORBER MOUNTING
8	51685-SH3-014	Plate - DUST COVER(SHOWA)
9	51686-SL0-003	Rubber - SPRING SEAT
10	51688-SL0-004	Boot - FR. DUST COVER
11	51689-SH3-004	Plate - BUMP STOP (SHOWA)
12	51689-SL0-003	Cover - DUST
13	51691-SL0-013	Bracket - R. FR. BRAKE HOSE
14	51692-SL0-013	Bracket - L. FR. BRAKE HOSE
15	51722-SL0-003	Rubber - FR. BUMP STOPPER
16	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
17	90173-SL0-004	Nut - SELF-LOCK, 12MM
18	90182-SL0-004	Nut - SELF-LOCK, 10MM
19	90215-SL0-000	Bolt - FLANGE, 12X70
20	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front windshield wiper (RH) 22

#	OEM	部品名
1	76505-SL0-003	Motor comp - FR. WIPER (RH)
2	76515-SL0-A01	Seal a
3	76516-SL4-003	Rubber - MOUNTING
4	76516-SM4-003	Rubber - MOUNTING
5	76517-SL0-A01	Collar
6	76518-SL0-A01	Cap - PIVOT
7	76520-SL0-A01	Link unit a
8	76524-SL0-A01	Dust seal
9	76530-SL0-003	Link comp - FR. WIPER
10	76540-SL0-A01	Rod unit a
11	76550-SL0-A01	Rod unit b
12	76555-SL0-A01	Rod unit c
13	76558-SL0-A01	Cap - PIVOT
14	76600-SL0-E01	Arm - WINDSHIELD WIPER (DRIVER SIDE)
15	76610-SL0-013	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
16	76620-SL0-E01	Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE)
17	76622-SF4-003	Rubber - BLADE (500MM)
17	76632-S6M-003	Rubber - BLADE (500MM)
18	76630-SL0-E01	Blade - WINDSHIELD WIPER (500MM) (PASSENGER SIDE)
19	90139-SL0-000	Bolt-washer - 6X35
20	90216-SL0-003	Nut - HEX. CAP, 12MM (SUS)
21	91555-SL0-A01	Clip - COUPLER

Front windshield/ rear windshield 16

#	OEM	部品名
2	73111-SL0-G02	Glass - FR. WINDSHIELD (GREEN)
3	73124-SL0-000	RUBBER, FR. WINDSHIELD DAM (A)
3	73124-SL0-305	RUBBER, FR. WINDSHIELD DAM (A)
4	73125-SL0-000	RUBBER B, FR. WINDSHIELD DAM
4	73125-SL0-305	RUBBER B, FR. WINDSHIELD DAM
5	73126-SL0-000	Spacer - FR. WINDSHIELD
6	73151-SL0-023	MOLDING, FR. WINDSHIELD UPPER
7	73152-SL0-013	FASTENER, FR. WINDSHIELD UPPER
9	73201-SL0-A02	Glass - RR. WINDSHIELD (GREEN) (ASAHI)
10	73212-SL0-000	Rubber - RR. WINDSHIELD DAM (B)
11	73213-SL0-000	Rubber - RR. WINDSHIELD DAM (A)
12	73250-SL0-003	Molding assy. - TAILGATE
13	73600-SL0-307	Molding set - GLASS PARTITION (CLEAR) (ASAHI)
13	73600-SL0-305	MOLDING SET, GLASS PARTITION (CLEAR) (ASAHI)
14	73625-SL0-000	RUBBER A, PARTITION GLASS DAM
15	73626-SL0-000	RUBBER B, PARTITION GLASS DAM

Fuel line ('04-; 2) 22

#	OEM	部品名
1	06164-PR7-A50	Packing set - INJECTOR
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
4	16610-PR7-A50	Pipe comp - FR. FUEL
5	16620-PR7-A50	Pipe comp - RR. FUEL
6	16630-PR7-A30	Pipe - FR. AIR ASSIST DELIVERY
7	16635-PR7-A30	O-ring - AIR DELIVERY PIPE
8	16638-PH7-000	Insulator - FUEL PIPE
9	16640-PR7-A30	Pipe - RR. AIR ASSIST DELIVERY
10	16722-PR7-A51	Hose comp. c - FUEL FEED
11	16723-PR7-A51	Hose comp. d - FUEL FEED
12	16740-PR7-A00	Regulator assy - PRESSURE
13	16741-PG7-005	O-ring - PRESSURE REGULATOR
14	16746-PR7-A00	Clamp - FUEL HOSE
15	90026-PH7-000	Bolt - STUD, 6X64
16	90027-PH7-000	Bolt - STUD, 6X75
17	90041-PCA-000	Bolt - STUD, 6X32
18	90071-PR7-000	Bolt - FLANGE SOCKET, 6X16
19	91302-P0A-A00	O-ring - 10X1.7
20	91304-PR7-A51	O-ring - 7.3X2.2

Fuel tank 50

#	OEM	部品名
1	16233-PD2-003	Clamp - CARBURETOR SOLENOID WIRE HARNESS
2	17040-SL0-A31	Pump set - FUEL
3	17136-PN4-000	Clamp - BREATHER TUBE
4	17371-SM4-A02	Valve - TWO WAY (TEC)
5	17500-SL0-938	Tank comp. - FUEL
6	17516-SL0-000	Filter set - FUEL PUMP
7	17517-SL0-931	Filter comp - FUEL PUMP
8	17521-SL0-000	Band - R. FUEL TANK MOUNTING
9	17522-SL0-000	Band - L. FUEL TANK MOUNTING
10	17525-SL0-010	Bolt - R. FUEL TANK MOUNTING
11	17526-SL0-010	Bolt - L. FUEL TANK MOUNTING
12	17533-SL0-000	Bracket - R. FUEL TANK STOPPER
13	17534-SL0-000	Bracket - L. FUEL TANK STOPPER
14	17551-S84-A01	Packing
15	17570-S04-G01	Valve - FUEL CUT
16	17574-SV1-L01	Packing - BASE
17	17651-SL0-A30	Tube - FILLER NECK
18	17652-SDA-A31	Clip - FILLER TUBE
19	17658-SL0-951	Tube assy - BREATHER
20	17660-SL0-A30	Pipe comp - FUEL FILLER
21	17670-SL0-E31	Cap comp. - FUEL FILLER
23	17704-SD5-932	Hose - FUEL TANK RETURN (175MM)
24	17704-SL0-932	Hose - FUEL TANK RETURN
25	17707-SL0-A34	Hose comp. - FUEL JOINT
27	17726-SL0-010	Bracket - TWO WAY VALVE
28	17728-SL0-030	Bracket - JOINT PIPE
29	17729-SL0-950	Tube - FUEL VENT
30	17731-SL0-020	Pipe comp - FUEL
31	17732-SL0-040	Pipe comp - RETURN
32	37800-SL0-305	Meter unit, FUEL (SERVICE)
33	37801-SL0-003	Packing - BASE
33	37801-SV4-L01	Packing - BASE
34	63915-SL0-G00	Adapter - FUEL CAP
35	74424-SL0-000	Tube assy - FUEL FILLER DRAIN
36	74660-SL0-010	Cap assy. - FLOOR MAINTENANCE HOLE
37	90020-PD6-000	Bolt - SEALING, 12MM
38	90101-S84-000	Bolt-washer - 5X10
39	90114-SZ3-000	Screw-washer - 5X20
40	90164-SD4-000	Bolt-washer - 6X16
41	90301-SE0-J00	Nut - FLANGE, 6MM
42	90428-PD6-003	Washer - SEALING, 12MM
43	90655-SG0-003	Clip - FUEL FILLER DRAIN TUBE
44	90682-SB0-003	Grommet - SCREW, 5MM
45	91411-SEB-003	Clamp - FUEL TUBE(D13.5)
46	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM
47	91462-SDA-003	Clamp - FUEL TUBE (D18)
48	91591-SL0-003	Clamp - FUEL HOSE
49	91592-SL0-951	Clamp - FUEL TUBE
50	91594-S1A-E01	Clip - FUEL FILLER CAP
51	91604-SL0-003	Grommet - SCREW, 5MM

Gasket kit 3

#	OEM	部品名
1	06110-PR7-020	Gasket kit - CYLINDER HEAD
2	06111-PR7-000	Gasket kit - CYLINDER BLOCK
3	06112-PR9-010	Gasket kit - AT TRANSMISSION

Grommet 13

#	OEM	部品名
2	82871-671-000	Grommet - DRAIN HOLE, 25MM
3	90680-692-000	Plug - HOLE, 10MM
4	90851-SL0-003	Plug - BLIND, 20MM
5	90852-SA5-000	Plug - HOLE, 10MM
6	91601-SL0-000	Cap - FLOOR HOLE
7	91605-SL0-000	Cap - FLOOR HOLE (50MM)
8	91606-SL0-000	Grommet - SIDE FRAME, 20MM
9	91607-SL0-010	Grommet - TIE DOWN
10	91611-SM4-003	Plug - FLOOR HOLE, 25MM
11	91613-SE0-003	Grommet - SUB FRAME, 15MM
12	91618-SA5-000	Grommet b - CONTROL WIRE, 16MM
13	91634-SE3-000	Grommet - 6MM
19	32124-SL0-000	Grommet - HOLE SEAL

Harness band/bracket 39

#	OEM	部品名
1	16233-PD2-003	Clamp - CARBURETOR SOLENOID WIRE HARNESS
2	32102-SL0-000	Bracket - COUPLER
3	32121-SL0-000	Clamp - WIRE HARNESS
4	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
5	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
6	32146-SH3-003	Connector - DIODE(2P)
7	32146-S84-003	Connector - DIODE (2P)(3A)
8	32147-SF1-003	Connector - DIODE(3P)
9	32160-PR7-003	Condenser comp.
10	32162-SL0-000	Stay - FLOOR HARNESS
11	32166-SL0-000	Holder - L. SIDE COUPLER
13	38617-S5A-J01	Filter comp - NOISE
14	90649-SC2-003	Band - WIRE HARNESS (NATURAL) (150MM)
15	90650-SB2-003	Clip - WIRE HARNESS, 10MM
16	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
17	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
19	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
21	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
22	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
23	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
24	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
25	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
26	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
27	91555-PR7-003	Clamp - WIRE HARNESS
28	91555-SM4-003	Clip - COUPLER (RED)
29	91556-SL0-003	Clamp - CABLE
30	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
31	91559-SP0-003	Clip - NUT, 6MM
32	91565-SD5-003	Clip - COUPLER(NATURAL)
33	91567-SL0-003	Band - WIRE HARNESS (BLACK) (94MM)
34	91570-SH3-003	Band - WIRE HARNESS (NATURAL)
35	91763-SH3-003	Bar - JOINT (6P)
36	91763-SL0-003	Bar - JOINT (6P) (ALUMINIUM)
37	91902-SB2-003	Cushion - WIRE HARNESS(50X100)
43	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)
44	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
45	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)
46	91577-SM4-003	Holder - BRACKET(NATURAL)

Headlight (HID) 23

#	OEM	部品名
1	33101-SL0-U01	Headlight unit - R.
2	33107-S0A-J01	Screw - SPECIAL TAPPING, 4X12
3	33108-S0A-J01	Screw - SPECIAL TAPPING, 6X18
5	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6	33116-SL0-003	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)
7	33119-S6M-003	Control unit
8	33121-SL0-G01	Grommet
9	33123-SL0-A01	Bracket - R. (1)
10	33124-SL0-A01	Bracket - 2
11	33126-SL0-A01	Cover - RUBBER
12	33127-SL0-A01	Cover comp.
13	33129-S5A-J01	Igniter - HID
14	33145-SL0-A01	Gasket - SEAL
15	33146-SL0-A01	Gasket - SEAL
16	33151-SL0-U01	Headlight unit - L.
17	33173-SL0-A01	Bracket - L. (1)
18	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
19	33304-S5A-003	Socket comp - T10
20	33305-SH3-A01	Socket comp - GRAY
21	33800-SL0-J01	Light assy - FR. SIDE TURN
22	33801-SF4-J01	Lens
23	33802-SL0-J01	Cord comp
24	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY

Heater blower (RH) 9

#	OEM	部品名
1	74201-SL0-300	Umbrella - FRESH AIR
2	74204-SL0-000	Drain - DASHBOARD UPPER
3	74205-SL0-000	Vane - DRAIN PIPE
4	79300-SL0-013	Blower assy
5	79310-SL0-013	Motor assy. - BLOWER
6	79320-SL0-003	Fan
7	79340-SL0-A01	Transistor assy
8	79350-SL0-A01	Motor assy. - FRESH & RECIRCULAR
9	91545-SE0-003	Clip assy. - 8MM

Heater unit (RH) 16

#	OEM	部品名
1	79100-SL0-033	Heater assy
2	79110-SL0-023	Core comp - HEATER
3	79150-SL0-A02	Motor assy. - MODE
4	79160-SL0-003	Motor assy., Air Mix
5	79170-SL0-003	Motor assy. - VENTILATION
6	79544-SL0-A00	Cable - WATER VALVE CONTROL
7	79671-SL0-A00	Grommet - WATER VALVE CABLE
8	80210-SL0-023	Evaporator sub assy.
9	80220-SL0-901	Valve assy. - EXPANSION
10	80271-SL0-000	Hose - DRAIN
11	80272-SL0-A00	Grommet - DRAIN HOSE
12	80550-SL0-A01	Sensor - WATER TEMPERATURE
13	80560-SL0-A02	Sensor - EVAPORATOR
14	80872-SL0-900	O-ring - 1/2"
15	80874-SL0-900	O-ring - 3/8"
16	91555-SM4-003	Clip - COUPLER (RED)

Hood (RH) 28

#	OEM	部品名
2	60120-SL0-010	Hinge comp - R. HOOD
3	60170-SL0-010	Hinge comp - L. HOOD
4	63455-SA7-000	Grommet - HOOD WIRE
5	63511-SF0-003	Cushion - HOOD
5	74144-SE0-000	Cushion - HOOD
6	74120-SL0-003	Lock assy - HOOD
7	74129-SK7-000	Cover - HOOD LOCK
8	74130-SL0-000	Wire comp - HOOD
10	74145-SL0-010	Stay - HOOD OPENER
11	74146-SE0-000	Cushion - HOOD SIDE
12	74148-SL0-010	Rubber - R. HOOD SEAL
13	74180-SL0-000	Striker - HOOD LOCK
14	74192-SL0-000	Rubber - RR. HOOD SEAL
15	74198-SL0-010	Rubber - L. HOOD SEAL
16	74200-SL0-020	Cowl top assy.
17	74202-SL0-000	Molding, FR. WINDSHIELD LOWER
17	74202-SL0-010	Molding (Lower), Front Windshield
18	74207-SL0-000	Clip - FR. WINDSHIELD LOWER
19	74827-SH5-010	Stopper - TAILGATE
20	75522-611-000	Grommet - SCREW, 4MM
21	90106-SL0-000	Bolt-washer - 6X26
22	90121-SM4-003	Screw - TAPPING, 4X10
23	90677-SE0-003	Holder - ROD
24	91504-SL0-003	Clip - HOOD OPEN WIRE
25	91505-SL0-003	Clip - COWL TOP
26	91518-SM4-003	Clip - TRUNK MOLDING
28	91604-SD2-013	Grommet - HOOD STAY
34	91618-SA5-000	Grommet b - CONTROL WIRE, 16MM

Ignition coil/spark plug 2

#	OEM	部品名
1	30520-PR7-A33	Coil comp - FR. IGNITION (TC-22A)
2	30521-PR7-A33	Coil comp - RR. IGNITION (TC-22A)

Install pipe/tubing (3.0L) 3

#	OEM	部品名
1	17400-PR7-000	Pipe - INSTALL
2	17411-PR7-A00	Pipe a - VACUUM
4	32750-PR7-000	Stay - ENGINE WIRE HARNESS

Instrument panel (RH) 23

#	OEM	部品名
2	61101-KL8-000	Collar - RIVETING
3	66871-611-000	Nut - CENTER PANEL
5	77108-SS0-N82	Bush - WASHER (16MM)
6	77120-SL0-A01	Bracket - MAT
7	77140-SL0-A01	Bracket - R. INSTRUMENT SIDE
8	77141-SL0-000	Bracket - CONSOLE CENTER
9	77142-SL0-A00	Clip - FR. INSTRUMENT
10	77143-SL0-A00	Bracket a - CONSOLE JOINT
11	77144-SL0-A00	Bracket - CONSOLE CENTER JOINT
12	77145-SL0-A01	Bracket - L. INSTRUMENT SIDE
13	77147-SL0-A00	Frame - CENTER END
14	77148-SL0-A01	Bracket - CENTER LOWER
15	77149-SL0-A00	Bracket - PARKING BRAKE COUPLER
16	77160-SL0-A90	Bracket - PASSENGER MODULE SUPPORT
17	77186-SL0-A90	Bracket - PASSENGER MODULE
18	77187-SL0-N90	Bracket - PASSENGER MODULE LID
23	77852-SP0-A91	Holder - SHORT CONNECTOR (TAKATA)
24	90091-SC3-960	Bolt-washer - 5X16
25	90128-SA7-000	Bolt-washer - 6X25
26	90144-SL0-A90	Screw - TAPPING, 4X10
27	90321-SP0-A80	Nut-washer - 6MM
29	91640-SM4-003	Grommet - SCREW, 4MM
30	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (RH) 18

#	OEM	部品名
1	34254-SL0-003	Lamp assy. - GLOVE BOX
2	34295-538-003	Bulb - 12V 5W) (DAIICHI
2	34295-SD4-003	Bulb - 12V 5W.K
3	53231-SB2-000	Label - IGNITION SWITCH
4	66418-SB2-000	Stopper - GLOVE BOX LID
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY
6	66871-611-000	Nut - CENTER PANEL
8	77202-SJ5-000	Clip - INSTRUMENT PANEL FACE
15	77371-SL0-A01	Ring - DRIVER INSTRUMENT LOWER PANEL
16	77391-SL0-000	Cover - DRIVER UNDER
22	77520-SL0-A01	Cylinder - GLOVE BOX
23	77530-SL0-A01	Hinge - GLOVE BOX (R)
24	77535-SD4-000	Label - TRUNK MAIN SWITCH
26	77542-SL0-A00	Striker - GLOVE BOX
27	90144-SL4-003	Screw - 4X10
28	90144-SM4-003	Screw - 4X12
29	90609-SG0-003	Clip - PILLAR GARNISH
30	90666-SD4-003	Clip - FITTING

Intake manifold 14

#	OEM	部品名
1	17100-PR7-A31	Manifold comp - INTAKE
2	17105-PR7-A01	Packing - INTAKE MANIFOLD
3	17110-PR7-A00	Chamber - INTAKE MANIFOLD
4	17140-PR7-A02	Body assy - CHAMBER EXCHANGE
5	17141-PR7-A01	Packing - EXCHANGE VALVE
6	17142-PR7-A01	Packing - MANIFOLD CHAMBER
7	17149-PR7-A01	Diaphragm assy.
8	17165-PR7-A00	Port - EGR
9	17167-PR7-A00	Packing - EGR PORT
10	37880-PE2-013	Sensor assy - AIR TEMP
11	90018-PR7-A00	Screw - PAN, 5X12
12	90402-PR7-A00	Washer - SPECIAL, 8MM
13	91303-PD1-910	O-ring - 7.5X1.5
13	91303-PK2-005	O-ring (7.5X1.5)

Intake manifold cover 12

#	OEM	部品名
1	12510-PRB-A00	Emblem - A
2	17111-PR7-A11	Cover - INTAKE MANIFOLD TOP (ACURA)
3	17112-PR7-A10	Plate comp - INTAKE MANIFOLD TOP
5	17113-PR7-A00	Stay a - INTAKE MANIFOLD TOP COVER
6	17114-PR7-A00	Stay b - INTAKE MANIFOLD COVER
7	32113-PR7-A10	Cover a - HARNESS
8	32114-PR7-A10	Cover comp. b - HARNESS
9	32128-PR7-A10	Cover comp. - FR. HARNESS HOLDER
10	32129-PR7-A10	Cover comp. - RR. HARNESS HOLDER
11	90005-PR7-A00	Bolt - HARNESS HOLDER COVER
12	90006-PR7-A00	Bolt - FLANGE, 5X12
13	90672-SW5-003	Nut

Interior light 13

#	OEM	部品名
3	34251-SL4-003	Lens
4	34251-SM4-003	Lens
5	34253-671-003	Bulb - 12V 8W)(DAIICHI
5	04110-SWA-305	BULB T10X318W
7	34257-SD4-000	Plate - COURTESY LIGHT
8	34258-SD4-003	Lens - DAIICHI
9	34260-SW5-003	Light assy - TRUNK ROOM
10	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI
11	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI
11	34351-657-921	Bulb - 12V/5W) (STANLEY
12	34295-538-003	Bulb - 12V 5W) (DAIICHI
12	34295-SD4-003	Bulb - 12V 5W.K
13	90101-SA4-000	Screw - TAPPING, 4X12

Knuckle 39

#	OEM	部品名
1	45258-SL0-020	Plate - R. AIR IN.
2	45259-SL0-020	Plate - L. AIR IN.
3	51010-SL0-000	Boot set - BALL JOINT
4	51210-SL0-902	Knuckle comp - R. FR.
5	51215-SL0-902	Knuckle comp - L. FR.
6	51224-SL0-003	Boot - LOWER BALL
7	51226-SL0-003	Circlip - LOWER BALL
8	51300-SL0-611	Spring - FR. STABILIZER
8	51300-SL0-003	Spring - FR. STABILIZER
9	51308-SL0-000	Holder - FR. STABILIZER
10	51309-SL0-000	Spacer - FR. STABILIZER
11	51316-SL0-600	Bush - FR. STABILIZER
11	51316-SL0-010	Bush - FR. STABILIZER
12	51320-SL0-003	Link assy - R. FR.
13	51330-SL0-003	Link assy - L. FR.
14	51350-SL0-020	Arm assy. - R. FR. LOWER
15	51360-SL0-020	Arm assy. - L. FR. LOWER
16	51370-SL0-000	Pivot assy. - R. FR. COMPLIANCE
17	51380-SL0-000	Pivot assy. - L. FR. COMPLIANCE
18	51383-SL0-010	Boot - R. PROTECTOR
19	51384-SL0-010	Boot - L. PROTECTOR
20	51387-SL0-000	Bolt - ADJUSTING
21	51388-SL0-000	Plate - CAM
22	51450-SL0-010	Arm assy. - R. FR. UPPER
23	51456-SL0-003	Circlip - UPPER BALL
24	51460-SL0-010	Arm assy. - L. FR. UPPER
25	57450-SL0-030	Sensor assy - R. FR.
26	57451-SL0-000	Bracket - R. FR. COUPLER
27	57455-SL0-020	Sensor assy - L. FR.
28	57456-SL0-J00	Bracket - L. FR. COUPLER
29	90173-SL0-004	Nut - SELF-LOCK, 12MM
30	90174-SL0-000	Bolt - FLANGE, 12X105
31	90181-SL0-000	Bolt c - COUPLER BRACKET (10X90)
32	90200-SL0-000	Nut - SELF-LOCK, 14MM
33	90201-SL0-000	Bolt - UPPER ARM, 10X84
34	90202-SL0-000	Nut - CASTLE, 12MM
35	90203-SL0-010	Pin - SPLIT, 3.0
36	90206-SL0-000	Spacer - STABILIZER LINK
37	90217-SL0-000	Bolt - RR. CONTROL ARM, 12X83

L. side cover 14

#	OEM	部品名
1	21240-PR9-030	Cover comp. - L. SIDE
2	21812-PR9-000	Packing - L. SIDE COVER
3	22710-PW4-000	Pipe comp. a - FEED
4	22713-PW4-000	Guide a - FEED PIPE
5	22743-PG4-000	Pipe - THIRD CLUTCH
6	22743-PR9-000	Pipe - THIRD CLUTCH
7	22744-PG4-000	Pipe - TOP CLUTCH
8	22745-PR9-000	Pipe - CLUTCH (L-H)
9	90024-612-000	Bolt - SEALING, 8MM
10	90471-580-000	Packing - 8MM
11	91004-PR9-003	Bearing - BALL, 6904
12	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)
13	91305-PC9-003	O-ring - 34X1.9 (ARAI)
14	91314-PW4-003	O-ring - 11X1.9 (NOK)

Main valve body 31

#	OEM	部品名
1	25145-PA9-010	Shaft - OIL PUMP GEAR
2	25640-PR9-000	Plate - LUBRICATION
3	27105-PR9-030	Body sub assy. - MAIN VALVE
4	27112-PR9-030	Plate - MAIN SEPARATING
5	27122-PR9-000	Cap - SHIFT VALVE (1-2)
6	27255-PR9-000	Spring - TORQUE CONVERTER CHECK VALVE
7	27256-PA9-000	Valve - RELIEF
8	27256-639-000	Valve - TORQUE CONVERTER CHECK
9	27259-PN6-000	Spring - RELIEF VALVE
10	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
11	27281-PR9-000	Valve - ONE WAY RELIEF
12	27282-PR9-000	Spring - ONE WAY RELIEF VALVE
13	27287-PR9-000	Spring - L.S.D. RELIEF VALVE
14	27420-PR9-000	Valve comp. - MANUAL
15	27521-PR9-000	Valve - SHIFT (1-2)
16	27523-PL5-J00	Spring - SHIFT (1-2)
17	27531-PR9-000	Valve - SHIFT (2-3)
18	27532-PR9-000	Spring - SHIFT (2-3)
19	27533-PR9-000	Cap - SHIFT VALVE
20	27551-PR9-000	Piston - LOW HOLD ACCUMULATOR
21	27552-PR9-000	Spring - LOW HOLD ACCUMULATOR
22	27572-PR9-000	Piston - SECOND ACCUMULATOR
23	27581-PR9-000	Spring - SECOND ACCUMULATOR
24	27750-PL5-J01	Filter - SECONDARY BODY
25	27800-PR9-000	Body assy - SECOND ACCUMULATOR
26	27813-PR9-000	Pipe comp. b - LUBRICATION
27	91101-PF4-003	Roller - 3.5X21.8
28	91302-PF0-003	O-ring - 26.9X2.4 (NOK)
29	91318-PA9-003	O-ring - 23.5X2.1 (ARAI)
30	91344-580-000	O-ring - 31X2.7 (ARAI)
31	91704-PF4-000	Dowel pin - 8X40

Mainshaft 25

#	OEM	部品名
1	22814-PR9-003	Ring - SEALING, 37MM
2	23210-PR9-020	Mainshaft comp.
3	23411-PR9-000	Gear - MAINSHAFT LOW
4	23461-PR9-000	Gear - MAINSHAFT FOURTH
5	23541-PR9-000	Gear - REVERSE IDLE
6	23543-PH0-000	Spring a - IDLE GEAR SHAFT
7	23926-PR9-010	Washer - SPRING, 23MM
8	90201-PR9-010	Nut - HEX., 23MM
9	90406-PW4-000	Washer - THRUST, 33X44X1.5
10	90407-PW4-000	Washer - THRUST, 28X56X4.5
11	90417-PW4-000	Washer - 28X46X3.5
12	90422-PW4-000	Washer - THRUST, 28X48X2.5
13	90508-PR9-000	Collar - LOW GEAR
14	90529-PR9-000	Collar - MAINSHAFT FOURTH GEAR
15	90603-PR9-000	Set ring - 25MM
16	90613-PW4-000	Ring - SNAP, 28MM
17	91011-PW4-003	Bearing - NEEDLE, 34X40X20
18	91012-PR9-003	Bearing - NEEDLE, 33X38X24 (NTN)
19	91017-PR9-003	Bearing - NEEDLE, 25X31X25 (NTN)
20	91018-PR9-003	Needle - THRUST, 34X48X3
21	91019-PW4-003	Needle - THRUST, 33X49X2
22	91023-PW4-003	Needle - THRUST, 37X57X2.5
23	91025-PJ2-003	Bearing - NEEDLE, 14X18X15 (NTN)
24	91307-PL5-003	O-ring - 34.2X1.9
25	91308-PW4-003	O-ring - 21.8X1.9

Master power pipe 14

#	OEM	部品名
1	46355-SL0-J00	Pipe comp. a - MASTER POWER
2	46356-SL0-A02	Pipe comp. b - MASTER POWER BRAKE
3	46357-SL0-J01	Pipe comp. c - MASTER POWER BRAKE
4	46381-SL0-000	Grommet b - MASTER POWER PIPE
5	46382-SL0-000	Grommet - MASTER POWER PIPE
6	46403-SE0-003	Valve comp. - CHECK (NISSIN)
7	46404-SL0-900	Tube a - MASTER POWER
8	46405-SL0-000	Tube b - MASTER POWER
9	46406-SL0-J00	Tube e - MASTER POWER
10	46407-SL0-000	Clamp - CHECK VALVE
11	46408-SL0-J00	Tube c - MASTER POWER
13	46409-SL0-010	Tube d - MASTER POWER
14	53729-671-003	Clamp d - 15.5MM
15	91551-SH3-A01	Clamp - DRAIN HOSE

Meter components 29

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37102-SA5-003	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)
3	37102-S84-003	Socket assy - BULB (BASE:BLUE) (14V 2W)
4	37103-SL0-003	Socket assy - BULB (BASE:GREEN)
5	37106-SB2-003	Knob - TRIP (NS)
6	37107-SL0-003	Packing
7	37115-SA0-601	Packing - NS
8	37237-SA5-003	Bulb - 14V 3.4W) (NS
9	78110-SL0-Q11	Case assy.
10	78116-SL0-003	Cover
11	78120-SL0-U21	Panel - SPEED & TRIP METER PRINT
11	78120-SL0-U01	Panel - SPEED & TRIP METER PRINT
12	78130-SL0-C53	Panel - TACHOMETER & ODOMETER PRINT
12	78130-SL0-C33	Panel - TACHOMETER & ODOMETER PRINT
13	78140-SL0-023	Meter assy - FUEL & VOLT
14	78145-SL0-003	Display assy - F MATIC
15	78150-SL0-033	Meter assy - TEMPERATURE & OIL PRESSURE
16	78155-SL0-003	Visor assy - METER
17	78156-SL0-003	Lens
18	78160-SL0-A22	Display assy - FAILURE
18	78160-SL0-A03	Display assy - FAILURE
19	78166-SL0-003	Illumination assy.
20	78171-SL0-U02	Visor assy - METER UNDER
21	78175-SL0-003	Bracket
22	78176-SE3-003	Rubber
23	78181-SF1-612	Bulb & socket assy. - NS) (14V 80MA) (BASE:BLACK
24	90132-SL0-003	Screw-washer - 3X10
25	90134-SL0-003	Screw - TAPPING, 4X18
26	90135-SL0-003	Screw-washer - 3X18

Mirror 8

#	OEM	部品名
3	76203-SL0-E01	Mirror - R. (1800R)
4	76210-SL0-A01	Actuator - R. MIRROR
5	76215-SL0-A01	Actuator - L. MIRROR
8	76253-SL0-E01	Mirror - L. (1800R)
11	76409-SL0-003	Washer - TOOTHED
12	76410-SL4-003	Bolt - LOCK
13	76419-SL4-003	Spring - HOLDER
14	76420-SL4-003	Plate - HOOK

Molding (NSX) 35

#	OEM	部品名
2	71805-SL0-000	Seal - R. SIDE SILL GARNISH UPPER
3	71806-SL0-000	Seal - L. SIDE SILL GARNISH UPPER
4	71807-SL0-000	Clip - SIDE SILL GARNISH UPPER
5	71809-SL0-000	Seal - SIDE SILL GARNISH
6	71811-SL0-000	Separator - SIDE SILL GARNISH
7	71814-SL0-000	Lip - SIDE SILL GARNISH
9	72381-SL0-013	Weatherstrip - R. DOOR UPPER
10	72385-SL0-003	Retainer - R. CENTER & CORNER
11	72391-SL0-013	Weatherstrip - L. DOOR UPPER
12	72395-SL0-003	Retainer - L. CENTER & CORNER
15	72430-SL0-003	Clip - GLASS GUIDE
21	74472-SL0-J00	Garnish - R. AIR IN.
23	74482-SL0-J00	Garnish - L. AIR IN.
24	75311-SL0-000	Seal set - R. DOOR LOWER GARNISH
26	75313-SL0-003	Clip - DOOR LOWER GARNISH
27	75315-SL0-000	Bolt - SIDE PROTECTOR
28	75331-SL0-000	Seal set - L. DOOR LOWER GARNISH
30	90001-SG0-003	Clip - DOOR WEATHERSTRIP
31	90116-SL0-003	Bolt - CENTER PILLAR GARNISH STUD
32	90128-SL0-003	Screw - TAPPING, 5X16
33	90130-SL0-003	Bolt - ROOF CARRIER, 5X16
34	90132-SL0-000	Bolt - AIR IN. STUD
35	90135-SL0-000	Screw - TAPPING, 4X10
36	90142-SL0-900	Screw - TAPPING, 4X10 (PO)
37	90305-SL0-000	Nut - SPRING, 4MM
38	90310-SB2-003	Nut - SPEED
39	90329-SL0-000	Nut - AIR IN., 6MM
40	90331-SD5-003	Nut - SPRING, 5MM
41	90505-SM4-003	Clip - GARNISH
41	90505-SX0-003	Clip - GARNISH
42	91522-SL0-003	Clip - DOOR MOLDING
43	91525-SL0-003	Clip - CENTER PILLAR GARNISH
44	91530-SH4-003	Clip - DOOR WEATHERSTRIP
45	91621-SL0-003	Grommet - DRIP MOLDING & RETAINER
46	91622-SL0-003	Grommet - CENTER PILLAR GARNISH

Molding (NSX-T) 43

#	OEM	部品名
2	71805-SL0-000	Seal - R. SIDE SILL GARNISH UPPER
3	71806-SL0-000	Seal - L. SIDE SILL GARNISH UPPER
4	71807-SL0-000	Clip - SIDE SILL GARNISH UPPER
5	71809-SL0-000	Seal - SIDE SILL GARNISH
6	71811-SL0-000	Separator - SIDE SILL GARNISH
7	71814-SL0-000	Lip - SIDE SILL GARNISH
9	72320-SL0-T01	Weatherstrip - FR. PILLAR
10	72330-SL0-T01	Weatherstrip - RR. PILLAR
11	72385-SL0-T01	Retainer - R. CENTER & CORNER
12	72395-SL0-T01	Retainer - L. CENTER & CORNER
14	72422-SL0-T01	Lip a - R.
15	72423-SL0-T01	Lip b - R.
17	72428-SL0-T01	Seal
18	72430-SL0-T00	Clip - GLASS GUIDE
20	72462-SL0-T01	Lip a - L.
21	72463-SL0-T01	Lip b - L.
26	74472-SL0-J00	Garnish - R. AIR IN.
28	74482-SL0-J00	Garnish - L. AIR IN.
29	75311-SL0-000	Seal set - R. DOOR LOWER GARNISH
31	75313-SL0-003	Clip - DOOR LOWER GARNISH
32	75315-SL0-000	Bolt - SIDE PROTECTOR
33	75331-SL0-000	Seal set - L. DOOR LOWER GARNISH
35	90001-SG0-003	Clip - DOOR WEATHERSTRIP
36	90116-SL0-003	Bolt - CENTER PILLAR GARNISH STUD
37	90128-SL0-003	Screw - TAPPING, 5X16
38	90132-SL0-000	Bolt - AIR IN. STUD
39	90135-SL0-000	Screw - TAPPING, 4X10
40	90142-SL0-900	Screw - TAPPING, 4X10 (PO)
41	90305-SL0-000	Nut - SPRING, 4MM
42	90310-SB2-003	Nut - SPEED
43	90329-SL0-000	Nut - AIR IN., 6MM
44	90331-SD5-003	Nut - SPRING, 5MM
45	90505-SL0-003	Clip - GARNISH
46	90505-SM4-003	Clip - GARNISH
46	90505-SX0-003	Clip - GARNISH
47	90672-SL0-003	Grommet - SCREW, 4MM
48	91522-SL0-003	Clip - DOOR MOLDING
49	91525-SL0-003	Clip - CENTER PILLAR GARNISH
50	91530-SH4-003	Clip - DOOR WEATHERSTRIP
51	91567-SR2-013	Clip
52	91621-SL0-003	Grommet - DRIP MOLDING & RETAINER
53	91622-SL0-003	Grommet - CENTER PILLAR GARNISH
56	90121-SM4-003	Screw - TAPPING, 4X10

Oil cooler hose/ water hose 19

#	OEM	部品名
1	19422-PR7-A01	Hose - OIL COOLER IN.
2	19423-PR7-A00	Hose A, OIL COOLER OUTLET
3	19424-PR7-A00	Hose b - OIL COOLER OUTLET
4	19425-PR7-A10	Case comp. - COOLER CONNECTING
6	19428-PR7-A10	Pipe comp - ATF COOLER
7	19429-PR7-A10	Hose - ATF COOLER IN.
8	19430-PR7-A10	Hose - ATF COOLER OUTLET
9	19512-PC6-003	Clip - HOSE, 18.7MM
10	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
11	19522-PR7-J02	Hose a - BYPASS
12	19524-PR7-A01	Hose b - BYPASS
13	19526-PN4-000	Clamp - TUBE
14	19526-PR7-A00	Hose e - BYPASS
15	46968-SF9-003	Clamp - HOSE & HARNESS (GRAY)
16	91311-PR7-A00	O-ring - 24.7X2.4
17	91313-PR7-A10	O-ring - 13.8X2.9
22	18753-PR7-000	Clamp - DELIVERY PIPE
23	18759-PR7-300	Damper - DELIVERY PIPE
24	19426-PR7-000	Pipe comp - OIL COOLER

Oil cooler/breather pipe 22

#	OEM	部品名
1	11110-PR7-A00	Pipe comp - OIL LEVEL
2	15301-PR7-A00	Base - OIL FILTER
3	15400-PL2-004	OIL FILTER (TOYO ROKI)
3	15400-PL2-306	OIL FILTER (TOYO ROKI)
4	15550-PH7-000	Bolt assy - OIL COOLER CENTER
5	15600-PR7-A01	Cooler - ENGINE OIL
6	15650-PR7-A01	Gauge comp. - OIL LEVEL
7	17130-PR7-A01	Valve assy. - PCV
8	17131-PR7-J01	Tube comp - PCV
9	17137-PR7-J00	Pipe comp - BREATHER
10	17139-PK1-000	Grommet - PCV VALVE
11	17153-PR7-J00	Tube - BREATHER PIPE
12	37240-P13-013	Switch assy - OIL PRESSURE (DENSO)
13	90002-PA6-003	Bolt-washer - 4X8 (DENSO)
14	90015-PL2-000	Holder - OIL FILTER
15	90042-PR7-A00	Bolt - FLANGE, 8X65
16	91308-PH9-000	O-ring - 8.8X1.9
16	91302-GE0-000	O-ring (8.8x1.9)
17	91316-PE7-730	O-ring - 62.4X3.1
18	91327-PH7-004	O-ring - 29X2.4 (ARAI)
19	91405-679-004	Clamp - TUBE (D17)
19	91405-PM5-004	Clamp - TUBE (D17)

Oil level gauge/ control lever 19

#	OEM	部品名
1	24412-PR9-000	Lever comp - CONTROL
2	24413-PS5-020	Pin - CONTROL WIRE
3	24451-PR9-000	Shaft - CHANGE
4	24452-PR9-000	Cap comp. - CHANGE SHAFT
5	24901-PR9-000	Holder - CONTROL WIRE
6	24911-PR9-300	Cover - CONTROL WIRE
7	24912-PR9-300	Rubber - CONTROL WIRE COVER
8	25610-PR9-003	Gauge comp. - ATF
9	25613-PR9-000	Pipe comp - ATF GAUGE
10	28810-PR9-004	Pick up assy. - MAIN (TEC)
10	28810-PR9-003	Pick up assy. - MAIN (KEIHIN)
11	28820-PR9-003	Pick up assy. - FINAL (KEIHIN)
11	28820-PR9-004	Pick up assy. - FINAL (TEC)
12	90001-PA9-000	Bolt - HEX., 6MM
13	90007-679-000	Bolt a - TIMING BELT COVER
14	90433-639-000	Washer - LOCK, 6MM
15	90706-PS5-000	Pin - SNAP, 9MM
16	91307-425-003	O-ring - 21.5X3.2
17	91309-PX4-003	O-ring - 16X2.1 (NOK)

Oil pump 21

#	OEM	部品名
1	15100-PR7-J21	Pump assy. - OIL
2	15141-PH7-000	Joint - OIL PASS PIPE
3	15143-PH7-000	Pipe - OIL PASS
4	15220-PR7-J00	Strainer comp. - OIL
5	15231-PR7-A00	Valve - RELIEF
6	15232-PR7-A00	Spring - RELIEF VALVE
7	15233-PC6-000	Bolt - SEALING, 18MM
8	15233-PR7-A00	Bolt - SEALING, 20MM
9	15234-PC6-000	Washer - SEALING, 18MM
10	15238-PR7-A00	Dowel pin - 18X16
11	90041-PA5-000	Bolt - STUD, 6X28
12	90048-PH7-000	Bolt - FLANGE, 8X45
13	90051-PH7-000	Bolt - FLANGE, 6X18
14	90052-PH7-000	Bolt - FLANGE, 6X22
15	90053-PH7-000	Bolt - FLANGE, 8X65
15	90042-PR7-A00	Bolt - FLANGE, 8X65
16	91212-PR7-A01	Oil seal - 41X56X7
17	91308-PH7-003	O-ring - OIL JOINT
18	91309-PH7-000	O-ring - 17.4X3.5
19	91312-PR7-A00	O-ring - 22X2.4
20	91318-PY3-000	Packing - OIL PUMP

Outer panels (NSX) 19

#	OEM	部品名
8	63109-SL0-000	Stay - FR. RR. FENDER
10	63455-SA7-000	Grommet - HOOD WIRE
14	64412-SL0-010	Stay - R. RR. RR. FENDER
15	64812-SL0-010	Stay - L. RR. RR. FENDER
26	74411-SL0-013	Cable - FUEL LID OPENER
27	74422-SM4-000	Cushion - FUEL FILLER LID
28	74494-SL0-000	Spring - FUEL LID OPEN
29	74887-SL0-003	Opener assy - FUEL LID
31	90106-SL0-000	Bolt-washer - 6X26
32	90137-SL0-003	Bolt - FUEL LID, 6X20
33	90306-SL0-013	Nut - POP, 6MM
34	90331-SL0-013	Nut - POP, 5MM
35	90332-SL0-013	Nut - POP, 6MM
36	90344-692-003	Nut - CLIP, 6MM
37	90692-SK8-003	Clip - TRUNK OPENER CABLE
38	91590-PN1-003	Clip - THROTTLE CABLE
42	60535-SL0-000	Plate - SETTING
44	91505-SL0-003	Clip - COWL TOP
45	91504-SL0-003	Clip - HOOD OPEN WIRE

Outer panels (NSX-T) 21

#	OEM	部品名
9	63109-SL0-000	Stay - FR. RR. FENDER
11	63455-SA7-000	Grommet - HOOD WIRE
17	64412-SL0-010	Stay - R. RR. RR. FENDER
20	64812-SL0-010	Stay - L. RR. RR. FENDER
31	74411-SL0-013	Cable - FUEL LID OPENER
32	74422-SM4-000	Cushion - FUEL FILLER LID
33	74494-SL0-000	Spring - FUEL LID OPEN
34	74887-SL0-003	Opener assy - FUEL LID
36	85142-SL0-T00	Retainer - FR. ROOF
37	85143-SL0-T00	Retainer - RR. ROOF
38	90106-SL0-000	Bolt-washer - 6X26
39	90113-SL0-T01	Rivet - ROOF RETAINER
40	90137-SL0-003	Bolt - FUEL LID, 6X20
41	90306-SL0-013	Nut - POP, 6MM
42	90332-SL0-013	Nut - POP, 6MM
43	90344-692-003	Nut - CLIP, 6MM
44	90692-SK8-003	Clip - TRUNK OPENER CABLE
45	91590-PN1-003	Clip - THROTTLE CABLE
49	60535-SL0-000	Plate - SETTING
51	91505-SL0-003	Clip - COWL TOP
52	91504-SL0-003	Clip - HOOD OPEN WIRE

P.s. gear box (RH) 16

#	OEM	部品名
1	53436-SL0-A01	Cushion b, GEAR BOX
2	53438-SL0-A00	Bracket - STEERING GEAR BOX
3	53439-SL0-A00	Base - STEERING MOUNTING
4	53502-SL0-A50	Grommet - STEERING
5	53601-SL0-030	Box assy - POWER STEERING GEAR
6	53611-SL0-000	Cable - STEERING GEAR BOX EARTH (RH)
7	53685-SL0-A00	Bush, STEERING GEAR BOX MOUNTING
8	53686-SL0-A00	Collar, STEERING GEAR BOX MOUNTING
9	53750-SL0-010	Stay - HARNESS (EPS) (RH)
10	53751-SL0-000	Clip - HARNESS (EPS)
11	53787-SL0-000	Guard - TERMINAL (RH)
12	90201-SL0-000	Bolt - UPPER ARM, 10X84
13	90322-SL0-A00	Bolt - 10X105
14	90325-SL0-A00	Washer - PLAIN, 10MM
15	90326-SL0-A00	Bolt - 10X97
16	90401-PD1-000	Washer - PLAIN, 6MM

Parking brake 14

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
4	47142-SL0-013	Knob comp. - PUSH ROD
5	47143-SD4-300	Spring - PUSH ROD
7	47342-SL0-013	Switch assy - PARKING BRAKE
8	47360-SB2-000	Equalizer
9	47365-538-000	Pin - EQUALIZER
10	47510-SL0-003	Wire - R. PARKING BRAKE
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING
12	47537-671-670	Spring - PARKING BRAKE ROD
13	47560-SL0-003	Wire - L. PARKING BRAKE
14	47572-SL0-J01	Base - WIRE GUIDE
15	47573-SL0-J00	Stay - WIRE GUIDE
16	90651-538-000	Clip - BRAKE HOSE
17	90705-SD2-931	Pin - SNAP, 6MM

Pedal (RH) 30

#	OEM	部品名
1	17010-SL0-E80	Pedal set - ACCELERATOR
3	17815-SL0-E80	Bracket - ACCELERATOR PEDAL
5	17816-SL0-000	Cover - ACCELERATOR PEDAL
6	17818-SL0-030	Stopper - ACCELERATOR STROKE
7	17827-SL0-000	Spring - ACCELERATOR RETURN
8	17835-SL0-A00	Collar - ACCELERATOR
9	17858-SM4-000	Bush - CENTER
10	17863-SS0-000	Spring - ACCELERATOR LEVER
11	17910-SL0-J01	Wire - THROTTLE
12	17921-SA4-730	Seal - THROTTLE CABLE
13	17925-SL0-A02	Clamp - WIRE HARNESS
14	17935-SL0-000	Clamp - THROTTLE WIRE
15	35710-SE3-A01	Switch assy, CLUTCH (INHIBITER)
16	36750-SE0-013	Switch assy - STOP & CRUISE (TEC)
19	46500-SL0-980	Pedal comp - BRAKE
20	46504-ST5-300	Bush - PEDAL
21	46505-SA5-000	Pad - PEDAL STOPPER
22	46505-SF1-901	Pad - PEDAL STOPPER
23	46530-SL0-000	Spring assy - PEDAL RETURN
24	46535-SL0-000	Collar - PEDAL
26	46545-692-980	Cover - BRAKE PEDAL
27	46590-SL0-000	Bracket - PEDAL
28	46904-SM4-300	Pad - ACCELERATOR STOPPER
30	46905-SM4-300	Bolt - ACCELERATOR STOPPER
34	46914-SM4-300	Cap - ACCELERATOR
39	46991-SL0-000	Bracket - FOOTREST
40	90132-SH3-000	Bolt - STEERING HANGER
41	90195-SL0-000	Bolt-washer - 6X16
42	90196-SL0-000	Bolt - HEX., 6X55
57	90109-SL0-000	Bolt-washer - 6X26

Pillar garnish/ opening trim (RH) 11

#	OEM	部品名
3	77304-SH5-A01	Lock - INSTRUMENT LOWER COVER
21	90105-SA7-000	Screw-washer - 4X16
22	90106-SA7-000	Screw-washer - 4X12
22	90133-SJ6-020	Screw-washer - 4X12 (PO)
23	90609-SE1-960	Clip - PILLAR GARNISH
24	90609-SG0-003	Clip - PILLAR GARNISH
25	90609-SL9-900	Clip - INSTRUMENT LOWER
26	90668-SJ4-003	Clip - RR. TRAY
27	91638-SM4-003	Grommet - SCREW, 5MM
28	91640-SM4-003	Grommet - SCREW, 4MM
29	91641-SM4-003	Grommet - SCREW, 4MM

Piston/connecting rod 19

#	OEM	部品名
1	13011-PR7-305	Ring set - PISTON (OS 0.25)
1	13011-PR7-A02	Ring set - PISTON (STD.)
1	13011-PR7-306	Ring set - PISTON (OS 0.50)
2	13200-PR7-J10	Rod assy - FR. CONNECTING (A)
2	13200-PR7-406	Rod assy - FR. CONNECTING (OS 0.50)
2	13220-PR7-J10	Rod assy - FR. CONNECTING (B)
2	13200-PR7-405	Rod assy - FR. CONNECTING (OS 0.25)
3	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)
3	13205-634-010	Nut
4	13206-PR7-J00	Washer - CONNECTING ROD
5	13211-PR7-J01	BEARING A - CONNECTING ROD (BLACK) (DAIDO)
5	13213-PR7-J01	Bearing c - CONNECTING ROD (GREEN) (DAIDO)
5	13215-PR7-J01	Bearing e - CONNECTING ROD (PINK) (DAIDO)
5	13212-PR7-J01	Bearing b - CONNECTING ROD (BROWN) (DAIDO)
5	13214-PR7-J01	Bearing d - CONNECTING ROD (YELLOW) (DAIDO)
6	13250-PR7-406	Rod assy - RR. CONNECTING (OS 0.50)
6	13260-PR7-J10	Rod assy - RR. CONNECTING (B)
6	13250-PR7-405	Rod assy - RR. CONNECTING (OS 0.25)
6	13250-PR7-J10	Rod assy - RR. CONNECTING (A)

Purge control solenoid valve 9

#	OEM	部品名
1	16725-PK2-000	Clamp - FUEL HOSE
2	17725-SL0-950	Hose assy - PURGE
3	36160-P8E-A02	Valve assy. - PURGE CONTROL SOLENOID
4	36162-P8E-A02	Valve - PURGE CONTROL SOLENOID
5	36165-PR7-A00	Hose - PURGE
6	36166-P0A-A01	Rubber - MOUNTING
7	36211-PR7-A31	Stay - PURGE CONTROL SOLENOID VALVE
8	91594-S87-G01	Clamp - CANISTER DRAIN
9	91406-SAA-J00	Clamp - TUBE (D12)

Radiator 16

#	OEM	部品名
1	19010-PR7-A04	Radiator comp - SAK
2	19011-PR7-A03	Cock - DRAIN (SAK)
3	19012-PV0-005	O-ring - SAK
4	19015-PR7-A04	Shroud comp - SAK
5	19019-PR7-A00	Clip - HARNESS (BLACK)
6	19020-PR7-A03	Fan comp - COOLING (MITSUBA)
7	19030-PR7-A02	Motor - COOLING FAN (MITSUBA)
8	19033-PV0-015	Stay - COUPLER CLAMP
9	19044-PR7-A01	Mark b - RADIATOR CAUTION
10	19051-PR7-A00	Stay comp - RESISTOR
11	38613-PT2-J01	Resistor assy - DENSO
12	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
12	90311-MB6-003	Nut toothed 5mm
13	90041-PV0-005	Screw-washer - 4X10
14	90042-PV0-005	Bolt-washer - 6X16
15	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 27

#	OEM	部品名
1	19045-PR7-A08	Cap comp - SAK
2	19046-PV1-000	Seal - CAP
3	19101-PR7-A02	Tank comp. - EXPANSION
4	19103-PR7-A00	Hose - EXPANSION UPPER
5	19104-PR7-A00	Hose - EXPANSION LOWER
6	19107-PR7-A00	Tube - OVERFLOW
7	19113-PR7-A01	Bracket a - EXPANSION TANK
8	19114-PR7-A30	Bracket b - EXPANSION TANK
9	19501-PR7-000	Hose - FR. WATER UPPER (YELLOW PAINTED)
10	19502-PR7-010	Hose - FR. WATER LOWER (YELLOW PAINTED)
11	19506-PR7-A01	Hose - RR. WATER UPPER (WHITE PAINTED)
12	19507-PR7-A01	Hose - RR. WATER LOWER (YELLOW PAINTED)
13	19510-PR7-000	Pipe comp - RR. WATER
14	19511-PR7-A01	Clip - WATER HOSE (40.7MM)
15	19512-PC6-003	Clip - HOSE, 18.7MM
16	19516-PR7-A00	Bolt - BREATHING
17	19518-PR7-A00	Hose - WATER UPPER MIDDLE
18	19519-PR7-A00	Hose - WATER LOWER MIDDLE
19	19530-PR7-A00	Bracket - RR. WATER PIPE
21	19535-PR7-000	Pipe comp - FR. WATER UPPER
23	19536-PR7-010	Pipe comp - FR. WATER LOWER
24	74172-SD4-020	Cushion - RADIATOR MOUNTING LOWER
25	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
26	74173-SL0-000	Bracket - R. RADIATOR MOUNTING
27	74175-SL0-010	Bracket - L. RADIATOR MOUNTING
28	90024-PR7-A00	Bolt - SEALING, 8MM
29	90471-580-000	Packing - 8MM

Rear brake 45

#	OEM	部品名
1	01473-SL0-J00	Caliper set - RR.
2	42300-SL0-008	Bearing assy - RR. HUB
2	42300-SL0-305	Bearing assy
3	42600-SL0-010	Hub assy - RR.
4	43018-SL0-Z00	Caliper sub assy. R. RR.
5	43019-SL0-Z00	Caliper sub assy. L. RR.
6	43022-SL0-J02	Pad set - RR.
7	43215-SL0-J01	Piston assy.
8	43223-SD2-932	BEARING A
9	43224-SD2-931	Spring b - ADJUSTING
10	43224-SL0-003	Shim - BRAKE PAD OUTER
11	43225-SL0-003	Shim - BRAKE PAD INNER
12	43228-SD2-933	Shaft a
13	43229-SD2-931	Rod
14	43233-S5A-J01	Piston comp - SLEEVE
14	43233-TR0-A01	Piston, sleeve
15	43236-S04-003	Spacer
16	43238-SL0-J01	Ring - RETAINING
17	43241-SL0-J01	Guide b - SPRING
18	43243-SD2-931	Nut - PARKING
19	43244-SL0-J01	Retainer
20	43245-SL0-013	Lever - R.
21	43246-SL0-003	Spring - R. RETURN
22	43247-SL0-003	Arm - R.
23	43248-SD2-933	Shaft b
24	43249-S04-003	Bolt - ADJUSTER
25	43251-SL0-J00	Disk - RR. BRAKE
26	43255-SL0-000	Guard - R. RR. SPLASH
27	43256-SL0-000	Guard - L. RR. SPLASH
28	43257-SL0-000	Protector - R. RR. CALIPER
29	43258-SL0-000	Protector - L. RR. CALIPER
30	43265-SL0-013	Lever - L.
31	43266-SL0-003	Spring - L. RETURN
32	43267-SL0-003	Arm - L.
33	43352-SM4-951	Screw - BLEEDER
34	43353-SD5-003	Cap - BLEEDER SCREW
35	45235-SL0-003	Pin a
36	45240-SC2-003	Bolt - FLANGE, 8X22
37	45240-SM4-003	Bolt - FLANGE, 10X24
38	45262-SL0-003	Pin b
39	90107-SL0-000	Bolt - CALIPER MOUNTING
40	90113-SD4-902	Bolt - WHEEL (SAGA)
40	90113-SD4-901	Bolt - WHEEL (MEIRA)
41	90160-SL0-008	Bolt - RR. HUB UNIT, 10X46.5
42	91255-SL0-000	Seal - RR. BEARING INNER

Rear bulkhead lining 12

#	OEM	部品名
1	39129-SL0-003	Speaker assy - RR. (2.5") (BOSE)
3	83721-SL0-A00	Bracket a - RR. LINING BULKHEAD
4	83722-SL0-T00	Bracket comp. - RR. LINING BULKHEAD
5	83723-SL0-A00	Bracket c - RR. LINING BULKHEAD
6	83724-SL0-A00	Bracket d - RR. LINING BULKHEAD
13	90105-SA7-000	Screw-washer - 4X16
14	90106-SA7-000	Screw-washer - 4X12
14	90133-SJ6-020	Screw-washer - 4X12 (PO)
15	90668-SJ4-003	Clip - RR. TRAY
16	91560-SL0-T00	Clip - DOOR LINING
17	91638-SM4-003	Grommet - SCREW, 5MM
18	91641-SM4-003	Grommet - SCREW, 4MM

Rear bumper 32

#	OEM	部品名
3	71506-SL0-G00	Bracket, RR. LICENSE GARNISH
6	71520-SL0-000	Stay comp - R. RR. BUMPER
7	71525-SL0-000	Stay comp - L. RR. BUMPER
8	71530-SL0-020	Beam comp - RR. BUMPER
9	71538-SL0-000	Plate - RR. BUMPER BEAM
10	71540-SL0-000	Frame assy - R. RR. BUMPER UPPER
11	71541-SL0-000	Frame - RR. BUMPER CENTER UPPER
12	71545-SL0-000	Frame assy - L. RR. BUMPER UPPER
13	71550-SL0-000	Plate - RR. BUMPER UPPER
14	71555-SL0-010	Stay - RR. BUMPER CENTER LOWER
15	71556-SL0-000	Stay - R. RR. BUMPER BEAM LOWER
16	71557-SL0-000	Stay - L. RR. BUMPER BEAM LOWER
18	71570-SL0-G10	Absorber - R. RR. BUMPER
19	71575-SL0-G10	Absorber - L. RR. BUMPER
20	90100-SE0-010	Bolt assy. a - BUMPER
21	90103-SE3-003	Bolt a - BUMPER
22	90104-SD4-013	Bolt - CORNER SLIDE
23	90110-SL0-000	Bolt assy. c - BUMPER
24	90111-SL0-000	Screw - CORNER SLIDE TAPPING
25	90125-S3Y-000	Screw - TAPPING, 5X16
26	90192-SG0-003	Bolt - BUMPER CORNER
27	90303-SA5-003	Nut - FR. COMBINATION LIGHT
28	90308-SF1-003	Nut-washer - CAP, 8MM
29	90323-SE0-000	Nut - CLIP, 6MM
29	90305-SH3-000	Nut - AIR SPOILER CLIP
30	90540-SA7-000	Washer - BUMPER
31	90661-SJ8-000	Grommet - SCREW, 5MM
32	90673-SB2-000	Nut - CLIP, 6MM
33	91503-SZ3-003	Clip A
34	91504-SD5-901	Clip - WASHER MOUTH
35	91601-SP0-003	Grommet - LICENSE
36	91603-SL0-000	Grommet - SCREW, 5MM

Rear hatch/engine maintenance lid (NSX) 27

#	OEM	部品名
1	63455-SA7-000	Grommet - HOOD WIRE
3	68210-SL0-000	Hinge comp - R. RR. HATCH
4	68260-SL0-000	Hinge comp - L. RR. HATCH
5	69100-SL0-J01	Lid assy - ENGINE MAINTENANCE
6	69112-SL0-000	Bracket a - ROD HOLDER
7	69113-SL0-000	Bracket b - ROD HOLDER
8	69210-SL0-000	Hinge comp - ENGINE MIDDLE LID
9	73214-SL0-003	Garnish - RR. HATCH HARNESS
10	74404-SL0-000	Drain assy. - HATCH HINGE
11	74405-SL0-000	Drain - HATCH HINGE
12	74440-SL0-003	Weatherstrip assy - RR. HATCH
13	74442-SL0-003	Weatherstrip - RR. HATCH LOWER
14	74624-SL0-000	Insulator, ENGINE MAINTENANCE LID
15	74800-SL0-003	Lock assy - RR. HATCH
16	74813-SL0-003	Striker - RR. HATCH
17	74820-SL0-305	RR. Hatch Open Stay Assy
18	74830-SL0-003	Cable - RR. HATCH OPEN
19	74845-SL0-000	Stay - ENGINE MAINTENANCE LID OPEN
20	74881-SL0-003	Opener assy - RR. HATCH
22	75891-SA7-000	Stopper - DOOR
23	90006-PT2-003	Bolt - FLANGE, 6X16
24	90134-SL0-000	Screw - PAN, 4X12
25	90142-SL0-000	Bolt-washer - 6X18
26	90314-SL0-000	Nut - SPEED
27	90677-SE0-003	Holder - ROD
28	91504-SL0-003	Clip - HOOD OPEN WIRE
29	91604-SD2-013	Grommet - HOOD STAY

Rear hatch/engine maintenance lid (NSX-T) 53

#	OEM	部品名
1	32156-SL0-000	Sub cord - SUNROOF SWITCH
2	35400-SL0-013	Switch assy - DOOR
3	35409-SD2-003	Screw - EARTH, 4X12 (ZN)
4	63455-SA7-000	Grommet - HOOD WIRE
5	68100-SL0-T00	Sash comp. - RR. HATCH
6	68210-SL0-000	Hinge comp - R. RR. HATCH
7	68260-SL0-000	Hinge comp - L. RR. HATCH
9	69114-SL0-T00	Bracket - ROD STOPPER
12	69311-SL0-T00	Cover - ROOF
13	73214-SL0-003	Garnish - RR. HATCH HARNESS
14	74404-SL0-000	Drain assy. - HATCH HINGE
15	74405-SL0-000	Drain - HATCH HINGE
16	74440-SL0-T00	Weatherstrip assy - RR. HATCH
17	74442-SL0-003	Weatherstrip - RR. HATCH LOWER
18	74450-SL0-T00	Seal - ROOF COVER
19	74624-SL0-T01	Insulator, ENGINE MAINTENANCE LID
20	74726-SL0-T00	Bracket - R. ROOF STOPPER
21	74727-SL0-T00	Bracket - L. ROOF STOPPER
22	74733-SL0-T00	Spring - ROOF COVER POP UP
23	74800-SL0-003	Lock assy - RR. HATCH
24	74813-SL0-003	Striker - RR. HATCH
25	74815-SL0-T01	Handle - ROOF COVER
26	74820-SL0-305	RR. Hatch Open Stay Assy
27	74828-SD4-000	Cushion - TRUNK HINGE
28	74830-SL0-003	Cable - RR. HATCH OPEN
29	74840-SL0-T01	Lock assy - ROOF COVER
30	74841-SL0-T01	Striker assy - ROOF COVER
31	74842-SL0-T01	Cable - ROOF COVER OPENER
32	74845-SL0-T00	Stay - ENGINE MAINTENANCE LID OPEN
33	74846-SL0-T01	Opener assy - ROOF COVER LOCK
36	74877-SL0-T00	Clamp - SPRING (5)
37	74879-SL0-T00	Collar - SPRING
38	74881-SL0-003	Opener assy - RR. HATCH
40	74910-SL0-T01	Belt assy. - ROOF COVER HOLD
41	74911-SL0-T00	Holder - HOOK
42	75891-SA7-000	Stopper - DOOR
43	85040-SL0-T11	Stopper - R. HOOK
44	85090-SL0-T11	Stopper - L. HOOK
45	90006-PT2-003	Bolt - FLANGE, 6X16
46	90134-SL0-000	Screw - PAN, 4X12
47	90142-SL0-000	Bolt-washer - 6X18
48	90301-693-000	Nut - OPEN STAY, 6MM
49	90305-SJ4-003	Nut - MOLDING SIDE
50	90309-SS1-003	Hook b - FEMALE TOP
51	90310-SS1-003	Hook b - FEMALE SOCKET
52	90312-SS1-003	Washer - NYLON
53	90313-SS1-013	Hook c - MALE
54	90314-SL0-000	Nut - SPEED
55	90508-SL0-000	Shim - TRUNK HINGE
56	90677-SE0-003	Holder - ROD
57	91504-SL0-003	Clip - HOOD OPEN WIRE
58	91564-SK7-003	Band - HARNESS (M6 STUD) (BLUE) (90MM)
59	91604-SD2-013	Grommet - HOOD STAY

Rear panel 3

#	OEM	部品名
33	90102-SL0-003	Stud - BALL
34	90306-SL0-013	Nut - POP, 6MM
35	90332-SL0-013	Nut - POP, 6MM

Rear shock absorber 20

#	OEM	部品名
1	06521-SL0-601	Absorber kit - RR. SHOCK
1	06521-SL0-961	Absorber kit - RR. SHOCK
2	51621-SD4-004	Washer - SHOCK ABSORBER MOUNTING (SHOWA)
3	51631-SL0-003	Rubber - SHOCK ABSORBER MOUNTING
4	51675-SL0-013	Base, SHOCK ABSORBER MOUNTING
5	51685-SH3-014	Plate - DUST COVER(SHOWA)
6	51686-SL0-003	Rubber - SPRING SEAT
7	51689-SH3-004	Plate - BUMP STOP (SHOWA)
8	51689-SL0-003	Cover - DUST
9	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
10	52441-SL0-602	Spring - RR. (SHOWA)
10	52441-SL0-962	Spring - RR.
11	52610-SL0-612	Absorber assy - RR. SHOCK
11	52610-SL0-962	Absorber assy - RR. SHOCK
12	52623-SL0-003	Cap - RR. SHOCK ABSORBER
13	52688-SL0-003	Boot, Rear dust cover
14	52722-SL0-901	Stopper - RR. BUMP
14	52722-SL0-003	Stopper - RR. BUMP
15	90182-SL0-004	Nut - SELF-LOCK, 10MM
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm 48

#	OEM	部品名
1	47523-SL0-000	Stay - R. BRAKE WIRE BRACKET
2	47524-SL0-000	Stay - L. BRAKE WIRE BRACKET
3	51010-SL0-000	Boot set - BALL JOINT
4	51308-SL0-000	Holder - FR. STABILIZER
5	51387-SL0-000	Bolt - ADJUSTING
6	51388-SL0-000	Plate - CAM
7	51456-SL0-003	Circlip - UPPER BALL
8	52210-SL0-020	Carrier comp. - R. RR. HUB
8	52210-SL0-325	Carrier comp.
9	52215-SL0-020	Carrier comp. - L. RR. HUB
9	52215-SL0-325	Carrier comp.
10	52225-SL0-003	Boot - RR. LOWER BALL
11	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)
12	52300-SL0-611	Spring - RR. STABILIZER
12	52300-SL0-A01	Spring - RR. STABILIZER
13	52316-SL0-J01	Bush - RR. STABILIZER
13	52316-SL0-010	Bush - RR. STABILIZER
14	52317-SL0-020	Bracket - R. RR. STABILIZER
15	52318-SL0-020	Bracket, L. RR. STABILIZER
16	52320-SL0-013	Link assy - L. RR.
17	52330-SL0-013	Link assy - R. RR.
18	52338-SL0-003	Circlip - CONTROL ARM
19	52339-SL0-003	Boot - CONTROL ARM
20	52340-SL0-000	Arm comp - CONTROL END
21	52342-SL0-000	Rod, RR. CONTROL ARM
22	52345-SL0-000	Bolt - RR. CONTROL ARM ADJUSTING
23	52346-SL0-000	Nut - CONTROL ARM LOCK
24	52348-SL0-000	Nut - CONTROL ARM LOCK
25	52350-SL0-010	Arm assy. - R. RR. LOWER
26	52360-SL0-010	Arm assy. - L. RR. LOWER
27	52390-SL0-020	Arm assy. - R. RR. UPPER
27	52390-SL0-901	Arm assy.
28	52400-SL0-020	Arm assy. - L. RR. UPPER
29	57451-SM4-G50	Bracket - COUPLER (L.)
30	57452-SL0-000	Bracket - RR. COUPLER
31	57470-SL0-020	Sensor assy - R. RR.
32	57475-SL0-010	Sensor assy - L. RR.
33	90173-SL0-004	Nut - SELF-LOCK, 12MM
34	90200-SL0-000	Nut - SELF-LOCK, 14MM
35	90202-SL0-000	Nut - CASTLE, 12MM
36	90203-SL0-010	Pin - SPLIT, 3.0
37	90206-SL0-000	Spacer - STABILIZER LINK
38	90208-SL0-000	Bolt - FLANGE, 14X100
39	90209-SL0-000	Bolt - FLANGE, 10X35
40	90217-SL0-000	Bolt - RR. CONTROL ARM, 12X83
41	90218-SL0-000	Nut - SELF-LOCK, 14MM
42	90320-SL0-A00	Nut - CASTLE, 10MM
43	90327-SL0-A00	Pin - SPLIT, 2.0

Regulator 29

#	OEM	部品名
1	25150-PR9-000	Shaft comp. - STATOR
2	25155-PR9-000	Shaft assy - STATOR
3	25650-PR9-010	Pipe comp - LUBRICATION (C)
4	27200-PR9-000	Body assy - REGULATOR
5	27211-PR9-000	Body - REGULATOR VALVE
6	27221-PC9-000	Valve - REGULATOR
7	27231-PF4-004	Spring a - REGULATOR VALVE (NHK SPRING)
8	27232-PX4-000	Spring b - REGULATOR VALVE
9	27233-PA9-000	Spring - REACTION STATOR
10	27246-PN6-800	Cap - REGULATOR SPRING
11	27256-PA9-000	Valve - RELIEF
12	27258-680-900	Seat - RELIEF VALVE SPRING
13	27259-PL5-000	Spring - COOLER CHECK VALVE
14	27600-PR9-000	Body assy - LOCK UP VALVE
15	27612-PR9-000	Plate - LOCK UP SEPARATING
16	27621-PR9-000	Valve - LOCK UP SHIFT
17	27623-PR9-000	Spring - LOCK UP SHIFT
18	27626-PR9-000	Valve b - LOCK UP TIMING
19	27645-PL5-000	Cap - LOCK UP CONTROL
20	27646-PL5-010	Sleeve - LOCK UP CONTROL
21	27728-PF4-000	Cap - REVERSE CONTROL VALVE
22	90001-PL5-000	Bolt - FLANGE, 6X93
23	90016-PF4-000	Bolt - FLANGE, 6X85
24	90089-PK4-000	Bolt - STOPPER, 6MM
25	90701-639-000	Dowel pin - 8X55
26	91016-PR9-003	Bearing - NEEDLE, 24X28X13
27	91101-PF4-003	Roller - 3.5X21.8
28	91102-PF4-000	Roller - 3.5X19.8
29	91316-PY4-003	O-ring - 32.5X1.8 (ARAI)

Roof garnish (NSX-T) 3

#	OEM	部品名
7	90667-SD4-003	Clip - ROOF LINING
8	91601-SL0-T00	Grommet - SCREW, 5MM
9	91640-SM4-003	Grommet - SCREW, 4MM

Roof lining (NSX) 4

#	OEM	部品名
1	75353-671-000	Lock - SCREW
6	90667-SD4-003	Clip - ROOF LINING
7	91638-SM4-003	Grommet - SCREW, 5MM
8	91640-SM4-003	Grommet - SCREW, 4MM

Roof panel (NSX-T) 16

#	OEM	部品名
1	75826-634-300	Seal - INSIDE PANEL, 15MM
8	85121-SL0-T01	Tape - FR. ROOF
9	85122-SL0-T01	Tape - RR. ROOF
10	85123-SL0-T01	Tape a - FR. ROOF
11	85124-SL0-T01	Tape a - RR. ROOF
12	85126-SL0-T00	Shim - WEATHERSTRIP (1.6MM)
14	85141-SL0-T01	Weatherstrip - R. ROOF SIDE
15	85146-SL0-T01	Seal a
16	85147-SL0-T01	Seal b
17	85150-SL0-T01	Seal c
18	85151-SL0-T01	Seal d
20	85191-SL0-T01	Weatherstrip - L. ROOF SIDE
21	90101-692-000	Screw - GLOVE BOX
22	90128-SL0-003	Screw - TAPPING, 5X16
23	90148-SR2-000	Screw - TRUSS, 4X8
24	90610-SR3-003	Clip - GARNISH (KATO)

Roof side lock (NSX-T) 31

#	OEM	部品名
1	85030-SL0-T01	Catcher - R. FR. LOCK
2	85033-SL0-000	Shim - CATCHER (1.0)
3	85036-SL0-T01	Catcher - R. RR. LOCK
4	85037-SL0-T00	Damper - R. RR. CATCHER
5	85038-SL0-T01	Switch - R. RR. CATCHER
6	85039-SL0-T00	Catcher - RR. COVER (WHEN ROOF REMOVED)
7	85040-SL0-T02	Stopper - R. HOOK
8	85080-SL0-T01	Catcher - L. FR. LOCK
9	85086-SL0-T01	Catcher - L. RR. LOCK
10	85087-SL0-T00	Dumper - L. RR. CATCHER
11	85088-SL0-T01	Switch - L. RR. CATCHER
12	85090-SL0-T02	Stopper - L. HOOK
13	85125-SL0-T01	Hook - R. ROOF SIDE
14	85130-SL0-T00	Holder - R. RR. ROOF
15	85161-SR2-000	Cushion - FR. ROOF LOCK ROD (8MM)
16	85175-SL0-T01	Hook - L. ROOF SIDE
17	85180-SL0-T00	Holder - L. RR. ROOF
19	85201-SL0-T00	Seal
20	85210-SL0-T01	Lock assy - R. ROOF SIDE
24	85220-SL0-T02	Guide - ROOF LOCK
25	85231-SL0-T00	Cushion - R. RR. ROOF LOCK ROD
26	85235-SL0-T01	Guide - R. RR. ROOF STOPPER
28	85260-SL0-T01	Lock assy - L. ROOF SIDE
30	85281-SL0-T00	Cushion - L. RR. ROOF LOCK ROD
31	85285-SL0-T01	Guide - L. RR. ROOF STOPPER
32	90101-692-000	Screw - GLOVE BOX
33	90152-SR2-000	Screw - LOCK, 4X20
34	90302-SL0-T00	Nut - SPRING, 4MM
35	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
36	91556-SP0-003	Clip - COUPLER(BROWN)
37	91619-SR2-003	Grommet - ROOF

Seat 23

#	OEM	部品名
5	52819-SA5-800	Grommet - 35MM
6	81113-SL0-A01	Motor - R. GEARED
9	81129-SL0-003	Bolt
12	81142-SL0-013	Pin - HEADREST SNAP
13	81195-SL0-A00	Cover - R. FR. SEAT FOOT
14	81199-SL0-A00	Cap - FOOT COVER
15	81266-SL0-A01	Cable - POWER SLIDE ADJUSTER
16	81311-SL0-A02	Harness - R. POWER SEAT WIRE
17	81514-SL0-A01	Motor assy.
18	81154-SL0-A01	Box assy - SLIDE GEAR
19	81519-SL0-003	Washer
24	81595-SL0-A00	Cover - L. FR. SEAT FOOT
25	81711-SL0-J02	Harness - L. POWER SEAT WIRE
26	90133-SP0-003	Screw a
27	90324-SM4-003	Nut
28	90324-SP0-003	Nut c
29	90667-SL0-003	Clip - TRIM, 7MM
30	90674-SL0-003	Band - INSERT WIRE
31	91555-SM4-003	Clip - COUPLER (RED)
32	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
33	91641-SM4-003	Grommet - SCREW, 4MM
42	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
42	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)

Seatbelts 2

#	OEM	部品名
7	90344-692-003	Nut - CLIP, 6MM
10	90142-S04-004	Bolt-washer - 7/16"X28

Second air pipe 8

#	OEM	部品名
1	18788-PR7-010	Hose d - SECOND AIR DISCHARGE
2	18793-PR7-000	Hose a - SECOND AIR SUCTION
3	18799-P5A-A11	Joint - FEED AIR
4	18801-PR7-010	Pipe comp. a - SECOND AIR
5	18803-PR7-000	Pipe comp. c - SECOND AIR
6	19517-KM9-000	Clip - WATER HOSE
7	91405-679-004	Clamp - TUBE (D17)
7	91405-PM5-004	Clamp - TUBE (D17)

Second air valve 5

#	OEM	部品名
1	18721-PR7-A01	Packing - EGR PIPE (ISHINO GASKET)
2	18751-PR7-000	Pipe comp - FR. DELIVERY
3	18752-PR7-010	Pipe comp, RR. DELIVERY
4	18780-PR7-003	Valve assy. - SECOND AIR
5	18781-PR7-000	Pipe comp - FR. SECOND AIR VALVE

Secondary body 29

#	OEM	部品名
1	27242-PR9-000	Valve - MODULATOR
2	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
3	27415-PR9-000	Valve - SECOND ORIFICE CONTROL
4	27417-PR9-000	Spring - SECOND ORIFICE CONTROL VALVE
5	27451-PR9-000	Valve - ORIFICE CONTROL
6	27452-PR9-000	Spring - ORIFICE CONTROL VALVE
7	27471-PR9-000	Valve - FOURTH EX.
8	27472-PR9-000	Spring - FOURTH EX.
9	27628-PK4-000	Cap - LOCK UP TIMING
10	27646-PF4-000	Sleeve - 11MM
11	27651-PR9-000	Valve d - INHIBITER
12	27652-PR9-000	Spring d - INHIBITOR
13	27653-PF4-000	Cap - CLUTCH PRESSURE CONTROL VALVE
14	27655-PR9-000	Valve - CLUTCH PRESSURE CONTROL
15	27657-PC9-000	Spring b - CLUTCH PRESSURE CONTROL VALVE
15	27656-PC9-000	Spring a - CLUTCH PRESSURE CONTROL VALVE
16	27700-PR9-010	Body assy - SECONDARY
17	27711-PR9-010	Body - SECONDARY
18	27712-PR9-000	Plate - SECONDARY SEPARATING
19	27721-PR9-000	Valve - KICK DOWN (4-3)
20	27722-PR9-000	Spring - KICK DOWN VALVE (4-3)
21	27724-PG4-000	Cap - KICK DOWN VALVE
22	27724-PR9-000	Cap - SECOND ORIFICE CONTROL VALVE
23	27728-PF4-000	Cap - REVERSE CONTROL VALVE
24	27750-PL5-J01	Filter - SECONDARY BODY
25	27751-PR9-000	Valve - KICK DOWN (3-2)
26	27752-PR9-000	Spring - KICK DOWN VALVE (3-2)
27	91101-PF4-003	Roller - 3.5X21.8
28	91704-PF4-000	Dowel pin - 8X40

Secondary shaft 35

#	OEM	部品名
1	22537-PR9-003	Spring - CLUTCH DISK
2	22545-PX4-A03	Disk - SECOND CLUTCH
3	22559-PX4-003	Plate - CLUTCH END (9) (2.9MM)
3	22554-PX4-003	Plate - CLUTCH END (4) (2.4MM)
3	22556-PX4-003	Plate - CLUTCH END (6) (2.6MM)
3	22551-PX4-003	Plate - CLUTCH END (1) (2.1MM)
3	22558-PX4-003	Plate - CLUTCH END (8) (2.8MM)
3	22553-PX4-003	Plate - CLUTCH END (3) (2.3MM)
3	22555-PX4-003	Plate - CLUTCH END (5) (2.5MM)
3	22557-PX4-003	Plate - CLUTCH END (7) (2.7MM)
3	22552-PX4-003	Plate - CLUTCH END (2) (2.2MM)
4	22600-PR9-000	Clutch assy. - SECOND
5	22611-PR9-003	Guide comp - SECOND CLUTCH
6	22620-PR9-000	Piston comp - SECOND CLUTCH
7	22652-PR9-004	Spring - THIRD CLUTCH RETURN
8	22653-PR9-000	Seat - THIRD RETURN SPRING
9	22653-PX4-003	Plate - CLUTCH (2.3MM)
10	22814-PF4-003	Ring - SEALING, 35MM
11	23230-PR9-000	Shaft comp. - SECONDARY
12	23431-PR9-000	Gear - MAINSHAFT SECOND
13	23929-PX4-700	Washer - SPRING, 24MM
14	90203-PR9-010	Nut - HEX., 24MM
15	90408-PR9-000	Washer - THRUST, 32X55X4.5
15	90410-PR9-000	Washer - THRUST, 32X55X4.5 (0.03-0.06)
15	90412-PR9-000	Washer - THRUST, 32X55X4.5 (0.09-0.12)
15	90409-PR9-000	Washer - THRUST, 32X55X4.5 (0-0.03)
15	90411-PR9-000	Washer - THRUST, 32X55X4.5 (0.06-0.09)
16	90519-PR9-000	Collar - DISTANCE, 31MM
17	90603-PG4-000	Circlip - EXTERNAL, 43MM
18	90605-PX4-000	Ring - SNAP, 129MM
19	91023-PW4-003	Needle - THRUST, 37X57X2.5
20	91027-PR9-003	Bearing - NEEDLE, 37X43X22
21	91302-PG4-003	O-ring - 42.8X2.2 (ARAI)
22	91303-PX4-004	O-ring - 114X2.2 (NOK)
23	91309-PR0-000	O-ring - 25.2X1.9

Select lever (RH) 38

#	OEM	部品名
1	30158-700-010	E-clip - 3MM
2	35104-SK7-003	Cylinder - PARKING LOCK KEY
3	35505-692-003	Bulb - 14V 1.4W
4	35700-SL0-E01	Switch assy - INHIBITOR
5	37700-SL0-981	Lamp assy. - INDICATOR (AT)
6	39550-SL0-003	Solenoid assy. - AT
7	54020-SL0-983	Bracket comp. - CONTROL
8	54024-SD4-A40	Pin - SOLENOID
9	54026-SJ4-980	Collar - LOCK PIN
10	54031-SH9-980	Spring - SHIFT LOCK
11	54100-SL0-982	Lever comp - SELECT
12	54110-SL0-981	Stopper comp - LEVER
13	54113-SL0-981	Collar - LOCK PIN
14	54114-SE0-980	Collar - LOCK PIN
15	54115-SJ4-980	Bolt - SELECTOR STOPPER
16	54117-692-980	Spring - LOCK PIN
17	54119-SL0-980	Pin - LOCK
18	54120-SL0-981	Spring assy - SELECT
19	54123-SM4-980	Collar - SELECT LEVER
21	54132-SL0-983	Knob - PUSH
22	54133-SH9-980	Spring - PUSH KNOB
23	54136-SL0-980	Rod comp - LOCK PIN
24	54138-SL0-980	Holder - SECONDARY SPRING
25	54139-SL0-980	Cup - SPRING
26	54140-SL0-981	Spring - SECONDARY
27	54141-SL0-983	Knob - SELECT LEVER RING
28	54142-SA5-980	Bush - GUIDE
30	54203-SL0-A82	Plate - DETENT
31	54204-SL0-A81	Cover - DETENT
32	54210-SL0-982	Lamp assy. - ESCUTCHEON
33	54222-SL0-980	Cover - SELECT LEVER
34	54223-SL0-A81	Guard - FR. HARNESS
35	54347-SL0-980	Pin a - CONTROL ROD
36	54710-SL0-Q82	Escutcheon comp. - CONSOLE
37	90114-SA0-000	Nut - SELF-LOCK, 6MM
38	90673-SA7-003	Band - TUBE
39	91555-SM4-003	Clip - COUPLER (RED)
55	35740-SL0-A02	Switch assy - PARKING

Select lever control 7

#	OEM	部品名
2	54151-SL0-980	Base - CHANGE & SIDE BRAKE
3	54315-SL0-981	Wire - CONTROL
4	54316-SL0-000	Stay - CHANGE WIRE
5	54317-SL0-000	Clamp - CHANGE WIRE
6	54319-SL0-981	Clamp - CHANGE WIRE
7	54331-SL0-010	Holder - CHANGE WIRE
8	74714-SL0-000	Plate - CENTER BULKHEAD LOWER TIE

Servo body 27

#	OEM	部品名
1	24278-PX4-000	Base - SERVO DETENT
2	24530-PN1-000	Sleeve comp. - SERVO DETENT
3	25420-PR9-020	Strainer - TRANSMISSION (ATF)
4	25422-PY8-J11	Magnet comp. - TRANSMISSION
5	27405-PR9-050	Body set - SERVO
6	27412-PR9-000	Plate - SERVO SEPARATING
7	27561-PR9-000	Piston - LOW ACCUMULATOR
8	27562-PR9-000	Spring - LOW ACCUMULATOR
9	27574-PR9-030	Piston - THIRD ACCUMULATOR
10	27576-PR9-000	Piston - TOP ACCUMULATOR
11	27577-PR9-010	Spring - TOP ACCUMULATOR
12	27580-PR9-020	Cover - ACCUMULATOR
13	27583-PR9-010	Spring - THIRD ACCUMULATOR
14	27850-PR9-000	Valve body assy - THROTTLE
15	27862-PR9-000	Plate - THROTTLE SEPARATING
16	90002-PK4-E00	Bolt - FLANGE, 6X150
17	90003-PL5-000	Bolt - FLANGE, 6X110
18	90004-PC9-000	Bolt - FLANGE, 6X90
19	90028-PR9-000	Bolt - SPECIAL, 6X28
20	90433-PX4-000	Washer - LOCK, 6MM
21	91308-PW4-003	O-ring - 21.8X1.9
22	91318-PA9-003	O-ring - 23.5X2.1 (ARAI)
23	91326-PF4-004	O-ring - 24.4X2.4 (NOK)
24	91326-PL5-003	O-ring - 26X2.4(NOK)
25	91344-PC9-004	O-ring - 29X2.4 (NOK)
26	91344-580-000	O-ring - 31X2.7 (ARAI)
27	91351-PR9-010	O-ring - 27.8X2.4

Shift fork/control shaft 24

#	OEM	部品名
1	24111-PR9-000	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING
3	24411-PR9-300	Shaft - CONTROL
4	24420-PR9-000	Lever comp - MANUAL VALVE
5	24532-PN6-003	Lever - PARKING BRAKE
6	24535-PR9-000	Spring - PARKING BRAKE
7	24538-PA9-003	Stopper - PARKING BRAKE (2)
7	24537-PA9-003	Stopper - PARKING BRAKE (1)
7	24539-PA9-003	Stopper - PARKING BRAKE (3)
8	24552-PR9-000	Spring - PARKING PAWL
9	24553-PN6-000	Roller - PARKING BRAKE
10	24555-PN6-000	Pin - ROLLER, 6MM
11	24561-PR9-000	Pawl - PARKING BRAKE
12	24562-PL5-J00	Shaft - PARKING BRAKE
13	24629-PR9-000	Spring c - DETENT (104.5)
13	24628-PR9-000	Spring b - DETENT (104)
13	24621-PR9-000	Spring a - DETENT (103.5)
14	24623-PR9-000	Plate - DETENT SPRING
15	24624-PR9-000	Guide - DETENT SPRING
16	24625-PR9-000	Roller - DETENT
17	24626-PR9-000	Pin - DETENT
18	90028-634-000	Bolt - SPECIAL, 6X21
19	90433-639-000	Washer - LOCK, 6MM
20	90701-639-000	Dowel pin - 8X55

Speed sensor 14

#	OEM	部品名
1	23812-PR9-000	Holder - SPEED SENSOR
2	23813-PR9-000	Packing - SPEED SENSOR
3	23820-PR9-000	Gear comp - SPEEDOMETER
4	23830-PR9-000	Holder comp - SPEEDOMETER GEAR
5	29111-PR9-000	Cover - SPEED SENSOR
6	29112-PR9-010	Plate - SPEED SENSOR RADIATION
7	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
8	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
9	79420-SL0-000	Sensor assy - SPEED
10	90638-689-000	Clip - SPEEDOMETER GEAR
11	91208-689-005	Oil seal - 8X16X6(NOK)
11	91254-792-003	Oil seal, 8x16x6
12	91304-PT0-000	O-ring - 14.8X1.9
13	91313-611-010	O-ring - 23.5X2

Spool valve/oil pressure sensor 14

#	OEM	部品名
1	15810-PR7-J00	Valve assy. - SPOOL
2	15815-PR3-000	Filter, SPOOL VALVE
2	15815-PR3-004	Filter comp - SPOOL VALVE
3	15816-PR7-A00	Stay - COUPLER HOLD
4	15825-P08-005	Filter and Gasket, SPOOL VALVE
5	36171-PR7-J00	Solenoid assy.
6	36172-P08-015	Packing, SOLENOID BASE
7	37241-PR7-A00	Passage - OIL PRESSURE SENSOR
8	37242-PR7-A00	Stay - OIL PRESSURE SENSOR COUPLER
9	37245-PR7-A02	Sensor - OIL PRESSURE
10	37250-PR3-003	Switch assy - VALVE TIMING OIL PRESSURE
11	91302-PR7-A00	O-ring - 13.8X1.9
12	91319-PR3-000	O-ring - 13X1.5
12	91319-PR3-003	O-ring - 13X1.5 (ARAI)

Srs unit (RH) 27

#	OEM	部品名
1	77900-SL0-A81	Reel assy - CABLE
2	77907-SL4-N81	Holder - CONNECTOR (5P) (SKY BLUE)
3	77908-SL0-A80	Holder - FLAT CABLE (SKY BLUE)
4	77912-SL0-A10	Bracket assy - L. SRS SENSOR
5	77913-SL0-A10	Bracket assy - R. SRS SENSOR
6	77930-SL0-N90	Sensor kit - SRS DASHBOARD
7	77932-SL0-N90	Srs unit kit
8	77961-SL0-N86	Harness - SRS MAIN WIRE
9	77962-SL0-A80	Sub harness - L. SRS
10	77962-SL0-A90	Sub harness - R. SRS
11	77962-SL0-000	Stay - SRS HARNESS
12	77963-SL4-N81	Holder - CONNECTOR (2P)
13	77982-SP0-A81	Holder - COUPLER (3P) (SKY BLUE)
14	78961-SL0-A81	Protector a - SRS HARNESS
15	78962-SL0-N81	Protector b - R. SRS HARNESS DASHBOARD
16	78964-SL0-N83	Protector - SRS HARNESS CENTER
17	78965-SR3-A81	Joint - CONNECTOR (YELLOW)
18	78966-SL0-N83	Protector - L. SRS HARNESS SIDE
19	78967-SL0-A82	Protector - R. SRS HARNESS
20	78968-SL0-N83	Protector - R. SRS HARNESS SIDE
21	78969-SL0-A81	Clip - SRS PROTECTOR
22	78970-SL0-N82	Protector a - R. SRS HARNESS DASHBOARD
23	78971-SL0-N81	Clip - SRS PROTECTOR
24	78973-SL0-N81	Protector - SRS COLUMN
25	90134-SL4-N81	Bolt - FLANGE, 8X16
26	90138-SL0-A81	Bolt - TORX, 6X25
30	90683-SA0-003	Clip - WIRE HARNESS, 25MM

Starter motor (DENSO) 14

#	OEM	部品名
1	31200-PR7-J01	Motor assy. - STARTER (DX5ID) (DENSO)
2	31201-PM3-J01	Screw
3	31202-PR4-003	Bolt - THROUGH (DENSO)
4	31204-PR7-J01	Clutch comp. - OVERRUNNING
5	31205-657-671	Ball - STEEL (DENSO)
6	31206-P75-901	Yoke comp.
7	31207-PR4-003	Armature comp.
8	31208-PR7-J01	Plate comp - BRUSH HOLDER
9	31210-PR7-J01	Switch assy - MAGNET
10	31222-PM3-J01	Gear - IDLE
11	31225-PB2-006	Roller - BEARING (DENSO)
12	31226-PM3-J01	Retainer
13	31235-P75-901	Cover - TERMINAL
14	31291-PR7-J01	Stay assy - ENGINE WIRE HARNESS

Steering column 19

#	OEM	部品名
1	53200-SL0-063	Column assy - STEERING
2	53211-SL0-A01	Cover - TILT PIVOT
3	53216-SL0-A01	Holder b - STEERING COLUMN
4	53217-SL0-A00	Collar - STEERING RETAINER
5	53320-SL0-E00	Cover comp. - STEERING JOINT
6	53323-S04-003	Joint comp. b - STEERING
7	53325-SH3-000	Clip A - JOINT COVER
8	53326-SL0-A00	Clip b - JOINT COVER
9	53390-SL0-A01	Sensor assy - STEERING TCS
10	53398-SL0-A01	Shim d - 0.7MM) (WHITE
10	53395-SL0-A01	Shim a - 0.1MM) (YELLOW
10	53397-SL0-A01	Shim c - 0.4MM) (GREEN
10	53396-SL0-A01	Shim b - 0.2MM) (BLACK
11	77873-SD4-G80	Label - STEERING COLUMN CAUTION
12	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
13	90361-SM4-003	Nut - FLANGE, 8MM
13	90361-SR3-000	Nut - FLANGE, 8MM
14	90511-671-003	Washer - TOOTHED LOCK
15	90654-SA5-003	Clip - JOINT COVER

Steering wheel (SRS; 2) 10

#	OEM	部品名
2	36770-SL0-A81	Switch assy - AUTO CRUISE SET
6	78516-SL0-A81	Cover comp. - BOSS PLATE
7	78517-SL0-A81	Plate - CRUISE SWITCH SET
9	78519-SL0-A81	Bracket - MODULE COVER SETTING
12	78527-SD4-G80	Label a - STEERING WHEEL CAUTION
13	90141-SL0-A81	Bolt - TORX, 6X16
14	90171-SK7-003	Screw-washer - 4X10
15	90171-SL4-003	Screw-washer - 4X10
16	90172-SL4-003	Screw-washer - 5X12
17	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Switch (RH) 6

#	OEM	部品名
1	35151-SL0-A91	Variable assy. - ILLUMINATION
3	35300-SL0-A03	Switch assy - TCS
4	35810-SL0-A02	Switch - TRUNK OPENER MAIN
8	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
9	39700-SL0-023	Clock assy - DIGITAL
10	39702-SL0-305	Lid kit - CLOCK

Taillight (2) 34

#	OEM	部品名
1	33127-SL0-003	Screw - TAPPING PAN, 4X10
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33501-SL0-A03	Lamp unit - R.
4	33503-SL0-A01	Gasket - R. BASE (1)
5	33504-SL0-A01	Bezel - R.
6	33505-SL0-A01	Gasket - R. BASE (2)
7	33506-SL0-A01	Cushion - WIRE HARNESS
8	33512-SL0-A01	Socket comp. - R.
9	33513-SL0-A01	Socket comp. - TURN
10	33551-SL0-A03	Lamp unit - L.
11	33554-SL0-A01	Bezel - L.
12	33555-SL0-A01	Gasket - L. BASE (2)
13	33562-SL0-A01	Socket comp. - L.
14	34100-SL0-G02	Light assy - LICENSE (###)
15	34101-SL0-A01	Lens
16	34102-SH3-A01	Housing
17	34103-SH3-A01	Packing
18	34105-SL0-G01	Cord comp
19	34106-SL0-A01	Stay
20	34901-671-671	Bulb - WEDGE BASE (12V 5W)
21	34903-SF1-A01	Bulb - 12V 45CP
22	34903-634-671	Bulb - 12V27W
23	34906-SA5-671	Bulb - STOP & TAILLIGHT (12V 27/7W)
23	34906-SA0-003	Bulb - 12V 27W/5W
24	37540-SM4-003	Sensor - STOP LAMP FAILURE
25	37540-SM4-901	Sensor - STOP LAMP FAILURE
26	37541-SL0-A01	Bracket - STOP SENSOR
27	75520-SL0-A03	Garnish - RR. PANEL
28	75521-SL0-A01	Bezel
29	75523-SD4-003	Packing - SEAL
30	75528-SD4-003	Packing - SEAL (G)
32	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
33	91555-SM4-003	Clip - COUPLER (RED)
34	91601-SP0-003	Grommet - LICENSE

Throttle body 8

#	OEM	部品名
1	16016-PM6-005	Screw set
2	16176-PR7-A00	Rubber - THROTTLE BODY MOUNTING
3	16400-PR7-A33	Throttle Body Assy - KB05A
4	16412-PR7-A00	Stay - THROTTLE BODY
5	16413-PE2-000	Collar - MOUNTING
6	17207-PC6-000	Rubber - AIR CLEANER CASE MOUNTING
7	17208-PC6-000	Washer - PLAIN
8	32111-PR7-J00	Cable - SUB EARTH

Tie rod 13

#	OEM	部品名
1	53434-SD9-000	Clip - TIE ROD
1	53434-S04-J51	CLIP, TIE ROD
2	53449-SL0-A00	Band b - BELLOWS
2	53449-S04-J51	Band b - BELLOWS
3	53521-SL0-A01	End comp - FR. RACK
4	53535-SL0-000	Washer - TIE ROD STOPPER
5	53536-SB2-000	Washer - TIE ROD LOCK
6	53537-SL0-A03	Dust seal - TIE ROD
7	53540-SL0-A01	End comp - R. TIE ROD
8	53546-SD4-003	Boot - TIE ROD END (MUSASHI)
9	53548-SL0-A01	Circlip - TIE ROD
10	53560-SL0-A01	End comp - L. TIE ROD
12	90327-SL0-A00	Pin - SPLIT, 2.0

Timing belt cover 24

#	OEM	部品名
1	11810-PR7-A02	Cover comp. - TIMING BELT LOWER
2	11816-PR7-000	Grommet - TIMING BELT COVER
3	11820-PR7-A01	Cover comp. - FR. TIMING BELT MIDDLE
4	11830-PR7-A01	Cover comp. - RR. TIMING BELT MIDDLE
5	11841-PR7-A00	Packing - TIMING BELT LOWER COVER
6	11842-PR7-A00	Packing a - FR. TIMING BELT MIDDLE COVER
7	11843-PR7-A00	Packing b - FR. TIMING BELT MIDDLE COVER
8	11844-PR7-A00	Packing a - RR. TIMING BELT MIDDLE COVER
9	11845-PR7-A00	Packing b - RR. TIMING BELT MIDDLE COVER
10	11860-PR7-A00	Plate - FR. TIMING BELT COVER
11	11865-PR7-A00	Packing a - FR. TIMING BELT COVER PLATE
12	11866-PR7-A00	Packing b - FR. TIMING BELT COVER PLATE
13	11867-PR7-A00	Packing c - FR. TIMING BELT COVER PLATE
14	11870-PR7-A00	Plate - RR. TIMING BELT COVER
15	11875-PR7-A00	Packing a - RR. TIMING BELT COVER PLATE
16	11876-PR7-A00	Packing b - RR. TIMING BELT COVER PLATE
17	11877-PR7-A00	Packing c - RR. TIMING BELT COVER PLATE
18	32748-PR7-A00	Clamp a - ENGINE HARNESS TIMING BELT COVER
19	32748-PR7-A30	Clamp a - ENGINE HARNESS TIMING BELT COVER
20	32752-PR7-A00	Stay - R. ENGINE WIRE HARNESS CLAMP
21	90047-PH7-000	Bolt-washer - 6X22
22	90423-PY3-000	Rubber - TIMING BELT PLATE MOUNTING
23	91318-PT0-003	O-ring - 9.8X1.9 (NOK)
23	91318-PT0-004	O-ring - 9.8X1.9 (ARAI)

Tire/wheel disk 40

#	OEM	部品名
2	42750-SL0-G12	Tire assy. - FOLDING SPARE (165/75D16 FS) (BRIDGESTONE)
3	42753-SL0-N51	Valve assy. - ALUMINIUM WHEEL
4	42755-SL0-G84	Tire - R. FR. (215/40R17 83Y) (DUNLOP)
5	42756-SL0-G84	Tire - L. FR. (215/40R17 83Y) (DUNLOP)
6	42757-SL0-G84	Tire - R. RR. (255/40R17 94Y) (DUNLOP)
7	42758-SL0-G84	Tire - L. RR. (255/40R17 94Y) (DUNLOP)
8	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)
9	42767-SL0-E01	Plate - FOLDING SPARE CAUTION (ENGLISH)
9	42767-SL0-G01	Plate - FOLDING SPARE CAUTION (GERMAN)
9	42767-SL0-F01	Plate - FOLDING SPARE CAUTION (FRENCH)
12	44732-SL0-L00	Cap assy. - ALUMINIUM WHEEL CENTER
14	74240-SL0-020	Bolt - ANCHOR
15	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)
16	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)
16	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)
16	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)
16	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)
16	44721-TP6-A01	WEIGHT, BALANCE (5G)
16	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)
16	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)
16	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)
16	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)
16	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)
16	44726-TP6-A01	WEIGHT (30G)
16	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)
16	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)
16	44727-TP6-A01	WEIGHT (35G)
16	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)
16	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)
16	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)
16	44724-TP6-A01	WEIGHT (20G)
16	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)
16	44725-TP6-A01	WEIGHT (25G)
16	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)
16	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)
16	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)
16	44721-S5A-A20	Weight - BALANCE (10G)
16	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)
16	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)
16	44723-TP6-A01	WEIGHT (15G)

Tools/jack 13

#	OEM	部品名
1	38160-SL0-G01	Pump assy. - TIRE
2	38162-SL0-003	Band
4	89101-SL0-J01	Box - TOOL
5	89211-SL0-003	Wrench - WHEEL
6	89216-SL0-000	Wrench - BOX (16MM)
7	89217-355-000	Wrench - BOX (10MM)
8	89218-611-003	Shaft - WRENCH (RIKEN)
8	89218-611-004	Shaft - WRENCH (KOWA)
9	89301-SL0-003	Gauge - TIRE PRESSURE
10	89310-SL0-003	Jack assy - PANTOGRAPH
11	89320-SL0-003	Bar - JACK
11	89320-S50-003	Bar - JACK
12	89332-SL0-000	Cover - EMERGENCY TIRE

Torque converter 6

#	OEM	部品名
1	21351-PR7-000	Cover - TORQUE CONVERTER CASE
2	26000-PR9-305	Converter assy - TORQUE
3	26251-PR7-000	Plate - DRIVE
4	90023-PA9-000	Bolt - SPECIAL
5	90429-PC6-900	Washer - 40X86X2
6	91316-PR9-003	O-ring - 33X1.9 (ARAI)

Torque converter case 22

#	OEM	部品名
1	21105-PR8-000	Ring - OIL GUIDE
2	21110-PR9-010	Case comp. - TORQUE CONVERTER
3	23225-PA9-000	Plate - OIL GUIDE
4	23225-PR9-010	Plate - OIL GUIDE
5	25510-PR9-014	Cooler comp - ATF
6	25630-PR9-010	Pipe comp - LUBRICATION
7	28200-PR9-014	Solenoid assy. - SHIFT (SHINDENGEN)
8	28220-PR9-004	Filter assy - SHIFT SOLENOID
9	28265-PR9-020	Clamp - ENGINE HARNESS
10	28300-PR9-004	Solenoid assy. - LOCK UP (SHINDENGEN)
11	28320-PR9-004	Filter assy - LOCK UP SOLENOID
12	90024-612-000	Bolt - SEALING, 8MM
13	90471-580-000	Packing - 8MM
14	90705-PA9-000	Dowel pin - 14X25
15	90705-PF4-000	Dowel pin - 14X20
16	91001-PR9-003	Bearing - BALL, 42X70X11 (NTN)
17	91101-PB6-008	Bearing - NEEDLE, 33X55X17
18	91102-PR9-003	Bearing - NEEDLE, 41X71X21 (NTN)
19	91206-PR8-005	Oil seal - 40X68X12.5
20	91207-PR9-003	Oil seal - 46X70X8 (NOK)
21	91209-612-003	Oil seal - 12X22X7 (ARAI)
22	91326-PR9-004	O-ring - ATF COOLER (TOYO)

Transmission case 31

#	OEM	部品名
1	21211-PR9-030	Case - TRANSMISSION
2	21232-PR9-010	Hanger - TRANSMISSION
3	21233-PR9-010	Hanger comp. b - TRANSMISSION
4	21396-611-010	Cap - BREATHER
5	21397-PG4-020	Joint - BREATHER
6	21811-PR9-000	Packing - TORQUE CONVERTER CASE
7	23540-PR9-000	Holder comp - REVERSE IDLE
8	28250-PR9-004	Solenoid assy. - LINEAR
9	28259-PR9-000	Spacer - LINEAR SOLENOID (2.6)
9	28254-PR9-000	Spacer - LINEAR SOLENOID (1.6)
9	28256-PR9-000	Spacer - LINEAR SOLENOID (2.0)
9	28258-PR9-000	Spacer - LINEAR SOLENOID (2.4)
9	28253-PR9-000	Spacer - LINEAR SOLENOID (1.4)
9	28260-PR9-000	Spacer - LINEAR SOLENOID (2.8)
9	28255-PR9-000	Spacer - LINEAR SOLENOID (1.8)
9	28257-PR9-000	Spacer - LINEAR SOLENOID (2.2)
9	28252-PR9-000	Spacer - LINEAR SOLENOID (1.2)
10	28261-PR9-000	Stay - SHIFT SOLENOID COUPLER
11	28262-PR9-020	Stay - LOCK UP SOLENOID COUPLER
12	32754-PR7-A10	Stay - JOINT COUPLER
13	90024-612-000	Bolt - SEALING, 8MM
14	90081-PX4-003	Bolt - PLUG, 18MM
15	90471-PX4-000	Washer - DRAIN PLUG, 18MM
16	90471-580-000	Packing - 8MM
17	90609-PC8-000	Ring - SNAP, 68MM
18	90609-PX4-000	Ring - SNAP, 80MM
19	91002-PA9-003	Bearing - BALL, 63/26 (NTN)
20	91002-PR9-003	Bearing - BALL, 28X80X23.5 (NTN)
21	91003-PR9-003	Bearing - BALL, 31X80X23.5 (NTN)
22	91207-PR8-005	Oil seal - 42X63X12.5
23	91336-PR9-000	O-ring - 16.8X1.9

Trunk floor mat 1

#	OEM	部品名
7	90677-SL0-003	Clip - TRUNK LINING

Trunk lid 30

#	OEM	部品名
1	33903-SF1-A01	Washer - SPECIAL
2	34270-SL0-A02	Light assy - HIGH MOUNT STOP
4	68710-SL0-010	Hinge comp - R. TRUNK
5	68760-SL0-010	Hinge comp - L. TRUNK
7	71602-SL0-S01	Clip - TRUNK SUB SPOILER
8	71603-SL0-S01	Grommet - TRUNK SUB SPOILER
11	71707-SL0-300	Tape - RR. SPOILER
12	71708-SL0-000	Packing - RR. SPOILER
13	74826-SL0-000	Stopper - TRUNK HINGE
14	74827-SJ5-000	Stopper - TAILGATE
15	74850-SL0-013	Lock assy - TRUNK
16	74855-SL0-003	Actuator, Trunk Open
17	74856-SL0-003	Stay - TRUNK OPEN ACTUATOR
18	74862-SL0-003	Striker - TRUNK
19	74863-SL0-003	Cylinder - TRUNK
20	74864-SL0-000	Rod - TRUNK LOCK
21	74865-SL0-003	Weatherstrip - TRUNK LID
22	74872-SL0-013	Stay assy - TRUNK OPENER
23	74880-SL0-003	Cable - TRUNK OPENER
25	83307-SD2-900	Shim - TAILGATE STRIKER (1.0)
26	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
28	90136-SL0-003	Screw - TAPPING, 4X16
29	90303-SA5-003	Nut - FR. COMBINATION LIGHT
30	90303-SB0-000	Nut - CAP, 6MM
31	90501-SH3-003	Packing - SEAT
32	90508-SL0-000	Shim - TRUNK HINGE
33	90655-SD4-003	Grommet - SCREW, 4MM
34	90680-SA9-003	Clip - JOINT (5-17)
35	90755-SB2-000	E-ring - 6MM
36	91555-SM4-003	Clip - COUPLER (RED)

Valve/rocker arm (FRONT) 19

#	OEM	部品名
1	12208-PR3-000	Bolt - SEALING, 20MM
2	12209-PR3-000	Washer - SEALING, 20MM
3	12250-PR7-A00	Orifice assy. a - ROCKER SHAFT
4	14620-PR7-A00	Arm assy. - ROCKER
5	14631-PR7-A00	Shaft - ROCKER
6	14711-PR7-A00	Valve - IN.
7	14721-PR7-A00	Valve - EX.
8	14744-PR3-003	Screw - TAPPET ADJUSTING
10	14761-PR7-A12	Spring - IN. VALVE (GREEN) (CHUO SPRING)
10	14761-PR7-A11	Spring - IN. VALVE (GREEN) (NIPPON HATSUJO)
11	14762-PR7-A11	Spring - EX. VALVE (YELLOW) (NIPPON HATSUJO)
11	14762-PR7-A12	Spring - EX. VALVE (YELLOW) (CHUO SPRING)
12	14765-PR7-A00	Retainer - VALVE SPRING
13	14775-PR7-A00	Seat - VALVE SPRING
14	14781-PR7-A01	Valve Cotter
15	14820-PCB-003	Motion assy. - LOST
16	90206-590-000	Nut - TAPPET ADJUSTING
16	90206-PT0-004	Nut - TAPPET ADJUSTING
17	91306-PJ4-000	O-ring - 6.8X1.9

Valve/rocker arm (REAR) 19

#	OEM	部品名
1	12208-PR3-000	Bolt - SEALING, 20MM
2	12209-PR3-000	Washer - SEALING, 20MM
3	12250-PR7-A00	Orifice assy. a - ROCKER SHAFT
4	14620-PR7-A00	Arm assy. - ROCKER
5	14631-PR7-A00	Shaft - ROCKER
6	14711-PR7-A00	Valve - IN.
7	14721-PR7-A00	Valve - EX.
8	14744-PR3-003	Screw - TAPPET ADJUSTING
10	14761-PR7-A12	Spring - IN. VALVE (GREEN) (CHUO SPRING)
10	14761-PR7-A11	Spring - IN. VALVE (GREEN) (NIPPON HATSUJO)
11	14762-PR7-A11	Spring - EX. VALVE (YELLOW) (NIPPON HATSUJO)
11	14762-PR7-A12	Spring - EX. VALVE (YELLOW) (CHUO SPRING)
12	14765-PR7-A00	Retainer - VALVE SPRING
13	14775-PR7-A00	Seat - VALVE SPRING
14	14781-PR7-A01	Valve Cotter
15	14820-PCB-003	Motion assy. - LOST
16	90206-590-000	Nut - TAPPET ADJUSTING
16	90206-PT0-004	Nut - TAPPET ADJUSTING
17	91306-PJ4-000	O-ring - 6.8X1.9

Water pump 16

#	OEM	部品名
1	16419-PR7-J00	Clamp - THROTTLE BODY DRAIN HOSE
2	19200-PR7-A03	Pump assy. - WATER
3	19222-PR7-A02	Packing - WATER PUMP
4	19301-PR7-307	Thermostat assy - FUJI THOMSON
5	19305-PR7-A00	Rubber - THERMOSTAT MOUNTING
6	19311-PR7-A00	Cover - THERMOSTAT
7	19410-PR7-A10	Passage comp. - WATER
8	19505-PR7-A00	Pipe - CONNECTING
9	19516-PC1-000	Bolt - BREATHING WATER
10	30533-PR7-A00	Stay - KNOCK SENSOR COUPLER
11	32748-PR7-A00	Clamp a - ENGINE HARNESS TIMING BELT COVER
12	90012-PH3-003	Bolt - TIMING BELT ADJUSTER SPRING (SATO RASHI)
13	90049-PH7-000	Bolt - FLANGE, 8X25
14	90052-PH7-000	Bolt - FLANGE, 6X22
15	91313-PR7-A00	O-ring - 28.2X2.4
16	91314-PR7-A00	O-ring - 37.2X4.25

Water valve 16

#	OEM	部品名
1	19516-PC1-000	Bolt - BREATHING WATER
2	53748-671-000	Rubber - MOUNTING
3	53781-SE0-952	Clip - RETURN HOSE
5	79700-SL0-003	Valve assy. - WATER
7	79721-SL0-010	Hose a - WATER IN.
8	79722-SL0-A00	Hose - WATER IN. (HEATER)
9	79725-SL0-A00	Hose - WATER OUTLET (HEATER)
11	79726-SL0-000	Hose a - WATER JOINT
12	79727-SL0-A00	Hose b - WATER JOINT
13	79728-SL0-A00	Hose - WATER IN. (ENGINE)
14	79731-SL0-A00	Grommet - HEATER PIPE
16	79741-SL0-023	Pipe comp. a - HEATER
17	90661-SL0-A01	Clip - HEATER HOSE, 30MM
18	91405-PK1-003	Clip, WATER HOSE, 24MM
18	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
19	91551-SH3-A01	Clamp - DRAIN HOSE

Windshield washer (RH) 25

#	OEM	部品名
1	38516-SA5-671	Packing - T-TYPE) (MITSUBA
2	38519-SB0-003	Bush - WASHER TANK (MITSUBA)
3	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)
4	38564-658-921	Grommet - WASHER TUBE
5	38571-SA5-621	Valve - ONE WAY (MITSUBA)
6	76801-SL0-E51	Washer comp - WINDSHIELD (KE)
7	76802-SL0-013	Cap - MOUTH
8	76806-SL0-E01	Motor - WASHER (HIGH) (MITSUBA)
8	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)
11	76828-SL0-003	Joint l - WASHER
12	76829-SM4-003	Joint i - WASHER
13	76830-SL0-003	Joint y - TUBE (MITSUBA)
14	76839-SL0-G01	Tube a
15	76839-SL0-G11	Tube b
16	76839-SL0-G21	Tube c
17	76839-SL0-G31	Tube d
18	76839-SL0-G51	Tube f - 50MM) (BLACK
19	76839-SZ3-A01	Tube b
20	76851-SH5-003	Tube a - RR. WASHER
21	76851-SL0-013	Joint - WASHER TUBE
22	91507-SL0-003	Clip - WASHER TUBE
23	91508-SL0-003	Clip - WASHER TUBE
24	91509-SL0-013	Clamp - WASHER TUBE
25	91523-SM4-003	Clip - WASHER TUBE
26	91566-SK7-003	Clip d - WASHER TUBE

Wire harness 21

#	OEM	部品名
1	32100-SL0-N44	Harness - FR. ROOM WIRE
2	32106-SL0-000	Sub cord - TAILGATE
3	32107-SL0-G13	Harness - SIDE WIRE
4	32108-SL0-J43	Harness - RR. WIRE
5	32109-SL0-000	Cord - TAILGATE
6	32112-PR7-A50	Sub harness - AIR PUMP
7	32155-SL0-J00	Sub cord - INTERIOR
7	32155-SL0-010	Sub cord - INTERIOR
8	32157-SL0-U15	Harness - FLOOR WIRE
9	32170-SL0-010	Cord - FUEL PUMP
10	32205-SL0-000	Sub cord - RR. DEFROSTER
11	32610-SL0-000	Cable - SUB EARTH
12	32620-SL0-003	Cable - ENGINE EARTH
13	32751-SL0-J03	Harness - DRIVER DOOR WIRE
14	32752-SL0-J22	Harness - PASSENGER DOOR WIRE
15	39159-SL0-A01	Sub feeder - MOTOR ANTENNA
16	39166-SL0-A03	Extension - SUB FEEDER
17	39172-SL0-A02	Extension - SUB FEEDER MOTOR ANTENNA
18	90307-SL0-000	Washer - ALUMINIUM, 20MM
22	90149-SE0-003	Bolt - EARTH, 6X16
23	90406-PR7-000	Collar - TERMINAL
