MCU28

Toyota HIGHLANDER-KLUGER · 2003 · 4,710 parts · 193 categories

4,710 items

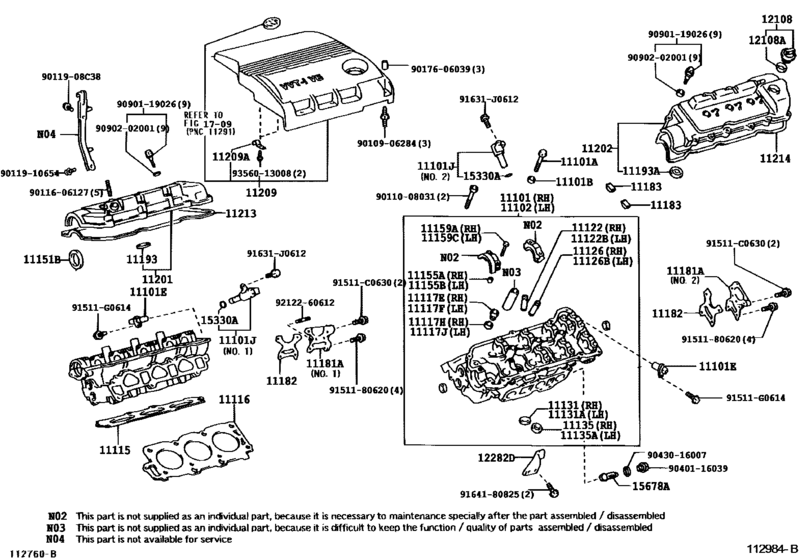

Cylinder Head ([08.2003 - ] (0308- )) 63

#	OEM	Part name
11101	11101-29485	Head Sub-Assy, Cylinder
11101	90910-02117	Bolt(For Cylinder Head Set)
11101	90201-11031	Washer, Plate(For Cylinder Head Set)
11101	90919-05026	Sensor, Position
11101	15330-20011	Valve Assy, Camshaft Timing Oil Control
11101	15340-20011	Valve Assy, Camshaft Timing Oil Control
11102	11102-29075	Head, Cylinder, Lh
11115	11115-20050	Gasket, Cylinder Head
11115	11115-20051	Gasket, Cylinder Head
11116	11116-20050	Gasket, Cylinder Head, No.2
11116	11116-20051	Gasket, Cylinder Head, No.2
11117	90341-24013	Plug, W/head Taper Screw, No.1
11117	90341-24011	Plug, W/head Taper Screw, No.1
11117	90430-24246	Gasket(For Cylinder Head Screw Plug)
11122	11122-20020	Bush, Intake Valve Guide
11122	11122-22040	Bush, Intake Valve Guide
11122	11123-20020	Bush, Intake Valve Guide
11126	11126-20020	Bush, Exhaust Valve Guide
11126	11127-20020	Bush, Exhaust Valve Guide
11131	11131-62050	Seat, Intake Valve
11131	11132-62050	Seat, Intake Valve
11135	11135-20040	Seat, Exhaust Valve
11135	11136-20040	Seat, Exhaust Valve
11151	90311-38034	Seal, Oil(For Camshaft Setting)
11155	90253-10004	Pin, Ring W/head
11159	90119-07009	Bolt(For Camshaft Housing Set)
11181	11108-20010	Cover, Cylinder Head, Rear
11181	11109-20010	Cover, Cylinder Head, Rear
11182	11182-20020	Gasket, Cylinder Head Rear Plate
11183	11183-20010	Plug, Semicircular
11193	11193-62040	Gasket, Spark Plug Tube
11193	11193-70010	Gasket(For Spark Plug Tube)
11201	11201-20080	Cover Sub-Assy, Cylinder Head
11201	12261-20091	Hose, Ventilation
11201	11201-20100	Cover Sub-Assy, Cylinder Head
11202	11202-20051	Cover Sub-Assy, Cylinder Head, Lh
11209	11209-20140	Cover Sub-Assy, V-Bank
11209	11209-20901	Cover Sub-Assy, V-Bank
11209	17578-20010	Clamp, Pipe
11213	11213-20030	Gasket, Cylinder Head Cover
11214	11214-20030	Gasket, Cylinder Head Cover, No.2
12108	12180-20030	Cap Sub-Assy, Oil Filler
12108	12195-20020	Gasket(For Oil Filler Cap)
12282	12282-20020	Hanger, Engine, No.2
15330	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
15678	15678-20010	Filter, Oil Control Valve
91511	91511-C0630	New Genuine Part
91511	91511-G0614	BOLTFLANGE
91631	91631-J0612	BRACKET
9011908	90119-08C38	Screw
9010906284	90109-06284	BOLT
9011008031	90110-08031	BOLT HEXAGON SOCKET
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9011910654	90119-10654	New Genuine Part
9017606039	90176-06039	NUT
9040116039	90401-16039	BOLT UNION
9043016007	90430-16007	Gasket (For Rear Differential Oil Cooler Tube)
9090119026	90901-19026	BOLT WWASHER
9090202001	90902-02001	WASHER PLATE
9151180620	91511-80620	Direct
9164180825	91641-80825	BOLT WWASHER
9212260612	92122-60612	Bolt, Stud(For Engine Rear Oil Seal Retainer)
9356013008	93560-13008	New Genuine Part

OEM	Part name	Category
11101-29485	Head Sub-Assy, Cylinder	Cylinder Head ([08.2003 - ] (0308- ))
11102-29075	Head, Cylinder, Lh	Cylinder Head ([08.2003 - ] (0308- ))
11108-20010	Cover, Cylinder Head, Rear	Cylinder Head ([08.2003 - ] (0308- ))
11109-20010	Cover, Cylinder Head, Rear	Cylinder Head ([08.2003 - ] (0308- ))
11115-20050	Gasket, Cylinder Head	Cylinder Head ([08.2003 - ] (0308- ))
11115-20051	Gasket, Cylinder Head	Cylinder Head ([08.2003 - ] (0308- ))
11116-20050	Gasket, Cylinder Head, No.2	Cylinder Head ([08.2003 - ] (0308- ))
11116-20051	Gasket, Cylinder Head, No.2	Cylinder Head ([08.2003 - ] (0308- ))
11122-20020	Bush, Intake Valve Guide	Cylinder Head ([08.2003 - ] (0308- ))
11122-22040	Bush, Intake Valve Guide	Cylinder Head ([08.2003 - ] (0308- ))
11123-20020	Bush, Intake Valve Guide	Cylinder Head ([08.2003 - ] (0308- ))
11126-20020	Bush, Exhaust Valve Guide	Cylinder Head ([08.2003 - ] (0308- ))
11127-20020	Bush, Exhaust Valve Guide	Cylinder Head ([08.2003 - ] (0308- ))
11131-62050	Seat, Intake Valve	Cylinder Head ([08.2003 - ] (0308- ))
11132-62050	Seat, Intake Valve	Cylinder Head ([08.2003 - ] (0308- ))
11135-20040	Seat, Exhaust Valve	Cylinder Head ([08.2003 - ] (0308- ))
11136-20040	Seat, Exhaust Valve	Cylinder Head ([08.2003 - ] (0308- ))
11182-20020	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.2003 - ] (0308- ))
11183-20010	Plug, Semicircular	Cylinder Head ([08.2003 - ] (0308- ))
11193-62040	Gasket, Spark Plug Tube	Cylinder Head ([08.2003 - ] (0308- ))
11193-70010	Gasket(For Spark Plug Tube)	Cylinder Head ([08.2003 - ] (0308- ))
11201-20080	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.2003 - ] (0308- ))
11201-20100	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.2003 - ] (0308- ))
11202-20051	Cover Sub-Assy, Cylinder Head, Lh	Cylinder Head ([08.2003 - ] (0308- ))
11209-20140	Cover Sub-Assy, V-Bank	Cylinder Head ([08.2003 - ] (0308- ))
11209-20901	Cover Sub-Assy, V-Bank	Cylinder Head ([08.2003 - ] (0308- ))
11213-20030	Gasket, Cylinder Head Cover	Cylinder Head ([08.2003 - ] (0308- ))
11214-20030	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([08.2003 - ] (0308- ))
12180-20030	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.2003 - ] (0308- ))
12195-20020	Gasket(For Oil Filler Cap)	Cylinder Head ([08.2003 - ] (0308- ))
12261-20091	Hose, Ventilation	Cylinder Head ([08.2003 - ] (0308- ))
12282-20020	Hanger, Engine, No.2	Cylinder Head ([08.2003 - ] (0308- ))
15330-20011	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([08.2003 - ] (0308- ))
15340-20011	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([08.2003 - ] (0308- ))
15678-20010	Filter, Oil Control Valve	Cylinder Head ([08.2003 - ] (0308- ))
17578-20010	Clamp, Pipe	Cylinder Head ([08.2003 - ] (0308- ))
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([08.2003 - ] (0308- ))
90109-06284	BOLT	Cylinder Head ([08.2003 - ] (0308- ))
90110-08031	BOLT HEXAGON SOCKET	Cylinder Head ([08.2003 - ] (0308- ))
90116-06127	Bolt, Stud(For Oil Pan)	Cylinder Head ([08.2003 - ] (0308- ))
90119-07009	Bolt(For Camshaft Housing Set)	Cylinder Head ([08.2003 - ] (0308- ))
90119-08C38	Screw	Cylinder Head ([08.2003 - ] (0308- ))
90119-10654	New Genuine Part	Cylinder Head ([08.2003 - ] (0308- ))
90176-06039	NUT	Cylinder Head ([08.2003 - ] (0308- ))
90201-11031	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([08.2003 - ] (0308- ))
90253-10004	Pin, Ring W/head	Cylinder Head ([08.2003 - ] (0308- ))
90311-38034	Seal, Oil(For Camshaft Setting)	Cylinder Head ([08.2003 - ] (0308- ))
90341-24011	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.2003 - ] (0308- ))
90341-24013	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.2003 - ] (0308- ))
90401-16039	BOLT UNION	Cylinder Head ([08.2003 - ] (0308- ))
90430-16007	Gasket (For Rear Differential Oil Cooler Tube)	Cylinder Head ([08.2003 - ] (0308- ))
90430-24246	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([08.2003 - ] (0308- ))
90901-19026	BOLT WWASHER	Cylinder Head ([08.2003 - ] (0308- ))
90902-02001	WASHER PLATE	Cylinder Head ([08.2003 - ] (0308- ))
90910-02117	Bolt(For Cylinder Head Set)	Cylinder Head ([08.2003 - ] (0308- ))
90919-05026	Sensor, Position	Cylinder Head ([08.2003 - ] (0308- ))
91511-80620	Direct	Cylinder Head ([08.2003 - ] (0308- ))
91511-C0630	New Genuine Part	Cylinder Head ([08.2003 - ] (0308- ))
91511-G0614	BOLTFLANGE	Cylinder Head ([08.2003 - ] (0308- ))
91631-J0612	BRACKET	Cylinder Head ([08.2003 - ] (0308- ))
91641-80825	BOLT WWASHER	Cylinder Head ([08.2003 - ] (0308- ))
92122-60612	Bolt, Stud(For Engine Rear Oil Seal Retainer)	Cylinder Head ([08.2003 - ] (0308- ))
93560-13008	New Genuine Part	Cylinder Head ([08.2003 - ] (0308- ))
