Search › Model › MCU28

MCU28

Toyota HIGHLANDER-KLUGER · 2003 · 4,710 parts · 193 categories

4,710 items

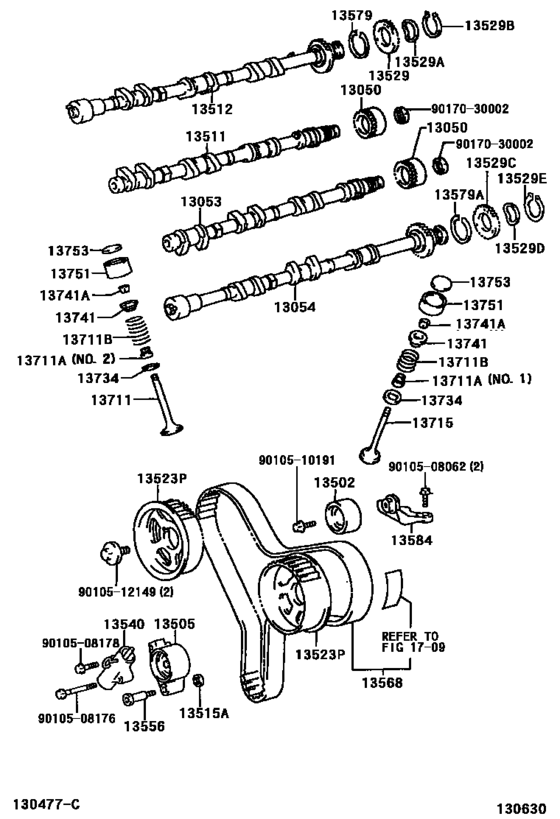

Camshaft & Valve ([08.2003 - ] (0308- )) 51

#	OEM	Part name
13050	13050-20010	Gear Assy, Camshaft Timing
13050	13050-20011	Gear Assy, Camshaft Timing
13053	13053-20040	Camshaft Sub-Assy, No.3
13054	13054-20030	Camshaft Sub-Assy, No.4
13502	13503-62030	Idler Sub-Assy, Timing Belt, No.2
13505	13505-20030	Idler Sub-Assy, Timing Belt, No.1
13511	13501-20050	Camshaft
13512	13502-20030	Camshaft, No.2
13515	90201-10098	Washer, Plate(For Distributor Drive Gear)
13523	13523-20020	Pulley, Camshaft Timing
13529	13529-20900	Gear, Camshaft Sub
13529	90206-42001	Washer, Wave(For Camshaft Sub Gear)
13529	90520-41004	Ring, Shaft Snap(For Camshaft Sub Gear)
13540	13540-20030	Tensioner Assy, Chain, No.1
13556	13556-62010	Shaft, Timing Belt Idler
13568	13568-29025	Belt, Timing
13579	13579-50020	Washer, Camshaft Timing Gear Bolt
13584	13584-20011	Bracket, Timing Belt Idler
13711	13711-20020	Valve, Intake
13711	90913-02101	Seal Or Ring, O(For Valve Stem Oil) - Intake side
13711	90913-02112	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-31010	Spring, Compression(For Inner)
13715	13715-20020	Valve, Exhaust
13734	13734-20010	Seat, Valve Spring
13741	13741-20020	Retainer, Valve Spring
13741	13741-20021	Retainer, Valve Spring
13741	90913-03028	Lock, Valve Spring Retainer
13751	13751-46740	Lifter, Valve
13753	13753-74010	Shim, Valve Adjusting
13753	13753-74030	Shim, Valve Adjusting
13753	13753-74050	Shim, Valve Adjusting
13753	13753-74070	Shim, Valve Adjusting
13753	13753-74090	Shim, Valve Adjusting
13753	13753-74110	Shim, Valve Adjusting
13753	13753-74130	Shim, Valve Adjusting
13753	13753-74150	Shim, Valve Adjusting
13753	13753-74170	Shim, Valve Adjusting
13753	13753-74190	Shim, Valve Adjusting
13753	13753-74210	Shim, Valve Adjusting
13753	13753-74230	Shim, Valve Adjusting
13753	13753-74250	Shim, Valve Adjusting
13753	13753-74270	Shim, Valve Adjusting
13753	13753-74290	Shim, Valve Adjusting
13753	13753-74310	Shim, Valve Adjusting
13753	13753-74330	Shim, Valve Adjusting
9010508062	90105-08062	Bolt (For Overdrive Case & Transaxle Case Setting)
9010508176	90105-08176	BOLT
9010508178	90105-08178	BOLT WASHER BASED
9010510191	90105-10191	BOLT
9010512149	90105-12149	Bolt(For Camshaft Timing Gear)
9017030002	90170-30002	New Genuine Part

OEM	Part name	Category
13050-20010	Gear Assy, Camshaft Timing	Camshaft & Valve ([08.2003 - ] (0308- ))
13050-20011	Gear Assy, Camshaft Timing	Camshaft & Valve ([08.2003 - ] (0308- ))
13053-20040	Camshaft Sub-Assy, No.3	Camshaft & Valve ([08.2003 - ] (0308- ))
13054-20030	Camshaft Sub-Assy, No.4	Camshaft & Valve ([08.2003 - ] (0308- ))
13501-20050	Camshaft	Camshaft & Valve ([08.2003 - ] (0308- ))
13502-20030	Camshaft, No.2	Camshaft & Valve ([08.2003 - ] (0308- ))
13503-62030	Idler Sub-Assy, Timing Belt, No.2	Camshaft & Valve ([08.2003 - ] (0308- ))
13505-20030	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([08.2003 - ] (0308- ))
13523-20020	Pulley, Camshaft Timing	Camshaft & Valve ([08.2003 - ] (0308- ))
13529-20900	Gear, Camshaft Sub	Camshaft & Valve ([08.2003 - ] (0308- ))
13540-20030	Tensioner Assy, Chain, No.1	Camshaft & Valve ([08.2003 - ] (0308- ))
13556-62010	Shaft, Timing Belt Idler	Camshaft & Valve ([08.2003 - ] (0308- ))
13568-29025	Belt, Timing	Camshaft & Valve ([08.2003 - ] (0308- ))
13579-50020	Washer, Camshaft Timing Gear Bolt	Camshaft & Valve ([08.2003 - ] (0308- ))
13584-20011	Bracket, Timing Belt Idler	Camshaft & Valve ([08.2003 - ] (0308- ))
13711-20020	Valve, Intake	Camshaft & Valve ([08.2003 - ] (0308- ))
13715-20020	Valve, Exhaust	Camshaft & Valve ([08.2003 - ] (0308- ))
13734-20010	Seat, Valve Spring	Camshaft & Valve ([08.2003 - ] (0308- ))
13741-20020	Retainer, Valve Spring	Camshaft & Valve ([08.2003 - ] (0308- ))
13741-20021	Retainer, Valve Spring	Camshaft & Valve ([08.2003 - ] (0308- ))
13751-46740	Lifter, Valve	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74010	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74030	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74050	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74070	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74090	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74110	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74130	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74150	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74170	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74190	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74210	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74230	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74250	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74270	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74290	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74310	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
13753-74330	Shim, Valve Adjusting	Camshaft & Valve ([08.2003 - ] (0308- ))
90105-08062	Bolt (For Overdrive Case & Transaxle Case Setting)	Camshaft & Valve ([08.2003 - ] (0308- ))
90105-08176	BOLT	Camshaft & Valve ([08.2003 - ] (0308- ))
90105-08178	BOLT WASHER BASED	Camshaft & Valve ([08.2003 - ] (0308- ))
90105-10191	BOLT	Camshaft & Valve ([08.2003 - ] (0308- ))
90105-12149	Bolt(For Camshaft Timing Gear)	Camshaft & Valve ([08.2003 - ] (0308- ))
90170-30002	New Genuine Part	Camshaft & Valve ([08.2003 - ] (0308- ))
90201-10098	Washer, Plate(For Distributor Drive Gear)	Camshaft & Valve ([08.2003 - ] (0308- ))
90206-42001	Washer, Wave(For Camshaft Sub Gear)	Camshaft & Valve ([08.2003 - ] (0308- ))
90501-31010	Spring, Compression(For Inner)	Camshaft & Valve ([08.2003 - ] (0308- ))
90520-41004	Ring, Shaft Snap(For Camshaft Sub Gear)	Camshaft & Valve ([08.2003 - ] (0308- ))
90913-02101	Seal Or Ring, O(For Valve Stem Oil) - Intake side	Camshaft & Valve ([08.2003 - ] (0308- ))
90913-02112	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.2003 - ] (0308- ))
90913-03028	Lock, Valve Spring Retainer	Camshaft & Valve ([08.2003 - ] (0308- ))
