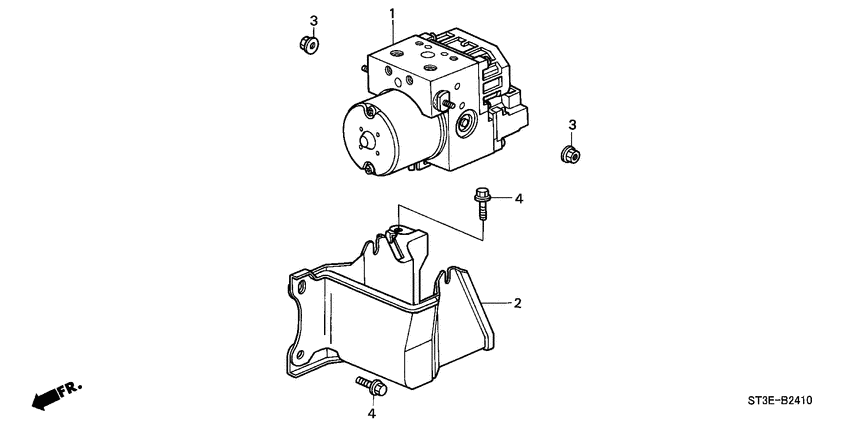

Abs modulator 2

#	OEM	部品名
1	57110-S1A-E01	Modulator assy - ABS
2	57115-ST3-E02	Bracket comp. - MODULATOR

Abs unit (LH) 5

#	OEM	部品名
1	32505-SM4-003	Fuse - F20) (LITTEL
2	38230-ST3-E01	Box assy - ABS FUSE
3	38231-ST3-G01	Bracket - ABS FUSE BOX
4	38231-S04-961	Fuse - BLOCK (40A)
5	90153-SA5-900	Screw-washer - 5X9

Air cleaner 19

#	OEM	部品名
2	17210-P1K-E00	Cover comp. - AIR CLEANER
3	17210-P1K-305	Cover assy. - AIR CLEANER
4	17211-P1K-E00	Cover - AIR CLEANER PIPE
5	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
6	17216-PN3-000	Collar - AIR CLEANER MOUNTING
7	17220-P1K-E00	Element assy. - AIR CLEANER
8	17228-P9K-E00	Tube - AIR FLOW
11	17241-P1K-E00	Case comp. - AIR CLEANER
12	17249-P1K-E00	Rubber - AIR INTAKE SEAL
13	17249-P1K-E01	Spring - AIR FLOW TUBE
14	17252-P1K-E00	Pipe - AIR CLEANER CASE
16	17281-P9K-E00	Tube - SIDE BRANCH
17	17284-P45-G01	Clamp - TUBE, 44MM
18	17315-PH3-003	Clamp - AIR FLOW TUBE (74)
21	75353-671-000	Lock - SCREW
22	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
23	90091-P07-A01	Bolt-washer - 5X28
23	90091-PE2-000	Bolt-washer - 5X25
23	90091-P36-000	Bolt-washer - 5X28

Alloy 15x6 -motegi/nexus - civ5d/aero 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alloy wheel 15x6jj 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alloy15x6 -motegi/nexus -civ3/2d &jordan 1

#	OEM	部品名
3	42753-SK3-000	Valve - RIM(A.R.G.)

Alternator (DENSO) 21

#	OEM	部品名
1	31100-P72-C02	Alternator assy - CJU44) (DENSO
2	31101-P72-003	Rotor assy.
3	31105-PR7-A01	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR
6	31118-PT0-003	Bush - INSULATION
7	31119-PT0-003	Bush - INSULATION
8	31127-PT2-013	Rectifier assy.
9	31135-P72-C01	Cover - RR. END
10	31138-PD1-004	Cover - BEARING
11	31141-P72-901	Pulley
12	31142-PD1-004	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68
14	31146-PT0-003	Screw
15	31147-PT0-003	Screw-washer
16	31147-P13-003	Screw
17	31148-PT0-003	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER
19	31150-P2T-Q01	Regulator assy
20	90231-PD1-014	Nut-washer - 5MM
21	90232-PT0-003	Nut - HEX., 6MM

Alternator bracket/ engine stiffener 11

#	OEM	部品名
2	11950-PR3-000	Stiffener - RR. ENGINE
4	11960-P30-000	Stiffener - FR. ENGINE
5	31110-P72-004	Belt - ALTERNATOR (MITSUBOSHI)
7	31112-P2T-000	Bracket comp. a - ALTERNATOR
9	31113-P2T-000	Bracket b - ALTERNATOR
10	32752-P01-000	Stay b - ENGINE WIRE HARNESS
11	90050-PG7-000	Bolt - FLANGE, 12X65
12	90051-PE0-000	Bolt - FLANGE, 12X70
13	90057-PG7-003	Bolt - ALTERNATOR
14	90058-P72-000	Bolt - ALTERNATOR UPPER
15	90059-PR3-000	Bolt - KNOCK, 10X35

Battery (LH) 17

#	OEM	部品名
1	31500-ST3-G11	Battery assy - 46B24L<S>-MF) (LUCAS YUASA
2	31512-SR3-000	Plate - BATTERY SETTING
3	31513-SR3-000	Bolt - BATTERY SETTING
4	31521-ST3-000	Box - BATTERY
5	31542-ST3-E01	Plug - VENT (MF) (YUASA)
6	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
7	32230-ST3-G01	Cord - ABS FUSE BOX
8	32410-ST3-G30	Cable assy - STARTER
9	32414-SR3-000	Clamp a - STARTER CABLE
10	32416-SR3-A00	Clamp c - STARTER CABLE
11	32600-ST3-G00	Cable assy - EARTH
12	32601-SK7-900	Bolt - BATTERY TERMINAL
13	32602-SK7-900	Nut - BATTERY TERMINAL
14	90130-SR3-003	Bolt - 5X13
15	90153-SA5-900	Screw-washer - 5X9
16	90153-SE0-003	Bolt - EARTH, 6X12
17	90337-SJ4-003	Nut - A.L.B.

Brake lines (ABS; LH) 28

#	OEM	部品名
1	16922-SH3-930	Rubber - MOUNTING
2	17767-ST3-E00	Stay g - FUEL PIPE
3	38609-692-000	Collar - DISTANCE
4	46210-S10-A52	Valve assy. - PROPORTIONING
5	46214-ST3-E10	Bracket - FOUR WAY JOINT
6	46330-ST3-E01	Pipe comp. c - BRAKE
7	46340-ST3-E01	Pipe comp. d - BRAKE
8	46374-ST3-G04	Pipe comp. u - BRAKE
9	46375-ST3-G04	Pipe comp. v - BRAKE
10	46376-ST3-E02	Pipe comp. w - BRAKE
11	46377-ST3-E03	Pipe comp. x - BRAKE
12	46378-ST3-E04	Pipe comp. y - BRAKE
13	46379-ST3-E05	Pipe comp. z - BRAKE
14	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
15	46391-ST3-E00	Clamp - BRAKE PIPE
16	46392-ST3-E00	Clip - BRAKE PIPE
17	46394-SH3-A01	Clip - BRAKE PIPE
18	46394-ST3-E01	Clip - BRAKE PIPE
19	46410-ST3-E02	Hose - R. FR. BRAKE
20	46411-ST3-E02	Hose - L. FR. BRAKE
21	46430-ST3-E51	Hose - RR. BRAKE
22	46462-SE0-000	Bolt - OIL
24	46472-568-000	Packing - OIL BOLT
25	90105-SB0-003	Bolt-washer - 8X16
26	90105-SD9-003	Bolt-washer - 8X20
27	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)
28	90651-SN7-003	Clip - BRAKE HOSE
29	91595-ST3-E30	Clamp a - FUEL PIPE

Brake master cylinder/ master power (ABS) 14

#	OEM	部品名
1	46012-SN7-010	Power set - MASTER
2	46016-ST3-E00	Tank set - RESERVE
3	46100-SN7-G53	Cylinder assy. - MASTER
4	46110-SN7-G51	Cylinder comp - 25.4MM
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
6	46185-ST3-003	Seal - ROD
7	46191-SN7-000	Packing - MASTER CYLINDER STAY
9	46402-ST3-G11	Tube assy - MASTER POWER
11	46406-ST3-G00	Stay - MASTER POWER TUBE
12	46512-SB2-000	Pin - PEDAL
13	46662-ST3-003	Cap assy. - RESERVOIR
14	46666-ST3-003	Filter
15	53729-671-003	Clamp d - 15.5MM
16	90751-ST3-003	Pin - SPRING

Breather chamber (DOHC VTEC) 10

#	OEM	部品名
1	11105-PR3-000	Joint - PCV
2	11851-P72-000	Chamber set - BREATHER
3	11853-PR3-000	Grommet, BREATHER CHAMBER
4	11854-PR3-000	Joint, BREATHER CHAMBER
5	11855-P72-000	Grommet, PCV Valve
6	11857-PR3-000	Tube C, PCV
7	17130-PM6-G01	Valve assy. - PCV
8	17135-P72-000	Pipe comp - BREATHER
9	17153-P2T-000	Tube - BREATHER
10	91324-PR3-003	O-ring, 29X2.5

Bumpers 15

#	OEM	部品名
2	71102-ST3-E50	Garnish - R. FOG LIGHT
5	71144-SR3-013	Grommet - BUMPER SIDE
6	71152-ST3-E50	Garnish - L. FOG LIGHT
8	71598-SL4-013	Spacer - BUMPER SIDE
9	90101-SE0-010	Bolt assy. b - BUMPER
10	90108-ST3-E01	Clip - FR. BUMPER SIDE
11	90109-SE0-003	Bolt b - BUMPER
12	90109-SS0-000	Screw - TAPPING, 5X20
14	90111-SM4-003	Bolt - BUMPER
15	90139-SE0-003	Screw-washer - 5X25
16	90305-SM4-000	Nut - AIR SPOILER CLIP
17	90308-SB2-013	Nut - SUSPENSION, 5MM
18	90540-SA7-000	Washer - BUMPER
19	91503-SP0-013	Clip A - BUMPER
19	91503-SP0-003	Clip A

Camshaft/timing belt (DOHC VTEC) 24

#	OEM	部品名
1	11810-P3F-000	COVER, TIMING BELT LOWER
2	11812-PJ7-310	Grommet - TIMING BELT COVER
3	11820-P72-000	COVER, TIMING BELT MIDDLE
4	11831-PR3-000	Rubber, LOWER SEAL
5	11832-P72-000	RUBBER, R. BACK SEAL
6	11836-P72-000	Insulator - TIMING BELT COVER HEAT
7	11840-P72-010	COVER, TIMING BELT BACK
8	11925-P30-000	Rubber A, ENGINE MOUNTING BRACKET SEAL
9	11926-PR3-000	Rubber B, ENGINE MOUNTING BRACKET SEAL
10	14111-P72-000	Camshaft - INTAKE
11	14121-P72-000	Camshaft - EX.
12	14211-PR3-003	Pulley - TIMING BELT DRIVEN
13	14400-P72-014	Belt - TIMING (126RU26)
14	14510-P30-003	Tensioner, TIMING BELT (KOYO SEIKO)
15	14513-PK1-000	Bolt - TIMING BELT ADJUSTER BASE
16	14516-PR4-A00	Spring, TIMING BELT ADJUSTER
17	90007-679-000	Bolt a - TIMING BELT COVER
18	90010-PR3-000	Bolt - TIMING BELT COVER
19	90012-PH3-004	Bolt - TIMING BELT ADJUSTER SPRING (NAGOYA RASHI)
20	90026-PR3-003	Bolt - TENSIONER
21	90031-PV0-003	Bolt-washer - 10X30
21	90031-PV0-305	Bolt-washer (10x30)
22	90741-657-000	Key - 25.4X13
23	91213-PR3-004	Oil seal - 29X43X8 (ARAI)

Clutch housing (DOHC) 12

#	OEM	部品名
1	21000-P21-020	Case comp. - CLUTCH
2	21101-PS1-000	Plate - NEEDLE SET
3	21103-PS1-000	Plate c - OIL GUIDE
4	21106-PS1-000	Plate - OIL CHAMBER
5	21120-PG2-003	Magnet - TRANSMISSION
6	90406-PS1-000	Washer - LOCK
7	91002-PS1-003	Bearing - BALL, 28X60X15
8	91101-P80-008	Bearing - NEEDLE, 33X60X20 (NTN)
9	91205-PL3-A02	Oil seal - 35X56X8(NOK)
9	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
10	91216-PH8-005	Oil seal - 28X41X7 (NOK)
10	91216-PH8-003	Oil seal - 28X41X7 (ARAI)

Clutch master cylinder (LH) 31

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
4	46182-500-013	Circlip
5	46184-611-000	Dust seal - MASTER CYLINDER
6	46912-SD4-000	Pin - CLUTCH PEDAL
7	46918-SM4-020	Clip a13 - TUBE
8	46920-ST7-A01	Cylinder assy. - CLUTCH MASTER
9	46926-SF1-003	Piston assy.
10	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
11	46930-SR3-013	Cylinder assy. - SLAVE
12	46932-SD4-003	Piston - SLAVE CYLINDER
13	46933-SD4-013	Cup a - PISTON
14	46934-SD4-003	Cup b - PISTON
15	46935-SP0-000	Spring - SLAVE CYLINDER
16	46937-SR3-003	Boot - SLAVE CYLINDER
17	46938-SD4-003	Rod - PUSH
19	46950-ST0-003	Rod assy - PUSH
20	46952-SD4-003	Joint - TUBE
21	46953-SD4-003	Packing
22	46960-ST3-G00	Pipe comp. a - CLUTCH
23	46961-ST3-N01	Hose - CLUTCH
24	46966-SR3-A00	Holder - TANK
25	46970-S04-N00	Pipe comp. b - CLUTCH
26	46971-SR3-A00	Tube - CLUTCH FLUID
27	46972-SD4-003	Tank - CLUTCH FLUID
28	46973-SD4-003	Cap comp. - RESERVE TANK
29	46995-ST3-E00	Bracket a - CLUTCH PIPE
31	46996-S04-000	Bracket b - CLUTCH PIPE
32	46997-ST3-G01	Clip - CLUTCH PIPE
34	46998-S04-003	Clip - CLUTCH PIPE (NATURAL)
35	90651-SN7-003	Clip - BRAKE HOSE

Clutch release (DOHC) 12

#	OEM	部品名
1	22810-P21-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
2	22821-P80-010	Fork - CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK
4	22835-P80-000	Spring - CLUTCH RELEASE SETTING
5	22841-P20-000	Boot - RELEASE FORK
6	23811-P36-000	Holder comp - SPEEDOMETER GEAR
7	23820-P03-000	Gear comp - SPEEDOMETER
8	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
9	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
10	90638-689-000	Clip - SPEEDOMETER GEAR
11	91304-PT0-000	O-ring - 14.8X1.9
12	91313-611-010	O-ring - 23.5X2

Clutch/torque converter 9

#	OEM	部品名
2	21351-PR3-010	Cover - CLUTCH CASE
5	22100-P2T-005	Flywheel comp.
6	22200-P72-015	Disk comp - FRICTION
6	22200-P72-005	Disk comp - FRICTION
7	22300-P72-005	Disk comp - PRESSURE
8	22810-P21-003	Bearing - CLUTCH RELEASE (FUJIKOSHI)
11	90011-PH3-000	Bolt - FLANGE, 12MM
13	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
16	91006-634-008	Bearing - CLUTCH PILOT (NTN)

Combination meter components 19

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37102-SA5-003	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)
4	37106-SJ4-J00	Knob - TRIP
5	37115-SA0-601	Packing - NS
6	37120-ST3-E11	Cover - WARNING
8	37237-SA5-003	Bulb - 14V 3.4W) (NS
9	78104-ST3-E01	Bracket
10	78108-ST3-E11	Panel - PRINT
12	78110-ST3-B31	Case assy.
13	78115-ST3-G32	Speedometer assy
14	78124-ST3-E01	Illumination assy.
15	78125-ST3-E32	Tachometer assy.
16	78130-ST3-E12	Meter assy - FUEL
17	78135-ST3-E11	Meter assy - TEMPERATURE
18	78140-ST3-G01	Board assy - POWER CONTROL
19	78155-ST3-B31	Visor assy
21	90131-SF4-003	Screw-washer - 3X16 (NS)
22	90132-SM4-003	Screw-washer - 3X16

Combination switch (LH) 24

#	OEM	部品名
1	04808-SN7-G00	Transmitter - PLIP REMOTE
2	04809-SN7-G21	Key & unit assy. - IMMOBILIZER (SERVICE)
3	04809-ST3-G00	Remote set - TRANSMITTER & RECEIVER PLIP
4	35010-ST3-G85	Cylinder set - KEY
5	35100-ST3-G03	Lock assy - STEERING
6	35102-SN7-G01	Bolt - BREAK HEAD
7	35103-SE3-003	Screw - RECESSED, 3X8
8	35107-SN7-G01	Holder - BULB
9	35108-ST3-E80	Holder - COLUMN (SRS)
10	35110-ST3-G01	Receiver comp - IMMOBILISER
12	35113-SN7-G00	Key - BLANK (IMMOBILIZER) (MAIN)
13	35130-ST3-G10	Switch comp - STEERING
14	35251-ST3-G81	Body - SWITCH (SRS)
15	35255-ST3-G01	Switch assy - LIGHTING & TURN
16	35256-ST3-G01	Switch assy - WIPER
18	35400-S10-003	Switch assy - DOOR
19	35409-S10-003	Screw - FLANGE, 4X12
20	35417-SE3-003	Cover - DOOR SWITCH
20	35410-692-003	Cover - DOOR SWITCH
21	35505-SN7-G11	Bulb - 14V 1.4W
22	39731-ST3-E00	Bracket - IMMOBILIZER
23	39955-SN7-G00	Battery
24	53271-ST3-G01	Cam - TURN SIGNAL SWITCH CANCEL
25	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)

Console 22

#	OEM	部品名
1	35505-ST3-E01	Bulb - T5 1.2W
2	39600-ST3-E01	Lighter assy - CIGARETTE
3	39610-ST3-E01	Knob comp. - CIGARETTE LIGHTER
4	66418-SA5-000	Stopper - GLOVE BOX LID
5	77230-SE3-A02	Lid assy - AUDIO HOLE
13	77297-ST3-G00	Rubber - CONSOLE
17	77730-ST3-E00	Holder comp - FR. ASHTRAY
20	83402-ST3-E10	Box - CONSOLE
22	83404-ST3-E10	Cover - PARKING BRAKE
23	83406-SR4-J00	Hinge comp - ARMREST
24	83407-ST3-E00	Lock
31	88324-ST3-E00	Cover - RR. ASHTRAY
32	90137-ST3-E00	Screw - TAPPING, 4X16
33	90302-SN7-E00	Nut - SPRING, 4MM
34	90310-ST3-E00	Nut - SPEED
35	90609-SN7-G00	Clip - INSTRUMENT LOWER
36	90650-SE3-000	Clip - RADIO PANEL
37	90651-ST3-E01	Grommet - SCREW, 4MM
38	90669-ST3-E01	Grommet - ADJUSTING SCREW
39	90670-SK3-E00	Clip - SNAP FITTING
40	91555-SM4-003	Clip - COUPLER (RED)
41	91640-SM4-003	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 26

#	OEM	部品名
1	32502-SM4-003	Fuse - F7.5) (LITTEL
2	32503-SM4-003	Fuse - F10) (LITTEL
3	32504-SM4-003	Fuse - F15)(LITTEL
4	32505-SM4-003	Fuse - F20) (LITTEL
5	32507-SM4-003	Fuse - F30) (LITTEL
6	34258-SK3-E01	Timer assy - KEY LIGHT
7	37820-P9K-E12	Control module - ENGINE
8	37821-P1K-G00	Cover comp. - ELECTRONIC CONTROL UNIT
12	38140-ST3-E01	Wiper unit - INTERMITTENT
13	38200-ST3-E31	Box assy - JOINT
14	38203-ST3-G00	Bracket - L. FUSE BOX
15	38205-ST3-E11	Label - FUSE
16	38210-ST3-E01	Fuser assy. - SRS
17	38235-SA5-003	Puller - FUSE (SUMITOMO)
18	38300-SK3-G01	Relay assy - TURN SIGNAL & HAZARD
19	38310-SK4-S01	Relay - CLEANER CONTROL
20	38315-ST3-S00	Bracket - HEADLIGHT WASHER TIMER
21	38370-ST3-E01	Control unit - POWER WINDOW
23	38600-ST3-G01	Control unit - INTEGRATED
24	39400-ST3-E01	Relay assy - MAIN
25	39762-SN7-000	Relay assy - POWER, 5P
26	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
27	39797-SE3-003	Relay assy - POWER (4P) (DENSO) (056700-85700)
29	39797-SK4-E00	Relay assy - POWER (YWB 10027)
31	39870-SN7-G01	Control unit - RR. FOG LAMP
36	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)

Control unit (ENGINE ROOM; LH) 16

#	OEM	部品名
1	32502-SM4-003	Fuse - F7.5) (LITTEL
2	32503-SM4-003	Fuse - F10) (LITTEL
3	32504-SM4-003	Fuse - F15)(LITTEL
4	32505-SM4-003	Fuse - F20) (LITTEL
5	32507-SM4-003	Fuse - F30) (LITTEL
6	38150-ST3-G21	Horn assy - HIGH
7	38150-ST3-G01	Horn assy - HIGH
8	38211-SM4-000	Fuse - BLOCK (30A)
9	38212-SM4-000	Fuse - BLOCK (40A)
10	38213-SM4-000	Fuse - BLOCK (50A)
11	38218-SM4-003	Fuse - BLOCK (100A)
12	38250-ST3-G11	Box assy - MAIN FUSE
13	38254-ST3-G10	Cover - UPPER
14	38252-ST3-000	Cover - LOWER
15	39797-SK4-E00	Relay assy - POWER (YWB 10027)
16	90130-SR3-003	Bolt - 5X13

Countershaft (DOHC) 18

#	OEM	部品名
1	23221-P21-E02	Countershaft
2	23421-P21-000	Gear - COUNTERSHAFT LOW
3	23431-P80-V00	Gear - COUNTERSHAFT SECOND
4	23461-P21-F00	Gear - COUNTERSHAFT FIFTH
5	23471-P16-900	Gear - COUNTERSHAFT THIRD
6	23481-P80-V00	Gear - COUNTERSHAFT FOURTH
7	23521-P21-315	Sleeve set - SYNCHRONIZER (1-2)
8	23918-P21-010	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)
9	23921-PK5-900	Washer a - 40X54X1.95
10	23926-P21-000	Washer - SPRING, 23MM
11	90202-PH8-000	Nut - HEX., 23MM
12	90603-PL3-000	Ring - SNAP, 52MM
13	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)
14	91102-PLW-003	Bearing - NEEDLE, 25X52.2X15
15	91105-P21-003	Bearing - NEEDLE, 42X47X24
16	91107-P21-003	Bearing - NEEDLE, 37X42X25
17	91211-P21-008	Damper - FRICTION (LOW)
18	91212-P21-008	Damper - FRICTION (SECOND)

Cylinder block/oil pan (DOHC VTEC) 27

#	OEM	部品名
1	11000-P72-020	Block assy - CYLINDER
2	11111-PR3-300	Pipe - OIL LEVEL
3	11130-P72-000	Bridge comp - BEARING CAP
4	11200-P72-010	Pan comp - OIL
5	11221-P72-000	Plate - BAFFLE
6	11251-P30-004	Oil Pan Packing
7	11300-PR4-A00	Cover assy. - R. SIDE
8	11910-P72-000	Bracket - ENGINE MOUNTING
9	15140-PR3-000	Orifice assy - OIL CONTROL
10	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)
11	15280-P72-000	Body comp - OIL JET
12	15290-PR3-000	Bolt comp - OIL JET
13	15650-P3F-A00	Gauge comp. - OIL LEVEL
14	37240-PT0-023	Switch - OIL PRESSURE(DENSO)
14	37240-PT0-014	Switch - OIL PRESSURE (TEC)
15	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
16	90007-PAA-T01	Bolt-washer - 11X121
17	90007-P75-003	Bolt-washer - 11X90
18	90008-PR3-000	Bolt A, ENGINE MOUNT BRACKET (10X60)
19	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
20	90009-PR3-000	Bolt b - ENGINE MOUNT BRACKET (10X40)
21	90042-PR3-000	Bolt - STUD, 6X28
22	90042-P72-000	Bolt - STUD, 10X81
23	90401-PR4-000	Washer - SEALING, 28MM
24	90715-PC6-000	Dowel pin - 13X20
25	91214-PR4-A01	Oil seal - 80X100X10 (NOK)
25	91214-PH3-751	Oil seal - 80X100X10 (ARAI)

Cylinder head (DOHC VTEC) 27

#	OEM	部品名
1	12100-P72-000	Head assy - CYLINDER
2	12204-PR3-305	Guide - IN. VALVE (OS)
3	12205-PR3-305	Guide - EX. VALVE (OS)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)
6	12237-P30-000	Pipe comp - CAM HOLDER
7	12251-P30-014	Gasket, Cylinder Head - (NIPPON LEAKLESS)
8	12513-P72-003	Plug - CYLINDER HEAD
9	15810-P30-J01	Valve assy. - SPOOL
10	15815-PR3-000	Filter, SPOOL VALVE
10	15815-PR3-004	Filter comp - SPOOL VALVE
11	15816-PR3-000	Stay - COUPLER HOLD
12	15825-P08-005	Filter and Gasket, SPOOL VALVE
13	36171-P08-005	Solenoid assy.
14	36172-P08-015	Packing, SOLENOID BASE
15	90002-PJ7-010	Bolt - FLANGE, 6X45
16	90002-PR3-000	Bolt - FLANGE, 6X55
17	90004-PE2-005	Bolt - SEALING, 10MM
18	90006-P72-003	Bolt-washer - 11X164
19	90014-PR3-000	Bolt A, HEAD COVER
20	90026-PE0-000	Bolt - STUD, 8X37
20	90026-PT0-000	Bolt - STUD, 8X38
21	90401-PE2-003	Washer - SEALING, 10MM
22	90701-679-000	Dowel pin - 8X10
23	91308-PH9-000	O-ring - 8.8X1.9
23	91302-GE0-000	O-ring (8.8x1.9)

Cylinder head cover 14

#	OEM	部品名
1	12030-PR3-000	Packing set - HEAD COVER
4	12310-P30-000	Cover comp. - CYLINDER HEAD
5	12341-PR3-000	Packing - CYLINDER HEAD COVER
7	12342-PG6-000	Packing b - HEAD COVER
7	12342-PT2-000	Packing b - HEAD COVER
9	12500-PR3-000	Cover - HIGH TENSION CORD
10	15610-P2A-000	Cap assy. - OIL FILLER
11	15613-PC6-000	Packing, Oil Filler
13	32762-PR3-000	HIGH TENSION CORD CLAMP STAY B
14	32770-PR3-000	Stay c - HIGH TENSION CORD CLAMP
16	90012-PM7-000	Bolt B, Head Cover
20	90212-PR3-000	Nut - HEAD COVER
21	90213-PH3-000	Nut - CAP, 6MM
23	90442-P30-000	Washer - HEAD COVER

Differential gear (DOHC) 21

#	OEM	部品名
1	41200-P80-003	Differential assy - HELICAL LIMITED SLIP
2	41233-P9B-E00	Gear - FINAL DRIVEN
3	90017-P80-J00	Bolt - SPECIAL, 10MM
4	91005-P80-E31	Bearing - BALL, 40X80X18/19.5 (NTN)
5	41454-PL3-B00	Shim p - 80MM(1.45)
5	41449-PL3-B00	Shim j - 80MM(1.8)
5	41444-PL3-B00	Shim d - 80MM(1.3)
5	41456-PL3-B00	Shim r - 80MM(1.65)
5	41451-PL3-B00	Shim l - 80MM(1.15)
5	41446-PL3-B00	Shim f - 80MM(1.5)
5	41441-PL3-B00	Shim a - 80MM(1.0)
5	41453-PL3-B00	Shim n - 80MM(1.35)
5	41448-PL3-B00	Shim h - 80MM(1.7)
5	41443-PL3-B00	Shim c - 80MM(1.2)
5	41455-PL3-B00	Shim q - 80MM(1.55)
5	41450-PL3-B00	Shim k - 80MM(1.05)
5	41445-PL3-B00	Shim e - 80MM(1.4)
5	41457-PL3-B00	Shim s - 80MM(1.75)
5	41452-PL3-B00	Shim m - 80MM(1.25)
5	41447-PL3-B00	Shim g - 80MM(1.6)
5	41442-PL3-B00	Shim b - 80MM(1.1)

Distributor (TEC; TD-86U) 10

#	OEM	部品名
1	30100-P73-004	Distributor assy - TD-86U) (TEC
2	30102-P72-006	Cap assy, Distributor
3	30103-P73-003	Head assy, ROTOR
4	30105-P73-004	Housing comp - DISTRIBUTOR (TEC)
5	30107-P73-004	Cover - LEAK
6	30110-PA1-732	O-ring - 26.4X3.1 (TEC)
7	30130-P72-006	Igniter unit - NEC
8	30132-P72-006	Packing - CAP
9	30135-P73-004	Screw-washer - 5X12
10	30510-PT2-006	Ignition Coil

Emblems 12

#	OEM	部品名
3	17669-SN7-X30	Label - FUEL FILLER CAUTION
5	42760-ST3-E01	Plate - TIRE PRESSURE CAUTION
6	72638-SN7-G00	Plate - RR. DOOR LOCK CAUTION
7	75701-ST3-E10	Emblem - RR. CENTER (H)
8	75711-ST3-E01	Emblem - RR. (HONDA)
11	75725-ST3-E30	Emblem - RR. (VTEC)
15	75731-ST3-E40	Emblem - RR. (1.8VTI)
17	75765-S04-000	Emblem - RR. (CIVIC)
20	77875-S84-G80	Label - SRS CAUTION
21	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)
22	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)
23	91512-SR3-004	Clip - TUBULAR

Engine assy./ transmission assy. 3

#	OEM	部品名
1	10002-P9K-E20	General assy. - CYLINDER BLOCK
2	10003-P9K-E21	General assy. - CYLINDER HEAD
3	20011-P9B-E51	Transmission assy - MT

Engine mounts (MT) 25

#	OEM	部品名
1	50803-ST3-E01	Rubber - TRANSMISSION MOUNTING (MT)
2	50810-ST3-E51	Insulator - RR. ENGINE MOUNTING RUBBER (MT)
3	50820-ST7-003	Rubber assy. - ENGINE SIDE MOUNTING (HYD)
4	50827-ST7-000	Bracket - ENGINE RR. MOUNTING
6	50841-ST3-E51	Rubber - R. FR. STOPPER INSULATOR (MT)
8	50842-ST3-E51	Rubber - L. FR. STOPPER INSULATOR (MT)
10	50843-S04-N10	Bracket - R. FR. STOPPER (MT)
12	90131-ST7-000	Bolt - L. FR. STOPPER
13	90133-SR3-010	Bolt - R. FR. STOPPER
14	90165-SM4-020	Bolt - FLANGE, 12X101
15	90166-SR3-000	Bolt - FLANGE, 10X30
16	90167-ST7-000	Bolt - FLANGE, 10X60
17	90176-SK7-013	Bolt - FLANGE, 10X31
18	90182-SR3-000	Bolt - FLANGE, 12X112
19	90183-SR3-000	Bolt - FLANGE, 12X100
20	90186-SL4-000	Bolt - FLANGE, 12X67
22	90165-ST7-000	Bolt - FLANGE, 14X67
23	90166-ST7-000	Bolt - FLANGE, 12X64
24	90365-ST7-000	Nut - FLANGE, 10MM
25	90371-SR3-000	Nut - FLANGE, 12MM
26	90372-SR3-003	Nut - FLANGE, 12MM
27	90504-SR3-010	Washer - FR. STOPPER
28	90505-SB2-000	Washer - SIDE MOUNTING
30	90505-SR3-000	Washer - RR. BRACKET, 14MM
31	91771-SH3-000	Washer - PLAIN, 10MM

Engine wire harness (DOHC; LH) 15

#	OEM	部品名
1	32110-P9K-G00	Harness - ENGINE WIRE
2	32115-P1K-G00	Stay - HARNESS HOLDER
3	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)
4	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)
5	32127-P05-A00	Holder comp - HARNESS
6	32601-ST3-E00	Cable assy - MISSION EARTH
7	32610-SR3-900	Cable - SUB EARTH (300MM)
8	32746-P05-A00	Clamp f - ENGINE HARNESS (GRAY)
9	32754-P72-000	Stay d - ENGINE HARNESS
10	90130-SR3-003	Bolt - 5X13
11	90153-SE0-003	Bolt - EARTH, 6X12
12	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
13	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
14	91558-SM4-003	Clip - TUBE(BLACK)(135MM)
15	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)

Exhaust manifold (DOHC VTEC) 9

#	OEM	部品名
1	18100-P9K-G01	Manifold assy - EX.
2	18115-P30-013	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
3	18199-P9K-G01	Stay - EX. MANIFOLD
4	90001-P30-003	Bolt - FLANGE, 8X25
5	90010-PE2-900	Bolt - SPECIAL, 10X22
6	90065-PG6-000	Bolt, STUD, 10X24
7	90212-PD2-003	Nut - SELF-LOCK, 8MM
7	90212-RCA-A01	Nut - SELF-LOCK, 8MM
8	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe 26

#	OEM	部品名
1	18020-ST3-G40	Insulator set - EX. PIPE B RR.
4	18160-P9K-G00	Converter comp. - ANE7C7
5	18176-P08-003	Bolt - CONVERTER
6	18181-PR4-A01	Cover - LOWER
7	18182-PR4-A01	Cover - UPPER
9	18210-ST3-G41	Pipe a - EX.
10	18212-SB2-961	Gasket - EX. PIPE (ISHINO)
14	18213-ST7-A60	Stay - EX. MOUNTING
16	18215-SG4-U10	Rubber - EX. MOUNTING (70X45X25)
17	18215-SK3-E00	Rubber - EX. MOUNTING (70X55X30)
18	18220-ST3-G41	Pipe b - EX.
19	18222-ST3-E70	Bracket - EX. PIPE MOUNTING
20	18229-S04-X12	Gasket - EX. FLEXIBLE (50.8MM-64MM)
22	18230-SK3-000	Spring - FLEXIBLE JOINT
23	18231-SR3-J01	Bolt a - FLEXIBLE JOINT
24	18310-SR3-J41	Finisher - EX. PIPE (48.6MM)
25	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
26	36531-PDA-E02	Sensor - OXYGEN
27	74601-ST3-E01	Plate - FLOOR HEAT BAFFLE
28	74651-ST3-E01	Plate - FUEL TANK BAFFLE
29	90023-PK1-000	Bolt - FLANGE, 6X10
29	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
30	90110-679-003	Nut - SELF-LOCK, 8MM
33	90212-SA5-003	Nut - SELF-LOCK, 10MM
34	90212-671-005	Nut - SELF-LOCK, 10MM
42	18307-ST3-E70	Silencer comp - EX.

Floor mat 12

#	OEM	部品名
1	74260-ST3-G01	Insulator - DASHBOARD
5	74417-S74-G00	Insulator - R. FR. INNER LOWER
9	83302-S74-D00	Insulator - FLOOR MAT
11	83310-ST3-E10	Cushion - R. HEEL PROTECTOR INSIDE
12	83311-ST3-E00	Cushion - R. HEEL PROTECTOR OUTSIDE
13	83331-ST3-G00	Duct - RR. HEATER (LH)
14	83360-ST3-E10	Cushion - L. HEEL PROTECTOR INSIDE
15	83361-ST3-E00	Cushion - L. HEEL PROTECTOR OUTSIDE
18	84521-ST3-E00	Lid comp - SPARE TIRE
23	90685-SA5-003	Clip - UNDER COVER
24	91533-SR3-003	Clip - INSULATOR (NATURAL)
25	91641-SH3-013	Grommet assy, GARNISH

Fog light 16

#	OEM	部品名
1	33165-ST3-E01	Bulb - FOG LIGHT (H3/12V 55W)
2	33800-SN7-E02	Light assy - R. SIDE TURN (###)
3	33802-SN7-E01	Housing comp - R.
4	33850-SN7-E01	Light assy - L. SIDE TURN (###)
5	33852-SN7-E01	Housing comp - L.
6	33904-ST3-E01	Screw - SPECIAL, 5X20
7	34221-ST3-E03	Light unit - R. FOG
8	35170-SY3-E11	Switch assy - FR. FOG & RR. FOG
8	34226-ST3-E03	Light unit - L. FOG
9	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
9	34231-ST3-E03	Bracket - R. FOG LIGHT
10	34236-ST3-E03	Bracket - L. FOG LIGHT
11	34304-SH3-A01	Socket comp.
12	34351-SN7-G00	Bulb - POSITION (12V 5W)
13	90125-SN7-G00	Screw - TAPPING, 5X16
14	91565-SD5-003	Clip - COUPLER(NATURAL)

Front brake 19

#	OEM	部品名
1	01463-SN7-000	Caliper set - FR.
4	44600-S10-000	Hub assy - FR.
5	44610-S10-000	Hub - FR.
6	45010-SN7-G51	Pin set - FR.
7	45012-SN7-G50	Body set - R. FR. CALIPER
8	45013-SN7-G50	Body set - L. FR. CALIPER
9	45014-SN7-G51	Bracket set - R. FR. CALIPER
10	45015-SN7-G51	Bracket set - L. FR. CALIPER
11	45017-SN7-G00	Boot set - FR. PIN
12	45022-SN7-E50	Pad set - FR.
13	45240-SM4-003	Bolt - FLANGE, 10X24
14	45251-ST3-E60	Disk - FR. BRAKE
15	45255-ST3-E50	Guard - FR. BRAKE SPLASH
16	45352-SN7-G41	Screw - BLEEDER
17	45353-SN7-G41	Cap - BLEEDER
18	90163-SC2-000	Bolt - FLANGE, 12X25
19	90113-SA0-006	Bolt - WHEEL (SAGA)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)

Front bulkhead 2

#	OEM	部品名
16	60630-ST3-E00	Base comp. - BATTERY SETTING
32	90105-634-000	Bolt-washer (8x20)

Front door lining (LH) 9

#	OEM	部品名
3	35752-ST3-E01	Switch comp - POWER WINDOW MASTER
4	72335-ST3-E00	Weatherstrip - FR. DOOR INNER
8	83515-ST3-E00	Bracket - FR. DOOR GRIP BASE
9	83529-SN7-G00	Bracket - COVER LOCK
18	90132-SE3-003	Screw - TAPPING, 4X12
20	91555-SM4-003	Clip - COUPLER (RED)
21	91560-SP0-003	Clip - DOOR LINING (GRAY)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
22	91626-SP0-003	Grommet - SCREW, 5MM

Front door locks 31

#	OEM	部品名
1	72110-ST3-G82	Lock assy - R. FR. DOOR
2	72112-SN7-G01	Snap - R.
3	72115-SN7-G01	Actuator assy - R. FR. DOOR LOCK
5	72117-ST3-E00	Protector - R. FR. DOOR LOCK
7	72118-SN7-G00	Tube - PROTECTOR
9	72122-SK3-G00	Snap - R. INSIDE HANDLE
10	72131-ST3-E00	Rod - R. FR. DOOR INSIDE HANDLE
11	72134-ST3-003	Bush - JOINT
12	72135-SN7-G00	Striker - DOOR LOCK
13	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
15	72138-SN7-G00	Cushion - LOCK ROD
17	72141-SK3-E01	Ring
20	72146-ST3-E82	Cylinder - L. DOOR
23	72147-SN7-G01	Clip - RETAINER
24	72149-ST3-E02	Harness - MICROSWITCH
25	72150-ST3-G81	Lock assy - L. FR. DOOR
26	72155-SN7-G01	Actuator assy - L. FR. DOOR LOCK
28	72157-ST3-E00	Protector - L. FR. DOOR LOCK
30	72162-SK3-G00	Snap - L. INSIDE HANDLE
31	72162-SN7-G01	Snap - L.
32	72171-ST3-E00	Rod - L. FR. INSIDE HANDLE
33	72175-SH3-003	Holder - DOOR LOCK ROD
35	75411-634-000	Joint
36	90120-SM4-000	Screw - TAPPING
37	90866-SA0-000	Grommet - SCREW, 4MM
38	91551-SN7-E00	Band - WIRE HARNESS (110MM)
39	91555-SM4-003	Clip - COUPLER (RED)
40	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
41	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
42	91580-SM4-003	Clip - COUPLER(ORANGE)
43	91582-SM4-003	Clip - WIRE HARNESS

Front door panels 11

#	OEM	部品名
7	72310-ST3-E01	Weatherstrip - R. FR. DOOR
8	72311-ST0-003	Clip
9	72321-ST3-E20	Seal - R. FR. DOOR HOLE
10	72340-SN7-G02	Checker comp. - FR. DOOR
11	72350-ST3-E01	Weatherstrip - L. FR. DOOR
12	72361-ST3-E10	Seal - L. FR. DOOR HOLE
13	75760-SK3-E00	Pin - DOOR CHECKER
14	75891-SA7-000	Stopper - DOOR
15	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
16	90686-692-003	Cap - LINING MOUNT
17	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Front door windows 19

#	OEM	部品名
1	35118-SX0-G00	Label - IMMOBILIZER
3	72210-ST3-G11	Regulator - R. FR. DOOR POWER
4	72215-ST3-G11	Motor assy. - R. FR. WINDOW
5	72230-ST3-E01	Sash - R. FR. DOOR LOWER
6	72231-ST3-E01	Sash - R. FR. DOOR CENTER LOWER
7	72235-ST3-E01	Runchannel - R. FR. DOOR
8	72237-ST3-003	Stopper
10	72250-ST3-G11	Regulator - L. FR. DOOR POWER
11	72255-ST3-G11	Motor assy. - L. FR. WINDOW
12	72270-ST3-E01	Sash - L. FR. DOOR LOWER
13	72271-ST3-E01	Sash - L. FR. DOOR CENTER LOWER
14	72275-ST3-E01	Runchannel - L. FR. DOOR
15	73300-ST3-E71	Glass assy - R. FR. DOOR (GREEN)
16	73350-ST3-E71	Glass assy - L. FR. DOOR (GREEN)
20	90011-896-000	Bolt - FLANGE, 6X8
21	90115-ST3-E00	Bolt - FLANGE, 6X10
22	90116-ST3-E00	Bolt - FLANGE, 6X12
23	90120-ST3-E00	Screw - TAPPING
24	90126-SS0-000	Bolt-washer - 6X16

Front driveshaft 27

#	OEM	部品名
1	44014-ST3-E80	Joint set - OUTBOARD
2	44017-ST7-R50	Boot set - INBOARD
4	44018-ST7-C62	Boot set - OUTBOARD
5	44305-ST3-E80	Driveshaft assy. - R.
6	44306-ST3-E80	Driveshaft assy. - L.
7	44310-SH3-J00	Joint comp - INBOARD
8	44310-ST7-900	Joint comp - INBOARD
9	44319-S0A-300	Set ring - 28X2.0
9	44319-S84-300	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-S04-A02	Band b - DRIVESHAFT (OETIKER LIMITED)
11	44327-S04-A01	Band b - DRIVESHAFT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SB0-300	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM
16	44347-SF1-003	Ring - OUTBOARD
17	44351-SR3-J01	Damper - DYNAMIC (HOKUSHIN)
18	44351-SR3-A11	Damper - DYNAMIC (HOKUSHIN)
19	44500-SR3-J01	Shaft assy - HALF
20	44502-SR3-J00	Support comp - HALF SHAFT (###)
21	90161-SN7-000	Bolt - FLANGE, 10X1.25
22	90305-692-010	Nut
23	90681-SR3-000	Circlip - EXTERNAL, 33MM
24	91057-SR3-008	Bearing - HALF SHAFT(NTN)
25	91260-SR3-004	Seal - HALF SHAFT OUTER (ARAI)
25	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)

Front fenders 13

#	OEM	部品名
5	74101-ST3-E01	Fender - R. FR. INNER
6	74111-ST3-E00	Shield - FR. SPLASH
8	74151-ST3-E01	Fender - L. FR. INNER
11	90102-SK3-E00	Screw-washer - TAPPING, 5X20
12	90102-SK4-E01	Bolt - FLANGE, 6MM
13	90106-SE1-000	Bolt-washer - 6X15
14	90126-SR4-000	Screw-washer - 5X16
15	90501-SM4-003	Bolt - FENDER
16	90657-SB0-003	Clip, SPLASH SHIELD
17	90673-SG4-U01	Nut - CLIP, 6MM
18	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
20	91512-SM4-003	Clip - INNER FENDER
21	91516-SK7-013	Clip - UNDER COVER

Front grille 10

#	OEM	部品名
1	75101-ST3-E00	Grille - FR.
2	75105-ST3-000	Bolt - SPECIAL
3	75120-ST3-E00	Molding - FR. GRILLE
4	75133-ST3-000	Stopper - FR. GRILLE
5	75135-ST3-E00	Stiffener - FR. GRILLE
6	75307-SN7-000	Nut - SIDE PROTECTOR
7	75700-ST3-E00	Emblem - FR. (H) (LARGE TYPE)
8	90155-ST3-000	Washer
9	90157-SP0-901	Clip - FR. GRILLE
10	90301-ST0-003	push nut, 3mm

Front lower skirt 4

#	OEM	部品名
2	90305-SM4-000	Nut - AIR SPOILER CLIP
3	90111-SM4-003	Bolt - BUMPER
4	90308-SB2-013	Nut - SUSPENSION, 5MM
5	90139-SE0-003	Screw-washer - 5X25

Front mudguards 1

#	OEM	部品名
4	90144-SE0-000	New Genuine Part

Front seat (L.) 18

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
4	81123-SN7-003	Silencer - FR. BACK
5	81127-ST3-E01	Pad comp - FR. SEATBACK
6	81133-SN7-003	Silencer - FR. CUSHION
7	81136-SN7-E01	Shaft - RECLINER
8	81137-ST3-E01	Pad comp - FR. SEAT CUSHION
10	81144-SN7-E02	Guide - HEADREST
11	81146-SN7-E01	Lock - SPRING
14	81232-ST3-003	Locking - SELF
16	81239-ST3-003	Clip - SUPPORT
21	81516-ST3-G22	Frame comp - L. FR. SEAT
23	81634-ST3-E01	Tensioner Assy - L. FR. SEATBELT
27	90184-SN7-003	Screw - 4.2X9.5
28	90187-SN7-003	Screw - TAPPING, 5X16
29	90381-SN7-013	Screw - SELF TAPPING, 5X16
30	90583-SN7-003	Washer - D5
31	90652-ST3-E01	Clip - FR. SEAT CUSHION

Front seat (R.) 21

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	81116-ST3-E02	Frame comp - R. FR. SEAT
5	81123-SN7-003	Silencer - FR. BACK
6	81127-ST3-E01	Pad comp - FR. SEATBACK
8	81133-SN7-003	Silencer - FR. CUSHION
9	81136-SN7-E01	Shaft - RECLINER
10	81137-ST3-E01	Pad comp - FR. SEAT CUSHION
12	81144-SN7-E02	Guide - HEADREST
13	81146-SN7-E01	Lock - SPRING
16	81232-ST3-003	Locking - SELF
18	81234-ST3-E01	Tensioner Assy - R. FR. SEATBELT
21	81239-ST3-003	Clip - SUPPORT
24	81396-ST3-E21	Guide comp - R. UNDER TRAY
25	81397-ST3-E21	Guide comp - L. UNDER TRAY
26	81398-ST3-E20	Screw - TORX, 6X20
27	90184-SN7-003	Screw - 4.2X9.5
28	90187-SN7-003	Screw - TAPPING, 5X16
29	90381-SN7-013	Screw - SELF TAPPING, 5X16
30	90583-SN7-003	Washer - D5
31	90652-ST3-E01	Clip - FR. SEAT CUSHION

Front seat components (L.; HEIGHT ADJUSTER) 3

#	OEM	部品名
2	81227-ST3-E31	Spring - HELPER
3	81550-ST3-E32	Device comp. - L. FR. SEAT
4	90183-SN7-003	Bolt - TORX, 8X10

Front seat components (R.; MANUAL SLIDE) 3

#	OEM	部品名
1	81150-SN7-E11	Slide comp. - R. RECLINING OUTER
3	90182-SN7-013	Bolt - TORX, 8X16
4	90538-SN7-003	Washer - PLAIN, 8MM

Front shock absorber 16

#	OEM	部品名
1	51401-ST3-E41	Spring - FR.
2	51601-ST3-E41	Absorber assy - R. FR. SHOCK
3	51602-ST3-E41	Absorber assy - L. FR. SHOCK
4	51605-ST3-E11	Absorber unit - R. FR. SHOCK
5	51606-ST3-E11	Absorber unit - L. FR. SHOCK
6	51631-SN7-E01	Rubber - SHOCK ABSORBER MOUNTING
8	51675-ST3-E01	Base - FR. SHOCK ABSORBER MOUNTING
9	51685-ST3-E01	Plate - DUST COVER
10	51686-ST3-E01	Rubber - FR. SPRING MOUNTING
11	51687-ST3-E01	Cover - FR. SLEEVE DUST
12	51722-ST3-E01	Rubber - FR. BUMP STOPPER
13	52621-SK3-000	Washer - RR. SHOCK ABSORBER MOUNTING
14	52689-SN7-E01	Plate - BUMP STOP
14	52689-SK3-000	Plate - BUMP STOP
15	52728-SK3-000	Collar - RR. SHOCK ABSORBER MOUNTING
16	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Front stabilizer/ front lower arm 24

#	OEM	部品名
1	51300-ST3-G01	Spring - FR. STABILIZER
2	51306-ST3-G00	Bush - STABILIZER HOLDER
3	51308-S10-010	Holder - FR. STABILIZER
4	51312-SD4-020	Rubber - STABILIZER END
5	51320-ST7-003	Link assy - FR. STABILIZER
6	51350-ST3-G01	Arm assy. - R. FR. LOWER
7	51360-ST3-G01	Arm assy. - L. FR. LOWER
8	51392-ST3-G02	Bush - FR. LOWER ARM
9	51395-ST3-E00	Bush comp - R. FR. COMPLIANCE
10	51396-ST3-E00	Bush comp - L. FR. COMPLIANCE
11	51398-ST3-E00	Washer b - FR. RADIUS ARM
12	51399-ST3-E00	Washer a - FR. RADIUS ARM
13	51810-ST3-G00	Bush - SHOCK ABSORBER FORK
14	51811-SR3-010	Fork - R. FR. SHOCK ABSORBER
15	51821-SR3-010	Fork - L. FR. SHOCK ABSORBER
16	74300-SR3-010	BAR, FR. TOWER
18	90117-S0A-000	Bolt - DAMPER LOCK(10X44)
19	90118-SR3-003	Bolt - SELF-LOCK, 12X76
20	90168-ST3-E00	Bolt - FLANGE, 14X41
21	90175-SH3-005	Bolt - SHOCK ABSORBER FORK
22	90213-SR3-013	Nut - SELF-LOCK, 14MM
23	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
24	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
25	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 9

#	OEM	部品名
1	04731-ST3-E00	Rubber set - FR. WINDSHIELD DAM
2	04732-ST3-E00	Clip set - R. FR. WINDSHIELD MOLDING
3	04742-ST3-E00	Clip set - L. FR. WINDSHIELD MOLDING
4	73111-ST3-E50	Glass - FR. WINDSHIELD (GREEN)
5	73127-SR3-003	Holder - FR. WINDSHIELD GLASS
6	73151-ST3-E01	Molding - FR. WINDSHIELD UPPER
7	73152-ST3-E01	Molding assy. - R. FR. WINDSHIELD SIDE
8	73162-ST3-E01	Molding assy. - L. FR. WINDSHIELD SIDE
9	91511-ST3-E00	Clip d - FR. WINDSHIELD SIDE MOLDING

Front windshield wiper (LH) 22

#	OEM	部品名
1	76505-ST3-G05	Motor comp - FR. WIPER
2	76510-ST3-E05	Grommet - L
3	76511-ST3-E05	Liner
4	76512-ST3-E05	Bolt - 6X14
5	76513-ST3-E05	Extension
6	76516-ST3-E05	Grommet
7	76517-ST3-E05	Liner
8	76518-ST3-E05	Seal - PIVOT
9	76520-ST3-E05	Crank comp.
10	76524-ST3-E05	Dust seal
11	76527-ST3-E05	Nut - FLANGE, 8MM
12	76530-ST3-G05	Link comp - FR. WIPER
13	76540-ST3-E05	Arm comp. drive link
14	76550-ST3-E05	Arm comp. cross link
15	76600-ST3-G06	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-ST3-G05	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-ST3-E06	Blade - WINDSHIELD WIPER (DRIVER SIDE) (500MM)
18	76622-ST3-E05	Rubber - BLADE (500MM)
19	76630-ST3-E05	Blade - WINDSHIELD WIPER (PASSENGER SIDE) (457MM)
20	76632-ST3-E05	Rubber - 457MM
21	90126-SR3-000	Bolt-washer - 6X32
22	90201-SK7-000	Nut - HEX. CAP, 10MM

Fuel pipe 44

#	OEM	部品名
1	16010-ST5-933	Strainer set - FUEL (TOYO ROKI)
1	16010-ST5-E02	SETFUEL STRN COM
2	16680-PE7-661	Damper assy. - PULSATION
2	16680-PCX-003	Damper assy. - PULSATION
3	16705-PD1-003	Gasket - SILENCER
4	16722-P72-003	Hose comp. - FUEL FEED
5	16913-ST3-E00	Cover - FR. FUEL PIPE
6	16914-ST3-E00	Cover - RR. FUEL PIPE
7	16918-ST3-G30	Stay - FUEL STRAINER
8	16919-ST3-E30	Band - FUEL STRAINER
9	17300-ST3-E31	Canister assy
11	17358-ST3-E30	Bracket - CANISTER
12	17700-ST3-E31	Pipe comp - FUEL FEED
14	17720-ST3-E31	Pipe comp - FUEL VENT
15	17723-ST3-E40	Hose - PRESSURE REGULATOR RETURN
16	17725-ST3-E40	Hose - FUEL PURGE
19	17740-ST3-E30	Pipe comp - FUEL RETURN
21	17742-ST3-E31	Joint - CANISTER DRAIN TUBE
24	17743-ST3-E31	Joint - CANISTER DRAIN BYPASS TUBE
26	17744-ST3-E30	Tube - CANISTER DRAIN
27	17745-ST3-E31	Joint - CANISTER DRAIN
28	17761-ST3-E30	Stay a - FUEL PIPE
29	17762-ST3-E00	Stay b - FUEL PIPE
30	17763-ST3-E00	Stay c - FUEL PIPE
31	17764-ST3-E00	Stay d - FUEL PIPE
32	17765-SM4-000	Stay e - FUEL PIPE
33	17766-ST3-E00	Stay f - FUEL PIPE
34	17767-ST3-E00	Stay g - FUEL PIPE
35	17768-ST3-E00	Stay h - FUEL PIPE
36	90021-P0A-003	Bolt - SEALING, 12MM
37	90301-SP0-003	Nut - PAINT CUTTING, 6MM
38	90428-PD6-003	Washer - SEALING, 12MM
40	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
41	91592-ST3-E31	Clamp h - FUEL PIPE
42	91593-SK3-E00	Clip - PROTECTOR JOINT
43	91593-ST3-E31	Clamp g - FUEL PIPE
45	91594-ST3-E31	Clamp f - FUEL PIPE
47	91595-ST3-E30	Clamp a - FUEL PIPE
48	91596-ST3-E31	Clamp b - FUEL PIPE
49	91597-SH3-Y01	Clamp - VENT TUBE (BLACK)
50	91597-ST3-E31	Clamp c - FUEL PIPE
51	91598-ST3-E31	Clamp d - FUEL PIPE
52	91599-ST3-E01	Clip - BRAKE PIPE
53	91599-ST3-E31	Clamp e - FUEL PIPE

Fuel tank 32

#	OEM	部品名
1	17040-ST3-E30	Pump set - FUEL
2	17371-SM4-013	Valve - TWO WAY (TEC)
3	17500-ST3-E41	Tank comp. - FUEL
4	17521-SK3-E00	Band
5	17522-SK3-E00	Band
6	17525-SK3-E01	Bolt
7	17574-SE0-000	Packing - BASE
8	17651-SK3-E00	Tube - FILLER NECK
9	17652-SK3-E00	Tube - BREATHER
10	17652-SN7-000	Clip - FILLER TUBE
11	17660-ST3-E02	Pipe comp - FUEL FILLER
12	17662-SS1-010	Packing - FUEL FILLER PIPE
13	17664-SK3-E00	Bush - FUEL PIPE MOUNT
14	17665-SK7-010	Collar - FILLER PIPE MOUNT
15	17670-S1A-E02	Cap comp. - FUEL FILLER
16	17704-ST3-E31	Hose - FUEL RETURN
18	17707-ST3-E32	Tube comp - FUEL JOINT
19	17711-ST0-003	Retainer - YELLOW) (TOKAI
20	17721-ST3-E00	Tube - FUEL VENT
21	17733-ST3-E00	Protector - FUEL HOSE JOINT
22	17737-ST3-E01	Clamp - FUEL TUBE (A)
23	37800-ST3-G01	Meter unit - FUEL
24	37801-ST3-G01	Packing - BASE
25	74660-SK3-E01	Cap assy. - FLOOR MAINTENANCE HOLE
26	90011-SK7-010	Bolt - FILLER PIPE MOUNTING
27	90103-SB0-010	Nut - FLANGE, 5MM
28	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
29	90700-SB0-003	Clip - AIR BLEED TUBE
30	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
31	91593-SK3-E00	Clip - PROTECTOR JOINT
32	91601-SK3-E00	Grommet - SCREW, 5MM
33	91691-SN7-003	Clip - WIRE HARNESS

Gasket kit 2

#	OEM	部品名
1	06110-P72-060	Gasket kit - CYLINDER HEAD
2	06111-PR4-020	Gasket kit - CYLINDER BLOCK

Grommet 17

#	OEM	部品名
1	72204-SK3-E00	Cap - FLOOR HOLE
2	72205-SK3-E00	Cap - FLOOR HOLE
3	74416-SF1-000	Insulator - PILLAR LOWER
4	82871-671-000	Grommet - DRAIN HOLE, 25MM
6	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
7	90615-SM4-000	Cap - WELD HOLE, 46X72
9	90851-692-000	Plug - HOLE
10	90852-671-003	Plug - HOLE
11	90856-P2E-003	Plug - HOLE, 30MM
12	91330-ST3-E00	Plug - BLIND, 25X20
14	91606-SK7-003	Plug - BLIND, 25MM
15	91606-SN7-000	Insulator b - SIDE SILL
17	91613-SE0-003	Grommet - SUB FRAME, 15MM
18	91615-SA5-000	Grommet - HOLE, 25MM
19	91616-ST3-E00	Seal - FR. PILLAR INNER LOWER
20	91617-SB6-000	Grommet - WASHER HOSE, 32MM
21	91631-SR3-000	Plug - AIR CONDITIONER HOLE

Harness band/bracket (LH) 37

#	OEM	部品名
1	32113-P28-000	Stay comp - R. COUPLER
2	32113-SR3-A00	Stay - L. COUPLER
3	32114-SR3-000	Bracket - RADIO EARTH
4	32115-P1K-G00	Stay - HARNESS HOLDER
5	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
6	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
7	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
8	32134-SN7-000	Band - WIRE HARNESS OFFSET (10)
9	32146-SH3-003	Connector - DIODE(2P)
11	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
11	90674-769-000	Clamp, p.t.o. cable (b)
12	32171-SK3-E00	Bracket - FUEL SUB CONNECTOR
13	57175-ST3-E10	Stay - HARNESS CLAMP
14	90154-SD4-003	Bolt - EARTH, 6X20
15	90666-SF4-J31	Clip - FUEL PIPE
16	91476-SD4-003	Clip - OFFSET (21) (BROWN) (60MM)
17	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
18	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
19	91509-SA5-003	Clip - OFFSET (45)(GRAY)(57MM)
20	91539-ST3-300	Clip - WIRE HARNESS
21	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
22	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
23	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
24	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
25	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
27	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
28	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
29	91557-SR3-003	Clip - WIRE HARNESS PROTECTOR (RED)
30	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
31	91560-SR3-003	Band - HARNESS (NATURAL)(113MM)
32	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
33	91570-SH3-003	Band - WIRE HARNESS (NATURAL)
34	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)
35	91572-SR3-003	Clip - PROTECTOR
36	91637-SF1-003	Cap - 090 2P
37	91786-SR3-003	Bar - JOINT (10P)
38	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Headlight 11

#	OEM	部品名
1	33101-ST3-G11	Headlight unit - R.
2	33115-ST3-E01	Bulb - HEADLIGHT (CARELLO)
3	33126-ST3-E01	Cover - RUBBER
4	33129-ST3-G01	Plug
5	33130-ST3-305	Adjuster unit - HEADLIGHT
6	33151-ST3-G11	Headlight unit - L.
7	33301-ST3-E01	Bulb - 12V 5W
8	33303-ST3-E01	Bulb - 12V 21W
9	33305-ST3-E01	Socket comp.
10	34303-SS1-003	Socket comp - 2P
11	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Heater blower (LH; 1) 18

#	OEM	部品名
1	79194-ST3-E01	Clip - CASE
2	79300-ST3-G01	Blower assy
3	79305-ST3-G01	Blower sub assy.
4	79310-ST3-G01	Motor assy. - BLOWER
5	79330-ST3-E01	Resistor - BLOWER
6	79350-ST3-G01	Motor assy. - FRESH & RECIRCULAR
7	79810-ST3-G21	Duct - HEATER
8	79813-ST3-E01	Cover - DUCT
9	79831-ST3-E01	Element - FILTER
10	79832-ST3-E01	Frame - FILTER
11	80286-ST3-S01	Seal - DUCT (INLET)
12	80287-ST3-S01	Seal - DUCT (OUTLET)
13	90101-ST3-E01	Screw - 6X14
14	90102-ST3-E01	Screw - 10X16
15	90103-ST3-E01	Screw - 8X25
16	90155-SE0-003	Screw - TAPPING, 6X20
17	90156-SH3-000	Bolt-washer - 6X24
18	90222-SB4-000	Nut-washer - 6MM

Heater control 25

#	OEM	部品名
1	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
4	39356-SB6-000	Spring - HEATER CONTROL
5	39383-SA5-000	Clamp - CONTROL CABLE
6	77671-SE3-003	Washer - LINK
7	79500-ST3-G00	Control assy. - HEATER
8	79510-ST3-E01	Control comp. - TEMPERATURE
9	79512-SN7-E02	Base - TEMPERATURE CONTROL LOWER
10	79520-ST3-E01	Lever assy. - MODE CONTROL
11	79521-SN7-E11	Lever - MODE CONTROL
12	79522-SN7-E01	Lever - TEMPERATURE CONTROL
13	79537-SN7-E02	Pin - CLICK
14	79541-ST3-E00	Cable - MODE CONTROL
15	79542-ST3-E01	Cable - TEMPERATURE CONTROL
16	79550-ST3-G01	Illumination assy. - HEATER
17	79552-ST3-E01	Lid - SWITCH BLIND
18	79560-ST3-E01	Switch assy - FRESH & RECIRCULAR
19	79570-ST3-G01	Switch assy - HEATER FAN
20	79581-ST3-E01	Knob - HEATER CONTROL
21	79581-ST3-G01	Knob - HEATER CONTROL
22	79591-SN7-E01	Spring - HEATER CONTROL
23	79595-SN7-E12	Shaft - TEMPERATURE CONTROL
24	79596-SN7-E12	Shaft - MODE CONTROL
25	79628-SR2-003	Base - WEDGE LAMP
26	79691-SN7-E01	Screw - TAPPING, 4X12
28	90684-ST3-E01	Clamp - CABLE CONTROL

Heater unit (LH) 15

#	OEM	部品名
1	39796-ST3-E00	Bracket - KEY LIGHT TIMER
2	79100-ST3-G01	Heater assy
3	79110-ST3-G01	Core comp - HEATER
4	79189-SN7-E11	Pin - SETTING
5	79191-ST3-E01	Clip - LINKAGE ADJUSTER
6	79192-ST3-E01	Bush
7	79193-ST3-E01	Clip - CABLE TOP ENTRY
8	79194-ST3-E01	Clip - CASE
9	79195-ST3-E01	Bush - RETAINER
10	79196-ST3-E01	Bracket - PIPE
11	79197-ST3-E01	Screw - MOUNTING
12	79544-ST3-G50	Cable - WATER VALVE CONTROL
13	90143-ST3-E01	Screw - 6X14 PPHD
14	90156-SH3-000	Bolt-washer - 6X24
15	90222-SB4-000	Nut-washer - 6MM

High tension cord/plug 12

#	OEM	部品名
1	32701-P72-000	Cord comp - RESISTANCE (NO.1)
2	32702-P72-000	Cord comp - RESISTANCE (NO.2)
3	32703-P72-000	Cord comp - RESISTANCE (NO.3)
4	32704-P72-000	Cord comp - RESISTANCE (NO.4)
5	32722-P72-003	Cord assy - HIGH TENSION (###)
6	32763-PM3-000	Clamp c - HIGH TENSION CORD
7	32764-PR3-000	Clamp c - HIGH TENSION CORD
9	32766-PR3-000	Clamp d - HIGH TENSION CORD
12	32777-PG7-J00	Grommet - HIGH TENSION CORD
13	32777-PR3-010	Clamp e - HIGH TENSION CORD
14	90003-P01-000	Bolt-washer - 8X28
16	32722-P72-405	Cord comp - HIGH TENSION (SUMITOMO)

Hood (LH) 27

#	OEM	部品名
4	74120-ST3-E13	Lock assy - HOOD (SWITCH)
5	74125-ST3-E00	Cover - HOOD LOCK
6	74130-ST3-G00	Wire assy. - HOOD
7	74132-SR3-A00	Lever assy. - HOOD WIRE
8	74141-S74-E02	Insulator - HOOD
9	74142-ST3-E01	Rubber - R. HOOD SEAL
10	74143-ST3-E00	Rubber - HOOD RR. SEAL
12	74144-SE0-000	Cushion - HOOD
14	74145-ST3-E00	Stay - HOOD OPENER
17	74177-SD4-000	Cushion a - HOOD
18	74192-ST3-E00	Rubber - L. HOOD SEAL
19	74200-ST3-G00	Cowl top assy.
20	74213-ST3-E00	Cover - R. HOOD HINGE
21	74214-ST3-E00	Cover - L. HOOD HINGE
22	90106-SE1-000	Bolt-washer - 6X15
23	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
25	90672-SJ4-013	Holder - ROD
26	91501-SF1-003	Clip - HOOD INSULATOR
26	90700-SB2-003	Clip - HOOD INSULATOR
27	91508-SM4-003	Clip - COWL TOP
28	91512-SM4-003	Clip - INNER FENDER
29	91513-SK3-000	Clip - HOOD WIRE
30	91515-SR3-000	Clip - RR. HOOD
31	91520-SM4-C01	Clip - HOOD SEAL RUBBER
32	91565-SD5-003	Clip - COUPLER(NATURAL)
33	91601-SZ5-000	Cushion - HOOD (30MM)
34	91604-SD2-013	Grommet - HOOD STAY

Inner panels 3

#	OEM	部品名
32	74350-ST3-E50	Rod - RR. LOWER ARM PERFORMANCE
33	74607-ST3-E00	Extension - RR. FRAME
34	90127-SE0-000	Bolt-washer - 6X15

Instrument panel (LH) 20

#	OEM	部品名
2	75513-ST3-E00	Cushion - SIDE
6	77140-ST3-G00	Bracket comp. - INSTRUMENT DRIVER SIDE
7	77145-ST3-G00	Bracket comp. - INSTRUMENT PASSENGER SIDE
10	77451-ST3-E00	Plug - R. INSTRUMENT DEFROSTER
11	77452-ST3-E00	Seal a - DEFROSTER PLUG
12	77453-ST3-E00	Seal b - DEFROSTER PLUG
13	77456-ST3-E00	Plug - L. INSTRUMENT DEFROSTER
14	77466-ST3-E00	Seal - FR. INSTRUMENT
19	77623-ST3-E00	Bush - UPPER VENT KNOB
22	77884-ST3-G80	Bracket a - PASSENGER MODULE
23	77885-ST3-G90	Bracket comp. - PASSENGER MODULE
24	77982-S04-N81	Holder - COUPLER (2P)
25	90128-SA7-000	Bolt-washer - 6X25
26	90301-634-670	Nut - FLANGE, 6MM
27	90302-SN7-E00	Nut - SPRING, 4MM
28	90321-SP0-A80	Nut-washer - 6MM
29	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
30	90670-SK3-E00	Clip - SNAP FITTING
31	91640-SM4-003	Grommet - SCREW, 4MM
32	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 15

#	OEM	部品名
1	34254-SK3-E02	Lamp assy. - GLOVE BOX
2	34295-SK3-E00	Bulb
4	66405-SD4-000	Stay - GLOVE BOX HINGE
5	66417-SB3-670	Rubber - GLOVE BOX STOPPER
8	77305-ST3-E00	Stopper - DRIVER POCKET
12	77506-SM4-900	Stopper - GLOVE BOX LID
13	77520-SN7-E02	Cylinder - GLOVE BOX
16	77542-SL9-000	Striker - GLOVE BOX
17	77551-ST3-G00	Frame - GLOVE BOX
19	77752-ST3-E00	Spring - DRIVER POCKET
20	90140-SH3-003	Bolt-washer - 5X18
21	90302-SN7-E00	Nut - SPRING, 4MM
22	90305-SA0-000	Nut - FLOATING, 4MM
23	90310-ST3-E00	Nut - SPEED
24	91640-SM4-003	Grommet - SCREW, 4MM

Intake manifold (DOHC VTEC) 24

#	OEM	部品名
1	06164-P72-010	Packing set - INJECTOR
2	16472-PD6-000	Seal ring - INJECTOR (OTSUKA)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
4	16620-P72-010	Pipe assy. - FUEL
5	16622-P72-000	Stay - FUEL PIPE
6	16740-P72-003	Regulator assy - PRESSURE
7	16741-PG7-005	O-ring - PRESSURE REGULATOR
8	17100-P9K-G00	Manifold comp - INTAKE
9	17105-P72-004	Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS)
10	17110-P72-010	Manifold comp. b - INTAKE
11	17120-P72-000	Valve assy. - BYPASS
12	17121-P72-004	Packing - BYPASS VALVE (NIPPON LEAKLESS)
13	17129-P72-000	Diaphragm assy.
14	17132-P72-000	Stay comp - INTAKE MANIFOLD
15	32755-P72-000	Stay e - ENGINE HARNESS
16	37880-PE2-013	Sensor assy - AIR TEMP
17	53776-ST7-952	Clamp b - FEED HOSE
18	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)
18	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)
18	16074-ZY3-000	O-ring
19	91303-PD1-910	O-ring - 7.5X1.5
19	91303-PK2-005	O-ring (7.5X1.5)
20	91593-ST7-931	Clip - FUEL HOSE

Interior light 6

#	OEM	部品名
2	34251-SN7-G01	Lens
4	34260-ST3-E01	Light assy - TRUNK ROOM
5	34261-SN7-G01	Lens
6	34295-SN7-G01	Bulb - 12V 5W
7	34296-SN7-G01	Bulb - 12V 5W
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Kit,wheel disk al 2

#	OEM	部品名
3	42753-SH3-003	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)

Knuckle 20

#	OEM	部品名
1	44300-ST3-E01	Bearing assy - FR. HUB
2	44348-SR3-000	Ring - FR. KNUCKLE
3	51210-S1E-E10	Knuckle comp - R. FR.
4	51215-S1E-E10	Knuckle comp - L. FR.
5	51220-S04-003	Joint comp - LOWER BALL (MUSASHI)
6	51225-SR3-003	Boot - LOWER BALL DUST (MUSASHI)
6	51225-SR0-A01	Boot - LOWER BALL DUST (TECHNICAL AUTO PARTS)
7	51450-ST3-305	Arm assy. - R. FR. UPPER
8	51460-ST3-305	Arm assy. - L. FR. UPPER
9	51464-S04-013	Boot, UPPER BALL JOINT
13	52338-SL0-003	Circlip - CONTROL ARM
14	57450-SR3-801	Sensor assy - R. FR.
21	57455-SR3-801	Sensor assy - L. FR.
26	90114-SB0-000	Bolt-washer - 6X12
27	90185-SR3-013	Bolt - FR. ARM UPPER (10X58)
28	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
29	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
30	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
31	90363-SF1-000	Nut - CASTLE, 12MM
32	90681-ST3-E00	Circlip - INTERNAL, 79MM

Leather sports steer 2

#	OEM	部品名
2	90380-SB2-003	Nut - SELF-LOCK (OHASHI)
3	90134-S04-A81	Bolt - HEX., 6X12

Leather steering wheel sports 2

#	OEM	部品名
2	90380-SB2-003	Nut - SELF-LOCK (OHASHI)
3	90134-S04-A81	Bolt - HEX., 6X12

Mainshaft (DOHC) 17

#	OEM	部品名
1	23210-PS1-A04	Mainshaft comp.
2	23261-P80-900	Shaft - REVERSE IDLE GEAR
3	23440-P16-900	Gear comp - MAINSHAFT THIRD
4	23451-P80-V00	Gear - MAINSHAFT FOURTH
5	23540-P80-900	Gear comp - REVERSE IDLE
6	23581-P21-F00	Gear - MAINSHAFT FIFTH
7	23623-P21-315	Sleeve set - SYNCHRONIZER (3-4)
8	23626-P21-335	Sleeve set - SYNCHRONIZER (5-R)
9	23646-P21-000	Stopper - RING BRAKE
10	23647-P21-000	Ring - TAPER CONE
11	23915-P21-000	Collar - DISTANCE, 31X38X56.5
12	23916-P21-M00	Collar - DISTANCE, 28X37X15
13	23927-PG2-A00	Washer - SPRING, 28MM
14	23928-PS1-000	Washer - 28MM
15	91004-P21-003	Bearing - ANGULAR BALL, 28X72X18
16	91104-P21-008	Bearing - NEEDLE, 38X43X26 (NTN)
17	91108-P21-008	Bearing - NEEDLE, 37X42X14.8 (NTN)

Mirror 16

#	OEM	部品名
5	76203-ST3-G11	Mirror - R. (1800C)
6	76212-SW5-003	Holder - ACTUATOR
7	76213-SM4-003	Pin - STOPPER
8	76213-ST3-G11	Actuator set - R. DOOR MIRROR
11	76220-ST3-E20	Garnish - R. DOOR MIRROR (TWEETER)
16	76253-ST3-G11	Mirror - L. (1800C)
17	76263-ST3-G11	Actuator set - L. DOOR MIRROR
20	76270-ST3-E20	Garnish - L. DOOR MIRROR (TWEETER)
21	76400-SN7-G00	Mirror assy - RR. VIEW
24	90102-SW5-003	Screw - PAN, 4X8
26	90143-SW5-003	Screw - TRUSS, 4X8
27	90145-SW5-003	Screw-washer - 5X10
28	90410-SN7-G01	Screw - TAPPING, 4X10 (P0)
29	90416-SN7-G01	Screw - TAPPING, 4X16 (P0)
30	90615-SN7-G00	Clip - MIRROR GARNISH
31	91560-ST3-E01	Clamp - HARNESS

Molding 15

#	OEM	部品名
1	72410-ST3-E00	Molding assy. - R. FR. DOOR
2	72430-ST3-E00	Garnish - R. FR. DOOR SASH
3	72450-ST3-E00	Molding assy. - L. FR. DOOR
4	72470-ST3-E00	Garnish - L. FR. DOOR SASH
5	72910-ST3-E00	Molding assy. - R. RR. DOOR
6	72930-ST3-E00	Garnish - R. RR. DOOR SASH
7	72950-ST3-E00	Molding assy. - L. RR. DOOR
8	72970-ST3-E00	Garnish - L. RR. DOOR SASH
9	74306-ST3-E00	Molding assy. - R. ROOF
10	74308-ST0-003	Bracket - ROOF MOLDING
11	74316-ST3-E00	Molding assy. - L. ROOF
12	90105-ST3-E01	Screw - TAPPING, 4X6.5
13	91514-ST3-E00	Clip - SASH GARNISH
14	91531-ST3-E00	Clip - DOOR MOLDING (YELLOW)
15	91536-ST3-E00	Grommet - CENTER PILLAR GARNISH (4MM)

Oil pump/oil strainer (DOHC VTEC) 19

#	OEM	部品名
1	15100-PR4-A03	Pump assy. - OIL
2	15220-P72-000	Strainer comp. - OIL
3	15221-PW0-S01	Packing - OIL STRAINER
4	15231-PE0-000	Valve - RELIEF
5	15232-PG6-000	Spring - RELIEF VALVE
6	15233-PC6-000	Bolt - SEALING, 18MM
7	15234-PC6-000	Washer - SEALING, 18MM
8	15400-PH1-F03	Cartridge - OIL FILTER (LABINAL-PURFLUX)
9	15400-PR3-014	OIL FILTER (TOYO ROKI)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
9	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)
9	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)
10	15400-PR3-315	Cartridge set - OIL FILTER (TOYO ROKI)
11	90015-PH1-013	Holder - OIL FILTER
12	90042-PR3-000	Bolt - STUD, 6X28
13	91212-PR4-A01	Oil seal - 38X50X7.4 (NOK)
13	91212-PR3-003	Oil seal - 38X50X7.4 (NOK)
14	91308-PH9-000	O-ring - 8.8X1.9
14	91302-GE0-000	O-ring (8.8x1.9)

Outer panels 6

#	OEM	部品名
26	70494-SK3-E00	Spring - FUEL LID OPEN
27	74422-SH3-000	Cushion - FUEL FILLER LID
28	74423-S1A-E01	Holder - FUEL CAP
29	75450-SN7-000	Outlet assy - RR. AIR
30	90103-SM4-010	Bolt - FLANGE, 6X18
31	90664-SB3-003	Grommet - SCREW, 5MM

P.s. gear box (LH) 14

#	OEM	部品名
1	53436-ST3-E00	Cushion b - POWER STEERING GEAR BOX
2	53438-ST3-G00	Bracket - POWER STEERING GEAR BOX (LH)
3	53501-ST3-E00	Grommet a - STEERING
4	53502-ST3-E00	Grommet b - STEERING
5	53540-ST3-E03	End comp - R. TIE ROD
6	53546-SF4-004	Boot - TIE ROD END (TOKAI)
6	53546-SF4-R01	BOOT, TIE ROD END
7	53560-ST3-E03	End comp - L. TIE ROD
8	53600-ST3-G52	Box assy - POWER STEERING GEAR
9	53685-ST3-E00	Bush - GEAR BOX MOUNTING
10	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
11	90108-SR3-951	Bolt - GEAR BOX MOUNTING (10X65)
13	90325-ST3-E00	Washer - PLAIN, 10MM
17	53535-ST3-305	Bellow set

P.s. lines (LH) 21

#	OEM	部品名
1	38608-692-000	Rubber - MOUNTING
2	53697-SK3-E01	Cap - OIL TANK
3	53701-ST3-E01	Tank comp. - POWER STEERING OIL
4	53711-ST3-E00	Bracket assy - POWER STEERING OIL TANK
5	53713-ST3-G81	Hose comp. - POWER STEERING FEED (LH)
6	53720-SP0-010	Pipe comp
7	53729-SN7-000	Clamp - D15.5
8	53730-ST3-G00	Pipe - RETURN
9	53731-ST3-G80	Tube - POWER STEERING SUCTION
10	53732-ST3-G03	Hose - POWER STEERING RETURN
11	53733-ST3-G00	Tube - POWER STEERING OIL TANK
12	53736-ST3-E00	Holder - POWER STEERING PIPE
13	53737-SR3-992	Bracket - POWER STEERING PIPE
14	53738-ST3-G01	Stay b - RETURN HOSE
15	53775-S04-980	Stay b - FEED HOSE
16	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
16	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
17	90854-SL4-950	Collar - OIL TANK
18	91370-SV4-000	O-ring - 14.4X1.9
19	91405-PE0-003	Clamp - TUBE (D20)
19	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

P.s. pump 22

#	OEM	部品名
1	56110-P9K-G61	Pump sub assy - POWER STEERING
2	56123-P2A-003	Joint - IN.
3	56167-P2A-003	Spacer - PUMP SEAL
4	56483-P72-003	Pulley comp - POWER STEERING PUMP
5	90105-PDA-E01	Bolt - FLANGE, 8X28
5	90105-S50-003	Bolt - FLANGE, 8X28
6	90305-PAA-A01	Nut - POWER STEERING PULLEY
7	90693-PDA-E01	Circlip - INTERNAL, 40MM
7	90693-P2A-003	Circlip - INTERNAL, 40MM
8	91048-PDA-E01	Bearing - RADIAL BALL, 17X40X12
8	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12
9	91249-P2A-003	Seal - POWER STEERING PUMP
10	91345-PAA-A01	O-ring - 13.0X1.9
10	91345-PY3-000	O-ring - 13.0X1.9
10	91345-PDA-E01	O-ring - 13.0X1.9
11	91347-PDA-E01	O-ring - 16.7X1.8
11	91347-PAA-A01	O-ring - 16.7X1.8
12	91347-P2A-003	O-ring - 15.2X2.4
12	91346-PDA-E01	O-ring - 15.2X2.4
13	91348-P2A-003	O-ring - 51.0X2.4
14	91349-P2A-003	Seal - POWER STEERING PUMP COVER
15	91350-P8C-A01	Bolt - FLANGE, 6X20

P.s. pump bracket 7

#	OEM	部品名
2	56992-P72-003	Belt - POWER STEERING PUMP (BANDO)
2	56992-P72-506	BELTPS PUMP
3	56994-P54-000	Bracket - POWER STEERING PUMP LOWER
4	56996-P01-000	Bolt - POWER STEERING PUMP ADJUSTING WING
6	56997-P72-000	Bracket - POWER STEERING PUMP UPPER
7	90004-P30-000	Bolt - SPECIAL, 8MM
8	90601-P01-003	Clip - ADJUST BOLT

Parking brake 13

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD
4	47143-671-310	Spring - PUSH ROD
5	47342-SA5-013	Switch - PARKING BRAKE
6	47360-S1A-E01	Equalizer
7	47365-SN7-003	Pin - EQUALIZER
9	47510-ST3-E51	Wire a - R. PARKING BRAKE
10	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
11	47537-SN7-003	Spring - PARKING BRAKE ROD
13	47560-ST3-E51	Wire a - L. PARKING BRAKE
14	47572-ST3-E00	Base - WIRE GUIDE
16	90651-SN7-003	Clip - BRAKE HOSE
17	90705-SD2-931	Pin - SNAP, 6MM

Pedal (LH) 25

#	OEM	部品名
1	17800-ST3-E00	Pedal comp - ACCELERATOR
3	17805-SK3-000	Pad - PEDAL STOPPER
4	17812-SK3-000	Washer - ACCELERATOR PEDAL
5	17814-SR3-000	Spring - ACCELERATOR RETURN
6	17816-SK3-010	Cover - ACCELERATOR PEDAL
7	17910-ST3-L01	Wire - THROTTLE
9	17921-SK3-000	Seal - THROTTLE WIRE
10	17925-ST7-A00	Clamp - THROTTLE WIRE
12	35350-SK4-E01	Switch assy - STOP
13	46500-ST3-G00	Pedal assy - BRAKE
15	46504-679-300	Bush - PEDAL
16	46505-SK3-000	Pad - PEDAL STOPPER
17	46530-SR3-000	Spring assy - PEDAL RETURN
18	46535-SK3-000	Collar - PEDAL
19	46545-SH3-000	Cover - PEDAL
19	46545-SK3-000	Cover - PEDAL
21	46590-ST3-G00	Bracket - PEDAL
22	46905-SK7-000	Stopper - CLUTCH PEDAL
23	46907-SR3-010	Spring - CLUTCH ASSISTANT
25	46910-ST3-E00	Pedal comp - CLUTCH
26	46911-SN7-000	Bush - PEDAL PIN
27	46981-ST3-E00	Bush a - CLUTCH ASSISTANT
28	46982-ST3-E00	Bush b - CLUTCH ASSISTANT
29	46990-ST3-E00	Bracket - CLUTCH PEDAL
30	46991-ST3-E00	Bracket - FOOTREST

Pillar garnish (LH) 11

#	OEM	部品名
1	72315-ST3-E01	Seal - R. FR. DOOR OPENING
2	72355-ST3-E01	Seal - L. FR. DOOR OPENING
3	72815-ST3-E01	Seal - R. RR. DOOR OPENING
4	72855-ST3-E01	Seal - L. RR. DOOR OPENING
18	90609-SN7-E01	Clip - PILLAR GARNISH
19	90660-ST3-E00	Clip - DASHBOARD INSULATOR
20	90666-SK4-E00	Clip - PILLAR GARNISH
22	90668-SR3-003	Clip - TRIM
23	90668-ST3-E01	Clip - SIDE LINING
24	90682-SD4-000	Grommet - SCREW, 4MM
25	90866-SA0-000	Grommet - SCREW, 4MM

Piston/crankshaft 51

#	OEM	部品名
1	13020-P9K-E00	Piston set - OS 0.25
1	13010-P9K-E00	Piston set - STD.
2	13011-P9K-E01	Ring set - PISTON (STD.) (RIKEN)
2	13021-P9K-E01	Ring set - PISTON (OS 0.25)
3	13014-PR3-S10	Washer set - THRUST (DAIDO)
3	13014-PR3-S20	Washer set - THRUST (TAIHO)
4	13112-P3F-000	Pin - PISTON
5	13204-P72-003	Bolt - CONNECTING ROD
6	13205-PH7-000	Nut - CONNECTING ROD
7	13210-P72-000	Rod comp - CONNECTING
8	13217-P72-003	Bearing g - CONNECTING ROD (RED) (DAIDO)
8	13212-P72-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
8	13215-P72-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
8	13213-P72-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
8	13216-P72-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
8	13211-P72-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
8	13214-P72-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
9	13310-P72-000	Crankshaft comp.
10	13322-PR3-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)
10	13322-PR3-004	Bearing b - MAIN UPPER (BLACK) (TAIHO)
10	13321-PR3-004	BEARING A - MAIN UPPER (BLUE) (TAIHO)
10	13324-PR3-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)
10	13324-PR3-004	Bearing d - MAIN UPPER (GREEN) (TAIHO)
10	13323-PR3-004	Bearing c - MAIN UPPER (BROWN) (TAIHO)
10	13326-PR3-003	Bearing f - MAIN UPPER (PINK) (DAIDO)
10	13325-PR3-004	Bearing e - MAIN UPPER (YELLOW) (TAIHO)
10	13327-PR3-004	Bearing g - MAIN UPPER (RED)(TAIHO)
10	13321-PR3-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)
10	13323-PR3-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)
10	13325-PR3-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
10	13327-PR3-003	Bearing g - MAIN UPPER (RED)(DAIDO)
10	13326-PR3-004	Bearing f - MAIN UPPER (PINK) (TAIHO)
11	13346-PR3-003	Bearing f - MAIN LOWER (PINK) (DAIDO)
11	13343-PR3-004	Bearing c - MAIN LOWER (BROWN) (TAIHO)
11	13341-PR3-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13347-PR3-003	Bearing g - MAIN LOWER (RED) (DAIDO)
11	13344-PR3-004	Bearing d, MAIN LOWER (GREEN) (TAIHO)
11	13342-PR3-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13345-PR3-004	Bearing e - MAIN LOWER (YELLOW) (TAIHO)
11	13343-PR3-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13346-PR3-004	Bearing f - MAIN LOWER (PINK) (TAIHO)
11	13344-PR3-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13341-PR3-004	BEARING A - MAIN LOWER (BLUE) (TAIHO)
11	13347-PR3-004	Bearing g - MAIN LOWER (RED) (TAIHO)
11	13345-PR3-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13342-PR3-004	Bearing b - MAIN LOWER (BLACK) (TAIHO)
12	13621-PR3-003	Pulley - TIMING BELT DRIVE (HITACHI)
14	13622-PR3-000	Plate - TIMING BELT GUIDE
15	13810-P72-013	Pulley comp - CRANKSHAFT
16	90017-PR3-003	Bolt-washer - 14X31
17	90704-634-000	Key - 4.5X11.0

Protector 20

#	OEM	部品名
1	71800-ST3-E00	Garnish assy - R. SIDE SILL
2	71850-ST3-E00	Garnish assy - L. SIDE SILL
3	74430-ST3-E01	Protector - RR. WHEEL ARCH
4	74559-ST3-E00	Cover - FUEL PIPE
6	75301-ST3-E00	Protector comp - R. FR. FENDER
7	75302-ST3-E00	Protector comp - R. FR. DOOR
8	75303-ST3-E00	Protector comp - R. RR. DOOR
9	75307-SN7-000	Nut - SIDE PROTECTOR
10	75313-ST3-E00	Clip - SIDE PROTECTOR
11	75321-ST3-E00	Protector comp - L. FR. FENDER
12	75322-ST3-E00	Protector comp - L. FR. DOOR
13	75323-ST3-E00	Protector comp - L. RR. DOOR
15	90126-SA7-000	Screw-washer - 5X20
15	90114-SZ3-000	Screw-washer - 5X20
16	90331-SD5-003	Nut - SPRING, 5MM
18	90657-SA5-003	Clip - SIDE APRON MOLDING
19	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
20	90688-SB0-013	Clip b
20	90668-SC5-003	Clip A - AIRSCOOP GRILLE
21	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH

Radiator (CALSONIC) 11

#	OEM	部品名
1	19010-P9K-E02	Radiator comp - CALSONIC
2	19011-P1K-E01	Plug - DRAIN (CALSONIC)
3	19012-P1K-E01	O-ring - CALSONIC
4	19015-P1K-E01	Shroud comp.
5	19020-P1K-E01	Fan - COOLING
6	19030-P1K-E01	Motor - COOLING FAN
7	19045-P1K-E01	Cap comp. - RADIATOR (CALSONIC)
8	19047-P1G-Y01	Label - RADIATOR
9	90040-P1K-E01	Screw - TAPPING, 5X15
10	90042-P1K-E01	Bolt - FLANGE
11	90043-P1K-E01	Nut - HEX., 5MM

Radiator hose 17

#	OEM	部品名
1	19101-P1K-E00	Tank - RESERVE
2	19102-P45-G00	Cap - RESERVE TANK
3	19103-P1K-E00	Hose a - RESERVE TANK
4	19104-P1K-E00	Hose b - RESERVE TANK
5	19106-P45-G00	Joint - RESERVE TANK
6	19115-P1K-E00	Bracket - RESERVE TANK
8	19501-P9K-G00	Hose - WATER UPPER
9	19502-P9K-G01	Hose - WATER LOWER
11	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
12	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)
12	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)
14	19519-P2A-901	Clamp - WATER HOSE
17	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER
18	74173-SK3-E00	Cushion - RADIATOR MOUNTING UPPER
18	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER
19	74176-ST3-E00	Bracket - RADIATOR MOUNT UPPER
20	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Radio antenna/speaker 16

#	OEM	部品名
1	39112-ST3-E01	Bracket - FR. SPEAKER SEAL
2	39120-ST3-E01	Speaker assy - R. (1 1/2"TWEETER)
3	39120-ST3-E21	Speaker assy - 160MM
4	39120-ST3-E41	Speaker assy - 13CM DUAL
5	39121-ST3-E01	Screw
7	39125-ST3-E01	Speaker assy - L. (1 1/2"TWEETER)
8	39150-ST3-E01	Antenna assy - RADIO
9	39151-ST3-E00	Rod assy
10	39154-ST3-E00	Packing - ANTENNA BASE
11	39156-ST3-E01	Cap - ROOF ANTENNA
12	39159-ST3-G02	Feeder - ROOF ANTENNA
13	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)
14	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
15	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
16	91564-SK7-003	Band - HARNESS (M6 STUD) (BLUE) (90MM)
17	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Rear beam 5

#	OEM	部品名
1	50200-ST3-G50	Beam - RR. (POWER STEERING)
3	50205-ST3-E00	Rod - RR. BEAM PERFORMANCE
4	90161-SR3-000	Bolt - FLANGE, 14X107
5	90162-ST3-E00	Bolt - FLANGE, 14X83
6	90168-ST3-E00	Bolt - FLANGE, 14X41

Rear brake (DISK) 27

#	OEM	部品名
1	01473-SN7-010	Caliper set - RR.
3	42200-S30-C11	Bearing assy - RR. HUB UNIT
4	42324-SK3-E00	Washer - HUB UNIT
5	42326-ST7-Z00	Cap - HUB UNIT
5	42326-SLJ-000	Cap, Hub unit
6	42510-SN7-000	Disk - RR. BRAKE
7	43010-SN7-000	Pin set - RR.
8	43012-ST3-E50	Body set - R. RR. CALIPER
9	43013-ST3-E50	Body set - L. RR. CALIPER
10	43014-SN7-G00	Bracket set - R. RR. CALIPER
11	43015-SN7-G00	Bracket set - L. RR. CALIPER
12	43017-SN7-G00	Boot set - RR. PIN
13	43022-SN7-E50	Pad set - RR.
14	43245-ST3-E01	Lever - R.
15	43246-SD2-931	Spring - R. RETURN
16	43247-ST3-E51	Arm - R.
17	43253-ST3-950	Guard - R. RR. SPLASH
18	43254-ST3-950	Guard - L. RR. SPLASH
19	43255-ST3-E03	Protector - R. RR. CALIPER
20	43256-ST3-E01	Protector - L. RR. CALIPER
21	43265-ST3-E01	Lever - L.
22	43266-SD2-931	Spring - L. RETURN
23	43267-ST3-E51	Arm - L.
24	45240-SA7-003	Bolt - FLANGE, 8X22
25	90107-ST7-R00	Bolt - FLANGE, 10X25
27	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)
28	90305-692-010	Nut

Rear door lining 9

#	OEM	部品名
1	72835-ST3-E00	Weatherstrip - RR. DOOR INNER
2	72836-ST3-E00	Weatherstrip b - RR. DOOR INNER
3	83529-SN7-G00	Bracket - COVER LOCK
6	83709-ST3-E00	Protector - R. RR. DOOR
10	83759-ST3-E00	Protector - L. RR. DOOR
13	90132-SE3-003	Screw - TAPPING, 4X12
14	91560-SP0-003	Clip - DOOR LINING (GRAY)
14	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
15	91626-SP0-003	Grommet - SCREW, 5MM

Rear door locks 31

#	OEM	部品名
1	35765-ST3-G01	Switch comp - POWER WINDOW ASSISTANT
2	72112-SN7-G01	Snap - R.
3	72117-ST3-E00	Protector - R. FR. DOOR LOCK
4	72122-SK3-G00	Snap - R. INSIDE HANDLE
5	72134-ST3-003	Bush - JOINT
6	72135-SN7-G00	Striker - DOOR LOCK
7	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
9	72138-SN7-G00	Cushion - LOCK ROD
10	72157-ST3-E00	Protector - L. FR. DOOR LOCK
11	72162-SK3-G00	Snap - L. INSIDE HANDLE
12	72162-SN7-G01	Snap - L.
13	72175-SH3-003	Holder - DOOR LOCK ROD
14	72175-SH3-901	Holder - DOOR LOCK ROD
15	72610-ST3-E71	Lock assy - R. RR. DOOR
16	72615-ST3-G01	Actuator assy - R. RR. DOOR LOCK
19	72630-SK3-G00	Crank assy - R. RR. DOOR LOCK
20	72631-ST3-E00	Rod - R. RR. INSIDE HANDLE
21	72632-ST3-E00	Rod - R. RR. DOOR LOCK
22	72633-ST3-E00	Rod - RR. DOOR LOCK KNOB
23	72639-ST3-E00	Protector - R. RR. DOOR ROD
25	72650-ST3-E71	Lock assy - L. RR. DOOR
26	72655-ST3-G01	Actuator assy - L. RR. DOOR LOCK
28	72670-SK3-G00	Crank assy - L. RR. DOOR LOCK
29	72671-ST3-E00	Rod - L. RR. INSIDE HANDLE
30	72672-ST3-E00	Rod - L. RR. DOOR LOCK
31	72679-ST3-E00	Protector - L. RR. DOOR ROD
33	75411-634-000	Joint
34	90120-SM4-000	Screw - TAPPING
35	90866-SA0-000	Grommet - SCREW, 4MM
36	91580-SM4-003	Clip - COUPLER(ORANGE)
37	91593-SK3-E00	Clip - PROTECTOR JOINT

Rear door panels 11

#	OEM	部品名
9	72311-ST0-003	Clip
10	72810-ST3-E01	Weatherstrip - R. RR. DOOR
11	72821-ST3-E10	Seal - R. RR. DOOR HOLE
12	72840-ST3-E01	Checker comp. - RR. DOOR
13	72850-ST3-E01	Weatherstrip - L. RR. DOOR
14	72861-ST3-E10	Seal - L. RR. DOOR HOLE
15	75760-SK3-E00	Pin - DOOR CHECKER
16	75891-SA7-000	Stopper - DOOR
17	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)
18	90686-692-003	Cap - LINING MOUNT
19	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Rear door windows 19

#	OEM	部品名
1	39885-SN7-G00	Label - SECURITY CAUTION
3	72710-ST3-E11	Regulator - R. RR. DOOR POWER
4	72715-ST3-E11	Motor assy. - R. RR. WINDOW
5	72730-ST3-E01	Sash - R. RR. DOOR CENTER LOWER
6	72731-ST3-E00	Sash - R. RR. DOOR LOWER
7	72735-ST3-E01	Runchannel - R. RR. DOOR
9	72750-ST3-E11	Regulator - L. RR. DOOR POWER
10	72755-ST3-E11	Motor assy. - L. RR. WINDOW
11	72770-ST3-E01	Sash - L. RR. DOOR CENTER LOWER
12	72771-ST3-E00	Sash - L. RR. DOOR LOWER
13	72775-ST3-E01	Runchannel - L. RR. DOOR
14	73400-ST3-E01	Glass assy - R. RR. DOOR (GREEN)
15	73450-ST3-E01	Glass assy - L. RR. DOOR (GREEN)
16	73500-ST3-E71	Glass assy - R. RR. DOOR QUARTER (GREEN)
17	73550-ST3-E71	Glass assy - L. RR. DOOR QUARTER (GREEN)
21	90011-896-000	Bolt - FLANGE, 6X8
22	90115-ST3-E00	Bolt - FLANGE, 6X10
23	90116-ST3-E00	Bolt - FLANGE, 6X12
24	90120-ST3-E00	Screw - TAPPING

Rear lower skirt 4

#	OEM	部品名
2	90305-SM4-000	Nut - AIR SPOILER CLIP
3	90111-SM4-003	Bolt - BUMPER
4	90308-SB2-013	Nut - SUSPENSION, 5MM
5	90139-SE0-003	Screw-washer - 5X25

Rear mudguards 3

#	OEM	部品名
4	90114-SE0-000	Screw - TAPPING, 5X20
5	90308-SB2-013	Nut - SUSPENSION, 5MM
6	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)

Rear seat 15

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
2	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
6	82126-ST3-E02	Frame comp - R. RR. SEATBACK
7	82127-ST3-E01	Pad comp - R. RR. SEATBACK
10	82132-ST3-E03	Pad & frame comp. - RR. SEAT CUSHION
17	82225-ST3-E01	Striker - RR. SEATBACK LOCK
18	82226-ST3-E01	Pivot - R. RR. SEATBACK CENTER
21	82341-ST3-E01	Screw
22	82342-ST3-E01	Silencer
24	82526-ST3-E02	Frame comp - L. RR. SEATBACK
25	82527-ST3-E01	Pad comp - L. RR. SEATBACK
27	82626-ST3-E01	Pivot - L. RR. SEATBACK CENTER
28	82635-ST3-E00	Escutcheon - RR. SEAT STRIKER
30	82742-ST3-E01	Silencer

Rear shock absorber 14

#	OEM	部品名
1	51685-ST3-E01	Plate - DUST COVER
2	52441-ST3-E11	Spring - RR.
3	52610-ST3-E11	Absorber assy - RR. SHOCK
4	52611-ST3-E11	Absorber unit - RR. SHOCK
5	52621-SK3-000	Washer - RR. SHOCK ABSORBER MOUNTING
6	52675-ST3-E01	Base - RR. SHOCK ABSORBER MOUNTING
7	52686-ST3-E01	Rubber - RR. SPRING MOUNTING
8	52687-ST3-E01	Cover - RR. DUST
9	52689-SK3-000	Plate - BUMP STOP
10	52722-ST3-E01	Rubber - RR. BUMP STOPPER
12	52728-SK3-000	Collar - RR. SHOCK ABSORBER MOUNTING
13	74671-SK3-E00	Cap - RR. SHOCK ABSORBER
14	90176-SK3-010	Bolt - RR. DAMPER, 10X71
15	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Rear stabilizer/ rear lower arm 39

#	OEM	部品名
1	42534-SK7-A00	Cover - R. RR. (ABS)
2	42535-SK7-A00	Cover - L. RR. (ABS)
3	42539-SK3-950	Bracket - RR. COUPLER
4	46435-ST3-950	Bracket - R. RR. BRAKE HOSE
5	46436-ST3-950	Bracket - L. RR. BRAKE HOSE
6	46438-SK3-900	Bracket - R. RR. BRAKE HOSE (DISK)
7	46439-SK3-900	Bracket - L. RR. BRAKE HOSE (DISK)
8	52300-ST3-E11	Spring - RR. STABILIZER
10	52308-S10-000	Holder - RR. STABILIZER
13	52315-ST3-E10	Bush - RR. STABILIZER
15	52317-ST3-E00	Bracket - RR. STABILIZER
16	52320-S04-003	Link assy - R. RR. STABILIZER
17	52321-S04-003	Link assy - L. RR. STABILIZER
18	52341-SK3-000	Arm comp - RR. COMPENSATOR
19	52343-SK3-000	Bush - COMPENSATOR
20	52350-ST3-G11	Arm comp - R. RR. LOWER
21	52354-ST3-E00	Protector - R. RR. LOWER ARM
22	52360-ST3-G11	Arm comp - L. RR. LOWER
23	52364-ST3-E00	Protector - L. RR. LOWER ARM
24	52365-ST3-E01	Bush - RR. LOWER ARM
25	52365-ST3-G02	Bush - RR. LOWER ARM OUTER
26	52370-ST3-G00	Arm comp - R. RR. TRAILING
27	52371-ST3-G00	Arm comp - L. RR. TRAILING
28	52390-ST3-E00	Arm comp - RR. UPPER
29	52393-SK7-004	Bush - UPPER ARM INNER (YAMASHITA)
30	52395-SK7-004	Bush - RR. UPPER ARM (YAMASHITA)
31	52400-ST3-E00	Arm comp - L. RR. UPPER
32	52622-ST3-E01	Bush - RR. SHOCK ABSORBER LOWER
33	57470-ST3-E50	Sensor assy - R. RR.
35	57475-ST3-E50	Sensor assy - L. RR.
39	90002-S10-000	Nut - FLANGE, 10MM
41	90114-SB0-000	Bolt-washer - 6X12
42	90161-SK3-040	Bolt - FR. LOWER ARM (10X79)
45	90174-SK3-010	Bolt - TRAILING ARM BUSH, 12X62
46	90176-SK3-010	Bolt - RR. DAMPER, 10X71
47	90177-SK3-010	Bolt - UPPER ARM (10X25)
48	90179-SK3-020	Bolt - COMPENSATOR (10X59)
49	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
50	90551-SH3-000	Washer - 24X10X2.3

Rear windshield 8

#	OEM	部品名
1	73211-ST3-E02	Glass - RR. WINDSHIELD
3	73225-SR4-000	Fastener a - RR. WINDSHIELD
4	73250-ST3-E00	Molding - RR. WINDSHIELD
5	74841-ST3-E01	Sub seal - TAILGATE
6	90617-SK7-010	Fastener a - RR. WINDSHIELD UPPER
8	90618-SK7-010	Fastener b - RR. WINDSHIELD UPPER
9	91533-SS0-000	Fastener d - WINDSHIELD GLASS
9	91533-SR4-000	Fastener d - WINDSHIELD GLASS

Rear wiper 11

#	OEM	部品名
1	76700-ST3-E11	Motor assy. - RR. WINDSHIELD WIPER
2	76701-ST3-E11	Rubber - MOUNTING
3	76702-ST3-E11	Collar
4	76706-ST3-E11	Washer - THRUST
5	76709-ST3-E11	Nut - SPECIAL
6	76711-ST3-E11	Cap - PIVOT
7	76714-ST3-E11	Seal - UPPER
8	76720-ST3-G11	Arm - RR. WIPER
9	76721-ST3-E11	Cap
10	76730-ST3-E11	Blade - RR. WINDSHIELD WIPER (450MM)
11	91555-SM4-003	Clip - COUPLER (RED)

Resonator chamber 8

#	OEM	部品名
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
2	17216-PN3-000	Collar - AIR CLEANER MOUNTING
3	17230-P1K-E00	Chamber assy - RESONATOR
4	17232-P04-G00	Seal - RESONATOR RUBBER
5	17243-P1K-E00	Tube a - AIR INTAKE
6	17248-P1K-E00	Tube b - AIR INTAKE
7	75353-671-000	Lock - SCREW
8	90001-P0A-000	Bolt-washer - SPECIAL, 6X35

Roof lining (LH) 3

#	OEM	部品名
8	83243-ST3-E00	Base - GRAB RAIL
15	90132-SP0-003	Screw - PAN, 5X15
17	90133-SK4-E00	Bolt-washer - 5X25

Roof slide components 12

#	OEM	部品名
1	70240-SN7-G01	Rail assy - DRIP
2	70350-SN7-G01	Guide assy - R.
3	70355-SN7-G01	Guide assy - L.
4	70389-ST3-G01	Buffer
5	70400-SN7-G01	Drive unit
6	70442-SN7-G01	Clip - GUIDE RAIL END
7	70450-SN7-G01	Motor assy.
8	90108-SN7-G01	Screw
9	90121-SN7-G01	Screw - 5X8
10	90185-SN7-G01	Screw - 5X25
11	90186-SN7-G01	Screw - 3.9X8
12	90188-SN7-G01	Screw - 4X12

Seatbelts 5

#	OEM	部品名
7	82129-ST3-E01	Cover - RR. CENTER
11	82491-ST3-E00	Protector - R. SEATBELT
14	82891-ST3-E00	Protector - L. SEATBELT
15	90104-ST3-E01	Bolt-washer - 7/16"X28
16	90106-ST3-E01	Bolt-washer - 7/16"X28

Shift fork/shift shaft (DOHC) 6

#	OEM	部品名
1	24201-P80-000	Fork sub comp. - FIFTH-REVERSE SHIFT
2	24210-P80-V00	Fork comp - GEARSHIFT (3-4)
3	24220-P80-000	Fork comp - GEARSHIFT (1-2)
4	24230-P21-010	Holder comp - REVERSE CHANGE
5	24243-P21-000	Piece - FIFTH & REVERSE SHIFT
6	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 28

#	OEM	部品名
1	24313-PF5-000	Clip - CHANGE JOINT PIN
1	54113-611-505	CLIP, SHIFT JOINT
2	54101-SH3-010	Lever - CHANGE
5	54105-692-010	Washer - THRUST
6	54106-ST3-E00	Holder - CHANGE BOOT
7	54107-SA0-010	Bush, RR. JOINT
8	54109-SA7-000	Seal A, CHANGE LEVER DUST
9	54110-SH3-003	Seat - CHANGE LEVER BALL
10	54111-SH3-000	Holder - CHANGE BALL
13	54114-SB2-000	Collar - PIPE MOUNTING
14	54115-SH3-000	Dust seal B, Change
15	54117-SH3-000	Collar - RR. JOINT
16	54201-SR3-G01	Rod comp - CHANGE
17	54301-SR3-G00	Extension - CHANGE
19	54303-SB2-010	Rubber, EXTENSION END
21	54304-SK7-000	Washer a - EXTENSION END
23	54305-SA0-000	Washer b - EXTENSION END
24	54306-SH3-000	Rubber, EXTENSION MOUNTING
25	54307-SH3-010	Stopper - EXTENSION MOUNTING
26	54308-SH3-000	Bolt - EXTENSION
28	54318-ST3-E00	Seal - CHANGE BOOT
29	90114-SA0-000	Nut - SELF-LOCK, 6MM
31	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
32	90751-S04-000	PIN, SPRING, 8X22
33	90851-SD2-000	Plug - HOLE, 8MM
34	90865-SH4-K00	Plug - CONTROL WIRE
35	91301-671-671	O-ring - 1.9X11
35	91303-HA0-004	O-ring, 11x1.9 (nok)

Shift rod/shift holder (DOHC) 21

#	OEM	部品名
1	24311-PS1-000	Rod - GEARSHIFT
2	24316-PS1-000	Boot - SHIFT ROD
3	24351-PS1-000	Shaft - SHIFT PIECE
4	24400-P21-020	Holder assy. - CHANGE
5	24411-PB6-010	Piece - CHANGE
6	24432-P21-000	Interlock comp.
7	24439-689-000	Shim e - SELECT ARM, 10.1X16X1.6
7	24436-689-000	Shim b - SELECT ARM, 10.1X16X1.0
7	24438-689-000	Shim d - SELECT ARM, 10.1X16X1.4
7	24435-689-000	Shim a - SELECT ARM, 10.1X16X0.8
7	24437-689-000	Shim c - SELECT ARM, 10.1X16X1.2
8	24440-P21-000	Piece comp. - GEARSHIFT
9	24452-P20-000	Spring - BALL SETTING
10	24457-PB6-020	Spring - SELECT RETURN
11	24519-PB6-000	Screw - BALL SPRING SETTING
12	90028-PB6-010	Bolt - SPECIAL, 6X22.5
13	90029-611-010	Bolt - HEX., 8X24
14	90401-689-010	Washer - 10MM
15	90403-689-000	Collar - LOCK
16	90412-679-000	Washer - CONICAL SPRING, 8MM
17	91215-689-013	Oil seal - 14X25X16

Side garnish cove 1

#	OEM	部品名
2	90680-693-000	New Genuine Part

Side lining 5

#	OEM	部品名
1	83869-ST3-E00	Bracket - WARNING TRIANGLE
6	90126-SA7-000	Screw-washer - 5X20
6	90114-SZ3-000	Screw-washer - 5X20
7	90682-SB0-003	Grommet - SCREW, 5MM
8	90683-693-000	Grommet - SCREW, 5MM

Sliding roof 13

#	OEM	部品名
1	15707-634-000	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM
3	70052-SH3-000	Valve - FR. DRAIN (SUNROOF)
4	70060-SR4-000	Tube - RR. DRAIN VINYL (SUNROOF)
5	70062-SH3-000	Valve - RR. DRAIN (SUNROOF)
6	70070-SN7-G01	Cap - R. DRAIN
7	70075-SN7-G01	Cap - L. DRAIN
8	70080-SN7-G01	Seal - FR. FRAME
9	70081-SN7-G01	Seal - SIDE FRAME
10	70082-SN7-G00	Seal - FRAME INNER SIDE
11	70100-SN7-G01	Frame comp - SUNROOF
12	70200-ST3-G01	Glass assy - PANEL
14	90109-SN7-G01	Screw

Srs unit (LH) 10

#	OEM	部品名
1	77900-ST3-E81	Reel assy - CABLE
2	77907-S04-003	Holder - CONNECTOR (2P)
3	77960-ST3-E84	Srs unit
4	77961-ST3-G90	Harness - MAIN WIRE
5	77963-ST3-E80	Cover - R. SRS UNIT
6	77964-ST3-E80	Cover - L. SRS UNIT
7	77969-SR3-003	Case - CONNECTOR
8	90137-S84-A01	Bolt - TORX EARTH, 6X20
10	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
11	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)

Starter motor (MITSUBA) 8

#	OEM	部品名
1	31200-P2T-J01	Motor assy. - STARTER (SM-44213-1S) (MITSUBA)
2	31202-P2C-004	Bolt - SETTING
3	31204-P2A-004	Gear assy.
4	31207-PCA-901	Armature assy.
5	31208-PCA-902	Stay assy - BRUSH
6	31210-P2A-004	Switch assy
7	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)
8	31220-PAA-A02	Nut - TERMINAL (M)

Steering column 16

#	OEM	部品名
1	53200-ST3-E62	Column assy - STEERING
2	53216-ST3-E00	Holder b - STEERING COLUMN
3	53217-ST3-E01	Collar - STEERING RETAINER
5	53320-ST3-G60	Cover - STEERING JOINT
6	53323-ST3-E01	Joint comp. b - STEERING
7	53325-SK3-E00	Clip A - JOINT COVER
8	53326-SN7-000	Clip b - JOINT COVER
9	53363-ST3-G00	Pivot comp - COLUMN
10	53371-ST3-E01	Spring - COLUMN HANGER
11	77873-SN7-E80	Label - STEERING COLUMN CAUTION
12	77873-SN7-G80	Label - STEERING COLUMN CAUTION
13	90135-SF1-000	Bolt - CENTER SHAFT YOKE
14	90361-SM4-003	Nut - FLANGE, 8MM
14	90361-SR3-000	Nut - FLANGE, 8MM
15	90511-671-003	Washer - TOOTHED LOCK
16	90654-SR3-003	Clip - STEERING JOINT COVER

Steering wheel (SRS) 6

#	OEM	部品名
4	78509-SN7-E81	Cover - BOSS PLATE
9	78521-ST3-E81	Button a - HORN
10	78522-ST3-E81	Button b - HORN
11	78526-ST3-E81	Cord comp - HORN
12	90134-S04-A81	Bolt - HEX., 6X12
13	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Switch (LH) 19

#	OEM	部品名
3	35150-ST3-S01	Switch assy - HEADLIGHT WASHER & ILLUMINATION CONTROL
5	35170-SY3-E11	Switch assy - FR. FOG & RR. FOG
6	35190-SJ4-003	Switch assy - REMOTE CONTROL MIRROR (ALPS)
6	35190-ST3-E01	Switch assy - REMOTE CONTROL MIRROR (KOSTAL UK)
9	35500-ST3-E01	Switch assy - RR. DEFOGGER
10	35505-SN7-G01	Bulb comp. - NEO-WEDGE (12V 1.2W)
11	35510-ST3-E01	Switch assy - HAZARD
12	35750-ST3-G01	Switch assy - POWER WINDOW MASTER
14	35760-ST3-G01	Switch assy - POWER WINDOW ASSISTANT
15	35820-ST3-G01	Switch assy - HEADLIGHT ADJUSTER
16	35830-SN7-G01	Switch assy - ROOF
17	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
19	35851-ST0-003	Bulb - NEO WEDGE
20	35852-ST3-G01	Bulb comp. - 14V 60MA
21	35852-ST3-G11	Bulb comp. - WITH CAP
22	35910-S04-G01	Switch assy - INERTIA
23	39700-ST3-E01	Clock assy - DIGITAL
24	39952-S1E-G01	Receiver assy - PLIP REMOTE
30	90673-SA7-003	Band - TUBE

Tailgate 34

#	OEM	部品名
1	34270-ST3-E11	Light assy - HIGH MOUNT STOP
2	34271-ST3-S50	Harness - SPOILER
5	68217-ST3-E10	Seal - TAILGATE HINGE
6	70226-611-000	Plug - SETTING HOLE
8	71701-ST3-E50	Gasket - R.
9	71702-ST3-E50	Gasket - L.
10	71703-ST3-E50	Screw - TRUSS, 5X10
11	74411-ST3-G00	Cable - FUEL LID OPENER
12	74440-ST3-E01	Weatherstrip - TAILGATE
13	74800-ST3-E50	Lock assy - TAILGATE
14	74811-ST3-E00	Rod - TAILGATE LOCK
16	74813-ST3-E00	Snap
17	74813-ST3-E50	Striker assy - TAILGATE
18	74815-ST3-E00	Grommet - KEY CYLINDER
19	74820-ST3-E52	Stay assy - TAILGATE OPENER
20	74827-ST3-E00	Stopper - TAILGATE
21	74828-ST3-E00	Sub stopper - TAILGATE
22	74830-ST3-E01	Cable - TAILGATE OPENER
23	74861-SN8-G21	Cylinder - TRUNK
24	74866-SM3-003	Holder - ROD
25	74868-SN8-003	Switch assy
26	74882-ST3-G00	Opener assy - TAILGATE
30	90106-SE1-000	Bolt-washer - 6X15
31	90107-SE3-E00	Nut assy. - CAP, 6MM
32	90111-SK3-E00	Stud-ball - TAILGATE
33	90130-SM4-000	Bolt - LOCK STRIKER
34	90684-SD4-003	Clip - FUEL LID OPENER
35	90692-SK8-003	Clip - TRUNK OPENER CABLE
36	90856-SA5-003	Plug - TAILGATE HOLE
37	91548-SF4-003	Band - HARNESS (WITH SEAL) (WHITE) (93.5MM)
38	91553-ST3-E01	Clip - WIRE HARNESS CABLE
39	91555-SM4-003	Clip - COUPLER (RED)
40	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
41	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Tailgate lining 12

#	OEM	部品名
1	73240-ST3-E01	Trim - RR. WINDSHIELD
3	84412-ST3-E00	Cord - CENTER SHELF LIFT
5	84422-SK3-E00	Clip - RETENTION
6	84426-ST3-E00	Stopper - RR. SHELF
8	84432-ST3-E00	Stopper - CENTER SHELF
9	84432-ST3-E10	Seal - TAILGATE LINING
15	90302-SN7-E00	Nut - SPRING, 4MM
16	90609-SN7-E01	Clip - PILLAR GARNISH
17	90609-ST3-E01	Clip - TAILGATE
18	90610-ST3-E01	Clip - GARNISH (HOOK)
19	90666-SK4-E00	Clip - PILLAR GARNISH
21	91647-SH3-003	Grommet - SCREW, 4MM

Taillight 20

#	OEM	部品名
1	33301-SN7-E01	Bulb - 12V 5W
2	33501-ST3-G11	Lamp unit - R.
3	33503-ST3-G01	Gasket - BASE
4	33512-ST3-G11	Socket comp. - R.
5	33513-ST3-G11	Socket comp. - L.
6	33551-ST3-G11	Lamp unit - L.
7	34100-SN7-E01	Light assy - LICENSE
8	34101-SN7-E01	Lens
9	34103-SN7-E01	Seal - PACKING
10	34104-SN7-E01	Screw - TAPPING, 4X16
13	34903-ST3-E00	Bulb - 12V 21W) (AMBER
14	34908-ST3-E01	Bulb - 12V 21W
15	34911-ST3-E01	Bulb - 12V 21-5W
17	74892-ST3-E00	Molding - RR. LICENSE
18	75525-SD4-013	Clip - RR. PANEL GARNISH
19	90102-ST3-000	Bolt assy - LICENSE GARNISH
20	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)
21	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
22	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
23	91524-SE0-003	Clip - COWL TOP

Throttle body (DOHC VTEC) 11

#	OEM	部品名
1	16016-PM6-005	Screw set
2	16075-P07-000	O-ring
3	16080-P07-000	Screw-washer - 4X16
4	16176-P2T-004	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
5	16400-P72-Q01	Throttle Body Assy - GF94C
6	16411-P72-000	Stay - THROTTLE WIRE
7	32751-P6T-S00	Stay m - ENGINE WIRE HARNESS
8	36450-P6T-S01	Valve assy. - ELECTRONIC AIR CONTROL (DENSO)
9	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)
10	37830-P0G-S00	Sensor set - MAP
10	37830-PAA-S00	Sensor set - MAP

Tire/wheel disk 46

#	OEM	部品名
1	42700-ST3-G31	Disk - WHEEL (15X5 1/2J) (SILVER)
2	42700-ST3-G11	Disk - ALUMINIUM WHEEL (15X6JJ)
4	42751-ST3-G02	Tire - 195/55R15 84V) (BRIDGESTONE
5	42753-SK3-000	Valve - RIM(A.R.G.)
6	44730-SN7-003	Weight - BALANCE (45G)
6	44726-SN7-004	Weight - BALANCE (5G)
6	44725-SN7-003	Weight - BALANCE (50G)
6	44723-SN7-004	Weight - BALANCE (30G)
6	44722-SN7-003	Weight - BALANCE (20G)
6	44729-SN7-004	Weight - BALANCE (35G)
6	44728-SN7-003	Weight - BALANCE (25G)
6	44721-SN7-004	Weight - BALANCE (10G)
6	44727-SN7-004	Weight - BALANCE (15G)
6	44726-SN7-003	Weight - BALANCE (5G)
6	44724-SN7-004	Weight - BALANCE (40G)
6	44723-SN7-003	Weight - BALANCE (30G)
6	44730-SN7-004	Weight - BALANCE (45G)
6	44729-SN7-003	Weight - BALANCE (35G)
6	44725-SN7-004	Weight - BALANCE (50G)
6	44722-SN7-004	Weight - BALANCE (20G)
6	44721-SN7-003	Weight - BALANCE (10G)
6	44728-SN7-004	Weight - BALANCE (25G)
6	44727-SN7-003	Weight - BALANCE (15G)
6	44724-SN7-003	Weight - BALANCE (40G)
7	44722-SN7-G01	Weight - BALANCE (20G)
7	44729-SN7-G02	Weight - BALANCE (35G)
7	44728-SN7-G01	Weight - BALANCE (25G)
7	44721-SN7-G02	Weight - BALANCE (10G)
7	44727-SN7-G02	Weight - BALANCE (15G)
7	44726-SN7-G01	Weight - BALANCE (5G)
7	44724-SN7-G02	Weight - BALANCE (40G)
7	44723-SN7-G01	Weight - BALANCE (30G)
7	44730-SN7-G02	Weight - BALANCE (45G)
7	44729-SN7-G01	Weight - BALANCE (35G)
7	44722-SN7-G02	Weight - BALANCE (20G)
7	44721-SN7-G01	Weight - BALANCE (10G)
7	44728-SN7-G02	Weight - BALANCE (25G)
7	44727-SN7-G01	Weight - BALANCE (15G)
7	44724-SN7-G01	Weight - BALANCE (40G)
7	44730-SN7-G01	Weight - BALANCE (45G)
7	44726-SN7-G02	Weight - BALANCE (5G)
7	44723-SN7-G02	Weight - BALANCE (30G)
11	44732-SS0-A00	Cap - ALUMINIUM WHEEL CENTER
16	74654-SN7-000	Bolt - ANCHOR
17	83824-ST3-E01	Bucket - SPARE TIRE (T135 70D15)
20	90304-SA5-013	Nut - WHEEL (CHROME PLATED) (FUSE RASHI)

Tools/jack 4

#	OEM	部品名
1	89101-ST3-E00	Box - TOOL
2	89104-SG9-000	Wrench - WHEEL NUT
3	89212-SN7-E00	Wrench - SUNROOF
4	89310-SN7-E01	Jack assy

Transmission housing (DOHC) 60

#	OEM	部品名
1	21104-PS1-020	Plate m - OIL GUIDE
2	21200-P21-040	Case comp. Transmission
3	21211-P21-300	Plate - OIL GUTTER
4	21221-P4C-010	Stay - RR. RELEASE PIPE
5	21222-P4C-000	Hanger - TRANSMISSION
6	21223-P4C-000	Stay - BACK LIGHT SWITCH HARNESS
7	21396-P20-000	Cap - BREATHER
8	23944-P21-000	Shim n - 72MM(0.99)
8	23971-P21-000	Shim ao - 72MM(1.80)
8	23939-P21-000	Shim i - 72MM(0.84)
8	23966-P21-000	Shim aj - 72MM(1.65)
8	23934-P21-000	Shim d - 72MM(0.69)
8	23961-P21-000	Shim ae - 72MM(1.50)
8	23956-P21-000	Shim z - 72MM(1.35)
8	23951-P21-000	Shim u - 72MM(1.20)
8	23946-P21-000	Shim p - 72MM(1.05)
8	23941-P21-000	Shim k - 72MM(0.90)
8	23968-P21-000	Shim al - 72MM(1.71)
8	23936-P21-000	Shim f - 72MM(0.75)
8	23931-P21-000	Shim a - 72MM(0.60)
8	23963-P21-000	Shim ag - 72MM(1.56)
8	23958-P21-000	Shim ab - 72MM(1.41)
8	23953-P21-000	Shim w - 72MM(1.26)
8	23948-P21-000	Shim r - 72MM(1.11)
8	23943-P21-000	Shim m - 72MM(0.96)
8	23970-P21-000	Shim an - 72MM(1.77)
8	23938-P21-000	Shim h - 72MM(0.81)
8	23965-P21-000	Shim ai - 72MM(1.62)
8	23933-P21-000	Shim c - 72MM(0.66)
8	23960-P21-000	Shim ad - 72MM(1.47)
8	23955-P21-000	Shim y - 72MM(1.32)
8	23950-P21-000	Shim t - 72MM(1.17)
8	23945-P21-000	Shim o - 72MM(1.02)
8	23940-P21-000	Shim j - 72MM(0.87)
8	23967-P21-000	Shim ak - 72MM(1.68)
8	23935-P21-000	Shim e - 72MM(0.72)
8	23962-P21-000	Shim af - 72MM(1.53)
8	23957-P21-000	Shim aa - 72MM(1.38)
8	23952-P21-000	Shim v - 72MM(1.23)
8	23947-P21-000	Shim q - 72MM(1.08)
8	23942-P21-000	Shim l - 72MM(0.93)
8	23969-P21-000	Shim am - 72MM(1.74)
8	23937-P21-000	Shim g - 72MM(0.78)
8	23932-P21-000	Shim b - 72MM(0.63)
8	23964-P21-000	Shim ah - 72MM(1.59)
8	23959-P21-000	Shim ac - 72MM(1.44)
8	23954-P21-000	Shim x - 72MM(1.29)
8	23949-P21-000	Shim s - 72MM(1.14)
9	24452-PB6-020	Spring a - BALL SETTING
10	24519-PB6-000	Screw - BALL SPRING SETTING
11	32746-P21-000	Stay - BACK LIGHT HARNESS
12	35600-P21-003	Switch assy - BACK LIGHT
13	90081-PB6-000	Bolt - PLUG, 14MM
14	90081-PX5-000	Screw - SEALING, 32MM
15	90083-PG1-000	Bolt - SEALING, 16MM
16	90380-SR3-000	Bolt - STUD, 12X57.6
17	90401-PG1-000	Washer - DRAIN PLUG, 10MM
18	91205-PG1-003	Oil seal - 40X62X8 (ARAI)
18	91205-PC9-711	Oil seal - 40X62X8 (NOK)
19	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)

Vacuum tank/tubing 11

#	OEM	部品名
1	17205-PC6-000	Clamp - TUBE, 7.5X2
2	17363-PM3-000	Clamp - TUBE, 7.5X2
3	36010-PE0-004	Joint - THREE WAY
4	36145-PM4-004	Valve - CHECK
5	36162-P2Y-G01	Valve assy. - PURGE CUT SOLENOID
6	36163-P72-003	Valve assy. - BYPASS CONTROL SOLENOID
7	36165-P9K-E00	Tube - PURGE CUT A
8	36361-P72-000	Tank comp. - VACUUM
9	36362-P72-010	Bracket comp. - VACUUM TANK
10	36363-P72-000	Tube - VACUUM TANK
11	36364-P72-003	Clamp - TUBE, 7.5X3-22

Valve/rocker arm (DOHC VTEC) 20

#	OEM	部品名
1	12208-PR3-000	Bolt - SEALING, 20MM
2	12209-PR3-000	Washer - SEALING, 20MM
3	12250-PR3-000	Orifice assy - IN. ROCKER SHAFT
4	12260-PR3-000	Orifice assy - EX. ROCKER SHAFT
5	14620-P30-000	Arm assy. - ROCKER
6	14631-PR3-000	Shaft - VALVE ROCKER ARM
7	14711-PR3-000	Valve - IN.
8	14721-PR3-000	Valve - EX.
9	14744-PR3-003	Screw - TAPPET ADJUSTING
10	14751-P72-003	Spring - VALVE INNER (BLUE) (NIPPON HATSUJO)
11	14761-P72-003	Spring - VALVE OUTER (BLUE) (NIPPON HATSUJO)
12	14762-P30-004	Spring - EX. VALVE (PURPLE) (CHUO SPRING)
12	14762-P30-003	Spring - EX. VALVE (PURPLE) (NIPPON HATSUJO)
13	14765-P30-000	Retainer - VALVE SPRING
14	14775-PR3-000	Seat - VALVE SPRING
15	14781-PR7-A01	Valve Cotter
16	14820-P30-010	Motion assy. - LOST
17	90206-590-000	Nut - TAPPET ADJUSTING
17	90206-PT0-004	Nut - TAPPET ADJUSTING
18	91306-PJ4-000	O-ring - 6.8X1.9

Water hose (DOHC VTEC) 10

#	OEM	部品名
1	19503-P72-010	Hose - CONNECTING PIPE B
2	19504-P72-010	Pipe b - CONNECTING
3	19506-P72-J00	Hose - ELECTRONIC AIR CONTROL VALVE IN.
4	19507-P72-010	Hose - ELECTRONIC AIR CONTROL VALVE OUTLET
5	19508-P72-000	Hose - BYPASS OUTLET
6	19509-P72-003	Clamp - ELECTRONIC AIR CONTROL VALVE HOSE
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	19527-P72-000	Hose a - BREATHER HEATER
9	19528-P72-000	Hose b - BREATHER HEATER
10	90021-P72-000	Bolt - FLANGE, 6X12

Water pump (DOHC VTEC) 21

#	OEM	部品名
1	19200-P72-013	Water Pump (YAMADA)
2	19222-PR4-003	Packing - WATER PUMP (YAMADA)
3	19301-P08-315	Thermostat assy - FUJI THOMSON
3	19301-P08-316	Thermostat assy - NIPPON THERMOSTAT
3	19301-PAA-306	Thermostat assy - NIPPON THERMOSTAT
4	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
4	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
5	19311-P2T-000	Cover - THERMOSTAT
6	19315-P72-010	Cover comp. - WATER OUTLET
7	19320-P72-010	Case comp. - THERMOSTAT
8	19500-PE0-000	Joint, Tube
9	19505-P72-010	Pipe - CONNECTING
10	37750-PH2-014	Thermo unit - DENSO
11	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
11	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
12	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
13	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)
13	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
14	91307-PN4-000	O-ring - 17.5X1.4
14	91307-PN3-000	O-ring,17.8x1.4
15	91314-PH7-003	O-ring 31.2X4.1 (NOK)

Water valve 8

#	OEM	部品名
1	79710-ST3-E51	Valve assy. - WATER
2	79721-ST3-E50	Hose a - WATER IN.
4	79722-ST3-E50	Hose b - WATER IN.
5	79725-ST3-E50	Hose - WATER OUTLET
6	79731-ST3-E00	Grommet - HEATER PIPE
7	91405-PK1-003	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	91549-SR3-003	Clamp - 24MM-35MM

Windshield washer (3) 27

#	OEM	部品名
1	76803-ST3-S01	Clip - WASHER HOSE
2	76806-ST3-E01	Motor - FR. WASHER
3	76806-ST3-E11	Motor - RR. WASHER
4	76806-ST3-S01	Motor - HEADLIGHT WASHER
5	76807-ST3-E01	Packing - T-TYPE
6	76807-ST3-E11	Packing
7	76810-ST3-E01	Nozzle assy. - R. WINDSHIELD WASHER
8	76812-ST3-S01	Cap assy. - HEADLIGHT MOUTH
9	76814-ST3-E01	Clip - EDGE (M6)
10	76815-ST3-E01	Nozzle assy. - L. WINDSHIELD WASHER
11	76821-ST3-E01	Grommet - WASHER TUBE
12	76826-ST3-E01	Valve - ONE WAY
13	76828-ST3-E01	Joint l - WASHER
14	76828-ST3-S01	Joint l - WASHER
15	76829-ST3-E01	Joint - RR. WASHER TUBE
16	76830-SN7-G05	Joint y - WASHER
17	76841-ST3-S01	Tank
18	76842-SN7-G05	Bush - WASHER TANK
19	76850-ST3-E01	Nozzle assy. - RR. WASHER
20	76880-ST3-S02	Nozzle assy. - HEADLIGHT WASHER
21	76882-ST3-S02	Clip - HEADLIGHT WASHER NOZZLE
22	76883-SK4-W00	Joint - HEADLIGHT WASHER HOSE
23	76890-ST3-S02	Hose assy - HEADLIGHT WASHER
24	76895-ST3-S01	Hose - HEADLIGHT WASHER
25	90652-SN7-G00	Clip - TUBE, 7MM
26	91506-SR3-003	Clip - TUBE WASHER (NATURAL)
27	91561-ST3-000	Clip - HEADLIGHT WASHER HOSE

Wire harness (LH) 14

#	OEM	部品名
1	32100-ST3-B53	Harness - CABIN WIRE
2	32108-ST3-G43	Harness - RR. WIRE
3	32109-ST3-S11	Harness - TAILGATE WIRE
4	32117-ST3-G82	Harness - INSTRUMENT WIRE
5	32155-ST3-G41	Cord - INTERIOR
6	32170-SK3-E20	Sub cord - FUEL
7	32200-ST3-G42	Harness - ENGINE ROOM WIRE
8	32202-ST3-000	Cord - DEFROSTER EARTH
9	32751-ST3-G32	Harness - DOOR WIRE (DRIVER SIDE)
10	32752-ST3-G33	Harness - DOOR WIRE (PASSENGER SIDE)
11	32755-ST3-G20	Harness - RR. DOOR WIRE
12	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
13	90153-SE0-003	Bolt - EARTH, 6X12
15	90149-SE0-003	Bolt - EARTH, 6X16
