Abs modulator ('96-) 7

#	OEM	部品名
1	57101-SN7-E01	Rubber assy. - MOUNT
2	57110-ST3-E03	Modulator assy
3	57115-ST3-E01	Bracket comp. - MODULATOR
4	57119-ST3-E00	Cover - MODULATOR
5	57366-ST3-000	Connector - EARTH
6	90153-SE0-003	Bolt - EARTH, 6X12
7	90657-SS0-003	Clip - HOSE COVER PUSH

Abs unit (LH) 8

#	OEM	部品名
1	32505-SM4-003	Fuse - F20) (LITTEL
2	38206-ST7-000	Bracket - RELAY
4	38230-ST3-E01	Box assy - ABS FUSE
7	38231-ST3-G01	Bracket - ABS FUSE BOX
8	38231-S04-961	Fuse - BLOCK (40A)
10	39790-ST3-G01	Abs unit
12	39797-SM4-J01	Relay assy - POWER (4P) (MITSUBA) (RC-2221)
13	90153-SA5-900	Screw-washer - 5X9

Air cleaner 18

#	OEM	部品名
1	17210-P1K-E00	Cover comp. - AIR CLEANER
2	17211-P1K-E00	Cover - AIR CLEANER PIPE
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING
5	17220-P1K-E00	Element assy. - AIR CLEANER
6	17228-P1K-E10	Tube - AIR FLOW
7	17241-P1K-E00	Case comp. - AIR CLEANER
8	17243-PD1-000	Spring - AIR INTAKE TUBE
9	17249-P1K-E00	Rubber - AIR INTAKE SEAL
10	17252-P1K-E00	Pipe - AIR CLEANER CASE
11	17281-P1K-E00	Tube - SIDE BRANCH
12	17284-PT2-003	Clamp - TUBE, 44MM
13	17316-PH3-003	Clamp - AIR FLOW TUBE (70)
14	75353-671-000	Lock - SCREW
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35
16	90091-P07-A01	Bolt-washer - 5X28
16	90091-PE2-000	Bolt-washer - 5X25
16	90091-P36-000	Bolt-washer - 5X28

Air conditioner (COMPRESSOR; SOHC) 19

#	OEM	部品名
1	38801-P06-006	Valve sub assy. - SAFETY
2	38810-P76-016	Compressor comp. - HADSYS
3	38829-P06-006	Nut
4	38900-P06-006	Clutch set - COMPRESSOR
5	38908-P06-016	Protector set - THERMAL
6	38912-P06-006	Shim set
7	38913-P06-006	Circlip - EXTERNAL, 45MM
8	38914-P06-006	Circlip - EXTERNAL, 35MM
9	38920-P1K-E02	Belt - COMPRESSOR (MITSUBOSHI)
9	38920-P1K-E01	Belt - COMPRESSOR (BANDO)
10	38924-P06-006	Coil set - SOLENOID
11	38926-PM3-000	Stay - IDLE PULLEY
12	38930-P06-A00	Bracket - COMPRESSOR
13	38942-P01-003	Pulley comp - IDLE
14	38944-P02-000	Collar - IDLE PULLEY
15	38945-P01-000	Cover - BEARING
16	38946-P01-000	Bolt - IDLE PULLEY
17	90021-P01-000	Bolt - FLANGE, 8X85
18	90023-P01-000	Bolt - FLANGE, 8X105

Air conditioner (CONDENSER) 24

#	OEM	部品名
1	17925-SR3-010	Clamp - THROTTLE WIRE
2	80106-ST3-E00	Bracket - CONDENSER LOWER
3	80107-ST0-000	Bracket - CONDENSER UPPER
4	80110-SR3-023	Condenser comp. - SAK
5	80115-ST0-000	Seal - UPPER CONDENSER
6	80116-SR3-000	Seal - R. CONDENSER
7	80117-SR3-000	Seal - L. CONDENSER
8	80151-SR3-013	Motor - COOLING FAN
9	80152-SR3-013	Fan comp - COOLING (MITSUBA)
10	80161-SR3-000	Shroud comp. - CONDENSER FAN
11	80162-SR3-000	Protector - FAN MOTOR
12	80174-SR3-000	Mount - R. CONDENSER
13	80175-SR3-000	Mount - L. CONDENSER
14	80176-SR3-000	Rubber - CONDENSER MOUNTING
15	80177-SR3-003	Mount - CONDENSER LOWER
16	80373-SR3-000	Bracket - DISCHARGE HOSE
17	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)
17	80440-SK3-901	Switch - DUAL PRESSURE (SAGINOMIYA)
18	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
19	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)
19	90311-MB6-003	Nut toothed 5mm
20	90078-PR3-000	Screw - PAN, 4X8
21	90403-PM3-004	Washer - PLAIN, 7MM
22	90659-PG6-000	Clip - WIRE HARNESS

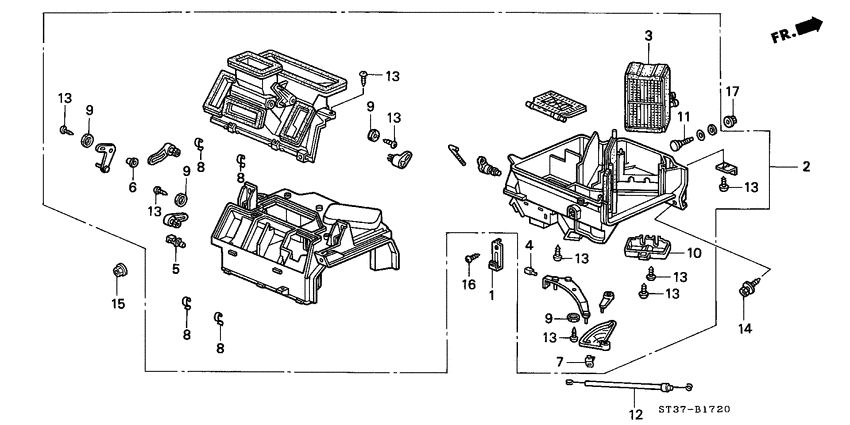

Air conditioner (COOLING UNIT; LH) 46

#	OEM	部品名
1	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
2	32147-SF1-003	Connector - DIODE(3P)
3	32148-SF1-003	Rubber - SEAL
4	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
5	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
6	80009-SJ4-000	Label - AIR CONDITIONER (YOP AIR CONDITIONER)
8	80201-ST3-G00	Case - EVAPORATOR UPPER (SAK)
9	80202-ST3-G00	Case, EVAPORATOR LOWER (SAK)
10	80203-ST3-E00	Lid - EVAPORATOR UPPER CASE (SAK)
11	80205-ST3-G00	Insulator - EVAPORATOR UPPER (SAK)
12	80206-ST3-G00	Insulator - EVAPORATOR LOWER
13	80214-SL5-A01	Insulator - EXPANSION
14	80215-ST3-G01	Evaporator comp. - SAK
15	80220-ST7-A02	Valve assy. - EXPANSION (10N) (FUJI KOKI)
16	80223-ST7-A01	O-ring - FUJI KOKI
17	80225-SR3-010	Clamp
18	80266-ST3-G00	Plate - EVAPORATOR HARNESS
19	80271-SR3-A00	Hose - DRAIN
20	80272-SF4-000	Grommet - DRAIN HOSE
21	80286-SR3-000	Seal - EVAPORATOR INNER
22	80287-SR3-000	Seal - EVAPORATOR OUTER
23	80288-SR3-000	Seal - EVAPORATOR JOINT
24	80290-ST3-E01	Filter assy - AIR CONDITIONER
25	80291-SR3-000	Grommet - EVAPORATOR SENSOR
26	80291-ST3-505	Element - FILTER
27	80293-ST3-E01	Seal
28	80410-ST3-E01	Switch assy - AIR CONDITIONER
29	80430-SR3-003	Thermostat - AIR CONDITIONER
30	80460-ST3-G00	Harness - AIR CONDITIONER WIRE
31	80463-SR3-A00	Bracket - AIR CONDITIONER WIRE HARNESS
32	80464-SR3-000	Grommet - AIR CONDITIONER PIPE
33	80491-ST3-E00	Bracket - AIR CONDITIONER RELAY
34	80566-SR3-003	Clip - EVAPORATOR SENSOR
35	80872-ST7-000	O-ring - 1/2"
36	80873-ST7-000	O-ring - 8MM
38	90153-SE0-003	Bolt - EARTH, 6X12
39	90155-SE0-003	Screw - TAPPING, 6X20
40	90156-SH3-000	Bolt-washer - 6X24
41	90222-SB4-000	Nut-washer - 6MM
42	90659-692-000	Clamp - CASE
43	91546-SR3-003	Clamp - 16.5
44	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
45	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
46	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
47	91619-SA5-000	Grommet - SCREW, 6MM
51	80292-ST3-E01	Frame - FILTER

Air conditioner (HOSES; LH) 26

#	OEM	部品名
1	38608-SA5-000	Rubber - MOUNTING
2	38609-SA5-000	Collar - DISTANCE
3	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80311-SR3-A02	Hose comp. - SUCTION (NICHIRIN)
5	80315-SR3-902	Hose comp. - DISCHARGE (NICHIRIN)
6	80321-SR3-A02	Pipe a - SUCTION (SAK)
7	80322-SR3-A02	Pipe b - SUCTION (SAK)
8	80331-SR3-013	Pipe - CONDENSER (SAK)
9	80341-SR3-A02	Pipe a - RECEIVER (SAK)
10	80342-SR3-A02	Pipe b - RECEIVER (SAK)
11	80343-SR3-A02	Pipe c - RECEIVER (SAK)
12	80351-ST7-003	Receiver comp
13	80352-SR3-000	Bracket - LIQUID TANK
14	80362-SR3-A00	Clamp - SUCTION HOSE
15	80363-SR3-A00	Stay - SUCTION HOSE
16	80364-SR3-A00	Stay - SUCTION PIPE
17	80367-SR3-A00	Clamp b - SUCTION PIPE
18	80387-SM4-A01	Clip - RECEIVER PIPE
19	80865-ST0-003	Cap h - VALVE (NICHIRIN)
20	80866-SL0-003	Cap - VALVE(L)
21	80871-ST7-000	O-ring - 5/8"
22	80872-ST7-000	O-ring - 1/2"
23	80873-ST7-000	O-ring - 8MM
25	90126-SM4-000	Bolt-washer - 6X32
26	90308-SD2-A00	Nut - FLANGE, 6MM (DACRO COATING)
27	91536-SR3-003	Clip - SUCTION PIPE (BLACK)

Air conditioner (KIT) 1

#	OEM	部品名
2	80000-ST3-G00	General assy. - AIR CONDITIONER

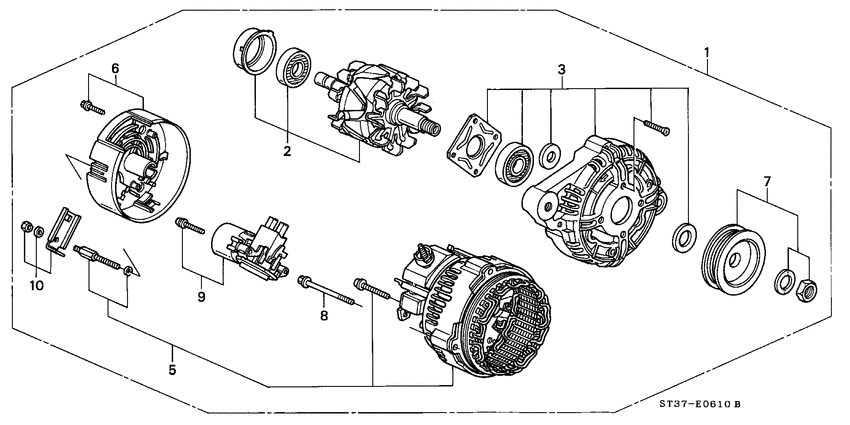

Alternator (BOSCH) 9

#	OEM	部品名
1	31100-P1K-E04	Alternator assy - BOSCH
2	31101-P1K-E04	Rotor assy.
3	31109-P1K-E03	Frame assy - DRIVE END
5	31121-P1K-E04	Frame - RR. END
6	31135-PP4-E03	Cover - RR. END
7	31141-P1K-E03	Pulley
8	31145-PP4-E03	Screw - WAVE WASHER
9	31150-P1K-E03	Regulator assy
10	91415-PP4-E03	Clip - CORD

Battery (LH) 17

#	OEM	部品名
1	31500-ST3-G11	Battery assy - 46B24L<S>-MF) (LUCAS YUASA
2	31512-SR3-000	Plate - BATTERY SETTING
3	31513-SR3-000	Bolt - BATTERY SETTING
4	31521-ST3-000	Box - BATTERY
5	31542-ST3-E01	Plug - VENT (MF) (YUASA)
6	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
7	32230-ST3-G01	Cord - ABS FUSE BOX
8	32410-ST3-G10	Cable assy - STARTER
9	32414-SR3-000	Clamp a - STARTER CABLE
10	32416-SR3-A00	Clamp c - STARTER CABLE
11	32600-ST3-G00	Cable assy - EARTH
12	32601-SK7-900	Bolt - BATTERY TERMINAL
13	32602-SK7-900	Nut - BATTERY TERMINAL
14	90130-SR3-003	Bolt - 5X13
15	90153-SA5-900	Screw-washer - 5X9
16	90153-SE0-003	Bolt - EARTH, 6X12
17	90337-SJ4-003	Nut - A.L.B.

Brake lines (ABS; LH; '96-) 29

#	OEM	部品名
1	17767-ST3-E00	Stay g - FUEL PIPE
2	46210-ST3-E51	Valve assy. - DUAL PROPORTIONING
3	46330-ST3-E00	Pipe comp. c - BRAKE
4	46340-ST3-E00	Pipe comp. d - BRAKE
5	46374-ST3-G02	Pipe comp. u - BRAKE
5	46374-ST3-G01	Pipe comp. u - BRAKE
6	46375-ST3-G01	Pipe comp. v - BRAKE
6	46375-ST3-G02	Pipe comp. v - BRAKE
7	46376-ST3-E01	Pipe comp. w - BRAKE
8	46377-ST3-E02	Pipe comp. x - BRAKE
8	46377-ST3-E01	Pipe comp. x - BRAKE
9	46378-ST3-E02	Pipe comp. y - BRAKE
9	46378-ST3-E01	Pipe comp. y - BRAKE
10	46379-ST3-E01	Pipe comp. z - BRAKE
10	46379-ST3-E02	Pipe comp. z - BRAKE
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)
12	46391-ST3-E00	Clamp - BRAKE PIPE
13	46392-ST3-E00	Clip - BRAKE PIPE
14	46394-SH3-A01	Clip - BRAKE PIPE
15	46394-ST3-E01	Clip - BRAKE PIPE
16	46410-ST3-E01	Hose - R. FR. BRAKE
17	46411-ST3-E01	Hose - L. FR. BRAKE
18	46430-SK3-E01	Hose - RR. BRAKE
19	46462-SE0-000	Bolt - OIL
20	46472-568-000	Packing - OIL BOLT
21	90105-SB0-003	Bolt-washer - 8X16
22	90105-SD9-003	Bolt-washer - 8X20
23	90651-SN7-003	Clip - BRAKE HOSE
24	91595-ST3-E30	Clamp a - FUEL PIPE

Brake master cylinder (ABS; '96-) 16

#	OEM	部品名
1	46012-SN7-010	Power set - MASTER
2	46016-ST3-E00	Tank set - RESERVE
3	46100-SN7-013	Cylinder assy. - MASTER
4	46110-SN7-E01	Cylinder comp - 23.8MM
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)
6	46185-ST3-003	Seal - ROD
7	46191-SN7-000	Packing - MASTER CYLINDER STAY
8	46403-SE0-003	Valve comp. - CHECK (NISSIN)
9	46404-SR3-A00	Tube a - MASTER POWER
12	46405-SR3-A20	Tube b - MASTER POWER
17	46406-ST3-G00	Stay - MASTER POWER TUBE
18	46512-SB2-000	Pin - PEDAL
19	46662-ST3-003	Cap assy. - RESERVOIR
20	46666-ST3-003	Filter
21	53729-671-003	Clamp d - 15.5MM
22	90751-ST3-003	Pin - SPRING

Breather chamber (SOHC) 10

#	OEM	部品名
1	11850-PM3-G00	Chamber comp - BREATHER
2	17130-PH1-003	Valve assy. - PCV
3	11854-P07-A00	Joint - PCV
4	11855-P72-000	Grommet, PCV Valve
5	11855-P07-A00	Tube a - PCV
6	11856-P06-A00	Tube b - PCV
7	17135-P06-A00	Pipe comp - BREATHER
8	17153-P05-A00	Tube - BREATHER
9	91324-PC6-000	O-ring - 20.6X2.6
10	91405-P05-A01	Clamp - TUBE (D13.8)

Bumper ('95/'96) 11

#	OEM	部品名
2	71144-SR3-013	Grommet - BUMPER SIDE
5	71598-SL4-013	Spacer - BUMPER SIDE
6	90101-SE0-010	Bolt assy. b - BUMPER
7	90108-ST3-E01	Clip - FR. BUMPER SIDE
8	90109-SE0-003	Bolt b - BUMPER
9	90109-SL9-000	Screw - TAPPING, 5X16
10	90112-SM4-003	Bolt - BUMPER
11	90130-SB0-010	Bolt assy - BUMPER
12	90540-SA7-000	Washer - BUMPER
13	91503-SP0-013	Clip A - BUMPER
13	91503-SP0-003	Clip A

Camshaft/timing belt (SOHC; '95/'96) 20

#	OEM	部品名
1	11810-PM3-000	Cover comp. - TIMING BELT LOWER
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE
3	11820-PM6-000	Cover comp. - TIMING BELT UPPER
4	11831-P1K-E00	Seal - LOWER RUBBER
5	11832-P1K-E00	Rubber - R. BACK SEAL
6	11833-P1K-E00	Rubber - L. BACK SEAL
7	11840-PM3-010	Cover comp. TIMING BELT BACK
8	11925-P1K-E00	Rubber a - ENGINE MOUNTING BRACKET SEAL
9	11926-P1K-E00	Rubber b - ENGINE MOUNTING BRACKET SEAL
10	14111-PM6-A10	Camshaft comp.
11	14210-PM3-000	Pulley comp - TIMING BELT DRIVEN
12	14400-P1K-E01	Belt - TIMING (107RU24 A-555)
13	14510-PM7-004	Tensioner comp - TIMING BELT (NIPPON SEIKO)
14	14513-PE0-015	Bolt - TENSIONER (M6)
15	14516-PM3-010	Spring comp - TIMING BELT ADJUSTER
16	14517-PG6-000	Bolt a - TENSIONER
17	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING
18	90031-PT0-003	Bolt-washer - 8X22
18	90032-ZW5-003	Bolt-washer, 8x22
19	91213-PE1-722	Oil seal - 29X45X8 (NOK)

Clutch housing (SOHC) 31

#	OEM	部品名
1	21000-P1M-B01	Case comp. - CLUTCH
2	21103-PL3-B00	Plate c - OIL GUIDE
3	21120-PG2-003	Magnet - TRANSMISSION
4	41100-P20-C01	Case comp. - DIFFERENTIAL
5	41233-PL3-J00	Gear - FINAL DRIVEN
6	41312-PL3-B00	Gear - SPEEDOMETER DRIVE
7	41455-PL3-B00	Shim q - 80MM(1.55)
7	41450-PL3-B00	Shim k - 80MM(1.05)
7	41445-PL3-B00	Shim e - 80MM(1.4)
7	41456-PL3-B00	Shim r - 80MM(1.65)
7	41451-PL3-B00	Shim l - 80MM(1.15)
7	41446-PL3-B00	Shim f - 80MM(1.5)
7	41457-PL3-B00	Shim s - 80MM(1.75)
7	41441-PL3-B00	Shim a - 80MM(1.0)
7	41452-PL3-B00	Shim m - 80MM(1.25)
7	41447-PL3-B00	Shim g - 80MM(1.6)
7	41442-PL3-B00	Shim b - 80MM(1.1)
7	41453-PL3-B00	Shim n - 80MM(1.35)
7	41448-PL3-B00	Shim h - 80MM(1.7)
7	41443-PL3-B00	Shim c - 80MM(1.2)
7	41454-PL3-B00	Shim p - 80MM(1.45)
7	41449-PL3-B00	Shim j - 80MM(1.8)
7	41444-PL3-B00	Shim d - 80MM(1.3)
8	90015-634-010	Bolt - FLANGE, 10MM
9	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)
10	91005-PS1-003	Bearing - SEALED BALL, 6208C (NTN)
11	91101-PL3-B03	Bearing - NEEDLE, 30X55X21 (NTN)
12	91205-PL3-A02	Oil seal - 35X56X8(NOK)
12	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)
13	91215-PL3-005	Oil seal - 14X25X15 (NOK)
14	91216-PL3-005	Oil seal - 26X42X7 (NOK)

Clutch master cylinder (LH) 33

#	OEM	部品名
1	43352-567-000	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW
3	46151-SA5-003	Yoke comp. - NISSIN
5	46182-500-013	Circlip
6	46184-611-000	Dust seal - MASTER CYLINDER
7	46912-SD4-000	Pin - CLUTCH PEDAL
8	46918-SM4-020	Clip a13 - TUBE
9	46920-ST3-S01	Cylinder assy. - CLUTCH MASTER
10	46926-SF1-003	Piston assy.
11	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER
12	46930-SR3-013	Cylinder assy. - SLAVE
13	46932-SD4-003	Piston - SLAVE CYLINDER
14	46933-SD4-013	Cup a - PISTON
15	46934-SD4-003	Cup b - PISTON
16	46935-SP0-000	Spring - SLAVE CYLINDER
17	46937-SR3-003	Boot - SLAVE CYLINDER
18	46938-SD4-003	Rod - PUSH
19	46950-SL4-003	Rod assy - PUSH
20	46952-SD4-003	Joint - TUBE
21	46953-SD4-003	Packing
22	46960-ST3-S00	Pipe assy. a - CLUTCH
23	46961-ST3-S01	Hose - CLUTCH
24	46966-SR3-A00	Holder - TANK
25	46970-ST3-E00	Pipe comp. b - CLUTCH
26	46971-SR3-A00	Tube - CLUTCH FLUID
27	46972-SD4-003	Tank - CLUTCH FLUID
28	46973-SD4-003	Cap comp. - RESERVE TANK
29	46975-SD4-003	Seal - RESERVE TANK
30	46995-ST3-S00	Bracket a - CLUTCH PIPE
31	46996-ST3-E00	Bracket b - CLUTCH PIPE
32	46997-ST3-S01	Clip - CLUTCH PIPE
33	46998-ST3-E00	Clamp - CLUTCH PIPE
34	90651-SN7-003	Clip - BRAKE HOSE

Clutch release (SOHC) 10

#	OEM	部品名
1	22821-P20-010	Fork - CLUTCH RELEASE
2	22825-PX5-A00	Bolt - RELEASE FORK
3	22835-P20-010	Spring - RELEASE FORK SETTING
4	22841-P20-000	Boot - RELEASE FORK
5	23811-P36-000	Holder comp - SPEEDOMETER GEAR
6	23820-P00-000	Gear comp - SPEEDOMETER
7	90003-P03-000	Bolt-washer - 6X26
8	90638-689-000	Clip - SPEEDOMETER GEAR
9	91304-PT0-000	O-ring - 14.8X1.9
10	91313-611-010	O-ring - 23.5X2

Clutch/torque converter 10

#	OEM	部品名
1	21350-P1K-000	Cover comp. - CLUTCH CASE
3	21352-P1K-300	Rubber - CLUTCH CASE COVER
4	22100-P1G-004	Flywheel comp.
6	22200-P1G-014	Disk comp - FRICTION
7	22300-P1G-004	Disk comp - PRESSURE
8	22810-P20-005	Bearing - CLUTCH RELEASE (NSK)
11	90011-PM0-000	Bolt - 12MM
13	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
14	90201-P1K-E00	Nut - SPECIAL, 6MM
16	91006-634-008	Bearing - CLUTCH PILOT (NTN)

Combination meter components 19

#	OEM	部品名
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W
3	37102-SA5-003	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)
4	37106-SJ4-J00	Knob - TRIP
5	37115-SA0-601	Packing - NS
6	37120-ST3-E11	Cover - WARNING
8	37237-SA5-003	Bulb - 14V 3.4W) (NS
9	78104-ST3-E01	Bracket
10	78108-ST3-E11	Panel - PRINT
12	78110-ST3-B31	Case assy.
13	78115-ST3-G11	Speedometer assy
14	78124-ST3-E01	Illumination assy.
15	78125-ST3-E01	Tachometer assy.
16	78130-ST3-E01	Meter assy - FUEL
17	78135-ST3-E01	Meter assy - TEMPERATURE
18	78140-ST3-E41	Board assy - POWER CONTROL
19	78155-ST3-G51	Visor assy
21	90131-SF4-003	Screw-washer - 3X16 (NS)
22	90132-SM4-003	Screw-washer - 3X16

Combination switch (LH) 19

#	OEM	部品名
1	04809-SN7-G20	Key & unit assy. - IMMOBILIZER (SERVICE)
2	35010-ST3-G61	Cylinder set - KEY
3	35100-ST3-G01	Lock assy - STEERING
4	35102-SN7-G01	Bolt - BREAK HEAD
5	35103-SE3-003	Screw - RECESSED, 3X8
6	35107-SN7-G01	Holder - BULB
7	35108-ST3-E80	Holder - COLUMN (SRS)
8	35113-SN7-G00	Key - BLANK (IMMOBILIZER) (MAIN)
10	35130-ST3-G10	Switch comp - STEERING
11	35251-ST3-G81	Body - SWITCH (SRS)
12	35255-ST3-G01	Switch assy - LIGHTING & TURN
13	35256-ST3-G01	Switch assy - WIPER
15	35400-SK4-E00	Switch assy - DOOR
16	35505-SN7-G11	Bulb - 14V 1.4W
17	39731-ST3-E00	Bracket - IMMOBILIZER
18	53271-ST3-G01	Cam - TURN SIGNAL SWITCH CANCEL
19	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
20	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
26	35110-ST3-G01	Receiver comp - IMMOBILISER

Console 20

#	OEM	部品名
1	35505-ST3-E01	Bulb - T5 1.2W
2	39600-ST3-E01	Lighter assy - CIGARETTE
3	39610-ST3-E01	Knob comp. - CIGARETTE LIGHTER
4	66418-SA5-000	Stopper - GLOVE BOX LID
5	77230-SE3-A02	Lid assy - AUDIO HOLE
15	77730-ST3-E00	Holder comp - FR. ASHTRAY
18	83402-ST3-E10	Box - CONSOLE
20	83404-ST3-E10	Cover - PARKING BRAKE
21	83406-SR4-J00	Hinge comp - ARMREST
22	83407-ST3-E00	Lock
29	88324-ST3-E00	Cover - RR. ASHTRAY
30	90137-ST3-E00	Screw - TAPPING, 4X16
31	90302-SN7-E00	Nut - SPRING, 4MM
32	90310-ST3-E00	Nut - SPEED
33	90609-SN7-G00	Clip - INSTRUMENT LOWER
34	90650-SE3-000	Clip - RADIO PANEL
35	90651-ST3-E01	Grommet - SCREW, 4MM
36	90669-ST3-E01	Grommet - ADJUSTING SCREW
37	91555-SM4-003	Clip - COUPLER (RED)
38	91640-SM4-003	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 28

#	OEM	部品名
1	32502-SM4-003	Fuse - F7.5) (LITTEL
2	32503-SM4-003	Fuse - F10) (LITTEL
3	32504-SM4-003	Fuse - F15)(LITTEL
4	32505-SM4-003	Fuse - F20) (LITTEL
5	32507-SM4-003	Fuse - F30) (LITTEL
6	34258-SK3-E01	Timer assy - KEY LIGHT
7	37820-P1K-E11	Control module - ENGINE
8	37821-P1K-G00	Cover comp. - ELECTRONIC CONTROL UNIT
9	38140-ST3-E01	Wiper unit - INTERMITTENT
10	38200-ST3-S12	Box assy - JOINT
11	38203-ST3-G00	Bracket - L. FUSE BOX
12	38205-ST3-S02	Label - FUSE
13	38210-ST3-E01	Fuser assy. - SRS
14	38235-SA5-003	Puller - FUSE (SUMITOMO)
15	38300-SK3-G01	Relay assy - TURN SIGNAL & HAZARD
16	38310-SK4-S01	Relay - CLEANER CONTROL
17	38315-ST3-S00	Bracket - HEADLIGHT WASHER TIMER
18	38370-ST3-E01	Control unit - POWER WINDOW
19	38380-SN7-G01	Control unit - AUTO DOOR LOCK
20	38600-ST3-S01	Control unit - INTEGRATED
21	39400-ST3-E01	Relay assy - MAIN
23	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
24	39797-SE3-003	Relay assy - POWER (4P) (DENSO) (056700-85700)
25	39797-SH2-003	Relay assy - POWER (4P) (DENSO)
26	39797-SK4-E00	Relay assy - POWER (YWB 10027)
28	39797-ST3-S10	Bracket - RELAY
29	39870-SN7-G01	Control unit - RR. FOG LAMP
33	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)

Control unit (ENGINE ROOM; LH) 15

#	OEM	部品名
1	32502-SM4-003	Fuse - F7.5) (LITTEL
2	32503-SM4-003	Fuse - F10) (LITTEL
3	32504-SM4-003	Fuse - F15)(LITTEL
4	32505-SM4-003	Fuse - F20) (LITTEL
5	32507-SM4-003	Fuse - F30) (LITTEL
6	38150-SN7-G11	Horn assy - HIGH
8	38211-SM4-000	Fuse - BLOCK (30A)
9	38212-SM4-000	Fuse - BLOCK (40A)
10	38213-SM4-000	Fuse - BLOCK (50A)
11	38216-SM4-000	Fuse - BLOCK (80A)
12	38250-ST3-G01	Box assy - MAIN FUSE
13	38254-ST3-G00	Cover - UPPER
14	38252-ST3-000	Cover - LOWER
15	39797-SK4-E00	Relay assy - POWER (YWB 10027)
16	90130-SR3-003	Bolt - 5X13

Countershaft (SOHC) 19

#	OEM	部品名
1	23221-P20-A51	Countershaft
2	23421-P20-A00	Gear - COUNTERSHAFT LOW
3	23431-P20-A00	Gear - COUNTERSHAFT SECOND
5	23461-P4A-C00	Gear - COUNTERSHAFT FIFTH
6	23471-P20-A00	Gear - COUNTERSHAFT THIRD
6	23471-P9A-A00	Gear - COUNTERSHAFT THIRD
7	23481-P4A-C00	Gear - COUNTERSHAFT FOURTH
8	23521-P20-315	Sleeve set - SYNCHRONIZER (1-2)
9	23912-P20-010	Collar - DISTANCE, 33X39X32
10	23926-PB6-010	Washer - SPRING, 22MM
11	90202-PB6-010	Nut - FLANGE, 22MM
12	90603-PL3-000	Ring - SNAP, 52MM
13	91003-P21-003	Bearing - BALL, 25X52X14/15 (NTN)
14	91102-P21-003	Bearing - NEEDLE, 25X52.2X15 (NTN)
14	91102-PLW-003	Bearing - NEEDLE, 25X52.2X15
15	91104-P20-008	Bearing - NEEDLE, 36X41X25.5
16	91105-P20-008	Bearing - NEEDLE, 39X44X27
17	91211-PL3-T01	Damper - FRICTION (LOW)
18	91212-P20-008	Damper - FRICTION (SECOND)

Cylinder block/oil pan (SOHC) 28

#	OEM	部品名
1	11000-P26-E00	Block assy - CYLINDER
2	11106-PE0-300	Bolt - SEALING, 14MM
3	11111-PM3-300	Pipe - OIL LEVEL
4	11126-PK1-003	Bolt - SEALING, 22MM
5	11200-P1K-E00	Pan comp - OIL
6	11251-P1K-E00	Packing - OIL PAN
7	11301-P00-T00	Cover - R. SIDE
8	11311-PM3-000	Cover - BREATHING PORT
10	11910-P1K-E00	Bracket - ENGINE MOUNTING
11	11950-PM7-010	Stiffener - ENGINE
12	11960-P1K-E00	Stiffener - RR. ENGINE (MT)
13	15140-PM3-000	Orifice assy - OIL PATH
14	15650-P07-000	Gauge comp. - OIL LEVEL
15	90001-PM3-003	Bolt - DRAIN PLUG, 28MM
16	90007-PM6-003	Bolt-washer - 11X116
18	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5
19	90008-PM6-003	Bolt-washer - 11X131
21	90009-PH1-000	Bolt - DRAIN PLUG, 14MM
22	90041-P07-000	Bolt - STUD, 10X81
23	90042-PR3-000	Bolt - STUD, 6X28
24	90042-P72-000	Bolt - STUD, 10X81
25	90401-PR4-000	Washer - SEALING, 28MM
26	90715-PC6-000	Dowel pin - 13X20
27	90703-PE0-000	Dowel pin - 18X22
28	91214-PE1-721	Oil seal - 80X100X10 (NOK)
28	91214-PLE-003	Oil seal
29	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)
29	91312-107-000	O-ring (7x1.7)

Cylinder head (SOHC; '95/'96) 20

#	OEM	部品名
1	12100-PP4-G01	Head assy - CYLINDER
2	12204-PJ7-305	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)
4	12210-P45-G01	Seal a - VALVE STEM (CORCOS)
5	12211-P45-G01	Seal b - VALVE STEM (CORCOS)
6	12251-P1K-E01	Gasket comp - CYLINDER HEAD
7	14631-PJ7-J00	Shaft a - VALVE ROCKER ARM
8	14632-PJ7-J00	Shaft b - VALVE ROCKER ARM
9	14633-PJ7-000	Shaft - EX. VALVE ROCKER ARM
10	90002-PM3-000	Bolt - FLANGE, 8X72
10	90010-PY3-000	Bolt - FLANGE, 8X72
11	90003-PM0-B00	Bolt - FLANGE, 6X65
12	90003-PM3-000	Bolt - FLANGE, 8X62
12	90002-PZ1-000	Bolt,flange,8x62
13	90005-PM3-003	Bolt-washer - 10X140 (SAGA)
14	90014-PM3-000	Bolt a - CYLINDER HEAD COVER
15	90026-PE0-000	Bolt - STUD, 8X37
15	90026-PT0-000	Bolt - STUD, 8X38
16	91301-PJ7-000	O-ring - 31X2.5
17	91302-PJ7-003	O-ring - (NO.4 CAM HOLDER) (ARAI)

Cylinder head cover ('95/'96) 11

#	OEM	部品名
1	12030-P01-020	Packing set - HEAD COVER
3	12310-P27-R00	Cover comp. - CYLINDER HEAD
5	12341-PM6-010	Packing - CYLINDER HEAD COVER
7	12342-PJ7-000	Packing b - HEAD COVER
9	15610-P2A-000	Cap assy. - OIL FILLER
10	15613-PC6-000	Packing, Oil Filler
13	32762-P01-000	Stay b - HIGH TENSION CORD CLAMP
14	90013-PM3-000	Bolt b - CYLINDER HEAD COVER
17	90213-PH3-000	Nut - CAP, 6MM
18	90441-PK2-000	Washer - HEAD COVER
19	90441-P64-000	Washer - HEAD COVER

Distributor (LUCAS; 1) 16

#	OEM	部品名
1	30100-P1K-E01	Distributor assy - 82DCC4) (LUCAS
1	30100-P1K-305	Distributor assy - D4T04-01) (HITACHI
2	30102-P2M-A01	Cap assy.
2	30102-P45-G02	Cap assy.
3	30103-P0A-A01	Head - ROTOR
4	30105-P1K-E01	Housing comp - DISTRIBUTOR
5	30110-P45-G01	O-ring
5	30110-PC6-005	O-ring
6	30120-P0A-A01	Igniter unit - HITACHI
7	30132-P45-G01	Packing
7	30132-P0A-A01	Packing - 1
8	30135-P0A-A01	Bolt-washer - 5X14
9	30136-P0A-A01	Bolt-washer - 6X30
10	30137-P0A-A01	Screw - PAN, 4X12
11	30500-P0A-A01	Coil - IGNITION
11	30500-PCA-003	Coil - IGNITION

Driveshaft 11

#	OEM	部品名
1	44010-ST3-E70	Driveshaft set - R.
2	44011-ST3-E70	Driveshaft set - L.
3	44017-ST3-000	Boot set - INBOARD
4	44018-ST3-000	Boot set - OUTBOARD
5	44310-SH3-960	Joint comp - INBOARD
6	44310-SH3-970	Joint comp - INBOARD
7	44319-SK3-E00	Set ring - 26X1.8
8	44347-SF1-003	Ring - OUTBOARD
9	44352-ST3-E11	Damper set - DYNAMIC
10	44352-ST3-E51	Damper set - DYNAMIC
11	90305-692-010	Nut

Emblems 10

#	OEM	部品名
1	17669-SK3-G00	Label - FUEL FILLER CAUTION
2	42760-ST3-E10	Plate - TIRE PRESSURE CAUTION
3	72638-SN7-G00	Plate - RR. DOOR LOCK CAUTION
4	75701-ST3-E00	Emblem - RR. CENTER (H)
5	75711-ST3-E01	Emblem - RR. (HONDA)
10	75731-ST3-E20	Emblem - RR. (1.6ILS)
12	75765-ST3-E00	Emblem - RR. (CIVIC)
13	77875-SN7-G80	Label - SRS CAUTION
14	91512-SR3-004	Clip - TUBULAR
15	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)

Engine mounts (MT) 31

#	OEM	部品名
1	50200-ST3-G50	Beam - RR. (POWER STEERING)
2	50205-ST3-E00	Rod - RR. BEAM PERFORMANCE
3	50803-ST3-E01	Rubber - TRANSMISSION MOUNTING (MT)
4	50810-ST3-E51	Insulator - RR. ENGINE MOUNTING RUBBER (MT)
5	50820-SR3-003	Rubber assy. ENGINE SIDE MOUNTING
6	50827-ST3-E00	Bracket - ENGINE RR. MOUNTING
7	50841-ST3-E01	Rubber - R. FR. STOPPER INSULATOR (MT)
9	50842-ST3-E01	Rubber - L. FR. STOPPER INSULATOR (MT)
11	50843-ST3-E00	Bracket - R. FR. STOPPER
12	50844-ST3-E00	Bracket - L. FR. STOPPER
13	90131-ST7-000	Bolt - L. FR. STOPPER
14	90133-SR3-010	Bolt - R. FR. STOPPER
15	90161-SR3-000	Bolt - FLANGE, 14X107
16	90162-ST3-E00	Bolt - FLANGE, 14X83
17	90165-SM4-020	Bolt - FLANGE, 12X101
18	90166-SR3-000	Bolt - FLANGE, 10X30
19	90167-ST7-000	Bolt - FLANGE, 10X60
20	90168-ST3-E00	Bolt - FLANGE, 14X41
21	90176-SK7-013	Bolt - FLANGE, 10X31
22	90182-SR3-000	Bolt - FLANGE, 12X112
23	90183-SR3-000	Bolt - FLANGE, 12X100
24	90187-SR3-000	Bolt - FLANGE, 10X53
25	90188-SR3-010	Bolt - FLANGE, 14X67
26	90190-SR3-000	Bolt - FLANGE, 12X64
27	90365-ST7-000	Nut - FLANGE, 10MM
28	90371-SR3-000	Nut - FLANGE, 12MM
29	90372-SR3-003	Nut - FLANGE, 12MM
31	90504-SR3-010	Washer - FR. STOPPER
32	90505-SB2-000	Washer - SIDE MOUNTING
33	90505-SR3-000	Washer - RR. BRACKET, 14MM
34	91771-SH3-000	Washer - PLAIN, 10MM

Engine wire harness (SOHC) 25

#	OEM	部品名
1	17274-P00-E01	Label - PLUG CAUTION
2	31110-P1K-E03	Belt - ALTERNATOR
3	31112-PP4-E00	Bracket - ALTERNATOR LOWER
4	31113-P1K-E00	Bracket - ALTERNATOR UPPER
5	32110-P1J-G01	Harness - ENGINE WIRE
7	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)
8	32127-P05-A00	Holder comp - HARNESS
9	32601-ST3-E00	Cable assy - MISSION EARTH
10	32610-ST3-E00	Cable - SUB EARTH
11	32741-P1K-E00	Clamp a - ENGINE HARNESS
12	32744-P05-A01	Clamp d - ENGINE HARNESS (BLACK)
14	32746-P05-A00	Clamp f - ENGINE HARNESS (GRAY)
15	32752-P01-000	Stay b - ENGINE WIRE HARNESS
17	37240-PT0-014	Switch - OIL PRESSURE (TEC)
18	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)
19	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)
20	90050-PG7-000	Bolt - FLANGE, 12X65
21	90057-PG7-003	Bolt - ALTERNATOR
22	90130-SR3-003	Bolt - 5X13
23	90153-SE0-003	Bolt - EARTH, 6X12
24	90430-657-000	Washer - 23X8.3X3.2
25	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
26	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
27	91547-P45-003	Band - WIRE HARNESS (NATURAL) (123.5MM)
28	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)

Exhaust manifold (SOHC) 12

#	OEM	部品名
1	11942-P1K-E00	Stay - EX. MANIFOLD
2	18100-PM6-H00	Manifold - EX.
3	18115-P00-003	Gasket - EX. MANIFOLD (NIPPON LEAKLESS)
3	18115-P00-004	Gasket - EX. MANIFOLD (ISHINO GASKET)
4	18120-P1K-E00	Cover a - EX. MANIFOLD
5	36531-P1K-E11	Sensor - OXYGEN
6	90010-PE2-900	Bolt - SPECIAL, 10X22
7	90015-PT0-J00	Bolt-washer - 8X14
8	90065-PG6-000	Bolt, STUD, 10X24
9	90212-PD2-003	Nut - SELF-LOCK, 8MM
9	90212-RCA-A01	Nut - SELF-LOCK, 8MM
10	90451-PE2-000	Washer - SPECIAL, 11X28

Exhaust pipe 29

#	OEM	部品名
1	18020-ST3-E60	Insulator set - EX. PIPE B RR.
4	18160-P1K-E11	Converter comp. - NCK340
5	18176-P08-003	Bolt - CONVERTER
6	18181-PP4-E01	Cover - LOWER
7	18182-PP4-E01	Cover - UPPER
8	18210-ST3-E60	Pipe a - EX.
11	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
12	18213-SK3-G50	Stay - EX. PIPE A
13	18213-ST3-E70	Stay - EX. MOUNTING
15	18214-ST3-E60	Bracket - EX. MOUNTING
16	18215-SG4-U10	Rubber - EX. MOUNTING (70X45X25)
17	18215-SK3-E00	Rubber - EX. MOUNTING (70X55X30)
18	18220-ST3-E60	Pipe b - EX.
19	18222-ST3-E70	Bracket - EX. PIPE MOUNTING
20	18229-SB2-003	Gasket - EX. FLEXIBLE (45MM-59MM)
21	18230-SK3-000	Spring - FLEXIBLE JOINT
22	18231-SR3-J01	Bolt a - FLEXIBLE JOINT
24	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
26	74601-ST3-E00	Plate - FLOOR HEAT BAFFLE
27	74651-ST3-E01	Plate - FUEL TANK BAFFLE
28	90023-PK1-000	Bolt - FLANGE, 6X10
28	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
29	90110-679-003	Nut - SELF-LOCK, 8MM
30	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
31	90117-SB2-000	Nut - SELF-LOCK, 8MM
32	90212-SA5-003	Nut - SELF-LOCK, 10MM
33	90212-671-005	Nut - SELF-LOCK, 10MM
41	18229-SH3-X30	Gasket - EX. FLEXIBLE (50.8MM-64MM)
42	18307-ST3-E60	Silencer comp - EX.

Floor mat 10

#	OEM	部品名
1	74260-ST3-G00	Insulator - DASHBOARD
4	83310-ST3-E10	Cushion - R. HEEL PROTECTOR INSIDE
5	83311-ST3-E00	Cushion - R. HEEL PROTECTOR OUTSIDE
6	83331-ST3-G00	Duct - RR. HEATER (LH)
7	83360-ST3-E10	Cushion - L. HEEL PROTECTOR INSIDE
8	83361-ST3-E00	Cushion - L. HEEL PROTECTOR OUTSIDE
11	84521-ST3-E00	Lid comp - SPARE TIRE
15	90685-SA5-003	Clip - UNDER COVER
16	91533-SR3-003	Clip - INSULATOR (NATURAL)
17	91641-SH3-013	Grommet assy, GARNISH

Fog light 6

#	OEM	部品名
2	33800-SN7-E02	Light assy - R. SIDE TURN (###)
3	33802-SN7-E01	Housing comp - R.
4	33850-SN7-E01	Light assy - L. SIDE TURN (###)
5	33852-SN7-E01	Housing comp - L.
14	34304-SH3-A01	Socket comp.
15	34351-SN7-G00	Bulb - POSITION (12V 5W)

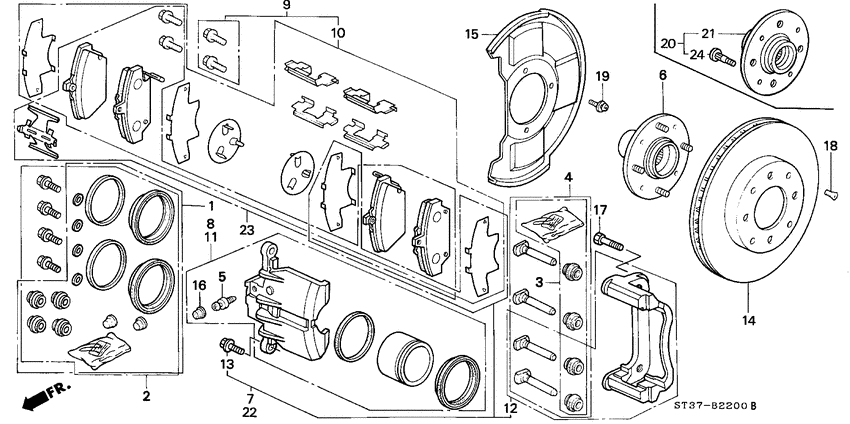

Front brake 14

#	OEM	部品名
1	01463-ST3-E00	Caliper set - FR.
3	45017-ST3-E00	Boot set - FR. PIN
4	45010-ST3-E00	Pin set - FR.
5	45352-SN7-G41	Screw - BLEEDER
6	44600-ST3-E00	Hub assy - FR.
7	45014-ST3-E01	Bracket set - FR. CALIPER
8	45012-ST3-E00	Body set - R. FR. CALIPER
10	45022-ST3-E01	Pad set - FR.
11	45013-ST3-E00	Body set - L. FR. CALIPER
13	45240-SK3-E00	Bolt
14	45251-ST3-E10	Disk - FR. BRAKE
15	45255-ST3-E01	Guard - FR. BRAKE SPLASH
16	45353-SN7-G41	Cap - BLEEDER
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)

Front bulkhead 2

#	OEM	部品名
22	60630-ST3-E00	Base comp. - BATTERY SETTING
32	90105-634-000	Bolt-washer (8x20)

Front door lining (LH) 8

#	OEM	部品名
3	35752-ST3-E01	Switch comp - POWER WINDOW MASTER
4	72335-ST3-E00	Weatherstrip - FR. DOOR INNER
8	83515-ST3-E00	Bracket - FR. DOOR GRIP BASE
9	83529-SN7-G00	Bracket - COVER LOCK
18	90132-SE3-003	Screw - TAPPING, 4X12
21	91560-SP0-003	Clip - DOOR LINING (GRAY)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
22	91626-SP0-003	Grommet - SCREW, 5MM

Front door locks 29

#	OEM	部品名
1	72110-ST3-G11	Lock assy - R. FR. DOOR
2	72112-SN7-G01	Snap - R.
3	72115-SN7-G11	Actuator assy - R. FR. DOOR LOCK
4	72117-ST3-E00	Protector - R. FR. DOOR LOCK
5	72118-SN7-G00	Tube - PROTECTOR
7	72122-SK3-G00	Snap - R. INSIDE HANDLE
8	72131-ST3-E00	Rod - R. FR. DOOR INSIDE HANDLE
9	72134-ST3-003	Bush - JOINT
10	72135-SN7-G00	Striker - DOOR LOCK
11	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
13	72138-SN7-G00	Cushion - LOCK ROD
14	72140-ST3-E02	Handle assy - R. FR. DOOR OUTSIDE
15	72141-SK3-E01	Ring
17	72145-ST3-E01	Cylinder - R. DOOR
19	72146-ST3-E01	Cylinder - L. DOOR
22	72150-ST3-G12	Lock assy - L. FR. DOOR
23	72156-SN7-E01	Switch assy - L. DOOR LOCK
25	72157-ST3-E00	Protector - L. FR. DOOR LOCK
27	72162-SK3-G00	Snap - L. INSIDE HANDLE
28	72162-SN7-G01	Snap - L.
29	72171-ST3-E00	Rod - L. FR. INSIDE HANDLE
30	72175-SH3-003	Holder - DOOR LOCK ROD
31	72180-ST3-E02	Handle assy - L. FR. DOOR OUTSIDE
32	75411-634-000	Joint
33	90120-SM4-000	Screw - TAPPING
34	90866-SA0-000	Grommet - SCREW, 4MM
36	91555-SM4-003	Clip - COUPLER (RED)
37	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)
40	91582-SM4-003	Clip - WIRE HARNESS

Front door panels 11

#	OEM	部品名
7	72310-ST3-E01	Weatherstrip - R. FR. DOOR
8	72311-ST0-003	Clip
9	72321-ST3-G10	Seal - R. FR. DOOR HOLE
10	72340-SN7-G02	Checker comp. - FR. DOOR
11	72350-ST3-E01	Weatherstrip - L. FR. DOOR
12	72361-ST3-G10	Seal - L. FR. DOOR HOLE
13	75760-SK3-E00	Pin - DOOR CHECKER
14	75891-SA7-000	Stopper - DOOR
15	90101-SE3-003	Bolt-washer - 8X23.5
16	90686-692-003	Cap - LINING MOUNT
17	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Front door windows 19

#	OEM	部品名
1	35118-SX0-G00	Label - IMMOBILIZER
3	72210-ST3-G11	Regulator - R. FR. DOOR POWER
4	72215-ST3-G11	Motor assy. - R. FR. WINDOW
5	72230-ST3-E00	Sash - R. FR. DOOR LOWER
6	72231-ST3-E00	Sash - R. FR. DOOR CENTER LOWER
7	72235-ST3-E01	Runchannel - R. FR. DOOR
8	72237-ST3-003	Stopper
10	72250-ST3-G11	Regulator - L. FR. DOOR POWER
11	72255-ST3-G11	Motor assy. - L. FR. WINDOW
12	72270-ST3-E00	Sash - L. FR. DOOR LOWER
13	72271-ST3-E00	Sash - L. FR. DOOR CENTER LOWER
14	72275-ST3-E01	Runchannel - L. FR. DOOR
15	73300-ST3-E71	Glass assy - R. FR. DOOR (GREEN)
16	73350-ST3-E71	Glass assy - L. FR. DOOR (GREEN)
20	90011-896-000	Bolt - FLANGE, 6X8
21	90115-ST3-E00	Bolt - FLANGE, 6X10
22	90120-ST3-E00	Screw - TAPPING
23	90126-SS0-000	Bolt-washer - 6X16
26	90116-ST3-E00	Bolt - FLANGE, 6X12

Front fenders 13

#	OEM	部品名
5	74101-ST3-E00	Fender - R. FR. INNER
6	74111-ST3-E00	Shield - FR. SPLASH
7	74151-ST3-E00	Fender - L. FR. INNER
8	90102-SK3-E00	Screw-washer - TAPPING, 5X20
9	90102-SK4-E01	Bolt - FLANGE, 6MM
10	90106-SE1-000	Bolt-washer - 6X15
11	90126-SR4-000	Screw-washer - 5X16
12	90501-SM4-003	Bolt - FENDER
13	90657-SB0-003	Clip, SPLASH SHIELD
14	90673-SG4-U01	Nut - CLIP, 6MM
15	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
16	91512-SM4-003	Clip - INNER FENDER
17	91516-SK7-013	Clip - UNDER COVER

Front grille ('95/'96) 6

#	OEM	部品名
1	71120-ST3-E01	Grille assy - FR.
2	75700-ST0-000	Emblem - FR. CENTER (H)
3	90125-SN7-G00	Screw - TAPPING, 5X16
4	90301-ST0-003	push nut, 3mm
5	90331-SD5-003	Nut - SPRING, 5MM
6	90660-SN7-000	Clip - UNDER COVER

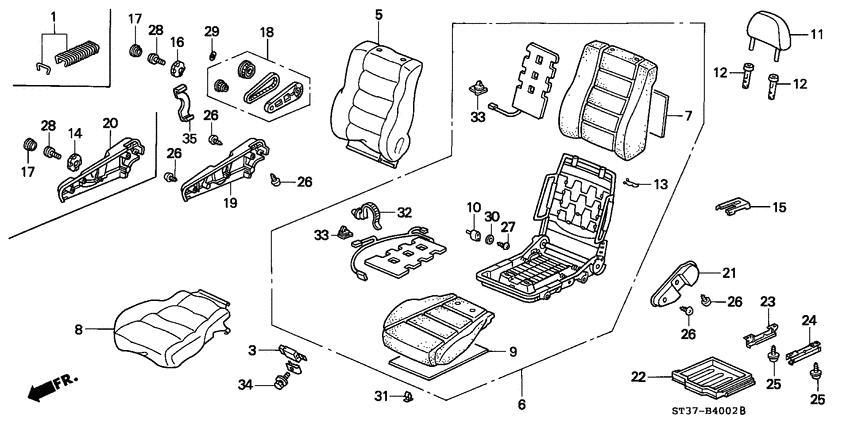

Front seat (L.; '96-) 18

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	38536-SF1-S01	Seat unit - HEATED
6	81123-SN7-003	Silencer - FR. BACK
7	81133-SN7-003	Silencer - FR. CUSHION
8	81136-SN7-E01	Shaft - RECLINER
10	81144-SN7-E02	Guide - HEADREST
11	81146-SN7-E01	Lock - SPRING
20	81522-ST3-S21	Pad & frame comp. - L. FR. SEATBACK
22	81634-SN7-E11	Tensioner Assy - L. FR. SEATBELT
26	90184-SN7-003	Screw - 4.2X9.5
27	90187-SN7-003	Screw - TAPPING, 5X16
28	90381-SN7-013	Screw - SELF TAPPING, 5X16
29	90582-SN7-003	Self-locking
30	90583-SN7-003	Washer - D5
31	90652-ST3-E01	Clip - FR. SEAT CUSHION
32	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
33	91555-SM4-003	Clip - COUPLER (RED)

Front seat (R.; '96-) 18

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
3	38536-SF1-S01	Seat unit - HEATED
6	81122-ST3-S01	Pad & frame comp. - R. FR. SEATBACK
7	81123-SN7-003	Silencer - FR. BACK
9	81133-SN7-003	Silencer - FR. CUSHION
10	81136-SN7-E01	Shaft - RECLINER
12	81144-SN7-E02	Guide - HEADREST
13	81146-SN7-E01	Lock - SPRING
18	81234-SN7-E11	Tensioner Assy - R. FR. SEATBELT
26	90184-SN7-003	Screw - 4.2X9.5
27	90187-SN7-003	Screw - TAPPING, 5X16
28	90381-SN7-013	Screw - SELF TAPPING, 5X16
29	90582-SN7-003	Self-locking
30	90583-SN7-003	Washer - D5
31	90652-ST3-E01	Clip - FR. SEAT CUSHION
32	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
33	91555-SM4-003	Clip - COUPLER (RED)

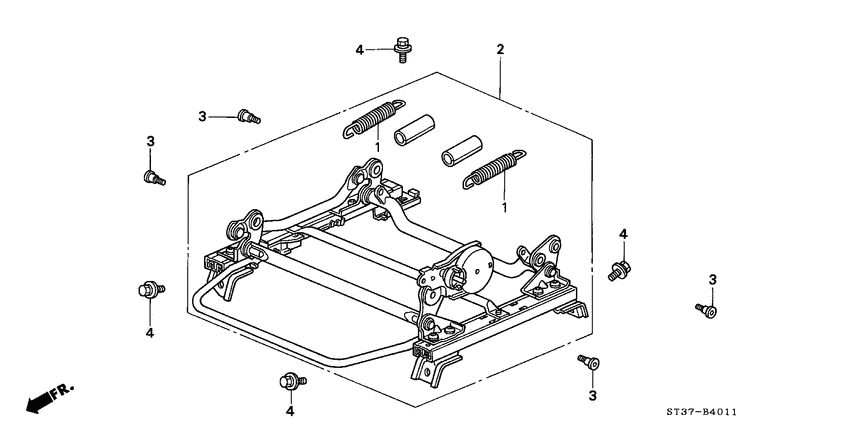

Front seat components (L.; HEIGHT ADJUSTER) 3

#	OEM	部品名
1	81227-ST3-E31	Spring - HELPER
2	81550-ST3-E32	Device comp. - L. FR. SEAT
3	90183-SN7-003	Bolt - TORX, 8X10

Front seat components (R.; MANUAL SLIDE) 3

#	OEM	部品名
1	81150-SN7-E11	Slide comp. - R. RECLINING OUTER
2	90182-SN7-003	Bolt - TORX, 8X16
3	90538-SN7-003	Washer - PLAIN, 8MM

Front shock absorber 15

#	OEM	部品名
1	51401-ST3-E11	Spring - FR.
2	51601-ST3-E11	Absorber assy - R. FR. SHOCK
3	51602-ST3-E11	Absorber assy - L. FR. SHOCK
4	51605-ST3-E01	Absorber unit - R. FR. SHOCK
5	51606-ST3-E01	Absorber unit - L. FR. SHOCK
6	51631-SN7-E01	Rubber - SHOCK ABSORBER MOUNTING
7	51675-ST3-E01	Base - FR. SHOCK ABSORBER MOUNTING
8	51685-SN7-E01	Plate - DUST COVER
9	51686-ST3-E01	Rubber - FR. SPRING MOUNTING
10	51687-ST3-E01	Cover - FR. SLEEVE DUST
11	51722-ST3-E01	Rubber - FR. BUMP STOPPER
12	52621-SK3-000	Washer - RR. SHOCK ABSORBER MOUNTING
13	52689-SK3-000	Plate - BUMP STOP
14	52728-SK3-000	Collar - RR. SHOCK ABSORBER MOUNTING
15	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Front stabilizer/ front lower arm 22

#	OEM	部品名
1	51300-ST3-E00	Spring - FR. STABILIZER
2	51306-ST3-E00	Bush - STABILIZER HOLDER
3	51308-ST3-E00	Holder - FR. STABILIZER
4	51312-SD4-020	Rubber - STABILIZER END
5	51350-ST3-E00	Arm assy. - R. FR. LOWER
6	51360-ST3-E00	Arm assy. - L. FR. LOWER
7	51392-ST3-E00	Bush - FR. LOWER ARM
8	51395-ST3-E00	Bush comp - R. FR. COMPLIANCE
9	51396-ST3-E00	Bush comp - L. FR. COMPLIANCE
10	51398-ST3-E00	Washer b - FR. RADIUS ARM
11	51399-ST3-E00	Washer a - FR. RADIUS ARM
12	51810-ST3-E00	Bush - SHOCK ABSORBER FORK
13	51811-SR3-010	Fork - R. FR. SHOCK ABSORBER
14	51821-SR3-010	Fork - L. FR. SHOCK ABSORBER
15	90112-SE0-000	Bolt - FR. STABILIZER
16	90118-SR3-003	Bolt - SELF-LOCK, 12X76
17	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42
18	90168-ST3-E00	Bolt - FLANGE, 14X41
19	90175-SH3-005	Bolt - SHOCK ABSORBER FORK
20	90213-SR3-013	Nut - SELF-LOCK, 14MM
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90362-SF1-003	Nut - SELF-LOCK, 8MM

Front windshield 9

#	OEM	部品名
1	04731-ST3-E00	Rubber set - FR. WINDSHIELD DAM
2	04732-ST3-E00	Clip set - R. FR. WINDSHIELD MOLDING
3	04742-ST3-E00	Clip set - L. FR. WINDSHIELD MOLDING
4	73111-ST3-E01	Glass - FR. WINDSHIELD
5	73127-SR3-003	Holder - FR. WINDSHIELD GLASS
6	73151-ST3-E01	Molding - FR. WINDSHIELD UPPER
7	73152-ST3-E01	Molding assy. - R. FR. WINDSHIELD SIDE
8	73162-ST3-E01	Molding assy. - L. FR. WINDSHIELD SIDE
9	91511-ST3-E00	Clip d - FR. WINDSHIELD SIDE MOLDING

Front windshield wiper (LH) 22

#	OEM	部品名
1	76505-ST3-G05	Motor comp - FR. WIPER
2	76510-ST3-E05	Grommet - L
3	76511-ST3-E05	Liner
4	76512-ST3-E05	Bolt - 6X14
5	76513-ST3-E05	Extension
6	76516-ST3-E05	Grommet
7	76517-ST3-E05	Liner
8	76518-ST3-E05	Seal - PIVOT
9	76520-ST3-E05	Crank comp.
10	76524-ST3-E05	Dust seal
11	76527-ST3-E05	Nut - FLANGE, 8MM
12	76530-ST3-G05	Link comp - FR. WIPER
13	76540-ST3-E05	Arm comp. drive link
14	76550-ST3-E05	Arm comp. cross link
15	76600-ST3-G06	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76610-ST3-G05	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
17	76620-ST3-E06	Blade - WINDSHIELD WIPER (DRIVER SIDE) (500MM)
18	76630-ST3-E05	Blade - WINDSHIELD WIPER (PASSENGER SIDE) (457MM)
19	90126-SR3-000	Bolt-washer - 6X32
20	90201-SK7-000	Nut - HEX. CAP, 10MM
21	76622-ST3-E05	Rubber - BLADE (500MM)
22	76632-ST3-E05	Rubber - 457MM

Fuel pipe 44

#	OEM	部品名
1	16010-ST5-932	Strainer set - FUEL (TOYO ROKI)
2	16680-PE7-661	Damper assy. - PULSATION
2	16680-PCX-003	Damper assy. - PULSATION
3	16705-PD1-003	Gasket - SILENCER
4	16722-P28-L01	Hose comp. - FUEL FEED
5	16913-ST3-E00	Cover - FR. FUEL PIPE
6	16914-ST3-E00	Cover - RR. FUEL PIPE
7	16918-ST3-G30	Stay - FUEL STRAINER
8	16919-ST3-E30	Band - FUEL STRAINER
9	17300-ST3-E31	Canister assy
10	17358-ST3-E30	Bracket - CANISTER
11	17700-ST3-E30	Pipe comp - FUEL FEED
12	17720-ST3-E30	Pipe comp - FUEL VENT
13	17723-ST3-E30	Hose - PRESSURE REGULATOR RETURN
14	17725-ST3-E30	Hose - FUEL PURGE
15	17740-ST3-E30	Pipe comp - FUEL RETURN
16	17742-ST3-E31	Joint - CANISTER DRAIN TUBE
17	17743-ST3-E31	Joint - CANISTER DRAIN BYPASS TUBE
18	17744-ST3-E30	Tube - CANISTER DRAIN
19	17745-ST3-E31	Joint - CANISTER DRAIN
20	17749-ST3-E30	Clamp - RETURN HOSE
21	17761-ST3-E30	Stay a - FUEL PIPE
22	17762-ST3-E00	Stay b - FUEL PIPE
23	17763-ST3-E00	Stay c - FUEL PIPE
24	17764-ST3-E00	Stay d - FUEL PIPE
25	17765-SM4-000	Stay e - FUEL PIPE
26	17766-ST3-E00	Stay f - FUEL PIPE
27	17767-ST3-E00	Stay g - FUEL PIPE
28	17768-ST3-E00	Stay h - FUEL PIPE
31	90301-SP0-003	Nut - PAINT CUTTING, 6MM
32	90428-PD6-003	Washer - SEALING, 12MM
34	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
35	91592-ST3-E31	Clamp h - FUEL PIPE
36	91593-SK3-E00	Clip - PROTECTOR JOINT
37	91593-ST3-E31	Clamp g - FUEL PIPE
39	91594-ST3-E31	Clamp f - FUEL PIPE
40	91595-ST3-E30	Clamp a - FUEL PIPE
41	91596-ST3-E31	Clamp b - FUEL PIPE
42	91597-SH3-Y01	Clamp - VENT TUBE (BLACK)
43	91597-ST3-E31	Clamp c - FUEL PIPE
44	91598-ST3-E31	Clamp d - FUEL PIPE
45	91599-ST3-E01	Clip - BRAKE PIPE
46	91599-ST3-E31	Clamp e - FUEL PIPE
57	90021-P0A-003	Bolt - SEALING, 12MM

Fuel tank 34

#	OEM	部品名
1	17040-ST3-E30	Pump set - FUEL
2	17371-SM4-013	Valve - TWO WAY (TEC)
3	17500-ST3-E30	Tank comp. - FUEL
4	17521-SK3-E00	Band
5	17522-SK3-E00	Band
6	17525-SK3-E01	Bolt
7	17574-SE0-000	Packing - BASE
8	17651-SK3-E00	Tube - FILLER NECK
9	17652-SA5-000	Clip - FILLER TUBE
10	17652-SK3-E00	Tube - BREATHER
11	17660-ST3-E00	Pipe comp - FUEL FILLER
12	17662-SS1-010	Packing - FUEL FILLER PIPE
13	17664-SK3-E00	Bush - FUEL PIPE MOUNT
14	17665-SK7-010	Collar - FILLER PIPE MOUNT
15	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)
15	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)
16	17704-ST3-E30	Hose - FUEL RETURN
17	17707-ST3-E31	Hose comp. - FUEL JOINT
18	17711-ST0-003	Retainer - YELLOW) (TOKAI
19	17721-ST3-E00	Tube - FUEL VENT
20	17733-ST3-E00	Protector - FUEL HOSE JOINT
21	17737-ST3-E01	Clamp - FUEL TUBE (A)
22	37800-SK3-G11	Meter unit - FUEL
23	37801-SE3-000	Packing - BASE
24	37802-SE0-000	Retainer - FUEL UNIT
25	74660-SK3-E01	Cap assy. - FLOOR MAINTENANCE HOLE
26	90011-SK7-010	Bolt - FILLER PIPE MOUNTING
27	90103-SB0-010	Nut - FLANGE, 5MM
28	90700-SB0-003	Clip - AIR BLEED TUBE
29	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)
30	90691-SB3-000	Clip - WIRE HARNESS (BLACK)
31	91406-SN7-930	Clamp - FUEL HOSE, 10.5MM
32	91593-SK3-E00	Clip - PROTECTOR JOINT
33	91601-SK3-E00	Grommet - SCREW, 5MM

Gasket kit/ transmission assy. 5

#	OEM	部品名
1	06110-P1K-020	Gasket kit - CYLINDER HEAD (###)
2	06111-P1J-010	Gasket kit - CYLINDER BLOCK
4	10002-P1K-E20	General assy. - CYLINDER BLOCK
5	10003-P1K-E20	General assy. - CYLINDER HEAD
6	20011-P1M-Y51	Transmission assy - MT

Grommet 16

#	OEM	部品名
1	72204-SK3-E00	Cap - FLOOR HOLE
2	72205-SK3-E00	Cap - FLOOR HOLE
3	74416-SF1-000	Insulator - PILLAR LOWER
4	82871-671-000	Grommet - DRAIN HOLE, 25MM
6	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)
7	90615-SM4-000	Cap - WELD HOLE, 46X72
10	90851-692-000	Plug - HOLE
11	90852-671-003	Plug - HOLE
13	91330-ST3-E00	Plug - BLIND, 25X20
15	91606-SN7-000	Insulator b - SIDE SILL
16	91606-SK7-003	Plug - BLIND, 25MM
17	91613-SE0-003	Grommet - SUB FRAME, 15MM
18	91615-SA5-000	Grommet - HOLE, 25MM
19	91616-ST3-E00	Seal - FR. PILLAR INNER LOWER
20	91617-SB6-000	Grommet - WASHER HOSE, 32MM
21	91631-SR3-000	Plug - AIR CONDITIONER HOLE

Harness band/bracket (LH) 33

#	OEM	部品名
1	32113-P01-000	Stay comp - R. COUPLER
2	32113-SR3-A00	Stay - L. COUPLER
3	32114-SR3-000	Bracket - RADIO EARTH
4	32115-P01-000	Stay - ENGINE WIRE HARNESS CLAMP
5	32115-P1K-G00	Stay - HARNESS HOLDER
6	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
7	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
8	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
10	32146-SH3-003	Connector - DIODE(2P)
11	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
11	90674-769-000	Clamp, p.t.o. cable (b)
12	32171-SK3-E00	Bracket - FUEL SUB CONNECTOR
15	90154-SD4-003	Bolt - EARTH, 6X20
16	90666-SF4-J31	Clip - FUEL PIPE
17	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
18	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
19	91509-SA5-003	Clip - OFFSET (45)(GRAY)(57MM)
20	91539-ST3-300	Clip - WIRE HARNESS
22	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)
23	91547-SH3-003	Clip - BAND(NATURAL)(160MM)
24	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
26	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
27	91554-SH3-003	Band - WIRE HARNESS (NATURAL) (100.5MM)
28	91557-SR3-003	Clip - WIRE HARNESS PROTECTOR (RED)
30	91560-SR3-003	Band - HARNESS (NATURAL)(113MM)
31	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)
32	91570-SG0-003	Band - HARNESS (123.5MM) (BLUE) (WITH SEAL)
33	91570-SH3-003	Band - WIRE HARNESS (NATURAL)
35	91572-SR3-003	Clip - PROTECTOR
36	91637-SF1-003	Cap - 090 2P
37	91763-SH3-003	Bar - JOINT (6P)
38	91786-SR3-003	Bar - JOINT (10P)
39	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Headlight ('95/'96) 13

#	OEM	部品名
1	33101-ST3-G02	Headlight unit - R.
2	33115-ST3-E01	Bulb - HEADLIGHT (CARELLO)
3	33126-ST3-E01	Cover - RUBBER
4	33129-ST3-G01	Plug
5	33130-ST3-305	Adjuster unit - HEADLIGHT
6	33151-ST3-G02	Headlight unit - L.
7	33301-ST3-E01	Bulb - 12V 5W
8	33303-ST3-E01	Bulb - 12V 21W
9	33305-ST3-E01	Socket comp.
10	34303-SS1-003	Socket comp - 2P
11	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
13	33101-ST3-305	Headlight unit - R.
14	33151-ST3-305	Headlight unit - L.

Heater blower (LH) 18

#	OEM	部品名
1	79194-ST3-E01	Clip - CASE
2	79305-ST3-G01	Blower sub assy.
3	79310-ST3-G01	Motor assy. - BLOWER
4	79330-ST3-E01	Resistor - BLOWER
5	79350-ST3-G01	Motor assy. - FRESH & RECIRCULAR
6	79810-ST3-G21	Duct - HEATER
7	79813-ST3-E01	Cover - DUCT
8	79831-ST3-E01	Element - FILTER
9	79832-ST3-E01	Frame - FILTER
10	90101-ST3-E01	Screw - 6X14
11	90102-ST3-E01	Screw - 10X16
12	90103-ST3-E01	Screw - 8X25
13	90155-SE0-003	Screw - TAPPING, 6X20
14	90156-SH3-000	Bolt-washer - 6X24
15	90222-SB4-000	Nut-washer - 6MM
16	79300-ST3-G01	Blower assy
17	80286-ST3-S01	Seal - DUCT (INLET)
18	80287-ST3-S01	Seal - DUCT (OUTLET)

Heater control 28

#	OEM	部品名
1	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)
2	38535-ST3-S11	Switch assy - HEATED SEAT
3	38535-ST3-S21	Switch assy - HEATED SEAT
4	39356-SB6-000	Spring - HEATER CONTROL
5	39383-SA5-000	Clamp - CONTROL CABLE
6	77671-SE3-003	Washer - LINK
7	79500-ST3-S50	Control assy. - HEATER
8	79510-ST3-E01	Control comp. - TEMPERATURE
9	79512-SN7-E02	Base - TEMPERATURE CONTROL LOWER
10	79513-SN7-E11	Cover - DUST
11	79520-ST3-E01	Lever assy. - MODE CONTROL
12	79521-SN7-E11	Lever - MODE CONTROL
13	79522-SN7-E01	Lever - TEMPERATURE CONTROL
14	79537-SN7-E02	Pin - CLICK
15	79541-ST3-E00	Cable - MODE CONTROL
16	79542-ST3-E00	Cable - TEMPERATURE CONTROL
17	79550-ST3-G51	Illumination assy. - HEATER
18	79552-ST3-E01	Lid - SWITCH BLIND
19	79560-ST3-E01	Switch assy - FRESH & RECIRCULAR
20	79570-SN7-E01	Switch assy - FAN
21	79581-ST3-E01	Knob - HEATER CONTROL
22	79581-ST3-G01	Knob - HEATER CONTROL
23	79591-SN7-E01	Spring - HEATER CONTROL
24	79595-SN7-E12	Shaft - TEMPERATURE CONTROL
25	79596-SN7-E12	Shaft - MODE CONTROL
26	79628-SR2-003	Base - WEDGE LAMP
27	79691-SN7-E01	Screw - TAPPING, 4X12
29	90684-ST3-E01	Clamp - CABLE CONTROL

Heater unit (LH) 15

#	OEM	部品名
1	39796-ST3-E00	Bracket - KEY LIGHT TIMER
2	79100-ST3-G01	Heater assy
3	79110-ST3-G01	Core comp - HEATER
4	79189-SN7-E11	Pin - SETTING
5	79191-ST3-E01	Clip - LINKAGE ADJUSTER
6	79192-ST3-E01	Bush
7	79193-ST3-E01	Clip - CABLE TOP ENTRY
8	79194-ST3-E01	Clip - CASE
9	79195-ST3-E01	Bush - RETAINER
10	79196-ST3-E01	Bracket - PIPE
11	79197-ST3-E01	Screw - MOUNTING
12	79544-ST3-G00	Cable - WATER VALVE CONTROL
13	90143-ST3-E01	Screw - 6X14 PPHD
14	90156-SH3-000	Bolt-washer - 6X24
15	90222-SB4-000	Nut-washer - 6MM

High tension cord/plug 14

#	OEM	部品名
1	32701-P1K-E02	Cord comp - RESISTANCE (NO.1)
1	32701-P1K-E01	Cord comp - RESISTANCE (NO.1)
2	32702-P1K-E02	Cord comp - RESISTANCE (NO.2)
2	32702-P1K-E01	Cord comp - RESISTANCE (NO.2)
3	32703-P1K-E02	Cord comp - RESISTANCE (NO.3)
3	32703-P1K-E01	Cord comp - RESISTANCE (NO.3)
4	32704-P1K-E01	Cord comp - RESISTANCE (NO.4)
4	32704-P1K-E02	Cord comp - RESISTANCE (NO.4)
5	32722-P1K-E01	Cord comp - HIGH TENSION
6	32763-PM3-000	Clamp c - HIGH TENSION CORD
9	32766-PR4-A00	Clamp c - HIGH TENSION CORD
10	32766-P07-000	Clamp b - HIGH TENSION CORD
12	32777-695-000	Clamp - HIGH TENSION CORD
13	90003-P01-000	Bolt-washer - 8X28

Hood ('95/'96) 24

#	OEM	部品名
4	63511-SK3-E00	Cushion - HOOD
5	74120-ST3-G01	Lock assy - HOOD
6	74130-ST3-G00	Wire assy. - HOOD
7	74132-SR3-A00	Lever assy. - HOOD WIRE
8	74141-ST3-E00	Insulator - HOOD
9	74142-ST3-E00	Rubber - HOOD SEAL
10	74143-ST3-E00	Rubber - HOOD RR. SEAL
11	74145-ST3-E00	Stay - HOOD OPENER
12	74149-ST3-E00	Cover - CONDENSER
13	74177-SD4-000	Cushion a - HOOD
14	74200-ST3-G00	Cowl top assy.
15	74213-ST3-E00	Cover - R. HOOD HINGE
16	74214-ST3-E00	Cover - L. HOOD HINGE
17	90106-SE1-000	Bolt-washer - 6X15
18	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)
19	90672-SJ4-013	Holder - ROD
20	91501-SF1-003	Clip - HOOD INSULATOR
20	90700-SB2-003	Clip - HOOD INSULATOR
21	91508-SM4-003	Clip - COWL TOP
22	91512-SM4-003	Clip - INNER FENDER
23	91513-SK3-000	Clip - HOOD WIRE
24	91515-SR3-000	Clip - RR. HOOD
25	91520-SM4-C01	Clip - HOOD SEAL RUBBER
26	91604-SD2-013	Grommet - HOOD STAY

Inner panels 2

#	OEM	部品名
32	74607-ST3-E00	Extension - RR. FRAME
33	90127-SE0-000	Bolt-washer - 6X15

Instrument panel (LH) 19

#	OEM	部品名
2	75513-ST3-E00	Cushion - SIDE
6	77140-ST3-G00	Bracket comp. - INSTRUMENT DRIVER SIDE
7	77145-ST3-G00	Bracket comp. - INSTRUMENT PASSENGER SIDE
10	77451-ST3-E00	Plug - R. INSTRUMENT DEFROSTER
11	77452-ST3-E00	Seal a - DEFROSTER PLUG
12	77453-ST3-E00	Seal b - DEFROSTER PLUG
13	77456-ST3-E00	Plug - L. INSTRUMENT DEFROSTER
14	77466-ST3-E00	Seal - FR. INSTRUMENT
19	77623-ST3-E00	Bush - UPPER VENT KNOB
23	77884-ST3-G80	Bracket a - PASSENGER MODULE
24	77885-ST3-G90	Bracket comp. - PASSENGER MODULE
26	77982-S04-N81	Holder - COUPLER (2P)
27	90128-SA7-000	Bolt-washer - 6X25
28	90301-634-670	Nut - FLANGE, 6MM
29	90302-SN7-E00	Nut - SPRING, 4MM
30	90321-SP0-A80	Nut-washer - 6MM
31	90665-SM4-003	Grommet - SCREW, 4MM (YELLOW)
33	91640-SM4-003	Grommet - SCREW, 4MM
34	91641-SM4-003	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 15

#	OEM	部品名
1	34254-SK3-E02	Lamp assy. - GLOVE BOX
2	34295-SK3-E00	Bulb
4	66405-SD4-000	Stay - GLOVE BOX HINGE
5	66417-SB3-670	Rubber - GLOVE BOX STOPPER
8	77305-ST3-E00	Stopper - DRIVER POCKET
12	77506-SM4-900	Stopper - GLOVE BOX LID
13	77520-SN7-E02	Cylinder - GLOVE BOX
15	77542-SL9-000	Striker - GLOVE BOX
16	77551-ST3-G00	Frame - GLOVE BOX
18	77752-ST3-E00	Spring - DRIVER POCKET
19	90140-SH3-003	Bolt-washer - 5X18
20	90302-SN7-E00	Nut - SPRING, 4MM
21	90305-SA0-000	Nut - FLOATING, 4MM
22	90310-ST3-E00	Nut - SPEED
23	91640-SM4-003	Grommet - SCREW, 4MM

Intake manifold (SOHC/1.6L VTEC; '95/'96) 16

#	OEM	部品名
1	06164-P06-A02	Packing set - INJECTOR
2	16472-PD6-000	Seal ring - INJECTOR (OTSUKA)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)
4	16620-P28-A01	Pipe assy. - FUEL
5	16638-PH3-S00	Insulator - FUEL PIPE
6	16740-P05-A01	Regulator assy - PRESSURE
7	16741-PG7-005	O-ring - PRESSURE REGULATOR
8	17100-P1K-E00	Manifold comp - INTAKE
9	17105-P08-004	Gasket - INTAKE MANIFOLD (NIPPON LEAKLESS)
10	17132-P1K-E00	Stay - INTAKE MANIFOLD
11	37880-P05-A00	Sensor assy - AIR TEMP
12	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)
12	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)
12	16074-ZY3-000	O-ring
13	91303-PK2-005	O-ring (7.5X1.5)

Interior light 7

#	OEM	部品名
2	34251-SN7-G01	Lens
3	34252-SN7-G00	Lid - INTERIOR LIGHT
4	34260-ST3-E01	Light assy - TRUNK ROOM
5	34261-SN7-G01	Lens
6	34295-SN7-G01	Bulb - 12V 5W
7	34296-SN7-G01	Bulb - 12V 5W
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Knuckle 21

#	OEM	部品名
1	44300-ST3-E01	Bearing assy - FR. HUB
2	44348-SR3-000	Ring - FR. KNUCKLE
3	51210-ST3-E10	Knuckle comp - R. FR. (ABS)
4	51215-ST3-E10	Knuckle comp - L. FR. (ABS)
5	51220-ST3-E01	Joint comp - FR. LOWER BALL (TECHNICAL AUTO PARTS)
6	51225-ST3-E01	Boot - LOWER BALL DUST
7	51450-ST3-E00	Arm assy. - R. FR. UPPER
9	51460-ST3-E00	Arm assy. - L. FR. UPPER
10	51464-ST3-E01	Boot - UPPER BALL JOINT
12	57450-SR3-801	Sensor assy - R. FR.
13	57455-SR3-801	Sensor assy - L. FR.
14	90114-SB0-000	Bolt-washer - 6X12
16	90185-SR3-013	Bolt - FR. ARM UPPER (10X58)
17	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
18	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)
19	90321-SE0-000	Nut - UPPER BALL PIN, 10MM
20	90363-SF1-000	Nut - CASTLE, 12MM
21	90653-SB0-000	Circlip - EXTERNAL, 40MM
22	90681-ST3-E00	Circlip - INTERNAL, 79MM
26	51465-ST3-E01	Ring - UPPER BALL JOINT
28	52338-SL0-003	Circlip - CONTROL ARM

Mainshaft (SOHC) 15

#	OEM	部品名
1	23210-P1M-A00	Mainshaft comp.
2	23261-PL3-000	Shaft - REVERSE GEAR
3	23441-P20-A00	Gear - MAINSHAFT THIRD
5	23451-P4A-C00	Gear - MAINSHAFT FOURTH
6	23540-P20-000	Gear comp - REVERSE IDLE
7	23581-P4A-C00	Gear - MAINSHAFT FIFTH
8	23623-P20-315	Sleeve set - SYNCHRONIZER (3-4)
9	23626-PL3-325	Sleeve set - SYNCHRONIZER (5)
10	23915-P20-000	Collar - DISTANCE, 27X34X32X50.4
11	23927-PL3-000	Washer - SPRING, 36MM
12	23928-PL3-000	Washer - 26MM
13	91004-PL3-B03	Bearing - ANGULAR BALL, 22X70X17.5 (NTN)
14	91106-PL3-008	Bearing - NEEDLE, 34X39X23
15	91107-PL3-018	Bearing - NEEDLE, 34X39X27.5
16	91108-PL3-008	Bearing - NEEDLE, 32X37X23.5 (NTN)

Mirror 20

#	OEM	部品名
1	32165-SA5-003	Clip - HARNESS, 9MM(WHITE)
1	90674-769-000	Clamp, p.t.o. cable (b)
3	76200-ST3-S11	Mirror assy - R. DOOR (HEATED)
4	76201-SN7-G11	Housing - R.
7	76212-SW5-003	Holder - ACTUATOR
8	76213-SM4-003	Pin - STOPPER
11	76220-ST3-E10	Garnish - R. DOOR MIRROR (R.C.)
14	76250-ST3-S11	Mirror assy - L. DOOR (HEATED)
15	76251-SN7-G11	Housing - L.
20	76270-ST3-E10	Garnish - L. DOOR MIRROR (R.C.)
22	76400-SN7-G00	Mirror assy - RR. VIEW
26	90143-SW5-003	Screw - TRUSS, 4X8
27	90144-SW5-003	Screw - PAN, 4X8
28	90145-SW5-003	Screw-washer - 5X10
29	90410-SN7-G01	Screw - TAPPING, 4X10 (P0)
30	90416-SN7-G01	Screw - TAPPING, 4X16 (P0)
31	90615-SN7-G00	Clip - MIRROR GARNISH
32	91560-ST3-E01	Clamp - HARNESS
34	76214-ST3-E11	Mirror & actuator set - R.
35	76264-ST3-E11	Mirror & actuator set - L.

Molding 15

#	OEM	部品名
1	72410-ST3-E00	Molding assy. - R. FR. DOOR
2	72430-ST3-E00	Garnish - R. FR. DOOR SASH
3	72450-ST3-E00	Molding assy. - L. FR. DOOR
4	72470-ST3-E00	Garnish - L. FR. DOOR SASH
5	72910-ST3-E00	Molding assy. - R. RR. DOOR
6	72930-ST3-E00	Garnish - R. RR. DOOR SASH
7	72950-ST3-E00	Molding assy. - L. RR. DOOR
8	72970-ST3-E00	Garnish - L. RR. DOOR SASH
9	74306-ST3-E00	Molding assy. - R. ROOF
10	74308-ST0-003	Bracket - ROOF MOLDING
11	74316-ST3-E00	Molding assy. - L. ROOF
12	90105-ST3-E01	Screw - TAPPING, 4X6.5
13	91514-ST3-E00	Clip - SASH GARNISH
14	91531-ST3-E00	Clip - DOOR MOLDING (YELLOW)
15	91536-ST3-E00	Grommet - CENTER PILLAR GARNISH (4MM)

Oil pump/oil strainer ('95/'96) 17

#	OEM	部品名
2	15100-P01-013	Pump assy. - OIL
3	15220-P1K-E00	Strainer comp. - OIL
4	15221-PM3-S00	Packing - OIL STRAINER
5	15231-PM3-000	Valve - RELIEF
6	15232-PM3-000	Spring - RELIEF VALVE
7	15233-P01-000	Bolt - SEALING, 14MM
9	15302-PE0-300	Washer - SEALING, 14MM
10	15400-PH1-F03	Cartridge - OIL FILTER (LABINAL-PURFLUX)
11	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)
11	15400-RTA-003	OIL FILTER (MAHLE TENNEX)
11	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)
12	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)
13	90015-PH1-013	Holder - OIL FILTER
14	90020-PE0-000	Bolt - STUD, 8X28
15	90042-PR3-000	Bolt - STUD, 6X28
16	91212-P01-003	Oil seal - 31X46X7 (NOK)
17	91308-PK1-003	O-ring - 26.2X2.4 (NOK)

Outer panels 5

#	OEM	部品名
26	70494-SK3-E00	Spring - FUEL LID OPEN
27	74422-SH3-000	Cushion - FUEL FILLER LID
28	75450-SM4-000	Outlet assy - RR. AIR
29	90103-SM4-010	Bolt - FLANGE, 6X18
30	90664-SB3-003	Grommet - SCREW, 5MM

P.s. gear box (LH) 15

#	OEM	部品名
1	53436-ST3-E00	Cushion b - POWER STEERING GEAR BOX
2	53438-ST3-G00	Bracket - POWER STEERING GEAR BOX (LH)
3	53501-ST3-E00	Grommet a - STEERING
4	53502-ST3-E00	Grommet b - STEERING
5	53540-ST3-E03	End comp - R. TIE ROD
6	53546-SF4-004	Boot - TIE ROD END (TOKAI)
6	53546-SF4-R01	BOOT, TIE ROD END
7	53560-ST3-E03	End comp - L. TIE ROD
8	53600-ST3-G01	Box assy - POWER STEERING GEAR
9	53685-ST3-E00	Bush - GEAR BOX MOUNTING
10	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING
11	90108-SR3-951	Bolt - GEAR BOX MOUNTING (10X65)
12	90320-SF1-000	Nut - CASTLE, 10MM
13	90325-ST3-E00	Washer - PLAIN, 10MM
18	53535-ST3-305	Bellow set

P.s. line (LH) 20

#	OEM	部品名
1	53697-SK3-E01	Cap - OIL TANK
2	53701-ST3-E01	Tank comp. - POWER STEERING OIL
3	53711-ST3-E00	Bracket assy - POWER STEERING OIL TANK
4	53713-ST3-G01	Hose comp. - POWER STEERING FEED (LH)
5	53720-SP0-010	Pipe comp
6	53721-SM4-013	Clamp d - 15.5MM
7	53729-SN7-000	Clamp - D15.5
8	53730-ST3-E00	Pipe comp - POWER STEERING COMBINATION
9	53731-SR3-950	Tube - POWER STEERING SUCTION
10	53732-ST3-G01	Hose - POWER STEERING RETURN
11	53733-SR3-951	Tube - POWER STEERING OIL TANK
12	53736-ST3-E00	Holder - POWER STEERING PIPE
13	53737-SR3-992	Bracket - POWER STEERING PIPE
14	53775-SR3-951	Stay a - FEED HOSE
15	90635-SM4-A01	Clip - OIL HOSE (MEIJI)
15	90635-SM4-A02	Clip - OIL HOSE (MEIJI)
16	91370-SM4-003	O-ring - 11X1.9 (NOK)
16	91370-SM4-004	O-ring - 11X1.9 (ARAI)
17	91405-PE0-003	Clamp - TUBE (D20)
17	91417-SZ3-003	Clamp - FUEL TUBE (D20) (CHUO HATSUJO)

P.s. pump ('95/'96) 19

#	OEM	部品名
1	56110-P1K-004	Pump sub assy - POWER STEERING
2	56167-PY3-000	Spacer - PUMP SEAL
3	56483-P0A-003	Pulley comp - POWER STEERING PUMP
4	56992-P1K-E03	Belt - POWER STEERING PUMP
5	56996-P01-000	Bolt - POWER STEERING PUMP ADJUSTING WING
6	56997-P26-010	Bracket - POWER STEERING PUMP
7	90004-P30-000	Bolt - SPECIAL, 8MM
8	90305-P0A-003	Nut - POWER STEERING PULLEY
9	90601-P01-003	Clip - ADJUST BOLT
10	91048-PY3-003	Bearing - RADIAL BALL, 15X38X12
11	91148-PY3-003	Roller - 5X26.8
12	91149-PY3-003	Roller - 4.5X49.8
13	91249-P02-003	Seal - POWER STEERING PUMP
14	91317-P02-003	O-ring - 5.8X1.9 (NOK)
15	91345-PY3-000	O-ring - 13.0X1.9
16	91346-PY3-000	O-ring - 22.1X1.9
17	91347-PY3-000	O-ring - 16.8X1.9
18	91348-PY3-000	O-ring - 54.0X1.9
19	91349-PY3-000	O-ring - 68.5X1.9

Parking brake 13

#	OEM	部品名
1	43471-SD2-930	Pin - BRAKE WIRE END
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD
4	47143-671-310	Spring - PUSH ROD
5	47342-SA5-013	Switch - PARKING BRAKE
6	47360-SN7-003	Equalizer
7	47365-SN7-003	Pin - EQUALIZER
9	47510-ST3-E11	Wire a - R. PARKING BRAKE
10	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING
11	47537-SN7-003	Spring - PARKING BRAKE ROD
13	47560-ST3-E11	Wire a - L. PARKING BRAKE
14	47572-ST3-E00	Base - WIRE GUIDE
16	90651-SN7-003	Clip - BRAKE HOSE
17	90705-SD2-931	Pin - SNAP, 6MM

Pedal (LH) 26

#	OEM	部品名
1	17800-ST3-E00	Pedal comp - ACCELERATOR
3	17805-SK3-000	Pad - PEDAL STOPPER
4	17812-SK3-000	Washer - ACCELERATOR PEDAL
5	17814-SR3-000	Spring - ACCELERATOR RETURN
6	17816-SK3-010	Cover - ACCELERATOR PEDAL
7	17910-ST3-G01	Wire - THROTTLE
9	17921-SK3-000	Seal - THROTTLE WIRE
10	17931-ST3-G00	Clamp - THROTTLE WIRE
11	17934-SH3-000	Stay - THROTTLE WIRE
12	35350-SK4-E01	Switch assy - STOP
12	35350-SK4-E00	Switch assy - STOP
14	46500-ST3-G00	Pedal assy - BRAKE
16	46504-679-300	Bush - PEDAL
17	46505-SK3-000	Pad - PEDAL STOPPER
18	46530-SR3-000	Spring assy - PEDAL RETURN
19	46535-SK3-000	Collar - PEDAL
20	46545-SK3-000	Cover - PEDAL
22	46590-ST3-G00	Bracket - PEDAL
23	46905-SK7-000	Stopper - CLUTCH PEDAL
24	46907-SR3-000	Spring - CLUTCH ASSISTANT
25	46910-ST3-E00	Pedal comp - CLUTCH
26	46911-SN7-000	Bush - PEDAL PIN
27	46981-ST3-E00	Bush a - CLUTCH ASSISTANT
28	46982-ST3-E00	Bush b - CLUTCH ASSISTANT
29	46990-ST3-E00	Bracket - CLUTCH PEDAL
30	46991-ST3-E00	Bracket - FOOTREST

Pillar garnish (LH) 11

#	OEM	部品名
1	72315-ST3-E01	Seal - R. FR. DOOR OPENING
2	72355-ST3-E01	Seal - L. FR. DOOR OPENING
3	72815-ST3-E01	Seal - R. RR. DOOR OPENING
4	72855-ST3-E01	Seal - L. RR. DOOR OPENING
17	90609-SN7-E01	Clip - PILLAR GARNISH
18	90660-ST3-E00	Clip - DASHBOARD INSULATOR
19	90666-SK4-E00	Clip - PILLAR GARNISH
21	90668-SR3-003	Clip - TRIM
22	90668-ST3-E01	Clip - SIDE LINING
23	90682-SD4-000	Grommet - SCREW, 4MM
24	90866-SA0-000	Grommet - SCREW, 4MM

Piston/crankshaft 49

#	OEM	部品名
1	13010-P26-010	Piston set - STD.
1	13020-P26-010	Piston set - OS 0.25
1	13030-P26-010	Piston set - OS 0.50
2	13011-PM6-004	Ring set - PISTON (STD.) (RIKEN)
2	13011-PM6-G02	Ring set
2	13021-PM6-004	Ring set - PISTON (OS 0.25) (RIKEN)
2	13021-P28-G01	Ring set - PISTON (OS 0.25) (TEIKOKU)
2	13031-PM6-004	Ring set - PISTON (OS 0.50) (RIKEN)
2	13031-P28-G01	Ring set - PISTON (OS 0.50) (TEIKOKU)
3	13014-PG6-S10	Washer set - THRUST (DAIDO)
3	13014-PG6-S20	Washer set - THRUST (TAIHO)
5	13112-PE0-000	Pin - PISTON
6	13204-PE1-003	Bolt
7	13205-634-010	Nut
8	13210-PM6-000	Rod comp
11	13621-PM3-013	Pulley - TIMING BELT DRIVE (HITACHI)
12	13622-PM3-020	Plate - TIMING BELT GUIDE
13	13810-P26-003	Pulley comp - CRANKSHAFT
15	90017-P01-003	Bolt-washer - 14X29
16	90704-634-000	Key - 4.5X11.0
20	13300-P2E-305	Crankshaft set
21	13323-P2E-003	Bearing c - MAIN (BROWN) (DAIDO)
21	13322-P2E-004	Bearing b - MAIN (BLACK) (TAIHO)
21	13326-P2E-003	Bearing f - MAIN (PINK) (DAIDO)
21	13327-P2E-004	Bearing g - MAIN (RED) (TAIHO)
21	13325-P2E-004	Bearing e - MAIN (YELLOW) (TAIHO)
21	13321-P2E-004	BEARING A - MAIN (BLUE) (TAIHO)
21	13324-P2E-003	Bearing d - MAIN (GREEN) (DAIDO)
21	13322-P2E-003	Bearing b - MAIN (BLACK) (DAIDO)
21	13327-P2E-003	Bearing g - MAIN (RED) (DAIDO)
21	13323-P2E-004	Bearing c - MAIN (BROWN) (TAIHO)
21	13326-P2E-004	Bearing f - MAIN (PINK) (TAIHO)
21	13325-P2E-003	Bearing e - MAIN (YELLOW) (DAIDO)
21	13321-P2E-003	BEARING A - MAIN (BLUE) (DAIDO)
21	13324-P2E-004	Bearing d - MAIN (GREEN) (TAIHO)
23	13211-PG6-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
23	13214-PG6-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
23	13214-PG6-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
23	13212-PG6-003	Bearing b, CONNECTING ROD (BLACK) (DAIDO)
23	13215-PG6-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
23	13213-PG6-003	Bearing c, CONNECTING ROD (BROWN) (DAIDO)
23	13216-PG6-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)
23	13217-PG6-004	Bearing g, CONNECTING ROD (RED) (TAIHO)
23	13217-PG6-003	Bearing g, CONNECTING ROD (RED) (DAIDO)
23	13211-PG6-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
23	13215-PG6-003	Bearing e, CONNECTING ROD (YELLOW) (DAIDO)
23	13212-PG6-004	Bearing b, CONNECTING ROD (BLACK) (TAIHO)
23	13216-PG6-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)
23	13213-PG6-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)

Protector 23

#	OEM	部品名
1	71800-ST3-E00	Garnish assy - R. SIDE SILL
2	71850-ST3-E00	Garnish assy - L. SIDE SILL
3	74430-ST3-E01	Protector - RR. WHEEL ARCH
4	74559-ST3-E00	Cover - FUEL PIPE
5	74663-ST3-E00	Cover - RR. UNDER
6	75301-ST3-E00	Protector comp - R. FR. FENDER
7	75302-ST3-E00	Protector comp - R. FR. DOOR
8	75303-ST3-E00	Protector comp - R. RR. DOOR
9	75307-SN7-000	Nut - SIDE PROTECTOR
10	75313-ST3-E00	Clip - SIDE PROTECTOR
11	75321-ST3-E00	Protector comp - L. FR. FENDER
12	75322-ST3-E00	Protector comp - L. FR. DOOR
13	75323-ST3-E00	Protector comp - L. RR. DOOR
14	90102-SK4-E01	Bolt - FLANGE, 6MM
15	90126-SA7-000	Screw-washer - 5X20
15	90114-SZ3-000	Screw-washer - 5X20
16	90331-SD5-003	Nut - SPRING, 5MM
17	90657-SA5-003	Clip - SIDE APRON MOLDING
18	90660-SN7-000	Clip - UNDER COVER
19	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)
20	90688-SB0-013	Clip b
20	90668-SC5-003	Clip A - AIRSCOOP GRILLE
21	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH

Radiator (CALSONIC) 11

#	OEM	部品名
1	19010-P1K-E01	Radiator comp - CALSONIC
2	19011-P1K-E01	Plug - DRAIN (CALSONIC)
3	19012-P1K-E01	O-ring - CALSONIC
4	19015-P1K-E01	Shroud comp.
5	19020-P1K-E01	Fan - COOLING
6	19030-P1K-E01	Motor - COOLING FAN
7	19045-P1K-E01	Cap comp. - RADIATOR (CALSONIC)
8	90040-P1K-E01	Screw - TAPPING, 5X15
9	90041-P1K-E01	Washer - PLAIN, 5MM
10	90042-P1K-E01	Bolt - FLANGE
11	90043-P1K-E01	Nut - HEX., 5MM

Radiator hose 14

#	OEM	部品名
1	19101-P1K-E00	Tank - RESERVE
2	19103-P1K-E00	Hose a - RESERVE TANK
3	19104-P1K-E00	Hose b - RESERVE TANK
4	19110-P45-G00	Cap set - RESERVE TANK
5	19115-P1K-E00	Bracket - RESERVE TANK
6	19501-P1K-E01	Hose - WATER UPPER
7	19502-P1K-E00	Hose - WATER LOWER
8	19510-P01-003	Clamp - STARTER CABLE
9	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)
11	19519-P08-013	Clamp - WATER HOSE
15	74172-SR3-000	Cushion - RADIATOR MOUNTING LOWER
16	74173-SK3-E00	Cushion - RADIATOR MOUNTING UPPER
17	74176-ST3-E00	Bracket - RADIATOR MOUNT UPPER
18	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)

Radio antenna/speaker 16

#	OEM	部品名
1	39112-ST3-E01	Bracket - FR. SPEAKER SEAL
3	39120-ST3-E21	Speaker assy - 160MM
4	39120-ST3-E41	Speaker assy - 13CM DUAL
5	39121-ST3-E01	Screw
8	39150-ST3-E01	Antenna assy - RADIO
9	39151-ST3-E00	Rod assy
10	39154-ST3-E00	Packing - ANTENNA BASE
11	39156-ST3-E01	Cap - ROOF ANTENNA
12	39159-ST3-G01	Feeder - ROOF ANTENNA
13	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)
14	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)
14	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)
15	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)
16	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)
17	91564-SK7-003	Band - HARNESS (M6 STUD) (BLUE) (90MM)
18	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Rear brake (DISK) 24

#	OEM	部品名
1	01473-ST3-E00	Caliper set - RR.
3	43017-ST3-E00	Boot set - RR. PIN
5	43010-ST3-E00	Pin set - RR.
6	42200-ST3-E51	Bearing assy - RR. HUB UNIT
7	42324-SK3-E00	Washer - HUB UNIT
8	42326-SK3-E00	Cap - HUB UNIT
9	42510-SK3-305	Disk - RR. BRAKE
12	43014-ST3-E00	Bracket set - R. RR. CALIPER
13	43015-ST3-E00	Bracket set - L. RR. CALIPER
14	43012-ST3-E01	Body set - R. RR. CALIPER
15	43022-ST3-E00	Pad set - RR.
16	43013-ST3-E01	Body set - L. RR. CALIPER
19	43245-ST3-E01	Lever - R.
20	43246-SD2-931	Spring - R. RETURN
21	43247-ST3-E01	Bracket - R. PARKING BRAKE MOUNT
22	43253-SK3-950	Guard - R. RR. SPLASH
23	43254-SK3-950	Guard - L. RR. SPLASH
24	43255-SK3-E00	Protector - R. RR. CALIPER
25	43256-SK3-E00	Protector - L. RR. CALIPER
26	43265-ST3-E01	Lever - L.
27	43266-SD2-931	Spring - L. RETURN
28	43267-ST3-E01	Bracket - L. PARKING BRAKE MOUNT
30	45240-ST3-E01	Bolt
31	90305-692-010	Nut

Rear door lining 9

#	OEM	部品名
1	72835-ST3-E00	Weatherstrip - RR. DOOR INNER
2	72836-ST3-E00	Weatherstrip b - RR. DOOR INNER
3	83529-SN7-G00	Bracket - COVER LOCK
6	83709-ST3-E00	Protector - R. RR. DOOR
10	83759-ST3-E00	Protector - L. RR. DOOR
13	90132-SE3-003	Screw - TAPPING, 4X12
14	91560-SP0-003	Clip - DOOR LINING (GRAY)
14	91560-S84-A01	CLIP, DOOR LINING (NATURAL)
15	91626-SP0-003	Grommet - SCREW, 5MM

Rear door locks 33

#	OEM	部品名
1	35765-ST3-G01	Switch comp - POWER WINDOW ASSISTANT
2	72112-SN7-G01	Snap - R.
3	72117-ST3-E00	Protector - R. FR. DOOR LOCK
4	72122-SK3-G00	Snap - R. INSIDE HANDLE
5	72134-ST3-003	Bush - JOINT
6	72135-SN7-G00	Striker - DOOR LOCK
7	72136-SN7-G00	Bolt - DOOR LOCK STRIKER
9	72138-SN7-G00	Cushion - LOCK ROD
10	72157-ST3-E00	Protector - L. FR. DOOR LOCK
11	72162-SK3-G00	Snap - L. INSIDE HANDLE
12	72162-SN7-G01	Snap - L.
13	72175-SH3-003	Holder - DOOR LOCK ROD
14	72175-SH3-901	Holder - DOOR LOCK ROD
15	72610-ST3-G21	Lock assy - R. RR. DOOR
16	72615-ST3-G11	Actuator assy - R. RR. DOOR LOCK
19	72630-SK3-G00	Crank assy - R. RR. DOOR LOCK
20	72631-ST3-E00	Rod - R. RR. INSIDE HANDLE
21	72632-ST3-E00	Rod - R. RR. DOOR LOCK
22	72633-ST3-E00	Rod - RR. DOOR LOCK KNOB
23	72639-ST3-E00	Protector - R. RR. DOOR ROD
24	72640-ST3-E02	Handle assy - R. RR. DOOR OUTSIDE
25	72650-ST3-G21	Lock assy - L. RR. DOOR
26	72655-ST3-G11	Actuator assy - L. RR. DOOR LOCK
28	72670-SK3-G00	Crank assy - L. RR. DOOR LOCK
29	72671-ST3-E00	Rod - L. RR. INSIDE HANDLE
30	72672-ST3-E00	Rod - L. RR. DOOR LOCK
31	72679-ST3-E00	Protector - L. RR. DOOR ROD
32	72680-ST3-E02	Handle assy - L. RR. DOOR OUTSIDE
33	75411-634-000	Joint
34	90120-SM4-000	Screw - TAPPING
35	90866-SA0-000	Grommet - SCREW, 4MM
36	91580-SM4-003	Clip - COUPLER(ORANGE)
37	91593-SK3-E00	Clip - PROTECTOR JOINT

Rear door panels 11

#	OEM	部品名
9	72311-ST0-003	Clip
10	72810-ST3-E01	Weatherstrip - R. RR. DOOR
11	72821-ST3-E10	Seal - R. RR. DOOR HOLE
12	72840-ST3-E01	Checker comp. - RR. DOOR
13	72850-ST3-E01	Weatherstrip - L. RR. DOOR
14	72861-ST3-E10	Seal - L. RR. DOOR HOLE
15	75760-SK3-E00	Pin - DOOR CHECKER
16	75891-SA7-000	Stopper - DOOR
17	90101-SE3-003	Bolt-washer - 8X23.5
18	90686-692-003	Cap - LINING MOUNT
19	91530-SP1-003	Clip A - DOOR WEATHERSTRIP

Rear door windows 19

#	OEM	部品名
1	39885-SN7-G00	Label - SECURITY CAUTION
3	72710-ST3-E11	Regulator - R. RR. DOOR POWER
4	72715-ST3-E11	Motor assy. - R. RR. WINDOW
5	72730-ST3-E00	Sash - R. RR. DOOR CENTER LOWER
6	72731-ST3-E00	Sash - R. RR. DOOR LOWER
7	72735-ST3-E01	Runchannel - R. RR. DOOR
9	72750-ST3-E11	Regulator - L. RR. DOOR POWER
10	72755-ST3-E11	Motor assy. - L. RR. WINDOW
11	72770-ST3-E00	Sash - L. RR. DOOR CENTER LOWER
12	72771-ST3-E00	Sash - L. RR. DOOR LOWER
13	72775-ST3-E01	Runchannel - L. RR. DOOR
14	73400-ST3-E01	Glass assy - R. RR. DOOR (GREEN)
15	73450-ST3-E01	Glass assy - L. RR. DOOR (GREEN)
16	73500-ST3-E01	Glass assy - R. RR. DOOR QUARTER (GREEN)
17	73550-ST3-E01	Glass assy - L. RR. DOOR QUARTER (GREEN)
21	90011-896-000	Bolt - FLANGE, 6X8
22	90115-ST3-E00	Bolt - FLANGE, 6X10
23	90120-ST3-E00	Screw - TAPPING
26	90116-ST3-E00	Bolt - FLANGE, 6X12

Rear seat (ARMREST) 21

#	OEM	部品名
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)
5	82122-ST3-E21	Pad - R. RR. SEATBACK MOLDING
10	82132-ST3-E01	Pad - RR. SEAT CUSHION MOLDING
11	82133-ST3-E01	Striker - SQUAB
14	82138-ST3-E01	Guide - RR. HEADREST
17	82184-ST3-E21	Bracket - R. ARMREST PIVOT
18	82186-ST3-E21	Bracket - L. ARMREST PIVOT
20	82220-ST3-E01	Lock assy - R. RR. SEAT
23	82224-SK4-E01	Bolt - RR. SEAT SQUAB HINGE PIVOT
24	82225-SK4-E03	Striker - LOOP SQUAB
25	82226-SK4-E01	Hinge - R. RR. SEAT CENTER
27	82229-SK4-E00	Bush - SQUAB HINGE PIVOT
28	82230-SK4-E00	Spacer - R.
29	82231-SK4-E00	Spacer - L.
32	82522-ST3-E01	Pad - L. RR. SEATBACK MOLDING
33	82547-SK4-G00	Bush - SQUAB HINGE PLASTIC
34	82548-SK4-G01	Hinge - L. RR. SEAT CENTER SQUAB
36	82620-ST3-E01	Lock assy - L. RR. SEAT
37	82635-SK4-E01	Escutcheon - STRIKER LATCH SQUAB
39	82223-SK4-E01	Bolt - TORX, 6X25

Rear shock absorber 16

#	OEM	部品名
1	51685-SN7-E01	Plate - DUST COVER
2	52441-ST3-E01	Spring - RR.
3	52610-ST3-E01	Absorber assy - RR. SHOCK
4	52611-ST3-E01	Absorber unit - RR. SHOCK
5	52621-SK3-000	Washer - RR. SHOCK ABSORBER MOUNTING
6	52675-ST3-E01	Base - RR. SHOCK ABSORBER MOUNTING
7	52676-SK3-300	Seal - RR. SHOCK ABSORBER MOUNTING
8	52686-ST3-E01	Rubber - RR. SPRING MOUNTING
9	52687-ST3-E01	Cover - RR. DUST
10	52689-SK3-000	Plate - BUMP STOP
11	52722-ST3-E01	Rubber - RR. BUMP STOPPER
12	52725-SK3-000	Rubber - SHOCK ABSORBER MOUNTING
13	52728-SK3-000	Collar - RR. SHOCK ABSORBER MOUNTING
14	74671-SK3-E00	Cap - RR. SHOCK ABSORBER
15	90176-SK3-010	Bolt - RR. DAMPER, 10X71
16	90364-SN7-E01	Nut - SELF-LOCK, 10MM

Rear stabilizer/ rear lower arm 30

#	OEM	部品名
1	42534-SK7-A00	Cover - R. RR. (ABS)
2	42535-SK7-A00	Cover - L. RR. (ABS)
3	42539-SK3-950	Bracket - RR. COUPLER
4	46435-ST3-950	Bracket - R. RR. BRAKE HOSE
5	46436-ST3-950	Bracket - L. RR. BRAKE HOSE
6	46438-SK3-900	Bracket - R. RR. BRAKE HOSE (DISK)
7	46439-SK3-900	Bracket - L. RR. BRAKE HOSE (DISK)
16	52341-SK3-000	Arm comp - RR. COMPENSATOR
17	52343-SK3-000	Bush - COMPENSATOR
18	52350-ST3-950	Arm comp - R. RR. LOWER
19	52354-ST3-E00	Protector - R. RR. LOWER ARM
20	52360-ST3-950	Arm comp - L. RR. LOWER
21	52364-ST3-E00	Protector - L. RR. LOWER ARM
22	52365-ST3-E01	Bush - RR. LOWER ARM
23	52370-ST3-951	Arm comp - R. RR. TRAILING
24	52371-ST3-951	Arm comp - L. RR. TRAILING
25	52390-ST3-E00	Arm comp - RR. UPPER
26	52393-SK7-004	Bush - UPPER ARM INNER (YAMASHITA)
27	52395-SK7-004	Bush - RR. UPPER ARM (YAMASHITA)
28	52400-ST3-E00	Arm comp - L. RR. UPPER
29	52622-ST3-E01	Bush - RR. SHOCK ABSORBER LOWER
30	57470-SK3-801	Sensor assy - R. RR.
31	57475-SK3-801	Sensor assy - L. RR.
32	90114-SB0-000	Bolt-washer - 6X12
34	90161-SK3-040	Bolt - FR. LOWER ARM (10X79)
37	90174-SK3-010	Bolt - TRAILING ARM BUSH, 12X62
38	90176-SK3-010	Bolt - RR. DAMPER, 10X71
39	90177-SK3-010	Bolt - UPPER ARM (10X25)
40	90179-SK3-020	Bolt - COMPENSATOR (10X59)
42	90551-SH3-000	Washer - 24X10X2.3

Rear windshield 8

#	OEM	部品名
1	73211-ST3-S02	Glass - RR. WINDSHIELD
2	73225-SR4-000	Fastener a - RR. WINDSHIELD
3	73250-ST3-E00	Molding - RR. WINDSHIELD
4	74841-ST3-E01	Sub seal - TAILGATE
5	90617-SK7-010	Fastener a - RR. WINDSHIELD UPPER
6	90618-SK7-010	Fastener b - RR. WINDSHIELD UPPER
7	91533-SS0-000	Fastener d - WINDSHIELD GLASS
7	91533-SR4-000	Fastener d - WINDSHIELD GLASS

Rear wiper 11

#	OEM	部品名
1	76700-ST3-E11	Motor assy. - RR. WINDSHIELD WIPER
2	76701-ST3-E11	Rubber - MOUNTING
3	76702-ST3-E11	Collar
4	76706-ST3-E11	Washer - THRUST
5	76709-ST3-E11	Nut - SPECIAL
6	76711-ST3-E11	Cap - PIVOT
7	76714-ST3-E11	Seal - UPPER
8	76720-ST3-E11	Arm - RR. WIPER
9	76721-ST3-E11	Cap
10	76730-ST3-E11	Blade - RR. WINDSHIELD WIPER (450MM)
11	91555-SM4-003	Clip - COUPLER (RED)

Resonator chamber 8

#	OEM	部品名
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING
2	17216-PN3-000	Collar - AIR CLEANER MOUNTING
3	17230-P1K-E00	Chamber assy - RESONATOR
4	17232-P04-G00	Seal - RESONATOR RUBBER
5	17243-P1K-E00	Tube a - AIR INTAKE
6	17248-P1K-E00	Tube b - AIR INTAKE
7	75353-671-000	Lock - SCREW
8	90001-P0A-000	Bolt-washer - SPECIAL, 6X35

Roof lining (LH) 3

#	OEM	部品名
8	83243-ST3-E00	Base - GRAB RAIL
15	90132-SP0-003	Screw - PAN, 5X15
17	90133-SK4-E00	Bolt-washer - 5X25

Seatbelts 2

#	OEM	部品名
8	82491-ST3-E00	Protector - R. SEATBELT
11	82891-ST3-E00	Protector - L. SEATBELT

Shift fork ('95/'96; SOHC) 10

#	OEM	部品名
1	24200-PL3-010	Fork - FIFTH GEARSHIFT
2	24210-P20-A00	Fork comp - GEARSHIFT (3-4)
3	24220-P20-010	Fork comp - SHIFT (1-2)
4	24230-P20-000	Holder comp - REVERSE SHIFT
5	24243-P20-000	Piece - FIFTH & REVERSE SHIFT
6	24261-P20-000	Shaft - SHIFT FORK (1-2)
7	24271-P20-000	Shaft - FIFTH & REVERSE SHIFT FORK
8	24455-PG1-300	Spring - SHIFT FORK SETTING
9	24455-PG2-A10	Spring - FORK SET BALL
10	90028-PB6-010	Bolt - SPECIAL, 6X22.5

Shift lever 30

#	OEM	部品名
1	24313-PF5-000	Clip - CHANGE JOINT PIN
1	54113-611-505	CLIP, SHIFT JOINT
2	54101-ST3-E01	Lever - CHANGE
3	54102-SK3-900	Knob comp. - CHANGE LEVER
4	54105-692-010	Washer - THRUST
5	54106-ST3-E00	Holder - CHANGE BOOT
6	54107-SA0-010	Bush, RR. JOINT
7	54109-ST3-E01	Seal a - CHANGE LEVER DUST
8	54110-ST3-E01	Seat - CHANGE LEVER BALL
10	54111-ST3-E01	Holder - CHANGE BALL
11	54112-ST3-E01	Pivot - CHANGE LEVER
12	54114-SB2-000	Collar - PIPE MOUNTING
13	54115-ST3-E01	Dust seal b - CHANGE
14	54117-SH3-000	Collar - RR. JOINT
15	54201-ST3-E01	Rod comp - CHANGE
17	54301-ST3-E01	Extension - CHANGE
18	54303-SF4-000	Rubber - EXTENSION END
19	54304-ST3-E00	Bracket - EXTENSION
20	54306-ST3-E01	Rubber - EXTENSION MOUNTING
21	54307-ST3-E01	Stopper - EXTENSION MOUNTING
23	54309-SH3-000	Collar - EXTENSION END
24	54318-ST3-E00	Seal - CHANGE BOOT
26	90114-ST3-E01	Screw - 6X15
27	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)
29	90851-SD2-000	Plug - HOLE, 8MM
30	90865-SH4-K00	Plug - CONTROL WIRE
31	91301-671-671	O-ring - 1.9X11
31	91303-HA0-004	O-ring, 11x1.9 (nok)
36	90751-S04-000	PIN, SPRING, 8X22
38	54302-SA0-300	Cap - EXTENSION

Shift rod/shift arm (SOHC) 20

#	OEM	部品名
1	24311-PL3-020	Rod - SHIFT
2	24316-P20-000	Boot - SHIFT ROD
3	24351-P20-010	Shaft - SHIFT ARM B
4	24411-P20-000	Arm a - SHIFT
5	24421-PL3-000	Arm b - SHIFT
6	24422-PL3-000	Arm c - SHIFT
7	24430-PL3-010	Interlock comp.
8	24432-PL3-010	Retainer - REVERSE SELECT
9	24433-P20-000	Bolt - INTERLOCK
10	24440-PL3-000	Cam comp - REVERSE LOCK
11	24452-P20-000	Spring - BALL SETTING
12	24456-P20-000	Spring - SELECT SET BALL
13	24461-PB6-000	Collar - SPRING
14	24464-PL3-010	Spring - FIRST-SECOND SELECT
15	24465-P20-000	Spring - REVERSE SELECT
16	24519-PB6-000	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5
18	90029-PL3-010	Bolt - SPECIAL, 8MM
19	90082-PL3-000	Plug - 28MM
20	90412-679-000	Washer - CONICAL SPRING, 8MM

Side lining 17

#	OEM	部品名
1	73240-ST3-E01	Trim - RR. WINDSHIELD
2	83869-ST3-E00	Bracket - WARNING TRIANGLE
4	84412-ST3-E00	Cord - CENTER SHELF LIFT
6	84422-SK3-E00	Clip - RETENTION
7	84426-ST3-E00	Stopper - RR. SHELF
9	84432-ST3-E00	Stopper - CENTER SHELF
10	84432-ST3-E10	Seal - TAILGATE LINING
18	90126-SA7-000	Screw-washer - 5X20
18	90114-SZ3-000	Screw-washer - 5X20
19	90302-SN7-E00	Nut - SPRING, 4MM
20	90609-SN7-E01	Clip - PILLAR GARNISH
21	90609-ST3-E01	Clip - TAILGATE
22	90610-ST3-E01	Clip - GARNISH (HOOK)
23	90666-SK4-E00	Clip - PILLAR GARNISH
25	90682-SB0-003	Grommet - SCREW, 5MM
26	90683-693-000	Grommet - SCREW, 5MM
29	91647-SH3-003	Grommet - SCREW, 4MM

Srs unit (LH; '96-) 10

#	OEM	部品名
1	77900-ST3-E81	Reel assy - CABLE
2	77907-S04-003	Holder - CONNECTOR (2P)
3	77960-ST3-E83	Srs unit
4	77961-ST3-G90	Harness - MAIN WIRE
5	77963-ST3-E80	Cover - R. SRS UNIT
6	77964-ST3-E80	Cover - L. SRS UNIT
7	77969-SR3-003	Case - CONNECTOR
8	90137-SR3-003	Bolt - TORX EARTH, 6X25
10	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)
11	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)

Starter motor (VALEO; '95/'96) 12

#	OEM	部品名
1	31200-P1K-E01	Motor assy. - STARTER (D7RS7) (VALEO)
2	31202-P1K-E01	Bolt - UNIT SET
3	31204-PJ7-903	Gear assy. - PINION (MITSUBA)
5	31207-P03-005	Armature assy. - ###
7	31210-P1K-E01	Switch assy
8	31211-P1K-E01	Ring - SQUARE
9	31217-P1K-E01	Screw-washer - 4X26.5
10	31235-P1K-E01	Cover - TERMINAL
11	31251-PJ7-904	Tube - LABYRINTH (###)
12	31252-PD2-006	Rubber - BUSH (MITSUBA)
13	31291-P26-005	Stay assy - ENGINE WIRE HARNESS (###)
15	31260-P1K-305	Stator set - ###

Steering column 15

#	OEM	部品名
1	53200-ST3-E61	Column assy - STEERING
2	53216-ST3-E00	Holder b - STEERING COLUMN
3	53217-ST3-E01	Collar - STEERING RETAINER
5	53320-ST3-S60	Cover - STEERING JOINT
7	53323-ST3-E01	Joint comp. b - STEERING
8	53325-SK3-E00	Clip A - JOINT COVER
9	53326-SN7-000	Clip b - JOINT COVER
10	53363-ST3-G00	Pivot comp - COLUMN
11	53371-ST3-E01	Spring - COLUMN HANGER
14	77873-SN7-S80	Label - STEERING COLUMN CAUTION
15	90135-SF1-000	Bolt - CENTER SHAFT YOKE
16	90361-SM4-003	Nut - FLANGE, 8MM
16	90361-SR3-000	Nut - FLANGE, 8MM
17	90511-671-003	Washer - TOOTHED LOCK
18	90654-SR3-003	Clip - STEERING JOINT COVER

Steering wheel (SRS; '96-) 6

#	OEM	部品名
3	78509-SN7-E81	Cover - BOSS PLATE
8	78521-ST3-E81	Button a - HORN
9	78522-ST3-E81	Button b - HORN
10	78526-ST3-E81	Cord comp - HORN
11	90134-S04-A81	Bolt - HEX., 6X12
12	90380-SB2-003	Nut - SELF-LOCK (OHASHI)

Switch (LH) 17

#	OEM	部品名
3	35150-ST3-S01	Switch assy - HEADLIGHT WASHER & ILLUMINATION CONTROL
4	35170-ST3-E21	Switch assy - RR. FOG & LID
6	35190-SJ4-003	Switch assy - REMOTE CONTROL MIRROR (ALPS)
8	35195-ST3-E01	Switch assy - HEATED MIRROR
10	35500-ST3-E01	Switch assy - RR. DEFOGGER
11	35505-SN7-G01	Bulb comp. - NEO-WEDGE (12V 1.2W)
12	35510-ST3-E01	Switch assy - HAZARD
13	35750-ST3-G01	Switch assy - POWER WINDOW MASTER
15	35760-ST3-G01	Switch assy - POWER WINDOW ASSISTANT
16	35820-ST3-G01	Switch assy - HEADLIGHT ADJUSTER
18	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)
19	35851-SS0-003	Bulb - NEO WEDGE (14V 60MA)
20	35851-ST0-003	Bulb - NEO WEDGE
22	35852-ST3-G11	Bulb comp. - WITH CAP
23	35910-S04-G01	Switch assy - INERTIA
24	39700-ST3-E01	Clock assy - DIGITAL
30	90673-SA7-003	Band - TUBE

Tailgate 26

#	OEM	部品名
6	68217-ST3-E00	Seal - TAILGATE HINGE
7	70226-611-000	Plug - SETTING HOLE
10	74411-ST3-G00	Cable - FUEL LID OPENER
11	74440-ST3-E01	Weatherstrip - TAILGATE
12	74800-ST3-E01	Lock assy - TAILGATE
13	74811-ST3-E00	Rod - TAILGATE LOCK
14	74812-ST3-E00	Cylinder - TAILGATE
15	74813-ST3-E00	Snap
16	74813-ST3-E01	Striker assy - TAILGATE
17	74815-ST3-E00	Grommet - KEY CYLINDER
18	74820-ST3-E02	Stay assy - TAILGATE OPENER
19	74827-ST3-E00	Stopper - TAILGATE
20	74828-ST3-E00	Sub stopper - TAILGATE
21	74830-ST3-E01	Cable - TAILGATE OPENER
23	74866-SM3-003	Holder - ROD
25	74882-ST3-G00	Opener assy - TAILGATE
29	90106-SE1-000	Bolt-washer - 6X15
30	90111-SK3-E00	Stud-ball - TAILGATE
31	90130-SM4-000	Bolt - LOCK STRIKER
33	90660-SK3-E00	Clip - TAILGATE OPEN STAY SAFETY
34	90684-SD4-003	Clip - FUEL LID OPENER
35	90692-SK8-003	Clip - TRUNK OPENER CABLE
36	90856-SA5-003	Plug - TAILGATE HOLE
37	91548-SF4-003	Band - HARNESS (WITH SEAL) (WHITE) (93.5MM)
38	91553-ST3-E01	Clip - WIRE HARNESS CABLE
41	91902-SB2-003	Cushion - WIRE HARNESS(50X100)

Taillight 23

#	OEM	部品名
1	33301-SN7-E01	Bulb - 12V 5W
2	33500-ST3-G01	Taillight assy. - R.
3	33501-ST3-G01	Lamp unit - R.
4	33503-ST3-G01	Gasket - BASE
5	33512-ST3-G01	Socket comp. - R.
6	33513-ST3-G01	Socket comp. - L.
7	33550-ST3-G01	Taillight assy. - L.
8	33551-ST3-G01	Lamp unit - L.
9	34100-SN7-E01	Light assy - LICENSE
10	34101-SN7-E01	Lens
11	34103-SN7-E01	Seal - PACKING
12	34104-SN7-E01	Screw - TAPPING, 4X16
14	34275-ST7-000	Seal - BUSH
15	34903-SN7-E01	Bulb - 12V 21W) (CLEAR
16	34908-ST3-E01	Bulb - 12V 21W
17	34911-ST3-E01	Bulb - 12V 21-5W
19	75525-SD4-013	Clip - RR. PANEL GARNISH
20	90102-SN7-010	Bolt assy - LICENSE GARNISH
21	90125-ST7-000	Screw - SPECIAL, 5MM
22	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)
23	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)
24	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)
25	91524-SE0-003	Clip - COWL TOP

Throttle body (SOHC/1.6L VTEC; '95/'96) 13

#	OEM	部品名
1	16016-P45-G00	Screw set
3	16075-P07-000	O-ring
7	16080-P07-000	Screw-washer - 4X16
9	16176-P06-A02	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
10	16179-P1G-E00	Plate - SETTING
11	16400-P1G-E01	Throttle Body Assy - GRS3A
12	16411-P06-A00	Stay - THROTTLE WIRE
15	36151-P05-A00	Stay - PURGE CONTROL TUBE
17	36162-P2Y-G01	Valve assy. - PURGE CUT SOLENOID
18	36450-P2J-J01	Valve assy. - ELECTRONIC AIR CONTROL
19	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)
20	37830-P0G-S00	Sensor set - MAP
20	37830-PAA-S00	Sensor set - MAP

Tire/wheel disk 22

#	OEM	部品名
2	42700-ST3-E21	Disk - WHEEL (14X5J) (BLACK)
6	42751-SK3-G74	Tire - 185/60R14 82H) (PIRELLI
6	42751-SK3-G49	Tire - 185/60R14 82H) (DUNLOP
7	42753-SG9-000	Valve - RIM(A.R.G.)
11	44730-SG9-E00	Weight - BALANCE (35G)
11	44723-SG9-E00	Weight - BALANCE (30G)
11	44727-SG9-E00	Weight - BALANCE (5G)
11	44732-SG9-E00	Weight - BALANCE (55G) (###)
11	44725-SG9-E00	Weight - BALANCE (50G) (###)
11	44729-SG9-E00	Weight - BALANCE (25G)
11	44722-SG9-E00	Weight - BALANCE (20G)
11	44726-SG9-E00	Weight - BALANCE (60G) (###)
11	44724-SG9-E00	Weight - BALANCE (40G) (###)
11	44728-SG9-E00	Weight - BALANCE (15G)
11	44721-SG9-E00	Weight - BALANCE (10G)
11	44731-SG9-E00	Weight - BALANCE (45G) (###)
17	44733-ST3-E00	Trim - WHEEL (14")
19	44736-SA0-981	Nut - WHEEL (FUSE RASHI)
20	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)
21	74654-SK3-E00	Bolt - ANCHOR
23	83850-SK3-E00	Plate - ANCHOR BOLT
24	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)

Tools/jack 3

#	OEM	部品名
2	89101-ST3-E00	Box - TOOL
3	89104-SG9-000	Wrench - WHEEL NUT
4	89310-SN7-E01	Jack assy

Transmission housing (SOHC) 56

#	OEM	部品名
1	21104-PS1-020	Plate m - OIL GUIDE
2	21200-P1M-B02	Case comp. - TRANSMISSION
3	21211-P20-020	Plate - OIL GUTTER
4	21223-P4A-000	Stay - BACK LIGHT SWITCH HARNESS
5	21222-P1M-000	Hanger - TRANSMISSION
6	21223-P1M-000	Stay - RR. RELEASE PIPE
7	21396-P20-000	Cap - BREATHER
8	23960-PL3-B00	Shim ad - 70MM (1.47)
8	23945-PL3-B00	Shim o - 70MM (1.02)
8	23971-PL3-B00	Shim ao - 70MM (1.80)
8	23956-PL3-B00	Shim z - 70MM (1.35)
8	23940-PL3-B00	Shim j - 70MM (0.87)
8	23966-PL3-B00	Shim aj - 70MM (1.65)
8	23951-PL3-B00	Shim u - 70MM (1.20)
8	23935-PL3-B00	Shim e - 70MM (0.72)
8	23961-PL3-B00	Shim ae - 70MM (1.50)
8	23946-PL3-B00	Shim p - 70MM (1.05)
8	23957-PL3-B00	Shim aa - 70MM (1.38)
8	23941-PL3-B00	Shim k - 70MM (0.90)
8	23967-PL3-B00	Shim ak - 70MM (1.68)
8	23952-PL3-B00	Shim v - 70MM (1.23)
8	23936-PL3-B00	Shim f - 70MM (0.75)
8	23962-PL3-B00	Shim af - 70MM (1.53)
8	23947-PL3-B00	Shim q - 70MM (1.08)
8	23931-PL3-B00	Shim a - 70MM (0.60)
8	23942-PL3-B00	Shim l - 70MM (0.93)
8	23958-PL3-B00	Shim ab - 70MM (1.41)
8	23968-PL3-B00	Shim al - 70MM (1.71)
8	23953-PL3-B00	Shim w - 70MM (1.26)
8	23937-PL3-B00	Shim g - 70MM (0.78)
8	23963-PL3-B00	Shim ag - 70MM (1.56)
8	23948-PL3-B00	Shim r - 70MM (1.11)
8	23932-PL3-B00	Shim b - 70MM (0.63)
8	23943-PL3-B00	Shim m - 70MM (0.96)
8	23959-PL3-B00	Shim ac - 70MM (1.44)
8	23969-PL3-B00	Shim am - 70MM (1.74)
8	23954-PL3-B00	Shim x - 70MM (1.29)
8	23938-PL3-B00	Shim h - 70MM (0.81)
8	23964-PL3-B00	Shim ah - 70MM (1.59)
8	23949-PL3-B00	Shim s - 70MM (1.14)
8	23933-PL3-B00	Shim c - 70MM (0.66)
8	23944-PL3-B00	Shim n - 70MM (0.99)
8	23970-PL3-B00	Shim an - 70MM (1.77)
8	23955-PL3-B00	Shim y - 70MM (1.32)
8	23939-PL3-B00	Shim i - 70MM (0.84)
8	23965-PL3-B00	Shim ai - 70MM (1.62)
8	23950-PL3-B00	Shim t - 70MM (1.17)
8	23934-PL3-B00	Shim d - 70MM (0.69)
9	35600-P20-003	Switch assy - BACK UP LIGHT
10	90081-PB6-000	Bolt - PLUG, 14MM
11	90081-PL3-000	Screw - SEALING, 32MM
12	90083-P20-000	Bolt - SEALING, 10MM
13	91206-PL3-A02	Oil seal - 35X62X8 (NOK)
13	91206-PL3-A01	Oil seal - 35X62X8 (ARAI)
14	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
25	90380-SR3-000	Bolt - STUD, 12X57.6

Valve/rocker arm (SOHC; '95/'96) 16

#	OEM	部品名
1	14621-PM3-010	Arm a - IN. ROCKER
2	14622-PM3-010	Arm b - IN. ROCKER
3	14623-PM3-010	Arm a - EX. ROCKER
4	14624-PM3-010	Arm b - EX. ROCKER
5	14645-PN4-003	Spring a - VALVE ROCKER ARM (SANKO)
6	14646-PN4-003	Spring b - VALVE ROCKER ARM (SANKO)
7	14647-PJ7-000	Washer - WAVE
8	14711-P1K-E01	Valve - IN.
9	14721-P1K-E01	Valve - EX.
10	14744-PM3-000	Screw - TAPPET ADJUSTING
11	14761-P1K-E00	Spring - IN. VALVE (WHITE)
12	14762-P1K-E00	Spring - EX. VALVE (BROWN)
13	14765-PJ7-000	Retainer - VALVE SPRING
14	14775-PM3-000	Seat - VALVE SPRING
15	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)
16	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)

Water hose ('95/'96) 6

#	OEM	部品名
1	19506-P1K-E00	Hose - ELECTRONIC AIR CONTROL VALVE IN.
2	19507-P1K-E00	Hose - ELECTRONIC AIR CONTROL VALVE OUTLET
3	19508-P1K-E00	Hose - BYPASS OUTLET
4	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
5	19527-P1K-E00	Hose a - BREATHER HEATER
6	19528-P1K-E00	Hose b - BREATHER HEATER

Water pump (SOHC) 18

#	OEM	部品名
1	19200-P1J-E02	Pump comp - WATER
2	19222-P1J-E02	O-ring - WATER PUMP
3	19301-P1K-307	Thermostat assy - WESTERN THOMSON
4	19305-PT0-000	Rubber - THERMOSTAT MOUNTING
4	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING
5	19311-P1K-E00	Cover - THERMOSTAT
6	19315-P1K-E00	Cover - WATER OUTLET
7	19320-P1K-E00	Case comp. - THERMOSTAT
8	19500-PE0-000	Joint, Tube
9	19505-P1G-E00	Pipe - CONNECTING
11	37750-PH2-014	Thermo unit - DENSO
12	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
13	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
14	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)
14	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)
15	91307-PN4-000	O-ring - 17.5X1.4
15	91307-PN3-000	O-ring,17.8x1.4
16	91314-634-000	O-ring

Water valve 8

#	OEM	部品名
1	79710-SR3-A01	Valve assy. Water
2	79721-ST3-E01	Hose a - WATER IN.
4	79722-ST3-E00	Hose b - WATER IN.
5	79725-ST3-E00	Hose - WATER OUTLET
6	79731-ST3-E00	Grommet - HEATER PIPE
7	91405-PK1-003	Clip, WATER HOSE, 24MM
7	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8	91549-SR3-003	Clamp - 24MM-35MM

Windshield washer/ headlight washer 28

#	OEM	部品名
1	76803-ST3-S01	Clip - WASHER HOSE
2	76806-ST3-E01	Motor - FR. WASHER
3	76806-ST3-E11	Motor - RR. WASHER
4	76806-ST3-S01	Motor - HEADLIGHT WASHER
5	76807-ST3-E01	Packing - T-TYPE
6	76807-ST3-E11	Packing
7	76810-SN7-G05	Nozzle - R. WINDSHIELD WASHER
8	76812-ST3-S01	Cap assy. - HEADLIGHT MOUTH
9	76814-ST3-E01	Clip - EDGE (M6)
10	76815-SN7-G05	Nozzle - L. WINDSHIELD WASHER
11	76816-SK4-E00	Adapter - NOZZLE
12	76821-ST3-E01	Grommet - WASHER TUBE
13	76826-ST3-E01	Valve - ONE WAY
14	76828-ST3-E01	Joint l - WASHER
15	76828-ST3-S01	Joint l - WASHER
16	76829-ST3-E01	Joint - RR. WASHER TUBE
17	76830-SN7-G05	Joint y - WASHER
18	76841-ST3-S01	Tank
19	76842-SN7-G05	Bush - WASHER TANK
20	76850-ST3-E01	Nozzle assy. - RR. WASHER
21	76880-ST3-S02	Nozzle assy. - HEADLIGHT WASHER
22	76882-ST3-S02	Clip - HEADLIGHT WASHER NOZZLE
23	76883-SK4-W00	Joint - HEADLIGHT WASHER HOSE
24	76890-ST3-S02	Hose assy - HEADLIGHT WASHER
25	76895-ST3-S01	Hose - HEADLIGHT WASHER
26	90652-SN7-G00	Clip - TUBE, 7MM
27	91506-SR3-003	Clip - TUBE WASHER (NATURAL)
28	91561-SR3-003	Clip - HEADLIGHT WASHER HOSE

Wire harness (LH) 13

#	OEM	部品名
1	32100-ST3-S11	Harness - CABIN WIRE
2	32108-ST3-S30	Harness - RR. WIRE
3	32109-ST3-E01	Harness - TAILGATE WIRE
4	32117-ST3-S61	Harness - INSTRUMENT WIRE
5	32155-ST3-G01	Cord - INTERIOR
6	32170-SK3-E20	Sub cord - FUEL
7	32200-ST3-S11	Harness - ENGINE ROOM WIRE
8	32202-ST3-000	Cord - DEFROSTER EARTH
9	32751-ST3-S01	Harness - DOOR WIRE (DRIVER SIDE)
10	32752-ST3-S01	Harness - DOOR WIRE (PASSENGER SIDE)
11	32755-ST3-G10	Harness - RR. DOOR WIRE
12	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
13	90153-SE0-003	Bolt - EARTH, 6X12
