Search › Model › M512E
M512E

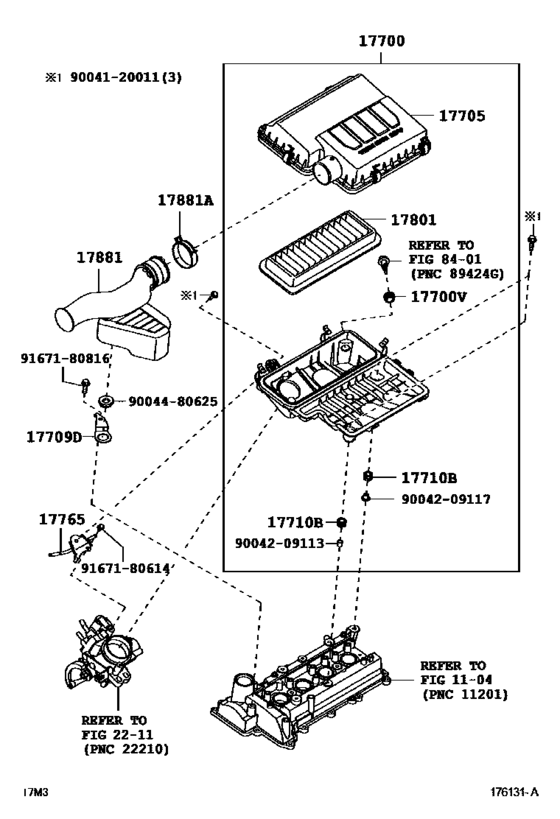

Air Cleaner ([12.2008 - ] (0812- )) 15
| # | OEM | Part name |
|---|---|---|
| 17700 | 17700-B1090 | Cleaner Assy, Air |
| 17700 | 90044-80530 | Bush(For Air Cleaner) |
| 17705 | 17705-B1060 | Cap Sub-Assy, Air Cleaner |
| 17709 | 17962-B1010 | Bracket, Air Cleaner Inlet, No.1 |
| 17710 | 90044-80392 | Bush(For Air Cleaner) |
| 17765 | 17706-B1020 | Stay, Air Cleaner, No.1 |
| 17801 | 17801-97402 | Element Sub-Assy, Air Cleaner Filter |
| 17881 | 17881-B1100 | Hose, Air Cleaner, No.1 |
| 17881 | 90044-66020 | Clamp Or Clip(For Air Hose) |
| 9004120011 | 90041-20011 | New Genuine Part |
| 9004209113 | 90042-09113 | New Genuine Part |
| 9004209117 | 90042-09117 | Spacer(For Air Cleaner) |
| 9004480625 | 90044-80625 | Grommet |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| 9167180816 | 91671-80816 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 17700-B1090 | Cleaner Assy, Air | Air Cleaner ([12.2008 - ] (0812- )) |
| 17705-B1060 | Cap Sub-Assy, Air Cleaner | Air Cleaner ([12.2008 - ] (0812- )) |
| 17706-B1020 | Stay, Air Cleaner, No.1 | Air Cleaner ([12.2008 - ] (0812- )) |
| 17801-97402 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([12.2008 - ] (0812- )) |
| 17881-B1100 | Hose, Air Cleaner, No.1 | Air Cleaner ([12.2008 - ] (0812- )) |
| 17962-B1010 | Bracket, Air Cleaner Inlet, No.1 | Air Cleaner ([12.2008 - ] (0812- )) |
| 90041-20011 | New Genuine Part | Air Cleaner ([12.2008 - ] (0812- )) |
| 90042-09113 | New Genuine Part | Air Cleaner ([12.2008 - ] (0812- )) |
| 90042-09117 | Spacer(For Air Cleaner) | Air Cleaner ([12.2008 - ] (0812- )) |
| 90044-66020 | Clamp Or Clip(For Air Hose) | Air Cleaner ([12.2008 - ] (0812- )) |
| 90044-80392 | Bush(For Air Cleaner) | Air Cleaner ([12.2008 - ] (0812- )) |
| 90044-80530 | Bush(For Air Cleaner) | Air Cleaner ([12.2008 - ] (0812- )) |
| 90044-80625 | Grommet | Air Cleaner ([12.2008 - ] (0812- )) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Air Cleaner ([12.2008 - ] (0812- )) |
| 91671-80816 | Bolt (For Transmission Control Cable Bracket) | Air Cleaner ([12.2008 - ] (0812- )) |
