LX70

Toyota CHASER · 1984 · 5,709 parts · 205 categories
LX70 ×
5,709 items
Accelerator Link ([08.1984 - ] (8408- )LX70) 50
#OEMPart name
78010 78100-30470 Link, Accelerator
78010 90386-10138 Bush (For Throttle Cam Shaft)
78010 90508-16010 Spring, Torsion (For Accelerator Link)
78010 78100-30490 Link, Accelerator
78024 78024-30041 Bracket Sub-Assy, Accelerator Control Cable
78104 78104-30120 Rod Sub-Assy, Accelerator Connecting, No.2
78110 78120-22220 Rod Assy, Accelerator Pedal
78110 78120-22221 Rod Assy, Accelerator Pedal
78110 90508-26054 Spring, Torsion (For Accelerator Link)
78110 78120-22230 Rod Assy, Accelerator Pedal
78110 78120-22231 Rod Assy, Accelerator Pedal
78110 90508-18060 Spring (For Accelerator Pedal Rod)
78111 78111-12100 Pedal, Accelerator
78111 90508-23088 Spring (For Accelerator Pedal)
78111 90249-05001 Pin (For Accelerator Pedal)
78180 78180-22510 Wire Assy, Accelerator
78180 21960-54010 Wire Assy, Accelerator, No.2
78180 78180-22570 Wire Assy, Accelerator
78180 21960-54020 Wire Assy, Accelerator, No.2
78180 21960-54021 Wire Assy, Accelerator Link
78183 78183-22050 Clamp, Accelerator Control Cable
78183 78183-22040 Clamp, Accelerator Control Cable
78407 78407-22060 Arm Sub-Assy, Throttle Control
78407 78407-22061 Arm Sub-Assy, Throttle Control
78410 78410-22070 Cable Assy, Throttle Control
78410 78410-22071 Cable Assy, Throttle Control
9020210005 90202-10005 New Genuine Part
9046110287 90461-10287 Clamp (For Accelerator Wire Set)
9046400184 90464-00184 Clamp, Vacuum Tube
9050112233 90501-12233 New Genuine Part
9092901034 90929-01034 New Genuine Part
9095901207 90959-01207 New Genuine Part
9111150625 91111-50625 Bolt, Hexagon
9111150625 91611-60628 Bolt, Hexagon
9161140812 91611-40812 Bolt(for Drive Plate & Torque Converter Setting)
9161140812 91611-B0812 Bolt
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9162140812 91621-40812 BOLT
9162140814 91621-40814 Bolt
9165140614 91651-40614 Bolt
9165140620 91651-40620 BOLT
9165140630 91651-40630 BOLT
9165540818 91655-40818 New Genuine Part
9165540818 91651-60816 BOLT
9414141000 94141-41000 NUT
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9538102518 95381-02518 PIN
9616000400 96160-00400 Ring, E(For Release Arm)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Air Cleaner ([08.1984 - ] (8408- )2L#) 40
#OEMPart name
17700 17700-54310 Cleaner Assy, Air
17705 17705-54110 Cap Sub-Assy, Air Cleaner
17710 90480-16009 Grommet
17801 17801-54060 Element Sub-Assy, Air Cleaner Filter
17805 17885-54050 Pipe Sub-Assy, Air Cleaner, No.1
17806 17113-54020 Pipe Sub-Assy, Air Cleaner, No.2
17806 17103-54010 Pipe Sub-Assy, Air Cleaner, No.2
17806 90460-70001 Clamp, Hose
17806 90467-56001 Clamp Or Clip(For Air Hose, No.1)
17881 17349-54020 Hose, Air Cleaner, No.1
17881 17881-54140 Hose, Air Cleaner, No.1
17881 96111-10670 Clamp, Hose
17881 96111-10710 Clamp(For Air Cleaner Inlet Duct)
17881 17349-54010 Hose, Air Cleaner, No.1
17881 90460-65004 Clamp Or Clip(For Air Hose, No.1)
17881 90460-65002 Clamp Or Clip(For Air Hose, No.1)
17881 96111-10630 Clamp, Hose
17882 17882-54130 Hose, Air Cleaner, No.2
17882 17891-54010 Clamp(For Air Cleaner Hose, No.2)
17882 17881-54240 Hose, Air Cleaner, No.2
17882 17891-54020 Clamp(For Air Cleaner Hose, No.2)
17883 17883-54070 Hose, Air Cleaner, No.3
17884 17883-54060 Hose, Air Cleaner, No.4
17885 17882-54160 Hose, Air Cleaner, No.5
17893 17893-54040 Resonator, Intake Air
17894 17894-54020 Bracket, Resonator
1780554040 17805-54040 Connector Sub-Assy, Intake Air
9011906142 90119-06142 Bolt A/C
9015960176 90159-60176 New Genuine Part
9033929001 90339-29001 New Genuine Part
9048016004 90480-16004 New Genuine Part
9054011003 90540-11003 New Genuine Part
9056008026 90560-08026 Spacer(For Air Cleaner)
9056009013 90560-09013 New Genuine Part
9162140812 91621-40812 BOLT
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9166640622 91666-40622 New Genuine Part
9166640622 91661-60620 New Genuine Part
9611110380 96111-10380 Clamp Or Clip, Hose(For Radiator Inlet)
Air Purifier Or Ion Generator ([08.1984 - ] (8408- )) 28
#OEMPart name
88901 88901-22020 Motor Sub-Assy, Air Purifier
88904 88904-22040-03 Fitting Kit, Air Purifier
88904 88904-22041-03 Fitting Kit, Air Purifier
88904 88904-22040-05 Fitting Kit, Air Purifier
88904 88904-22041-05 Fitting Kit, Air Purifier
88904 88904-22042-04 Fitting Kit, Air Purifier
88904 88904-22042-05 Fitting Kit, Air Purifier
88905 88905-22030 Wire Sub-Assy, Air Purifier, No.2
88905 88905-22031 Wire Sub-Assy, Air Purifier, No.2
88912 88912-22010 Fan, Air Purifier
88915 88915-22010 Resistor, Air Purifier
88920 88920-22030 Purifier Assy, Air
88920 88920-22031 Purifier Assy, Air
88926 88926-22010 Filter, Air Purifier
88926 88926-22340 Filter, Air Purifier
88926 88926-24010 Filter, Air Purifier
88926 88926-24030 Filter, Air Purifier
88926 88926-22020 Odor, Cartridge
88926 88927-24010 Odor, Cartridge
88930 88930-22050 Switch Assy, Air Purifier
88930 88930-22051 Switch Assy, Air Purifier
88950 88950-24020 Amplifier Assy, Air Purifier
88960 88960-22050-03 Grille Assy, Air Purifier
88960 88960-22050-05 Grille Assy, Air Purifier
9015950033 90159-50033 New Genuine Part
9166140620 91661-40620 New Genuine Part
9353055016 93530-55016 New Genuine Part
9354014514 93540-14514 New Genuine Part
Alternator ([08.1984 - ] (8408- )2L#) 54
#OEMPart name
27020 27020-54180 Alternator Assy
27113 27312-57060 Plate, Bearing Retainer, Alternator
27212 27333-57060 Ring, Space(For Alternator Rotor)
27310 27310-54130 Frame Assy, Drive End, Alternator
27310 27310-54131 Frame Assy, Drive End, Alternator
27310 27412-57060 Collar Or Nut(For Alternator Drive End Frame)
27310 90099-10137 Bearing(For Alternator Drive End Frame)
27310 90099-02209 Felt(For Alternator Drive End Frame)
27313 27313-57060 Cover, Alternator Felt, Inner No.2
27315 27315-57060 Cover, Alternator Felt, Inner No.1
27330 27330-54180 Rotor Assy, Alternator
27330 27330-64170 Rotor Assy, Alternator
27330 90099-07103 Ring, Snap(For Alternator Rotor)
27350 27350-54130 Frame Assy, Rectifier End
27350 90099-52082 Condenser, Alternator
27351 27351-56013 Bush(For Alternator Rectifier End Frame)
27352 27388-54070 Cover, Frame Brush
27353 27353-54180 Holder, W/rectifier Positive, Alternator
27356 27356-54180 Holder, W/rectifier Negative, Alternator
27371 27371-56070 Brush, Alternator
27371 27371-54412 Brush, Alternator
27372 27372-56070 Spring, Alternator Brush
27373 27373-57070 Holder, Alternator Brush, A
27410 27410-54180 Stator Assy, Alternator
27411 27411-54170 Pulley, Alternator
27411 27411-54171 Pulley, Alternator
27441 27441-64030 Fan, Alternator
27700 27700-57060 Regulator Assy, Generator
27700 27700-64030 Regulator Assy, Generator
27700 90099-05118 New Genuine Part
29342 90099-14055 Packing, Vacuum Pump
2737845020 27378-45020 Insulator, Alternator, No.1
2737854010 27378-54010 Insulator, Alternator, No.2
2738745090 27387-45090 Insulator, Terminal
2738754010 27387-54010 Insulator, Terminal
2738756070 27387-56070 Insulator, Terminal
2744756130 27447-56130 Clip, Alternator Cord
9009900937 90099-00937 New Genuine Part
9009902208 90099-02208 New Genuine Part
9009904137 90099-04137 New Genuine Part
9009904137 90099-04099 New Genuine Part
9009904947 90099-04947 New Genuine Part
9009904948 90099-04948 New Genuine Part
9009905119 90099-05119 New Genuine Part
9009905135 90099-05135 New Genuine Part
9009905185 90099-05185 NUT
9009934013 90099-34013 Cap, Alternator Terminal
9010110231 90101-10231 Bolt(For Alternator)
9011908127 90119-08127 BOLT
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9020110283 90201-10283 Washer, Plate(For Steering Tilt Lever)
9331915008 93319-15008 SCREW
Antenna ([08.1984 - ] (8408- )) 3
#OEMPart name
86300 86300-22230 Antenna Assy, W/holder
8271189108 82711-89108 Wire, Fuse To Fuse(for Combustion Heater)
9011906067 90119-06067 BOLT
Armrest & Visor ([08.1984 - ] (8408- )) 62
#OEMPart name
74210 74210-22070-03 Armrest Assy, Front, Rh
74210 74210-22070-24 Armrest Assy, Front, Rh
74210 74210-22070-05 Armrest Assy, Front, Rh
74210 74210-22070-15 Armrest Assy, Front, Rh
74220 74220-22060-03 Armrest Assy, Front, Lh
74220 74220-22060-24 Armrest Assy, Front, Lh
74220 74220-22060-05 Armrest Assy, Front, Lh
74220 74220-22060-15 Armrest Assy, Front, Lh
74223 74223-22010-03 Cap, Door Armrest, Rh
74223 74223-22010-24 Cap, Door Armrest, Rh
74223 74223-22010-05 Cap, Door Armrest, Rh
74223 74223-22010-01 Cap, Door Armrest, Rh
74223 74223-22010-15 Cap, Door Armrest, Rh
74224 74224-22010-03 Cap, Door Armrest, Lh
74224 74224-22010-24 Cap, Door Armrest, Lh
74224 74224-22010-05 Cap, Door Armrest, Lh
74224 74224-22010-01 Cap, Door Armrest, Lh
74224 74224-22010-15 Cap, Door Armrest, Lh
74224 74224-22010-26 Cap, Door Armrest, Lh
74231 74231-22131 Panel, Front Armrest Base, Upper Rh
74232 74232-22110 Panel, Front Armrest Base, Upper Lh
74271 74271-22040 Panel, Rear Door Armrest Base, Upper Rh
74272 74272-22040 Panel, Rear Door Armrest Base, Upper Lh
74310 74310-22390-03 Visor Assy, Rh
74310 74310-22390-04 Visor Assy, Rh
74310 74310-22380-03 Visor Assy, Rh
74310 74310-22380-04 Visor Assy, Rh
74310 74310-22380-05 Visor Assy, Rh
74310 74310-22380-15 Visor Assy, Rh
74320 74320-22440-03 Visor Assy, Lh
74320 74320-22440-04 Visor Assy, Lh
74320 74320-22420-03 Visor Assy, Lh
74320 74320-22420-04 Visor Assy, Lh
74320 74320-22420-05 Visor Assy, Lh
74320 74320-22420-15 Visor Assy, Lh
74348 74348-32010-23 Holder, Visor
74348 74348-12020-B8 Holder, Visor (Gray)
74348 74348-32010-34 Holder, Visor
74348 74348-32010-25 Holder, Visor
74348 74348-32010-45 Holder, Visor
74603 74610-32010-14 Grip Sub-Assy, Assist, Front
74603 74610-20040-04 Grip Sub-Assy, Assist, Front
74603 74610-32010-33 Grip Sub-Assy, Assist, Front
74603 74610-20040-B8 Grip Sub-Assy, Assist
74603 74610-32010-25 Grip Sub-Assy, Assist, Front
74603 74610-20040-05 Grip Sub-Assy, Assist, Front
74603 74610-32010-35 Grip Sub-Assy, Assist, Front
74603 74610-32010-B2 Grip Sub-Assy, Assist
74613 74617-16010-13 Plug, Assist Grip
74613 74617-16010-44 Plug, Assist Grip
74613 74617-16010-J1 Plug, Assist Grip
74613 74617-16010-35 Plug, Assist Grip
74613 74617-16010-20 Plug, Assist Grip
74613 74617-16010-55 Plug, Assist Grip
74613 74617-16010-L0 Plug, Assist Grip
9015960254 90159-60254 New Genuine Part
9016460014 90164-60014 SCREW
9018906020 90189-06020 New Genuine Part
9018906024 90189-06024 GROMMET
9018906043 90189-06043 CLIP
9046710012 90467-10012 CLIP
9353045020 93530-45020 SCREW
Ash Receptacle ([08.1984 - ] (8408- )) 12
#OEMPart name
74102 74102-22080-03 Receptacle Assy, Front Ash
74102 74102-22080-04 Receptacle Assy, Front Ash
74102 74102-22080-05 Receptacle Assy, Front Ash
74102 74102-22080-15 Receptacle Assy, Front Ash
74103 74130-22090-03 Receptacle Sub-Assy, Ash, No.1
74103 74130-22090-13 Receptacle Assy, Rear Ash
74103 74130-22090-04 Receptacle Sub-Assy, Ash, No.1
74103 74130-22090-05 Receptacle Sub-Assy, Ash, No.1
74103 74130-22090-15 Receptacle Sub-Assy, Ash, No.1
74104 74104-22110 Retainer Sub-Assy, Ash Receptacle, No.1
9018305094 90183-05094 NUT
9354055010 93540-55010 SCREW
Automatic Light Control System (Conlight) ([08.1984 - ] (8408- )) 1
#OEMPart name
9356055010 93560-55010 Screw(For Mat Set Plate)
Battery & Battery Cable ([08.1984 - ] (8408- )) 12
#OEMPart name
28800 90982-05029 Terminal, Battery Positive
28800 90982-05030 Terminal, Battery Positive
28800 90982-02239 Cable, Battery To Ground
28800 82122-22060 Cable, Battery To Starter(For Battery To Main Switch)
28800 82122-22080 Cable, Battery To Starter(For Battery To Main Switch)
28800 82821-24010 Cover, Connector(For Battery Terminal)
28800 82823-20030 Cap, Terminal(For Starter)
8271130780 82711-30780 Wire, Fuse To Fuse(for Combustion Heater)
9011906005 90119-06005 New Genuine Part
9011908063 90119-08063 BOLT
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
Battery Carrier ([08.1984 - ] (8408- )) 17
#OEMPart name
74411 74411-22100 Carrier, Battery
74411 74431-14040 Carrier, Battery
74413 74451-14010 Bolt, Battery Clamp
74413 74451-22020 Bolt, Battery Clamp
74453 74414-22010 Support, Battery Carrier
74474 74471-30080 Pad, Battery
74474 74473-22010 Spacer, Battery
74474 74474-22010 Pad, Battery
74481 74404-22180 Clamp, Battery Hold Down
74481 74404-22210 Clamp, Battery Hold Down
9017906097 90179-06097 Clip(For Front Bumper), No.1
9017906097 90179-06206 Nut
9165140614 91651-40614 Bolt
9165540618 91655-40618 New Genuine Part
9165540618 91651-60616 BOLT
9166540618 91665-40618 New Genuine Part
9166540618 91661-40616 New Genuine Part

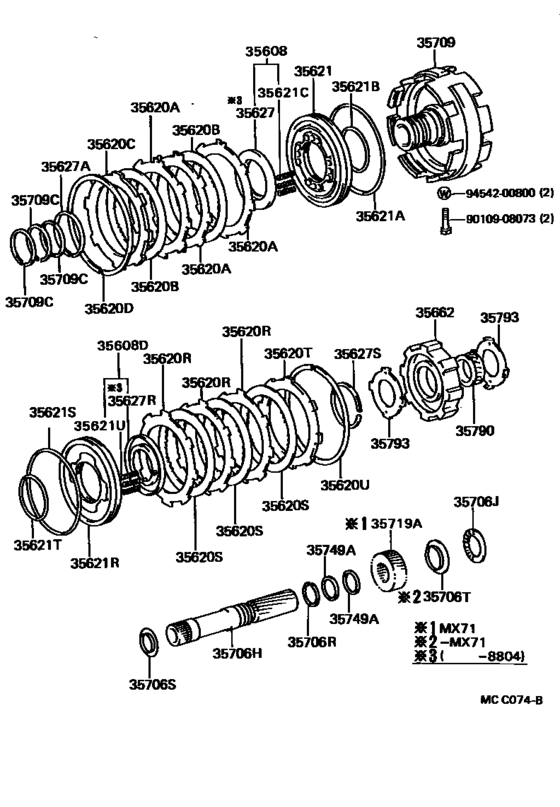

Brake Band & Multiple Disc Clutch (Atm) ([08.1984 - ] (8408- )4FC..TBO,TD,TWC) 29
#OEMPart name
35601 90301-57188 Ring, O (For Underdrive Clutch Piston)
35601 90301-56007 Ring, O (For Underdrive Clutch Piston)
35602 35602-30042 Piston Sub-Assy, Front Clutch
35605 35605-30021 Drum Sub-Assy, Rear Clutch W/2Nd Sun Gear
35606 35606-30021 Piston Sub-Assy, Rear Clutch
35610 90501-11023 Spring, Compression (For Overdrive Direct Clutch)
35610 90520-39261 Ring, Shaft Snap (For Front Clutch Piston Return Spring)
35610 90521-99139 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35613 90301-99016 Ring, O (For Overdrive Direct Clutch Piston)
35615 35615-30020 Seat, Clutch Piston Return Spring
35631 35631-30050 Hub, Clutch(For Multiple Disc Clutch)
35631 90374-28014 Bearing, Thrust Needle Roller(For Overdrive)
35631 35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
35631 35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35633 35677-30030 Disc, Clutch (For Overdrive)
35633 35677-30160 Disc, Clutch (For Overdrive)
35634 35634-22040 Plate, Clutch (For Overdrive)
35634 35634-30070 Plate, Clutch (For Overdrive)
35653 90301-84184 Ring, O (For Transfer Low Speed Brake Piston)
35653 90301-83001 Ring, O (For Rear Clutch Piston)
35654 35654-30010 Hub, Rear Clutch
35654 90521-99146 Ring, Hole Snap, No.1 (For Overdrive)
35675 35675-30030 Flange, Rear Clutch
35675 35675-22120 Flange, Rear Clutch
35701 35701-30042 Shaft Sub-Assy, Input
35701 35701-30043 Shaft Sub-Assy, Input
35701 90520-99012 Ring, Hole Snap (For Front Multiple Disc Clutch)
35701 90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35701 35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)
Brake Booster & Vacuum Tube ([02.1985 - ] (8408-8502)KYO,SXL,XG,XL ; (8502-8510)GX71,SX70. .SXL,XG,XL ; (8502- )KYO ; (8510 - )SXL) 12
#OEMPart name
4443 04443-22440 Booster Kit, Brake
4443 04443-22490 Booster Kit, Brake
4443 04443-22491 Booster Kit, Brake
44608 44606-12520 Rod Sub-Assy, Booster Piston(For Clutch Booster)
44610 44610-22470 Booster Assy, Brake
44610 44610-22560 Booster Assy, Brake
44618 44621-28120 Seal, Booster Body No.1(For Clutch Booster)
44629 44628-28120 Ring, Circular Internal(For Clutch Booster)
44642 44642-16050 Piston, Brake Booster
44663 44635-28120 Key, Valve Stopper
44785 44785-32010 Gasket, Brake Booster
9017908038 90179-08038 Nut
Brake Booster & Vacuum Tube ([02.1985 - ] (8408-8510)AVT..EFI ; (8502- )LX70..XG,XL ; ( 8510- )SX70..XG,XL) 16
#OEMPart name
4443 04443-22420 Booster Kit, Brake
4443 04443-22520 Booster Kit, Brake
4443 04443-22560 Booster Kit, Brake
44605 44605-22021 Plate & Seal Sub-Assy, Booster
44605 44605-10080 Plate & Seal Sub-Assy, Booster
44608 44606-12520 Rod Sub-Assy, Booster Piston(For Clutch Booster)
44608 44608-32020 Rod Sub-Assy, Brake Booster Piston
44610 44610-22440 Booster Assy, Brake
44610 44610-22580 Booster Assy, Brake
44633 44633-28130 Key, Booster Valve Plunger
44637 44637-32040 Plate, Booster Diaphragm
44645 44645-22020 Retainer, Booster Push Rod Seal
44673 44673-28190 Body, Booster Valve
44673 44673-32020 Body, Booster Valve
44785 44785-32010 Gasket, Brake Booster
9017908038 90179-08038 Nut
Brake Booster & Vacuum Tube ([08.1984 - 02.1985] (8408-8502)KYO,SXL,XG,XL ; (8502-8510)GX71,SX70. .SXL,XG,XL ; (8502- )KYO ; (8510 - )SXL) 19
#OEMPart name
4443 04443-22440 Booster Kit, Brake
4443 04443-22490 Booster Kit, Brake
4443 04443-22491 Booster Kit, Brake
4443 04443-22420 Booster Kit, Brake
4443 04443-22520 Booster Kit, Brake
4443 04443-22560 Booster Kit, Brake
44608 44606-12520 Rod Sub-Assy, Booster Piston(For Clutch Booster)
44608 44608-32020 Rod Sub-Assy, Brake Booster Piston
44610 44610-22470 Booster Assy, Brake
44610 44610-22560 Booster Assy, Brake
44610 44610-22440 Booster Assy, Brake
44610 44610-22580 Booster Assy, Brake
44618 44621-28120 Seal, Booster Body No.1(For Clutch Booster)
44629 44628-28120 Ring, Circular Internal(For Clutch Booster)
44642 44642-16050 Piston, Brake Booster
44642 44642-12520 Piston, Brake Booster
44663 44635-28120 Key, Valve Stopper
44785 44785-32010 Gasket, Brake Booster
9017908038 90179-08038 Nut
Brake Booster & Vacuum Tube ([08.1984 - ] (8408- )KYO) 46
#OEMPart name
4443 04443-22440 Booster Kit, Brake
4443 04443-22490 Booster Kit, Brake
4443 04443-22491 Booster Kit, Brake
44072 44072-22560 Body Sub-Assy, Separator Booster, No.2
44078 44078-22560 Body Sub-Assy, Control Valve
44601 44601-37010 Diaphragm Plate Sub-Assy, Booster, Rear
44610 44610-22470 Booster Assy, Brake
44610 44610-22560 Booster Assy, Brake
44621 31478-30010 Bleeder Plug Cap
44621 47548-20010 Cap, Bleeder Plug(For Release Cylinder)
44621 90301-59044 Ring, O (For Winch Gear Case Cover)
44621 47547-30020 Plug, Bleeder(For Release Cylinder)
44621 47547-40020 Plug, Bleeder(For Hydraulic Cylinder Body)
44626 44626-30010 Retainer, Booster Rod Cup
44641 44649-36040 Retainer, Booster Spring
44643 44643-36040 Retainer, Diaphragm
44643 96150-01400 Ring, Snap(For Diaphragm Retainer)
44644 90202-08068 Spacer, Piston Rod
44647 44647-30010 Rod, Booster Piston
44648 44648-36040 End, Piston Rod
44648 90250-03142 Pin, Booster Rod End
44657 90560-08294 Spacer(For Booster Control Valve Piston)
44671 44671-36040 Seat, Vacuum Valve
44675 44688-22560 Hose, Booster Vacuum
44696 90480-24439 Grommet, Check Valve
44711 44711-30010 Body, Air Cleaner(For Booster)
44715 44715-20020 Element, Air Cleaner(For Booster)
44730 44730-22080 Valve Assy, Vacuum Check(For Brake)
44731 44731-22040 Bracket, Brake Booster, Front
44732 44732-22010 Bracket, Brake Booster, Rear
44732 44732-22020 Bracket, Brake Booster, Rear
44995 44995-36040 Pin, Valve Joint
44999 44999-36040 Ring, O(For Control Valve)
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046716002 90467-16002 Clip(Vaccum Transmitting Hose No.1)
9046716002 96133-41500 Clamp Or Clip(For Air Hose, No.5)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160818 91611-60818 Bolt(For Oil Receiver Pipe)
9161160818 90119-08830 Bolt(For Oil Receiver Pipe)
9165140855 91651-40855 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9321915012 93219-15012 New Genuine Part

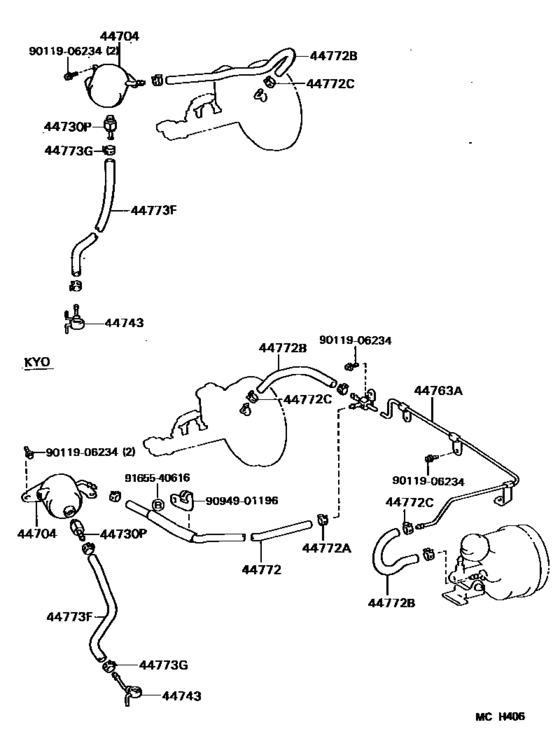

Brake Booster & Vacuum Tube ([08.1984 - ] (8408- )LX70) 19
#OEMPart name
44704 44704-22030 Reservoir Sub-Assy, Vacuum
44704 44704-22020 Reservoir Sub-Assy, Vacuum
44730 44730-60040 Booster Kit, Brake
44730 44730-60050 Valve Assy, Vacuum Check(For Clutch Vacuum)
44743 90405-09062 Union, Vacuum Hose(For Manifold Side)
44743 90405-09072 Union, Vacuum Hose(For Manifold Side)
44763 44763-22110 Tube, Hose To Hose, No.1
44772 44772-22150 Hose, Check Valve To Connector Tube
44772 90467-16002 Clip(Vaccum Transmitting Hose No.1)
44772 96133-41500 Clamp Or Clip(For Air Hose, No.5)
44772 44772-22060 Hose, Check Valve To Brake Booster
44772 44772-22130 Hose, Check Valve To Brake Booster
44772 44772-22160 Hose, Check Valve To Brake Booster
44773 44773-22430 Hose, Union To Check Valve
44773 44773-22360 Hose, Union To Check Valve
9011906234 90119-06234 New Genuine Part
9094901196 90949-01196 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
Brake Maintenance Kit ([08.1984 - ] (8408- )) 3
#OEMPart name
4902 04902-22170 Maintenace Kit, Brake
4902 04902-22150 Maintenace Kit, Brake
4902 04902-22180 Maintenace Kit, Brake
Brake Master Cylinder ([08.1984 - ] (8408- )GX71,LX70,SX70..AVT,SXL,XG,XL) 29
#OEMPart name
4493 04493-22120 Cylinder Kit, Brake Master
4493 04493-22130 Cylinder Kit, Brake Master
47201 47201-22450 Cylinder Sub-Assy, Brake Master
47201 47201-22570 Cylinder Sub-Assy, Brake Master
47202 47265-20060 Boot, Reservoir, No.1(For Brake Master Cylinder Side)
47202 96151-02000 Ring, Snap (For Low Coast Shift Control Valve)
47202 90407-10003 Union, Reservoir(For Brake Master Cylinder Side)
47202 90407-10004 Union, Reservoir(For Brake Master Cylinder Side)
47202 90301-14001 Ring, O(For Clutch Master Cylinder Union)
47205 47202-22220 Reservoir Sub-Assy, Brake Master Cylinder
47210 90430-06104 Gasket(For Brake Actuator)
47210 90109-06008 Bolt(For Brake Master Cylinder)
47230 84460-20051 Cap Assy, Brake Master Cylinder Reservoir Filler
47230 84460-12011 Cap Assy, Brake Master Cylinder Reservoir Filler
47231 47231-22010 Bolt, Brake Master Cylinder Reservoir Set
47231 47231-30010 Bolt, Clutch Master Cylinder Reservoir Set
47232 47232-30010 Washer, Reservoir Set Bolt
47236 47234-20010 Tube, Reservoir, No.1
47236 90467-16001 Clamp, Oil Cooler Hose
47236 96133-41500 Clamp Or Clip(For Air Hose, No.5)
47264 47264-22010 Clevis, Master Cylinder Push Rod
47265 47265-20050 Boot, Clutch Master Cylinder
47275 47275-24010 Gasket, Brake Master Cylinder
47299 47299-22030 Strainer, Brake Master Cylinder Reservoir
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046108202 90461-08202 Clamp(For Brake Master Cylinder)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Brake Master Cylinder ([08.1984 - ] (8408- )KYO) 50
#OEMPart name
4493 04493-22130 Cylinder Kit, Brake Master
4493 04493-22140 Cylinder Kit, Brake Master
47201 47200-2A410 Cylinder Sub-Assy, Brake Master
47201 47201-22530 Cylinder Sub-Assy, Brake Master
47202 47265-20060 Boot, Reservoir, No.1(For Brake Master Cylinder Side)
47202 96151-02000 Ring, Snap (For Low Coast Shift Control Valve)
47202 90407-10003 Union, Reservoir(For Brake Master Cylinder Side)
47202 90407-10004 Union, Reservoir(For Brake Master Cylinder Side)
47202 90301-14001 Ring, O(For Clutch Master Cylinder Union)
47205 47202-22210 Reservoir Set, Brake Master Cylinder(For Rear Side)
47205 90562-18151 Ring(For Clutch Master Cylinder Reservoir)
47210 90430-06104 Gasket(For Brake Actuator)
47210 90109-06008 Bolt(For Brake Master Cylinder)
47218 47218-12040 Plug, Master Cylinder Fluid Outlet
47218 90430-09253 Gasket(For Clutch Master Cylinder Accumulator)
47218 90430-16242 Gasket, W/head Straight Screw Plug
47218 90404-16307 Union(For Clutch Master Cylinder)
47230 84460-20051 Cap Assy, Brake Master Cylinder Reservoir Filler
47230 84460-12011 Cap Assy, Brake Master Cylinder Reservoir Filler
47231 47231-20010 Bolt, Clutch Master Cylinder Reservoir Set
47234 90445-17059 Tube, Reservoir, No.1
47234 90445-17060 Tube, Reservoir, No.1
47234 90467-16001 Clamp, Oil Cooler Hose
47234 96133-41500 Clamp Or Clip(For Air Hose, No.5)
47235 47235-22010 Tube, Brake Master Cyrinder Reservoir, No.2
47236 47234-20010 Tube, Reservoir, No.1
47236 90445-17061 Tube, Reservoir, No.3
47236 90445-17071 Tube, Reservoir, No.3
47261 47261-22050 Rod, Master Cylinder Push
47264 47264-22010 Clevis, Master Cylinder Push Rod
47265 47265-12020 Boot, Master Cylinder
47265 47265-20050 Boot, Clutch Master Cylinder
47275 47275-22020 Gasket, Brake Master Cylinder
47275 47275-24010 Gasket, Brake Master Cylinder
47276 47276-22010 Bracket, Brake Master Cylinder
47299 47299-22030 Strainer, Brake Master Cylinder Reservoir
9011608193 90116-08193 New Genuine Part
9017908038 90179-08038 Nut
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046108202 90461-08202 Clamp(For Brake Master Cylinder)
9094901195 90949-01195 New Genuine Part
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
9165140855 91651-40855 New Genuine Part
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Brake No.3, 1St & Reverse Brake (Atm) ([08.1984 - ] (8408- )4FC..AVT,SXL,XG,XL) 23
#OEMPart name
35622 35622-22010 Piston, Brake, No.2
35622 90301-99193 Ring, O (For Overdrive Brake Piston)
35622 90301-57188 Ring, O (For Underdrive Clutch Piston)
35622 90301-56007 Ring, O (For Underdrive Clutch Piston)
35623 35623-22010 Piston, Brake, No.3
35623 90301-99192 Ring, O (For Overdrive Direct Clutch Piston)
35623 90501-10671 Spring, Compression (For Overdrive Direct Clutch)
35623 35627-22010 Seat, Brake Return Spring
35623 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)
35626 35626-22010 Sleeve, Brake Reaction
35626 90301-99200 Ring (For Brake Reaction Sleeve Outer)
35626 90301-99109 Ring (For Brake Reaction Sleeve Outer)
35626 90301-68191 Ring (For Brake Reaction Sleeve Inner)
35626 90301-67005 Ring (For Brake Reaction Sleeve Inner)
35666 35666-30010 Tube, Brake Apply
35666 35634-22080 Plate, Clutch (For Brake)
35666 35647-22010 Plate, Clutch, No.2
35666 35633-30030 Disc, Clutch (For Brake)
35666 35633-30060 Disc, Clutch (For Brake)
35666 35633-30050 Disc, Clutch (For Brake)
35666 35639-22010 Plate, Clutch Pressure (For Brake)
35707 35707-30030 Race Sub-Assy, 1 Way Clutch, Inner
35707 90521-99140 Ring (For Rear Brake)
Brake Pedal & Bracket ([08.1984 - ] (8408- )) 35
#OEMPart name
47101 47101-22240 Pedal Sub-Assy, Brake
47101 47101-22280 Pedal Sub-Assy, Brake
47101 47101-22290 Pedal Sub-Assy, Brake
47101 47121-22020 Pad, Brake Pedal
47101 47101-22320 Pedal Sub-Assy, Brake
47101 90507-12011 Spring(For Clutch Pedal)
47101 90507-14018 Spring(For Brake Pedal Return)
47101 90386-13015 Bush(For Clutch Pedal)
47101 90386-13192 Bush(For Over Center Plate)
47101 47101-22250 Pedal Sub-Assy, Brake
47101 47101-22300 Pedal Sub-Assy, Brake
47105 55179-22060 Reinforcement, Brake Pedal Support
47121 31321-14020 Pad, Clutch Pedal
47121 31321-30040 Pad, Clutch Pedal
47121 47121-14010 Pad, Brake Pedal - Automatic Transmission
47124 90101-10039 Shaft, Clutch Pedal
47124 90101-10380 Shaft, Brake Pedal
47124 90387-10003 Collar, Clutch Pedal Shaft
47124 90387-10044 Collar, Selecting Link
47131 90541-06008 Cushion, No.1(For Clutch Pedal)
47131 90541-06032 Cushion, No.1(For Clutch Pedal)
47131 90541-06036 Cushion, No.1(For Clutch Pedal)
47264 90249-10017 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
47264 90249-10064 Pin(For Push Rod)
55106 55106-22130 Support Sub-Assy, Brake Pedal
55106 55106-22150 Support Sub-Assy, Brake Pedal
55106 55108-22010 Support Sub-Assy, Brake Pedal
9011906126 90119-06126 BOLT
9011906126 90080-11157 Bolt with Washer
9046816142 90468-16142 Clip(For Push Rod Clevis Pin)
9165560628 91655-60628 New Genuine Part
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
9411051000 94110-51000 Nut(For Steering Center Arm)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Tube & Clamp ([08.1984 - 08.1986] (8408-8608)LX70,SX70..KYO) 43
#OEMPart name
47150 47150-12031 Valve Assy, Proportioning
47150 47150-22050 Valve Assy, Proportioning
47159 47159-22130 Bracket, Change Valve
47170 47170-22050 Valve Assy, Brake Change
47311 90413-10177 Way(For Front Brake Tube)
47312 47312-22130 Tube, Front Brake, No.2
47313 47313-22230 Tube, Front Brake, No.3
47313 90947-02462 Hose, Flexible, No.1(For Front)
47314 47314-22130 Tube, Front Brake, No.4
47315 47315-22150 Tube, Front Brake, No.5
47316 47316-22200 Tube, Front Brake, No.6
47316 96940-32955 Hose, Flexible(For Rear Brake Tube)
47317 47317-22150 Tube, Front Brake, No.7
47321 90412-10118 Way, 2(For Rear Brake Tube)
47322 47322-22130 Tube, Rear Brake, No.2
47322 47322-22190 Tube, Rear Brake, No.2
47322 90413-10098 Way, No.2(For Rear Brake Tube)
47324 47324-22180 Tube, Rear Brake, No.4
47327 47327-22100 Tube, Rear Brake, No.7
47328 47328-22100 Tube, Rear Brake, No.8
47331 47331-22020 Tube, Rear Brake, No.10
47331 47331-22030 Tube, Rear Brake, No.10
47332 47322-22010 Tube, Rear Brake, No.11
47333 47333-22020 Tube, Rear Brake, No.12
47371 47371-22030 Clamp, Brake Tube, No.1
47372 47371-22040 Clamp, Brake Tube, No.2
47373 47371-22080 Clamp, Brake Tube, No.3
9046106056 90461-06056 New Genuine Part
9046106902 90461-06902 Clamp, Brake Tube, No.3
9161140612 91611-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612 91611-G0612 Bolt
9161160610 91611-60610 Bolt (For Transfer Oil Receiver No.1)
9161160610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9165160640 91651-60640 Bolt, Rear Body Mounting
9165160640 91651-B0640 Bolt, Rear Body Mounting
9616001200 96160-01200 Ring, E(For Clutch Release Cable)
9622130905 96221-30905 CLAMP
9699110080 96991-10080 CLIP
Brake Tube & Clamp ([08.1984 - ] (8408- )XG,XL) 30
#OEMPart name
47150 47150-12031 Valve Assy, Proportioning
47150 47150-22050 Valve Assy, Proportioning
47311 47311-22310 Tube, Front Brake, No.1
47311 90413-10177 Way(For Front Brake Tube)
47312 47312-22130 Tube, Front Brake, No.2
47313 47313-22230 Tube, Front Brake, No.3
47313 90947-02462 Hose, Flexible, No.1(For Front)
47316 96940-32955 Hose, Flexible(For Rear Brake Tube)
47321 47321-22130 Tube, Rear Brake, No.1
47321 90412-10118 Way, 2(For Rear Brake Tube)
47322 47322-22130 Tube, Rear Brake, No.2
47322 90413-10098 Way, No.2(For Rear Brake Tube)
47324 47324-22180 Tube, Rear Brake, No.4
47327 47327-22100 Tube, Rear Brake, No.7
47328 47328-22100 Tube, Rear Brake, No.8
47371 47371-22030 Clamp, Brake Tube, No.1
47372 47371-22040 Clamp, Brake Tube, No.2
9046106056 90461-06056 New Genuine Part
9046106902 90461-06902 Clamp, Brake Tube, No.3
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9165160640 91651-60640 Bolt, Rear Body Mounting
9165160640 91651-B0640 Bolt, Rear Body Mounting
9616001200 96160-01200 Ring, E(For Clutch Release Cable)
9622130905 96221-30905 CLAMP
9699110080 96991-10080 CLIP
Brake Tube & Clamp ([08.1986 - ] (8608- )LX70,SX70..KYO) 44
#OEMPart name
47150 47150-12031 Valve Assy, Proportioning
47150 47150-22050 Valve Assy, Proportioning
47159 47159-14030 Bracket, Proportioning Valve
47159 47159-22130 Bracket, Change Valve
47170 47170-22050 Valve Assy, Brake Change
47311 90413-10177 Way(For Front Brake Tube)
47312 47312-22130 Tube, Front Brake, No.2
47313 47313-22230 Tube, Front Brake, No.3
47313 90947-02462 Hose, Flexible, No.1(For Front)
47314 47314-22130 Tube, Front Brake, No.4
47315 47315-22150 Tube, Front Brake, No.5
47316 47316-22200 Tube, Front Brake, No.6
47316 96940-32955 Hose, Flexible(For Rear Brake Tube)
47317 47317-22150 Tube, Front Brake, No.7
47321 47321-14090 Tube, Rear Brake, No.1
47321 90412-10118 Way, 2(For Rear Brake Tube)
47322 47322-22130 Tube, Rear Brake, No.2
47322 47322-22190 Tube, Rear Brake, No.2
47322 90413-10098 Way, No.2(For Rear Brake Tube)
47324 47324-22180 Tube, Rear Brake, No.4
47327 47327-22100 Tube, Rear Brake, No.7
47328 47328-22100 Tube, Rear Brake, No.8
47331 47331-22020 Tube, Rear Brake, No.10
47331 47331-22030 Tube, Rear Brake, No.10
47332 47322-22010 Tube, Rear Brake, No.11
47371 47371-22030 Clamp, Brake Tube, No.1
47372 47371-22040 Clamp, Brake Tube, No.2
47373 47371-22080 Clamp, Brake Tube, No.3
9046106056 90461-06056 New Genuine Part
9046106902 90461-06902 Clamp, Brake Tube, No.3
9161140612 91611-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612 91611-G0612 Bolt
9161160610 91611-60610 Bolt (For Transfer Oil Receiver No.1)
9161160610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9165160640 91651-60640 Bolt, Rear Body Mounting
9165160640 91651-B0640 Bolt, Rear Body Mounting
9616001200 96160-01200 Ring, E(For Clutch Release Cable)
9622130905 96221-30905 CLAMP
9699110080 96991-10080 CLIP
Camshaft & Valve ([08.1984 - ] (8408- )2L#) 44
#OEMPart name
11802 11802-54010 Bearing Set, Camshaft
11802 11803-54010 Bearing Set, Camshaft (0.125)
11802 11804-54010 Bearing Set, Camshaft (0.25)
13502 13503-54020 Idler Sub-Assy, Timing Belt, No.2
13505 13505-54010 Idler Sub-Assy, Timing Belt, No.1
13505 90506-14038 Spring, Tension(For Idler)
13511 13501-54020 Camshaft
13511 90250-05121 Pin, Straight, No.3(For Camshaft Knock)
13511 13501-54040 Camshaft
13523 13523-54020 Pulley, Camshaft Timing
13558 13558-54010 Bracket, Spring(For Idler)
13568 13568-59025 Belt, Timing
13568 13568-59027 Belt, Timing
13613 13603-54020 Pulley, Injection Pump Drive
13613 13613-54020 Pulley, Injection Pump Drive
13711 13711-54010 Valve, Intake
13711 90913-02060 Seal Or Ring, O(For Valve Stem Oil)
13711 90913-02059 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-44002 Spring, Compression(For Inner)
13711 90201-20579 Washer, Plate(For Valve Spring Seat)
13715 13715-54010 Valve, Exhaust
13715 13715-54020 Valve, Exhaust
13715 13715-54021 Valve, Exhaust
13741 13741-54010 Retainer, Valve Spring
13741 90913-03016 Lock, Valve Spring Retainer
13801 13801-54020 Arm Sub-Assy, Valve Rocker, No.1
13801 13801-54021 Arm Sub-Assy, Valve Rocker, No.1
13801 90170-08005 Nut, Hexagon(For Valve Adjusting)
13801 90170-08210 Nut, Hexagon(For Valve Adjusting)
13801 90913-05019 Screw, Valve Adjusting
13801 90501-16163 Spring, Compression(For Rocker Arm)
13802 13802-54020 Arm Sub-Assy, Valve Rocker, No.2
13802 13802-54021 Arm Sub-Assy, Valve Rocker, No.2
13901 13901-54010 Shaft Sub-Assy, Valve Rocker, No.1
13951 13951-54020 Support, Valve Rocker, No.1
13951 90119-08191 Bolt(For Head To Camshaft Bearing Cap)
13951 91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)
9009905166 90099-05166 Nut, Timer Round
9010510061 90105-10061 New Genuine Part
9010908021 90109-08021 New Genuine Part
9011914005 90119-14005 Washer, Plate(For Crankshaft Pulley Set)
9020108001 90201-08001 New Genuine Part
9020109562 90201-09562 New Genuine Part
9161160850 91611-60850 Bolt(For Rocker Support Set)
Caution Plate & Name Plate (Engine) ([08.1984 - ] (8408- )) 13
#OEMPart name
11283 11283-54010 Plate, Turbocharger Caution
11283 11293-54020 Plate, Engine Caution & Engine Name
11283 11283-54030 Plate, Turbocharger Caution
11283 11294-55010 Plate, Turbocharger Caution
11284 11284-54010 Plate, Engine Bolt Information
11293 11293-54030 Plate, Engine Caution & Engine Name
11293 11293-54050 Plate, Engine Caution & Engine Name
11294 11294-54040 Plate, Engine Caution, No.2
11294 11294-56010 Plate, Engine Caution, No.2
11294 15369-54010 Plate, Engine Caution, No.2
11296 11296-54010 Plate, Timing Belt Caution
11297 11297-64010 Plate, Engine Start Caution
17700 17791-64020 Plate, Air Cleaner Caution (For Engine Model)
Caution Plate (Exterior & Interior) ([08.1984 - ] (8408- )) 19
#OEMPart name
64646 64646-22010 Plate, Luggage Lock Caution
74519 74559-14030 Plate, Fuel Caution (DIESEL+Jap)
74529 69339-12010 Plate, Child Protector Lock Caution
74529 69339-AA020 Plate, Child Protector Lock Caution
74541 42661-22330 Plate, Tire Pressure Caution
74541 42661-22490 Plate, Tire Pressure Caution
74541 42661-22320 Plate, Tire Pressure Caution
74541 42661-22321 Plate, Tire Pressure Caution
74541 42661-22390 Plate, Tire Pressure Caution
74541 42668-40010 Plate, Compact Spare Tire Caution
74562 74562-22360 Plate, Emission Control System Information
74562 74562-60110 Plate, Emission Control System Information
74563 74563-22160 Plate, Emission Control Device Identification
74563 74563-22170 Plate, Emission Control Device Identification
74571 47288-32010 Plate, Brake Fluid Caution
74571 74571-27021 Plate, Brake Fluid Caution
74571 74571-27022 Plate, Brake Fluid Caution
74574 74574-22050 Plate, Noise Identification
74574 74574-22051 Plate, Noise Identification
Center Support & Planetary Sun Gear (Atm) ([08.1984 - ] (8408- )4FC..EFI,TBO,TD,TWC) 38
#OEMPart name
35608 35608-20010 Spring Sub-Assy, 2Nd Brake Piston Return
35608 35608-30020 Spring Sub-Assy, 2Nd Brake Piston Return
35620 35634-22060 Plate, Clutch (For Overdrive)
35620 35634-22090 Plate, Clutch (For Brake)
35620 35677-22050 Disc, Clutch (For Brake)
35620 35677-30160 Disc, Clutch (For Overdrive)
35620 35677-30030 Disc, Clutch (For Overdrive)
35620 35677-30100 Disc, Clutch (For Brake)
35620 35675-22010 Flange, Overdrive Clutch
35620 35675-22140 Flange, Overdrive Clutch
35620 90521-99139 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35620 35648-30020 Plate, Clutch (For Rear Brake)
35620 35677-30020 Disc, Clutch (For Rear Brake)
35620 34625-22010 Flange, Overdrive Brake, No.1
35620 35676-22030 Flange, Overdrive Brake
35621 35624-22010 Piston, Brake, No.1
35621 90301-99192 Ring, O (For Overdrive Direct Clutch Piston)
35621 90301-57188 Ring, O (For Underdrive Clutch Piston)
35621 90301-56007 Ring, O (For Underdrive Clutch Piston)
35621 90501-10671 Spring, Compression (For Overdrive Direct Clutch)
35621 35621-30010 Piston, Brake, No.1
35621 90301-99007 Ring, O (For Brake Piston Outer)
35621 90301-99107 Ring (For Rear Brake Piston Outer)
35627 35627-22010 Seat, Brake Return Spring
35627 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)
35662 35662-30010 Hub, Brake
35706 35706-30040 Gear Sub-Assy, Planetary Sun
35706 90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35706 90520-34001 Ring, Shaft Snap (For Sun Gear Front)
35706 35789-22030 Race, Thrust Bearing(For Overdrive)
35706 35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)
35709 35709-30041 Support Sub-Assy, Center
35709 35617-16010 Ring, Oil Seal (For Overdrive Case)
35749 35749-30010 Ring, Sun Gear Shaft Oil Seal
35790 35791-30020 Clutch, 1Way, No.1(For Overdrive)
35793 35793-22011 Retainer, 1 Way Clutch
9010908073 90109-08073 Bolt (For Front Oil Pump Setting)
9454200800 94542-00800 New Genuine Part
Clutch & Release Fork ([08.1984 - ] (8408- )GX71,LX70,SX70..5F) 25
#OEMPart name
31126 31126-20070 Boot, Clutch Release Fork
31201 31201-29085 Cover Sub-Assy, Clutch
31201 31201-26010 Cover Sub-Assy, Clutch
31210 31210-36029 Cover Assy, Clutch
31210 31210-30221 Cover Assy, Clutch
31216 31216-30010 Spring, Clutch Retracting
31221 31221-39056 Spring, Clutch Retracting
31221 31221-36025 Spring, Clutch Retracting
31231 31231-20090 Hub, Clutch Release Bearing
31231 90363-40022 Bearing, Ball(For Clutch Release Hub)
31232 31232-22010 Clip Or Spring, Release Bearing Hub
31236 31236-30060 Ball, Release Fork
31240 31204-20090 Fork Sub-Assy, Clutch Release
31250 31250-22180 Disc Assy, Clutch
31250 31250-35222 Disc Assy, Clutch
31250 31250-22210 Disc Assy, Clutch
31250 31250-20202 Disc Assy, Clutch
33311 90363-12002 Bearing (For Input Shaft)
33311 90363-12024 Bearing, Radial Ball
9010108022 90101-08022 Bolt, Clutch Pressure Plate
9011908026 90119-08026 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908026 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9015960261 90159-60261 New Genuine Part
9017008197 90170-08197 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)

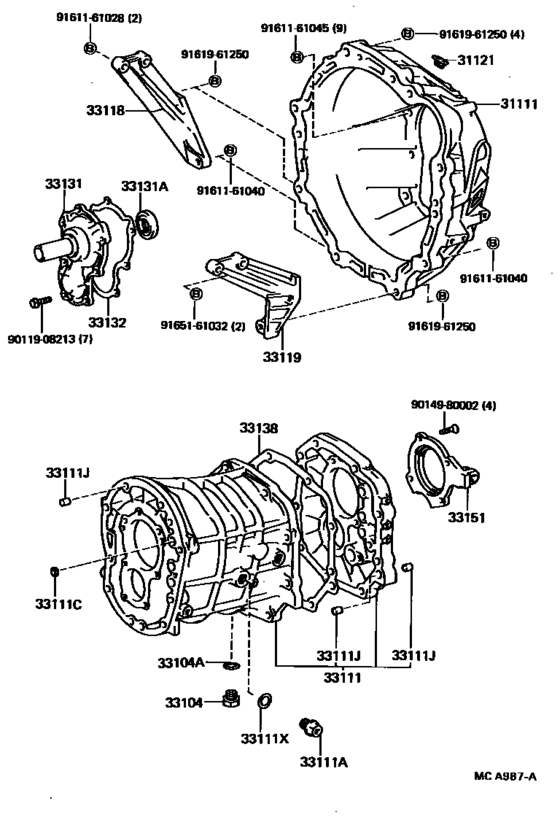

Clutch Housing & Transmission Case (Mtm) ([08.1984 - ] (8408- )LX70..5F) 29
#OEMPart name
31111 31111-22111 Housing, Clutch
31111 31111-22114 Housing, Clutch
33104 90341-18057 Drain Plug (with Magnet)
33104 90430-18008 Gasket
33104 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33111 33101-22030 Case, Manual Transmission
33111 33101-30070 Case, Manual Transmission
33111 33242-30080 Shaft, Gear Shift Fork, No.1
33111 90341-18002 Plug, No.1
33111 90331-14004 Plug, Manual Transmission Case
33111 90250-12002 Pin, Straight(For Manual Transmission Case)
33118 33118-25020 Plate, Stiffener, Rh(Mtm)
33119 33119-25020 Plate, Stiffener, Lh(Mtm)
33131 33131-22020 Retainer, Bearing, Front(Mtm)
33131 33131-22021 Retainer, Bearing, Front(Mtm)
33131 90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)
33132 33132-22010 Gasket, Front Bearing Retainer(Mtm)
33138 33142-22010 Gasket, Intermediate Plate
33151 33107-22010 Retainer, Output Shaft Rear Bearing(Mtm)
9011908213 90119-08213 Bolt, W/washer(For Transmission Case Cover)
9014980002 90149-80002 BOLT
9161161028 91611-61028 Bolt(For Transaxle Case & Engine Setting)
9161161028 91612-61028 Bolt(For Transaxle Case & Engine Setting)
9161161040 91611-61040 Bolt(For Transaxle Case & Engine Setting)
9161161040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161161045 91611-61045 Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161961250 91619-61250 Bolt
9165161032 91651-61032 BOLT
Clutch Master Cylinder ([08.1984 - ] (8408- )5F..CBR,DSL,EFI,LPG,TD) 20
#OEMPart name
4311 04311-14021 Cylinder Kit, Clutch Master
4311 04311-14013 Cylinder Kit, Clutch Master
4311 04311-30080 Cylinder Kit, Clutch Master
31402 31402-30030 Reservoir Sub-Assy, Clutch Master Cylinder
31410 31410-22140 Cylinder Assy, Clutch Master
31410 31410-22240 Cylinder Assy, Clutch Master
31410 31410-22141 Cylinder Assy, Clutch Master
31410 31410-22142 Cylinder Assy, Clutch Master
31410 31410-24012 Cylinder Assy, Clutch Master
31425 47230-20040 Cap, Clutch Master Cylinder Reservoir Filler
31426 31426-30011 Float, Clutch Master Cylinder Reservoir
31431 47231-30010 Bolt, Clutch Master Cylinder Reservoir Set
31432 47232-30010 Washer, Reservoir Set Bolt
31451 31451-30060 Rod, Clutch Master Cylinder Push
31453 31404-28011 Clevis, Clutch Master Cylinder Push Rod
31453 31404-28012 Clevis, Clutch Master Cylinder Push Rod
31453 31404-30041 Clevis, Clutch Master Cylinder Push Rod
31454 31454-24010 Boot, Clutch Master Cylinder
9017908038 90179-08038 Nut
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Clutch Pedal & Flexible Hose ([08.1984 - ] (8408- )5F..CBR,DSL,EFI,LPG) 19
#OEMPart name
31301 31301-22160 Pedal Sub-Assy, Clutch
31301 90507-12011 Spring(For Clutch Pedal)
31301 90541-06008 Cushion, No.1(For Clutch Pedal)
31301 90386-13015 Bush(For Clutch Pedal)
31301 90386-13192 Bush(For Over Center Plate)
31301 90101-10369 Bolt(For Clutch Pedal Stopper)
31321 31321-14020 Pad, Clutch Pedal
31324 90101-10039 Shaft, Clutch Pedal
31324 90387-10003 Collar, Clutch Pedal Shaft
31453 90249-08018 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)
55107 55107-22140 Support Sub-Assy, Clutch Pedal
9046816142 90468-16142 Clip(For Push Rod Clevis Pin)
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
9411051000 94110-51000 Nut(For Steering Center Arm)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Clutch Pedal & Flexible Hose ([08.1984 - ] (8408- )GX71,LX70,SX70..5F) 4
#OEMPart name
31481 31481-22320 Tube, Clutch Master Cylinder To Flexible Hose
31481 90931-01016 Hose, Clutch, No.1
31481 96812-50320 Hose, Clutch, No.1
9699110080 96991-10080 CLIP
Clutch Release Cylinder ([08.1984 - ] (8408- )5F) 10
#OEMPart name
4313 04313-22020 Cylinder Kit, Clutch Release
4313 04313-12030 Cylinder Kit, Clutch Release
31470 31470-22110 Cylinder Assy, Clutch Release
31470 31470-22112 Cylinder Assy, Clutch Release
31473 31473-22010 Rod, Clutch Release Cylinder Push, No.1
31476 31476-22010 Boot, Clutch Release Cylinder
31477 47547-12010 Plug, Bleeder(For Release Cylinder)
31478 31478-30010 Bleeder Plug Cap
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
Console Box & Bracket ([08.1984 - ] (8408- )) 48
#OEMPart name
55539 55539-24010-33 Cover, Spare Switch Hole
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55539 55539-24010-44 Cover, Spare Switch Hole
55539 55539-24010-05 Cover, Spare Switch Hole
55539 55539-24010-15 Cover, Spare Switch Hole
58808 58808-22080-03 Cover Sub-Assy, Shifting Hole
58821 58821-22090-03 Panel, Console, Upper
58821 58821-22091-13 Panel, Console, Upper
58821 58821-22090-05 Panel, Console, Upper
58821 58821-22091-04 Panel, Console, Upper
58821 58821-22091-15 Panel, Console, Upper
58905 58905-22070-03 Door Sub-Assy, Console Compartment
58905 58905-22070-04 Door Sub-Assy, Console Compartment
58905 58905-22070-15 Door Sub-Assy, Console Compartment
58905 58905-22070-25 Door Sub-Assy, Console Compartment
58919 58919-22010 Plate, Console Box
58940 58811-22160-03 Console Assy, Rear
58940 58811-22160-13 Box, Console
58940 58811-22160-04 Console Assy, Rear
58940 58811-22160-14 Box, Console
58940 58801-22160-03 Console Assy, Rear
58940 58801-22250-B0 Console Sub-assy, Upper
58940 58801-22161-02 Console Assy, Rear
58940 58801-22250-02 Box, Console
58940 58801-22161-03 Console Assy, Rear
58940 58801-22161-05 Console Assy, Rear
58940 58801-22250-E0 Console Assy, Rear
58940 58801-22200-02 Console Assy, Rear
58940 58801-22200-04 Console Assy, Rear
58940 58801-22250-04 Box, Console
58940 58801-22200-05 Console Assy, Rear
58964 58964-22030 Stopper, Console Compartment Door, No.1
58996 58995-22010 Bracket, Console Box Mounting, No.1
58996 58996-22030 Bracket, Console Box Mounting, No.2
58996 58996-22040 Bracket, Console Box Mounting, No.2
9018905024 90189-05024 NUT
9054103015 90541-03015 Cushion, Instrument Panel Box
9322954010 93229-54010 New Genuine Part
9326954010 93269-54010 SCREW
9352054012 93520-54012 Screw
9354054016 93540-54016 SCREW
9356654512 93566-54512 SCREW
9356654512 93568-54512 SCREW
9356755012 93567-55012 New Genuine Part
9356755012 93568-55012 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9616000500 96160-00500 Ring, E(For Over Center Lever)
Cowl Panel & Windshield Glass ([08.1984 - ] (8408- )) 33
#OEMPart name
4562 04562-30040 Dam Kit, Windshield Glass
55073 55073-22020 Nozzle Sub-Assy, Cowl Panel Water Extract
55074 55074-22030 Cover Sub-Assy, Cowl Inner Heater Air
55701 55700-22630 Panel Sub-Assy, Cowl
55701 55700-22631 Panel Sub-Assy, Cowl
55713 55713-22050 Panel, Cowl Top Side, Rh
55714 55714-22050 Panel, Cowl Top Side, Lh
55734 55734-22060 Plate, Water Guard, Rh
55781 55781-22140 Louver, Cowl Top Ventilator, Rh
55781 55781-22150 Louver, Cowl Top Ventilator, Rh
55783 55783-22050 Louver, Cowl Top Ventilator, Center No.1
55783 55783-22070 Louver, Cowl Top Ventilator, Center No.1
55784 55784-22050 Louver, Cowl Top Ventilator, Center No.2
55784 55784-22070 Louver, Cowl Top Ventilator, Center No.2
55791 53383-22040 Weatherstrip, Hood To Cowl Top
55950 55950-22050 Nozzle Assy, Defroster
55950 55950-22070 Nozzle Assy, Defroster
55956 55971-22040 Duct, Side Defroster Nozzle, No.1
55956 55972-22030 Duct, Side Defroster Nozzle, No.2
56111 56111-22440 Glass, Windshield
56111 56111-22460 Glass, Windshield
56111 56111-22480 Glass, Windshield
56114 56114-30010 Retainer, Windshield Glass
56114 56114-30050 Retainer, Windshield Glass
56114 56114-30020 Retainer, Windshield Glass
56114 56114-30060 Retainer, Windshield Glass
9046714002 90467-14002 Clip Or Clamp(For Ventilation Hose)
9046714002 90467-14007 Clip Or Clamp(For Ventilation Hose)
9046714013 90467-14013 New Genuine Part
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Crankshaft & Piston ([08.1984 - ] (8408- )2L) 68
#OEMPart name
11011 11011-54010 Washer Set, Crankshaft Thrust
11011 11011-54020 Washer Set, Crankshaft Thrust
11011 11012-54010 Washer Set, Crankshaft Thrust
11011 11012-54020 Washer Set, Crankshaft Thrust
11011 11013-54010 Washer Set, Crankshaft Thrust
11011 11013-54020 Washer Set, Crankshaft Thrust
11702 11704-54060 Bearing Set, Crankshaft
11702 11704-54081 Bearing Set, Crankshaft (0.25)
11702 11704-54061 Bearing Set, Crankshaft
11702 11705-54060 Bearing Set, Crankshaft (0.50)
11702 11705-54081 Bearing Set, Crankshaft (0.50)
11702 11705-54061 Bearing Set, Crankshaft
11711 11701-54060-01 Bearing, Crankshaft
11711 11701-54081-01 Bearing, Crankshaft
11711 11701-54060-02 Bearing, Crankshaft
11711 11701-54081-02 Bearing, Crankshaft
11711 11701-54060-03 Bearing, Crankshaft
11711 11701-54081-03 Bearing, Crankshaft
11711 11701-54061-01 Bearing, Crankshaft
11711 11701-51081-01 Bearing, Crankshaft
11711 11701-54061-02 Bearing, Crankshaft
11711 11701-54061-03 Bearing, Crankshaft
13011 13011-54060 Ring Set, Piston
13011 13011-54062 Ring Set, Piston
13011 13011-54061 Ring Set, Piston
13011 13013-54060 Ring Set, Piston
13011 13013-54062 Ring Set, Piston
13011 13013-54061 Ring Set, Piston
13041 13041-54013-01 Bearing, Connecting Rod
13041 13041-54024-01 Bearing, Connecting Rod
13041 13041-54013-02 Bearing, Connecting Rod
13041 13041-54024-02 Bearing, Connecting Rod
13041 13041-54013-03 Bearing, Connecting Rod
13041 13041-54024-03 Bearing, Connecting Rod
13101 13101-54060 Piston Sub-Assy, W/pin
13101 13101-54060-02 Piston Sub-Assy, W/pin
13101 13101-54060-01 Piston Sub-Assy, W/pin
13101 13101-54060-03 Piston Sub-Assy, W/pin
13101 13103-54060 Piston Sub-Assy, W/pin
13101 90521-29003 Ring, Hole Snap(For Piston Pin)
13201 13201-59016 Rod Sub-Assy, Connecting
13201 13201-59017 Rod Sub-Assy, Connecting
13201 90999-73083 Bush(For Connecting Rod Small End)
13201 90999-73117 Bush(For Connecting Rod Small End)
13202 13204-54013 Bearing Set, Connecting Rod
13202 13204-54024 Bearing Set, Connecting Rod
13202 13205-54013 Bearing Set, Connecting Rod
13202 13205-54024 Bearing Set, Connecting Rod
13265 13265-54011 Bolt, Connecting Rod
13265 13265-54020 Bolt, Connecting Rod
13265 13265-54021 Bolt, Connecting Rod
13265 90170-10005 Nut, Hexagon(For Connecting Rod Bolt)
13265 90179-10123 Nut, Hexagon(For Connecting Rod Bolt)
13405 13405-54060 Flywheel Sub-Assy
13405 13405-59066 Flywheel Sub-Assy
13405 90250-08054 Pin, Straight
13405 90105-12011 Bolt, Flywheel Setting
13405 90105-12109 Bolt, Flywheel Setting
13411 13401-54030 Crankshaft
13411 13401-54031 Crankshaft
13453 13453-54010 Gear, Flywheel Ring
13471 13408-54020 Pulley, Crankshaft
13471 95161-20622 Key, Crankshaft(For Crankshaft Pulley Set)
13471 95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)
13471 90119-14005 Washer, Plate(For Crankshaft Pulley Set)
13521 13521-54020 Pulley, Crankshaft Timing
13566 13566-54010 Guide, Timing Belt
13566 13566-54040 Guide, Timing Belt
Crankshaft & Piston ([08.1984 - ] (8408- )2LT) 68
#OEMPart name
11011 11011-54010 Washer Set, Crankshaft Thrust
11011 11011-54020 Washer Set, Crankshaft Thrust
11011 11012-54010 Washer Set, Crankshaft Thrust
11011 11012-54020 Washer Set, Crankshaft Thrust
11011 11013-54010 Washer Set, Crankshaft Thrust
11011 11013-54020 Washer Set, Crankshaft Thrust
11702 11704-54060 Bearing Set, Crankshaft
11702 11704-54081 Bearing Set, Crankshaft (0.25)
11702 11704-54061 Bearing Set, Crankshaft
11702 11705-54060 Bearing Set, Crankshaft (0.50)
11702 11705-54081 Bearing Set, Crankshaft (0.50)
11702 11705-54061 Bearing Set, Crankshaft
11711 11701-54060-01 Bearing, Crankshaft
11711 11701-54081-01 Bearing, Crankshaft
11711 11701-54060-02 Bearing, Crankshaft
11711 11701-54081-02 Bearing, Crankshaft
11711 11701-54060-03 Bearing, Crankshaft
11711 11701-54081-03 Bearing, Crankshaft
11711 11701-54061-01 Bearing, Crankshaft
11711 11701-51081-01 Bearing, Crankshaft
11711 11701-54061-02 Bearing, Crankshaft
11711 11701-54061-03 Bearing, Crankshaft
13011 13011-54060 Ring Set, Piston
13011 13011-54062 Ring Set, Piston
13011 13011-54061 Ring Set, Piston
13011 13013-54060 Ring Set, Piston
13011 13013-54062 Ring Set, Piston
13011 13013-54061 Ring Set, Piston
13041 13041-54040-01 Bearing, Connecting Rod
13041 13041-54042-01 Bearing, Connecting Rod
13041 13041-54040-02 Bearing, Connecting Rod
13041 13041-54042-02 Bearing, Connecting Rod
13041 13041-54040-03 Bearing, Connecting Rod
13041 13041-54042-03 Bearing, Connecting Rod
13041 13041-54041-01 Bearing, Connecting Rod
13041 13041-54041-02 Bearing, Connecting Rod
13041 13041-54041-03 Bearing, Connecting Rod
13101 13101-54030 Piston Sub-Assy, W/pin
13101 13101-54030-02 Piston Sub-Assy, W/pin
13101 13101-54030-01 Piston Sub-Assy, W/pin
13101 13101-54030-03 Piston Sub-Assy, W/pin
13101 13103-54030 Piston Sub-Assy, W/pin
13101 90521-31001 Ring, Hole Snap(For Piston Pin)
13201 13201-59026 Rod Sub-Assy, Connecting
13201 13201-59027 Rod Sub-Assy, Connecting
13201 90999-73094 Bush(For Connecting Rod Small End)
13201 90999-73118 Bush(For Connecting Rod Small End)
13202 13204-54040 Bearing Set, Connecting Rod
13202 13204-54042 Bearing Set, Connecting Rod (0.25)
13202 13204-54041 Bearing Set, Connecting Rod
13202 13205-54040 Bearing Set, Connecting Rod
13202 13205-54042 Bearing Set, Connecting Rod (0.50)
13202 13205-54041 Bearing Set, Connecting Rod (0.50)
13265 13265-54011 Bolt, Connecting Rod
13265 13265-54020 Bolt, Connecting Rod
13265 13265-54021 Bolt, Connecting Rod
13265 90170-10005 Nut, Hexagon(For Connecting Rod Bolt)
13265 90179-10123 Nut, Hexagon(For Connecting Rod Bolt)
13411 13401-54021 Crankshaft
13411 13401-54023 Crankshaft
13471 13408-54020 Pulley, Crankshaft
13471 95161-20622 Key, Crankshaft(For Crankshaft Pulley Set)
13471 95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)
13471 90119-14005 Washer, Plate(For Crankshaft Pulley Set)
13521 13521-54020 Pulley, Crankshaft Timing
13566 13566-54010 Guide, Timing Belt
13566 13566-54040 Guide, Timing Belt
9161160814 91611-60814 Bolt
Cruise Control (Auto Drive) ([08.1984 - ] (8408- )) 1
#OEMPart name
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
Cylinder Block ([08.1984 - ] (8408- )2L#) 44
#OEMPart name
11401 11401-59246 Block Sub-Assy, Cylinder
11401 11401-59247 Block Sub-Assy, Cylinder
11401 31349-26020 Insulator, Clutch Cable Heat
11401 11401-59167 Block Sub-Assy, Cylinder
11401 11401-59168 Block Sub-Assy, Cylinder
11401 16027-54021 Pipe Sub-Assy, Turbo Water, No.1
11401 16268-54011 Pipe, Water By-pass, No.1
11401 16269-54011 Support, Water By-Pass Pipe
11415 96431-03833 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 96431-23814 Plug, Water Drain Cock(For Cylinder Block)
11415 96432-23814 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02061 Bolt(For Cylinder Head Set)
11425 90116-08157 Bolt, Stud(For Oil Filter)
11431 96411-42500 Plug, Tight, No.1
11431 96411-43500 Plug, Tight, No.1
11431 96411-45000 Plug, Tight, No.1(For Cam Housing)
11432 90345-51006 Plug, W/head Taper Screw, No.2
11432 90344-53002 Plug, W/head Taper Screw, No.1
11434 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
11434 90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)
11434 90250-10192 Pin, Straight(For Timing Gear Cover Set)
11448 11448-54020 Orifice, Cylinder Block Oil
11452 11452-54040 Guide, Oil Level Gage
11452 11452-54041 Guide, Oil Level Gage
11459 90461-10658 Support, Oil Level Gage Guide
12101 12101-54070 Pan Sub-Assy, Oil
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
12101 12101-54071 Pan Sub-assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-18089 Plug(For Oil Pan Drain)
12101 90033-41020 Plug(For Oil Pan Drain)
12101 90430-18013 Gasket(For Oil Pan Drain Plug)
12101 90430-18023 Gasket(For Oil Pan)
12101 90430-18244 Gasket(For Oil Pan Drain Plug)
12151 12151-54020 Gasket, Oil Pan
15301 15301-54040 Gage Sub-Assy, Oil Level
15605 15605-54010 Valve Sub-Assy, Oil Check
15708 15708-54010 Nozzle Sub-Assy, Oil, No.1
9011608071 90116-08071 New Genuine Part
9011608071 90116-08279 BOLT STUD
9011908247 90119-08247 Bolt(For Manual Transmission Oil Pan Setting)
9017908038 90179-08038 Nut
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
Cylinder Head ([08.1984 - ] (8408- )2L#) 29
#OEMPart name
11101 11101-54050 Head Sub-Assy, Cylinder
11101 90910-02060 Bolt(For Cylinder Head Set)
11101 90910-02090 Bolt(For Cylinder Head Set)
11101 11101-54061 Head Sub-Assy, Cylinder
11101 11101-54062 Head Sub-Assy, Cylinder
11115 11115-54020 Gasket, Cylinder Head
11115 11115-54021 Gasket, Cylinder Head
11116 96411-42500 Plug, Tight, No.1
11116 96411-41200 Plug, Tight, No.1
11116 96411-45000 Plug, Tight, No.1(For Cam Housing)
11122 11122-54011 Bush, Intake Valve Guide
11122 11123-54011 Bush, Intake Valve Guide
11151 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
11159 90116-08137 Bolt, Stud(For Head To Camshaft Bearing Cap)
11159 90119-08191 Bolt(For Head To Camshaft Bearing Cap)
11183 11183-54011 Plug, Semicircular
11201 11201-54050 Cover Sub-Assy, Cylinder Head
11201 11201-54080 Cover Sub-Assy, Cylinder Head
11201 90176-08014 Nut, Cap(For Cylinder Head Cover)
11201 90210-13001 Washer, Seal(For Cylinder Head Cover)
11201 11201-54090 Cover Sub-Assy, Cylinder Head
11201 11201-59065 Cover Sub-Assy, Cylinder Head
11213 11213-54030 Gasket, Cylinder Head Cover
11213 11213-54020 Gasket, Cylinder Head Cover
12108 12180-13030 Cap Sub-Assy, Oil Filler
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 12180-70010 Cap Sub-Assy, Oil Filler
12108 12180-E0010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
Dash Silencer Board & Floor Silencer Pad ([08.1984 - ] (8408- )) 9
#OEMPart name
58621 58621-22090 Pad, Floor Silencer, Front Rh
58622 58622-22040 Pad, Floor Silencer, Front Lh
58624 58634-22020 Pad, Floor Silencer, Rear Side
58624 58634-22030 Pad, Floor Silencer, Rear Side
58624 58634-22021 Pad, Floor Silencer, Rear Side
58625 58636-22070 Pad, Floor Silencer, Rear Center
58626 58624-22070 Pad, Floor Silencer, Rear
58681 58681-22010 Sheet, Quarter Wheel House Inner Silencer, Rh
58682 58682-22010 Sheet, Quarter Wheel House Inner Silencer, Lh
Disc Wheel & Wheel Cap ([08.1984 - ] (8408- )) 32
#OEMPart name
42601 42611-22220 Wheel, Disc
42601 42611-22230 Wheel, Disc
42601 42611-22230-03 Wheel, Disc
42601 90942-01021 Nut, Hub (For Axle)
42601 90942-03017 Weight, Balance (For Disc Wheel)
42601 90942-03020 Weight, Balance (For Disc Wheel)
42601 90942-03022 Weight, Balance (For Disc Wheel)
42601 90942-03025 Weight, Balance (For Disc Wheel)
42601 90942-03027 Weight, Balance (For Disc Wheel)
42601 90942-03029 Weight, Balance (For Disc Wheel)
42601 90942-03031 Weight, Balance (For Disc Wheel)
42601 90942-03041 Weight, Balance (For Disc Wheel)
42601 90942-03098 Weight, Balance (For Disc Wheel)
42601 90942-03099 Weight, Balance (For Disc Wheel)
42601 90942-03100 Weight, Balance (For Disc Wheel)
42601 90942-03101 Weight, Balance (For Disc Wheel)
42601 90942-03102 Weight, Balance (For Disc Wheel)
42601 90942-03108 Weight, Balance (For Disc Wheel)
42601 90942-03109 Weight, Balance (For Disc Wheel)
42601 42611-22310 Wheel, Disc
42601 42611-22330 Wheel, Disc
42601 42611-22640-03 Wheel, Disc
42601 90942-01007 Nut, Hub (For Axle)
42603 42603-22100 Ornament Sub-Assy, Wheel Hub
42611 90942-05009 Valve (For Tubeless Tire)
42611 90080-94031 Valve (For Tubeless Tire)
4260222070 42602-22070 Cap, Wheel
4260222100 42602-22100 Ornament Sub-Assy, Wheel Hub
4260322130 42603-22130 Ornament Sub-Assy, Wheel Hub
4260322140 42603-22140 Ornament Sub-Assy, Wheel Hub
4260322160 42603-22160 Ornament Sub-Assy, Wheel Hub
4262122310 42621-22310 Cap, Wheel
Emblem & Name Plate (Exterior & Interior) ([08.1984 - ] (8408- )) 13
#OEMPart name
75311 75301-91601 Emblem, Radiator Grille (Or Front Panel)
75311 75301-91602 Emblem, Radiator Grille (Or Front Panel)
75441 75442-22040 Plate, Rear Name, No.1
75441 75441-12391 Plate, Rear Name, No.1
75461 75441-91603 Plate, Rear Name, No.2 (Model Mark)
75463 75443-91605 Plate, Rear Name, No.4 (Grade Mark)
75465 75444-22160 Plate, Luggage Compartment Door, No.4
75465 75444-22150 Plate, Rear Name, No.5 (Mechanism)
9020204010 90202-04010 New Genuine Part
9020205009 90202-05009 New Genuine Part
9046705012 90467-05012 New Genuine Part
9046707022 90467-07022 New Genuine Part
9356054012 93560-54012 Screw
Engine Oil Cooler ([08.1984 - ] (8408- )2L#) 4
#OEMPart name
15710 15710-54030 Cooler Assy, Oil
15710 90923-05015 Gasket(For Oil Cooler)
15710 15785-54010 Gasket(For Oil Cooler)
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
Engine Oil Pump ([08.1984 - ] (8408- )2L#) 13
#OEMPart name
15104 15104-54060 Strainer Sub-Assy, Oil
15104 15104-54061 Strainer Sub-Assy, Oil
15104 15149-54011 Gasket(For Oil Strainer)
15104 15149-54030 Gasket(For Oil Strainer)
15104 92122-40816 Bolt, Stud(For Oil Strainer)
15115 15115-54011 Cover, Oil Pump
15115 15115-54012 Cover, Oil Pump
15121 15121-54010 Gear, Oil Pump Drive
15122 15122-54010 Gear, Oil Pump Driven
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9322016012 93220-16012 SCREW
Engine Overhaul Gasket Kit ([08.1984 - ] (8408- )2L#) 12
#OEMPart name
4111 04111-54050 Gasket Kit, Engine Overhaul
4111 04111-54160 Gasket Kit, Engine Overhaul
4111 04111-54051 Gasket Kit, Engine Overhaul
4111 04111-54041 Gasket Kit, Engine Overhaul
4111 04111-54150 Gasket Kit, Engine Overhaul
4111 04111-54042 Gasket Kit, Engine Overhaul
4112 04112-54040 Gasket Kit, Engine Valve Grind
4112 04112-54042 Gasket Kit, Engine Valve Grind
4112 04112-54041 Gasket Kit, Engine Valve Grind
4112 04112-54031 Gasket Kit, Engine Valve Grind
4112 04112-54033 Gasket Kit, Engine Valve Grind
4112 04112-54032 Gasket Kit, Engine Valve Grind
Exhaust Gas Recirculation System ([09.1987 - ] (8709- )2L#..5F) 18
#OEMPart name
25601 25601-54030 Pipe Sub-Assy, Egr, No.1
25601 90410-25001 Sleeve, Ball, Egr Pipe, No.1
25601 90402-33001 Nut, Union, Egr Pipe, No.1
25620 25800-54060 Valve Assy, Egr
25624 25624-54020 Adapter, Egr Valve
25627 25627-54010 Gasket, Egr Valve
25627 25627-54011 Gasket, Egr Valve
25628 25628-54011 Gasket, Egr Inlet
25628 25628-54012 Gasket, Egr Inlet
25629 25629-54010 Gasket, Egr Valve Adapter
25629 25629-54011 Gasket, Egr Valve Adapter
9011608128 90116-08128 Bolt, Stud(For Manifold Stay)
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908059 90179-08059 Nut
9017908059 90179-08101 NUT
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9211240845 92112-40845 Bolt, Stud(For Manifold To Carburetor)
Exhaust Pipe ([08.1984 - ] (8408- )2L#) 37
#OEMPart name
17410 17410-54440 Pipe Assy, Exhaust, Front
17410 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
17410 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
17410 90917-06004 Gasket(For Manifold Extension)
17410 90917-06039 Gasket, Exhaust Pipe
17410 17571-54240 Bracket, Exhaust Pipe Front (For Front)
17410 17504-54050 Bracket, Exhaust Pipe Front (For Center)
17410 17583-54060 Bracket, Exhaust Pipe Front (For Center)
17410 17505-64011 Bolt Or Ring, Exhaust Pipe Front (For Center)
17410 17410-54430 Pipe Assy, Exhaust, Front
17410 17410-54470 Pipe Assy, Exhaust, Front
17410 90917-06005 Gasket, Exhaust Pipe
17410 90917-06042 Gasket, Exhaust Pipe
17410 17571-54230 Bracket, Exhaust Pipe Front (For Front)
17410 17583-54070 Bracket, Exhaust Pipe Front (For Center)
17420 17420-54030 Pipe Assy, Exhaust, Center
17420 17506-63020 Bracket, Exhaust Pipe, Center
17420 90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)
17420 17420-54010 Pipe Assy, Exhaust, Center
17420 90917-06012 Gasket, Exhaust Pipe
17420 90917-06045 Gasket, Exhaust Pipe
17430 17430-54510 Pipe Assy, Exhaust, Tail
17430 17565-63020 Ring, Catalytic Converter
17430 17508-63020 Bracket, Exhaust Tail Pipe(For Center)
17430 17507-70010 Bracket, Exhaust Tail Pipe (For Rear)
17430 90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)
17430 17430-54500 Pipe Assy, Exhaust, Tail
17448 17448-63010 Baffle, Tail Pipe
9010510023 90105-10023 Bolt
9010510023 91512-81035 BOLT
9151160845 91511-60845 Bolt (For Transfer Stiffener Plate)
9151160845 91511-B0845 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9166560840 91665-60840 New Genuine Part
9166560840 91661-60840 Bolt
9418041000 94180-41000 Nut
Extension Housing (Atm) ([08.1984 - ] (8408- )4FC) 15
#OEMPart name
4332 04332-30020 Seal Kit, Oil(For Automatic Extention Housing)
4332 04332-30030 Seal Kit, Oil(For Automatic Extention Housing)
35108 35108-30091 Housing Sub-Assy, Extension (Atm)
35108 35108-35040 Housing Sub-Assy, Extension (Atm)
35108 35108-30092 Housing Sub-Assy, Extension (Atm)
35108 33145-30010 Retainer, Extension Housing Dust Seal(Mtm)
35108 90303-38010 Seal, Dust(For Manual Transmission Extension Housing)
35146 33146-30010 Deflector, Extension Housing Dust(Mtm)
35146 33146-30020 Deflector, Extension Housing Dust(Mtm)
35182 35182-22010 Gasket, Extension Housing (Atm)
35182 35182-28010 Gasket, Extension Housing (Atm)
35189 35189-30010 Gasket, Extension Housing Bush Apply Tube
35847 35847-30020 Tube, Extension Housing Bush Apply
9011910232 90119-10232 Bolt (For Transmission Housing & Case Setting)
9011910233 90119-10233 New Genuine Part
Extension Housing (Mtm) ([08.1984 - ] (8408- )5F) 13
#OEMPart name
33103 33103-30190 Housing Sub-Assy, Extension(Mtm)
33103 33103-30191 Housing Sub-Assy, Extension(Mtm)
33103 90999-73105 Bush(For Manual Transmission Extension Housing)
33103 90311-38040 Seal, Oil(For Manual Transmission Extension Housing)
33103 90311-38032 Seal, Oil(For Manual Transmission Extension Housing)
33124 33106-22010 Pipe, Oil Receiver(Mtm)
33124 33106-35030 Pipe, Oil Receiver(Mtm)
33142 33142-22010 Gasket, Intermediate Plate
33146 33146-30010 Deflector, Extension Housing Dust(Mtm)
33146 33146-30020 Deflector, Extension Housing Dust(Mtm)
33148 33148-22010 Shroud, Gear, No.1
33283 90341-10065 Plug, Straight, No.1
9011910019 90119-10019 Bolt(For Transmission Case & Engine Setting)
Floor Insulator ([08.1984 - ] (8408- )) 8
#OEMPart name
58131 58131-22030 Bracket, Front Floor Heat Insulator, No.1
58131 58131-22040 Bracket, Front Floor Heat Insulator, No.1
58132 58132-22030 Bracket, Front Floor Heat Insulator, No.2
58132 58132-22040 Bracket, Front Floor Heat Insulator, No.2
58159 58327-22050 Insulator, Main Mafflar Heat
9054107001 90541-07001 Cushion(For Luggage Compartment Door Panel)
9054107001 90541-07003 Cushion(For Luggage Compartment Door Panel)
9166140612 91661-40612 New Genuine Part
Floor Pan & Lower Back Panel ([08.1984 - ] (8408- )) 83
#OEMPart name
57207 57207-22040 Bracket Sub-Assy, Engine Rear Mounting Member
57207 57208-22030 Bracket Sub-Assy, Engine Rear Mounting Member
57441 57441-22010 Member, Rear Floor Center, No.1
57458 57408-22030 Member, Front Floor Cross, No.1
57458 57408-22031 Member Sub-Assy, Front Floor Cross
57652 57653-22070 Crossmember, Rear Floor, No.2
57653 57654-22030 Member, Rear Floor Cross, No.3
57692 57692-22010 Bracket, Fuel Tank Mounting, Rear Center
58062 58062-22010 Bracket Sub-Assy, Fuel Tank Mounting, Rear
58101 58111-22130 Pan Sub-Assy, Front Floor
58101 58111-43024 Pan, Front Floor
58101 58173-22041 Deflector, Front Floor Stone
58101 58174-22021 Deflector, Front Floor Stone
58101 58261-43031 Cover, Transmission
58101 58261-43021 Cover, Transmission
58101 90950-01866 Plug, Hole(For Front Door Panel)
58101 90950-06072 TAPE SEAL
58101 58111-22131 Pan Sub-Assy, Front Floor
58101 58261-22190 Cover, Transmission Auxiliary
58101 58111-22140 Pan Sub-Assy, Front Floor
58101 58111-22141 Pan Sub-Assy, Front Floor
58101 58260-22010 Cover, Transmission Auxiliary
58136 58136-24010 Cover, Front Floor Hole
58136 90950-06002 Cover, Front Floor Hole
58171 58171-22050 Reinforcement, Parking Brake Base
58171 58029-22030 Reinforcement, Parking Brake Base
58173 58173-22040 Deflector, Front Floor Stone
58173 58174-22020 Deflector, Front Floor Stone
58183 58183-22010 Bracket, Front Seat Mounting, Inner
58183 58184-22010 Bracket, Front Seat Mounting, Inner
58191 58192-22040 Footrest, Front Floor
58191 58191-22020 Footrest, Front Floor
58191 58191-22021 Footrest, Front Floor
58193 58193-22030 Bracket, Instrument Panel Brace Mounting
58208 58211-22030 Pan, Center Floor
58212 58212-22050 Pan, Center Floor, Front
58233 58233-22020 Bracket, Exhaust Pipe Mounting
58235 58235-22020 Bracket, Differential Carrier Bumper Mounting
58255 58264-22040 Bracket, Parking Brake Cable Guide, No.1
58286 58280-22070 Boot, Shift & Select Lever, No.1
58286 58280-22071 Boot, Shift & Select Lever, No.1
58288 58288-22030 Seal, Shift Lever Boot
58288 58288-22031 Seal, Shift Lever Boot
58307 58307-91614 Panel Sub-Assy, Body Lower Back
58307 58307-91615 Panel Sub-Assy, Body Lower Back
58311 58311-22100 Pan, Rear Floor
58313 58305-22010 Panel, Rear Floor Side, Rh
58313 58305-22020 Panel, Rear Floor Side, Rh
58314 58314-22080 Panel, Rear Floor Side, Lh
58314 58314-22090 Panel, Rear Floor Side, Lh
58320 58325-22030 Cover, Rear Floor Service Hole
58320 58339-22020 Packing, Rear Floor Service Hole
58356 58356-22020 Reinforcement, Floor Side Plate, Lh
58367 58266-22040 Bracket, Fuel Tube Clamp
58385 58381-22040 Panel, Rear Valance
58616 58616-22060 Panel, Front Floor Silencer, No.1
58617 58617-22070 Panel, Front Floor Silencer, No.2
58683 58683-22010 Panel, Center Floor Silencer, Rh
58684 58684-22010 Panel, Center Floor Silencer, Lh
58794 58791-12050 Carrier Sub-Assy, Jack
64778 64778-22010 Protector, Spare Wheel
9011912112 90119-12112 New Genuine Part
9017605007 90176-05007 New Genuine Part
9018904002 90189-04002 GROMMET
9095001006 90950-01006 Plug, Hole(For Front Fender)
9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)
9095001061 90950-01061 Plug, Hole, No.3(For Dash Panel)
9095001061 90950-01872 Plug, Hole, No.3(For Dash Panel)
9095001066 90950-01066 New Genuine Part
9095001167 90950-01167 Plug, Hole, No.3(For Dash Panel)
9095001205 90950-01205 Plug, Hole(For Floor Panel)
9095001258 90950-01258 Plug, Hole(For Rear Suspension Arm)
9095001258 90950-01478 Plug, Hole(For Front Suspension Lower Arm)
9095001322 90950-01322 New Genuine Part
9095001345 90950-01345 New Genuine Part
9095001466 90950-01466 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9354014010 93540-14010 Clip, Headlining Retainer
Floor Side Member ([08.1984 - ] (8408- )) 52
#OEMPart name
51204 51204-22050 Damper Sub-Assy, Engine Rear Support Member
57073 57073-22040 Bracket Sub-Assy, Lateral Rod
57101 57101-22240 Member Sub-Assy, Front Side, Rh
57102 57102-22280 Member Sub-Assy, Front Side, Lh
57107 57107-22070 Bracket Sub-Assy, Strut Bar, Rh
57108 57108-22140 Bracket Sub-Assy, Strut Bar, Lh
57113 57113-22050 Extension, Front Side Member, Rh
57113 57113-22060 Extension, Front Side Member, Rh
57114 57114-22050 Extension, Front Side Member, Lh
57114 57114-22060 Extension, Front Side Member, Lh
57133 57133-22020 Protector, Strut Bar Bracket, Rh
57134 57134-22010 Protector, Strut Bar Bracket, Lh
57209 57255-22190 Member Sub-Assy, Engine Rear Support
57401 57401-22090 Member Sub-Assy, Main Floor Side, Rh
57402 57402-22090 Member Sub-Assy, Main Floor Side, Lh
57405 57405-22010 Member Sub-Assy, Center Floor Cross, No.2
57407 57407-22060 Cross Member Sub-Assy, Center Floor, No.1
57417 57417-22040 Reinforcement, Front Floor Under, Rh
57417 57417-22050 Reinforcement, Front Floor Under, Rh
57418 57418-22040 Reinforcement, Front Floor Under, Lh
57418 57418-22050 Reinforcement, Front Floor Under, Lh
57601 57601-22260 Member Sub-Assy, Rear Floor Side, Rh
57601 57601-22261 Member Sub-Assy, Rear Floor Side, Rh
57601 57601-22912 Member Sub-Assy, Rear Floor Side, Rh
57601 57601-22916 Member Sub-Assy, Rear Floor Side, Rh
57602 57602-22260 Member Sub-Assy, Rear Floor Side, Lh
57602 57602-22261 Member Sub-Assy, Rear Floor Side, Lh
57602 57602-22240 Member Sub-Assy, Rear Floor Side, Lh
57602 57602-22241 Member Sub-Assy, Rear Floor Side, Lh
57607 57605-22070 Crossmember Sub-Assy, Rear Floor, No.1
57616 57615-22903 Member, Rear Floor Side, Rear Rh
57616 57615-22901 Member, Rear Floor Side, Rear Rh
57617 57616-22903 Member, Rear Floor Side, Rear Lh
57617 57616-22901 Member, Rear Floor Side, Rear Lh
57777 57777-22010 Protector, Lower Control Link
57777 57778-22010 Protector, Lower Control Link
58355 58355-22030 Reinforcement, Floor Side Plate, Rh
9011906042 90119-06042 New Genuine Part
9011906042 90119-06341 BOLT
9011910273 90119-10273 New Genuine Part
9011910323 90119-10323 New Genuine Part
9011910525 90119-10525 New Genuine Part
9033330002 90333-30002 Cover, Front Floor Hole
9095001258 90950-01258 Plug, Hole(For Rear Suspension Arm)
9095001258 90950-01478 Plug, Hole(For Front Suspension Lower Arm)
9095001356 90950-01356 New Genuine Part
9095001356 90950-01976 New Genuine Part
9095001431 90950-01431 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140816 91651-40816 BOLT
9165140820 91651-40820 Bolt
Front Axle Arm & Steering Knuckle ([08.1984 - ] (8408- )) 13
#OEMPart name
43310 90345-06014 Plug (For Ball Joint)
43345 43345-22070 Cover, Lower Ball Joint Dust
45543 45543-22010 Protector, Steering Rack Boot, Rh
45544 45544-22010 Protector, Steering Rack Boot, Lh
48068 48068-29095 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 90101-12112 Bolt(For Front Suspension Lower Arm)
48069 48069-29095 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48654 48654-12010 Bush, Lower Arm
9017012021 90170-12021 NUT, HEXAGON
9017114048 90171-14048 New Genuine Part
9020112452 90201-12452 Nut(For Backing Plate To Steering Knuckle Setting)
9058010001 90580-10001 Ring, Set (For Dust Cover)
9538103025 95381-03025 PIN
Front Axle Hub ([08.1984 - ] (8408- )) 13
#OEMPart name
42611 90942-02047 Bolt, Hub
43502 43502-22040 Hub Sub-Assy, Front Axle
43510 90311-48001 Seal, Oil (For Axle Shaft)
43510 90368-31067 Bearing (For Axle Shaft Inner)
43510 90368-19037 Bearing (For Axle Shaft Outer)
43510 90214-20005 Washer, Claw (For Axle Shaft)
43510 90170-19185 Nut (For Axle Shaft)
43512 43512-22070 Disc, Front
43514 43514-22020 Cap, Front Hub Grease
43525 43525-22010 Cap, Front Wheel Adjusting Lock
9010110435 90101-10435 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
9538104025 95381-04025 PIN
Front Bumper & Bumper Stay ([08.1984 - ] (8408- )) 49
#OEMPart name
52021 52021-22130 Reinforcement Sub-Assy, Front Bumper
52105 52011-22170 Stay Sub-Assy, Front Bumper, Rh
52106 52012-22160 Stay Sub-Assy, Front Bumper, Lh
52115 52115-22120 Support, Front Bumper Side, Rh
52115 52115-22090 Support, Front Bumper Side, Rh
52115 52115-22130 Support, Front Bumper Side, Rh
52116 52116-22090 Support, Front Bumper Side, Lh
52116 52116-22060 Support, Front Bumper Side, Lh
52116 52116-22100 Support, Front Bumper Side, Lh
52119 52119-22270 Cover, Front Bumper
52119 52119-22190-03 Cover, Front Bumper
52119 52119-22928 Cover, Front Bumper
52119 52119-22190-04 Cover, Front Bumper
52119 52119-22190-05 Cover, Front Bumper
52119 52119-22190-08 Cover, Front Bumper
52119 52119-22190-22 Cover, Front Bumper
52119 52119-22280-03 Cover, Front Bumper
52119 52119-22909 Cover, Front Bumper
52119 52119-22280-04 Cover, Front Bumper
52119 52119-22280-05 Cover, Front Bumper
52119 52119-22280-08 Cover, Front Bumper
52521 52521-22080 Retainer, Front Bumper, Upper Center
52521 52521-22081 Retainer, Front Bumper, Upper Center
52525 52565-12040 Retainer, Front Bumper, Lower Center
52525 52525-22030 Retainer, Front Bumper, Lower Center
52525 52526-22020 Retainer, Front Bumper, Lower Side Rh
52525 52526-22040 Retainer, Front Bumper, Lower Side Rh
52611 52611-22050 Absorber, Front Bumper Energy
52611 52611-22080 Absorber, Front Bumper Energy
52701 52711-22090 Moulding Sub-Assy, Front Bumper
52701 52711-22060 Moulding Sub-Assy, Front Bumper
52712 52702-22030 Moulding, Front Bumper Side, Rh
52712 52702-22010 Moulding, Front Bumper Side, Rh
52713 52703-22030 Plug, Front Bumper Moulding
52713 52703-22010 Plug, Front Bumper Moulding
9010508092 90105-08092 New Genuine Part
9010906149 90109-06149 New Genuine Part
9010906149 90109-06136 New Genuine Part
9011910192 90119-10192 New Genuine Part
9011910192 90119-10185 Bolt
9017605008 90176-05008 Nut
9017906007 90179-06007 Nut
9017906086 90179-06086 NUT
9018303001 90183-03001 New Genuine Part
9018303001 90468-04038 CLIP
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9166540620 91665-40620 New Genuine Part
9166540620 91661-60616 BOLT
Front Clearance Lamp ([08.1984 - 08.1986] (8408-8608)) 28
#OEMPart name
81610 81610-29465 Lamp Assy, Parking & Clearance, Rh
81610 81610-91601 Lamp Assy, Parking & Clearance, Rh
81610 81610-91603 Lamp Assy, Parking & Clearance, Rh
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
81610 81610-91604 Lamp Assy, Parking & Clearance, Rh
81611 81611-91601 Lens, Parking & Clearance Lamp, Rh
81611 81611-91603 Lens, Parking & Clearance Lamp, Rh
81611 81611-91604 Lens, Parking & Clearance Lamp, Rh
81618 81618-91601 Bracket, Parking And Clearance Lamp, Rh
81618 81618-91602 Bracket, Parking And Clearance Lamp, Rh
81620 81620-29455 Lamp Assy, Parking & Clearance, Lh
81620 81620-91601 Lamp Assy, Parking & Clearance, Lh
81620 81620-91603 Lamp Assy, Parking & Clearance, Lh
81620 81620-91604 Lamp Assy, Parking & Clearance, Lh
81621 81621-91601 Lens, Parking & Clearance Lamp, Lh
81621 81621-91603 Lens, Parking & Clearance Lamp, Lh
81621 81621-91604 Lens, Parking & Clearance Lamp, Lh
81625 81615-91601 Socket And Wire, Parking And Clearance Lamp
81625 81615-91603 Socket And Wire, Parking And Clearance Lamp
81625 81615-91605 Socket And Wire, Clearance Lamp
81710 81710-22020 Marker Assy, Fender
81710 81720-22020 Marker Assy, Fender
9016440066 90164-40066 New Genuine Part
9018904022 90189-04022 CLIP
9046804024 90468-04024 New Genuine Part
9351014008 93510-14008 New Genuine Part
9351064020 93510-64020 New Genuine Part
Front Clearance Lamp ([08.1986 - ] (8608- )) 25
#OEMPart name
81610 81610-29465 Lamp Assy, Parking & Clearance, Rh
81610 81610-91601 Lamp Assy, Parking & Clearance, Rh
81610 81610-91603 Lamp Assy, Parking & Clearance, Rh
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
81610 81610-91604 Lamp Assy, Parking & Clearance, Rh
81611 81611-91601 Lens, Parking & Clearance Lamp, Rh
81611 81611-91603 Lens, Parking & Clearance Lamp, Rh
81611 81611-91604 Lens, Parking & Clearance Lamp, Rh
81620 81620-29455 Lamp Assy, Parking & Clearance, Lh
81620 81620-91601 Lamp Assy, Parking & Clearance, Lh
81620 81620-91603 Lamp Assy, Parking & Clearance, Lh
81620 81620-91604 Lamp Assy, Parking & Clearance, Lh
81621 81621-91601 Lens, Parking & Clearance Lamp, Lh
81621 81621-91603 Lens, Parking & Clearance Lamp, Lh
81621 81621-91604 Lens, Parking & Clearance Lamp, Lh
81625 81615-91601 Socket And Wire, Parking And Clearance Lamp
81625 81615-91603 Socket And Wire, Parking And Clearance Lamp
81625 81615-91605 Socket And Wire, Clearance Lamp
81710 81710-22020 Marker Assy, Fender
81710 81720-22020 Marker Assy, Fender
9016440066 90164-40066 New Genuine Part
9018904022 90189-04022 CLIP
9046804024 90468-04024 New Genuine Part
9351064020 93510-64020 New Genuine Part
Front Disc Brake Caliper & Dust Cover ([08.1984 - ] (8408- )) 34
#OEMPart name
4479 04479-22010 Cylinder Kit, Disc Brake, Front
4491 04491-22161 Pad Kit, Disc Brake, Front
4491 04465-22140 Pad Kit, Disc Brake, Front
4491 04491-22162 Pad Kit, Disc Brake, Front
4491 04491-22200 Pad Kit, Disc Brake, Front
4945 04945-22020 Shim Kit, Anti Squeal, Front
4945 04945-22021 Shim Kit, Anti Squeal, Front
4947 04947-22050 Fitting Kit, Disc Brake, Front
47710 90119-12058 Bolt, Hexagon(For Front Disc Brake Caliper)
47713 47547-12040 Plug, Bleeder(For Front Disc Brake)
47714 31478-30010 Bleeder Plug Cap
47715 47715-22010 Pin, Main(For Front Disc Brake Cylinder Slide)
47716 47716-22010 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-22010 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-22050 Mounting, Front Disc Brake Cylinder, Rh
47722 47722-22030 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-22150 Cylinder Assy, Front Disc Brake, Rh
47730 47730-22151 Cylinder Assy, Front Disc Brake, Rh
47731 47731-22010 Piston, Front Disc Brake
47744 47744-22040 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47744-22070 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47744-22H00 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47744-22071 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47745 47744-22050 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47745 47745-22040 Shim, Anti-Squeal, No.2(For Front Disc Brake)
47745 47744-22H10 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47745 47745-22041 Shim, Anti-Squeal, No.2(For Front Disc Brake)
47750 47750-22150 Cylinder Assy, Disc Brake, Lh
47750 47750-22151 Cylinder Assy, Disc Brake, Lh
47781 47781-24010 Cover, Disc Brake Dust, Front Rh
47781 90101-08341 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782 47782-24010 Cover, Disc Brake Dust, Front Lh
9095001301 90950-01301 Plug, Hole(For Rear Disc Brake Cylinder)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Front Door Lock & Handle ([08.1984 - ] (8408- )) 44
#OEMPart name
69207 69205-22020-03 Handle Sub-Assy, Front Door Inside, Rh
69207 69205-22020-04 Handle Sub-Assy, Front Door Inside, Rh
69207 69205-22020-05 Handle Sub-Assy, Front Door Inside, Rh
69207 69205-22020-15 Handle Sub-Assy, Front Door Inside, Rh
69208 69206-22020-03 Handle Sub-Assy, Front Door Inside, Lh
69208 69206-22020-04 Handle Sub-Assy, Front Door Inside, Lh
69208 69206-22020-05 Handle Sub-Assy, Front Door Inside, Lh
69208 69206-22020-15 Handle Sub-Assy, Front Door Inside, Lh
69210 69210-22080 Handle Assy, Front Door, Outside Rh
69210 90541-03021 Cushion(For Front Door Outside Handle)
69220 69220-22070 Handle Assy, Front Door Outside, Lh
69273 69759-20060 Snap(For Rear Door Inside Handle)
69273 69759-20070 Snap(For Rear Door Inside Handle)
69273 69759-22040 Snap, Door Inside Handle Rod(For Front Door)
69273 69759-22050 Snap, Door Inside Handle Rod(For Front Door)
69276 69277-22050-03 Bezel, Front Door Inside Handle
69276 69277-22050-13 Bezel, Front Door Inside Handle, Rh
69276 69277-22050-04 Bezel, Front Door Inside Handle
69276 69277-22050-14 Bezel, Front Door Inside Handle, Rh
69276 69277-22050-05 Bezel, Front Door Inside Handle
69276 69277-22050-15 Bezel, Front Door Inside Handle
69310 69310-22260 Lock Assy, Front Door, Rh
69310 69310-22261 Lock Assy, Front Door, Rh
69320 69320-22250 Lock Assy, Front Door, Lh
69320 69320-22251 Lock Assy, Front Door, Lh
69410 69410-87001 Plate Assy, Front Door Lock Striker
69410 69410-AA020 Plate Assy, Front Door Lock Striker
69710 69711-22050 Link Assy, Front Door Open Control, Rh
69720 69712-22050 Link Assy, Front Door Open Control, Lh
69747 69741-22010 Button, Door Locking(For Front Door)
69749 69749-20010 Clamp, Front Door Lock Link
69759 69759-20040 Snap, Auxiliary Catch Release Lever Control Link
69759 69759-20050 Snap(For Rear Door Lock)
9010506074 90105-06074 New Genuine Part
9010506074 90105-06082 BOLT
9015960081 90159-60081 SCREW
9015960268 90159-60268 Screw
9015960329 90159-60329 New Genuine Part
9015980014 90159-80014 SCREW
9016840006 90168-40006 New Genuine Part
9016860014 90168-60014 New Genuine Part
9018906043 90189-06043 CLIP
9152140610 91521-40610 New Genuine Part
9352054010 93520-54010 Screw
Front Door Panel & Glass ([08.1984 - ] (8408- )) 102
#OEMPart name
67001 67001-22260 Panel Sub-Assy, Front Door, Rh
67002 67002-22260 Panel Sub-Assy, Front Door, Lh
67111 67111-22150 Panel, Front Door, Outer Rh
67111 67111-22160 Panel, Front Door, Outer Rh
67112 67112-22160 Panel, Front Door, Outer Lh
67112 67112-22170 Panel, Front Door, Outer Lh
67401 67401-22130 Bar Sub-Assy, Front Door Window, Front Rh
67402 67402-22130 Bar Sub-Assy, Front Door Window, Front Lh
67481 67481-22100 Seal, Front Door Front Lower Frame, Rh
67481 67481-22110 Seal, Front Door Front Lower Frame, Rh
67482 67482-22070 Seal, Front Door Front Lower Frame, Lh
67482 67482-22080 Seal, Front Door Front Lower Frame, Lh
67491 67491-22070 Garnish, Front Door Lower Frame Bracket, Rh
67492 67492-22070 Garnish, Front Door Lower Frame Bracket, Lh
67601 67610-91615-03 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91615-04 Board Sub-Assy, Front Door Trim, Rh
67601 67771-22010 Retainer, Door Trim
67601 67771-30060 Retainer (For Quarter Inside Trim Board)
67601 90467-07043-13 Clip(For Front Door Trim Board)
67601 90467-07043-C0 Clip(For Rear Bumper Retainer)
67601 90467-07043-44 Clip(For Deck Side Trim Panel)
67601 67610-91616-03 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91616-04 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91616-05 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91616-15 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91620-03 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91620-04 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91620-05 Board Sub-Assy, Front Door Trim, Rh
67601 67610-91620-15 Board Sub-Assy, Front Door Trim, Rh
67601 90467-07043-05 Clip(For Front Door Trim Board)
67601 90467-07043-15 Clip(For Deck Trim Rear Cover)
67602 67620-91607-03 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91607-04 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91603-03 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91603-04 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91603-05 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91603-15 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91609-03 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91609-04 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91609-05 Board Sub-Assy, Front Door Trim, Lh
67602 67620-91609-15 Board Sub-Assy, Front Door Trim, Lh
67777 67777-22040-43 Pocket, Front Door Trim, Rh
67777 67777-22040-B0 Pocket, Front Door Trim, Rh
67777 67777-22040-54 Pocket, Front Door Trim, Rh
67777 67777-22040-59 Pocket, Front Door Trim, Rh
67777 67777-22040-35 Pocket, Front Door Trim, Rh
67777 67777-22040-01 Pocket, Front Door Trim, Rh
67777 67777-22040-55 Pocket, Front Door Trim, Rh
67777 67777-22040-40 Pocket, Front Door Trim, Rh
67778 67778-22030-43 Pocket, Front Door Trim, Lh
67778 67778-22030-59 Pocket, Front Door Trim, Lh
67778 67778-22030-54 Pocket, Front Door Trim, Lh
67778 67778-22030-50 Pocket, Front Door Trim, Lh
67778 67778-22030-35 Pocket, Front Door Trim, Lh
67778 67778-22030-01 Pocket, Front Door Trim, Lh
67778 67778-22030-55 Pocket, Front Door Trim, Lh
67785 67785-22030-03 Holder, Door Locking Button Collar(For Front Door)
67785 67785-22030-04 Holder, Door Locking Button Collar(For Front Door)
67785 67785-22030-05 Holder, Door Locking Button Collar(For Front Door)
67785 67785-22030-15 Holder, Door Locking Button Collar(For Front Door)
67831 67831-22120 Cover, Front Door Service Hole, Rh
67831 67831-22140 Cover, Front Door Service Hole, Rh
67832 67832-22030 Cover, Front Door Service Hole, Lh
67837 67837-22010 Seal, Front Door Vent, Rh
67838 67838-22010 Seal, Front Door Vent, Lh
67861 67861-22160 Weatherstrip, Front Door, Rh
67861 67861-22210 Weatherstrip, Front Door, Rh
67861 67861-22170 Weatherstrip, Front Door, Rh
67862 67862-22160 Weatherstrip, Front Door, Lh
67862 67862-22190 Weatherstrip, Front Door, Lh
67862 67862-22170 Weatherstrip, Front Door, Lh
67867 67867-22020 Clip, Door Weatherstrip(For Front Door)
67867 67868-22010 Retainer, Rh(For Front Door No.2 Weatherstrip)
67868 67869-30020 Clip, Headlamp Door Filler
68101 68111-22310 Glass Sub-Assy, Front Door, Rh
68101 68111-22260 Glass Sub-Assy, Front Door, Rh
68102 68112-22320 Glass Sub-Assy, Front Door, Lh
68102 68112-22260 Glass Sub-Assy, Front Door, Lh
68170 68170-22130 Weatherstrip Assy, Front Door Glass, Inner
68170 68220-22080 Weatherstrip Assy, Front Door Glass, Inner
68170 68170-22120 Weatherstrip Assy, Front Door Glass, Inner
68170 68220-22070 Weatherstrip Assy, Front Door Glass, Inner
68403 67403-22030 Guide Sub-Assy, Front Door Window, Rear Rh
68404 67404-22030 Guide Sub-Assy, Front Door Window, Rear Lh
68610 68610-22030 Check Assy, Front Door
68610 68617-22020 Pin(For Front Door Check)
68610 68617-90A00 Pin(For Front Door Check)
68610 68617-90A01 Pin(For Front Door Check)
6748322010 67483-22010 Sheet, Front Door Glass Front Outside, Rh
6748422010 67484-22010 Sheet, Front Door Glass Front Outside, Lh
6777220040 67772-20040 Cap, Front Door Trim Retainer
6777220040 67772-16020 Cap, Front Door Trim Retainer
9016840025 90168-40025 SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017908001 90179-08001 New Genuine Part
9017908001 90179-08233 NUT
9033335001 90333-35001 New Genuine Part
9054109006 90541-09006 Cushion, Front Door Panel
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9354054010 93540-54010 Screw, Roof Headlining Trim
Front Door Window Regulator & Hinge ([08.1984 - ] (8408- )) 44
#OEMPart name
67149 68149-14010 Stabilizer, Rear Door Glass Male, Rh
67231 67231-20020 Support, Front Door Trim
67231 67231-30070 Support, Front Door Trim
67231 67232-20020 Support, Front Door Trim
67231 67232-30050 Support, Front Door Trim
68411 67211-30040 Stopper Assy, Door Glass(For Front Door)
68710 68710-20060 Hinge Assy, Front Door, Upper Rh
68720 68720-20050 Hinge Assy, Front Door, Upper Lh
68730 68730-24010 Hinge Assy, Front Door, Lower Rh
68730 68730-60020 Hinge Assy, Front Door, Lower Rh
68740 68740-24010 Hinge Assy, Front Door, Lower Lh
68740 68740-60020 Hinge Assy, Front Door, Lower Lh
69260 69260-22030-03 Handle Assy, Front Door Window Regulator
69260 69260-22030-23 Handle Assy, Front Door Window Regulator
69260 69260-22030-14 Handle Assy, Front Door Window Regulator
69260 90520-01002 Ring, Shaft Snap(For Vent Window Control)
69260 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
69260 69260-22030-05 Handle Assy, Front Door Window Regulator
69260 69260-22030-15 Handle Assy, Front Door Window Regulator
69272 69285-22010-08 Escutcheon, Window Regulator Handle
69801 69810-22170 Regulator Sub-Assy, Front Door Window, Rh
69802 69820-22160 Regulator Sub-Assy, Front Door Window, Lh
69910 69901-22070 Bracket Assy, Front Door Glass, Rh
69910 69903-22030 Bracket Assy, Front Door Glass, Rh
69920 69902-22030 Bracket Assy, Front Door Glass, Lh
69920 69904-22010 Bracket Assy, Front Door Glass, Lh
69986 69986-24010 Piece, Front Door Glass Guide
9010908103 90109-08103 New Genuine Part
9011606043 90116-06043 New Genuine Part
9011906170 90119-06170 New Genuine Part
9011908093 90119-08093 BOLT
9011908477 90119-08477 New Genuine Part
9016850024 90168-50024 New Genuine Part
9016850024 90168-50013 SCREW
9017906042 90179-06042 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017908001 90179-08001 New Genuine Part
9017908001 90179-08233 NUT
9020907001 90209-07001 New Genuine Part
9020909005 90209-09005 New Genuine Part
9161140614 91611-40614 Bolt, Hexagon(For Steering Column Bracket)
9161140614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9331116014 93311-16014 Screw
Front Fender Apron & Dash Panel ([08.1984 - ] (8408- )) 70
#OEMPart name
53183 53183-91601 Seal, Headlamp Cover, Rh
53183 53183-91602 Seal, Headlamp Cover, Rh
53183 53183-91603 Seal, Headlamp Cover, Rh
53183 53183-91604 Seal, Headlamp Cover, Rh
53205 53205-22040 Support Sub-Assy, Radiator, Upper
53205 53205-22050 Support Sub-Assy, Radiator, Upper
53208 53208-22080 Support Sub-Assy, Hood Lock
53208 53215-22010 Support Sub-Assy, Hood Lock
53211 53211-22190 Support, Radiator, Rh
53211 53211-22191 Support, Radiator, Rh
53212 53212-22120 Support, Radiator, Lh
53212 53212-22121 Support, Radiator, Lh
53286 53285-22020 Cover, Front Bumper Arm Hole
53286 53286-22010 Cover, Front Bumper Arm Hole
53378 53378-22010 Seal, Hood Air Intake Duct
53378 90467-08011 Clip(For Headlamp Cover Seal)
53378 90467-08011-TH CLIP
53378 90467-08011-83 Clip(For Headlamp Cover Seal)
53633 53633-22020 Shield, Hood Lock Control Cable
53633 53633-22030 Shield, Hood Lock Control Cable
53701 53701-22520 Apron Sub-Assy, Front Fender, Rh
53701 53701-22410 Apron Sub-Assy, Front Fender, Rh
53701 53701-22530 Apron Sub-Assy, Front Fender, Rh
53702 53702-22400 Apron Sub-Assy, Front Fender, Lh
53702 53702-22470 Apron Sub-Assy, Front Fender, Lh
53711 53711-22320 Apron, Front Fender, Front Rh
53712 53712-22290 Apron, Front Fender, Front Lh
53712 53712-22291 Apron, Front Fender, Front Lh
53712 53712-22310 Apron, Front Fender, Front Lh
53777 53777-22030 Support, Battery Carrier, No.2
53791 53791-22010 Cover, Cool Air Intake Hole
53795 53795-91601 Cover, Headlamp Wire Harness Hole, Rh
53796 53796-91602 Cover, Headlamp Wire Harness Hole, Lh
55101 55101-22916 Panel Sub-Assy, Dash
55101 55101-22935 Panel Sub-Assy, Dash
55101 55101-22913 Panel Sub-Assy, Dash
55210 55210-22180 Insulator Assy, Dash Panel
55210 55210-22200 Insulator Assy, Dash Panel
55220 55220-22010 Insulator Assy, Dash Panel, No.2
55223 55223-22020 Insulator, Dash Panel, Outer
55250 55250-22010 Door Assy, Cowl Side Ventilator, Rh
57161 57104-22100 Crossmember, Front
57161 57104-22110 Crossmember, Front
76609 76609-22010 Mudguard Sub-Assy, Front Side Member
6786830030 67868-30030 Clip, Roof Side Rail Weatherstrip
9046713025 90467-13025 New Genuine Part
9048040010 90480-40010 Support, Radiator, Lower
9056109008 90561-09008 New Genuine Part
9056116004 90561-16004 New Genuine Part
9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)
9095001060 90950-01866 Plug, Hole(For Front Door Panel)
9095001109 90950-01109 New Genuine Part
9095001181 90950-01181 Plug, Hole(For Front Fender Apron)
9095001247 90950-01247 New Genuine Part
9095001310 90950-01310 Plug, Hole
9095001315 90950-01315 New Genuine Part
9095001338 90950-01338 New Genuine Part
9095001361 90950-01361 New Genuine Part
9095001362 90950-01362 New Genuine Part
9095001379 90950-01379 New Genuine Part
9095001433 90950-01433 New Genuine Part
9095001466 90950-01466 New Genuine Part
9165140610 91651-40610 RIVET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9166140612 91661-40612 New Genuine Part
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9461310300 94613-10300 New Genuine Part
9511380309 95113-80309 New Genuine Part
Front Moulding ([08.1984 - ] (8408- )) 20
#OEMPart name
56013 56013-22020 Moulding Sub-Assy, Front Window, Inner Center
75531 75531-22100 Moulding, Windshield, Outer Upper
75531 75545-22040 Clip, Windshield Moulding Set, No.1
75532 75504-22050 Moulding, Windshield, Lower
75533 76003-22010 Moulding, Windshield, Outside Rh
75534 76004-22010 Moulding, Windshield, Outside Lh
75548 75548-22100 Fastener, Windshield Outside Moulding, No.1
75548 75548-22101 Fastener, Windshield Outside Moulding, No.1
8271112170 82711-12170 Wire, Fuse To Fuse(for Combustion Heater)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9015960252 90159-60252 New Genuine Part
9016840038 90168-40038 New Genuine Part
9016840064 90168-40064 SCREW
9018904053 90189-04053 New Genuine Part
9018904053 90189-04030 New Genuine Part
9018904069 90189-04069 CLIP
9018906029 90189-06029 GROMMET
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
Front Seat & Seat Track ([08.1984 - 08.1986] (8408-8608)AVT,KYO,SXL,XG,XL) 93
#OEMPart name
71071 71071-2A050-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A060-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A200-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A200-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A210-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A210-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A060-05 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A060-15 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-22630-03 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-22630-04 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71071-2A050-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-22640-03 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-22640-04 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71071-2A060-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-22640-05 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-22640-15 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-2A370-03 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A370-04 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-03 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-04 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-05 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-15 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-22870-03 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22870-04 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-03 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-04 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-05 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-15 Cover, Front Seat Back, Lh(For Separate Type)
71311 90386-12027 Bush (For Front Seat Hinge Pin)
71410 71410-2A200-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A380-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A380-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A400-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A400-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-05 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-15 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-22780-03 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22780-04 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-03 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-04 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-05 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-15 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71430-2A500-03 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A500-04 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-03 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-04 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-05 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-15 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-2A410-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A620-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A620-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A630-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A630-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-05 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-15 Back Assy, Front Seat, Lh(For Separate Type)
71610 71610-22280 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610 71610-22310 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630 71630-22290 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-22240 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-22260 Spring Assy, Front Seat Back, Lh(For Separate Type)
71812 90468-18071 Clip (For Front Seat Cushion Cover)
71812 90468-16019 Clip (For Rear Seat Back)
71950 71910-22540-03 Headrest Assy, Front Seat
71950 71910-22540-04 Headrest Assy, Front Seat
71950 71910-22540-05 Headrest Assy, Front Seat
71950 71910-22630-04 Headrest Assy, Front Seat
71950 71910-22630-05 Headrest Assy, Front Seat
71956 71930-10060-43 Support, Front Seat Headrest
71956 71930-10060-54 Support, Front Seat Headrest
71956 71930-10060-B1 Support, Front Seat Headrest
71956 71931-10010-43 Support, Front Seat Headrest
71956 71931-10010-54 Support, Front Seat Headrest
71956 71931-10010-B1 Support, Front Seat Headrest
71956 71930-10060-10 Support, Rear Seat Headrest
71956 71930-10060-16 Support, Front Seat Headrest
71956 71931-10010-10 Support, Rear Seat Headrest
71956 71931-10010-16 Support, Front Seat Headrest
72770 72760-30060 Adjuster Assy, Lumbar Support, Rh
72791 72791-14010-13 Lever, Lumbar Support
72791 72791-14010-14 Lever, Lumbar Support
72791 90520-01002 Ring, Shaft Snap(For Vent Window Control)
72791 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
9046710016 90467-10016 Clip, Radiator Support To Frame
9046710016 90467-10016-01 Clip (For Roll Over Garnish)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9338616016 93386-16016 New Genuine Part
9353054025 93530-54025 New Genuine Part
Front Seat & Seat Track ([08.1984 - ] (8408- )) 79
#OEMPart name
71511 71511-22260 Pad, Front Seat Cushion, Rh(For Separate Type)
71521 71521-22150 Pad, Front Seat Cushion Silencer, A
71522 71522-22110 Pad, Front Seat Cushion Silencer, B
71551 71551-22260 Pad, Front Seat Back, Rh(For Separate Type)
71554 71554-22020 Pad, Front Seat Back, C
71572 71572-30040 Pad, Front Seat Back Silencer, B
71581 71583-22100 Pad, Front Seat Back Silencer, C
71811 71811-22130-03 Shield, Front Seat Cushion, Rh
71811 71811-22130-13 Shield, Front Seat Cushion, Rh
71811 71811-22130-04 Shield, Front Seat Cushion, Rh
71811 71811-22140-03 Shield, Front Seat Cushion, Rh
71811 71811-22140-13 Shield, Front Seat Cushion, Rh
71811 71811-22140-02 Shield, Front Seat Cushion, Rh
71811 71811-22140-04 Shield, Front Seat Cushion, Rh
71811 71811-22140-14 Shield, Front Seat Cushion, Rh
71811 71811-22140-05 Shield, Front Seat Cushion, Rh
71811 71811-22140-15 Shield, Front Seat Cushion, Rh
71812 71812-22090-03 Shield, Front Seat Cushion, Lh
71812 71812-22090-13 Shield, Front Seat Cushion, Lh
71812 71812-22090-04 Shield, Front Seat Cushion, Lh
71812 71812-22090-14 Shield, Front Seat Cushion, Lh
71812 71812-22090-05 Shield, Front Seat Cushion, Lh
71812 71812-22090-15 Shield, Front Seat Cushion, Lh
71861 71861-22010-03 Shield, Front Seat Cushion, Inner Rh
71861 71861-22010-13 Shield, Front Seat Cushion, Inner Rh
71861 71861-22010-04 Shield, Front Seat Cushion, Inner Rh
72011 72010-22030 Adjuster Sub-Assy, Front Seat, Outer Rh
72011 72010-22040 Adjuster Sub-Assy, Front Seat, Outer Rh
72011 72010-22070 Adjuster Sub-Assy, Front Seat, Outer Rh
72011 90506-20045 Spring, Tension (For Front Seat Adjuster Outer)
72011 72010-22060 Adjuster Sub-Assy, Front Seat, Outer Rh
72012 72020-22020 Adjuster Sub-Assy, Front Seat, Outer Lh
72012 72020-22040 Adjuster Sub-Assy, Front Seat, Outer Lh
72130 72130-22200 Track Assy, Rh Seat, Inner
72130 72130-22210 Track Assy, Rh Seat, Inner
72130 72130-22250 Track Assy, Rh Seat, Inner
72130 72130-22240 Track Assy, Rh Seat, Inner
72137 72137-22030-03 Cover, Seat Track, Outer Rh
72137 72137-22030-13 Cover, Seat Track, Outer Rh - SEAT TRACK, RH
72137 72137-22040-04 Cover, Seat Track, Outer Rh
72137 72137-22040-03 Cover, Seat Track, Rh
72137 72137-22030-05 Cover, Seat Track, Outer Rh
72137 72137-22040-05 Cover, Seat Track, Outer Rh
72138 72138-22030-03 Cover, Seat Track, Outer Lh
72138 72138-22030-23 Cover, Seat Track, Outer Lh - SEAT TRACK, LH
72138 72138-22040-04 Cover, Seat Track, Outer Lh
72138 72138-22040-03 Cover, Seat Track, Lh
72138 72138-22030-05 Cover, Seat Track, Outer Lh
72138 72138-22040-05 Cover, Seat Track, Outer Lh
72140 72140-22160 Track Assy, Lh Seat, Inner
72140 72140-22190 Track Assy, Lh Seat, Inner
72301 72301-22110 Wire Sub-Assy, Seat Track Equalizing
72457 72457-22010-03 Knob, Seat Adjuster
72457 72457-22010-01 Knob, Seat Adjuster
72457 72457-22010-04 Knob, Seat Adjuster
72457 72457-22010-05 Knob, Seat Adjuster
72457 72457-22010-15 Knob, Seat Adjuster
72524 72525-12090-13 Handle, Reclining Adjuster Release
72524 72525-12090-03 Handle, Reclining Adjuster Release
72524 72525-12090-34 Handle, Reclining Adjuster Release
72524 72525-12090-C0 Handle, Reclining Adjuster Release (Black)
72524 72526-12030-13 Handle, Reclining Adjuster Release
72524 72526-12030-03 Handle, Reclining Adjuster Release
72524 72526-12030-34 Handle, Reclining Adjuster Release
72524 72526-12030-C0 Handle, Reclining Adjuster Release - RECLINING ADJUSTER RELEASE, LH
72524 72525-12090-05 Handle, Reclining Adjuster Release
72524 72525-12090-25 Handle, Reclining Adjuster Release
72524 72526-12030-05 Handle, Reclining Adjuster Release
72524 72526-12030-25 Handle, Reclining Adjuster Release
9011910116 90119-10116 New Genuine Part
9011910116 90119-10229 BOLT
9011910349 90119-10349 BOLT
9011910349 91651-G1020 BOLT
9015480005 90154-80005 New Genuine Part
9016840036 90168-40036 SCREW
9052001002 90520-01002 Ring, Shaft Snap(For Vent Window Control)
9052001002 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9324954006 93249-54006 Screw
Front Seat & Seat Track ([08.1986 - ] (8608- )AVT,KYO,SXL,XG,XL) 92
#OEMPart name
71071 71071-2A050-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A060-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A200-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A200-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A210-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A210-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A060-05 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-2A060-15 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-22630-03 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-22630-04 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71071-2A050-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-22640-03 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-22640-04 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71071-2A060-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-22640-05 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-22640-15 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-2A370-03 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A370-04 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-03 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-04 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-05 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-2A380-15 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-22870-03 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22870-04 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-03 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-04 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-05 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-22880-15 Cover, Front Seat Back, Lh(For Separate Type)
71311 90386-12027 Bush (For Front Seat Hinge Pin)
71410 71410-2A200-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A380-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A380-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A400-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A400-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-05 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-2A210-15 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-22780-03 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22780-04 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-03 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-04 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-05 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-22790-15 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71430-2A500-03 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A500-04 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-03 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-04 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-05 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-2A510-15 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-2A410-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A620-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A620-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A630-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A630-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-05 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-2A420-15 Back Assy, Front Seat, Lh(For Separate Type)
71610 71610-22280 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610 71610-22310 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630 71630-22290 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-22240 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-22260 Spring Assy, Front Seat Back, Lh(For Separate Type)
71812 90468-18071 Clip (For Front Seat Cushion Cover)
71812 90468-16019 Clip (For Rear Seat Back)
71950 71910-22540-03 Headrest Assy, Front Seat
71950 71910-22540-04 Headrest Assy, Front Seat
71950 71910-22540-05 Headrest Assy, Front Seat
71950 71910-22630-04 Headrest Assy, Front Seat
71950 71910-22630-05 Headrest Assy, Front Seat
71956 71930-10060-43 Support, Front Seat Headrest
71956 71930-10060-54 Support, Front Seat Headrest
71956 71930-10060-B1 Support, Front Seat Headrest
71956 71931-10010-43 Support, Front Seat Headrest
71956 71931-10010-54 Support, Front Seat Headrest
71956 71931-10010-B1 Support, Front Seat Headrest
71956 71930-10060-10 Support, Rear Seat Headrest
71956 71930-10060-16 Support, Front Seat Headrest
71956 71931-10010-10 Support, Rear Seat Headrest
71956 71931-10010-16 Support, Front Seat Headrest
72770 72760-30060 Adjuster Assy, Lumbar Support, Rh
72791 72791-14010-13 Lever, Lumbar Support
72791 72791-14010-14 Lever, Lumbar Support
72791 90520-01002 Ring, Shaft Snap(For Vent Window Control)
72791 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
9046710016 90467-10016 Clip, Radiator Support To Frame
9046710016 90467-10016-01 Clip (For Roll Over Garnish)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9353054025 93530-54025 New Genuine Part
Front Spring & Shock Absorber ([08.1984 - ] (8408- )CBR,DSL,EFI,LPG,TBO,TD,TWT) 45
#OEMPart name
48021 48021-22070 Shell Sub-Assy, W/steering Knuckle, Rh
48029 48029-22070 Shell Sub-Assy, W/steering Knuckle, Lh
48131 48131-2A340 Spring, Front Coil, Rh
48131 48131-2A240 Spring, Front Coil, Rh
48132 48131-2A330 Spring, Front Coil, Rh
48132 48131-2A230 Spring, Front Coil
48331 48331-14020 Bumper, Front Spring, No.1
48471 48044-24010 Seat, Front Spring, Upper
48510 48510-22210 Absorber Assy, Shock, Front Rh
48510 48510-22211 Absorber Assy, Shock, Front Rh
48510 48510-22300 Absorber Assy, Shock, Front Rh
48511 48511-29265 Absorber, Shock Front, Rh(For Cartridge Type)
48511 48511-29255 Absorber, Shock Front, Rh(For Cartridge Type)
48520 48520-22210 Absorber Assy, Shock, Front Lh
48520 48520-22211 Absorber Assy, Shock, Front Lh
48520 48520-22300 Absorber Assy, Shock, Front Lh
48660 48660-22060 Bar Assy, Strut, Rh
48660 48660-22070 Bar Assy, Strut, Rh
48670 48670-22060 Bar Assy, Strut, Lh
48670 48670-22070 Bar Assy, Strut, Lh
48674 90948-02079 Retainer, Cushion(For Strut Bar Cushion)
48674 90948-02080 Retainer, Cushion(For Strut Bar Cushion)
48674 90560-18006 Spacer(For Strut Bar Cushion)
48680 48609-22070 Support Sub-Assy, Front Suspension
48680 94182-11400 Nut(For Idler Arm Support)
48680 90303-22049 Seal, Dust(For Front Suspension Support)
48684 48684-14020 Cover, Bearing Dust
48811 48811-22250 Bar, Stabilizer, Front
48811 48811-22260 Bar, Stabilizer, Front
48815 48815-22050 Bush, Front Stabilizer Bar, No.1
48815 48815-22060 Bush, Front Stabilizer Bar, No.1
48817 48817-22020 Cushion, Front Stabilizer
48817 90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817 90948-02015 Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817 48819-24010 Bolt(For Front Stabilizer)
48824 48824-22060 Bracket, Stabilizer, Front
9017010022 90170-10022 Nut(For Rear Spring U Bolt)
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9017918007 90179-18007 NUT
9020110074 90201-10074 New Genuine Part
9020110287 90201-10287 Washer(For Front Wheel Cylinder)
9161640825 91616-40825 Bolt(For Clutch Master Cylinder Setting)
9161640825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9418210800 94182-10800 Nut
Front Steering Gear & Link ([08.1984 - ] (8408- )) 16
#OEMPart name
45046 45046-29145 End Sub-Assy, Tie Rod, Rh
45046 45046-29555 End Sub-Assy, Tie Rod, Rh
45046 90171-12028 Nut, Castle(For Pitman Arm)
45611 45611-22090 Arm, Steering Knuckle, Rh
45611 45611-22100 Arm, Steering Knuckle, Rh
45611 90106-10032 Bolt, Round Hexagon (For Steering Knuckle Stopper)
45611 90101-12111 Bolt, Hexagon(For Steering Knuckle To Shock Absorber)
45611 90253-15016 Pin, Straight(For End Plate)
45612 45612-22090 Arm, Steering Knuckle, Lh
45612 45612-22100 Arm, Steering Knuckle, Lh
45619 45619-14020 Cover, Front Knuckle Stopper
9017010082 90170-10082 Nut, Hexagon (For Control Rod Setting)
9017014012 90170-14012 Nut, Rack End Lock
9451201200 94512-01200 Washer
9453101000 94531-01000 WASHER
9538103020 95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin)
Front Steering Gear & Link ([08.1984 - ] (8408- )CBR,DSL,EFI,LPG,TBO,TD) 66
#OEMPart name
4445 04445-22060 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4445 04445-22061 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4445 04445-22220 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-22040 Gasket Kit, Power Steering Control Valve Overhole
4455 04455-20120 Gasket Kit, Power Steering Control Valve Overhole
44015 44015-20010 Nut Sub-Assy, Bearing Guide
44015 44015-22020 Nut Sub-Assy, Bearing Guide
44015 90301-43002 Ring, O(For Bearing Guide Nut)
44015 90310-25004 Seal, Oil(For Bearing Guide Nut)
44201 44201-22010 Valve Sub-Assy, Power Steering Control
44201 44201-28120 Valve Sub-Assy, Power Steering Control
44201 44201-22050 Valve Sub-Assy, Power Steering Control
44201 90562-32003 Ring(For Power Steering Control Valve)
44201 90562-33007 Ring(For Power Steering Control Valve)
44204 44204-22010 Rack Sub-Assy, Power Steering
44204 44204-22011 Rack Sub-Assy, Power Steering
44204 90301-34003 Ring(For Rack Steering Piston)
44204 90562-38002 Ring(For Rack Steering Piston)
44210 44210-22010 Valve Assy, Power Steering Control
44210 44210-22090 Valve Assy, Power Steering Control
44210 90410-06005 Seat, Union(Pressure Control Valve Assy)
44210 90301-51001 Ring, O(For Adjuster Plug)
44210 90311-19002 Seal, Oil(For Adjuster Plug)
44210 90363-19003 Bearing(For Rear Steering Control Valve Housing)
44211 44211-22010 Housing, Control Valve
44211 44211-43010 Housing, Control Valve
44222 45222-32010 Cover, Dust(For Power Steering Gear)
44250 44250-22020 Gear Assy, Power Steering(For Rack & Pinion)
44250 44250-22021 Gear Assy, Power Steering(For Rack & Pinion)
44250 44250-22150 Gear Assy, Power Steering(For Rack & Pinion)
44250 44250-22151 Gear Assy, Power Steering(For Rack & Pinion)
44253 44203-22010 Housing, Power Steering Rack
44253 44203-22011 Housing, Power Steering Rack
44253 90310-25001 Seal, Oil(For Power Steering Rack Housing)
44253 90310-25015 Seal, Oil(For Power Steering Rack Housing)
44253 90999-99129 Seal, Oil(For Power Steering Rack Housing)
44253 90560-26007 Spacer(For Power Steering Rack Housing)
44253 90560-26010 Spacer(For Power Steering Rack Housing)
44267 44267-22010 Guide, Rack End
44275 44275-20031 Stopper, Cylinder End
44275 90310-25010 Seal, Oil(For Cylinder End Stopper)
44277 44277-20010 Seat, Rack Guide
44418 44418-22020 Tube, Steering Right Turn Pressure
44418 44418-22021 Tube, Steering Right Turn Pressure
44418 90410-04001 Seat, Union(For Steering Turn Pressure Tube)
44418 90410-04002 Seat, Union(For Power Steering Rack Housing)
44419 44419-22020 Tube, Steering Left Turn Pressure
44503 45503-29035 End Sub-Assy, Steering Rack(For Power Steering)
44503 90214-14002 Washer, Claw(For Power Steering Rack End)
44523 45523-12010 Guide, Rack(For Power Steering)
44523 90501-23024 Spring(For Power Steering Rack Guide)
44524 45524-16010 Cap(For Power Steering Pinion)
44524 90179-36002 Nut(For Power Steering Pinion Cap)
44535 45535-22030 Boot, Steering Rack No.1(For Power Steering)
44535 90467-18003 Clip Or Clamp(For Ventilation Hose)
44535 90460-53002 Clamp(For Power Steering Rack Boot)
45514 45514-22030 Bracket, Steering Rack Housing, No.1
45515 45515-22030 Bracket, Steering Rack Housing, No.2
45515 45515-22040 Bracket, Steering Rack Housing, No.2
45516 45516-22010 Grommet, Steering Rack Housing, No.1
45517 45517-22010 Grommet, Steering Rack Housing, No.2
45517 45517-22020 Grommet, Steering Rack Housing, No.2
9011912066 90119-12066 New Genuine Part
9014930004 90149-30004 Screw(For Steering Rack Boot Clamp)
9151160825 91511-60825 Bolt (For Transfer Stiffener Plate)
9151160825 91511-B0825 Bolt (For Transfer Stiffener Plate)
Front Steering Gear & Link ([08.1984 - ] (8408- )SX70..KYO,XL ; (8408- )LX70,YX7#.. KYO) 37
#OEMPart name
45222 45222-20010 Cover, Steering Gear Dust
45501 45501-22030 Housing Sub-Assy, Steering Rack
45501 90311-15001 Seal, Oil(For Steering Bevel Gear Housing)
45501 90311-15002 Seal, Oil(For Steering Bevel Gear Housing)
45501 90560-15005 Spacer(For Steering Rack Housing)
45503 45503-29065 End Sub-Assy, Steering Rack
45510 45510-22030 Gear Assy, Steering
45514 45514-22030 Bracket, Steering Rack Housing, No.1
45515 45515-22030 Bracket, Steering Rack Housing, No.2
45515 45515-22040 Bracket, Steering Rack Housing, No.2
45516 45516-22010 Grommet, Steering Rack Housing, No.1
45517 45517-22010 Grommet, Steering Rack Housing, No.2
45517 45517-22020 Grommet, Steering Rack Housing, No.2
45518 45518-22010 Bracket, Steering Rack Housing, No.3
45521 45521-22030 Rack, Steering
45521 45521-22031 Rack, Steering
45521 45522-22011 Bush, Steering Rack
45522 45522-22010 Bush, Steering Rack
45523 45523-22020 Guide, Rack(For Steering Gear)
45523 90501-32015 Spring(For Steering Gear Rack Guide)
45523 90560-23007 Spacer(For Rack Guide)
45523 44277-20030 Seat, Rack Guide
45524 45524-22010 Cap, Steering Rack Guide Spring
45524 90179-36002 Nut(For Power Steering Pinion Cap)
45535 45535-22020 Boot, Steering Rack, No.1
45535 90461-10273 Clamp(For Steering Rack Boot)
45535 90461-10524 Clamp(For Steering Rack Boot)
45535 90467-18003 Clip Or Clamp(For Ventilation Hose)
45536 45536-22020 Boot, Steering Rack, No.2
45537 90214-14005 Washer, Claw(For Power Steering Rack End)
45541 45541-22030 Pinion, Steering
45541 90363-15006 Bearing, Radial Ball(For Steering Pinion Upper)
45541 90363-15005 Bearing, Radial Ball(For Steering Pinion Lower)
45545 45545-22020 Screw, Pinion Bearing Adjusting
45545 90179-42001 Nut(For Pinion Bearing Adjusting Screw)
9011912066 90119-12066 New Genuine Part
9326963020 93269-63020 Screw(For Steering Rack Boot Clamp)
Front Turn Signal Lamp ([08.1984 - ] (8408- )) 14
#OEMPart name
81510 81510-39515 Lamp Assy, Front Turn Signal, Rh
81510 99132-11230 Bulb, Fog Lamp
81510 00234-01073 Bulb
81510 81510-80016 Lamp Assy, Front Turn Signal, Rh
81511 81511-16080 Lens, Front Turn Signal Lamp, Rh
81511 81511-22221 Lens, Front Turn Signal Lamp, Rh
81512 81512-14140 Gasket, Front Turn Signal Lamp Lens
81518 81517-22220 Protector, Front Turn Signal Lamp
81520 81520-39515 Lamp Assy, Front Turn Signal, Lh
81520 81520-80016 Lamp Assy, Front Turn Signal, Lh
81521 81521-16080 Lens, Front Turn Signal Lamp, Lh
81521 81521-22221 Lens, Front Turn Signal Lamp, Lh
8161912140 81619-12140 New Genuine Part
9017906007 90179-06007 Nut
Fuel Filter ([05.1986 - ] (8605- )2L#) 19
#OEMPart name
23301 23301-54030 Cap Assy, Fuel Filter
23301 23301-54220 Cap Assy, Fuel Filter
23301 23301-54290 Cap Assy, Fuel Filter
23301 23301-64010 Cap Assy, Fuel Filter
23301 23301-54060 Cap Assy, Fuel Filter
23301 23301-54200 Cap Assy, Fuel Filter
23301 23301-54270 Cap Assy, Fuel Filter
23303 23303-64010 Element Sub-Assy, Fuel Filter
23303 23303-64010-00 233036401000
23322 23322-64010 Drain Plug (For a Level Warning Switch)
23322 23344-54010 O-Ring (For Drain Plug)
23338 23344-64010 O-Ring (For Level Warning Switch)
23921 23904-54010 Support, Fuel Filter
23921 23921-54140 Support, Fuel Filter
9011906018 90119-06018 New Genuine Part
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9161640616 91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640616 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165140614 91651-40614 Bolt
Fuel Filter ([08.1984 - 05.1986] (8408-8605)2L#) 24
#OEMPart name
23300 90405-08016 Union, Nipple(For Fuel Filter Inlet)
23300 23323-54150 Union, Nipple(For Fuel Filter Outlet)
23300 22447-47030 Gasket, Nipple Union(For Fuel)
23300 23323-54170 Union, Nipple(For Fuel Filter Inlet)
23301 23301-54030 Cap Assy, Fuel Filter
23301 23301-54220 Cap Assy, Fuel Filter
23301 23301-54290 Cap Assy, Fuel Filter
23301 23301-64010 Cap Assy, Fuel Filter
23301 23301-54060 Cap Assy, Fuel Filter
23301 23301-54200 Cap Assy, Fuel Filter
23301 23301-54270 Cap Assy, Fuel Filter
23303 23303-64010 Element Sub-Assy, Fuel Filter
23303 23303-64010-00 233036401000
23319 90099-18011 Screw, Fuel Pipe Follow
23322 23322-64010 Drain Plug (For a Level Warning Switch)
23322 23344-54010 O-Ring (For Drain Plug)
23338 23344-64010 O-Ring (For Level Warning Switch)
23921 23904-54010 Support, Fuel Filter
23921 23921-54140 Support, Fuel Filter
9011906018 90119-06018 New Genuine Part
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9161640616 91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640616 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165140614 91651-40614 Bolt
Fuel Tank & Tube ([08.1984 - ] (8408- )GX71,LX70,MX71,SX70) 55
#OEMPart name
77018 77018-22020 Tube Sub-Assy, Fuel Tank Evaporation Vent
77018 77018-22030 Tube Sub-Assy, Fuel Tank Evaporation Vent
77031 77310-35061 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77033 77037-14010 Lock Sub-Assy, Fuel Tank Cap
77033 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77035 77035-22090 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-22130 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-32070 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-29115 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77179 77179-14030 Retainer, Fuel Tank Mounting, Front
77201 77201-22180 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-14090 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77231 77277-22050 Protector, Inlet Tube
77290 77290-22020 Shield Assy, Fuel Tank Filler Pipe
77293 77293-22020 Shield, Fuel Tank Filler Pipe, No.3
77306 77306-22010 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-22020 Lever Sub-Assy, Fuel Lid Lock Open
77306 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
77308 77350-22070 Cover Sub-Assy, Fuel Inlet Box
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-22030 Retainer, Fuel Filler Opening Lid Lock
77387 77391-16010 Ring, Fuel Inlet Box
77611 77601-22090 Band, Fuel Tank
77611 77602-22110 Band, Fuel Tank
77641 77641-22060 Protector, Fuel Tank, No.1
77652 77651-22060 Cushion, Fuel Tank, No.1
77654 77652-22050 Cushion, Fuel Tank, No.2
77655 77653-22050 Cushion, Fuel Tank, No.3
77657 77655-22060 Cushion, Fuel Tank, No.5
9011906074 90119-06074 Bolt
9011906120 90119-06120 BOLT
9011908499 90119-08499 Bolt
9011910086 90119-10086 New Genuine Part
9011910086 91665-61045 BOLT
9015950047 90159-50047 New Genuine Part
9015950160 90159-50160 New Genuine Part
9015950161 90159-50161 New Genuine Part
9015960008 90159-60008 SCREW
9015960262 90159-60262 New Genuine Part
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017906162 90179-06162 New Genuine Part
9017906162 90179-06308 NUT
9017910074 90179-10074 New Genuine Part
9018306006 90183-06006 Retainer, Fuel Filler Pipe Protector
9018906006 90189-06006 Grommet
9024008020 90240-08020 Pin (For Fuel Tank Band)
9046063008 90460-63008 Clamp, Hose
9046063008 96111-10630 Clamp, Hose
9046814011 90468-14011 Clip, No.2(For Parking Brake)
9054108003 90541-08003 Cushion(For Inspection Opening)
9331914010 93319-14010 SCREW
Fuel Tank & Tube ([08.1984 - ] (8408- )LX70) 57
#OEMPart name
77023 77023-32010 Filter Sub-Assy, Fuel Suction Tube
77135 77135-22040 Bracket, Check Valve
77206 77017-22160 Tube Sub-Assy, Fuel Tank Suction
77206 77169-14010 Gasket, Fuel Pump Bracket
77228 77027-22020 Tube, Fuel Tank Evaporation Vent, No.2
77241 77205-22130 Tube, Fuel Main, No.1
77241 77205-22131 Tube, Fuel Main, No.1
77241 95332-08020 Hose, Fuel Pipe, No.1
77241 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77241 95333-08020 Hose, Lpg Injector
77241 77279-22020 Hose, Fuel, No.2 (For Main Tube, No.1)
77241 90445-14134 Hose, Fuel, No.2 (For Main Tube, No.1)
77254 77259-22040 Hose, Fuel, No.2 (For Emission Tube, No.1)
77254 77259-22041 Hose, Fuel, No.2 (For Emission Tube, No.1)
77255 77227-22050 Tube, Fuel Emission, No.2
77255 77227-22051 Tube, Fuel Emission, No.2
77255 95332-06006 Hose, Fuel Tank Evaporation Vent
77255 95333-06010 Hose, Fuel
77255 95332-06010 Hose, Fuel Pipe, No.1
77266 77266-22040 Protector, Fuel Tube, No.1
77276 77276-22040 Protector, Fuel Hose
77277 77255-22200 Tube, Fuel Return, No.1
77277 77255-22201 Tube, Fuel Return, No.1
77277 90447-12053 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77419-22020 Hose, Fuel, No.2(For Return Tube, No.1)
77277 95332-06030 Hose(For Carburetor)
77277 95333-06030 Hose, Fuel
77701 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77701 95337-06020 Hose, Differential Pressure Control
77701 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77701 90917-10020 Valve, Check (For Main Fuel Tank)
9011906139 90119-06139 New Genuine Part
9011906139 91651-40614 Bolt
9046108091 90461-08091 New Genuine Part
9046216045 90462-16045 New Genuine Part
9046400388 90464-00388 New Genuine Part
9046400391 90464-00391 New Genuine Part
9046400407 90464-00407 New Genuine Part
9048001234 90480-01234 New Genuine Part
9048001270 90480-01270 New Genuine Part
9048001294 90480-01294 New Genuine Part
9095001074 90950-01074 Cover, Front Body Lower Outer Dust
9095001161 90950-01161 New Genuine Part
9095001161 90950-01161-03 New Genuine Part
9095901073 90959-01073 New Genuine Part
9095901160 90959-01160 New Genuine Part
9095901161 90959-01161 New Genuine Part
9095901162 90959-01162 New Genuine Part
9095901163 90959-01163 New Genuine Part
9095901179 90959-01179 New Genuine Part
9095901205 90959-01205 New Genuine Part
9151140412 91511-40412 New Genuine Part
9338115010 93381-15010 SCREW
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
Gear Shift Fork & Lever Shaft (Mtm) ([08.1984 - ] (8408- )5F) 46
#OEMPart name
33213 33212-22020 Fork, Gear Shift, No.1
33213 33212-30050 Fork, Gear Shift, No.1
33213 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33213 90113-06005 Bolt(For Shift Fork Set)
33213 90105-06143 Bolt(For Shift Fork Set)
33213 90215-09002 Washer, Lock(For Shift Fork Set)
33215 33213-22030 Fork, Gear Shift, No.2
33215 33213-22040 Fork, Gear Shift, No.2
33217 33214-30050 Fork, Gear Shift, No.3
33221 33221-22010 Arm, Reverse Shift
33221 33221-22011 Arm, Reverse Shift
33221 96160-01000 Ring, E(For Clutch Booster Air Valve)
33225 33225-22010 Shoe, Shift Arm
33225 33225-22011 Shoe, Shift Arm
33225 96160-00600 Ring, E(For Clutch Pedal Pawl)
33225 96160-00800 Ring, E(For Counter Weight)
33231 33231-22010 Head, Reverse Shift
33231 33231-22011 Head, Reverse Shift
33241 33244-22020 Shaft, Reverse Shift Fork
33243 33242-22020 Shaft, Gear Shift Fork, No.1
33244 33245-22010 Shaft, 5Th Shift Fork
33244 90520-12003 Ring(For Reverse Shift Head)
33245 33240-22020 Shaft Assy, Gear Shift Fork, No.2
33245 33240-22022 Shaft Assy, Gear Shift Fork, No.2
33251 33251-22050 Lever, Shift & Select
33251 33251-22051 Lever, Shift & Select
33264 33264-22010 Pin, Or Ball, Shift Inter Lock, No.1
33265 33265-22010 Pin, Shift Inter Lock, No.2
33265 33266-22010 Pin, Shift Inter Lock, No.2
33265 90250-06007 Pin, Shift Inter Lock, No.2
33275 90341-12004 Plug, Oil Pan(For Oil Cooler)
33275 90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33275 90501-13004 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-14123 Spring, Compression (For Shift Detent Ball Low Side)
33275 90360-10003 Ball(For Transmission Oil Pump Cover)
33276 90341-12005 Plug, W/head Straight Screw, No.2
33276 90341-12018 Plug, W/head Straight Screw, No.2
33280 33280-22020 Pin Assy, Reverse Restrict
33280 33280-22030 Pin Assy, Reverse Restrict
33280 90430-18008 Gasket
33280 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33283 33280-22010 Pin Assy, Reverse Restrict
33521 33502-22210 Housing, Shift Lever
33521 33521-30201 Housing, Shift Lever
33521 90105-08079 Bolt(For 5Th Shift Arm)
9034110065 90341-10065 Plug, Straight, No.1
Headlamp ([08.1984 - 08.1986] (8408-8608)) 29
#OEMPart name
81110 81110-80419 Headlamp Assy, Rh
81110 81110-91602 Headlamp Assy, Rh
81110 81110-91604 Headlamp Assy, Rh
81110 90981-13022 Bulb(For Headlamp, No.1)
81110 81110-80420 Headlamp Assy, Rh
81110 81110-91603 Headlamp Assy, Rh
81110 81110-91605 Headlamp Assy, Rh
81110 90981-13015 Bulb(For Headlamp, No.1)
81110 90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81135 81105-91602 Unit Assy, Headlamp, Rh
81135 81130-91604 Unit Assy, Headlamp, Rh
81135 81105-91603 Unit Assy, Headlamp, Rh
81135 81130-91605 Unit Assy, Headlamp, Rh
81136 81136-91602 Protector, Headlamp, No.1 Rh
81144 81139-16340 Cover, Headlamp, No.1
81144 81139-23010 Cover, Headlamp, No.1
81144 81139-91602 Cover, Headlamp, No.1
81150 81150-80411 Headlamp Assy, Lh
81150 81150-91602 Headlamp Assy, Lh
81150 81150-91604 Headlamp Assy, Lh
81150 81150-80412 Headlamp Assy, Lh
81150 81150-91603 Headlamp Assy, Lh
81150 81150-91605 Headlamp Assy, Lh
81175 81106-91602 Unit Assy, Headlamp, Lh
81175 81170-91604 Unit Assy, Headlamp, Lh
81175 81106-91603 Unit Assy, Headlamp, Lh
81175 81170-91605 Unit Assy, Headlamp, Lh
9011906279 90119-06279 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
Headlamp ([08.1986 - ] (8608- )) 31
#OEMPart name
81110 81110-80419 Headlamp Assy, Rh
81110 81110-91602 Headlamp Assy, Rh
81110 81110-91604 Headlamp Assy, Rh
81110 90981-13022 Bulb(For Headlamp, No.1)
81110 81110-80420 Headlamp Assy, Rh
81110 81110-91603 Headlamp Assy, Rh
81110 81110-91605 Headlamp Assy, Rh
81110 90981-13015 Bulb(For Headlamp, No.1)
81110 90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81117 81117-91604 Packing, Headlamp Housing
81135 81105-91602 Unit Assy, Headlamp, Rh
81135 81130-91604 Unit Assy, Headlamp, Rh
81135 81105-91603 Unit Assy, Headlamp, Rh
81135 81130-91605 Unit Assy, Headlamp, Rh
81144 81139-16340 Cover, Headlamp, No.1
81144 81139-23010 Cover, Headlamp, No.1
81144 81139-91602 Cover, Headlamp, No.1
81150 81150-80411 Headlamp Assy, Lh
81150 81150-91602 Headlamp Assy, Lh
81150 81150-91604 Headlamp Assy, Lh
81150 81150-80412 Headlamp Assy, Lh
81150 81150-91603 Headlamp Assy, Lh
81150 81150-91605 Headlamp Assy, Lh
81175 81106-91602 Unit Assy, Headlamp, Lh
81175 81170-91604 Unit Assy, Headlamp, Lh
81175 81106-91603 Unit Assy, Headlamp, Lh
81175 81170-91605 Unit Assy, Headlamp, Lh
81210 90981-13039 Bulb(For Headlamp, No.1)
81212 81139-32210 Cover, Headlamp, No.1
9011906279 90119-06279 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
Headlamp Cleaner ([08.1984 - ] (8408- )) 15
#OEMPart name
8271112140 82711-12140 Wire, Fuse To Fuse(for Combustion Heater)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271120070 82711-20070 Wire, Fuse To Fuse(for Combustion Heater)
8271120260 82711-20260 Wire, Fuse To Fuse(for Combustion Heater)
8271122140 82711-22140 Wire, Fuse To Fuse(for Combustion Heater)
8527222020 85272-22020 Clamp, Headlamp Cleaner, No.1
8527222020 85272-20080 Clamp, Headlamp Cleaner, No.1
8527222050 85272-22050 Cable Sub-assy, Headlamp Cleaner, Rh
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9046312570 90463-12570 CLAMP
9161640620 91616-40620 Bolt(For Oil Receiver Pipe)
9161640620 91611-60618 Bolt(For Oil Receiver Pipe)
9165640620 91656-40620 Bolt(For Oil Receiver Pipe)
9165640620 91651-60618 Bolt(For Oil Receiver Pipe)
Heating & Air Conditioning - Compressor ([08.1984 - ] (8408- )) 20
#OEMPart name
88301 88412-22030 Rotor Sub-Assy, Magnet Clutch
88302 88411-14050 Stator Sub-Assy, Magnet Clutch
88320 88320-22330 Compressor Assy, Cooler
88330 88410-22080 Clutch Assy, Magnet
88330 88410-36390 Clutch Assy, Magnet
88330 90099-01108 Washer (For Magnet Clutch)
88330 90099-01350 Washer (For Magnet Clutch)
88330 90099-01351 Washer (For Magnet Clutch)
88330 90099-10133 Bearing, Ball(For Clutch Pully)
88330 90099-07094 Ring, Snap (For Magnet Clutch)
88403 88403-14030 Hub Sub-Assy, Magnet Clutch
88403 88403-12030 Hub Sub-Assy, Magnet Clutch
8889914120 88899-14120 Cover, Evaporator
9009907087 90099-07087 Bearing, Magnet Clutch
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9009935012 90099-35012 CLIP
9331915008 93319-15008 SCREW
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100800 94511-00800 WASHERSPRING
Heating & Air Conditioning - Compressor ([08.1984 - ] (8408- )LX70,MX71) 21
#OEMPart name
88431 88431-26170 Bracket, Compressor Mounting, No.1
88432 88437-22050 Bracket, Compressor Mounting, No.2
88444 88444-22060 Bracket, Idle Pulley
88445 88444-26070 Bracket, Idle Pulley
88469 88469-30280 Collar, Adjusting
88595 88440-16010 Pulley, Cooler Compressor Idle
88595 88440-22050 Pulley, Cooler Compressor Idle
88596 88440-26070 Pulley Assy, Idle
9009904950 90099-04950 BOLT
9009904975 90099-04975 New Genuine Part
9009904981 90099-04981 New Genuine Part
9011908225 90119-08225 BOLT
9011910079 90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh)
9011910367 90119-10367 BOLT
9161160840 91611-60840 BOLT
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9165160865 91651-60865 New Genuine Part
9165161065 91651-61065 New Genuine Part
9451100600 94511-00600 Washer, Lock, No.2
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Heating & Air Conditioning - Control & Air Duct ([08.1984 - ] (8408- )) 24
#OEMPart name
87211 87211-22100 Duct, Air, No.1
87211 87211-22120 Duct, Air, No.1
87211 55088-22070 Duct, Air, No.2
87211 55089-22020 Duct, Air, No.3
87212 87127-22020 Duct, Air, Rear No.1
87212 87202-22020 Duct, Air, Rear No.1
87212 87202-22021 Duct, Air, Rear No.1
87213 87203-22030 Duct, Air, Rear No.2
87213 87203-22031 Duct, Air, Rear No.2
87214 55085-22080 Duct, Air, Side No.1 Rh
87214 55085-22090 Duct, Air, Side No.1 Rh
87214 55084-22060 Duct, Air, Side No.2 Rh
87214 87215-22010 Duct, Air, Rear No.3
87214 87215-22011 Duct, Air, Rear No.3
87215 55086-22010 Duct, Air, Side No.1 Lh
87215 55087-22080 Duct, Air, Side No.2 Lh
87215 87216-22020 Duct, Air, Rear No.4
87215 87216-22021 Duct, Air, Rear No.4
9015960195 90159-60195 New Genuine Part
9018305094 90183-05094 NUT
9048026014 90480-26014 GROMMET
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9356855014 93568-55014 Screw
Heating & Air Conditioning - Control & Air Duct ([08.1984 - ] (8408-8608)SXL,XG ; (8408- )KYO,XL) 16
#OEMPart name
55906 55906-22120 Cable Sub-Assy, Defroster Damper Control
55907 55907-22180 Cable Sub-Assy, Water Valve Control
55908 55908-22070 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-22060 Cable Sub-Assy, Airmix Damper Control
55910 55910-22290 Control Assy, Heater Or Boost Ventilator
55937 55905-30081 Knob, Heater Control
88648 88648-22140 Wiring, Cooler
5592220030 55922-20030 Bracket, Heater Control Base
5593122030 55931-22030 Clamp, Heater Control Wire
9020206013 90202-06013 New Genuine Part
9048025027 90480-25027 New Genuine Part
9052005006 90520-05006 New Genuine Part
9356614512 93566-14512 SCREW
9356614512 93568-54512 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Heating & Air Conditioning - Cooler Piping ([02.1986 - ] (8602- )LX70) 29
#OEMPart name
88453 88453-28010 Fan, No.2
88454 88454-22030 Shroud, Fan
88454 88454-22060 Shroud, Fan
88454 88454-22050 Shroud, Fan
88460 88460-22280 Condenser Assy, Cooler
88460 88460-22281 Condenser Assy, Cooler
88460 88460-22320 Condenser Assy, Cooler
88460 88688-22330 Bracket, Cooler Condenser, No.1
88467 88467-22060 Cushion, Cooler Condenser, No.1
88470 88470-12070 Receiver & Dryer Assy, Cooler
88470 88475-12020 Bolt, Fuse
88472 88472-22090 Bracket, Receiver Tank, No.1
88550 88550-12090 Motor Assy, Blower (For Condenser)
88590 88590-22010 Blower Assy, W/shroud
88590 88590-22030 Blower Assy, W/shroud
88596 88596-14010 Plate, Caution(For Fan Shroud)
88630 88630-14020 Relay Assy, Cooler
88716 88716-22450 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22451 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22640 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22641 Pipe, Cooler Refrigerant Liquid, A
8846714070 88467-14070 Insulator (For Power Take-Off Cable Bracket)
9009120609 90091-20609 BOLT
9009120612 90091-20612 New Genuine Part
9009120612 90091-20642 BOLT WWASHER
9009932130 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9015960128 90159-60128 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
Heating & Air Conditioning - Cooler Piping ([02.1986 - ] (8602- )LX70..KYO) 40
#OEMPart name
88467 88467-14040 Cushion, Cooler Condenser, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88605 88605-22520 Harness Sub-Assy, Air Conditioner Wiring
88648 88648-22100 Wiring, Cooler
88648 88648-22150 Wiring, Cooler
88688 88688-22210 Bracket, Cooler Refrigerant Hose, No.1
88688 88688-22190 Bracket, Cooler Refrigerant Hose, No.2
88711 88711-22370 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-22371 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-22500 Hose, Cooler Refrigerant Suction, No.1
88716 88716-22530 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22650 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22651 Pipe, Cooler Refrigerant Liquid, B
88716 88710-22070 Pipe, Cooler Refrigerant Liquid, E
88716 88710-22190 Pipe, Cooler Refrigerant Liquid, E
88717 88717-22280 Pipe, Cooler Refrigerant Suction, A
88717 88717-22230 Pipe, Cooler Refrigerant Suction, E
88717 88717-22330 Pipe, Cooler Refrigerant Suction, E
88718 88718-22730 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22650 Clamp(For Cooler Refrigerant Pipe), No.2
88718 88718-22630 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-22780 Clamp(For Cooler Refrigerant Pipe), No.4
88718 88718-22690 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22740 Clamp(For Cooler Refrigerant Pipe), No.3
88891 88892-22110 Packing A (For Cooler)
88891 53285-22020 Cover, Front Bumper Arm Hole
88891 53286-22010 Cover, Front Bumper Arm Hole
4446122020 44461-22020 Insulator, Tube Refrigerant
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8846724030 88467-24030 Insulator, Cooler Refrigerant Pipe, No.1
8871822790 88718-22790 Clamp(For Cooler Refrigerant Pipe), No.3
8889922130 88899-22130 Cover, Evaporator
9009490406 90094-90406 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165160845 91651-60845 Bolt(For Rocker Support Set)
9165160845 91651-B0845 Bolt, Flange (For Idler)
9338516016 93385-16016 New Genuine Part
Heating & Air Conditioning - Cooler Piping ([02.1986 - ] (8602- )LX70..XG,XL) 46
#OEMPart name
88467 88467-14040 Cushion, Cooler Condenser, No.1
88467 88467-14050 Cushion, Cooler Condenser, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88503 88503-22160 Regulator Assy, Pressure
88605 88605-22520 Harness Sub-Assy, Air Conditioner Wiring
88648 88648-22100 Wiring, Cooler
88648 88648-22150 Wiring, Cooler
88688 88688-22210 Bracket, Cooler Refrigerant Hose, No.1
88688 88688-22190 Bracket, Cooler Refrigerant Hose, No.2
88711 88711-22370 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-22371 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-22500 Hose, Cooler Refrigerant Suction, No.1
88716 88716-22530 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22650 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22651 Pipe, Cooler Refrigerant Liquid, B
88716 88710-22050 Pipe, Cooler Refrigerant Liquid, E
88716 88710-22180 Pipe, Cooler Refrigerant Liquid, E
88717 88717-22210 Pipe, Cooler Refrigerant Suction, A
88717 88717-22220 Pipe, Cooler Refrigerant Suction, B
88717 88717-22221 Pipe, Cooler Refrigerant Suction, B
88717 88717-22230 Pipe, Cooler Refrigerant Suction, E
88717 88717-22330 Pipe, Cooler Refrigerant Suction, E
88718 88718-22730 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22650 Clamp(For Cooler Refrigerant Pipe), No.2
88718 88718-22780 Clamp(For Cooler Refrigerant Pipe), No.4
88718 88718-22690 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22740 Clamp(For Cooler Refrigerant Pipe), No.3
88891 88892-22110 Packing A (For Cooler)
88891 53285-22020 Cover, Front Bumper Arm Hole
88891 53286-22010 Cover, Front Bumper Arm Hole
4446122020 44461-22020 Insulator, Tube Refrigerant
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8846724030 88467-24030 Insulator, Cooler Refrigerant Pipe, No.1
8871822790 88718-22790 Clamp(For Cooler Refrigerant Pipe), No.3
8889922130 88899-22130 Cover, Evaporator
9009490406 90094-90406 New Genuine Part
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165160845 91651-60845 Bolt(For Rocker Support Set)
9165160845 91651-B0845 Bolt, Flange (For Idler)
9338516016 93385-16016 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
Heating & Air Conditioning - Cooler Piping ([08.1984 - 02.1986] (8408-8602)LX70 ; (8408- )YX70) 15
#OEMPart name
88460 88460-22280 Condenser Assy, Cooler
88460 88460-22281 Condenser Assy, Cooler
88460 88460-22320 Condenser Assy, Cooler
88467 88467-22060 Cushion, Cooler Condenser, No.1
88470 88470-12070 Receiver & Dryer Assy, Cooler
88470 88475-12020 Bolt, Fuse
88472 88472-22090 Bracket, Receiver Tank, No.1
88716 88716-22450 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22451 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22640 Pipe, Cooler Refrigerant Liquid, A
88716 88716-22641 Pipe, Cooler Refrigerant Liquid, A
9009120609 90091-20609 BOLT
9015960128 90159-60128 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
Heating & Air Conditioning - Cooler Piping ([08.1984 - 02.1986] (8408-8602)LX70) 46
#OEMPart name
88467 88467-14040 Cushion, Cooler Condenser, No.1
88467 88467-14050 Cushion, Cooler Condenser, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88503 88503-22160 Regulator Assy, Pressure
88648 88648-22100 Wiring, Cooler
88648 88648-22150 Wiring, Cooler
88688 88688-22210 Bracket, Cooler Refrigerant Hose, No.1
88688 88688-22190 Bracket, Cooler Refrigerant Hose, No.2
88711 88711-22370 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-22371 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-22500 Hose, Cooler Refrigerant Suction, No.1
88716 88716-22530 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22650 Pipe, Cooler Refrigerant Liquid, B
88716 88716-22651 Pipe, Cooler Refrigerant Liquid, B
88716 88710-22070 Pipe, Cooler Refrigerant Liquid, E
88716 88710-22190 Pipe, Cooler Refrigerant Liquid, E
88716 88710-22050 Pipe, Cooler Refrigerant Liquid, E
88716 88710-22180 Pipe, Cooler Refrigerant Liquid, E
88717 88717-22280 Pipe, Cooler Refrigerant Suction, A
88717 88717-22230 Pipe, Cooler Refrigerant Suction, E
88717 88717-22330 Pipe, Cooler Refrigerant Suction, E
88717 88717-22210 Pipe, Cooler Refrigerant Suction, A
88717 88717-22220 Pipe, Cooler Refrigerant Suction, B
88717 88717-22221 Pipe, Cooler Refrigerant Suction, B
88718 88718-22730 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22650 Clamp(For Cooler Refrigerant Pipe), No.2
88718 88718-22630 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-22780 Clamp(For Cooler Refrigerant Pipe), No.4
88718 88718-22690 Clamp(For Cooler Refrigerant Pipe), No.5
88718 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22740 Clamp(For Cooler Refrigerant Pipe), No.3
88718 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
88718 88718-22790 Clamp(For Cooler Refrigerant Pipe), No.3
88891 88892-22110 Packing A (For Cooler)
88891 53285-22020 Cover, Front Bumper Arm Hole
88891 53286-22010 Cover, Front Bumper Arm Hole
8889922130 88899-22130 Cover, Evaporator
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165160845 91651-60845 Bolt(For Rocker Support Set)
9165160845 91651-B0845 Bolt, Flange (For Idler)
9338516016 93385-16016 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
Heating & Air Conditioning - Cooler Unit ([08.1984 - ] GT-S PACKAGE (8408- )GT,KYO,SXL,XG,XL) 35
#OEMPart name
88501 88501-22151 Evaporator Sub-Assy, Cooler, No.1
88501 88501-22152 Evaporator Sub-Assy, Cooler, No.1
88510 88510-22360 Unit Assy, Cooler
88510 88510-22361 Unit Assy, Cooler
88510 88510-22340 Unit Assy, Cooler
88510 88510-22341 Unit Assy, Cooler
88515 88515-16030 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88515 88515-22070 Valve, Cooler Expansion
88515 88515-22071 Valve, Cooler Expansion
88539 88539-22110 Hose, Cooler Unit Drain, No.1
88569 88567-22230 Clamp (For Cooler Wiring Harness), No.1
88569 88569-22230 Clamp (For Cooler Wiring Harness), No.1
88569 88569-22150 Clamp (For Cooler Wiring Harness), No.2
88605 88605-22430 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-22390 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-90A00 Thermistor, Cooler, No.1
88625 88625-12070 Thermistor, Cooler, No.1
88630 90987-02004 Relay Assy, Starter
88630 88688-22230 Bracket, Cooler Relay
88630 90987-03001 Relay
88650 88650-22160 Amplifier Assy, Cooler Stabilizer
88650 88650-22180 Amplifier Assy, Cooler Stabilizer
88650 88650-22190 Amplifier Assy, Cooler Stabilizer
88716 88716-22680 Pipe, Cooler Refrigerant Liquid, F
88716 88716-22681 Pipe, Cooler Refrigerant Liquid, F
9015960213 90159-60213 New Genuine Part
9017906054 90179-06054 NUT
9017906054 90179-06314 NUT
9048026003 90480-26003 Grommet (For Cooler Unit)
9048026004 90480-26004 Grommet, Heater Hose
9048036003 90480-36003 Grommet (For Cooler Unit)
9354014010 93540-14010 Clip, Headlining Retainer
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Heating & Air Conditioning - Heater Unit & Blower ([08.1984 - ] (8408- )) 11
#OEMPart name
87104 87104-22120 Motor Sub-Assy, Heater Blower
87104 87104-22140 Motor Sub-Assy, Heater Blower
87104 87104-22150 Motor Sub-Assy, Heater Blower
87105 87105-14030 Fan Sub-Assy, Heater Blower
87105 87105-22050 Fan Sub-Assy, Heater Blower
87130 87130-22080 Blower Assy, Heater, Front
87130 87130-22081 Blower Assy, Heater, Front
87138 87138-22050 Resistor, Heater Blower
87138 87138-32010 Resistor, Heater Blower
9017906162 90179-06162 New Genuine Part
9017906162 90179-06308 NUT
Heating & Air Conditioning - Heater Unit & Blower ([08.1984 - ] GT-S PACKAGE (8408- )GT,KYO,XL) 11
#OEMPart name
87107 87107-22160 Unit Sub-Assy, Heater Radiator
87107 87107-22130 Unit Sub-Assy, Heater Radiator
87107 87107-22220 Unit Sub-Assy, Heater Radiator
87150 87150-22370 Radiator Assy, Heater
87150 87150-22371 Radiator Assy, Heater
87150 87150-22281 Radiator Assy, Heater
87150 87150-22280 Radiator Assy, Heater
8712410010 87124-10010 Clamp, Heater
9017906162 90179-06162 New Genuine Part
9017906162 90179-06308 NUT
9671119016 96711-19016 Ring, O (For 5Th Shift Arm Shaft)
Heating & Air Conditioning - Set ([08.1984 - ] (8408- )) 10
#OEMPart name
88820 88820-22040 Air Conditioner & Accesory Sub-Assy, No.1
88820 88820-22041 Air Conditioner & Accesory Sub-Assy, No.1
88820 88830-22060 Air Conditioner & Accesory Sub-Assy, No.2
88820 88830-22061 Air Conditioner & Accesory Sub-Assy, No.2
88820 88830-22062 Air Conditioner & Accesory Sub-Assy, No.2
88820 88820-22030 Air Conditioner & Accesory Sub-Assy, No.1
88820 88820-22031 Air Conditioner & Accesory Sub-Assy, No.1
88820 88830-22030 Air Conditioner & Accesory Sub-Assy, No.2
88820 88830-22031 Air Conditioner & Accesory Sub-Assy, No.2
88820 88830-22032 Air Conditioner & Accesory Sub-Assy, No.2
Heating & Air Conditioning - Vacuum Piping ([08.1984 - ] (8408- )LX70) 11
#OEMPart name
87690 90413-04005 Way, 3, No.1 (For Front Drive Shift)
88031 88031-12150 Actuator Set, Idle-Up
88691 88690-22400 Valve, Magnet (For Idle Up Device)
88691 88690-22440 Valve, Magnet (For Idle Up Device)
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400087 90464-00087 New Genuine Part
9046400141 90464-00141 New Genuine Part
9046400184 90464-00184 Clamp, Vacuum Tube
9046400248 90464-00248 New Genuine Part
9338516016 93385-16016 New Genuine Part
Heating & Air Conditioning - Water Piping ([08.1984 - ] (8408- )) 21
#OEMPart name
87240 87240-22260 Valve Assy, Heater Water
87240 87240-22261 Valve Assy, Heater Water
87240 87240-22310 Valve Assy, Heater Water
87245 90445-23006 Hose, Heater Water
87245 99556-11300 Hose, Heater Water
87248 87248-20300 Pipe Sub-Assy, Water
87248 87248-22080 Pipe, Heater Water, No.2
87250 87250-22120 Hose And Valve Assy
88549 88549-22020 Plate, Caution
8271112170 82711-12170 Wire, Fuse To Fuse(for Combustion Heater)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9033907001 90339-07001 Plug, Heater Water
9046014085 90460-14085 Clamp, Hose(For Oil Cooler)
9046014085 90460-20004 Clamp, Hose(For Oil Cooler)
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9161160625 91611-60625 Bolt, W/washer (For Parking Cove & Case)
9161160625 91611-B0625 Bolt (For Automatic Transmission Oil Pan)
9411050600 94110-50600 Nut (For Rear Wiper Arm Setting)
9411050600 94130-60600 Nut, Wire Adjusting, No.1
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
Heating & Air Conditioning - Water Piping ([08.1984 - ] (8408- )LX70) 19
#OEMPart name
87019 90480-01272 Grommet, Heater Hose
87019 90480-36011 Grommet, Heater Hose
87205 87251-30200 Union(For Water By-Pass Hose)
87209 87209-22100 Hose Sub-Assy, Water
87209 87209-22101 Hose Sub-Assy, Water
87240 87240-22260 Valve Assy, Heater Water
87240 87240-22261 Valve Assy, Heater Water
87240 87240-22310 Valve Assy, Heater Water
87245 87245-22500 Hose, Heater Water, Inlet A
87245 87245-22740 Hose, Heater Water, Inlet A
87245 87245-22620 Hose, Heater Water, Inlet E
87246 87245-22750 Hose, Heater Water, Outlet A
87251 90404-54023 Joint Or Union, Front Heater Hose Through Or Inlet Valve
9011906141 90119-06141 New Genuine Part
9011906141 91651-40628 New Genuine Part
9046820002 90468-20002 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
Hood & Front Fender ([08.1984 - ] (8408- )) 51
#OEMPart name
53301 53301-91601 Hood Sub-Assy
53301 53301-91603 Hood Sub-Assy
53301 90950-01038 Plug, Hole(For Instrument Lower Panel)
53301 53301-91602 Hood Sub-Assy
53301 90541-15004 Cushion, Hood Bumper
53301 90541-15111 Cushion, Radiator Support
53341 53341-22080 Silencer, Hood, No.1
53341 53341-22072 Insulator, Hood
53341 90467-09008 Insulator, Hood
53341 90467-09008-01 Clip(For Hood Insulator)
53341 90467-13009 Clip(For Hood Insulator)
53381 53381-22070 Seal, Hood To Radiator Support
53381 53381-22060 Seal, Hood To Radiator Support
53381 90467-08011 Clip(For Headlamp Cover Seal)
53381 90467-08011-TH CLIP
53381 90467-08011-83 Clip(For Headlamp Cover Seal)
53385 53385-14010 Retainer, Hood, Bumper
53385 53385-22010 Retainer, Hood Bumper, Rh
53386 53386-14010 Retainer, Hood, Bumper
53386 53386-22010 Retainer, Hood Bumper, Lh
53801 53801-91618 Fender Sub-Assy, Front Rh
53801 53801-91620 Fender Sub-Assy, Front Rh
53801 53801-91621 Fender Sub-Assy, Front Rh
53801 53801-91622 Fender Sub-Assy, Front Rh
53802 53802-91618 Fender Sub-Assy, Front Lh
53802 53802-91620 Fender Sub-Assy, Front Lh
53802 53802-91621 Fender Sub-Assy, Front Lh
53802 53802-91622 Fender Sub-Assy, Front Lh
53851 53851-22010 Brace, Front Fender To Radiator Support, Rh
53852 53852-22010 Brace, Front Fender To Radiator Support, Lh
53866 53866-22030 Seal, Front Fender To Cowl Side, Rh
53867 53867-22020 Seal, Front Fender To Cowl Side, Lh
53878 53875-22040 Liner, Front Fender, Rh
53879 53876-22040 Liner, Front Fender, Lh
53879 53879-22030 Retainer, Engine Under Cover
53881 53384-22050 Bumper, Fender To Hood
53882 53882-22050 Packing, Front Fender Main
53911 53901-22090 Panel, Front Valance
53931 53903-91601 Panel, Front End, Rh
53931 53903-91602 Panel, Front End, Rh
53932 53904-91601 Panel, Front End, Lh
53932 53904-91602 Panel, Front End, Lh
9015950153 90159-50153 New Genuine Part
9015950153 90159-50323 SCREWWWASHER
9015960175 90159-60175 New Genuine Part
9018906005 90189-06005 CLIP
9046711038 90467-11038 CLAMP
9095001379 90950-01379 New Genuine Part
9095001473 90950-01473 New Genuine Part
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
Hood Lock & Hinge ([08.1984 - ] (8408- )) 37
#OEMPart name
53410 53410-22050 Hinge Assy, Hood, Rh
53410 53410-22051 Hinge Assy, Hood, Rh
53420 53420-22050 Hinge Assy, Hood, Lh
53420 53420-22051 Hinge Assy, Hood, Lh
53440 53440-22020 Support Assy, Hood, Rh
53440 53440-29035 Support Assy, Hood, Rh
53440 68961-22010 Bolt, Hood Support, No.1
53450 53450-22010 Support Assy, Hood, Lh
53450 53450-29035 Support Assy, Hood, Lh
53497 53497-17010 Pad, Hood Hinge, No.1
53497 53497-17011 Pad, Hood Hinge, No.1
53498 53498-12010 Pad, Hood Hinge, No.2
53498 53498-12011 Pad, Hood Hinge, No.2
53510 53510-22120 Lock Assy, Hood
53510 90506-09029 Spring, Tension(For Hood Lock)
53510 90506-18024 Spring, Tension(For Hood Lock)
53610 53601-20060-23 Lever Assy, Hood Lock Release
53610 53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)
53610 53601-20060-44 Lever Assy, Hood Lock Release
53610 53601-20060-05 Lever Assy, Hood Lock Release
53610 53601-20060-15 Lever Assy, Hood Lock Release
53610 53601-20060-25 Lever Assy, Hood Lock Release
53630 53630-22110 Cable Assy, Hood Lock Control
9010508031 90105-08031 Bolt
9010508098 90105-08098 New Genuine Part
9010508098 91511-B0818 BOLT FLANGE
9010908132 90109-08132 New Genuine Part
9011906246 90119-06246 New Genuine Part
9011906246 90119-06423 BOLT WWASHER
9011908143 90119-08143 New Genuine Part
9018305103 90183-05103 NUT
9046709031 90467-09031 Clamp(For Hood Lock Control Cable)
9165140820 91651-40820 Bolt
9165560820 91655-60820 BOLT
9165560820 91651-60816 BOLT
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Horn ([08.1984 - ] (8408- )) 5
#OEMPart name
86510 86510-22160 Horn Assy, High Pitched
86510 86510-30H92 Horn Assy, High Pitched
86520 86520-22160 Horn Assy, Low Pitched
86520 86520-30H92 Horn Assy, Low Pitched
9011908482 90119-08482 New Genuine Part
Ignition Coil & Spark Plug ([08.1984 - ] (8408- )2L#) 7
#OEMPart name
19850 19850-54050 Plug Assy, Glow
19850 90189-04024 Grommet, Screw(For Glow Plug)
19850 19850-54070 Plug Assy, Glow
19850 19850-54071 Plug Assy, Glow
19856 90170-04001 Nut, Connecting(For Glow Plug)
19871 19871-54010 Connector, Glow Plug No.1
19871 19871-54011 Connector, Glow Plug No.1
Indicator ([08.1984 - ] (8408- )) 5
#OEMPart name
81931 55538-22040 Cover, Cooler Switch Hole
81931 55538-22041 Cover, Cooler Switch Hole
81941 55519-22160 Plate, Heater Control Name
81941 55519-22162 Plate, Heater Control Name
81941 55519-22161 Plate, Heater Control Name
Injection Nozzle ([08.1984 - ] (8408- )2L#) 50
#OEMPart name
11106 11165-54011 Shim(For Combustion Chamber)
11106 11166-54011 Shim(For Combustion Chamber)
11106 11167-54011 Shim(For Combustion Chamber)
11106 11168-54011 Shim(For Combustion Chamber)
11161 11161-54070 Chamber, Combustion
11161 90250-02046 Pin, Straight(For Combustion Chamber)
11161 11161-54050 Chamber, Combustion
11176 11176-56010 Seat, Injection Nozzle
11177 11177-54010 Gasket, Injection Nozzle Seat
11177 11177-54011 Gasket, Injection Nozzle Seat
23600 23600-59025 Holder & Nozzle Set, Nozzle
23600 23600-59035 Holder & Nozzle Set, Nozzle
23618 23618-54020 Spring, Nozzle Holder Pressure
23618 23618-54050 Spring, Nozzle Holder Pressure
23619 23619-46010 Pin, Nozzle Holder Pressure
23620 23620-59015 Nozzle Assy
23620 23620-59025 Nozzle Assy
23624 23624-54050 Nut, Nozzle Retaining
23624 23624-54040 Nut, Nozzle Retaining
23628 23628-46010 Nut(For Ring Packing Setting)
23629 23629-46010 Piece, Distance(For Nozzle)
23631 23631-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23632-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23633-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23634-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23635-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23636-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23637-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23638-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23639-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23641-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23642-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23643-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23644-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23645-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23646-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23647-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23648-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23649-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23651-46010 Washer(For Nozzle Holder Pressure Spring)
23631 23652-46010 Washer(For Nozzle Holder Pressure Spring)
23654 23654-46010 Washer(For Ring Packing)
23760 23760-54011 Pipe Assy, Nozzle Leakage
23770 23764-54021 Pipe Assy, Nozzle Leakage, No.2
23770 23764-54022 Pipe Assy, Nozzle Leakage, No.2
23770 95332-04020 Hose, Lpg Injector
23770 95333-04020 Hose, Lpg Injector
23770 96132-30400 Clip Or Clamp(For Ventilation Hose)
23770 96132-51000 Clip Or Clamp(For Ventilation Hose)
23770 23764-54050 Pipe Assy, Nozzle Leakage, No.2
Injection Pump Assembly ([08.1984 - ] (8408- )2L#) 33
#OEMPart name
22100 22100-54450 Pump Assy, Injection Or Supply
22100 22100-54451 Pump Assy, Injection Or Supply
22100 22100-54680 Pump Assy, Injection Or Supply
22100 90447-14023 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 22100-54470 Pump Assy, Injection Or Supply
22100 22100-54471 Pump Assy, Injection Or Supply
22100 90447-14020 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22811 22811-54040 Stay, Injection Pump, No.1
22811 22811-54042 Stay, Injection Pump, No.1
22811 22811-54060 Stay, Injection Pump, No.1
23701 23701-54082 Pipe Sub-Assy, Injection, No.1
23701 23701-54072 Pipe Sub-Assy, Injection, No.1
23702 23702-54081 Pipe Sub-Assy, Injection, No.2
23702 23702-54071 Pipe Sub-Assy, Injection, No.2
23703 23703-54082 Pipe Sub-Assy, Injection, No.3
23703 23703-54072 Pipe Sub-Assy, Injection, No.3
23704 23704-54082 Pipe Sub-Assy, Injection, No.4
23704 23704-54072 Pipe Sub-Assy, Injection, No.4
23741 23741-56010 Clamp, Injection Pipe, No.1
23743 23741-54010 Clamp, Injection Pipe, No.1
23744 23742-54010 Clamp, Injection Pipe, No.2
23811 23811-54100 Pipe, Fuel(For Fuel Filter To Injection Pump)
9011606275 90116-06275 Bolt, Stud(For Injection Pipe Clamp)
9011606275 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017908022 90179-08022 NUT
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9161140620 91611-40620 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140620 91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
Injection Pump Body ([08.1984 - 09.1987] (8408-8709)2L) 162
#OEMPart name
22101 22101-64020 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-54060 Valve Sub-Assy, Injection Pump Delivery
22108 22108-54180 Ring Sub-Assy, Roller
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-54010 Bolt, Distributive Head
22130 22130-58200 Camplate Sub-Assy, Face
22131 22131-54110 Holder, Delivery Valve
22140 22140-64400 Head Sub-Assy, Distributive Pump
22141 22141-54010 Seat, Delivery Valve Spring
22143 22143-54010 Seat, Spring Upper
22144 22144-54190 Spring, Pump Plunger
22145 22145-54010 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22146 90099-15028 Seal(For Drive Shaft)
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-54010 Spring, Delivery Valve
22149 22149-54010 Gasket, Delivery Valve
22160 22160-64010 Screw Sub-Assy, Overflow
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-54180 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22176 22176-54020 Plug, Distributive Head
22176 90099-14052 Ring, O(For Distributive Head Plug)
22176 22193-54772 Ring, O(For Distributive Head Plug)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-54010 Valve Sub-Assy, Regulator
22180 22180-54620 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22192 22192-54010 Plate, Tappet Adjusting Shim
22305 22305-54400 Idle-Up Sub-Assy
22305 22305-54450 Idle-Up Sub-Assy
22314 22314-54010 Spring, Lever Support
22316 22316-54310 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22317 22317-54010 Spring, Governor Domper
22322 22322-54450 Spring, Return
22322 22322-54630 Spring, Return
22341 22341-54010 Gear, Governor Drive
22350 22350-54450 Governor Assy, Torque Control
22350 22350-54620 Governor Assy, Torque Control
22354 22354-77050 Seal, Lead
22355 22355-78030 Wire, Governor Housing Seal
22369 22369-54080 Seat, Governor Spring
22369 22369-6A250 Seat, Governor Spring
22378 22378-64010 Washer, Governor Thrust
22384 22380-54020 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-54110 Solenoid Assy, Fuel Cut
22390 22019-6A511 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-54020 Cover, Feed Pump
22612 22612-54010 Cover, Timer
22612 22612-54450 Cover, Timer
22612 90099-14051 Ring, O, Distributor Housing
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-54030 Spring, Timer Outer
22615 22615-54180 Spring, Timer Outer
22615 22615-64010 Spring, Timer Outer
22621 22621-54010 Washer, Timer Adjusting
22632 22632-54010 Coupling, Injection Pump
22654 22654-54180 Piston, Timer
22654 22654-54620 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-54010 Stopper, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-64150 Spring, Coupling
22701 22701-54451 Lever Sub-Assy, Adjusting
22701 22701-54452 Lever Sub-Assy, Adjusting
22701 22701-54630 Lever Sub-Assy, Adjusting
22701 22701-54631 Lever Sub-Assy, Adjusting
22703 22703-54450 Cover Sub-Assy, Governor
22703 22703-54620 Cover Sub-Assy, Governor
22712 22775-77121 Nut, Rock
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22739 22739-54020 Bolt, Governor Link Support
22740 22302-54450 Shaft Sub-Assy, Speed Control
22740 90099-14048 Bearing, Ball(For Governor Sleeve)
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-54010 Flyweight, Distributive Pump
22749 22749-54450 Collar, Smoke Set Adjusting
22751 22751-54110 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-54150 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-6A220 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54290 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22774 22774-54010 Gasket, Governor Cover
22774 22774-54270 Gasket, Governor Cover
22776 22776-54110 Screw, Smoke Set Adjusting
22776 90099-14047 Ring, O(For Smoke Set Screw)
22776 22193-54771 Ring, O(For Smoke Set Screw)
22787 22787-54026 Plug, Governor Sleeve
22787 22787-54027 Plug, Governor Sleeve
22787 22787-54028 Plug, Governor Sleeve
22787 22787-54029 Plug, Governor Sleeve
22787 22787-54030 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54032 Plug, Governor Sleeve
22787 22787-54033 Plug, Governor Sleeve
22790 22790-54180 Cover Sub-Assy, Timer
22790 22790-54262 Cover Sub-Assy, Timer
2214956200 22149-56200 Gasket, Delivery Valve
2217254020 22172-54020 Clip, Connector Support, Solenoid
2217254180 22172-54180 Clip, Connector Support, Solenoid
2217254190 22172-54190 Clip, Connector Support, Solenoid
2217254200 22172-54200 Clip, Connector Support, Solenoid
2217254263 22172-54263 Clip, Connector Support, Solenoid
2217254264 22172-54264 Clip, Connector Support, Solenoid
2219364750 22193-64750 Ring, O(For Lever Connecting Pin)
2236554040 22365-54040 Ring, E(for Injection Pump Lever)
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
9009210601 90092-10601 Nut, Rock
9009210601 90092-10101 Nut (For Front Wiper Arm Setting)
9009300803 90093-00803 Washer, Plate(For Connecting Pin)
9009300803 90093-00802 Washer, Plate(For Connecting Pin)
9009680004 90096-80004 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009904576 90099-04576 BOLT
9009904946 90099-04946 Ring, O(For Bellows Cover)
9009904959 90099-04959 New Genuine Part
9009905140 90099-05140 New Genuine Part
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009918022 90099-18022 SCREW
9161160814 91611-60814 Bolt
9338116012 93381-16012 Screw
9338116016 93381-16016 SCREWWWASHER
9451100600 94511-00600 Washer, Lock, No.2
Injection Pump Body ([08.1984 - 09.1987] (8408-8709)2LT ; (8709- )2LT..4FC) 152
#OEMPart name
22101 22101-54260 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-54060 Valve Sub-Assy, Injection Pump Delivery
22108 22108-54180 Ring Sub-Assy, Roller
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-54010 Bolt, Distributive Head
22130 22130-54010 Camplate Sub-Assy, Face
22131 22131-54110 Holder, Delivery Valve
22140 22140-54410 Head Sub-Assy, Distributive Pump
22141 22141-54010 Seat, Delivery Valve Spring
22143 22143-54010 Seat, Spring Upper
22144 22144-54180 Spring, Pump Plunger
22145 22145-54010 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22146 90099-15028 Seal(For Drive Shaft)
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-54010 Spring, Delivery Valve
22149 22149-54010 Gasket, Delivery Valve
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-54180 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22176 22176-54020 Plug, Distributive Head
22176 90099-14052 Ring, O(For Distributive Head Plug)
22176 22193-54772 Ring, O(For Distributive Head Plug)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-54010 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22192 22192-54010 Plate, Tappet Adjusting Shim
22314 22314-54010 Spring, Lever Support
22316 22316-54261 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22317 22317-54470 Spring, Governor Domper
22322 22322-54470 Spring, Return
22322 22322-54730 Spring, Return
22341 22341-54010 Gear, Governor Drive
22350 22350-54450 Governor Assy, Torque Control
22354 22354-77050 Seal, Lead
22355 22355-78030 Wire, Governor Housing Seal
22369 22369-54080 Seat, Governor Spring
22369 22369-6A250 Seat, Governor Spring
22378 22378-64010 Washer, Governor Thrust
22384 22380-54020 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-54110 Solenoid Assy, Fuel Cut
22390 22019-6A511 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-54020 Cover, Feed Pump
22612 22612-54010 Cover, Timer
22612 22612-54450 Cover, Timer
22612 90099-14051 Ring, O, Distributor Housing
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-64010 Spring, Timer Outer
22621 22621-54010 Washer, Timer Adjusting
22632 22632-54010 Coupling, Injection Pump
22654 22654-54260 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22656 22656-54260 Clip, Timer
22656 22656-54490 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-54010 Stopper, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-64150 Spring, Coupling
22701 22701-54453 Lever Sub-Assy, Adjusting
22701 22701-54454 Lever Sub-Assy, Adjusting
22701 26126-54390 Joint, Ball(For Adjusting Lever)
22712 22775-77121 Nut, Rock
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22739 22739-54020 Bolt, Governor Link Support
22740 22302-54470 Shaft Sub-Assy, Governor Adjusting
22740 90099-14048 Bearing, Ball(For Governor Sleeve)
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-54010 Flyweight, Distributive Pump
22749 22749-54450 Collar, Smoke Set Adjusting
22751 22751-54110 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-54150 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-6A220 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54290 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22776 22776-54110 Screw, Smoke Set Adjusting
22776 90099-14047 Ring, O(For Smoke Set Screw)
22776 22193-54771 Ring, O(For Smoke Set Screw)
22776 90099-14050 Ring, O(For Fuel Feed Pump)
22787 22787-54010 Plug, Governor Sleeve
22787 22787-54011 Plug, Governor Sleeve
22787 22787-54028 Plug, Governor Sleeve
22787 22787-54029 Plug, Governor Sleeve
22787 22787-54030 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54032 Plug, Governor Sleeve
22787 22787-54033 Plug, Governor Sleeve
22790 22790-54180 Cover Sub-Assy, Timer
22790 22790-54262 Cover Sub-Assy, Timer
2214956200 22149-56200 Gasket, Delivery Valve
2217254180 22172-54180 Clip, Connector Support, Solenoid
2217254200 22172-54200 Clip, Connector Support, Solenoid
2217254263 22172-54263 Clip, Connector Support, Solenoid
2217254264 22172-54264 Clip, Connector Support, Solenoid
2217254400 22172-54400 Clip, Connector Support, Solenoid
2219364750 22193-64750 Ring, O(For Lever Connecting Pin)
2236554040 22365-54040 Ring, E(for Injection Pump Lever)
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
9009200602 90092-00602 New Genuine Part
9009210601 90092-10601 Nut, Rock
9009210601 90092-10101 Nut (For Front Wiper Arm Setting)
9009300802 90093-00802 Washer, Plate(For Connecting Pin)
9009680004 90096-80004 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009902211 90099-02211 New Genuine Part
9009904953 90099-04953 New Genuine Part
9009904954 90099-04954 BOLT
9009904959 90099-04959 New Genuine Part
9009905140 90099-05140 New Genuine Part
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009918022 90099-18022 SCREW
9161160814 91611-60814 Bolt
9338116012 93381-16012 Screw
9338116016 93381-16016 SCREWWWASHER
9451100600 94511-00600 Washer, Lock, No.2
Injection Pump Body ([08.1984 - ] (8408- )2LT ; (8709- )2LT..4FC) 59
#OEMPart name
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22129 22129-54120 Plug, Screw
22143 22143-54260 Seat, Spring Upper
22160 22160-64010 Screw Sub-Assy, Overflow
22160 22160-54260 Screw Sub-Assy, Over Flow, No.2
22160 22160-54262 Screw Sub-Assy, Overflow
22160 22160-54261 Screw Sub-Assy, Over Flow, No.2
22193 22193-54121 Ring, O(For Lever Connecting Pin)
22193 22193-55031 Ring, O(For Lever Connecting Pin)
22305 22305-54400 Idle-Up Sub-Assy
22305 22305-54450 Idle-Up Sub-Assy
22308 22308-54120 Lever Sub-Assy, Control
22321 22321-54470 Rod, Push
22338 22338-54120 Pin, Lever Connecting
22348 22348-54121 Bushing, Guide
22348 22348-54260 Bushing, Guide
22348 22348-64360 Bushing, Guide
22348 22348-54270 Bushing, Guide
22348 22348-54490 Bushing, Guide
22348 90099-01473 Washer(For Guide Bushing)
22526 22526-54120 Pin, Lever Support
22542 22542-54260 Diaphragm(For Boost Compensator)
22546 22546-54260 Spring, Boost Compensator
22546 22546-54261 Spring, Boost Compensator
22547 22547-54260 Shim, Boost Compensator
22547 22547-54261 Shim, Boost Compensator
22547 22547-54262 Shim, Boost Compensator
22547 22547-54263 Shim, Boost Compensator
22547 22547-54264 Shim, Boost Compensator
22547 22547-54265 Shim, Boost Compensator
22547 22547-54266 Shim, Boost Compensator
22547 22547-54267 Shim, Boost Compensator
22547 22547-54268 Shim, Boost Compensator
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22656 22656-54260 Clip, Timer
22656 22656-54490 Clip, Timer
22658 22658-64518 Stopper, Timer
22703 22703-64360 Cover Sub-Assy, Governor
22703 22703-64510 Cover Sub-Assy, Governor
22703 22703-54262 Cover Sub-Assy, Governor
22703 22703-64520 Cover, Governor
22722 22722-54120 Nut, Governor Shaft Rock
22739 22739-54120 Bolt, Governor Link Support
22739 22113-77090 Washer, Drain Screw
22739 22378-76010 Washer, Drain Screw
22774 22774-54010 Gasket, Governor Cover
22774 22774-54270 Gasket, Governor Cover
2277754261 22777-54261 Cap, Rubber(For Bellows)
9009120610 90091-20610 New Genuine Part
9009210601 90092-10601 Nut, Rock
9009210601 90092-10101 Nut (For Front Wiper Arm Setting)
9009300803 90093-00803 Washer, Plate(For Connecting Pin)
9009300803 90093-00802 Washer, Plate(For Connecting Pin)
9009905156 90099-05156 New Genuine Part
9009905181 90099-05181 New Genuine Part
9009905181 90099-05252 NUT HEXAGON
9338116014 93381-16014 New Genuine Part
Injection Pump Body ([09.1987 - ] (8408- )2LT ; (8709- )2LT..4FC) 59
#OEMPart name
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22129 22129-54120 Plug, Screw
22143 22143-54260 Seat, Spring Upper
22160 22160-64010 Screw Sub-Assy, Overflow
22160 22160-54260 Screw Sub-Assy, Over Flow, No.2
22160 22160-54262 Screw Sub-Assy, Overflow
22160 22160-54261 Screw Sub-Assy, Over Flow, No.2
22193 22193-54121 Ring, O(For Lever Connecting Pin)
22193 22193-55031 Ring, O(For Lever Connecting Pin)
22305 22305-54400 Idle-Up Sub-Assy
22305 22305-54450 Idle-Up Sub-Assy
22308 22308-54120 Lever Sub-Assy, Control
22321 22321-54470 Rod, Push
22338 22338-54120 Pin, Lever Connecting
22348 22348-54121 Bushing, Guide
22348 22348-54260 Bushing, Guide
22348 22348-64360 Bushing, Guide
22348 22348-54270 Bushing, Guide
22348 22348-54490 Bushing, Guide
22348 90099-01473 Washer(For Guide Bushing)
22526 22526-54120 Pin, Lever Support
22542 22542-54260 Diaphragm(For Boost Compensator)
22546 22546-54260 Spring, Boost Compensator
22546 22546-54261 Spring, Boost Compensator
22547 22547-54260 Shim, Boost Compensator
22547 22547-54261 Shim, Boost Compensator
22547 22547-54262 Shim, Boost Compensator
22547 22547-54263 Shim, Boost Compensator
22547 22547-54264 Shim, Boost Compensator
22547 22547-54265 Shim, Boost Compensator
22547 22547-54266 Shim, Boost Compensator
22547 22547-54267 Shim, Boost Compensator
22547 22547-54268 Shim, Boost Compensator
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22656 22656-54260 Clip, Timer
22656 22656-54490 Clip, Timer
22658 22658-64518 Stopper, Timer
22703 22703-64360 Cover Sub-Assy, Governor
22703 22703-64510 Cover Sub-Assy, Governor
22703 22703-54262 Cover Sub-Assy, Governor
22703 22703-64520 Cover, Governor
22722 22722-54120 Nut, Governor Shaft Rock
22739 22739-54120 Bolt, Governor Link Support
22739 22113-77090 Washer, Drain Screw
22739 22378-76010 Washer, Drain Screw
22774 22774-54010 Gasket, Governor Cover
22774 22774-54270 Gasket, Governor Cover
2277754261 22777-54261 Cap, Rubber(For Bellows)
9009120610 90091-20610 New Genuine Part
9009210601 90092-10601 Nut, Rock
9009210601 90092-10101 Nut (For Front Wiper Arm Setting)
9009300803 90093-00803 Washer, Plate(For Connecting Pin)
9009300803 90093-00802 Washer, Plate(For Connecting Pin)
9009905156 90099-05156 New Genuine Part
9009905181 90099-05181 New Genuine Part
9009905181 90099-05252 NUT HEXAGON
9338116014 93381-16014 New Genuine Part
Injection Pump Body ([09.1987 - ] (8408-8709)2LT ; (8709- )2LT..4FC) 152
#OEMPart name
22101 22101-54260 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-54060 Valve Sub-Assy, Injection Pump Delivery
22108 22108-54180 Ring Sub-Assy, Roller
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-54010 Bolt, Distributive Head
22130 22130-54010 Camplate Sub-Assy, Face
22131 22131-54110 Holder, Delivery Valve
22140 22140-54410 Head Sub-Assy, Distributive Pump
22141 22141-54010 Seat, Delivery Valve Spring
22143 22143-54010 Seat, Spring Upper
22144 22144-54180 Spring, Pump Plunger
22145 22145-54010 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22146 90099-15028 Seal(For Drive Shaft)
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-54010 Spring, Delivery Valve
22149 22149-54010 Gasket, Delivery Valve
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-54180 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22176 22176-54020 Plug, Distributive Head
22176 90099-14052 Ring, O(For Distributive Head Plug)
22176 22193-54772 Ring, O(For Distributive Head Plug)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-54010 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22192 22192-54010 Plate, Tappet Adjusting Shim
22314 22314-54010 Spring, Lever Support
22316 22316-54261 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22317 22317-54470 Spring, Governor Domper
22322 22322-54470 Spring, Return
22322 22322-54730 Spring, Return
22341 22341-54010 Gear, Governor Drive
22350 22350-54450 Governor Assy, Torque Control
22354 22354-77050 Seal, Lead
22355 22355-78030 Wire, Governor Housing Seal
22369 22369-54080 Seat, Governor Spring
22369 22369-6A250 Seat, Governor Spring
22378 22378-64010 Washer, Governor Thrust
22384 22380-54020 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-54110 Solenoid Assy, Fuel Cut
22390 22019-6A511 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-54020 Cover, Feed Pump
22612 22612-54010 Cover, Timer
22612 22612-54450 Cover, Timer
22612 90099-14051 Ring, O, Distributor Housing
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-64010 Spring, Timer Outer
22621 22621-54010 Washer, Timer Adjusting
22632 22632-54010 Coupling, Injection Pump
22654 22654-54260 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22656 22656-54260 Clip, Timer
22656 22656-54490 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-54010 Stopper, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-64150 Spring, Coupling
22701 22701-54453 Lever Sub-Assy, Adjusting
22701 22701-54454 Lever Sub-Assy, Adjusting
22701 26126-54390 Joint, Ball(For Adjusting Lever)
22712 22775-77121 Nut, Rock
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22739 22739-54020 Bolt, Governor Link Support
22740 22302-54470 Shaft Sub-Assy, Governor Adjusting
22740 90099-14048 Bearing, Ball(For Governor Sleeve)
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-54010 Flyweight, Distributive Pump
22749 22749-54450 Collar, Smoke Set Adjusting
22751 22751-54110 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-54150 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-6A220 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54290 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22776 22776-54110 Screw, Smoke Set Adjusting
22776 90099-14047 Ring, O(For Smoke Set Screw)
22776 22193-54771 Ring, O(For Smoke Set Screw)
22776 90099-14050 Ring, O(For Fuel Feed Pump)
22787 22787-54010 Plug, Governor Sleeve
22787 22787-54011 Plug, Governor Sleeve
22787 22787-54028 Plug, Governor Sleeve
22787 22787-54029 Plug, Governor Sleeve
22787 22787-54030 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54032 Plug, Governor Sleeve
22787 22787-54033 Plug, Governor Sleeve
22790 22790-54180 Cover Sub-Assy, Timer
22790 22790-54262 Cover Sub-Assy, Timer
2214956200 22149-56200 Gasket, Delivery Valve
2217254180 22172-54180 Clip, Connector Support, Solenoid
2217254200 22172-54200 Clip, Connector Support, Solenoid
2217254263 22172-54263 Clip, Connector Support, Solenoid
2217254264 22172-54264 Clip, Connector Support, Solenoid
2217254400 22172-54400 Clip, Connector Support, Solenoid
2219364750 22193-64750 Ring, O(For Lever Connecting Pin)
2236554040 22365-54040 Ring, E(for Injection Pump Lever)
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
9009200602 90092-00602 New Genuine Part
9009210601 90092-10601 Nut, Rock
9009210601 90092-10101 Nut (For Front Wiper Arm Setting)
9009300802 90093-00802 Washer, Plate(For Connecting Pin)
9009680004 90096-80004 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009902211 90099-02211 New Genuine Part
9009904953 90099-04953 New Genuine Part
9009904954 90099-04954 BOLT
9009904959 90099-04959 New Genuine Part
9009905140 90099-05140 New Genuine Part
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009918022 90099-18022 SCREW
9161160814 91611-60814 Bolt
9338116012 93381-16012 Screw
9338116016 93381-16016 SCREWWWASHER
9451100600 94511-00600 Washer, Lock, No.2
Injection Pump Body ([09.1987 - ] (8709- )2L) 157
#OEMPart name
22101 22101-64020 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-54060 Valve Sub-Assy, Injection Pump Delivery
22108 22108-54180 Ring Sub-Assy, Roller
22119 22119-77020 Washer, Air Bleeder Nipple
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-54010 Bolt, Distributive Head
22130 22130-58200 Camplate Sub-Assy, Face
22140 22140-64400 Head Sub-Assy, Distributive Pump
22143 22143-54010 Seat, Spring Upper
22144 22144-54190 Spring, Pump Plunger
22145 22145-54010 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22146 22544-64740 Seal, Oil, Injection Pump Camshaft
22146 90099-15028 Seal(For Drive Shaft)
22147 22161-54010 Washer, Drive Shaft
22147 22147-54290 Ring, Governor Sleeve
22148 22148-54010 Spring, Delivery Valve
22149 22149-54010 Gasket, Delivery Valve
22160 22160-64010 Screw Sub-Assy, Overflow
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-54180 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22176 22176-54020 Plug, Distributive Head
22176 90099-14052 Ring, O(For Distributive Head Plug)
22176 22193-54772 Ring, O(For Distributive Head Plug)
22178 22178-54620 Bracket(For Injection Pump Assy)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-54010 Valve Sub-Assy, Regulator
22180 22180-54620 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22190 22190-64740 Holder, Delivery Valve
22192 22192-54010 Plate, Tappet Adjusting Shim
22302 22302-54620 Shaft Sub-Assy, Speed Control
22305 22305-54400 Idle-Up Sub-Assy
22305 22305-54450 Idle-Up Sub-Assy
22314 22314-54010 Spring, Lever Support
22316 22316-54310 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22322 22322-54450 Spring, Return
22322 22322-54630 Spring, Return
22341 22341-54010 Gear, Governor Drive
22350 22350-54450 Governor Assy, Torque Control
22350 22350-54620 Governor Assy, Torque Control
22354 22354-77050 Seal, Lead
22355 22355-78030 Wire, Governor Housing Seal
22378 22378-64010 Washer, Governor Thrust
22384 22380-54020 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22390 22390-54110 Solenoid Assy, Fuel Cut
22390 22019-6A511 Solenoid Assy, Fuel Cut
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-54020 Cover, Feed Pump
22612 22612-54010 Cover, Timer
22612 22612-54450 Cover, Timer
22612 90099-14051 Ring, O, Distributor Housing
22612 22193-17840 Ring, O(For Timer Cover)
22615 22615-54030 Spring, Timer Outer
22615 22615-54180 Spring, Timer Outer
22615 22615-64010 Spring, Timer Outer
22621 22621-54010 Washer, Timer Adjusting
22632 22632-54010 Coupling, Injection Pump
22654 22654-54180 Piston, Timer
22654 22654-54620 Piston, Timer
22655 22655-54010 Pin, Timer Slide
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-54010 Stopper, Timer
22658 22658-17840 Stopper, Timer
22658 22658-54450 Stopper, Timer
22659 22659-64150 Spring, Coupling
22701 22701-54451 Lever Sub-Assy, Adjusting
22701 22701-54452 Lever Sub-Assy, Adjusting
22701 22701-54630 Lever Sub-Assy, Adjusting
22701 22701-54631 Lever Sub-Assy, Adjusting
22703 22703-54450 Cover Sub-Assy, Governor
22703 22703-54620 Cover Sub-Assy, Governor
22712 22775-77121 Nut, Rock
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22739 22739-54020 Bolt, Governor Link Support
22740 90099-14048 Bearing, Ball(For Governor Sleeve)
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-54010 Flyweight, Distributive Pump
22751 22751-54110 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-54150 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-6A220 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54290 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22774 22774-54010 Gasket, Governor Cover
22774 22774-54270 Gasket, Governor Cover
22776 22776-54110 Screw, Smoke Set Adjusting
22776 90099-14047 Ring, O(For Smoke Set Screw)
22776 22193-54771 Ring, O(For Smoke Set Screw)
22787 22787-54026 Plug, Governor Sleeve
22787 22787-54027 Plug, Governor Sleeve
22787 22787-54028 Plug, Governor Sleeve
22787 22787-54029 Plug, Governor Sleeve
22787 22787-54030 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54032 Plug, Governor Sleeve
22787 22787-54033 Plug, Governor Sleeve
22790 22790-54180 Cover Sub-Assy, Timer
22790 22790-54262 Cover Sub-Assy, Timer
2214956200 22149-56200 Gasket, Delivery Valve
2217254263 22172-54263 Clip, Connector Support, Solenoid
2217254264 22172-54264 Clip, Connector Support, Solenoid
2219364750 22193-64750 Ring, O(For Lever Connecting Pin)
2239554010 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
2239558200 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
2274955050 22749-55050 Collar, Smoke Set Adjusting
9009210601 90092-10601 Nut, Rock
9009210601 90092-10101 Nut (For Front Wiper Arm Setting)
9009300803 90093-00803 Washer, Plate(For Connecting Pin)
9009300803 90093-00802 Washer, Plate(For Connecting Pin)
9009680004 90096-80004 New Genuine Part
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009901533 90099-01533 Washer, Air Bleeder Nipple
9009904576 90099-04576 BOLT
9009904946 90099-04946 Ring, O(For Bellows Cover)
9009904959 90099-04959 New Genuine Part
9009905140 90099-05140 New Genuine Part
9009905161 90099-05161 Nut, Timer Round
9009905225 90099-05225 NUT
9009918022 90099-18022 SCREW
9161160814 91611-60814 Bolt
9331514012 93315-14012 Screw with washer
9338116012 93381-16012 Screw
9338116016 93381-16016 SCREWWWASHER
9451100600 94511-00600 Washer, Lock, No.2
9938116016 99381-16016 New Genuine Part
Inside Trim Board & Door Opening Trim Moulding ([08.1984 - ] (8408- )) 127
#OEMPart name
62051 62051-22020 Retainer Sub-Assy, Roof Side Weatherstrip, Front Rh
62051 62051-22050 Retainer Sub-Assy, Roof Side Weatherstrip, Front Rh
62051 62051-22040 Retainer Sub-Assy, Roof Side Weatherstrip, Front Rh
62052 62052-22020 Retainer Sub-Assy, Roof Side Weatherstrip, Front Lh
62052 62052-22050 Retainer Sub-Assy, Roof Side Weatherstrip, Front Lh
62052 62052-22040 Retainer Sub-Assy, Roof Side Weatherstrip, Front Lh
62053 62053-22010 Retainer Sub-Assy, Roof Side Weatherstrip, Rear Rh
62053 62053-22040 Retainer Sub-Assy, Roof Side Weatherstrip, Rear Rh
62053 62053-22030 Retainer Sub-Assy, Roof Side Weatherstrip, Rear Rh
62054 62054-22010 Retainer Sub-Assy, Roof Side Weatherstrip, Rear Lh
62054 62054-22040 Retainer Sub-Assy, Roof Side Weatherstrip, Rear Lh
62054 62054-22030 Retainer Sub-Assy, Roof Side Weatherstrip, Rear Lh
62055 62055-22010 Retainer Sub-Assy, Center Pillar Weatherstrip, Rh
62056 62056-22010 Retainer Sub-Assy, Center Pillar Weatherstrip, Lh
62103 62101-22140-03 Board Sub-Assy, Cowl Side Trim, Rh
62103 62101-22140-13 Trim Sub-Assy, Cowl Side, Rh
62103 62101-22140-04 Board Sub-Assy, Cowl Side Trim, Rh
62103 62101-22140-14 Trim Sub-Assy, Cowl Side, Rh
62103 62105-22010 Insulator Sub-Assy, Cowl Side, Rh
62103 90950-01427-03 Plug(For Cowl Side Trim Board)
62103 90950-01427-13 Plug(For Cowl Side Trim Board)
62103 90950-01427-04 Plug(For Cowl Side Trim Board)
62103 62101-22140-05 Board Sub-Assy, Cowl Side Trim, Rh
62103 62101-22140-15 Board Sub-Assy, Cowl Side Trim, Rh
62103 90950-01427-05 Plug(For Cowl Side Trim Board)
62103 90950-01427-15 Plug(For Cowl Side Trim Board)
62104 62102-22170-03 Board Sub-Assy, Cowl Side Trim, Lh
62104 62102-22170-13 Trim Sub-Assy, Cowl Side, Lh
62104 62102-22170-04 Board Sub-Assy, Cowl Side Trim, Lh
62104 62106-22010 Insulator Sub-Assy, Cowl Side, Lh
62104 62102-22170-05 Board Sub-Assy, Cowl Side Trim, Lh
62104 62102-22170-15 Board Sub-Assy, Cowl Side Trim, Lh
62106 62107-22010 Insulator Sub-Assy, Cowl Side, Upper Lh
62117 62117-22030-03 Cover, Cowl Side Trim Service Hole
62117 62117-22031-03 Cover, Cowl Side Trim Service Hole
62117 62117-22031-13 Cover, Cowl Side Trim Service Hole
62117 62117-22050-04 Cover, Cowl Side Trim Service Hole
62117 62117-22030-05 Cover, Cowl Side Trim Service Hole
62117 62117-22031-05 Cover, Cowl Side Trim Service Hole
62117 62117-22031-15 Cover, Cowl Side Trim Service Hole
62117 62117-22050-05 Cover, Cowl Side Trim Service Hole
62211 62211-91606-03 Garnish, Front Pillar, Rh
62211 62211-91606-04 Garnish, Front Pillar, Rh
62211 62211-91606-05 Garnish, Front Pillar, Rh
62211 62211-91606-15 Garnish, Front Pillar, Rh
62212 62212-91606-03 Garnish, Front Pillar, Lh
62212 62212-91606-04 Garnish, Front Pillar, Lh
62212 62212-91606-05 Garnish, Front Pillar, Lh
62212 62212-91606-15 Garnish, Front Pillar, Lh
62310 67869-30020 Clip, Headlamp Door Filler
62313 62313-22100-03 Trim, Front Door Opening, Rh
62313 62313-22100-04 Trim, Front Door Opening, Rh
62313 62313-22130-03 Trim, Front Door Opening, Rh
62313 62313-22130-04 Trim, Front Door Opening, Rh
62313 62313-22100-05 Trim, Front Door Opening, Rh
62313 62313-22100-15 Trim, Front Door Opening, Rh
62313 62313-22130-05 Trim, Front Door Opening, Rh
62313 62313-22130-15 Trim, Front Door Opening, Rh
62333 62333-22070-03 Trim, Rear Door Opening, Rh
62333 62333-22070-04 Trim, Rear Door Opening, Rh
62333 62333-22080-03 Trim, Rear Door Opening, Rh
62333 62333-22080-04 Trim, Rear Door Opening, Rh
62333 62333-22070-05 Trim, Rear Door Opening, Rh
62333 62333-22070-15 Trim, Rear Door Opening, Rh
62333 62333-22080-05 Trim, Rear Door Opening, Rh
62333 62333-22080-15 Trim, Rear Door Opening, Rh
62381 62381-22040 Weatherstrip, Roof Side Rail, Front Rh
62381 62381-22060 Weatherstrip, Roof Side Rail, Front Rh
62382 62382-22040 Weatherstrip, Roof Side Rail, Front Lh
62382 62382-22060 Weatherstrip, Roof Side Rail, Front Lh
62383 62383-22030 Weatherstrip, Roof Side Rail, Rear Rh
62383 62383-22050 Weatherstrip, Roof Side Rail, Rear Rh
62384 62384-22030 Weatherstrip, Roof Side Rail, Rear Lh
62384 62384-22050 Weatherstrip, Roof Side Rail, Rear Lh
62411 62411-22190-03 Garnish, Center Pillar, Upper Rh
62411 62411-22200-04 Garnish, Center Pillar, Upper Rh
62411 62411-22190-05 Garnish, Center Pillar, Upper Rh
62411 62411-22200-05 Garnish, Center Pillar, Upper Rh
62412 62412-22210-03 Garnish, Center Pillar, Upper Lh
62412 62412-22220-04 Garnish, Center Pillar, Upper Lh
62412 62412-22210-05 Garnish, Center Pillar, Upper Lh
62412 62412-22220-05 Garnish, Center Pillar, Upper Lh
62413 62413-22060-03 Garnish, Center Pillar, Lower Rh
62413 62413-22060-02 Garnish, Center Pillar, Lower Rh
62413 62413-22060-04 Garnish, Center Pillar, Lower Rh
62413 62413-22060-05 Garnish, Center Pillar, Lower Rh
62413 62413-22060-15 Garnish, Center Pillar, Lower Rh
62414 62414-22060-03 Garnish, Center Pillar, Lower Lh
62414 62414-22060-02 Garnish, Center Pillar, Lower Lh
62414 62414-22060-04 Garnish, Center Pillar, Lower Lh
62414 62414-22060-05 Garnish, Center Pillar, Lower Lh
62414 62414-22060-15 Garnish, Center Pillar, Lower Lh
62461 62471-91606-03 Garnish, Roof Side Trim, Rh
62461 62471-91606-04 Garnish, Roof Side Trim, Rh
62461 62471-91606-05 Garnish, Roof Side Trim, Rh
62461 62471-91606-15 Garnish, Roof Side Trim, Rh
62462 62472-91606-03 Garnish, Roof Side Trim, Lh
62462 62472-91606-04 Garnish, Roof Side Trim, Lh
62462 62472-91606-05 Garnish, Roof Side Trim, Lh
62551 62551-22030-03 Garnish, Rear Seat Side, Rh
62551 62551-22030-04 Garnish, Rear Seat Side, Rh
62551 62551-22030-05 Garnish, Rear Seat Side, Rh
62551 62551-22030-15 Garnish, Rear Seat Side, Rh
62552 62552-22030-03 Garnish, Rear Seat Side, Lh
62552 62552-22030-04 Garnish, Rear Seat Side, Lh
62552 62552-22030-05 Garnish, Rear Seat Side, Lh
62552 62552-22030-15 Garnish, Rear Seat Side, Lh
62561 62561-22030 Protector, Rocker Panel, Inner Front
62561 62562-22030 Protector, Rocker Panel, Inner Front
62561 90467-08056-03 Clip (For Rocker Panel Inner Protector)
62561 90467-08056-23 Clip(For Luggage Compartment Trim Cover)
62562 62563-22020 Protector, Rocker Panel, Inner Rear
62562 62564-22010 Protector, Rocker Panel, Inner Rear
6777116080 67771-16080 Retainer (For Quarter Inside Trim Board)
6777130060 67771-30060 Retainer (For Quarter Inside Trim Board)
9015950083 90159-50083 SCREW
9016840002 90168-40002 SCREWTAPPING
9018904073 90189-04073 New Genuine Part
9018905018 90189-05018 New Genuine Part
9046305024 90463-05024 CLAMP
9046710011 90467-10011 Retainer, Trim Board(For Sun Roof)
9046805011 90468-05011 Clip(For Front Body Pillar Garnish)
9046805017 90468-05017 Clip, Roof Side Rail Garnish
9046807013 90468-07013 New Genuine Part
9095901009 90959-01009 New Genuine Part
9095901165 90959-01165 New Genuine Part
9356014010 93560-14010 SCREW
Instrument Panel & Glove Compartment ([08.1984 - ] (8408- )) 139
#OEMPart name
55312 55312-22090-03 Panel, Instrument, Lower
55312 55312-22090-04 Panel, Instrument, Lower
55312 55312-22090-05 Panel, Instrument, Lower
55312 55312-22090-15 Panel, Instrument, Lower
55322 55321-22070 Bracket, Instrument Panel, No.1
55323 55323-22040 Bracket, Instrument Panel, No.3
55326 55326-22060 Stay, Instrument Panel, No.1
55328 55328-22030 Stay, Instrument Panel, No.3
55331 55330-22020 Reinforcement, Instrument Panel
55331 55330-22060 Reinforcement, Instrument Panel
55341 55306-22130 Brace, Instrument Panel, No.1
55342 55307-22180 Brace, Instrument Panel, No.2
55378 55378-22040 Bracket, Glove Compartment Door Lock Mounting
55385 55385-22020 Bracket, Finish Panel Mounting, No.5
55395 55395-22010 Retainer, Instrument Panel Clamp
55401 55404-91602-03 Panel, Instrument Cluster Finish, Upper
55401 55404-91602-04 Panel, Instrument Cluster Finish, Upper
55401 55404-91602-05 Panel, Instrument Cluster Finish, Upper
55401 55404-91602-15 Panel, Instrument Cluster Finish, Upper
55404 55401-91601-03 Safety Pad Sub-Assy, Instrument Panel, Upper
55404 55401-91601-04 Safety Pad Sub-Assy, Instrument Panel, Upper
55404 55401-91601-15 Safety Pad Sub-Assy, Instrument Panel, Upper
55404 55401-91601-25 Safety Pad Sub-Assy, Instrument Panel, Upper
55408 55472-22020-03 Panel Sub-Assy, Instrument Panel Speaker, No.1
55408 55472-22020-04 Panel Sub-Assy, Instrument Panel Speaker, No.1
55408 55472-22020-05 Panel Sub-Assy, Instrument Panel Speaker, No.1
55408 55472-22020-15 Panel Sub-Assy, Instrument Panel Speaker, No.1
55409 55473-22030-03 Panel Sub-Assy, Instrument Panel Speaker, No.2
55409 55473-22030-05 Panel Sub-Assy, Instrument Panel Speaker, No.2
55409 55473-22030-15 Panel Sub-Assy, Instrument Panel Speaker, No.2
55412 55411-22260-03 Panel, Instrument Cluster Finish, End
55412 55411-22261-03 Panel, Instrument Cluster Finish, End
55412 55411-22261-04 Panel, Instrument Cluster Finish, End
55412 55411-22260-05 Panel, Instrument Cluster Finish, End
55412 55411-22261-15 Panel, Instrument Cluster Finish, End
55414 55477-22050 Bezel, Cigar Lighter Hole
55415 55412-22080 Panel, Instrument Cluster Finish, Center
55431 55311-22130-03 Panel, Instrument Panel Finish, Upper
55431 55311-22130-04 Panel, Instrument Panel Finish, Upper
55431 55311-22130-05 Panel, Instrument Panel Finish, Upper
55431 55311-22130-15 Panel, Instrument Panel Finish, Upper
55434 55434-22060-03 Panel, Instrument Panel Finish, Lower Center
55434 55434-22060-04 Panel, Instrument Panel Finish, Lower Center
55434 55434-22060-05 Panel, Instrument Panel Finish, Lower Center
55434 55434-22060-15 Panel, Instrument Panel Finish, Lower Center
55438 55438-22010 Retainer, Instrument Panel Finish Panel, No.2
55438 55438-22020 Retainer, Instrument Panel Finish Panel, No.2
55465 55531-22120-03 Cover, Instrument Hole
55465 55531-22120-04 Cover, Instrument Hole
55465 55531-22130-03 Cover, Instrument Hole
55465 55531-22130-04 Cover, Instrument Hole
55465 55531-22130-05 Cover, Instrument Hole
55465 55531-22130-15 Cover, Instrument Hole
55503 55506-22070 Compartment Sub-Assy, Glove
55510 55550-22080-03 Door Assy, Glove Compartment
55510 55550-22080-04 Door Assy, Glove Compartment
55510 90541-03015 Cushion, Instrument Panel Box
55510 55550-22080-05 Door Assy, Glove Compartment
55510 55550-22080-15 Door Assy, Glove Compartment
55517 55517-14010 Stopper, Glove Compartment Door Arm
55521 55521-14050-01 Cover, Stereo Opening
55522 55522-32010 Cover, Radio Tuner Opening
55522 55522-20070 Cover, Radio Tuner Opening
55524 55524-22050-03 Cover, Switch Bace Hole
55524 55524-22050-04 Cover, Switch Bace Hole
55524 55524-22050-14 Cover, Switch Bace Hole
55524 55524-22050-05 Cover, Switch Bace Hole
55524 55524-22050-13 Cover, Switch Bace Hole
55524 55524-22050-15 Cover, Switch Bace Hole
55528 55528-22020 Cover, Auto Drive Opening
55539 55539-22050-03 Cover, Spare Switch Hole
55539 55539-22050-04 Cover, Spare Switch Hole
55539 55539-22050-05 Cover, Spare Switch Hole
55539 55539-22050-15 Cover, Spare Switch Hole
55544 55544-32010-23 Cover, Instrument Panel Register Hole
55544 55544-32010-01 Cover, Instrument Panel Register Hole - INSTRUMENT PANEL LOWER REGISTER HOLE
55544 55544-32010-24 Cover, Instrument Panel Register Hole
55544 55544-32010-05 Cover, Instrument Panel Register Hole
55544 55544-32010-15 Cover, Instrument Panel Register Hole
55556 55556-22070 Arm, Glove Compartment Door Check
55561 55561-22040 Striker, Glove Compartment Door Lock
55565 55565-22010-03 Handle, Glove Compartment Door Lock
55565 55565-22010-13 Handle, Glove Compartment Door Lock
55565 55565-22010-14 Handle, Glove Compartment Door Lock
55565 55565-22010-05 Handle, Glove Compartment Door Lock
55565 55565-22010-15 Handle, Glove Compartment Door Lock
55569 55569-22020-03 Cover, Glove Compartment Door Lock
55569 55569-22020-13 Cover, Glove Compartment Door Lock
55569 55569-22020-14 Cover, Glove Compartment Door Lock
55569 55569-22020-05 Cover, Glove Compartment Door Lock
55569 55569-22020-15 Cover, Glove Compartment Door Lock
55601 55601-22060-03 Tray Sub-Assy, Instrument Panel Under
55601 55601-22060-C0 Tray Sub-Assy, Instrument Panel Under
55601 55601-22060-04 Tray Sub-Assy, Instrument Panel Under
55601 55601-22060-05 Tray Sub-Assy, Instrument Panel Under
55601 55601-22060-15 Tray Sub-Assy, Instrument Panel Under
55606 55606-22090 Cover Sub-Assy, Instrument Panel Under, No.1
55619 55619-14010-01 Cover, Rheostat Switch Hole
55650 55650-22070 Register Assy, Instrument Panel, No.1
55660 55660-22100-03 Register Assy, Instrument Panel, No.2
55660 55660-22100-04 Register Assy, Instrument Panel, No.2
55660 55660-22100-05 Register Assy, Instrument Panel, No.2
55660 55660-22100-15 Register Assy, Instrument Panel, No.2
55670 55670-22100-03 Register Assy, Instrument Panel, No.3
55670 55670-22100-04 Register Assy, Instrument Panel, No.3
55670 55670-22100-05 Register Assy, Instrument Panel, No.3
55670 55670-22100-15 Register Assy, Instrument Panel, No.3
55680 55680-32010 Register Assy, Instrument Panel, Lower No.1
55961 55961-22050-03 Nozzle, Side Defroster, No.1
55961 55961-22050-04 Nozzle, Side Defroster, No.1
55961 55961-22050-05 Nozzle, Side Defroster, No.1
55961 55961-22050-15 Nozzle, Side Defroster, No.1
55962 55962-22050-03 Nozzle, Side Defroster, No.2
55962 55962-22050-04 Nozzle, Side Defroster, No.2
55962 55962-22050-05 Nozzle, Side Defroster, No.2
55962 55962-22050-15 Nozzle, Side Defroster, No.2
9015750004 90157-50004 New Genuine Part
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover)
9018305094 90183-05094 NUT
9046804032 90468-04032 New Genuine Part
9046804087 90468-04087 CLIP
9095001467 90950-01467 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165540618 91655-40618 New Genuine Part
9165540618 91651-60616 BOLT
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
9166540820 91665-40820 New Genuine Part
9166540820 91661-60816 Bolt
9356755012 93567-55012 New Genuine Part
9356755012 93568-55012 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
9356755018 93567-55018 New Genuine Part
9356755018 93568-55018 SCREW
9356855014 93568-55014 Screw
Interior Lamp ([08.1984 - ] (8408- )) 34
#OEMPart name
81240 81240-22070-03 Lamp Assy, Room, No.1
81240 81240-22070-B0 Lamp Assy, Room, No.1
81240 81240-22070-04 Lamp Assy, Room, No.1
81240 99132-12100 Bulb, Room Lamp, No.1
81240 81240-22070-02 Lamp Assy, Room, No.1
81240 81240-22070-05 Lamp Assy, Room, No.1
81240 81240-22070-35 Lamp Assy, Room, No.1
81241 81241-20060 Lens, Room Lamp, No.1
81260 81260-14050-13 Lamp Assy, Map
81260 81260-14050-03 Lamp Assy, Map
81260 81260-14050-14 Lamp Assy, Map
81260 90981-12005 Bulb, Room Lamp, No.1
81260 81260-22070 Lamp Assy, Glove Box
81260 90981-11018 Bulb, Position Indicator Lamp
81261 81268-22040-13 Lens And Cover, Map Lamp
81261 81268-22040-C0 Lens And Cover, Map Lamp
81261 81268-22040-34 Lens And Cover, Map Lamp
81330 81330-22030 Lamp Assy, Luggage Compartment, No.1
81330 81330-22031 Lamp Assy, Luggage Compartment, No.1
81330 90981-11020 Bulb (For Lower Back Finish Panel Emblem)
81330 99132-12050 Bulb (12V 5W)
81330 90080-81053 Bulb(For Clearance Lamp)
81331 81331-22030 Lens, Luggage Compartment Lamp
81360 81380-22010 Lamp Assy, Step Or Spot
81360 90981-12010 Bulb (For Lower Back Finish Panel Emblem)
81361 81271-10010 Lens, License Plate Lamp
81364 81272-10010 Gasket, License Plate Lamp Lens
81380 90075-99005 Socket And Wire, License Plate Lamp
81386 81386-22010 Cover, Step Lamp
9016445005 90164-45005 SCREW
9321914006 93219-14006 New Genuine Part
9331514010 93315-14010 SCREW
9351044020 93510-44020 New Genuine Part
9354024016 93540-24016 New Genuine Part
Lock Cylinder Set ([08.1984 - ] (8408- )) 38
#OEMPart name
69051 69051-22120 Cylinder & Key Set, Door Lock, Rh
69051 69051-20190 Cylinder & Key Set, Door Lock, Rh
69051 69051-22121 Cylinder & Key Set, Door Lock, Rh
69051 69051-22260 Cylinder & Key Set, Door Lock, Rh
69052 69052-22120 Cylinder & Key Set, Door Lock, Lh
69052 69052-22121 Cylinder & Key Set, Door Lock, Lh
69052 69052-22260 Cylinder & Key Set, Door Lock, Lh
69061 69055-22120 Cylinder & Key Set, Luggage Lock
69061 69055-22121 Cylinder & Key Set, Luggage Lock
69061 69055-22210 Cylinder & Key Set, Luggage Lock
69061 69055-22211 Cylinder & Key Set, Luggage Lock
69062 69056-22020-03 Cylinder & Key Set, Glove Compartment Lock
69062 55565-22010-13 Handle, Glove Compartment Door Lock
69062 55569-22020-13 Cover, Glove Compartment Door Lock
69062 69056-22130 Cylinder & Key Set, Glove Compartment Lock
69062 69056-22020-04 Cylinder & Key Set, Glove Compartment Lock
69062 69056-22020-05 Cylinder & Key Set, Glove Compartment Lock
69062 69056-22020-15 Cylinder & Key Set, Glove Compartment Lock
69064 69057-22050 Cylinder & Key Set, Ignition Switch Lock
69064 69057-22060 Cylinder & Key Set, Ignition Switch Lock
69064 69057-22110 Cylinder & Key Set, Ignition Switch Lock
69064 69057-32121 Cylinder & Key Set, Ignition Switch Lock
69068 69555-20010 Cover Sub-Assy, Key
69388 69759-20080 Snap, Door Lock Control Link
69388 69759-20090 Snap(For Rear Door Lock)
69503 69005-22260 Cylinder Set, Lock
69503 69005-22481 Cylinder Set, Lock
69503 90999-00099 Key, Blank
69503 90999-00100 Key, Blank
69503 90999-00118 Key, Blank
69503 69005-22420 Cylinder Set, Lock
69503 69005-22611 Cylinder Set, Lock
69511 69511-32010 Retainer, Front Door Lock Cylinder
69561 69561-91601 Retainer, Luggage Compartment Or Back Door Lock Cylinder
69562 69562-22020 Lever, Luggage Compartment Door Lock
69685 69513-32010 Pad, Lock Cylinder
69685 69563-32010 Pad, Luggage Compartment Door Lock Cylinder
9015140005 90151-40005 New Genuine Part
Luggage Compartment Door & Lock ([08.1984 - ] (8408- )) 45
#OEMPart name
64401 64401-91607 Panel Sub-Assy, Luggage Compartment Door
64401 64401-91610 Panel Sub-Assy, Luggage Compartment Door
64401 90541-06076 Cushion(For Luggage Compartment Door Panel)
64401 90541-06056 Cushion(For Luggage Compartment Door Panel)
64401 90541-09042 Cushion(For Luggage Compartment Door Panel)
64401 90541-09043 Cushion(For Luggage Compartment Door Panel)
64461 64461-91601 Weatherstrip, Luggage Compartment Door
64503 64503-22040 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64504 64504-22020 Arm Sub-Assy, Luggage Compartment Door Hinge, Lh
64511 64511-91601 Support, Luggage Compartment Door Hinge, Rh
64512 64512-91601 Support, Luggage Compartment Door Hinge, Lh
64529 64529-14010 Spacer, Luggage Compartment Door Hinge
64531 64531-91601 Bar, Luggage Door Hinge Torsion, Rh
64531 64531-91603 Bar, Luggage Door Hinge Torsion, Rh
64532 64532-91601 Bar, Luggage Door Hinge Torsion, Lh
64532 64532-91604 Bar, Luggage Door Hinge Torsion, Lh
64559 64559-22010 Pin, Luggage Door Hinge
64602 64621-12060 Striker Sub-Assy, Luggage Compartment Door Lock
64602 64621-12070 Striker Assy, Luggage Compartment Door
64602 64620-12070 Striker Sub-Assy, Luggage Compartment Door Lock
64602 84231-12030 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
64602 64620-22040 Striker Sub-Assy, Luggage Compartment Door Lock
64602 84231-22020 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
64602 93315-15010 New Genuine Part
64606 64606-22060 Lever Sub-Assy, Luggage Door Lock Open
64606 64606-22090 Lever Sub-Assy, Luggage Door Lock Open
64606 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
64607 64607-22180 Cable Sub-Assy, Luggage Door Lock Control
64607 64607-22120 Cable Sub-Assy, Luggage Door Lock Control
64607 64607-22270 Cable Sub-Assy, Luggage Door Lock Control
64607 90959-01158 Clamp, No.1(For Luggage Door Lock Control Cable)
64607 90959-01209 Clamp, No.1(For Luggage Door Lock Control Cable)
64620 64610-22060 Lock Assy, Luggage Compartment Door
64620 90506-08001 Spring, Tension(For Luggage Compartment Door Lock)
64620 64610-22090 Lock Assy, Luggage Compartment Door
64620 90508-08019 Spring, Torsion(For Luggage Compartment Door Lock)
64749 64749-22030 Cover, Luggage Compartment Door Striker
9010506051 90105-06051 New Genuine Part
9010506051 90105-06168 BOLT WASHER BASED
9010908088 90109-08088 New Genuine Part
9010908088 90119-08716 BOLT WWASHER
9011906120 90119-06120 BOLT
9011906136 90119-06136 New Genuine Part
9011908143 90119-08143 New Genuine Part
9054107007 90541-07007 Cushion, Luggage Door Hinge
Manifold ([08.1984 - ] (8408- )2L) 42
#OEMPart name
17111 17101-54050 Manifold, Intake
17111 96132-51100 Clip (For Hose)
17111 17101-54051 Manifold, Intake
17111 90445-11080 Hose(For Egr Vacuum Modulator)
17111 90445-11101 New Genuine Part
17111 90464-00576 Clamp, No.1 (For Transfer Vacuum)
17111 90917-11033 Filter, Gas, No.1
17111 17101-54080 Manifold, Intake
17111 17101-54081 Manifold, Intake
17114 17114-54020 Flange, Intake
17114 17116-54010 Gasket, Intake Flange
17114 17116-54011 Gasket, Intake Flange
17114 26171-54010 Gasket, Intake Flange
17114 26171-54011 Gasket, Intake Flange
17141 17141-54030 Manifold, Exhaust
17141 17141-54040 Manifold, Exhaust
17151 92112-40820 Bolt, Stud(For Manifold To Venturi)
17151 92112-40825 Bolt(For Intake Manifold To Exhaust Manifold)
17152 90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)
17159 90116-08053 Bolt, Stud(For Oil Filter)
17159 90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)
17159 90116-10091 Bolt, Stud(For Manifold To Cylinder Head)
17159 90116-10141 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17167 17167-54040 Insulator, Exhaust Manifold Heat, No.1
17167 17167-54042 Insulator, Exhaust Manifold Heat, No.1
17167 17167-54041 Insulator, Exhaust Manifold Heat, No.1
17168 17168-54011 Insulator, Exhaust Manifold Heat, No.2
17168 17168-54012 Insulator, Exhaust Manifold Heat, No.2
17173 17173-54011 Gasket, Exhaust Manifold To Head
17173 17173-54012 Gasket, Exhaust Manifold To Head
17177 17177-54011 Gasket, Intake Manifold To Head, No.1
17177 17177-54012 Gasket, Intake Manifold To Head, No.1
9011910237 90119-10237 New Genuine Part
9017010199 90170-10199 Nut, Exhaust Pipe Set Stud Bolt
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9020110283 90201-10283 Washer, Plate(For Steering Tilt Lever)
9033903002 90339-03002 PLUG
9033903005 90339-03005 Plug, No.1
9046707016 90467-07016 Clip, Hose Fuel(For Injection Pump)
9046707016 90467-07094 Clip, Hose Fuel(For Injection Pump)
9161160822 91611-60822 Bolt
9162140812 91621-40812 BOLT
Manifold ([08.1984 - ] (8408- )2LT) 65
#OEMPart name
4175 04175-54010 Gasket Kit, Turbocharger
4175 04175-54011 Gasket Kit, Turbocharger
15407 15407-54011 Pipe Sub-Assy, Turbo Oil Inlet
15407 90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 90430-10035 Gasket(For Water Hole)
15471 15471-54010 Gasket, Turbo Oil Inlet
15471 15471-58010 Gasket, Turbo Oil Inlet
15474 15476-54010 Pipe, Turbo Oil Outlet
15474 90923-02080 Hose, Turbo Oil Outlet
15474 90467-26002 Clip(For Ventilation Hose)
15474 96134-52600 Clip Or Clamp(For Ventilation Hose)
15475 15475-54010 Deflector, Oil
17021 90116-08158 Bolt, Stud(For Bearing Housing)
17025 90116-08200 Bolt, Stud(For Bearing Housing)
17111 17101-54050 Manifold, Intake
17111 96132-51100 Clip (For Hose)
17111 17101-54051 Manifold, Intake
17111 90445-11080 Hose(For Egr Vacuum Modulator)
17111 90445-11101 New Genuine Part
17111 90464-00576 Clamp, No.1 (For Transfer Vacuum)
17111 90917-11033 Filter, Gas, No.1
17114 17114-54010 Flange, Intake
17114 17114-54030 Flange, Intake
17114 17116-54010 Gasket, Intake Flange
17114 17116-54011 Gasket, Intake Flange
17118 17118-54011 Stay, Manifold
17118 90116-08056 Bolt, Stud(For Manifold Stay)
17141 17141-54022 Manifold, Exhaust
17141 90116-10094 Bolt, Stud(For Turbine Housing)
17151 90116-08123 Bolt, Stud(For Rocker Support)
17152 90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)
17159 90116-08053 Bolt, Stud(For Oil Filter)
17159 90116-08220 Bolt, Stud(For Intake Manifold To Cylinder Head)
17159 90116-10061 Bolt, Stud(For Manifold To Cylinder Head)
17159 90116-10140 Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17167 17107-54011 Insulator, Exhaust Manifold Heat, No.1
17167 17107-54012 Insulator, Exhaust Manifold Heat, No.1
17173 17173-54020 Gasket, Exhaust Manifold To Head
17177 17177-54011 Gasket, Intake Manifold To Head, No.1
17177 17177-54012 Gasket, Intake Manifold To Head, No.1
17201 17201-54011 Turbocharger Sub-Assy
17271 17271-54010 Insulator, Turbo, No.1
17271 17271-54040 Insulator, Turbo, No.1
17272 17272-54010 Insulator, Turbo, No.2
17275 17275-54010 Elbow, Compressor Outlet
17277 17277-54010 Gasket, Compressor Outlet
17277 17277-54011 Gasket, Compressor Outlet
17278 17278-54010 Gasket, Turbo To Exhaust Manifold
17279 17279-64010 Gasket, Turbine Outlet Elbow
17291 17291-54010 Elbow, Turbine Outlet
17294 90445-12111 Hose(For Repair Actuator Set)
17294 96132-30600 Clip(For Actuator Hose)
417654010 04176-54010 Seal Kit, Turbocharger
9011910269 90119-10269 Bolt
9017908012 90179-08012 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017910028 90179-10028 Nut, Exhaust Pipe Set Stud Bolt
9025403013 90254-03013 New Genuine Part
9052304002 90523-04002 RING
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9161160822 91611-60822 Bolt
9162140812 91621-40812 BOLT
9162140814 91621-40814 Bolt
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
Mat & Carpet ([08.1984 - ] (8408- )AVT,GT,SXL,XG,XL) 25
#OEMPart name
58520 58510-2A060-03 Carpet Assy, Front Floor
58520 58510-22780-03 Carpet Assy, Front Floor
58520 58510-2A060-05 Carpet Assy, Front Floor
58520 58510-22780-E0 Carpet Assy, Front Floor
58520 58510-2A170-04 Carpet Assy, Front Floor
58520 58510-2A200-04 Carpet Assy, Front Floor
58520 58510-2A170-05 Carpet Assy, Front Floor
58520 58510-2A200-05 Carpet Assy, Front Floor
58520 90467-06055-03 Clip(For Front Floor Carpet)
58520 90467-06055-B0 Clip (For Roof Side Garnish)
58520 90467-06055-04 Clip(For Front Floor Carpet)
58520 90467-06055-J1 Clip (For Roof Side Garnish)
58520 90467-06055-05 Clip(For Front Floor Carpet)
58520 90467-06055-E0 Clip(For Front Floor Carpet)
58520 90467-06055-15 Clip(For Front Floor Carpet)
58560 58540-22450-03 Carpet Assy, Floor, Rear
58560 58540-22420-B0 Carpet Assy, Floor, Rear
58560 58540-22450-05 Carpet Assy, Floor, Rear
58560 58540-22420-E0 Carpet Assy, Floor, Rear
58560 58540-22520-04 Carpet Assy, Floor, Rear
58560 58540-22510-J0 Carpet Assy, Floor, Rear
58560 58540-22520-05 Carpet Assy, Floor, Rear
58560 58540-22510-E0 Carpet Assy, Floor, Rear
58560 90467-07158-01 Clip(For Floor Mat, Rear)
58560 90467-07158-03 Clip(For Front Floor Carpet)
Mat & Carpet ([08.1984 - ] (8408- )KYO) 6
#OEMPart name
58511 58510-2A120-03 Mat, Floor, Front
58511 58510-2A260-04 Mat, Floor, Front
58551 58540-22480-03 Mat, Floor, Rear
58551 58540-22480-04 Mat, Floor, Rear
58551 90467-07158-01 Clip(For Floor Mat, Rear)
58551 90467-07158-03 Clip(For Front Floor Carpet)
Meter ([08.1984 - ] (8408- )) 67
#OEMPart name
83100 90981-11018 Bulb, Position Indicator Lamp
83100 99132-12034 Bulb, Position Indicator Lamp
83100 00234-00158 Bulb, Position Indicator Lamp
83100 83138-22370 Glass, Combination Meter
83100 83138-22470 Glass, Combination Meter
83100 83138-22350 Glass, Combination Meter
83100 83138-22490 Glass, Combination Meter
83101 83101-14030 Socket Sub-Assy, Combination Meter Bulb
83101 83101-14040 Socket, Indicator Lamp
83102 83247-2A170 Plate Sub-Assy, Combination Meter Circuit, No.1
83102 83247-2A190 Plate Sub-Assy, Combination Meter Circuit, No.1
83102 83247-2A470 Plate Sub-Assy, Combination Meter Circuit, No.1
83102 83247-2A490 Plate Sub-Assy, Combination Meter Circuit, No.1
83103 83247-2A250 Plate Sub-Assy, Combination Meter Circuit, No.2
83103 83247-2A230 Plate Sub-Assy, Combination Meter Circuit, No.2
83104 83247-2A370 Plate Sub-Assy, Combination Meter Circuit, No.3
83109 83109-24020 Bulb, Combination Meter, No.1
83109 83109-24040 Bulb, Combination Meter, No.1
83110 83110-22640 Speedometer Assy
83110 83110-22641 Speedometer Assy
83110 83110-2A410 Speedometer Sub-Assy
83110 83110-2A170 Speedometer Assy
83110 83110-2A171 Speedometer Assy
83111 83111-22190 Computer, Digital Speed
83132 83132-22550 Case, Combination Meter
83132 83132-22510 Case, Combination Meter
83132 83132-22890 Case, Combination Meter
83132 83132-22730 Case, Meter
83132 83132-22710 Case, Combination Meter
83132 83132-2A050 Case, Combination Meter
83138 83133-22650 Glass, Speedometer
83180 83180-30010 Detector Assy, Revolution
83180 83180-30011 Detector Assy, Revolution
83270 83242-22510 Tachometer Assy, Engine
83270 83242-22630 Tachometer Assy, Engine
83270 83242-22530 Tachometer Assy, Engine
83270 83242-22650 Tachometer Assy, Engine
83310 83243-22350 Gage Assy, Fuel Receiver
83310 83243-22370 Gage Assy, Fuel Receiver
83410 83244-22390 Gage Assy, Water Temperature Receiver
83410 83244-22410 Gage Assy, Water Temperature Receiver
83710 83710-22820 Cable Assy, Speedometer Drive, No.1
83710 83710-22821 Cable Assy, Speedometer Drive, No.1
83710 83710-2A040 Cable Assy, Speedometer Drive, No.1
83710 83710-2A041 Cable Assy, Speedometer Drive, No.1
83770 83770-30070 Adapter Assy, Speedometer Cable
83770 83770-22120 Adapter Assy, Speedometer Cable
83910 83910-22300 Clock Assy
83910 83910-22390 Clock Assy
8316120080 83161-20080 Case, Combination Meter Mirror, No.1
8316120240 83161-20240 Case, Combination Meter Mirror, No.1
8316120260 83161-20260 Case, Combination Meter Mirror, No.1
8316120380 83161-20380 Case, Combination Meter Mirror, No.1
8316120400 83161-20400 Case, Combination Meter Mirror, No.1
8316120740 83161-20740 Case, Combination Meter Mirror, No.1
9009900153 90099-00153 New Genuine Part
9009900909 90099-00909 New Genuine Part
9009900910 90099-00910 New Genuine Part
9009900929 90099-00929 New Genuine Part
9009900939 90099-00939 New Genuine Part
9014950033 90149-50033 New Genuine Part
9017905021 90179-05021 NUT
9018305094 90183-05094 NUT
9018305103 90183-05103 NUT
9048032010 90480-32010 New Genuine Part
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Mirror ([08.1984 - ] (8408- )) 38
#OEMPart name
87810 87810-30150-03 Mirror Assy, Inner Rear View
87810 87810-30150-01 Mirror Assy, Inner Rear View
87810 87810-30150-04 Mirror Assy, Inner Rear View
87810 87810-22190-03 Mirror Assy, Inner Rear View
87810 87810-22190-B4 Mirror Assy, Inner Rear View
87810 87810-22190-04 Mirror Assy, Inner Rear View
87810 87810-22190-J0 Mirror Assy, Inner Rear View
87810 87810-22190-05 Mirror Assy, Inner Rear View
87810 87810-22190-15 Mirror Assy, Inner Rear View
87816 74372-30030 Spring, Inner Rear View Mirror
87827 87828-22040 Absorber, Inner Rear View Mirror
87834 87834-14021-14 Cover, Inner Rear View Mirror Stay Holder
87834 87834-14021-01 Cover, Inner Rear View Mirror Stay Holder
87834 87834-14021-33 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-12 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-43 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-44 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-45 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-21 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-55 Cover, Inner Rear View Mirror Stay Holder
87908 87931-22520 Mirror Sub-Assy, Rh
87909 87961-22590 Mirror Sub-Assy, Lh
87910 87910-22530 Mirror Assy, Outer Rear View, Rh
87910 87910-91601 Mirror Assy, Outer Rear View, Rh
87910 87910-22520 Mirror Assy, Outer Rear View, Rh
87910 87910-22521 Mirror Assy, Outer Rear View, Rh
87911 87911-22160 Gasket, Outer Rear View Mirror, Rh
87911 87911-91601 Gasket, Outer Rear View Mirror, Rh
87940 87940-22600 Mirror Assy, Outer Rear View, Lh
87940 87940-91601 Mirror Assy, Outer Rear View, Lh
87940 87940-22590 Mirror Assy, Outer Rear View, Lh
87940 87940-22591 Mirror Assy, Outer Rear View, Lh
87941 87941-22170 Gasket, Outer Rear View Mirror, Lh
87941 87941-91601 Gasket, Outer Rear View Mirror, Lh
9014950035 90149-50035 New Genuine Part
9017906097 90179-06097 Clip(For Front Bumper), No.1
9017906097 90179-06206 Nut
9331915010 93319-15010 SCREW
Mounting ([08.1984 - ] (8408- )2L#) 25
#OEMPart name
12311 12311-54070 Bracket, Engine Mounting, Front No.1 Rh
12315 12312-54040 Bracket, Engine Mounting, Front No.1 Lh
12361 12361-54150 Insulator, Engine Mounting, Front
12361 12361-54181 Insulator, Engine Mounting, Front
12361 12361-54151 Insulator, Engine Mounting, Front
12361 12361-54152 Insulator, Engine Mounting, Front
12371 12371-34030 Insulator, Engine Mounting, Rear No.1
12371 12371-54040 Insulator, Engine Mounting, Rear No.1
12511 12511-54010 Bracket, Alternator, No.1
9011910223 90119-10223 Bolt(For Transaxle & Engine Setting)
9017012008 90170-12008 NUT
9017910015 90179-10015 NUT
9020112020 90201-12020 New Genuine Part
9161141020 91611-41020 Bolt(for Transaxle & Engine Setting)
9161141020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9161161025 91611-61025 Bolt(For Transaxle & Engine Setting)
9161161025 91612-61025 Bolt (For Control Shaft Cover)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165141025 91651-41025 Bolt(For Transaxle Case & Engine Setting)
9165141025 91651-61025 Bolt with washer
9165161028 91651-61028 New Genuine Part
9411541200 94115-41200 Nut
9411541200 94130-61200 Nut
9451201200 94512-01200 Washer
Mudguard & Spoiler ([08.1984 - ] (8408- )) 11
#OEMPart name
9015960096 90159-60096 New Genuine Part
9015960252 90159-60252 New Genuine Part
9017906084 90179-06084 New Genuine Part
9018906005 90189-06005 CLIP
9018906029 90189-06029 GROMMET
9043004260 90430-04260 GASKET
9046700002 90467-00002 CLIP
9046706053 90467-06053 New Genuine Part
9046710058 90467-10058 New Genuine Part
9095001038 90950-01038 Plug, Hole(For Instrument Lower Panel)
9095001266 90950-01266 New Genuine Part
Oil Cooler & Tube (Atm) ([08.1984 - ] (8408- )LX70..4FC) 30
#OEMPart name
32921 32921-22340 Tube, Oil Cooler Inlet, No.1
32921 32921-22460 Tube, Oil Cooler Inlet, No.1
32921 90404-14007 Union(For Oil Cooler Tube)
32921 90407-14003 Union(For Oil Cooler Tube)
32921 90445-14234 Hose(For Oil Cooler Inlet)
32921 90445-14514 Hose(For Oil Cooler Outlet)
32921 90445-15013 Hose(For Oil Cooler Inlet)
32921 90460-14085 Clamp, Hose(For Oil Cooler)
32921 90460-20004 Clamp, Hose(For Oil Cooler)
32921 90467-13039 Clamp, Hose
32921 96135-51300 Clamp, Hose
32921 90301-10189 Ring, O(For Oil Cooler Tube Union)
32921 90402-14004 Nut, Union(For Oil Cooler Tube)
32922 32922-22360 Tube, Oil Cooler Outlet, No.1
32922 32922-22480 Tube, Oil Cooler Outlet, No.1
32922 32941-22070 Hose(For Oil Cooler Inlet)
32922 32941-22071 Hose(For Oil Cooler Inlet)
32922 32941-30020 Hose(For Oil Cooler Inlet)
32923 32923-22040 Clamp, Automatic Transmission Oil Cooler Tube
32923 32923-22041 Clamp, Automatic Transmission Oil Cooler Tube
32923 32924-28010 Clamp, Automatic Transmission Oil Cooler Tube
32926 32926-22010 Cushion, Oil Cooler Tube(Atm)
32928 32928-22050 Clamp, Flexible Hose, No.1
32928 32928-22051 Clamp, Flexible Hose, No.1
32928 90462-12085 Clamp, Automatic Transmission Oil Cooler Tube
32929 32929-22020 Clamp, Flexible Hose, No.2
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
Oil Filter ([08.1984 - 09.1987] (8408-8709)2L# ; (8709- )2LT..4FC) 28
#OEMPart name
15600 15116-54010 Screw, Oil Cooler Set
15600 15116-54020 Union(For Oil Filter)
15600 15116-54021 Union(For Oil Filter)
15600 90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)
15600 90344-54003 Plug, Tight, No.2(For Cylinder Block)
15600 90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)
15600 90430-18011 Washer(For Oil Filter)
15600 90501-16026 Spring, Compression(For Oil Filter)
15601 15600-41010 Filter Assy, Oil
15601 90915-40002 Filter Assy, Oil
15601 90915-03006 Filter Sub-Assy, Oil
15601 90915-30002 Filter Sub-Assy, Oil
15604 15131-54010 Valve, Oil Pump Relief
15609 15609-54041 Bracket Sub-Assy, Oil Filter
15609 15609-54080 Bracket Sub-Assy, Oil Filter
15609 15609-54081 Bracket Sub-Assy, Oil Filter
15609 15609-54050 Bracket Sub-Assy, Oil Filter
15691 15691-54012 Gasket, Oil Filter
15691 15692-54040 Gasket, Oil Filter
15691 15692-54020 Gasket, Oil Filter
15691 15692-54030 Gasket, Oil Filter
15691 15692-54050 Gasket, Oil Filter
9011908467 90119-08467 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9162160840 91621-60840 Bolt(For Rocker Support Set)
Oil Filter ([09.1987 - ] (8408-8709)2L# ; (8709- )2LT..4FC) 21
#OEMPart name
15600 15116-54010 Screw, Oil Cooler Set
15600 90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)
15600 90344-54003 Plug, Tight, No.2(For Cylinder Block)
15600 90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)
15600 90430-18011 Washer(For Oil Filter)
15600 90501-16026 Spring, Compression(For Oil Filter)
15601 15600-41010 Filter Assy, Oil
15601 90915-40002 Filter Assy, Oil
15604 15131-54010 Valve, Oil Pump Relief
15609 15609-54050 Bracket Sub-Assy, Oil Filter
15691 15691-54012 Gasket, Oil Filter
15691 15692-54040 Gasket, Oil Filter
15691 15692-54020 Gasket, Oil Filter
15691 15692-54030 Gasket, Oil Filter
15691 15692-54050 Gasket, Oil Filter
9011908467 90119-08467 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9162160840 91621-60840 Bolt(For Rocker Support Set)
Oil Filter ([09.1987 - ] (8709- )2L#..5F) 27
#OEMPart name
15600 15116-54010 Screw, Oil Cooler Set
15600 15116-54020 Union(For Oil Filter)
15600 15116-54021 Union(For Oil Filter)
15600 90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)
15600 90344-54003 Plug, Tight, No.2(For Cylinder Block)
15600 90430-18001 Gasket, Straight Screw Plug No.1(For Cylinder Block)
15600 90430-18011 Washer(For Oil Filter)
15600 90501-16026 Spring, Compression(For Oil Filter)
15601 15600-41010 Filter Assy, Oil
15601 90915-40002 Filter Assy, Oil
15601 90915-03006 Filter Sub-Assy, Oil
15601 90915-30002 Filter Sub-Assy, Oil
15604 15131-54010 Valve, Oil Pump Relief
15609 15609-54041 Bracket Sub-Assy, Oil Filter
15609 15609-54080 Bracket Sub-Assy, Oil Filter
15609 15609-54081 Bracket Sub-Assy, Oil Filter
15691 15691-54012 Gasket, Oil Filter
15691 15692-54040 Gasket, Oil Filter
15691 15692-54020 Gasket, Oil Filter
15691 15692-54030 Gasket, Oil Filter
15691 15692-54050 Gasket, Oil Filter
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9161160850 91611-60850 Bolt(For Rocker Support Set)
9162160840 91621-60840 Bolt(For Rocker Support Set)
Overdrive & Electronic Controlled Transmission ([08.1984 - ] (8408- )4FC..CBR,EFI,TD) 16
#OEMPart name
84722 84722-14070-03 Switch, Transmission Control
84722 84722-14070-11 Switch, Transmission Control
84722 84722-14070-15 Switch, Transmission Control
84722 84722-14070-25 Switch, Transmission Control
84722 84722-14070-32 Switch, Transmission Control
84722 84722-14070-34 Switch, Transmission Control
85420 85420-30090 Solenoid Assy, Transmission
85420 85420-22090 Solenoid Assy, Transmission
85425 90301-11001 Ring, O (For Transmission Oil Filler Plug)
85425 90301-23001 Ring, O (For Transmission Solenoid)
89531 89531-28010 Relay, Transmission Control
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9351013010 93510-13010 Bolt Or Pin (For Shift Lever Knob Setting)
9461110300 94611-10300 New Genuine Part
Overdrive Gear (Atm) ([08.1984 - ] (8408- )4FC..EFI,TBO,TD,TWC) 59
#OEMPart name
34101 34101-30062 Case Sub-Assy, Overdrive
34101 34101-22020 Case Sub-Assy, Overdrive
34101 35617-43010 Ring, Clutch Drum Oil Seal (For Overdrive)
34101 35617-16010 Ring, Oil Seal (For Overdrive Case)
34601 34601-30022 Drum Sub-Assy, Overdrive Direct Clutch
34601 90501-11023 Spring, Compression (For Overdrive Direct Clutch)
34601 90520-52262 Ring, Shaft Snap (For Underdrive Return Spring)
34601 34618-30010 Plate, Clutch (For Overdrive)
34601 35634-30070 Plate, Clutch (For Overdrive)
34601 35677-30030 Disc, Clutch (For Overdrive)
34601 35677-30160 Disc, Clutch (For Overdrive)
34601 90521-99146 Ring, Hole Snap, No.1 (For Overdrive)
34601 90521-99001 Ring, Hole Snap, No.2 (For Overdrive)
34602 34602-30011 Piston Sub-Assy, Overdrive Direct Clutch
34602 34602-30030 Piston Sub-Assy, Overdrive Direct Clutch
34602 90301-57188 Ring, O (For Underdrive Clutch Piston)
34602 90301-56007 Ring, O (For Underdrive Clutch Piston)
34602 90301-99016 Ring, O (For Overdrive Direct Clutch Piston)
34613 34613-30010 Seat, Overdrive Direct Clutch Return Spring
34615 34615-30010 Flange, Overdrive Clutch
34615 35675-22010 Flange, Overdrive Clutch
34615 35675-22140 Flange, Overdrive Clutch
34622 34622-30020 Piston, Overdrive Brake
34622 34622-30040 Piston, Overdrive Brake
34622 90301-99008 Ring, O (For Overdrive Brake Piston)
34622 90301-99103 Ring, O (For Overdrive Brake Piston)
34622 90301-99009 Ring, O (For Overdrive Brake Piston)
34622 90301-99111 Ring, O (For Overdrive Brake Piston)
34623 34623-30020 Seat, Overdrive Brake Return Spring
34623 90501-10671 Spring, Compression (For Overdrive Direct Clutch)
34623 90521-99004 Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
34624 34624-32010 Hub, Overdrive Brake
34624 34624-26010 Hub, Overdrive Brake
34626 34626-30050 Plate, Overdrive Brake Cushion
34626 35634-30080 Flange, Overdrive Brake, No.1
34626 34625-26010 Flange, Overdrive Brake, No.1
34626 34625-22020 Flange, Overdrive Brake, No.1
34626 35677-30040 Disc, Clutch (For Overdrive)
34626 35677-43010 Disc, Clutch (For Overdrive)
34705 34705-30020 Gear Sub-Assy, Overdrive Planetary Ring
34705 34705-30021 Gear Sub-Assy, Overdrive Planetary Ring
34710 34710-30022 Gear Assy, Overdrive Planetary
34710 90521-99003 Ring, Hole Snap(For Overdrive Planetary Gear)
34710 35791-30030 Clutch, 1Way, No.1(For Overdrive)
34710 34739-30031 Race, Thrust Bearing(For Overdrive Planetary Gear)
34710 34739-30041 Race, Thrust Bearing(For Overdrive Planetary Gear)
34710 35789-22010 Race, Thrust Bearing(For Overdrive Planetary Gear)
34710 90374-23012 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710 90374-24001 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
34710 90334-03001 Plug, Straight(For Overdrive Planetary Gear)
34710 90250-03024 Pin, Straight(For Overdrive Planetary Gear)
34713 34713-30020 Race, 1 Way Clutch Outer (For Overdrive)
34735 34735-30010 Washer, Overdrive Planetary Gear Thrust, No.1
34736 34736-30010 Washer, Overdrive Planetary Gear Thrust, No.2
34737 34737-30020 Washer, Overdrive Planetary Gear Thrust, No.3
34738 34738-30020 Washer, Overdrive Planetary Gear Thrust, No.4
34739 34739-30020 Race, Thrust Bearing(For Overdrive)
34739 35789-22030 Race, Thrust Bearing(For Overdrive)
34739 90374-28014 Bearing, Thrust Needle Roller(For Overdrive)
Package Tray Panel & Luggage Compartment Mat ([08.1984 - ] (8408- )) 27
#OEMPart name
58703 58703-22050 Cover Sub-Assy, Luggage Compartment Side, Rh
58704 58704-22030 Cover Sub-Assy, Luggage Compartment Side, Lh
64271 64271-22080 Board, Room Partition, No.1
64330 64330-91601-03 Panel Assy, Package Tray Trim
64330 64330-91601-B0 Panel Assy, Package Tray Trim
64330 64330-91601-04 Panel Assy, Package Tray Trim
64330 64330-91601-J0 Panel Assy, Package Tray Trim
64330 64330-91601-05 Panel Assy, Package Tray Trim
64330 64330-91601-E0 Panel Assy, Package Tray Trim
64330 64330-91601-15 Panel Assy, Package Tray Trim
64701 64711-22210 Mat Sub-Assy, Luggage Compartment
64701 64711-22180 Mat Sub-Assy, Luggage Compartment
64701 64711-22190 Mat Sub-Assy, Luggage Compartment
64713 64713-22030 Cover, Luggage Compartment Trim, Front Lh
64714 64714-91601 Cover, Luggage Compartment Trim, Side, Rh
64715 64715-22130 Cover, Luggage Compartment Trim, Side, Lh
64717 64717-22080 Cover, Luggage Compartment Trim, Front
64721 64721-91601 Cover, Luggage Compartment Trim, Inner Rh
64721 90467-07042-03 Clip(For Luggage Compartment Trim Inner Cover)
64721 90467-07042-B0 Clip(For Luggage Compartment Trim Inner Cover)
64722 64722-91601 Cover, Luggage Compartment Trim, Inner Lh
64759 58731-22020-23 Cap, Rear Absorber, Rh
64770 64770-22040 Cover Assy, Spare Wheel
64770 64770-22030 Cover Assy, Spare Wheel
64779 64779-22010 Stopper, Spare Wheel Cover
9018304046 90183-04046 New Genuine Part
9046805017 90468-05017 Clip, Roof Side Rail Garnish
Parking Brake & Cable ([08.1984 - ] (8408- )) 17
#OEMPart name
46304 46341-14010 Equalizer Sub-Assy, Parking Brake
46304 46341-22040 Equalizer Sub-Assy, Parking Brake
46420 46420-22280 Cable Assy, Parking Brake, No.2
46420 46420-22281 Cable Assy, Parking Brake, No.2
46430 46430-22200 Cable Assy, Parking Brake, No.3
46430 46430-22201 Cable Assy, Parking Brake, No.3
9017908013 90179-08013 Nut, Wire Adjusting, No.1
9046806017 90468-06017 New Genuine Part
9094901393 90949-01393 Clamp, No.1(For Parking Brake Cable)
9161640616 91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640616 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161640816 91616-40816 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640816 91611-B0816 Bolt
9161661025 91616-61025 Bolt (For Control Shaft Cover)
9161661025 91612-61025 Bolt (For Control Shaft Cover)
9412040600 94120-40600 Nut, Wire Adjusting, No.1
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
Parking Brake & Cable ([08.1984 - ] (8408- )4FC) 36
#OEMPart name
46130 46130-22030 Bracket Assy, Parking Brake Pedal
46201 46201-22140 Pedal Sub-Assy, Parking Brake
46201 46201-22141 Pedal Sub-Assy, Parking Brake
46201 90541-01001 Cushion(For Parking Brake Pedal)
46201 90507-14010 Spring, Tension
46201 90109-10033 Shaft, Pedal
46201 90386-16022 Bush, Control Link
46209 46209-22030 Cable Sub-Assy, Parking Brake Release
46209 90501-08030 Spring, Compression(For Parking Brake Release Cable)
46216 90541-07008 Cushion, Parking Pedal
46252 46252-20010 Pad, Parking Pedal
46261 46261-22010 Lever, Parking Brake Release Intermediate
46265 46265-22030 Guide, Parking Brake Release Rod
46267 46266-30010 Cushion, Release Rod Guide Intermediate
46311 90506-07007 Spring(For Parking Brake Release Intermediate Lever)
46410 46410-22180 Cable Assy, Parking Brake, No.1
46410 90480-01022 Grommet(For Parking Brake Front Cable)
46410 90249-10012 Pin(For Parking Brake Front Cable)
9010905004 90109-05004 New Genuine Part
9015960046 90159-60046 New Genuine Part
9017005002 90170-05002 New Genuine Part
9017908038 90179-08038 Nut
9020105010 90201-05010 New Genuine Part
9046110647 90461-10647 New Genuine Part
9046110648 90461-10648 Clamp(For Parking Brake Front Cable)
9046808001 90468-08001 CLIP
9161540616 91615-40616 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161540616 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165540820 91655-40820 New Genuine Part
9165540820 91653-40820 BOLT, W/WASHER
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9411051000 94110-51000 Nut(For Steering Center Arm)
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9615001000 96150-01000 Ring, Snap(For Over Center Adjusting Rod)
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Parking Brake & Cable ([08.1984 - ] (8408- )5F) 28
#OEMPart name
46201 46201-22160-03 Lever Sub-Assy, Parking Brake
46201 46201-22161-01 Lever Sub-Assy, Parking Brake
46201 46201-22160-04 Lever Sub-Assy, Parking Brake
46201 46201-22161-04 Lever Sub-Assy, Parking Brake
46217 46217-10020-32 Knob, Parking Brake Release Rod
46217 46217-10020-11 Knob, Parking Brake Release Rod (Black)
46217 46217-10020-35 Knob, Parking Brake Release Rod
46217 46217-20020-11 Knob, Parking Brake Release Rod
46217 46217-10020-53 Knob, Parking Brake Release Rod
46217 46217-12020-J0 Knob, Parking Brake Release Rod
46217 46217-12020-C0 Knob, Parking Brake Release Rod
46217 46217-20020-05 Knob, Parking Brake Release Rod
46217 46217-20020-12 Knob, Parking Brake Release Rod
46217 46217-20020-D0 Knob, Parking Brake Release Rod
46217 46217-20020-23 Knob, Parking Brake Release Rod
46217 46217-20020-54 Knob, Parking Brake Release Rod
46217 46217-20020-B1 Knob, Valve Control Lever
46225 90501-10085 Spring, Compression(For Parking Brake Pawl Rod)
46225 90501-10745 Spring, Compression(For Parking Brake Pawl Rod)
46241 46241-22060 Boot, Parking Brake Lever
46243 46243-22020-03 Cover, Parking Brake Lever
46243 46243-22020-04 Cover, Parking Brake Lever
46249 46249-22020 Shield, Parking Brake Hole
46361 46361-22060 Rod, Parking Brake Pull
46361 90240-08037 Pin, W/hole (For Front Drive Guide Lever No.2)
46361 90480-01292 Grommet(For Parking Brake Pull Rod)
9011908309 90119-08309 New Genuine Part
9046814004 90468-14004 Union, Auxiliary Fuel Band
Partial Engine Assembly ([08.1984 - ] (8408- )) 15
#OEMPart name
11000 19000-54440 Engine Assy, Partial
11000 19000-54442 Engine Assy, Partial
11000 13405-54060 Flywheel Sub-Assy
11000 32101-30052 Gear Sub-Assy, Drive Plate & Ring
11000 32116-35010 Spacer, Drive Plate, Front
11000 32117-35010 Spacer, Drive Plate, Rear
11000 90105-12014 Bolt, Hexagon(For Drive Plate Setting)
11000 90105-12109 Bolt, Flywheel Setting
11000 19000-54441 Engine Assy, Partial
11000 19000-54430 Engine Assy, Partial
11000 13450-54041 Flywheel Sub-Assy
11000 19000-54433 Engine Assy, Partial
11000 90105-12172 Bolt, Flywheel Setting
11000 19000-54431 Engine Assy, Partial
11000 19000-54432 Engine Assy, Partial
Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1984 - ] (8408- )4FC..AVT,SXL,XG,XL) 26
#OEMPart name
35071 35708-30041 Shaft Sub-Assy, Planetary Intermediate
35074 35074-30030 Gear Sub-Assy, Rear Planetary Ring
35074 90522-20037 Ring, Set (For Rear Planetary Ring Gear)
35074 35789-22050 Race, Thrust Bearing (For Rear Planetary Ring Gear Front)
35074 35789-22020 Race, Thrust Bearing (For Rear Planetary Ring Gear Rear)
35074 90374-28014 Bearing, Thrust Needle Roller(For Overdrive)
35481 33481-26010 Gear, Speedmeter Drive (Atm)
35481 33481-26011 Gear, Speedometer Drive (Atm)
35481 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35481 90080-36191 Ball, Check Valve
35481 90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear)
35702 35704-30030 Carrier Sub-Assy, Planetary W/lock Gear
35735 35735-22010 Ring, Planetary Output Snap
35737 35737-22010 Washer, Planetary Carrier Thrust
35737 35737-30020 Washer, Planetary Carrier Thrust
35738 35738-30010 Washer, Planetary Carrier Thrust, No.2
35739 35739-30010 Washer, Planetary Carrier Thrust, No.3
35743 35743-30010 Gear, Front Planetary Ring
35743 90520-99121 Ring, Shaft Snap (For Front Planetary Ring Gear)
35748 35748-30010 Ring, Intermediate Shaft Sleeve Oil Seal
35760 35760-30030 Gear Assy, Rear Planetary
35770 35770-30010 Shaft Assy, Output
35770 90374-38013 Bearing, Thrust (For Output Shaft)
35770 35789-22040 Race, Thrust Bearing (For Output Shaft)
35792 35792-30011 Clutch, 1 Way, No.2
35792 90521-79148 Ring, Hole Snap(For Overdrive Planetary Gear)
Power Steering Tube ([08.1984 - ] (8408- )LX70) 37
#OEMPart name
44319 44319-30030 Pulley, Vane Pump Drive
44348 44348-22110 Hose, Oil Reservoir To Pump, No.1
44348 90460-26001 Clamp(For Oil Reservoir To Pump Hose)
44348 90467-21005 Clip(For Suction Hose No.1)
44348 90467-21010 Clip(For Ventilation Hose No.2)
44379 44379-22050 Bracket, Oil Reservoir, No.2
44410 44410-22250 Tube Assy, Pressure Feed
44410 44410-22251 Tube Assy, Pressure Feed
44410 90460-01001 Clamp, Oil Cooler Hose
44410 44410-22180 Tube Assy, Pressure Feed
44410 44410-22181 Tube Assy, Pressure Feed
44411 44411-22400 Hose, Pressure Feed
44411 44411-22370 Hose, Pressure Feed
44412 44412-22280 Hose, Return, No.2
44413 44413-22180 Tube, Pressure Feed, No.1
44416 44416-22170 Tube, Return(For Steering Gear Outlet)
44416 44416-22171 Tube, Return(For Steering Gear Outlet)
44416 90467-16008 Clip(For Oil Return Hose)
44416 90467-16019 Clip(For Return No.1)
44416 44412-22180 Hose(For Return Tube To Reservior)
44416 44412-22181 Hose(For Return Tube To Reservior)
44423 90401-16008 Bolt, Union(For Pressure Feed Tube)
44423 90430-16242 Gasket, W/head Straight Screw Plug
44443 44443-22080 Bracket, Pump
44446 44446-30070 Strut, Adjusting
44461 44461-22020 Insulator, Tube Refrigerant
9010510042 90105-10042 Bolt, Flywheel Setting
9010510089 90105-10089 Bolt(For Alternator)
9010512011 90105-12011 Bolt, Flywheel Setting
9011906089 90119-06089 New Genuine Part
9011910326 90119-10326 New Genuine Part
9011910326 90119-10719 BOLT WWASHER
9046112178 90461-12178 New Genuine Part
9161160814 91611-60814 Bolt
9161161025 91611-61025 Bolt(For Transaxle & Engine Setting)
9161161025 91612-61025 Bolt (For Control Shaft Cover)
9165140614 91651-40614 Bolt
Power Steering Tube ([08.1984 - ] (8408- )LX70..KYO) 31
#OEMPart name
44319 44319-30030 Pulley, Vane Pump Drive
44348 44348-22110 Hose, Oil Reservoir To Pump, No.1
44348 90460-26001 Clamp(For Oil Reservoir To Pump Hose)
44348 90467-21005 Clip(For Suction Hose No.1)
44348 90467-21010 Clip(For Ventilation Hose No.2)
44410 44410-22250 Tube Assy, Pressure Feed
44410 44410-22251 Tube Assy, Pressure Feed
44410 90460-01001 Clamp, Oil Cooler Hose
44411 44411-22400 Hose, Pressure Feed
44412 44412-22280 Hose, Return, No.2
44413 44413-22180 Tube, Pressure Feed, No.1
44416 44416-22170 Tube, Return(For Steering Gear Outlet)
44416 44416-22171 Tube, Return(For Steering Gear Outlet)
44416 90467-16008 Clip(For Oil Return Hose)
44416 90467-16019 Clip(For Return No.1)
44416 44412-22180 Hose(For Return Tube To Reservior)
44416 44412-22181 Hose(For Return Tube To Reservior)
44423 90401-16008 Bolt, Union(For Pressure Feed Tube)
44423 90430-16242 Gasket, W/head Straight Screw Plug
44443 44443-22080 Bracket, Pump
44446 44446-30070 Strut, Adjusting
44461 44461-22020 Insulator, Tube Refrigerant
9010510042 90105-10042 Bolt, Flywheel Setting
9010510089 90105-10089 Bolt(For Alternator)
9010512011 90105-12011 Bolt, Flywheel Setting
9011906089 90119-06089 New Genuine Part
9011910326 90119-10326 New Genuine Part
9011910326 90119-10719 BOLT WWASHER
9161160814 91611-60814 Bolt
9161161025 91611-61025 Bolt(For Transaxle & Engine Setting)
9161161025 91612-61025 Bolt (For Control Shaft Cover)
Propeller Shaft & Universal Joint ([08.1984 - ] (8408- )SXL ; (8408- )GX71..4FC..AVT ; (84 08- )LX70,MX71,SX70,YX7#) 38
#OEMPart name
37100 37100-22330 Shaft Assy, Propeller W/center Bearing
37100 37100-22360 Shaft Assy, Propeller W/center Bearing
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01140 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01311 Piece, Balance, No.1 (For Propeller Shaft)
37110 37110-24010 Shaft Assy, Propeller
37110 90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37110 90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting)
37120 37120-22220 Shaft Assy, Propeller Intermediate
37120 90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)
37120 90201-26005 Washer, Plate (For Propeller Intermediate Shaft Set)
37120 90179-18009 Nut (For Propeller Intermediate Shaft Setting)
37120 37120-22250 Shaft Assy, Propeller Intermediate
37230 37230-24020 Bearing Assy, Center Support, No.1
37230 90119-10046 Bolt, No.1 (For Center Support Bearing)
37230 90201-10008 Washer, No.2 (For Center Support Bearing)
37230 90201-10017 Washer, No.2 (For Center Support Bearing)
37230 90201-10033 Washer, No.2 (For Center Support Bearing)
37230 90201-10034 Washer, No.2 (For Center Support Bearing)
37230 90201-10035 Washer, No.2 (For Center Support Bearing)
37230 37230-22100 Bearing Assy, Center Support, No.1
37304 37304-22013 Flange Sub-Assy, Universal Joint
37304 37304-28010 Flange Sub-Assy, Universal Joint
37331 37331-30010 Cover, Sliding Shaft Dust
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Quick Hand Warmer ([08.1984 - ] (8408- )) 3
#OEMPart name
9331514010 93315-14010 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Radiator & Water Outlet ([08.1984 - ] (8408- )2L#) 63
#OEMPart name
16261 16261-54050 Hose, Water By-Pass
16261 90467-15004 Clip(For Ventilation Hose No.2)
16261 90404-52015 Union(For Water By-Pass Hose)
16261 16261-54040 Hose, Water By-Pass
16264 16264-54030 Hose, Water By-Pass, No.2
16267 16267-54010 Hose, Water By-Pass, No.3
16331 16331-54030 Outlet, Water
16331 90916-03062 Thermostat
16331 90916-03099 Thermostat
16331 90916-03072 Thermostat
16331 16331-54040 Outlet, Water
16331 90340-16002 Plug, W/head Straight Screw, No.2
16333 16333-54040 Housing, Water Outlet
16333 16333-54070 Housing, Water Outlet
16341 16341-54011 Gasket, Water Outlet
16341 16341-54040 Gasket, Water Outlet
16343 16343-54011 Gasket, Water Outlet Housing
16343 16343-54021 Gasket, Water Outlet Housing
16361 16361-34030 Fan
16361 16361-41050 Fan
16381 16381-54011 Bar, Fan Belt Adjusting
16400 16400-54400 Radiator Assy
16400 16400-54411 Radiator Assy
16400 90910-09054 Plug, Radiator Drain Cock
16400 96711-19007 Packing(For Radiator Drain Cock)
16400 16400-54410 Radiator Assy
16401 16401-63010 Cap Sub-Assy,
16470 16470-54080 Tank Assy, Radiator Reserve
16470 90445-12015 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16611-54050 Bracket(For Radiator Reserve Tank)
16470 16472-70070 Hose, No.3(For Radiator Reserve Tank)
16471 16405-54080 Cap Sub-Assy, Reserve Tank
16472 85338-54080 Hose, Breather
16533 16505-70010 Support, Radiator, Upper
16571 16571-54190 Hose, Radiator, Inlet
16571 90467-37002 Clip(For Water Inlet Hose)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-54200 Hose, Radiator, Outlet
16572 96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)
16572 96111-10500 Clamp, Sub Radiator Inlet Hose
16701 16711-54180 Shroud Sub-Assy, Fan
16701 90468-06013 Clip(For Fan Shroud)
16701 90541-14002 Cushion, Fan Shroud
16712 16712-54140 Shroud, Fan, No.2
9011908108 90119-08108 Bolt(For Clutch Master Cylinder Setting)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9018306001 90183-06001 New Genuine Part
9018306001 90183-06010 NUT
9046400324 90464-00324 New Genuine Part
9046400382 90464-00382 New Genuine Part
9092901003 90929-01003 New Genuine Part
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9161160840 91611-60840 BOLT
9165140618 91651-40618 New Genuine Part
9165540818 91655-40818 New Genuine Part
9165540818 91651-60816 BOLT
9165640618 91656-40618 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618 91651-60614 Bolt
9165941222 91659-41222 BOLT, W/WASHER
Radiator Grille ([08.1984 - ] (8408- )) 14
#OEMPart name
53101 53101-91601 Grille Sub-Assy, Radiator
53101 53101-91602 Grille Sub-Assy, Radiator
53131 53131-91602 Door, Headlamp, Upper Rh
53132 53132-91602 Door, Headlamp, Upper Lh
53133 53133-91601 Door, Headlamp, Lower Rh
53134 53134-91601 Door, Headlamp, Lower Lh
53153 53153-91601 Moulding, Headlamp Door, Upper Rh
53154 53154-91601 Moulding, Headlamp Door, Upper Lh
53155 53155-91601 Moulding, Headlamp Door, Lower Rh
53156 53156-91601 Moulding, Headlamp Door, Lower Lh
9016440066 90164-40066 New Genuine Part
9046712020 90467-12020 CLIP
9046717004 90467-17004 New Genuine Part
9354064010 93540-64010 New Genuine Part
Radio Receiver & Amplifier & Condenser ([08.1984 - ] (8408- )) 23
#OEMPart name
86011 90980-04049 Condenser, Radio Setting
86011 90980-05073 Filter, Noise
86011 90980-05101 Filter, Noise
86120 86120-17010 Receiver Assy, Radio
86120 86120-60N00 Receiver Assy, Radio
86120 86203-20170 Wire, Radio
86120 86120-35110 Receiver Assy, Radio
86120 86120-37010 Receiver Assy, Radio
86120 86120-22490 Receiver Assy, Radio
86120 86120-22640 Receiver Assy, Radio
86211 86211-22130 Bracket, Radio, No.1
86212 86212-22110 Bracket, Radio, No.2
86260 86260-19155 Tape Player Assy
86260 86260-19165 Tape Player Assy
86260 86260-22190 Tape Player Assy
86260 86260-29075 Tape Player Assy
9011906067 90119-06067 BOLT
9014950032 90149-50032 Screw
9015950151 90159-50151 New Genuine Part
9015950173 90159-50173 Screw
9098004054 90980-04054 Condenser, Radio Setting
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Rear Axle Housing & Differential ([08.1984 - ] (8408- )LX70,SX70,YX7#) 84
#OEMPart name
4412 04412-20030 Gasket Kit, Rear Differential Carrier
41101 41101-30010 Carrier Sub-Assy, Differential, Rear
41110 90116-08235 Bolt, No.1 (For Rear Differential Carrier Set)
41110 90116-08418 Bolt, No.1 (For Rear Differential Carrier Set)
41110 41110-21020 Carrier Assy, Differential, Rear
41110 41110-20251 Carrier Assy, Differential, Rear
41110 41110-22240 Carrier Assy, Differential, Rear
41114 90101-12376 Bolt, Rear Differential Bearing Cap
41201 41201-29217 Final Gear Kit, Differential, Rear
41201 90366-35031 Bearing (For Rear Drive Pinion Rear)
41201 90366-35064 Bearing (For Rear Drive Pinion Rear)
41201 90366-35055 Bearing (For Rear Drive Pinion Rear)
41201 97609-32307 Bearing (For Rear Drive Pinion Rear)
41201 90366-30008 Bearing (For Rear Drive Pinion Front)
41201 90366-30022 Bearing (For Rear Drive Pinion Front)
41201 90366-30078 Bearing (For Rear Drive Pinion Front)
41201 90311-38133 Seal, Oil (For Rear Differential Carrier)
41201 90311-38047 Seal, Oil (For Differential Carrier)
41201 90201-35396 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35397 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35398 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35399 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35400 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35401 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35402 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35403 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35404 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35434 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35435 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35436 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35437 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35438 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35439 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35440 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35441 Washer, Plate (For Rear Differential Drive Pinion)
41201 41201-29168 Final Gear Kit, Differential, Rear
41201 41201-29765 Final Gear Kit, Differential, Rear
41204 41204-20030 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90201-18485 Washer, Plate (For Transfer Gear)
41204 90179-18001 Nut (For Transfer Gear)
41214 41214-30021 Slinger, Rear Differential Drive Pinion Oil
41222 41222-28010 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 41222-30030 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-22020 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-30010 Deflector, Dust (For Rear Differential)
41301 90368-45011 Bearing(For Rear Differential Case)
41301 90368-45014 Bearing(For Rear Differential Case)
41301 90368-45066 Bearing(For Rear Differential Case)
41302 41311-30022 Case Sub-Assy, Rear Differential
41315 41315-30010 Nut, Rear Differential Bearing Adjusting
41316 41316-30010 Lock, Rear Differential Bearing Adjusting Nut
41316 41317-30010 Lock, Rear Differential Bearing Adjusting Nut
41331 41331-30021 Gear, Rear Differential Side
41331 41039-28010 Gear Kit, Differential, Rear
41341 41341-30011 Pinion, Rear Differential
41342 41342-39015 Shaft, Rear Differential Pinion
41342 41342-30011 Shaft, Rear Differential Pinion
41343 90250-06058 Pin, Straight(For Timing Gear Case)
41351 41351-30032 Washer, Rear Differential Pinion Thrust
41361 41361-22020 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22030 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22140 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22150 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22160 Washer, Rear Differential Side Gear Thrust, No.1
42110 42110-22190 Housing Assy, Rear Axle
42110 42110-22220 Housing Assy, Rear Axle
42110 90341-18006 Plug (No magnet)
42110 90341-18049 Plug(For Oil Heater Houl)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03031 Plug, Breather(For Parking Cover)
42110 90341-18057 Drain Plug (with Magnet)
42139 42108-22010 Deflector, Rear Axle Housing Oil
42181 42181-30010 Gasket, Rear Differential Carrier
9017008204 90170-08204 Nut (For Propeller Shaft)
9111150814 91111-50814 Bolt (for Transmission Control Cable Bracket)
9111150814 91611-B0816 Bolt
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453101200 94531-01200 WASHER
Rear Axle Shaft & Hub ([08.1984 - ] (8408- )LX70,SX70,YX7#) 21
#OEMPart name
4421 04421-30011 Bearing Kit, Rear Axle Shaft
4421 04421-30012 Bearing Kit, Rear Axle Shaft
42185 42185-14020 Gasket, Rear Axle Housing End
42311 42311-22130 Shaft, Rear Axle
42311 90311-52059 Seal, Oil (For Rear Axle Shaft)
42311 90310-52001 Seal, Oil (For Rear Axle Shaft)
42403 42431-12060 Drum Sub-Assy, Rear Brake
42403 42431-14061 Drum Sub-Assy, Rear Brake
42403 90937-01117 Piece, Balance (For Rear Brake Drum)
42403 90937-01118 Piece, Balance (For Rear Brake Drum)
42403 90937-01119 Piece, Balance (For Rear Brake Drum)
42403 90937-01195 Piece, Balance (For Rear Brake Drum)
42403 90937-01196 Piece, Balance (For Rear Brake Drum)
42403 90937-01197 Piece, Balance (For Rear Brake Drum)
42403 90937-01287 Piece, Balance (For Rear Brake Drum)
42403 90937-01288 Piece, Balance (For Rear Brake Drum)
42403 90937-01289 Piece, Balance (For Rear Brake Drum)
42424 42424-14020 Retainer, Rear Axle Bearing, Outer, Rh
42425 42425-14020 Gasket, Rear Axle Bearing Retainer
42454 42454-14010 Retainer, Rear Axle Bearing, Outer, Lh
42611 90942-02047 Bolt, Hub
Rear Bumper & Bumper Stay ([08.1984 - ] (8408- )) 47
#OEMPart name
52023 52023-22130 Reinforcement Sub-Assy, Rear Bumper
52107 52015-22060 Stay Sub-Assy, Rear Bumper, Rh
52108 52016-22080 Stay Sub-Assy, Rear Bumper, Lh
52155 52155-22100 Support, Rear Bumper Side, Rh
52155 52155-22090 Support, Rear Bumper Side, Rh
52155 52155-22091 Support, Rear Bumper Side, Rh
52156 52156-22120 Support, Rear Bumper Side, Lh
52156 52156-22110 Support, Rear Bumper Side, Lh
52156 52156-22111 Support, Rear Bumper Side, Lh
52159 52159-22160 Cover, Rear Bumper
52159 52159-22150-03 Cover, Rear Bumper
52159 52159-22906 Cover, Rear Bumper
52159 52159-22150-04 Cover, Rear Bumper
52159 52159-22150-05 Cover, Rear Bumper
52159 52159-22150-08 Cover, Rear Bumper
52159 52159-22150-22 Cover, Rear Bumper
52159 52159-22220-03 Cover, Rear Bumper
52159 52159-22925 Cover, Rear Bumper
52159 52159-22220-04 Cover, Rear Bumper
52159 52159-22220-05 Cover, Rear Bumper
52159 52159-22220-08 Cover, Rear Bumper
52561 52561-22050 Retainer, Rear Bumper, Upper Center
52565 52565-12040 Retainer, Front Bumper, Lower Center
52565 52565-22030 Retainer, Rear Bumper, Lower
52615 52615-22060 Absorber, Rear Bumper Energy
52615 52615-22080 Absorber, Rear Bumper Energy
52705 52751-22080 Moulding Sub-Assy, Rear Bumper
52705 52751-22060 Moulding Sub-Assy, Rear Bumper
52705 52751-22070 Moulding Sub-Assy, Rear Bumper
52752 52706-22030 Moulding, Rear Bumper Side, Rh
52752 52706-22010 Moulding, Rear Bumper Side, Rh
52752 52706-22040 Moulding, Rear Bumper Side, Rh
52753 52707-22030 Moulding, Rear Bumper Side, Lh
52753 52707-22010 Moulding, Rear Bumper Side, Lh
52753 52707-22040 Moulding, Rear Bumper Side, Lh
9010508092 90105-08092 New Genuine Part
9010906106 90109-06106 New Genuine Part
9010906106 90109-06136 New Genuine Part
9010908126 90109-08126 New Genuine Part
9011912039 90119-12039 New Genuine Part
9017605008 90176-05008 Nut
9017605009 90176-05009 New Genuine Part
9017906007 90179-06007 Nut
9018303001 90183-03001 New Genuine Part
9018303001 90468-04038 CLIP
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
Rear Combination Lamp ([08.1984 - 08.1986] (8408-8608)) 21
#OEMPart name
81550 81550-80236 Lamp Assy, Rear Combination, Rh
81550 81550-91607 Lamp Assy, Rear Combination, Rh
81550 81550-91608 Lamp Assy, Rear Combination, Rh
81550 99132-11230 Bulb, Fog Lamp
81550 00234-01073 Bulb
81550 99132-21210 Bulb, Cornering Lamp
81551 81551-91607 Lens, Rear Combination Lamp, Rh
81551 81551-91608 Lens, Rear Combination Lamp, Rh
81554 81554-91607 Gasket, Rear Combination Lamp Body, Rh
81554 81554-91608 Gasket, Rear Combination Lamp Body, Rh
81555 81555-91607 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81555 81555-91608 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81560 81560-80242 Lamp Assy, Rear Combination, Lh
81560 81560-91609 Lamp Assy, Rear Combination, Lh
81560 81560-91610 Lamp Assy, Rear Combination, Lh
81561 81561-91609 Lens, Rear Combination Lamp, Lh
81561 81561-91610 Lens, Rear Combination Lamp, Lh
81565 81565-91609 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
81565 81565-91610 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
Rear Combination Lamp ([08.1986 - ] (8608- )) 21
#OEMPart name
81550 81550-80236 Lamp Assy, Rear Combination, Rh
81550 81550-91607 Lamp Assy, Rear Combination, Rh
81550 81550-91608 Lamp Assy, Rear Combination, Rh
81550 99132-11230 Bulb, Fog Lamp
81550 00234-01073 Bulb
81550 99132-21210 Bulb, Cornering Lamp
81551 81551-91607 Lens, Rear Combination Lamp, Rh
81551 81551-91608 Lens, Rear Combination Lamp, Rh
81554 81554-91607 Gasket, Rear Combination Lamp Body, Rh
81554 81554-91608 Gasket, Rear Combination Lamp Body, Rh
81555 81555-91607 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81555 81555-91608 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81560 81560-80242 Lamp Assy, Rear Combination, Lh
81560 81560-91609 Lamp Assy, Rear Combination, Lh
81560 81560-91610 Lamp Assy, Rear Combination, Lh
81561 81561-91609 Lens, Rear Combination Lamp, Lh
81561 81561-91610 Lens, Rear Combination Lamp, Lh
81565 81565-91609 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
81565 81565-91610 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
Rear Door Lock & Handle ([08.1984 - ] (8408- )) 51
#OEMPart name
69227 69205-22020-03 Handle Sub-Assy, Front Door Inside, Rh
69227 69205-22020-04 Handle Sub-Assy, Front Door Inside, Rh
69227 69205-22020-05 Handle Sub-Assy, Front Door Inside, Rh
69227 69205-22020-15 Handle Sub-Assy, Front Door Inside, Rh
69228 69206-22020-03 Handle Sub-Assy, Front Door Inside, Lh
69228 69206-22020-04 Handle Sub-Assy, Front Door Inside, Lh
69228 69206-22020-05 Handle Sub-Assy, Front Door Inside, Lh
69228 69206-22020-15 Handle Sub-Assy, Front Door Inside, Lh
69230 69230-22050 Handle Assy, Rear Door Outside, Rh
69230 90541-03021 Cushion(For Front Door Outside Handle)
69240 69240-22050 Handle Assy, Rear Door Outside, Lh
69273 69759-20060 Snap(For Rear Door Inside Handle)
69273 69759-20070 Snap(For Rear Door Inside Handle)
69273 69759-22040 Snap, Door Inside Handle Rod(For Front Door)
69273 69759-22050 Snap, Door Inside Handle Rod(For Front Door)
69277 69297-22010-03 Bezel, Rear Door Inside Handle
69277 69297-22010-13 Bezel, Rear Door Inside Handle, Rh
69277 69297-22010-04 Bezel, Rear Door Inside Handle
69277 69298-22010-03 Bezel, Rear Door Inside Handle
69277 69298-22010-13 Bezel, Rear Door Inside Handle, Lh
69277 69298-22010-04 Bezel, Rear Door Inside Handle
69277 69297-22010-05 Bezel, Rear Door Inside Handle
69277 69297-22010-15 Bezel, Rear Door Inside Handle
69277 69298-22010-05 Bezel, Rear Door Inside Handle
69277 69298-22010-15 Bezel, Rear Door Inside Handle
69330 69330-22150 Lock Assy, Rear Door, Rh
69330 69330-22151 Lock Assy, Rear Door, Rh
69340 69340-22160 Lock Assy, Rear Door, Lh
69340 69340-22161 Lock Assy, Rear Door, Lh
69377 69759-22030 Snap, Rear Door Lock Control Rod
69420 69410-87001 Plate Assy, Front Door Lock Striker
69420 69410-AA020 Plate Assy, Front Door Lock Striker
69703 69770-22050 Link Sub-Assy, Rear Door Locking Control, Rh
69704 69780-22050 Link Sub-Assy, Rear Door Locking Control, Lh
69730 69713-22050 Link Assy, Rear Door Open Control, Rh
69740 69714-22050 Link Assy, Rear Door Open Control, Lh
69747 69741-22010 Button, Door Locking(For Front Door)
69749 69749-12040 Clamp, Front Door Lock Link
69749 69749-20010 Clamp, Front Door Lock Link
9010506074 90105-06074 New Genuine Part
9010506074 90105-06082 BOLT
9015960081 90159-60081 SCREW
9015960268 90159-60268 Screw
9015960329 90159-60329 New Genuine Part
9015980014 90159-80014 SCREW
9016860014 90168-60014 New Genuine Part
9018904022 90189-04022 CLIP
9018906018 90189-06018 GROMMET
9018906043 90189-06043 CLIP
9352054010 93520-54010 Screw
9354054014 93540-54014 SCREW
Rear Door Panel & Glass ([08.1984 - ] (8408- )) 58
#OEMPart name
67003 67003-22310 Panel Sub-Assy, Rear Door, Rh
67004 67004-22320 Panel Sub-Assy, Rear Door, Lh
67113 67113-22130 Panel, Rear Door, Outer Rh
67113 67113-22140 Panel, Rear Door, Outer Rh
67114 67114-22130 Panel, Rear Door, Outer Lh
67114 67114-22140 Panel, Rear Door, Outer Lh
67603 67630-91618-03 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-91618-04 Board Sub-Assy, Rear Door Trim, Rh
67603 67771-22010 Retainer, Door Trim
67603 67771-30060 Retainer (For Quarter Inside Trim Board)
67603 67630-91614-03 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-91614-04 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-91614-05 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-91614-15 Board Sub-Assy, Rear Door Trim, Rh
67604 67640-91617-03 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-91617-04 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-91613-03 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-91613-04 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-91613-05 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-91613-15 Board Sub-Assy, Rear Door Trim, Lh
67785 67785-22030-03 Holder, Door Locking Button Collar(For Front Door)
67785 67785-22030-04 Holder, Door Locking Button Collar(For Front Door)
67785 67785-22030-05 Holder, Door Locking Button Collar(For Front Door)
67785 67785-22030-15 Holder, Door Locking Button Collar(For Front Door)
67803 67841-22130 Cover Sub-Assy, Rear Door Service Hole, Rh
67803 67841-22160 Cover Sub-Assy, Rear Door Service Hole, Rh
67804 67842-22040 Cover Sub-Assy, Rear Door Service Hole, Lh
67836 67836-14010 Cover, Rear Door Lock Child Protection, Rh
67847 67847-22020 Seal, Rear Door Vent, Rh No.1
67848 67848-22020 Seal, Rear Door Vent, Lh No.1
67867 67867-22020 Clip, Door Weatherstrip(For Front Door)
67867 67868-22010 Retainer, Rh(For Front Door No.2 Weatherstrip)
67868 67869-30020 Clip, Headlamp Door Filler
67871 67871-22120 Weatherstrip, Rear Door, Rh
67871 67871-22190 Weatherstrip, Rear Door, Rh
67871 67871-22130 Weatherstrip, Rear Door, Rh
67872 67872-22120 Weatherstrip, Rear Door, Lh
67872 67872-22190 Weatherstrip, Rear Door, Lh
67872 67872-22130 Weatherstrip, Rear Door, Lh
68103 68113-22190 Glass Sub-Assy, Rear Door, Rh
68104 68114-22190 Glass Sub-Assy, Rear Door, Lh
68190 68190-22080 Weatherstrip Assy, Rear Door Glass, Inner
68190 68240-22060 Weatherstrip Assy, Rear Door Glass, Inner
68405 67405-22080 Guide Sub-Assy, Rear Door Window, Front Rh
68406 67406-22080 Guide Sub-Assy, Rear Door Window, Front Lh
68407 67407-22070 Guide Sub-Assy, Rear Door Window, Rear Rh
68408 67408-22070 Guide Sub-Assy, Rear Door Window, Rear Lh
68630 68630-22050 Check Assy, Rear Door
68630 68617-22020 Pin(For Front Door Check)
68630 68617-90A00 Pin(For Front Door Check)
68630 68617-90A01 Pin(For Front Door Check)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017908001 90179-08001 New Genuine Part
9017908001 90179-08233 NUT
9095001131 90950-01131 PLUG HOLE
9095001131 90950-01865 PLUG HOLE
9354054010 93540-54010 Screw, Roof Headlining Trim
Rear Door Window Regulator & Hinge ([08.1984 - ] (8408- )) 38
#OEMPart name
67148 68149-14010 Stabilizer, Rear Door Glass Male, Rh
67231 67231-14030 Support, Front Door Trim
67231 67231-20030 Support, Front Door Trim
68412 67211-30040 Stopper Assy, Door Glass(For Front Door)
68750 68750-20050 Hinge Assy, Rear Door, Upper Rh
68760 68760-20040 Hinge Assy, Rear Door, Upper Lh
68770 68770-20040 Hinge Assy, Rear Door, Lower Rh
68780 68780-20040 Hinge Assy, Rear Door, Lower Lh
69270 69260-22030-03 Handle Assy, Front Door Window Regulator
69270 69260-22030-23 Handle Assy, Front Door Window Regulator
69270 69260-22030-14 Handle Assy, Front Door Window Regulator
69270 90520-01002 Ring, Shaft Snap(For Vent Window Control)
69270 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
69270 69260-22030-05 Handle Assy, Front Door Window Regulator
69270 69260-22030-15 Handle Assy, Front Door Window Regulator
69272 69285-22010-08 Escutcheon, Window Regulator Handle
69803 69830-22160 Regulator Sub-Assy, Rear Door Window, Rh
69804 69840-22160 Regulator Sub-Assy, Rear Door Window, Lh
69950 69905-22030 Bracket Sub-Assy, Rear Door Glass, Rh
69960 69906-22020 Bracket Sub-Assy, Rear Door Glass, Lh
69980 69980-22020 Roller Assy, Rear Door Glass Guide
9011606043 90116-06043 New Genuine Part
9011908012 90119-08012 New Genuine Part
9011908012 91651-40812 New Genuine Part
9011908093 90119-08093 BOLT
9011908477 90119-08477 New Genuine Part
9016850024 90168-50024 New Genuine Part
9016850024 90168-50013 SCREW
9017906042 90179-06042 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9020907001 90209-07001 New Genuine Part
9020909005 90209-09005 New Genuine Part
9161140614 91611-40614 Bolt, Hexagon(For Steering Column Bracket)
9161140614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9331116014 93311-16014 Screw
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )KYO,SXL,XG,XL) 47
#OEMPart name
4495 04495-20050 Shoe Kit, Rear Brake
4495 04495-0W010 Shoe Kit, Rear Brake
4495 04497-20030 Shoe Kit, Rear Brake
4495 04497-20031 Shoe Kit, Rear Brake
4495 04495-22080 Shoe Kit, Rear Brake
4495 04495-22090 Shoe Kit, Rear Brake
4495 04497-22040 Shoe Kit, Rear Brake
4495 04497-22041 Shoe Kit, Rear Brake
4906 04906-14020 Cup Kit, Rear Wheel Cylinder
47043 47043-22060 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47043-23020 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47043 42184-22011 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 94181-11000 Nut(For Backing Plate To Rear Axle Housing Setting)
47044 47044-22060 Plate Sub-Assy, Brake Backing, Rear Lh
47044 47044-23020 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-18017 Spring(For Front Brake Shoe Hold Down)
47430 90506-23375 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-23346 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-12011 Spring, Tension(For Rear Brake Automatic Adjust Lever)
47457 47447-20030 Pin, Shoe Hold Down Spring
47459 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47460 47061-14040 Strut Set, Parking Brake Shoe, Rh
47470 47062-14040 Strut Set, Parking Brake Shoe, Lh
47496 47491-20011 Plug, Hole(For Rear Brake)
47536 47051-22020 Piston, Wheel Brake Cylinder(For Rear Brake)
47547 47547-20010 Plug, Bleeder(For Release Cylinder)
47547 47547-22020 Plug, Bleeder(For Rear Disc Brake)
47548 31478-30010 Bleeder Plug Cap
47550 47550-19145 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-14020 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-22060 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47509-20010 Spring Sub-Assy, Rear Wheel Cylinder Piston
47601 47601-14010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601 90564-08150 Shim, Rear Parking Brake Shoe Lever
47601 90564-08151 Shim, Rear Parking Brake Shoe Lever
47601 90564-08152 Shim, Rear Parking Brake Shoe Lever
47601 90564-08172 Shim, Rear Parking Brake Shoe Lever
47601 90564-08173 Shim, Rear Parking Brake Shoe Lever
47601 90564-08174 Shim, Rear Parking Brake Shoe Lever
47601 90213-06013 Washer, Type C(For Parking Brake Shoe)
47602 47602-14010 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47663 47643-20020 Lever, Rear Brake Automatic Adjust, Rh
47664 47644-20020 Lever, Rear Brake Automatic Adjust, Lh
9011906084 90119-06084 Bolt(For Rear Wheel Cylinder)
9111171020 91111-71020 Bolt(For Backing Plate To Steering Knuckle Setting)
9453101000 94531-01000 WASHER
Rear License Plate Lamp ([08.1984 - ] (8408- )) 12
#OEMPart name
81270 81270-22210 Lamp Assy, License Plate
81270 81270-80029 Lamp Assy, License Plate
81270 81270-91605 Lamp Assy, License Plate
81270 90981-12013 Bulb (For License Plate Lamp)
81270 99132-11100 Bulb, Room Lamp, No.1
81271 81271-14220 Lens, License Plate Lamp
81271 81271-16150 Lens, License Plate Lamp
81272 81272-20210 Gasket, License Plate Lamp Lens
81277 81277-20210 Spacer, License Plate Lamp Rim And Lens
8175923010 81759-23010 Retainer, Rear Side Marker Lamp, Rh
9351074030 93510-74030 New Genuine Part
9356014012 93560-14012 SCREW
Rear Moulding ([08.1984 - ] (8408- )) 13
#OEMPart name
75548 75548-91602 Fastener, Back Window Outside Moulding
75571 75571-91603 Moulding, Back Window, Outside Upper
75571 75545-91601 Clip(For Back Window Moulding Set)
75572 75507-91606 Moulding, Back Window, Lower
75573 75573-91606 Moulding, Back Window Side, Rh
75574 75574-91605 Moulding, Back Window Side, Lh
75803 75803-91603 Panel Sub-Assy, Body Lower Back Finish Center
75803 75803-91604 Panel Sub-Assy, Body Lower Back Finish Center
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
9038608030 90386-08030 New Genuine Part
9043004254 90430-04254 Gasket(For Roof Side Vent Louver)
9056204005 90562-04005 Gasket(For Roof Side Vent Louver)
Rear Oil Pump & Governor (Atm) ([08.1984 - ] (8408- )4FC..CBR,EFI,TD) 10
#OEMPart name
35480 35480-30080 Governor
35482 35482-20010 Valve, Governor
35484 35484-20020 Weight, Governor, Outer
35484 90501-09030 Spring, Compression (For Governor Weight)
35485 35485-22010 Shaft, Governor Valve
35485 90523-05020 Ring, E (For Governor Valve Shaft)
35794 35794-22010 Ring, Governor Retaining
9010105417 90101-05417 Bolt (For Pressure Regulator Valve No.2)
9010105417 90105-05014 Bolt (For Pressure Regulator Valve No.2)
9021511001 90215-11001 New Genuine Part
Rear Seat & Seat Track ([08.1984 - ] (8408- )) 37
#OEMPart name
71075 71075-91661-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-91661-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-91663-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-91663-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-91661-05 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-91661-15 Cover, Rear Seat Cushion (For Bench Type)
71077 71077-91686-03 Cover, Rear Seat Back (For Bench Type)
71077 71077-91686-04 Cover, Rear Seat Back (For Bench Type)
71077 71077-91688-03 Cover, Rear Seat Back (For Bench Type)
71077 71077-91688-04 Cover, Rear Seat Back (For Bench Type)
71077 71077-91686-05 Cover, Rear Seat Back (For Bench Type)
71077 71077-91686-15 Cover, Rear Seat Back (For Bench Type)
71460 71460-91689-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71460-91689-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-91603-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-91603-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71460-91689-05 Cushion Assy, Rear Seat (For Bench Type)
71460 71460-91689-15 Cushion Assy, Rear Seat (For Bench Type)
71480 71480-91A25-03 Back Assy, Rear Seat (For Bench Type)
71480 71480-91A25-04 Back Assy, Rear Seat (For Bench Type)
71480 71480-91A28-03 Back Assy, Rear Seat (For Bench Type)
71480 71480-91A28-04 Back Assy, Rear Seat (For Bench Type)
71480 71480-91A25-05 Back Assy, Rear Seat (For Bench Type)
71480 71480-91A25-15 Back Assy, Rear Seat (For Bench Type)
71611 71611-91609 Pad, Rear Seat Cushion
71621 71621-22060 Pad Sub-Assy, Rear Seat Cushion, No.2
71650 71650-22100 Spring Assy, Rear Seat Cushion
71651 71507-91607 Pad, Rear Seat Back(For Bench Type)
71670 71670-91636 Spring Assy, Rear Seat Back(For Bench Seat)
71812 90468-18071 Clip (For Front Seat Cushion Cover)
71812 90468-16019 Clip (For Rear Seat Back)
71893 71893-22010 Garnish, Rear Seat Back Side, Lower Rh
72693 72693-32010 Hook, Rear Seat Cushion Lock
9165640630 91656-40630 New Genuine Part
9165640630 91652-60630 New Genuine Part
9166560825 91665-60825 New Genuine Part
9166560825 91661-60825 New Genuine Part
Rear Spring & Shock Absorber ([08.1984 - ] (8408- )LX70,SX70,YX7#) 64
#OEMPart name
48231 48231-22800 Spring, Coil, Rear
48231 48231-22811 Spring, Coil, Rear
48231 48231-22620 Spring, Coil, Rear
48231 48231-22690 Spring, Coil, Rear
48231 48231-22710 Spring, Coil, Rear
48257 48257-22020 Insulator, Rear Coil Spring
48257 48258-22010 Insulator, Rear Coil Spring, Lower
48257 48258-14030 Insulator, Rear Coil Spring, Lower
48341 48341-22080 Bumper Sub-Assy, Rear Spring
48351 48351-12020 Bumper, Differential Carrier
48351 48351-19035 Bumper, Differential Carrier
48351 48351-20020 Bumper, Differential Carrier
48530 48531-22520 Absorber Assy, Shock, Rear Rh
48530 48531-80186 Absorber Assy, Shock, Rear Rh
48530 48531-22610 Absorber Assy, Shock, Rear Rh
48530 48531-80185 Absorber Assy, Shock, Rear Rh
48530 48531-80325 Absorber Assy, Shock, Rear Rh
48530 90385-16004 Cushion, Front Shock Absorber
48530 90948-02002 Retainer, Steering Damper Cushion
48530 90948-02075 Washer, Rear Shock Absorber Cushion, No.1
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90540-10004 Bush(For Rear Shock Absorber)
48530 90948-01003 Rubber Cushion
48710 48710-22210 Arm Assy, Upper Control
48710 48710-22190 Arm Assy, Upper Control
48715 90105-14027 Bolt, Hexagon(For Upper Control Arm)
48715 90105-14029 Bolt, Hexagon(For Upper Control Arm)
48720 48720-22180 Arm Assy, Lower Control, Rh
48720 48720-22190 Arm Assy, Lower Control, Rh
48725 90105-14028 Bolt(For Lower Control Arm)
48740 48740-22060 Rod Assy, Rear Lateral Control
48745 48706-22030 Bush Sub-Assy, Lateral Control Rod
48745 90385-20001 Bush Sub-Assy, Front Lateral Control Rod
48745 90386-20001 Bush Sub-Assy, Front Lateral Control Rod
48745 90105-16006 Bolt, Hexagon(For Lateral Control Rod)
48802 48802-12010 Link Sub-Assy, Stabilizer
48802 90385-11021 Bush, Stabilizer Link
48802 90560-10275 Spacer(For Rear Stabilizer Bar)
48805 48805-22060 Bar Sub-Assy, Rear Stabilizer
48815 48815-12110 Bush, Stabilizer(For Rear)
48817 48817-12010 Cushion, Stabilizer
48817 90948-02024 Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817 90948-02025 Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817 91112-41040 Bolt(For Rear Stabilizer)
48817 91111-51040 Shaft, Control Select Lever (For Column Shift)
48832 48832-22030 Cover, Stabilizer Link(For Rear)
48836 48825-22020 Bracket, Stabilizer(For Rear)
9011910355 90119-10355 Washer, Rear Shock Absorber Cushion, No.2
9017014012 90170-14012 Nut, Rack End Lock
9017016005 90170-16005 New Genuine Part
9020114006 90201-14006 Washer
9020115019 90201-15019 Washer, Plate, No.1(For Rear Lateral Control Rod)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161561230 91615-61230 New Genuine Part
9161561230 91619-61230 BOLT
9161640820 91616-40820 Bolt, Engine Rear Cover Hinge Set
9161661025 91616-61025 Bolt (For Control Shaft Cover)
9161661025 91612-61025 Bolt (For Control Shaft Cover)
9411041000 94110-41000 Nut(For Steering Damper)
9418360800 94183-60800 Nut(For Front Stabilizer Bar)
9418461400 94184-61400 Nut(For Idler Arm Support)
9461111600 94611-11600 New Genuine Part
9461212000 94612-12000 Washer, Plate, No.2(For Rear Lateral Control Rod)
Rear Washer ([08.1984 - ] (8408- )) 2
#OEMPart name
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover)
Rear Wiper ([08.1984 - ] (8408- )) 3
#OEMPart name
9009900913 90099-00913 SCREW
9046707029 90467-07029 Clip, Luggage Trim, Rear
9046707029 90467-07029-01 Clip, Rear Wiper Protector
Roof Headlining & Silencer Pad ([08.1984 - ] (8408- )) 24
#OEMPart name
63310 63310-91620-03 Headlining Assy, Roof
63310 63310-91620-04 Headlining Assy, Roof
63310 63310-91620-05 Headlining Assy, Roof
63310 63310-91620-15 Headlining Assy, Roof
63341 63341-22130 Pad, Roof Silencer, No.1
63341 63341-22H92 Pad, Roof Silencer, No.1
63342 63342-22060 Pad, Roof Silencer, No.2
63361 63362-22130 Support, Roof Headlining, No.1
63361 63362-22140 Support, Roof Headlining, No.1
63361 63362-22150 Support, Roof Headlining, No.1
63362 63362-22160 Support, Roof Headlining, No.2
63364 63363-91602 Support, Roof Headlining, No.4
63364 63363-91603 Support, Roof Headlining, No.4
63364 63363-91604 Support, Roof Headlining, No.4
63381 63381-22070 Retainer, Headlining, Front
63391 63391-22080-03 Trim, Roof Headlining, Front
63391 63391-22080-04 Trim, Roof Headlining, Front
63391 63391-22080-05 Trim, Roof Headlining, Front
63391 63391-22080-15 Trim, Roof Headlining, Front
63392 63392-91601-03 Trim, Roof Headlining, Rear
63392 63392-91601-04 Trim, Roof Headlining, Rear
63392 63392-91601-05 Trim, Roof Headlining, Rear
63392 63392-91601-15 Trim, Roof Headlining, Rear
9356014010 93560-14010 SCREW
Roof Panel & Back Window Glass ([08.1984 - ] (8408- )) 21
#OEMPart name
4641 04562-30040 Dam Kit, Windshield Glass
63102 63102-22140 Reinforcement Sub-Assy, Roof Panel, Front
63102 63102-22130 Reinforcement Sub-Assy, Roof Panel, Front
63111 63111-91611 Panel, Roof
63133 63133-91601 Frame, Back Window Opening, Upper
63141 63143-22090 Reinforcement, Roof Panel, No.1
63142 63103-22090 Reinforcement, Roof Panel, No.2
63155 63155-22020 Plate, Roof Panel Reinforcement
64101 64101-91601 Panel Sub-Assy, Upper Back
64125 64125-91601 Bracket, Upper Back Panel, Rh
64126 64126-91601 Bracket, Upper Back Panel, Lh
64141 64141-91601 Silencer, Back Panel, No.1
64142 64142-91601 Silencer, Back Panel, No.2
64165 64165-22010 Cover, Upper Back Panel Hole, No.1
64221 64221-22020 Brace, Rear Seat Cushion Support
64811 64801-91601 Glass, Back Window
64811 64801-91605 Glass, Back Window
64818 64818-22030 Spacer, Back Window Glass
64818 64819-22010 Spacer, Back Window Glass
64818 64819-22020 Spacer, Back Window Glass
64818 64819-22030 Spacer, Back Window Glass
Roof Side Ventilator ([08.1984 - ] (8408- )) 7
#OEMPart name
62905 62905-91606 Louver, Quarter Ventilation
62905 62906-91606 Louver, Quarter Ventilation
62955 62955-20020 Retainer Sub-Assy, Quarter Ventilation Louver
62955 62955-12010 Retainer, Radiator Grille, No.1
62960 90430-04254 Gasket(For Roof Side Vent Louver)
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
Seat Belt & Child Restraint Seat ([08.1984 - ] (8408- )) 54
#OEMPart name
73013 73013-22050-03 Plate Sub-Assy, Front Seat Belt Inner Anchor, Rh
73013 73013-22050-13 Plate Sub-Assy, Front Seat Belt Inner Anchor, Rh
73013 73013-22050-04 Plate Sub-Assy, Front Seat Belt Inner Anchor, Rh
73013 73013-22050-05 Plate Sub-Assy, Front Seat Belt Inner Anchor, Rh
73013 73013-22050-15 Plate Sub-Assy, Front Seat Belt Inner Anchor, Rh
73014 73014-22050-03 Plate Sub-Assy, Front Seat Belt Inner Anchor, Lh
73014 73014-22050-13 Plate Sub-Assy, Front Seat Belt Inner Anchor, Lh
73014 73014-22050-04 Plate Sub-Assy, Front Seat Belt Inner Anchor, Lh
73014 73014-22050-05 Plate Sub-Assy, Front Seat Belt Inner Anchor, Lh
73014 73014-22050-15 Plate Sub-Assy, Front Seat Belt Inner Anchor, Lh
73137 73137-22030-03 Cap, Front Seat Belt Inner Anchor, Rh
73137 73137-22030-04 Cap, Front Seat Belt Inner Anchor, Rh
73137 73137-22030-05 Cap, Front Seat Belt Inner Anchor, Rh
73137 72137-22030-13 Cover, Seat Track, Outer Rh - SEAT TRACK, RH
73137 73137-22030-15 Cap, Front Seat Belt Inner Anchor, Rh
73138 73138-22030-03 Cap, Front Seat Belt Inner Anchor, Lh
73138 73138-22030-13 Cap, Front Seat Belt Inner Anchor, Lh
73138 73138-22030-04 Cap, Front Seat Belt Inner Anchor, Lh
73138 73138-22030-05 Cap, Front Seat Belt Inner Anchor, Lh
73138 73138-22030-15 Cap, Front Seat Belt Inner Anchor, Lh
73180 73011-22020 Bracket Assy, Seat Belt Inner Anchor, Rh
73180 73011-22021 Bracket Assy, Seat Belt Inner Anchor, Rh
73190 73012-22020 Bracket Assy, Seat Belt Inner Anchor, Lh
73190 73012-22021 Bracket Assy, Seat Belt Inner Anchor, Lh
73200 73200-22040-04 Adjuster Assy, Front Shoulder Belt Anchor
73200 73200-22040-05 Adjuster Assy, Front Shoulder Belt Anchor
73210 73210-22300-03 Belt Assy, Front Seat Outer, Rh
73210 73210-22301-03 Belt Assy, Front Seat Outer, Rh
73210 73210-22381-04 Belt Assy, Front Seat Outer, Rh
73210 73210-22300-05 Belt Assy, Front Seat Outer, Rh
73210 73210-22301-05 Belt Assy, Front Seat Outer, Rh
73210 73210-22381-05 Belt Assy, Front Seat Outer, Rh
73220 73220-22140-03 Belt Assy, Front Seat Outer, Lh
73220 73220-22141-03 Belt Assy, Front Seat Outer, Lh
73220 73220-22221-04 Belt Assy, Front Seat Outer, Lh
73220 73220-22140-05 Belt Assy, Front Seat Outer, Lh
73220 73220-22141-05 Belt Assy, Front Seat Outer, Lh
73220 73220-22221-05 Belt Assy, Front Seat Outer, Lh
73230 73230-22190-03 Belt Assy, Front Seat Inner, Rh
73230 73230-22190-04 Belt Assy, Front Seat Inner, Rh
73230 73230-22190-05 Belt Assy, Front Seat Inner, Rh
73230 73230-22190-15 Belt Assy, Front Seat Inner, Rh
73330 73330-22070-03 Belt Assy, Rear Seat Lap Type, Rh
73330 73330-22071-03 Belt Assy, Rear Seat Lap Type, Rh
73330 73330-22071-04 Belt Assy, Rear Seat Lap Type, Rh
73330 73330-22070-05 Belt Assy, Rear Seat Lap Type, Rh
73330 73330-22071-05 Belt Assy, Rear Seat Lap Type, Rh
73330 73330-22071-15 Belt Assy, Rear Seat Lap Type, Rh
73350 73350-22090-04 Belt Assy, Rear Seat Lap Type, Center
73350 73350-22090-05 Belt Assy, Rear Seat Lap Type, Center
9011908436 90119-08436 New Genuine Part
9011908436 91661-60816 Bolt
9011910435 90119-10435 New Genuine Part
9011910435 91622-B1020 Bolt(For Transaxle & Engine Setting)
Shift Lever & Retainer ([08.1984 - ] (8408- )4FC) 54
#OEMPart name
33501 90385-11003 Bush(For Control Shaft)
33502 33502-22240 Plate Sub-Assy, Shift Lever
33502 90387-06065 Collar (For Floor Shift Setting)
33503 33503-22240 Lever Sub-Assy, Shift(For Floor Shift)
33504 33542-30130-03 Knob Sub-Assy, Shift Lever
33504 33542-30130-11 Knob Sub-Assy, Shift Lever
33504 33542-30130-12 Knob Sub-Assy, Shift Lever
33504 33542-30130-15 Knob Sub-Assy, Shift Lever
33504 33542-30130-22 Knob Sub-Assy, Shift Lever
33504 33542-30130-24 Knob Sub-Assy, Shift Lever
33504 33542-30130-25 Knob Sub-Assy, Shift Lever
33511 33511-22160 Shaft Sub-Assy, Control (For Floor Shift)
33550 90981-11018 Bulb, Position Indicator Lamp
33550 90339-04014 Cap, Position Indicator Lamp
33555 33555-22070 Boot, Shift Lever
33622 33622-30040-03 Cover, Shift Lever Knob, No.1
33622 33622-30040-11 Cover, Shift Lever Knob, No.1
33622 33622-30040-15 Cover, Shift Lever Knob, No.1
33622 33622-30040-24 Cover, Shift Lever Knob, No.1
33622 33622-30040-25 Cover, Shift Lever Knob, No.1
33623 33623-30050-03 Button, Shift Lever Knob
33623 33623-30050-11 Button, Shift Lever Knob
33623 33623-30050-15 Button, Shift Lever Knob
33623 33623-30050-24 Button, Shift Lever Knob
33623 33623-30050-25 Button, Shift Lever Knob
33623 90501-07009 Spring, Compression (For Shift Lever Knob)
33625 33625-32010 Sleeve, Shift Lever Knob
33631 33631-22050 Rod, Detent
33631 90501-08017 Spring, Compression (For Shift Lever Knob Button)
33631 90256-04003 Pin, Slotted Spring (For Detent Rod)
33635 33635-22010 Guide, Wire (For Shift Lever)
33675 35569-22160 Rod, Transmission Control (For Floor Shift)
33675 90240-08120 Pin, W/hole (For Transmission Control Rod)
33675 90389-08005 Bushing(For Gear Selecting Rod)
33675 90480-17177 Grommet (For Transmission Control Rod)
33723 33723-22010 Swivel, Connecting Rod (For Column Shift)
33723 90480-17001 Grommet (For Floor Shift Control Shaft)
35906 35906-22050 Wire Sub-Assy, Indicator Lamp
35921 35921-22180 Plate, Control Position Indicator
35971 35971-22090 Housing, Position Indicator, Upper
35972 35972-22070 Cover, Position Indicator Housing
35973 35973-22020 Attachment, Position Indicator Housing Cover
35974 35974-22060 Housing, Position Indicator, Lower
35975 35975-22060 Cover, Slide (For Position Indicator)
9011906144 90119-06144 Bolt, Hexagon (For Shift Lever Plate)
9014940004 90149-40004 Bolt Or Pin (For Shift Lever Knob Setting)
9017908041 90179-08041 NUT
9017908041 90179-08017 NUT
9046814004 90468-14004 Union, Auxiliary Fuel Band
9046814011 90468-14011 Clip, No.2(For Parking Brake)
9331515012 93315-15012 SCREWWWASHER
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461310800 94613-10800 Spacer (For Control Select Lever Support)
Shift Lever & Retainer ([08.1984 - ] (8408- )5F) 12
#OEMPart name
33143 33143-22020 Plate, Extension Housing Oil Baffle
33504 33504-24010-53 Knob Sub-Assy, Shift Lever
33504 33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)
33504 33504-24010-54 Knob Sub-Assy, Shift Lever
33506 33570-22080 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
33530 33530-22230 Lever Assy, Shift (For Floor Shift)
33548 33548-31010 Bush, Shift Lever
33555 33555-22050 Boot, Shift Lever
33599 33584-22020 Gasket, Control Shift Lever Retainer, No.2
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9338116012 93381-16012 Screw
Short Block Assembly ([08.1984 - ] (8408- )) 16
#OEMPart name
11400 11400-54061 Block Assy, Short
11400 11400-54H03 Block Assy, Short
11400 11400-54H04 Block Assy, Short
11400 11400-54H05 Block Assy, Short
11400 31349-26020 Insulator, Clutch Cable Heat
11400 11400-54062 Block Assy, Short
11400 11400-54063 Block Assy, Short
11400 11400-54042 Block Assy, Short
11400 11400-54H00 Block Assy, Short
11400 11400-54H01 Block Assy, Short
11400 11400-54H02 Block Assy, Short
11400 16027-54021 Pipe Sub-Assy, Turbo Water, No.1
11400 16268-54011 Pipe, Water By-pass, No.1
11400 16269-54011 Support, Water By-Pass Pipe
11400 11400-54043 Block Assy, Short
11400 11400-54044 Block Assy, Short
Side Member ([08.1984 - ] (8408- )) 87
#OEMPart name
61101 61101-22100 Panel Sub-Assy, Cowl Side, Rh
61102 61102-22120 Panel Sub-Assy, Cowl Side, Lh
61128 61125-22020 Panel, Cowl Side, Front Rh
61131 61131-22908 Pillar, Front Body, Upper Outer Rh
61131 61131-22909 Pillar, Front Body, Upper Outer Rh
61132 61132-22907 Pillar, Front Body, Upper Outer Lh
61132 61132-22908 Pillar, Front Body, Upper Outer Lh
61145 61145-22050 Gusset, Front Body Pillar, Lower Rh
61146 61146-22050 Gusset, Front Body Pillar, Lower Lh
61161 61161-22110 Pillar, Front Body, Upper Inner Rh
61162 61162-22110 Pillar, Front Body, Upper Inner Lh
61168 61166-22080 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh
61173 61173-22070 Reinforcement, Front Body Pillar, Upper Inner
61173 61174-22060 Reinforcement, Front Body Pillar, Upper Inner
61211 61211-22090 Rail, Roof Side, Outer Rh
61212 61212-22090 Rail, Roof Side, Outer Lh
61231 61231-22180 Rail, Roof Side, Inner Rh
61232 61232-22170 Rail, Roof Side, Inner Lh
61261 61261-91606 Channel, Roof Drip, Rh
61261 61263-22030 Channel, Roof Drip Side, Front Rh
61261 61263-22031 Channel, Roof Drip Side, Front Rh
61262 61262-91606 Channel, Roof Drip, Lh
61262 61264-22040 Channel, Roof Drip Side, Front Lh
61262 61264-22041 Channel, Roof Drip Side, Front Lh
61301 61301-91195 Pillar Sub-Assy, Center Body, Rh
61301 90950-01882 Cover, Hole
61301 61301-91194 Pillar Sub-assy, Center Body, Rh
61302 61302-91195 Pillar Sub-Assy, Center Body, Lh
61302 61302-91194 Pillar Sub-assy, Center Body, Lh
61315 61315-22020 Retainer, Door Lock Striker Plate
61343 61341-22110 Pillar, Center Body, Inner Upper Rh
61343 61343-22904 Pillar, Center Body, Inner Rh
61343 61343-22908 Pillar, Center Body, Inner Rh
61344 61342-22130 Pillar, Center Body, Inner Upper Lh
61344 61344-22904 Pillar, Center Body, Inner Lh
61344 61344-22908 Pillar, Center Body, Inner Lh
61411 61401-22030 Panel, Rocker, Outer Rh
61411 61401-22040 Panel, Rocker, Outer Rh
61412 61402-22030 Panel, Rocker, Outer Lh
61412 61402-22040 Panel, Rocker, Outer Lh
61605 61609-91603 Brace Sub-Assy, Quarter Panel, Lh
61611 61601-91642 Panel, Quarter, Rh
61612 61602-22929 Panel, Quarter, Lh
61621 61621-91601 Trough, Luggage Compartment Opening, Rh
61622 61622-91601 Trough, Luggage Compartment Opening, Lh
61628 61628-22020 Extension, Quarter Panel, Lower Lh
61631 61607-22914 Panel, Quarter Wheel House, Rh
61631 61631-22905 Panel, Quarter Wheel House, Outer Rh
61631 61631-22906 Panel, Quarter Wheel House, Outer Rh
61632 61608-22913 Panel, Quarter Wheel House, Lh
61632 61632-22090 Panel, Quarter Wheel House, Outer Lh
61632 61632-22100 Panel, Quarter Wheel House, Outer Lh
61643 61641-22020 Gusset, Quarter Wheel House Center, Rh
61643 61641-22030 Gusset, Quarter Wheel House, Front Rh
61644 61642-22020 Gusset, Quarter Wheel House, Center Lh
61644 61642-22030 Gusset, Quarter Wheel House, Front Lh
61645 61645-22020 Gusset, Quarter Wheel House, Rear Rh
61705 61705-91694 Panel Sub-Assy, Roof Side, Inner Rh
61706 61706-91608 Panel Sub-Assy, Roof Side, Inner Lh
61735 61735-91602 Panel, Roof Side, Inner Rear Rh
61824 61824-12010 Plate, Noise Control, No.1
61824 61824-12110 Plate, Noise Control, No.1
61824 61824-91601 Plate, Noise Control, No.1
61827 61827-22021 Plate, Noise Control, No.4
62554 62554-30010 Pad, Pillar, No.4
62939 62939-91601 Silencer, Quarter Vent
63161 63161-22010 Cover, Roof Side, Inner Upper Rh
64211 64211-22901 Strainer, Package Tray To Floor, Rh
64212 64212-22901 Strainer, Package Tray To Floor, Lh
64225 64225-22020 Hanger, Rear Seat Cushion Support
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover)
9033330002 90333-30002 Cover, Front Floor Hole
9046308053 90463-08053 New Genuine Part
9095001027 90950-01027 Plug, Hole, No.3(For Dash Panel)
9095001029 90950-01029 Plug, Hole, No.1(For Dash Panel)
9095001056 90950-01056 Plug, Hole(For Floor Panel)
9095001056 90950-01826 Plug, Hole(For Floor Panel)
9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)
9095001060 90950-01866 Plug, Hole(For Front Door Panel)
9095001431 90950-01431 New Genuine Part
9095001480 90950-01480 New Genuine Part
9095001481 90950-01481 New Genuine Part
9095006013 90950-06013 New Genuine Part
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
9166560616 91665-60616 New Genuine Part
9166560616 91661-60616 BOLT
Side Moulding ([08.1984 - ] (8408- )) 67
#OEMPart name
75551 75551-22110 Moulding, Roof Drip Side Finish, Rh
75552 75552-22110 Moulding, Roof Drip Side Finish, Lh
75566 75566-22010 Pad, Quarter Vent Louver, No.3
75567 75567-91601 Seal, Roof Drip Side Finish Moulding, No.2
75569 75569-91601 Seal, Roof Drip Side Finish Moulding, No.3
75623 75623-22020 Moulding, Front Fender, Outside Rear Rh
75623 75623-22300 Moulding, Front Fender, Outside Rear Rh
75624 75624-22020 Moulding, Front Fender, Outside Rear Lh
75624 75624-22300 Moulding, Front Fender, Outside Rear Lh
75655 75651-22160 Moulding, Quarter, Outside Center Rh
75655 75651-22350 Moulding, Quarter, Outside Center Rh
75656 75652-22170 Moulding, Quarter, Outside Center Lh
75656 75652-22410 Moulding, Quarter, Outside Center Lh
75721 75710-22100 Moulding, Front Door Belt, Rh
75721 75710-22090 Moulding, Front Door Belt, Rh
75722 75720-22100 Moulding, Front Door Belt, Lh
75722 75720-22090 Moulding, Front Door Belt, Lh
75723 75723-91601 Moulding, Rear Door Belt, Rear Rh
75724 75724-91601 Moulding, Rear Door Belt, Rear Lh
75731 75731-22250 Moulding, Front Door, Outside Rh
75731 75731-22530 Moulding, Front Door, Outside Rh
75732 75732-22250 Moulding, Front Door, Outside Lh
75732 75732-22530 Moulding, Front Door, Outside Lh
75741 75741-22310 Moulding, Rear Door, Outside Rh
75741 75741-22770 Moulding, Rear Door, Outside Rh
75741 75741-22340 Moulding, Rear Door, Outside Rh
75742 75742-22300 Moulding, Rear Door, Outside Lh
75742 75742-22760 Moulding, Rear Door, Outside Lh
75742 75742-22330 Moulding, Rear Door, Outside Lh
75751 75703-22010 Moulding, Rear Door Belt, Rh
75752 75704-22010 Moulding, Rear Door Belt, Lh
75851 75867-22050 Clip (For Rocker Panel Moulding Set)
75853 75850-29165 Moulding, Rocker Panel, Center Rh
75853 75850-29166 Moulding, Rocker Panel, Center Rh
75854 75860-29095 Moulding, Rocker Panel, Center Lh
75854 75860-29096 Moulding, Rocker Panel, Center Lh
75951 67913-22060-03 Plate, Front Door Scuff, Outside Rh
75951 67913-22060-13 Plate, Front Door Scuff, Rh
75951 67913-22060-04 Plate, Front Door Scuff, Outside Rh
75951 67913-22060-05 Plate, Front Door Scuff, Outside Rh
75951 67913-22060-15 Plate, Front Door Scuff, Outside Rh
75955 67917-22060-03 Plate, Rear Door Scuff, Outside Rh
75955 67917-22060-13 Plate, Rear Door Scuff, Rh
75955 67917-22060-04 Plate, Rear Door Scuff, Outside Rh
75955 67917-22060-14 Plate, Rear Door Scuff, Rh
75955 67917-22060-05 Plate, Rear Door Scuff, Outside Rh
75955 67917-22060-15 Plate, Rear Door Scuff, Outside Rh
75956 67918-22060-03 Plate, Rear Door Scuff, Outside Lh
75956 67918-22060-13 Plate, Rear Door Scuff, Lh
75956 67918-22060-04 Plate, Rear Door Scuff, Outside Lh
75956 67918-22060-14 Plate, Rear Door Scuff, Lh
75956 67918-22060-05 Plate, Rear Door Scuff, Outside Lh
75956 67918-22060-15 Plate, Rear Door Scuff, Outside Lh
9015940113 90159-40113 New Genuine Part
9015960252 90159-60252 New Genuine Part
9016240023 90162-40023 New Genuine Part
9016440034 90164-40034 New Genuine Part
9016840065 90168-40065 New Genuine Part
9017605004 90176-05004 New Genuine Part
9017605010 90176-05010 New Genuine Part
9018904069 90189-04069 CLIP
9018904089 90189-04089 New Genuine Part
9018906029 90189-06029 GROMMET
9033906012 90339-06012 CAP
9352054010 93520-54010 Screw
9354054008 93540-54008 New Genuine Part
9356054012 93560-54012 Screw
Spare Wheel Carrier ([08.1984 - ] (8408- )) 10
#OEMPart name
51910 51910-22040 Screw Assy, Spare Wheel Clamp
64775 64775-22010 Guard, Spare Wheel
64777 64777-22010 Cushion, Spare Wheel
9020213066 90202-13066 Plate, Spare Wheel Carrier Lock
9046816004 90468-16004 CLIP
9165641022 91656-41022 Bolt, No.1 (For Center Support Bearing)
9165641022 91651-61020 Bolt, No.1 (For Center Support Bearing)
9166540616 91665-40616 Screw(For Steering Column Tube)
9166540616 90080-11247 New Genuine Part
9461211200 94612-11200 Washer
Speaker ([08.1984 - ] (8408- )) 6
#OEMPart name
86160 86160-20230 Speaker Assy, Front No.1
9018305103 90183-05103 NUT
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Speedometer Driven Gear (Atm) ([08.1984 - ] (8408- )4FC) 7
#OEMPart name
35403 33403-69026 Gear Sub-Assy, Speedometer Driven (Mtm)
35404 33404-30040 Sleeve Sub-Assy, Speedometer Shaft (Mtm)
35404 90301-18004 Ring, O (For Atm Speedometer Driven Hole Cover)
35404 90301-18018 Ring, O (For Atm Speedometer Driven Hole Cover)
35404 33485-30020 Plate, Speedometer Sleeve Lock (For Atm)
35404 90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)
9161160814 91611-60814 Bolt
Speedometer Driven Gear (Mtm) ([08.1984 - ] (8408- )5F) 7
#OEMPart name
33403 33403-19235 Gear Sub-Assy, Speedometer Driven (Mtm)
33404 33404-22010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)
33404 96711-24030 Ring,o (For Speedometer Driven Hole Cover)
33404 90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
33485 33485-30020 Plate, Speedometer Sleeve Lock (For Atm)
9161160814 91611-60814 Bolt
Standard Tool ([08.1984 - 08.1986] (8408-8608)) 21
#OEMPart name
9101 09102-30010 Tool Set, Standard W/o Jack
9110 09111-14040 Jack Assy
9110 09111-20101 Jack Assy
9110 09113-44010 Handle, Jack
9110 09111-22040 Jack Assy
9110 09118-22010 Jack Assy
9115 09115-24010 Rod Sub-Assy, Jack Handle
9116 09116-16010 Lever, Jack Handle
9120 09120-30020 Bag, Tool
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9140 09140-12011 Spanner Set
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11012 Spanner (No Toyota) - (China)
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9141 99914-11417 Spanner (No Toyota) - (Made in China)
9183 09183-00010 Wrench, Wheel Cap
9184 09184-00010 Stopper, Wheel
Standard Tool ([08.1986 - ] (8608- )) 19
#OEMPart name
9110 09111-14040 Jack Assy
9110 09111-20101 Jack Assy
9110 09113-44010 Handle, Jack
9110 09111-22040 Jack Assy
9110 09118-22010 Jack Assy
9115 09115-24010 Rod Sub-Assy, Jack Handle
9116 09116-16010 Lever, Jack Handle
9120 09120-30020 Bag, Tool
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11012 Spanner (No Toyota) - (China)
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9141 99914-11417 Spanner (No Toyota) - (Made in China)
9183 09183-00010 Wrench, Wheel Cap
9184 09184-00010 Stopper, Wheel
Starter ([08.1984 - ] (8408- )2L#) 64
#OEMPart name
28011 28011-54010 Clutch Sub-Assy, Starter
28011 28011-54070 Clutch Sub-Assy, Starter
28100 28100-54061 Starter Assy
28100 28100-54210 Starter Assy
28100 28100-54070 Starter Assy
28100 28100-54180 Starter Assy
28100 28100-54052 Starter Assy
28110 28115-54011 Housing Assy, Starter Drive
28110 28115-54070 Housing Assy, Starter Drive
28118 28118-77090 Plate(For Starter Yoke)
28119 28119-54070 Cover, Starter End Frame
28119 28199-77090 Cover, Starter End Frame
28120 28120-54070 Yoke Assy, Starter
28120 28120-56081 Yoke Assy, Starter
28130 28130-54060 Frame Assy, Starter Commutator End
28130 28130-54430 Frame Assy, Starter Commutator End
28130 28199-46080 Cover, Starter End Frame
28130 90099-04207 New Genuine Part
28137 90099-02205 Washer, Felt, Starter
28139 28139-54023 Wire, Lead, No.1(For Starter)
28139 28139-56230 Wire, Lead, No.1(For Starter)
28139 28139-54070 Wire, Lead, No.1(For Starter)
28139 28139-77110 Wire, Lead, No.1(For Starter)
28140 28140-54070 Holder Assy, Starter Brush
28140 28140-77090 Holder Assy, Starter Brush
28150 28150-54011 Switch Assy, Magnet Starter
28150 28150-54430 Switch Assy, Magnet Starter
28150 28150-54070 Switch Assy, Magnet Starter
28150 28150-54110 Switch Assy, Magnet Starter
28150 28150-54051 Switch Assy, Magnet Starter
28150 28150-54210 Switch Assy, Magnet Starter
28160 28160-47040 Armature Assy, Starter
28160 28160-54140 Armature Assy, Starter
28160 28160-54070 Armature Assy, Starter
28160 28160-54071 Armature Assy, Starter
28160 28253-54070 Bearing, Starter Armature
28160 90099-10107 Bearing, Starter Armature
28160 90099-10119 Bearing, Starter Armature
28160 90099-10131 Bearing, Starter Armature
28165 28165-26040 Spring, Starter Magnet Switch Return
28165 28165-77090 Spring, Starter Magnet Switch Return
28191 28191-54010 Stay, Starter
28222 28222-77090 Washer, Starter Idle Gear Clutch
28228 28228-26040 Roller, Starter Idle Gear Clutch
28228 28228-56080 Roller, Starter Idle Gear Clutch
28229 28229-26040 Retainer, Starter Idle Gear
28229 28229-56080 Retainer, Starter Idle Gear
28252 28254-54070 Pinion, Starter Drive
28252 28254-77090 Pinion, Starter Drive
9009221001 90092-21001 NUT
9009900138 90099-00138 New Genuine Part
9009900138 90099-00158 SCREW
9009901436 90099-01436 New Genuine Part
9009902325 90099-02325 WASHER
9009904297 90099-04297 BOLT
9009912009 90099-12009 Ball, Starter Clutch
9011912018 90119-12018 New Genuine Part
9017908068 90179-08068 NUT
9321915008 93219-15008 New Genuine Part
9331915008 93319-15008 SCREW
9411551200 94115-51200 Nut(For Backing Plate To Steering Knuckle Setting)
9451100500 94511-00500 Washer, Cover Set, No.2
9451100600 94511-00600 Washer, Lock, No.2
9451101000 94511-01000 Washer(For Rear Drive Shaft)
Starter ([08.1984 - ] (8408- )2L#..5F) 55
#OEMPart name
28011 28011-54010 Clutch Sub-Assy, Starter
28011 28011-54070 Clutch Sub-Assy, Starter
28100 28100-54061 Starter Assy
28100 28100-54210 Starter Assy
28100 28100-54070 Starter Assy
28100 28100-54180 Starter Assy
28110 28115-54011 Housing Assy, Starter Drive
28110 28115-54070 Housing Assy, Starter Drive
28119 28119-54070 Cover, Starter End Frame
28119 28199-77090 Cover, Starter End Frame
28120 28120-54070 Yoke Assy, Starter
28120 28120-56081 Yoke Assy, Starter
28139 28139-54023 Wire, Lead, No.1(For Starter)
28139 28139-56230 Wire, Lead, No.1(For Starter)
28139 28139-54070 Wire, Lead, No.1(For Starter)
28140 28140-54070 Holder Assy, Starter Brush
28140 28140-77090 Holder Assy, Starter Brush
28143 90099-17115 Spring, Starter Brush
28150 28150-54011 Switch Assy, Magnet Starter
28150 28150-54430 Switch Assy, Magnet Starter
28150 28150-54070 Switch Assy, Magnet Starter
28150 28150-54110 Switch Assy, Magnet Starter
28150 90099-14058 Rubber(For Starter Yoke)
28160 28160-47040 Armature Assy, Starter
28160 28160-54140 Armature Assy, Starter
28160 28160-54070 Armature Assy, Starter
28160 28160-54071 Armature Assy, Starter
28160 28253-54070 Bearing, Starter Armature
28160 90099-10107 Bearing, Starter Armature
28160 90099-10119 Bearing, Starter Armature
28160 90099-10131 Bearing, Starter Armature
28165 28165-26040 Spring, Starter Magnet Switch Return
28165 28165-77090 Spring, Starter Magnet Switch Return
28228 28228-26040 Roller, Starter Idle Gear Clutch
28228 28228-56080 Roller, Starter Idle Gear Clutch
28229 28229-26040 Retainer, Starter Idle Gear
28229 28229-56080 Retainer, Starter Idle Gear
28251 28251-54070 Plate, Lead, Switch Connecting
28252 28254-54070 Pinion, Starter Drive
28252 28254-77090 Pinion, Starter Drive
9009300606 90093-00606 New Genuine Part
9009900901 90099-00901 New Genuine Part
9009904949 90099-04949 New Genuine Part
9009905129 90099-05129 Nut (For Front Wiper Arm Setting)
9009912009 90099-12009 Ball, Starter Clutch
9011912018 90119-12018 New Genuine Part
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411551200 94115-51200 Nut(For Backing Plate To Steering Knuckle Setting)
9451100600 94511-00600 Washer, Lock, No.2
9451100800 94511-00800 WASHERSPRING
9671001006 96710-01006 Ring, O(For Transmission Oil Receiver)
9671001006 96711-19006 Packing(For Radiator Drain Cock)
Steering Column & Shaft ([08.1984 - ] (8408- )) 111
#OEMPart name
45081 90506-26016 Spring, Tension(For Tilt Steering)
45081 90945-02052 Cord(For Tilt Steering)
45081 90945-02078 Cord(For Tilt Steering)
45082 45082-22060 Bracket Sub-Assy, Break Away W/capsule
45082 45082-22061 Bracket Sub-Assy, Break Away W/capsule
45201 45210-22120 Shaft Sub-Assy, Steering Main
45201 45210-22050 Shaft Sub-Assy, Steering Main
45201 45210-22130 Shaft Sub-Assy, Steering Main
45201 90363-18001 Bearing(For Steering Main Shaft)
45201 90363-28001 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17196 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-45011 Spring, Compression(For Steering Main Shaft)
45202 45220-22080 Shaft Sub-Assy, Steering Intermediate
45202 45220-22130 Shaft Sub-Assy, Steering Intermediate
45202 90363-30007 Bearing(For Steering Main Shaft)
45202 96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)
45205 45870-22160 Tube Sub-Assy, Steering Column
45205 45870-22170 Tube Sub-Assy, Steering Column
45209 45209-32010 Yoke Sub-Assy, Steering Sliding
45209 45209-10020 Yoke Sub-Assy, Steering Sliding
45209 45209-32020 Yoke Sub-Assy, Steering Sliding
45209 45209-16010 Yoke Sub-Assy, Steering Sliding
45209 90101-08070 Bolt, Hexagon
45209 90119-08560 Bolt, Hexagon
45214 45214-32010 Retainer, Main Shaft Spring
45215 45215-22011 Collar, Main Shaft Bearing Thrust
45253 45025-22070 Cover, Steering Column Hole
45254 45254-22050 Shield, Steering Column Hole
45263 45263-32010 Ring, Steering Column, No.1
45264 45264-32010 Ring, Steering Column, No.2
45275 45280-22300 Bracket, Steering Column, Upper
45275 45280-22301 Bracket, Steering Column, Upper
45275 45280-23010 Bracket Assy, Steering Column, Upper
45275 45280-22330 Bracket, Steering Column, Upper
45275 45280-22290 Bracket, Steering Column, Upper
45275 45280-22331 Bracket, Steering Column, Upper
45275 45280-22291 Bracket, Steering Column, Upper
45281 45286-22400-03 Housing, Steering Column
45281 45286-22400-C0 Housing, Steering Column
45281 45286-22400-04 Housing, Steering Column
45281 45287-22310-03 Housing, Steering Column
45281 45287-22310-04 Housing, Steering Column
45281 45287-22320-03 Housing, Steering Column
45281 45287-22320-04 Housing, Steering Column
45281 45283-22010 Plate, Safety Caution
45281 45286-22400-05 Housing, Steering Column
45281 45286-22400-15 Housing, Steering Column
45281 45287-22310-05 Housing, Steering Column
45281 45287-22310-15 Housing, Steering Column
45288 45288-30010 Spacer, Column Cover
45291 45282-22010 Seal, Main Shaft Upper Dust
45298 45298-22010-04 Plug, Steering Column Cover
45298 45298-22010-13 Plug, Steering Column Cover
45298 45298-22010-12 Plug, Steering Column Cover
45298 45298-22010-15 Plug, Steering Column Cover
45804 45804-30020 Lever Sub-Assy, Steering Tilt
45809 45809-30040 Cover Sub-Assy, Adjuster Memory
45813 45813-30010 Collar, Tilt Steering Support, No.1
45813 45813-30011 Collar, Tilt Steering Support, No.1
45813 45813-30020 Collar, Tilt Steering Support, No.1
45813 45813-30021 Collar, Tilt Steering Support, No.1
45813 45813-30030 Collar, Tilt Steering Support, No.1
45813 45813-30031 Collar, Tilt Steering Support, No.1
45813 45813-30040 Collar, Tilt Steering Support, No.1
45813 45813-30041 Collar, Tilt Steering Support, No.1
45813 45813-30050 Collar, Tilt Steering Support, No.1
45813 45813-30051 Collar, Tilt Steering Support, No.1
45814 45814-22010 Collar, Tilt Steering Support, No.2
45814 45814-22020 Collar, Tilt Steering Support, No.2
45815 45815-22060 Shim, Tilt Steering Support
45815 45815-22070 Shim, Tilt Steering Support
45815 45815-22080 Shim, Tilt Steering Support
45815 45815-22090 Shim, Tilt Steering Support
45815 45815-22100 Shim, Tilt Steering Support
45817 45817-32010 Stopper, Steering Shaft Thrust
45819 45819-30040 Retainer, Tilt Lever
45819 90387-08040 Collar(For Tilt Lever Retainer)
45819 90540-08010 Cushion(For Tilt Lever Retainer)
45824 45890-30030 Pawl, Tilt Steering
45826 90506-13001 Spring, Tension(For Steering Tilt Lever)
45826 90507-10011 Spring, Tension(For Steering Tilt Lever)
45826 72538-12010 Pin(For Steering Tilt Lever)
45826 45826-30050 Lever, Steering Tilt(For Tilt Adjust)
45892 45898-22020 Bolt, Tilt Steering Support Stopper
45892 45898-22010 Bolt, Tilt Steering Support Stopper
45892 45899-22020 Cover, Tilt Steering Support Stopper
45892 45289-22050 Support, Steering Column Cover
45895 45895-22040 Plate, Tilt Steering Caution
45895 45895-22050 Plate, Tilt Steering Caution
9010908104 90109-08104 New Genuine Part
9011408013 90114-08013 New Genuine Part
9011908042 90119-08042 Bolt(For Power Steering Pressure Control Valve)
9011908185 90119-08185 New Genuine Part
9011908185 90119-08165 New Genuine Part
9016450048 90164-50048 SCREW
9017910053 90179-10053 New Genuine Part
9020106204 90201-06204 Washer, Plate(For Steering Tilt Lever)
9020108065 90201-08065 Washer, Plate(For Control Select Lever)
9046069004 90460-69004 New Genuine Part
9161160840 91611-60840 BOLT
9165540625 91655-40625 New Genuine Part
9165540625 91651-60625 New Genuine Part
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
9331514010 93315-14010 SCREW
9411050800 94110-50800 Nut(For Repair Actuator Set)
9418210600 94182-10600 Nut, Tilt Steering Adjusting, No.1
9418210800 94182-10800 Nut
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Steering Column & Shaft ([08.1984 - ] (8408- )KYO) 48
#OEMPart name
45201 45210-22120 Shaft Sub-Assy, Steering Main
45201 45210-22050 Shaft Sub-Assy, Steering Main
45201 45210-22130 Shaft Sub-Assy, Steering Main
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17196 Ring, Shaft Snap(For Steering Main Shaft)
45202 90363-30007 Bearing(For Steering Main Shaft)
45202 96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)
45205 45870-22160 Tube Sub-Assy, Steering Column
45205 45870-22170 Tube Sub-Assy, Steering Column
45209 45209-32010 Yoke Sub-Assy, Steering Sliding
45209 45209-10020 Yoke Sub-Assy, Steering Sliding
45209 45209-32020 Yoke Sub-Assy, Steering Sliding
45209 45209-16010 Yoke Sub-Assy, Steering Sliding
45209 90101-08070 Bolt, Hexagon
45209 90119-08560 Bolt, Hexagon
45214 45214-32010 Retainer, Main Shaft Spring
45253 45025-22070 Cover, Steering Column Hole
45254 45254-22050 Shield, Steering Column Hole
45263 45263-32010 Ring, Steering Column, No.1
45264 45264-32010 Ring, Steering Column, No.2
45275 45280-22300 Bracket, Steering Column, Upper
45275 45280-22301 Bracket, Steering Column, Upper
45275 45280-23010 Bracket Assy, Steering Column, Upper
45275 45280-22330 Bracket, Steering Column, Upper
45275 45280-22290 Bracket, Steering Column, Upper
45275 45280-22331 Bracket, Steering Column, Upper
45275 45280-22291 Bracket, Steering Column, Upper
45281 45286-22400-03 Housing, Steering Column
45281 45286-22400-C0 Housing, Steering Column
45281 45286-22400-04 Housing, Steering Column
45281 45287-22310-03 Housing, Steering Column
45281 45287-22310-04 Housing, Steering Column
45281 45287-22320-03 Housing, Steering Column
45281 45287-22320-04 Housing, Steering Column
45281 45283-22010 Plate, Safety Caution
45288 45288-30010 Spacer, Column Cover
45817 45817-32010 Stopper, Steering Shaft Thrust
9016450048 90164-50048 SCREW
9017910053 90179-10053 New Genuine Part
9046069004 90460-69004 New Genuine Part
9161160818 91611-60818 Bolt(For Oil Receiver Pipe)
9161160818 90119-08830 Bolt(For Oil Receiver Pipe)
9165540625 91655-40625 New Genuine Part
9165540625 91651-60625 New Genuine Part
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
9331514010 93315-14010 SCREW
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Steering Wheel ([08.1984 - ] (8408- )AVT,KYO,SXL,XG,XL) 34
#OEMPart name
45100 45100-22230-03 Wheel Assy, Steering
45100 45100-22290-04 Wheel Assy, Steering
45100 45100-22291-13 Wheel Assy, Steering
45100 45100-22230-05 Wheel Assy, Steering
45100 45100-22290-05 Wheel Assy, Steering
45105 45105-22080 Plate Sub-Assy, Horn Button Contact, No.1
45116 45116-22050 Ornament, Steering Wheel, No.1
45116 45116-22070-04 Ornament, Steering Wheel, No.1
45116 45116-22070-01 Ornament, Steering Wheel, No.1
45116 45116-22070-05 Ornament, Steering Wheel, No.1
45117 45117-22010 Ornament, Steering Wheel, No.2
45117 45117-22030-04 Ornament, Steering Wheel, No.2
45117 45117-22030-01 Ornament, Steering Wheel, No.2
45117 45117-22030-05 Ornament, Steering Wheel, No.2
45125 45125-22340 Mark, Steering Wheel Pad
45125 45125-22480 Mark, Steering Wheel Pad
45130 45112-22130-03 Button Assy, Horn
45130 45112-22130-C0 Button Assy, Horn
45130 45112-22180-04 Button Assy, Horn
45130 45112-22180-13 Pad, Steering Wheel
45130 45112-22130-05 Button Assy, Horn
45130 45112-22180-05 Button Assy, Horn
45136 45136-22100 Plate, Horn Button Contact
45180 45180-22010-02 Cover Sub-Assy, Steering Wheel
45180 45180-22010-23 Cover Sub-Assy, Steering Wheel
45180 45180-22010-03 Cover Sub-Assy, Steering Wheel
45180 45180-22010-04 Cover Sub-Assy, Steering Wheel
45180 45180-22010-05 Cover Sub-Assy, Steering Wheel
45180 45180-22010-15 Cover Sub-Assy, Steering Wheel
45180 45180-22010-12 Cover Sub-Assy, Steering Wheel
45201 90179-12086 Nut, Steering Wheel Set
9015950061 90159-50061 New Genuine Part
9016745005 90167-45005 New Genuine Part
9354054012 93540-54012 Screw, Headlamp
Suspension Crossmember & Under Cover ([08.1984 - ] (8408- )) 28
#OEMPart name
51201 51201-22330 Crossmember Sub-Assy, Front Suspension
51201 45515-22090 Bracket, Steering Rack Housing, No.2
51201 45517-22040 Grommet, Steering Rack Housing, No.2
51201 51201-22331 Crossmember Sub-assy, Front Suspension
51228 51229-22040 Plate, Suspension Member Set
51441 51405-22030 Cover, Engine Under, No.1
51448 51447-22020 Protector, Oil Pan
51961 51963-22040 Hook, No.1
51962 51095-22040 Hook, No.2
51962 51965-22040 Hook, No.2
9010508077 90105-08077 BOLT
9010912025 90109-12025 New Genuine Part
9011906042 90119-06042 New Genuine Part
9011906042 90119-06341 BOLT
9011912025 90119-12025 New Genuine Part
9011912025 90119-12163 New Genuine Part
9011912070 90119-12070 New Genuine Part
9011912078 90119-12078 New Genuine Part
9011912086 90119-12086 New Genuine Part
9011912112 90119-12112 New Genuine Part
9017912017 90179-12017 New Genuine Part
9017912020 90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing)
9017912045 90179-12045 New Genuine Part
9020121001 90201-21001 New Genuine Part
9161640816 91616-40816 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640816 91611-B0816 Bolt
9165540825 91655-40825 New Genuine Part
9165540825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
Switch & Relay & Computer ([08.1984 - ] (8408- )) 127
#OEMPart name
27790 27790-35020 Relay Assy, Charge Lamp
28521 28521-54310 Timer, Preheating
28521 28521-54300 Timer, Preheating
28521 28521-54301 Timer, Preheating
28529 28529-54090 Bracket, Preheating Timer, No.1
81980 81980-20140 Flasher Assy, Turn Signal
81980 81980-16010 Flasher Assy, Turn Signal
81980 81980-22070 Flasher Assy, Turn Signal
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82650 82650-20011 Breaker Assy, Wiring Circuit, No.1
82650 82650-20020 Breaker Assy, Wiring Circuit, No.1
82650 82650-12020 Breaker Assy, Wiring Circuit, No.1
82660 82602-22170 Block Sub-Assy, Relay
82660 82602-22210 Block Assy, Relay, Cowl Side
82660 82602-22211 Block Assy, Relay, Cowl Side
82660 82602-22212 Block Assy, Relay, Cowl Side
82660 82602-22370 Block Sub-Assy, Relay
83320 83320-80006 Gage Assy, Fuel Sender
83361 77169-14020 Gasket, Fuel Tank Vent
83650 90986-01003 Fusee
83650 90986-01005 Fusee
83651 90468-25002 Clamp, Fusee
83651 90468-25003 Clip, Instrument Panel, No.2
84090 84090-22040 Switch Set, Easy Operate
84090 84090-22050 Switch Set, Easy Operate
84090 84091-22090 Switch Set, Easy Operate
84090 84091-22200 Switch Set, Easy Operate
84090 84091-22210 Switch Set, Easy Operate
84090 84999-10170 Bulb, Indicator Lamp
84095 84956-22060 Bracket Sub-Assy, Hand Brake Signal Switch
84110 84112-29365 Switch Assy, Light Control, No.1
84110 84112-29425 Switch Assy, Light Control, No.1
84110 84112-39365 Switch Assy, Light Control, No.1
84110 84112-29635 Switch Assy, Light Control, No.1
84140 84140-19125 Switch Assy, Headlamp Dimmer
84140 84140-24010 Switch Assy, Headlamp Dimmer
84140 84140-22030 Switch Assy, Headlamp Dimmer
84140 84140-29095 Switch Assy, Headlamp Dimmer
84232 84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)
84233 84230-12120 Switch Assy, Courtesy Lamp (For Front Door)
84233 84231-22060 Switch Assy, Courtesy Lamp (For Front Door)
84233 84234-22020 Cushion, Courtesy Switch (For Front Door)
84236 84231-12030 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
84236 84231-22020 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
84246 84246-22010 Switch, Foot Lamp
84310 84310-22350 Switch Assy, Turn Signal
84310 84310-2A260 Switch Assy, Turn Signal
84310 84310-22470 Switch Assy, Turn Signal
84310 84332-29235 Switch, Turn Signal
84310 84332-39195 Switch, Turn Signal
84310 84310-22360 Switch Assy, Turn Signal
84310 84310-2A270 Switch Assy, Turn Signal
84310 84310-22480 Switch Assy, Turn Signal
84311 84311-22010 Sensor, Turn Signal Cancel
84312 84312-32010 Plate, Horn Contact
84330 84332-22080 Switch Assy, Hazard Warning Signal
84335 84330-22160 Switch Assy, Parking Lamp
84340 84340-30030 Switch Assy, Stop Lamp
84340 84340-32010 Switch Assy, Stop Lamp
84450 84450-10090 Switch Assy, Ignition Or Starter
84450 84450-22170 Switch Assy, Ignition Or Starter
84450 84450-28020 Switch Assy, Ignition Or Starter
84550 84550-28020 Switch Assy, Parking Brake
84550 84550-20030 Switch Assy, Courtesy Lamp (For Parking Brake)
84650 84652-22330 Switch Assy, Windshield Wiper
84650 84652-29715 Switch Assy, Windshield Wiper
84650 84652-80065 Switch Assy, Windshield Wiper
84650 84652-22340 Switch Assy, Windshield Wiper
84650 84652-80043 Switch Assy, Windshield Wiper
84660 84660-22070 Switch, Cooler
84730 84732-22080 Switch Assy, Heater Blower
84730 90981-11014 Bulb, Position Indicator Lamp
84790 84790-22110 Switch Assy, Rear Window Defogger
84790 84790-22120 Switch Assy, Rear Window Defogger
84870 84870-22060 Switch Assy, Outer Mirror
85500 85500-22160 Lighter Assy, Cigarette
85533 85533-20011 Lens, Cigarette Lighter Indicator
85910 90987-04002 Relay, Ignition, No.1
85912 90987-02002 Relay, Ignition, No.1
85912 90987-02004 Relay Assy, Starter
85916 90987-02006 Relay
85940 85940-22110 Relay Assy, Windshield Wiper
85940 85940-22120 Relay Assy, Windshield Wiper
85959 85959-22070 Holder, Relay
85999 85999-22170 Bracket, Combination Relay
85999 85999-22220 Bracket, Relay, No.2
86640 86640-22070 Chime Assy
89550 89551-22010 Computer Assy, Emission Control
89567 89667-22080 Bracket, Emission Computer, No.1
89568 89668-22090 Bracket, Emission Computer, No.2
89569 89669-22100 Bracket, Emission Computer, No.3
8271114620 82711-14620 Bracket, Relay, No.3
8271120290 82711-20290 Wire, Fuse To Fuse(for Combustion Heater)
8271130430 82711-30430 Wire, Fuse To Fuse(for Combustion Heater)
9011906067 90119-06067 BOLT
9016430003 90164-30003 New Genuine Part
9016720001 90167-20001 New Genuine Part
9017010017 90170-10017 Nut(For Clutch Pedal Stopper)
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9018305094 90183-05094 NUT
9026602002 90266-02002 New Genuine Part
9043008252 90430-08252 Gasket(For Catalytic Converter Sensor Guide)
9046304202 90463-04202 New Genuine Part
9046312014 90463-12014 Clamp, Hood Lock Control Wire
9046313003 90463-13003 Clamp, Hood Lock Control Wire
9046315003 90463-15003 New Genuine Part
9165160612 91651-60612 BOLT
9165160616 91651-60616 BOLT
9331514010 93315-14010 SCREW
9331514012 93315-14012 Screw with washer
9331514014 93315-14014 SCREW
9331515010 93315-15010 New Genuine Part
9331913008 93319-13008 New Genuine Part
9331914010 93319-14010 SCREW
9331914012 93319-14012 New Genuine Part
9331915008 93319-15008 SCREW
9331915010 93319-15010 SCREW
9331915012 93319-15012 Screw
9354054012 93540-54012 Screw, Headlamp
9356755014 93567-55014 Direct
9356755014 93568-55014 Screw
9356755016 93567-55016 Screw
9356855016 93568-55016 Screw
9358015014 93580-15014 New Genuine Part
Switch & Relay & Computer ([08.1984 - ] (8408- )LX70) 82
#OEMPart name
28300 28300-64030 Relay Assy, Starter
28560 28560-22010 Block, Heater
28610 28610-54230 Relay Assy, Glow Plug
28610 28610-54240 Relay Assy, Glow Plug
28610 28610-64040 Relay Assy, Glow Plug
28611 28611-54040 Cover, Glow Plug Relay
28621 28621-54031 Resistor, Glow Plug
28621 28621-64011 Resistor, Glow Plug
28621 28621-54060 Resistor, Glow Plug
28621 28621-54070 Resistor, Glow Plug
28631 28631-54040 Sensor, Glow Plug Current
28631 28631-54080 Sensor, Glow Plug Current
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82616 82616-12010 Lever, Fuse
82660 82660-22260 Block Assy, Relay, Engine Room
82661 82661-22100 Cover, Relay Block, No.1
82661 82661-22101 Cover, Relay Block, No.1
82661 82661-22120 Cover, Relay Block, No.1
82661 82661-22121 Cover, Relay Block, No.1
83380 83381-30010 Switch Assy, Presure
83380 83381-30030 Switch Assy, Presure
83390 83390-30020 Switch Assy, Vacuum Warning
83391 83391-22060 Switch, Vacuum
83391 83391-35040 Switch, Vacuum
83420 83420-20020 Gage Assy, Water Temperature Sender
83530 83530-30060 Switch Assy, Oil Pressure (For Engine)
83530 83530-60030 Switch Assy, Oil Pressure (For Engine)
83530 83530-36011 Switch Assy, Oil Pressure (For Engine)
84210 84210-60021 Switch Assy, Back-Up Lamp
84461 84461-14030 Switch, Level Warning
84461 84461-35030 Switch, Level Warning
84540 84540-22170 Switch Assy, Neutral Start
84540 84540-22171 Switch Assy, Neutral Start
85916 90987-02002 Relay, Ignition, No.1
85916 90987-02004 Relay Assy, Starter
85916 90987-02006 Relay
85999 85999-22240 Bracket, Relay, No.3
85999 85999-22300 Bracket, Relay, No.3
85999 85999-22230 Bracket, Relay, No.3
88620 88620-22010 Thermo Switch Assy
88630 90987-03001 Relay
89421 89420-22060 Sensor, Turbo Pressure
89421 89420-22070 Sensor, Turbo Pressure
89421 89421-22090 Sensor, Turbo Pressure
89426 89426-22060 Bracket, Vacuum Sensor
89429 89422-30020 Sensor, Water Temperature (For E.f.i.)
89429 89422-12010 Sensor, Water Temperature (For E.f.i.)
1987766010 19877-66010 Insulator Sub-Assy, Glow Plug, No.1
2333854020 23338-54020 Gasket(for Warning Switch)
2334454030 23344-54030 Gasket, Clamping Nut(for Fuel Filter)
2862254020 28622-54020 Insulator, Glow Plug Resistor, No.1
2862354010 28623-54010 Insulator, Glow Plug Resistor, No.2
8271114750 82711-14750 Wire, Fuse To Fuse(for Combustion Heater)
8271122860 82711-22860 Wire, Fuse To Fuse(for Combustion Heater)
8271124120 82711-24120 Wire, Fuse To Fuse(for Combustion Heater)
9011606275 90116-06275 Bolt, Stud(For Injection Pipe Clamp)
9011606275 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
9011906171 90119-06171 BOLT
9017905015 90179-05015 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9043012221 90430-12221 Gasket
9043018007 90430-18007 Gasket(For Water Hole)
9043018007 90430-18008 Gasket
9046108312 90461-08312 New Genuine Part
9046208008 90462-08008 New Genuine Part
9046400156 90464-00156 Clamp, No.2(For Back Door Lock Control Cable)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160814 91611-60814 Bolt
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9338516025 93385-16025 New Genuine Part
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Throttle Link & Valve Lever (Atm) ([08.1984 - ] (8408- )4FC..AVT,SXL,XG,XL) 20
#OEMPart name
35505 35505-22040 Lever Sub-Assy, Manual Valve
35506 35561-40010 Shaft Sub-Assy, Manual Valve Lever
35506 90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506 90311-11001 Seal, Oil (For Manual Valve Lever Shaft)
35506 90311-11003 Seal, Oil (For Manual Valve Lever Shaft)
35506 90560-20003 Spacer (For Transfer Manual Valve Lever)
35506 90560-20025 Spacer (For Manual Valve Lever)
35556 35556-22010 Shaft, Parking Lock Pawl
35556 35556-26010 Shaft, Parking Lock Pawl
35556 90523-08021 Ring, E (For Parking Lock Pawl Shaft)
35557 35557-35010 Pawl, Parking Lock
35557 90508-25001 Spring, Torsion (For Parking Lock Pawl)
35572 35572-22040 Lever, Transmission Control Shaft, Rh
35585 35501-22020 Rod Sub-Assy, Parking Lock
35595 35595-40010 Bracket, Parking Lock Pawl
9010106416 90101-06416 New Genuine Part
9010106416 90101-06024 New Genuine Part
9411050800 94110-50800 Nut(For Repair Actuator Set)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9454200600 94542-00600 New Genuine Part
Throttle Link & Valve Lever (Atm) ([08.1984 - ] (8408- )LX70,MX71..4FC) 14
#OEMPart name
35520 35520-22140 Cable Assy, Throttle
35520 35520-30090 Cable Assy, Throttle
35520 90301-09004 Ring, O(For Throttle Cable)
35523 35523-30021 Clamp, Throttle Cable
35523 35523-30050 Clamp, Throttle Cable
9046106052 90461-06052 New Genuine Part
9111150812 91111-50812 Bolt (for Transmission Control Cable Bracket)
9111150812 91611-60814 Bolt
9161161014 91611-61014 New Genuine Part
9161161014 91612-B1014 BOLT WWASHER
9165140610 91651-40610 RIVET
9451100800 94511-00800 WASHERSPRING
9461111001 94611-11001 Plate, Rear Seat Back Stopper
9622110710 96221-10710 Clamp, Throttle Cable, No.2
Timing Gear Cover & Rear End Plate ([08.1984 - ] (8408- )2L#) 41
#OEMPart name
11301 11311-54022 Case Sub-Assy, Timing Gear
11301 92132-60828 Bolt,stud(For Timing Gear Case)
11301 90311-42012 Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302 11321-54014 Cover Sub-Assy, Timing Chain Or Belt
11302 90341-18004 Plug, Straight(For Timing Gear Cover)
11305 11382-54010 Retainer, Oil Seal, No.2
11305 90311-42003 Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11305 90311-42026 Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11305 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
11312 11312-54013 Gasket, Front End Plate
11312 11312-54030 Gasket, Front End Plate
11328 11328-54010 Gasket, Timing Gear Or Chain Cover
11329 11329-54011 Gasket, Timing Gear Rear Cover
11354 11354-54010 Seal, Flywheel Housing Dust
11355 11355-54030 Plate, Rear End
11355 11355-54040 Plate, Rear End
11355 90950-01263 Plug, Hole(For Rear End Plate)
11381 11381-54010 Retainer, Engine Rear Oil Seal
11381 90311-85003 Seal, Engine Rear Oil
11381 90311-85009 Seal, Engine Rear Oil
11381 90311-85004 Seal, Engine Rear Oil
11383 11383-54010 Gasket, Engine Rear Oil Seal Retainer
11383 11383-54030 Gasket, Engine Rear Oil Seal Retainer
11384 11384-54010 Gasket, Oil Seal Retainer, No.2
11384 11384-54011 Gasket, Oil Seal Retainer, No.2
11391 11391-54010 Pointer, Timing
11492 11492-54010 Plate, Water Seal
9010906017 90109-06017 BOLT
9021008019 90210-08019 WASHER
9021008019 90080-21002 WASHER
9048007001 90480-07001 New Genuine Part
9095001312 90950-01312 New Genuine Part
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9161140828 91611-40828 Bolt(For Clutch Release Cylinder Setting)
9161140828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9161160830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
9161160840 91611-60840 BOLT
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9671119015 96711-19015 Ring, O(For Power Steering Pump Tight Plug)
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1984 - ] (8408- )4FC..AVT,SXL,XG,XL) 31
#OEMPart name
32000 32000-14101 Converter Assy, Torque
32101 32101-30051 Gear Sub-Assy, Drive Plate & Ring
32101 32101-30052 Gear Sub-Assy, Drive Plate & Ring
32101 90109-08090 Bolt(For Drive Plate & Torque Converter Setting)
32101 90109-08107 Bolt(For Drive Plate & Torque Converter Setting)
32101 90109-08113 Bolt(For Drive Plate & Torque Converter Setting)
32101 90119-08223 Bolt(For Drive Plate & Torque Converter Setting)
32101 90119-08498 Bolt(For Drive Plate & Torque Converter Setting)
32101 90119-08554 Bolt(For Drive Plate & Torque Converter Setting)
32101 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
32101 91611-B0812 Bolt
32101 90105-12014 Bolt, Hexagon(For Drive Plate Setting)
32116 32116-30020 Spacer, Drive Plate, Front
32116 32116-35010 Spacer, Drive Plate, Front
32117 32117-30020 Spacer, Drive Plate, Rear
32117 32117-35010 Spacer, Drive Plate, Rear
35301 35301-30030 Body Sub-Assy, Front Oil Pump
35301 90311-38020 Seal, Oil (For Front Oil Pump)
35301 90301-99010 Ring, O (For Front Oil Pump Body)
35301 90101-08042 Bolt (For Front Oil Pump Setting)
35301 90105-08137 Bolt (For Front Oil Pump Setting)
35302 35321-22010 Gear Sub-Assy, Front Oil Pump Drive
35302 35321-22090 Gear, Front Oil Pump Drive
35307 35370-30022 Shaft Sub-Assy, Stator
35307 35370-30023 Shaft Sub-Assy, Stator
35322 35322-22010 Gear, Front Oil Pump Driven
35322 35322-22090 Gear, Front Oil Pump Driven
35617 35617-16010 Ring, Oil Seal (For Overdrive Case)
35701 90374-25003 Bearing, Thrust (For Input Shaft Front)
9011906180 90119-06180 Bolt (For Stator Shaft)
9454200800 94542-00800 New Genuine Part
Transaxle Or Transmission Assy & Gasket Kit (Atm) ([08.1984 - ] (8408- )4FC..AVT,SXL,XG,XL) 4
#OEMPart name
4351 04351-30075 Gasket Kit, Automatic Transmission Overhaul
4351 04351-30110 Gasket Kit, Automatic Transmission Overhaul
35000 35000-2A280 Transmission Assy, Automatic
35000 35000-2A281 Transmission Assy, Automatic
Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([08.1984 - ] (8408- )5F) 2
#OEMPart name
4331 04331-20050 Gasket Kit, Manual Transmission Overhaul
33110 33030-22820 Transmission Assy, Manual
Transmission Case & Oil Pan (Atm) ([08.1984 - ] (8408- )LX70..4FC) 43
#OEMPart name
35013 35013-30080 Tube Sub-Assy, Transmission Oil Filler
35103 35103-30101 Gage Sub-Assy, Transmission Oil Level
35104 35104-26020 Case Sub-Assy, Automatic Transmission
35104 35104-26030 Case Sub-Assy, Automatic Transmission
35104 35104-26021 Case Sub-Assy, Automatic Transmission
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90930-03069 Plug, Breather, No.1 (Atm)
35104 90930-03108 Plug, Breather, No.1 (Atm)
35106 35106-30040 Pan Sub-Assy, Automatic Transmission Oil
35106 35106-30041 Pan Sub-Assy, Automatic Transmission Oil
35106 90341-10006 Plug (For Transfer Oil Pan)
35106 90341-10011 Drain Plug (No Type)
35106 35178-30010 Drain Plug Gasket
35111 35111-22060 Housing, Automatic Transmission
35111 35111-26030 Housing, Automatic Transmission
35111 90301-99006 Ring, O (For Automatic Transmission Housing)
35111 90301-99054 Ring, O (For Automatic Transmission Housing)
35111 90301-06196 O Ring, Transaxle Case, No.1
35118 33118-25020 Plate, Stiffener, Rh(Mtm)
35119 33119-25020 Plate, Stiffener, Lh(Mtm)
35143 35143-22010 Cover, Transmission Case, Rear
35144 35144-22010 Gasket, Transmission Case Rear Cover
35144 35144-28010 Gasket, Transmission Case Rear Cover
35168 35168-22011 Gasket, Automatic Transmission Oil Pan
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
9010510190 90105-10190 New Genuine Part
9010512144 90105-12144 New Genuine Part
9011906117 90119-06117 Bolt (For Automatic Transmission Oil Pan)
9011906117 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9111150814 91111-50814 Bolt (for Transmission Control Cable Bracket)
9111150814 91611-B0816 Bolt
9111151016 91111-51016 Bolt, Set (For Rear Brake Drum Setting)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161161028 91611-61028 Bolt(For Transaxle Case & Engine Setting)
9161161028 91612-61028 Bolt(For Transaxle Case & Engine Setting)
9161161040 91611-61040 Bolt(For Transaxle Case & Engine Setting)
9161161040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161961250 91619-61250 Bolt
9165161032 91651-61032 BOLT
9322016012 93220-16012 SCREW
9451100800 94511-00800 WASHERSPRING
9451101000 94511-01000 Washer(For Rear Drive Shaft)
Transmission Gear (Mtm) ([08.1984 - ] (8408- )5F) 110
#OEMPart name
33029 33029-22022 Shaft Set, Input
33103 90521-66002 Ring, Hole Snap(For Rear Bearing Set)
33311 90363-35007 Bearing (For Input Shaft Front)
33311 90520-33107 Ring, Shaft Snap (For Front Bearing)
33311 90520-33132 Ring, Shaft Snap (For Front Bearing)
33311 90520-33168 Ring, Shaft Snap (For Front Bearing)
33311 90520-33169 Ring, Shaft Snap (For Front Bearing)
33311 90520-33170 Ring, Shaft Snap (For Front Bearing)
33311 90520-33171 Ring, Shaft Snap (For Front Bearing)
33311 90520-33172 Ring, Shaft Snap (For Front Bearing)
33311 90364-19043 Bearing, Input Shaft
33311 90364-19006 Bearing, Input Shaft
33311 90520-76001 Ring, Shaft Snap (For Front Bearing)
33321 33321-22050 Shaft, Output
33321 33350-22010 Bearing (For Output Shaft Rear)
33321 90520-25003 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25004 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25270 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25271 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25272 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25273 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25284 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-25285 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28012 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-28014 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-28015 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-28016 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-28017 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-28018 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-28245 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90363-35009 Bearing (For Output Shaft Center)
33321 90520-33001 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33002 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33003 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33004 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33005 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33006 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33007 Ring, Shaft Snap (For Output Shaft Center Bearing)
33321 90520-33108 Ring, Shaft Snap (For Front Bearing)
33321 90520-33109 Ring, Shaft Snap (For Front Bearing)
33321 90520-33133 Ring, Shaft Snap (For Front Bearing)
33321 90520-33134 Ring, Shaft Snap (For Front Bearing)
33331 33331-22030 Gear, Reverse
33332 33033-22021 Gear, 2Nd
33332 33033-35080 Gear, 2Nd
33332 33367-30110 Ring, Synchronizer, No.1
33332 90364-43004 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-22021 Gear, 3Rd
33333 33034-30020 New Genuine Part
33333 33368-30130 Ring, Synchronizer, No.2
33335 33032-22021 Gear, 1St
33335 33032-30030 Gear, 1St
33336 33336-22021 Gear, 5Th
33336 33336-30030 Gear, 5Th
33338 90364-27002 Bush Or Bearing, 5Th Gear
33345 33345-22010 Bush, 1St Gear
33345 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33345 90080-36191 Ball, Check Valve
33361 33361-22020 Hub, Transmission Clutch, No.1
33362 33362-22020 Hub, Transmission Clutch, No.2
33363 33363-22021 Sleeve, Transmission Hub, No.1
33364 33364-22021 Sleeve, Transmission Hub, No.2
33365 33366-20011 Key, Synchromesh Shifting, No.1
33367 33367-22021 Ring, Synchronizer, No.1
33368 33368-20013 Ring, Synchronizer, No.2
33369 33367-14010 Ring, Synchronizer, No.1
33371 33371-22033 Spring, Synchromesh Shifting Key, No.1
33376 33371-14010 Spring, Synchromesh Shifting Key, No.1
33376 33392-22010 Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)
33377 33366-14010 Key, Synchromesh Shifting, No.2
33385 33385-22010 Retainer, Shifting Key
33391 33391-22030 Spring, Synchromesh Shifting Key, No.2
33393 33393-22020 Hub, Transmission Clutch, No.3
33393 90520-24002 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-24003 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-24004 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-24005 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33395 33395-22011 Sleeve, Transmission Hub, No.3
33402 33402-22022 Gear Sub-Assy, Reverse Idler
33402 33402-22023 Gear Sub-Assy, Reverse Idler
33411 90365-25014 Bearing Or Roller(For Counter Gear Front)
33411 90520-49222 Ring, Counter Gear Front Bearing Snap, No.1
33411 90363-22003 Bearing Or Roller(For Counter Gear Rear)
33411 90363-22007 Bearing Or Roller(For Counter Gear Rear)
33411 33430-22010 Bearing, Counter Shaft Center
33411 90520-23089 Ring, Shaft Snap (For Input Shaft)
33411 90520-23090 Ring, Shaft Snap (For Output Shaft Bearing)
33411 90520-23115 Ring, Shaft Snap (For Output Shaft Bearing)
33411 90520-23143 Ring, Shaft Snap (For Output Shaft Bearing)
33411 90520-23144 Ring, Shaft Snap (For Input Shaft)
33411 90520-23145 Ring, Shaft Snap (For Output Shaft Bearing)
33411 90520-23146 Ring, Shaft Snap (For Output Shaft Bearing)
33411 90520-20008 Ring, Snap, Counter Gear Rear Bearing
33411 90520-20009 Ring, Snap, Counter Gear Rear Bearing
33411 90520-20010 Ring, Snap, Counter Gear Rear Bearing
33411 90520-20011 Ring, Snap, Counter Gear Rear Bearing
33411 90520-20012 Ring, Snap, Counter Gear Rear Bearing
33411 90520-20013 Ring, Snap, Counter Gear Rear Bearing
33411 90520-20014 Ring, Snap, Counter Gear Rear Bearing
33428 33046-22013 Gear, Countershaft 5Th
33428 33046-35080 Gear, Countershaft 5Th
33431 33431-22030 Spacer, Counter Gear, No.1
33431 33431-22020 Spacer, Counter Gear, No.1
33451 33451-22021 Shaft, Reverse Idler Gear
33451 90523-17001 Ring, E (For Reverse Idler Gear Shaft)
33452 33452-22020 Stopper, Reverse Idler Gear Shaft
33481 33481-14031 Gear, Speedometer Drive (Mtm)
33481 90467-25001 Clip (For Speedometer Drive Gear)
9161161022 91611-61022 Bolt (For Transmission Control Cable Bracket)
9161161022 91612-61022 Bolt (For Transmission Control Cable Bracket)
V-Belt ([08.1984 - ] (8408- )) 5
#OEMPart name
16361 90916-02132 Belt, V(For Fan & Alternator)
16361 90916-02281 Belt, V(For Fan & Alternator)
44310 99332-00850 Belt, V(For Vane Pump)
88310 99322-01250 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
88310 99322-51250 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
Vacuum Piping ([08.1984 - ] (8408- )2L#) 6
#OEMPart name
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9099992004 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
9099992006 90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)
9099992007 90999-92007 Hose, Vacuum Tank
9099992008 90999-92008 Hose, Air
Vacuum Piping ([08.1984 - ] (8408- )2LT ; (8709- )2LT..4FC) 18
#OEMPart name
17650 89570-30100 Valve Assy, Vacuum Switching
23265 90917-11009 Filter, Gas, No.1
26191 26191-54060 Bracket, Intake Air Control Valve
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9044704053 90447-04053 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400107 90464-00107 New Genuine Part
9046400132 90464-00132 New Genuine Part
9046400151 90464-00151 New Genuine Part
9046400248 90464-00248 New Genuine Part
9046707016 90467-07016 Clip, Hose Fuel(For Injection Pump)
9046707016 90467-07094 Clip, Hose Fuel(For Injection Pump)
9092901096 90929-01096 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9162140812 91621-40812 BOLT
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Vacuum Piping ([09.1987 - ] (8408- )2LT ; (8709- )2LT..4FC) 18
#OEMPart name
17650 89570-30100 Valve Assy, Vacuum Switching
23265 90917-11009 Filter, Gas, No.1
26191 26191-54060 Bracket, Intake Air Control Valve
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9044704053 90447-04053 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400107 90464-00107 New Genuine Part
9046400132 90464-00132 New Genuine Part
9046400151 90464-00151 New Genuine Part
9046400248 90464-00248 New Genuine Part
9046707016 90467-07016 Clip, Hose Fuel(For Injection Pump)
9046707016 90467-07094 Clip, Hose Fuel(For Injection Pump)
9092901096 90929-01096 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9162140812 91621-40812 BOLT
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Vacuum Piping ([09.1987 - ] (8709- )2L) 3
#OEMPart name
2576054010 25760-54010 Hose Assy, Vacuum Transmitting
9046400107 90464-00107 New Genuine Part
9046400151 90464-00151 New Genuine Part
Vacuum Pump ([08.1984 - ] (8408- )2L#) 21
#OEMPart name
29300 29300-54050 Pump Assy, Vacuum
29300 90923-02077 Hose, Vacuum Pump Oil Inlet
29300 90923-02089 Hose, Vacuum Pump Oil Outlet
29300 90923-02096 Hose, Vacuum Pump Oil Inlet
29311 29311-76010 Pin, Vacuum Pump Dowel, No.1
29311 90099-08082 Pin, Vacuum Pump Dowel, No.1
29331 29331-56070 Blade, Vacuum Pump, A
29342 96740-02063 Packing, Vacuum Pump
29369 29369-56070 Valve Sub-Assy, Check
2744554110 27445-54110 New Genuine Part
2936466010 29364-66010 Washer, Vacuum Pump
9009904577 90099-04577 New Genuine Part
9020114099 90201-14099 Gasket(For Vacuum Pump Union)
9040109001 90401-09001 Bolt, Union(For Vacuum Pump Union)
9040109001 90401-09003 Bolt, Union(For Vacuum Pump Union)
9040110006 90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe)
9040114003 90401-14003 Bolt, Union(For Oil Cooler)
9040214006 90402-14006 New Genuine Part
9040451012 90404-51012 UNION VACCUM HOSE
9043010035 90430-10035 Gasket(For Water Hole)
9611210180 96112-10180 Clamp(For Oil Pipe)
Valve Body & Oil Strainer (Atm) ([08.1984 - ] (8408- )LX70..4FC) 125
#OEMPart name
35303 35303-30050 Strainer Sub-Assy, Oil
35339 35339-30050 Gasket, Oil Strainer
35339 35339-28010 Gasket, Oil Strainer
35409 35409-30010 Spring Sub-Assy, Manual Detent
35415 35415-22020 Valve, Pressure Regulator
35415 90501-16682 Spring, Compression (For Pressure Regulator Valve)
35415 90564-12004 Shim (For Pressure Regulator Valve)
35416 35416-30030 Plunger, Primary Regulator Valve, No.1
35417 35417-30050 Sleeve, Pressure Regulator Valve
35418 35418-30050 Valve, Manual
35419 35419-22010 Valve, Check, No.1
35419 90501-13003 Spring, Compression (For Check Valve)
35420 35496-22010 Ball (For Lower Valve Body)
35420 35496-22030 Ball (For Lower Valve Body)
35420 90501-04727 Spring (For Lower Valve Body)
35420 35420-30111 Body Assy, Lower Valve
35420 90360-13024 Ball (For Pressure Relief)
35420 90501-18677 Spring (For Pressure Relief)
35420 35427-22011 Seat (For Pressure Relief)
35421 35421-30020 Piston, Accumulator, No.1
35421 90501-26014 Spring, Compression (For Accumulator Piston No.1)
35421 90301-29187 Ring, O (For Low Speed Brake Accumulator Piston)
35421 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35421 35423-30010 Piston, Accumulator, No.2
35421 90501-15003 Spring, Compression (For Accumulator Piston No.2)
35421 90501-20038 Spring, Compression (For Accumulator Piston No.2)
35421 90301-26190 Ring, O (For Flange Yoke)
35421 90301-18186 Ring (For Accumulator Piston No.2)
35421 90301-18010 Ring (For Accumulator Piston No.2)
35421 35421-22030 Piston, Accumulator, No.3
35421 90501-20016 Spring, Compression (For Accumulator Piston No.3)
35421 90501-20063 Spring Sub-Assy, C-1 Accumulator
35421 90301-22185 Ring (For Accumulator Piston No.3)
35425 35425-22010 Seat, Pressure Regulator Valve Sleeve
35430 35430-30110 Body Assy, Rear Upper Valve
35430 35495-22010 Ball (For Transfer Upper Valve Body)
35430 35495-22020 Ball (For Transfer Upper Valve Body)
35430 90360-06023 Ball (For Rear Upper Valve Body)
35432 35432-22071 Plate, Valve Body, No.1
35433 35433-30052 Gasket, Valve Body, No.1
35434 35434-30052 Gasket, Valve Body, No.2
35435 35435-30030 Gasket, Valve Body Plate, No.3
35436 35436-30040 Gasket, Valve Body Plate, No.4
35437 35437-30020 Plate, 3-4 Shift Valve Separator
35440 35440-30081 Body Assy, Front Upper Valve
35444 35444-22010 Valve, Intermediate Modulator
35444 90501-11009 Spring, Compression (For Intermediate Modulator Valve)
35445 35445-22010 Valve, Low Modulator
35445 90501-08725 Spring, Compression (For Intermediate Modulator Valve)
35446 35446-20010 Valve, Governor Modulator
35449 35447-22010 Valve, Reverse Clutch Sequence
35449 90501-12726 Spring, Compression (For Reverse Clutch Sequence Valve)
35454 35454-30010 Valve, Low Coast Shift
35455 35455-22010 Plug, 1-2 Shift Valve Low
35456 35456-22010 Valve, 2-3 Shift
35456 90501-08724 Spring, Compression (For 2-3 Shift Valve)
35456 35452-22010 Plug (For 2-3 Shift Valve)
35456 35493-22020 Seat, Plug (For Lock Up Relay Valve)
35457 35457-22010 Valve, Detent Regulator
35457 90501-09025 Spring, Compression (For Detent Regulator Valve)
35457 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35458 35458-22010 Valve, Cut Back
35458 35459-22010 Plug (For Cut Back Valve)
35458 35493-22010 Seat (For Cut Back Valve)
35461 35408-30010 Plug Sub-Assy, Primary Down Shift
35462 35462-22011 Valve, Throttle
35462 90501-07680 Spring, Compression (For Throttle Valve)
35462 90501-12045 Spring, Compression (For Throttle Valve)
35462 35422-22010 Stopper, Valve Vibrating
35462 90523-06023 Ring, E (For Throttle Valve)
35463 35463-22010 Valve, 1-2 Shift, Lower
35464 90501-06684 Spring, Compression (For 1-2 Shift Valve)
35464 35464-22020 Valve, 1-2 Shift, Upper
35465 35465-22010 Plug, Intermediate Shift Valve
35467 35467-22010 Valve, Intermediate Shift
35468 35468-22010 Valve, Secondary Regulator
35468 90501-19001 Spring, Compression (For Secondary Regulator Valve)
35471 35471-22010 Cover, Valve Body, No.1
35472 35472-22010 Cover, Valve Body, No.2
35473 35473-22010 Cover, Transmission Valve Body
35474 35474-22010 Cover, Valve Body, No.4
35475 35475-30020 Cover, Valve Body, No.5
35476 35476-30010 Valve, 3Rd Coast Shift
35476 90334-12001 Plug, Straight (For 3Rd Coast Shift)
35476 90250-02012 Pin, Locating (For 3Rd Coast Shift)
35479 35479-22010 Seat, Intermediate Shift Valve
35491 35491-22010 Plug, Reverse Brake
35492 35492-30010 Valve, Manual Down Timing
35492 35494-30010 Plug (For Manual Down Timing Valve)
35492 35493-30040 Seat(For Low-High Shift Timing Valve Plug)
35497 35497-30020 Valve, 3-4 Shift
35497 90501-10060 Spring, Compression (For 3-4 Shift Valve)
35497 90334-13001 Plug (For 3-4 Shift Valve)
35497 90361-02051 Seat, Shift Valve Plug
35498 35498-30010 Valve, 3-4 Coast Shift
35499 35499-30030 Plug, 3-4 Shift Valve
35521 35521-20010 Cam, Throttle Valve
35521 90508-12331 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35599 35599-30010 Cover, Manual Detent Spring
35892 35892-30020 Tube, Overdrive Brake
35892 35892-28010 Tube, Overdrive Brake
35895 35895-30021 Tube, Front Clutch Apply
9010505002 90105-05002 New Genuine Part
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505007 90105-05007 New Genuine Part
9010505008 90105-05008 New Genuine Part
9010505009 90105-05009 New Genuine Part
9010505012 90105-05012 New Genuine Part
9010505013 90105-05013 New Genuine Part
9010506014 90105-06014 New Genuine Part
9010506017 90105-06017 Bolt(for Cylinder Head Cover)
9010506017 91551-A0625 Bolt(For Cylinder Head Cover)
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506020 90105-06020 New Genuine Part
9010506020 91511-C0630 New Genuine Part
9010506025 90105-06025 New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE
9010506026 90105-06026 Bolt (For Transaxle Case Upper Cover)
9010506026 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010506042 90105-06042 New Genuine Part
9010506055 90105-06055 New Genuine Part
Vane Pump & Reservoir (Power Steering) ([08.1984 - ] (8408- )LX70) 80
#OEMPart name
4446 04446-30030 Gasket Kit, Power Steering Pump
4446 04446-35010 Gasket Kit, Power Steering Pump
44302 44302-22020 Housing Sub-Assy, Vane Pump, Front
44302 90301-60001 Ring, O, No.1(For Vane Pump Housing)
44302 96711-19016 Ring, O (For 5Th Shift Arm Shaft)
44302 90311-24001 Seal, Oil, No.1(For Vane Pump Housing)
44302 90311-24006 Seal, Oil, No.2(For Vane Pump Housing)
44302 90311-24009 Seal, Oil, No.2(For Vane Pump Housing)
44302 90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)
44304 44304-30050 Housing Sub-Assy, Vane Pump, Rear
44304 44304-30051 Housing Sub-Assy, Vane Pump, Rear
44304 44343-12040 Seat, Flow Control Spring
44304 90501-12103 Spring, Compression(For Flow Control Valve)
44305 44305-22020 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22050 Cap Sub-Assy, Vane Pump Oil Reservoir
44308 44308-14041 Union Sub-Assy, Pressure Port
44310 44320-22260 Pump Assy, Vane
44310 44320-22261 Pump Assy, Vane
44311 44311-30040 Pulley, Vane Pump
44311 90280-05008 Key, Woodruff(For Distributor Drive Gear)
44311 90170-12011 Nut(For Vane Pump Pulley)
44312 44312-12010 Shaft, Vane Pump
44312 90363-17004 Bearing(For Vane Pump Shaft)
44312 90520-15001 Ring, Snap, No.1(For Vane Pump Shaft)
44312 90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-12010 Rotor, Vane Pump
44313 44313-22040 Rotor, Vane Pump
44313 44313-12020 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-12030 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-12040 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-12050 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44326 44325-12010 Ring, Cam(For Vane Pump)
44326 44325-12020 Ring, Cam(For Vane Pump)
44326 44325-12030 Ring, Cam(For Vane Pump)
44326 44325-12040 Ring, Cam(For Vane Pump)
44326 44325-12050 Ring, Cam(For Vane Pump)
44326 44325-30150 Ring, Cam(For Vane Pump)
44326 44325-30160 Ring, Cam(For Vane Pump)
44326 44325-30170 Ring, Cam(For Vane Pump)
44326 44325-30180 Ring, Cam(For Vane Pump)
44326 44325-30190 Ring, Cam(For Vane Pump)
44326 90250-05008 Pin, Straight(For Vane Pump Cam Ring)
44330 44330-14010 Valve Assy, Flow Control
44330 44330-35191 Valve Assy, Flow Control
44330 44330-14020 Valve Assy, Flow Control
44330 44330-35201 Valve Assy, Flow Control
44330 44330-14030 Valve Assy, Flow Control
44330 44330-35211 Valve Assy, Flow Control
44330 44330-14040 Valve Assy, Flow Control
44330 44330-35221 Valve Assy, Flow Control
44330 44330-14050 Valve Assy, Flow Control
44330 44330-35231 Valve Assy, Flow Control
44330 44330-14060 Valve Assy, Flow Control
44330 44330-35241 Valve Assy, Flow Control
44330 90501-12447 Spring, Compression(For Flow Control Valve)
44330 96151-01700 Ring, Snap(For Flow Control Valve)
44337 44337-30010 Union, Power Steering Suction Port
44337 96711-19013 Ring, O(For Power Steering Suction Port)
44338 90301-22001 Ring, O(For Pressure Port Union)
44338 96711-19014 O-Ring
44342 44341-12010 Plate, Vane Pump Side, Front
44342 90301-53002 Ring, O(For Vane Pump Side Plate Rear)
44342 90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)
44343 44343-12010 Seat, Flow Control Spring
44348 44345-12010 Plate, Vane Pump
44348 44345-12020 Plate, Vane Pump
44348 44345-12030 Plate, Vane Pump
44348 44345-12040 Plate, Vane Pump
44348 44345-12050 Plate, Vane Pump
44360 44360-22100 Reservoir Assy, Vane Pump Oil
44362 90540-09004 Cushion(For Vane Pump Oil Reservoir)
44362 90560-06014 Spacer(For Vane Pump Oil Reservoir)
9011910072 90119-10072 New Genuine Part
9020112022 90201-12022 New Genuine Part
9161160814 91611-60814 Bolt
9451101200 94511-01200 WASHER
Ventilation Hose ([08.1984 - ] (8408- )2L#) 3
#OEMPart name
12261 12261-54020 Hose, Ventilation
12261 90467-15120 Clip Or Clamp(For Ventilation Hose)
12262 12262-54010 Hose, Ventilation, No.2
Venturi ([08.1984 - 09.1987] (8408-8709)2LT ; (8709- )2LT..4FC) 9
#OEMPart name
22770 26133-54051 Actuator, Idel Up
22770 26133-54080 Actuator, Idel Up
26100 26100-54070 Venturi Assy
26100 26100-54071 Venturi Assy
26171 26171-54010 Gasket, Intake Flange
26171 26171-54011 Gasket, Intake Flange
9009210101 90092-10101 Nut (For Front Wiper Arm Setting)
9338116014 93381-16014 New Genuine Part
9338118014 93381-18014 New Genuine Part
Venturi ([09.1987 - ] (8408-8709)2LT ; (8709- )2LT..4FC) 9
#OEMPart name
22770 26133-54051 Actuator, Idel Up
22770 26133-54080 Actuator, Idel Up
26100 26100-54070 Venturi Assy
26100 26100-54071 Venturi Assy
26171 26171-54010 Gasket, Intake Flange
26171 26171-54011 Gasket, Intake Flange
9009210101 90092-10101 Nut (For Front Wiper Arm Setting)
9338116014 93381-16014 New Genuine Part
9338118014 93381-18014 New Genuine Part
Water Pump ([08.1984 - ] (8408- )2L#) 11
#OEMPart name
16100 16100-59137 Pump Assy, Engine Water
16100 16100-59139 Pump Assy, Engine Water
16171 16171-54011 Seat, Water Pump Pulley
16210 16210-54060 Coupling Assy, Fluid
16241 16193-13020 Bolt, Stud(For Water Pump Cover)
16271 16271-54012 Gasket, Water Pump
16271 16271-54014 Gasket, Water Pump
16371 16371-54020 Pulley, Fan
9011908108 90119-08108 Bolt(For Clutch Master Cylinder Setting)
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
Windshield Washer ([08.1984 - ] (8408- )) 30
#OEMPart name
85033 85332-12320 Cap Assy, Windshield Washer
85310 85310-22080 Motor And Pump Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85331 85331-22360 Jar Sub-Assy, Windshield Washer
85345 85035-22140 Nozzle, Windshield Washer
85345 85035-22210-01 Nozzle, Windshield Washer
85345 85035-22170 Nozzle, Windshield Washer
85345 85035-22210-08 Nozzle, Windshield Washer
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85349-89122 Valve Sub-Assy, Washer
85348 85352-30221 Joint, Windshield Washer Hose, No.1
85348 85355-14481 Joint, Windshield Washer Elbow, No.1
85355 85031-12250 Valve Sub-Assy, Washer
85356 85356-30221 Packing (For Windshield Washer Jar)
85361 16611-22010 Holder, Windshield Washer
85371 90446-07001 Hose, Windshield Washer (From Motor To Joint)
85372 90099-33299 Joint, Windshield Washer Elbow, No.2
85373 90446-06013 Hose, Windshield Washer (From Motor To Joint)
9011906110 90119-06110 New Genuine Part
9011906110 90119-06442 BOLT WWASHER
9046400020 90464-00020 New Genuine Part
9046400200 90464-00200 Clamp, Throttle Wire
9098901031 90989-01031 New Genuine Part
9098901037 90989-01037 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165640616 91656-40616 Bolt
9338516012 93385-16012 New Genuine Part
9411040600 94110-40600 Nut, Rock
Windshield Wiper ([08.1984 - ] (8408- )) 68
#OEMPart name
85110 85110-22280 Motor Assy, Windshield Wiper
85110 85110-91602 Motor Assy, Windshield Wiper
85110 85110-22281 Motor Assy, Windshield Wiper
85110 85110-22290 Motor Assy, Windshield Wiper
85110 85110-22292 Motor Assy, Windshield Wiper
85110 85110-22291 Motor Assy, Windshield Wiper
85110 85110-22400 Motor Assy, Windshield Wiper
85110 85110-22402 Motor Assy, Windshield Wiper
85110 85110-22401 Motor Assy, Windshield Wiper
85160 85160-22220 Link Assy, Windshield Wiper
85160 85160-22230 Link Assy, Windshield Wiper
85160 85160-22210 Link Assy, Windshield Wiper
85160 85160-22250 Link Assy, Windshield Wiper
85160 85160-22260 Link Assy, Windshield Wiper
85160 85160-22261 Link Assy, Windshield Wiper
85160 85150-23030 Link Assy, Windshield Wiper
85160 85160-22370 Link Assy, Windshield Wiper
85160 85150-23040 Link Assy, Windshield Wiper
85160 85160-22371 Link Assy, Windshield Wiper
85160 85160-22380 Link Assy, Windshield Wiper
85160 85160-22381 Link Assy, Windshield Wiper
85178 90176-08029 Nut (For Front Wiper Arm Setting)
85178 90176-08033 Nut (For Front Wiper Arm Setting)
85190 85190-22490 Arm Assy, Windshield Wiper
85190 85190-22491 Arm Assy, Windshield Wiper
85190 85210-22170 Arm Assy, Windshield Wiper
85190 85210-22171 Arm Assy, Windshield Wiper
85190 85190-22480 Arm Assy, Windshield Wiper
85190 85190-22481 Arm Assy, Windshield Wiper
85190 85190-22510 Arm Assy, Windshield Wiper
85190 85211-23040 Arm Assy, Windshield Wiper
85190 85190-22511 Arm Assy, Windshield Wiper
85190 85190-22640 Arm Assy, Windshield Wiper
85190 85210-22180 Arm Assy, Windshield Wiper
85190 85221-23050 Arm Assy, Windshield Wiper
85190 85210-22181 Arm Assy, Windshield Wiper
85190 85210-22250 Arm Assy, Windshield Wiper
85190 85210-22251 Arm Assy, Windshield Wiper
85220 85220-12620 Blade Assy, Windshield Wiper
85220 85291-12010 Blade Assy, Windshield Wiper
85220 85220-16320 Blade Assy, Windshield Wiper
85220 85222-12700 Blade Assy, Windshield Wiper
85220 85220-16460 Blade Assy, Windshield Wiper
85220 85220-16520 Blade Assy, Windshield Wiper
85220 85220-16580 Blade Assy, Windshield Wiper
85220 85291-16010 Blade Assy, Windshield Wiper
85220 85220-16650 Blade Assy, Windshield Wiper
85220 85220-30360 Blade Assy, Windshield Wiper
85220 85220-30370 Blade Assy, Windshield Wiper
85220 85220-32310 Blade Assy, Windshield Wiper
85220 85212-23040 Blade Assy, Windshield Wiper
85220 85220-32440 Blade Assy, Windshield Wiper
85220 85220-32620 Blade Assy, Windshield Wiper
85220 85220-16330 Blade Assy, Windshield Wiper
85220 85222-23060 Blade Assy, Windshield Wiper
85220 85220-16500 Blade Assy, Windshield Wiper
85220 85220-16660 Blade Assy, Windshield Wiper
85221 85221-22110 Blade, Windshield Wiper
85221 85214-24H90 Blade, Rear Wiper
85221 85221-22120 Blade, Windshield Wiper
85221 85221-30110 Blade, Windshield Wiper
85221 85221-30120 Blade, Windshield Wiper
85221 85221-30130 Blade, Windshield Wiper
85221 85221-40040 Blade, Windshield Wiper
9009900913 90099-00913 SCREW
9009900955 90099-00955 New Genuine Part
9011906151 90119-06151 New Genuine Part
9095001584 90950-01584 New Genuine Part
Wiring & Clamp ([08.1984 - ] (8408- )) 104
#OEMPart name
82151 82151-22150 Wire, Front Door, Rh
82151 82151-22151 Wire, Front Door, Rh
82151 82151-22152 Wire, Front Door, Rh
82152 82152-22120 Wire, Front Door, Lh
82152 82152-22121 Wire, Front Door, Lh
82152 82152-22122 Wire, Front Door, Lh
82161 82161-22301 Wire, Floor
82161 82161-22302 Wire, Floor
82161 82161-22370 Wire, Floor
82162 82162-22130 Wire, Floor, No.2
82162 82162-22131 Wire, Floor, No.2
82162 82162-22132 Wire, Floor, No.2
82162 82162-22190 Wire, Floor, No.2
82162 82162-22191 Wire, Floor, No.2
82171 82171-22090 Wire, Roof, No.1
82171 82171-22091 Wire, Roof, No.1
82171 82171-22100 Wire, Roof, No.1
82171 82171-22101 Wire, Roof, No.1
82181 82181-22110 Wire, Luggage Room, No.1
82181 82181-22111 Wire, Luggage Room, No.1
82181 82181-22112 Wire, Luggage Room, No.1
82186 82186-22020 Wire, Rear Window, No.1
82817 82817-22360 Protector, Wiring Harness, No.2
82817 82817-14380 Protector, Wiring Harness, No.8
82981 82981-16010 Wire, Headlamp Repair
82982 82982-22010 Wire, Clearance Lamp Repair
82983 82983-22050 Wire, Front Turn Signal Lamp Repair
82984 82984-22010 Wire, Horn Repair
82987 82987-30010 Wire, Fog Lamp Repair
82991 82991-14010 Wire, Fusible Link Repair
827111 82711-1A210 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A010 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A020 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A090 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A040 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A050 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A110 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A130 Clamp, Hood Lock Control Wire
827112 82711-16820 Clamp, Hood Lock Control Wire
827112 82711-2A170 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A210 Wire, Fuse To Fuse(for Combustion Heater)
827112 82711-2A480 Wire, Fuse To Fuse(for Combustion Heater)
8271112120 82711-12120 Clamp(Rear Seat)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271112290 82711-12290 Wire, Fuse To Fuse(for Combustion Heater)
8271112770 82711-12770 Wire, Fuse To Fuse(for Combustion Heater)
8271114100 82711-14100 Wire, Fuse To Fuse(for Combustion Heater)
8271114110 82711-14110 Clamp(For Hood Lock Control Cable)
8271114120 82711-14120 Wire, Fuse To Fuse(for Combustion Heater)
8271114350 82711-14350 Wire, Fuse To Fuse(for Combustion Heater)
8271114560 82711-14560 Wire, Fuse To Fuse(for Combustion Heater)
8271114570 82711-14570 Wire, Fuse To Fuse(for Combustion Heater)
8271114620 82711-14620 Bracket, Relay, No.3
8271116180 82711-16180 Clamp, No.2(For Luggage Door Lock Control Cable)
8271120260 82711-20260 Wire, Fuse To Fuse(for Combustion Heater)
8271122140 82711-22140 Wire, Fuse To Fuse(for Combustion Heater)
8271122150 82711-22150 Wire, Fuse To Fuse(for Combustion Heater)
8271122220 82711-22220 Clamp (For Speedometer Cable)
8271122300 82711-22300 Wire, Fuse To Fuse(for Combustion Heater)
8271122350 82711-22350 Wire, Fuse To Fuse(for Combustion Heater)
8271122460 82711-22460 Wire, Fuse To Fuse(for Combustion Heater)
8271122490 82711-22490 Wire, Fuse To Fuse(for Combustion Heater)
8271122490 82711-37250 Wire, Fuse To Fuse(for Combustion Heater)
8271122620 82711-22620 Wire, Fuse To Fuse(for Combustion Heater)
8271122640 82711-22640 Wire, Fuse To Fuse(for Combustion Heater)
8271122670 82711-22670 Wire, Fuse To Fuse(for Combustion Heater)
8271122710 82711-22710 Wire, Fuse To Fuse(for Combustion Heater)
8271122720 82711-22720 Wire, Fuse To Fuse(for Combustion Heater)
8271122820 82711-22820 Wire, Fuse To Fuse(for Combustion Heater)
8271122860 82711-22860 Wire, Fuse To Fuse(for Combustion Heater)
8271122870 82711-22870 Wire, Fuse To Fuse(for Combustion Heater)
8271122880 82711-22880 Wire, Fuse To Fuse(for Combustion Heater)
8271124070 82711-24070 Clamp(For Hood Lock Control Cable)
8271124090 82711-24090 Wire, Fuse To Fuse(for Combustion Heater)
8271124240 82711-24240 Wire, Fuse To Fuse(for Combustion Heater)
8271124400 82711-24400 Wire, Fuse To Fuse(for Combustion Heater)
8271130070 82711-30070 Wire, Fuse To Fuse(for Combustion Heater)
8271130130 82711-30130 Wire, Fuse To Fuse(for Combustion Heater)
8271130180 82711-30180 Wire, Fuse To Fuse(for Combustion Heater)
8271130200 82711-30200 Wire, Fuse To Fuse(for Combustion Heater)
8271130360 82711-30360 Clamp(For Transfer Vacuum Tube)
8271130360 82711-22270 Clamp(For Transfer Vacuum Tube)
8271130380 82711-30380 Wire, Fuse To Fuse(for Combustion Heater)
8271130550 82711-30550 Wire, Fuse To Fuse(for Combustion Heater)
8271130590 82711-30590 Wire, Fuse To Fuse(for Combustion Heater)
8271130640 82711-30640 Wire, Fuse To Fuse(for Combustion Heater)
8271130780 82711-30780 Wire, Fuse To Fuse(for Combustion Heater)
8281922160 82819-22160 Grommet, Wiring Harness
8281922220 82819-22220 Grommet, Wiring Harness
8281922250 82819-22250 Grommet, Wiring Harness
9011906067 90119-06067 BOLT
9046108183 90461-08183 Wire, Fuse To Fuse(for Combustion Heater)
9046108200 90461-08200 New Genuine Part
9046108312 90461-08312 New Genuine Part
9046108483 90461-08483 New Genuine Part
9046108514 90461-08514 New Genuine Part
9046310012 90463-10012 New Genuine Part
9046310337 90463-10337 CLAMP
9046312014 90463-12014 Clamp, Hood Lock Control Wire
9046312570 90463-12570 CLAMP
9046400052 90464-00052 New Genuine Part
9046400137 90464-00137 New Genuine Part
9046400166 90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7
9095001252 90950-01252 New Genuine Part
Wiring & Clamp ([08.1984 - ] (8408- )LX70) 34
#OEMPart name
82111 82111-22480 Wire, Engine Room Main
82111 82111-22481 Wire, Engine Room Main
82121 82121-22280 Wire, Engine
82121 82121-22380 Wire, Engine
82121 82121-22281 Wire, Engine
82121 82121-22282 Wire, Engine
82121 82121-22390 Wire, Engine
82121 82121-22391 Wire, Engine
82121 82121-22283 Wire, Engine
82121 82121-22284 Wire, Engine
82125 82125-22030 Wire, Transmission
82131 82131-2A110 Wire, Cowl
82131 82131-2A111 Wire, Cowl
82131 82131-2A112 Wire, Cowl
82131 82131-2A113 Wire, Cowl
82131 82131-22630 Wire, Cowl
82131 82131-22631 Wire, Cowl
82131 82131-22632 Wire, Cowl
82131 82131-22633 Wire, Cowl
82131 82131-22634 Wire, Cowl
82131 82131-22635 Wire, Cowl
82210 90982-08188 Fusible Link
82210 90982-08189 Fusible Link
82210 90982-08203 Fusible Link
82221 82221-30030 Wire, Oil Pressure Switch
82620 82602-22150 Block Assy, Fusible Link
82817 82817-22420 Protector, Wiring Harness, No.1
82817 82817-32010 Protector, Wiring Harness, No.1
82823 82823-32020 Cap, Terminal, No.1
9011906005 90119-06005 New Genuine Part
9011906067 90119-06067 BOLT
9017906162 90179-06162 New Genuine Part
9017906162 90179-06308 NUT
9165160614 91651-60614 Bolt
Source
Public OEM parts-catalog data
Variants
2 / 6
Category
205
Collected
2026-08-02
