LN50

Toyota HILUX-4RUNNER-TRUCK · 1983 · 4,040 parts · 288 categories

4,040 items

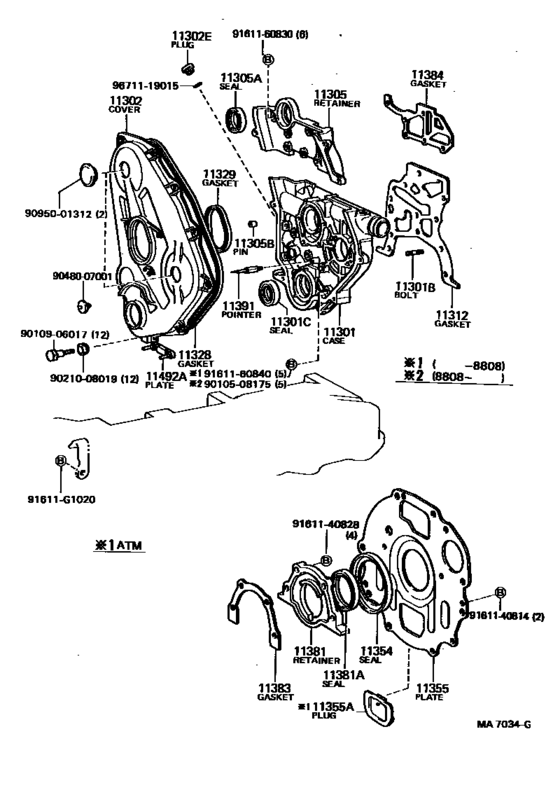

Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#) 39

#	OEM	Part name
11301	11311-54022	Case Sub-Assy, Timing Gear
11301	92132-60828	Bolt,stud(For Timing Gear Case)
11301	90311-42012	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	11321-54014	Cover Sub-Assy, Timing Chain Or Belt
11302	90341-18004	Plug, Straight(For Timing Gear Cover)
11305	11382-54010	Retainer, Oil Seal, No.2
11305	90311-42003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11305	90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11305	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
11312	11312-54013	Gasket, Front End Plate
11312	11312-54030	Gasket, Front End Plate
11328	11328-54010	Gasket, Timing Gear Or Chain Cover
11329	11329-54011	Gasket, Timing Gear Rear Cover
11354	11354-54010	Seal, Flywheel Housing Dust
11355	11355-54030	Plate, Rear End
11381	11381-54010	Retainer, Engine Rear Oil Seal
11381	90311-85003	Seal, Engine Rear Oil
11381	90311-85009	Seal, Engine Rear Oil
11383	11383-54010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-54030	Gasket, Engine Rear Oil Seal Retainer
11384	11384-54010	Gasket, Oil Seal Retainer, No.2
11384	11384-54011	Gasket, Oil Seal Retainer, No.2
11391	11391-54010	Pointer, Timing
11492	11492-54010	Plate, Water Seal
91611	91611-G1020	Bolt(for Transaxle & Engine Setting)
91611	91612-B1020	Bolt (For Transfer Case)Cover No.2
9010508175	90105-08175	Bolt(For Crankshaft Bearing Cap Set)
9010906017	90109-06017	BOLT
9021008019	90210-08019	WASHER
9021008019	90080-21002	WASHER
9048007001	90480-07001	New Genuine Part
9095001312	90950-01312	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140828	91611-40828	Bolt(For Clutch Release Cylinder Setting)
9161140828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9161160840	91611-60840	BOLT
9671119015	96711-19015	Ring, O(For Power Steering Pump Tight Plug)

OEM	Part name	Category
11311-54022	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11312-54013	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11312-54030	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11321-54014	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11328-54010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11329-54011	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11354-54010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11355-54030	Plate, Rear End	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11381-54010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11382-54010	Retainer, Oil Seal, No.2	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11383-54010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11383-54030	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11384-54010	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11384-54011	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11391-54010	Pointer, Timing	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
11492-54010	Plate, Water Seal	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90105-08175	Bolt(For Crankshaft Bearing Cap Set)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90109-06017	BOLT	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90210-08019	WASHER	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90311-42003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90311-42012	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90311-85003	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90311-85009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90341-18004	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90480-07001	New Genuine Part	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
90950-01312	New Genuine Part	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-40828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-60814	Bolt	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-60840	BOLT	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91611-G1020	Bolt(for Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
92132-60828	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
96711-19015	Ring, O(For Power Steering Pump Tight Plug)	Timing Gear Cover & Rear End Plate ([11.1983 - ] (8311- )L,2L#)
