検索 › 型式 › LN50

LN50

Toyota ハイラックス · 1983 · 4,040 部品 · 288 カテゴリ

4,040 件

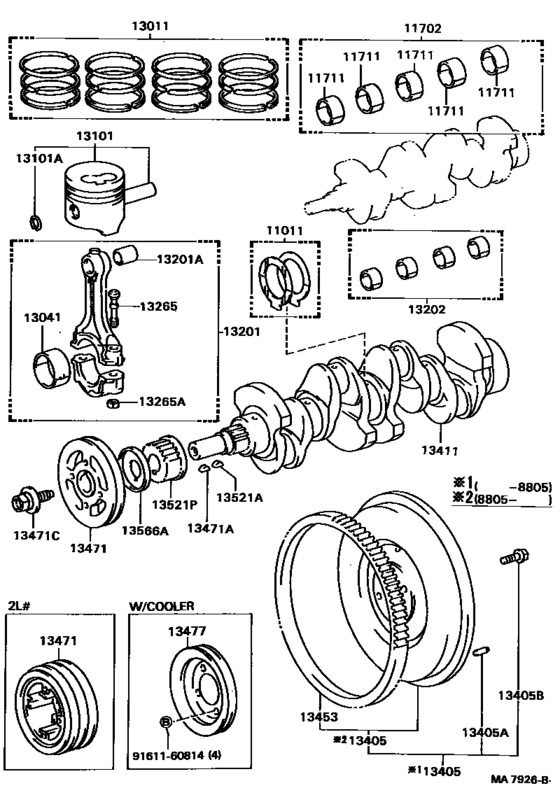

Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#) 56

#	OEM	部品名
11011	11011-54010	Washer Set, Crankshaft Thrust
11011	11011-54020	Washer Set, Crankshaft Thrust
11011	11012-54010	Washer Set, Crankshaft Thrust
11011	11012-54020	Washer Set, Crankshaft Thrust
11011	11013-54010	Washer Set, Crankshaft Thrust
11011	11013-54020	Washer Set, Crankshaft Thrust
11702	11704-54060	Bearing Set, Crankshaft
11702	11704-54081	Bearing Set, Crankshaft (0.25)
11702	11705-54060	Bearing Set, Crankshaft (0.50)
11702	11705-54081	Bearing Set, Crankshaft (0.50)
11711	11701-54060-01	Bearing, Crankshaft
11711	11701-54081-01	Bearing, Crankshaft
11711	11701-54060-02	Bearing, Crankshaft
11711	11701-54081-02	Bearing, Crankshaft
11711	11701-54060-03	Bearing, Crankshaft
11711	11701-54081-03	Bearing, Crankshaft
13011	13011-54042	Ring Set, Piston
13011	13011-54080	Ring Set, Piston
13011	13013-54042	Ring Set, Piston
13011	13013-54080	Ring Set, Piston
13041	13041-54013-01	Bearing, Connecting Rod
13041	13041-54024-01	Bearing, Connecting Rod
13041	13041-54013-02	Bearing, Connecting Rod
13041	13041-54024-02	Bearing, Connecting Rod
13041	13041-54013-03	Bearing, Connecting Rod
13041	13041-54024-03	Bearing, Connecting Rod
13101	13101-54040	Piston Sub-Assy, W/pin
13101	13103-54040	Piston Sub-Assy, W/pin
13101	90521-29003	Ring, Hole Snap(For Piston Pin)
13201	13201-59016	Rod Sub-Assy, Connecting
13201	13201-59017	Rod Sub-Assy, Connecting
13201	90999-73083	Bush(For Connecting Rod Small End)
13202	13204-54013	Bearing Set, Connecting Rod
13202	13204-54024	Bearing Set, Connecting Rod
13202	13205-54013	Bearing Set, Connecting Rod
13202	13205-54024	Bearing Set, Connecting Rod
13265	13265-54011	Bolt, Connecting Rod
13265	13265-54020	Bolt, Connecting Rod
13265	90170-10005	Nut, Hexagon(For Connecting Rod Bolt)
13265	90179-10123	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-59035	Flywheel Sub-Assy
13405	13405-54013	Flywheel Sub-assy
13405	90105-12109	Bolt, Flywheel Setting
13405	90250-08054	Pin, Straight
13405	90105-12011	Bolt, Flywheel Setting
13411	13401-54013	Crankshaft
13453	13453-54010	Gear, Flywheel Ring
13471	13471-54011	Pulley, Crankshaft
13471	95161-20622	Key, Crankshaft(For Crankshaft Pulley Set)
13471	95161-30622	Key, Crankshaft(For Crankshaft Pulley Set)
13471	90119-14005	Washer, Plate(For Crankshaft Pulley Set)
13477	88451-35010	Pulley, Crankshaft, No.2
13521	13521-54020	Pulley, Crankshaft Timing
13566	13566-54010	Guide, Timing Belt
13566	13566-54040	Guide, Timing Belt
9161160814	91611-60814	Bolt

OEM	部品名	カテゴリ
11011-54010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11011-54020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11012-54010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11012-54020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11013-54010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11013-54020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11701-54060-01	Bearing, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11701-54060-02	Bearing, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11701-54060-03	Bearing, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11701-54081-01	Bearing, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11701-54081-02	Bearing, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11701-54081-03	Bearing, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11704-54060	Bearing Set, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11704-54081	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11705-54060	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
11705-54081	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13011-54042	Ring Set, Piston	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13011-54080	Ring Set, Piston	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13013-54042	Ring Set, Piston	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13013-54080	Ring Set, Piston	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13041-54013-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13041-54013-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13041-54013-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13041-54024-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13041-54024-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13041-54024-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13101-54040	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13103-54040	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13201-59016	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13201-59017	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13204-54013	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13204-54024	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13205-54013	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13205-54024	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13265-54011	Bolt, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13265-54020	Bolt, Connecting Rod	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13401-54013	Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13405-54013	Flywheel Sub-assy	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13405-59035	Flywheel Sub-Assy	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13453-54010	Gear, Flywheel Ring	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13471-54011	Pulley, Crankshaft	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13521-54020	Pulley, Crankshaft Timing	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13566-54010	Guide, Timing Belt	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
13566-54040	Guide, Timing Belt	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
88451-35010	Pulley, Crankshaft, No.2	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90105-12011	Bolt, Flywheel Setting	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90105-12109	Bolt, Flywheel Setting	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90119-14005	Washer, Plate(For Crankshaft Pulley Set)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90170-10005	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90179-10123	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90250-08054	Pin, Straight	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90521-29003	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
90999-73083	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
91611-60814	Bolt	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
95161-20622	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)
95161-30622	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([11.1983 - ] (8311- )L,2L#)

ソース: OEM純正パーツカタログ公開情報
Variants: 2 / 15
カテゴリ: 288
収集日: 2026-08-03
