Search › Model › LN30

LN30

Toyota HILUX-4RUNNER-TRUCK · 1979 · 3,764 parts · 156 categories

3,764 items

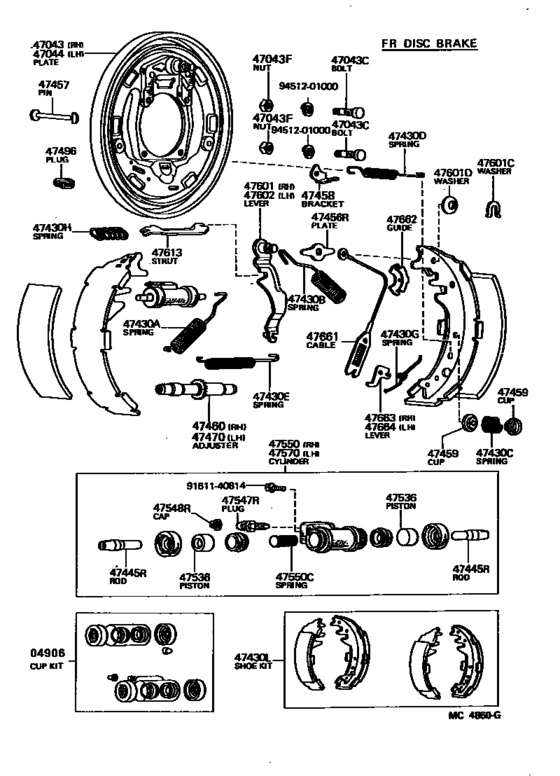

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA) 71

#	OEM	Part name
4906	04906-31010	Cup Kit, Rear Wheel Cylinder
4906	04906-35080	Cup Kit, Rear Wheel Cylinder
47043	47043-35041	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-35042	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-35050	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-35051	Plate Sub-Assy, Brake Backing, Rear Rh
47043	90114-10002	Bolt, Serration (For Rear Axle Flange)
47043	90114-10016	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90170-10172	Nut(For Backing Plate To Rear Axle Housing Setting)
47043	90179-10067	Nut (For Rear Axle Shaft)
47044	47044-35031	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-35032	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-35040	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-35041	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90506-26331	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-26394	Spring, Tension(For Rear Brake Shoe Return)
47430	90501-20225	Spring(For Rear Brake Shoe Hold Down)
47430	90501-20604	Spring(For Rear Brake Shoe Hold Down)
47430	90506-12412	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-16343	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-26002	Spring, Tension(For Rear Brake Shoe Return)
47430	90508-20261	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47430	90508-20262	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47430	90504-18012	Spring, Compression(For Parking Brake Shoe Strut)
47430	04495-26020	Shoe Kit, Rear Brake
47430	04495-26200	Shoe Kit, Rear Brake
47430	04495-35051	Shoe Kit, Rear Brake
47430	04495-35180	Shoe Kit, Rear Brake
47445	47538-35010	Rod, Rear Wheel Cylinder
47456	47456-20010	Plate, Rear Brake Shoe Guide
47457	47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)
47458	47457-35010	Bracket, Rear Brake Shoe Return Spring
47458	47457-35020	Bracket, Rear Brake Shoe Return Spring, Rh
47458	47458-35010	Bracket, Rear Brake Shoe Return Spring
47458	47458-35020	Bracket, Rear Brake Shoe Return Spring
47459	47449-20011	Cup, Brake Shoe Hold Down
47459	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47460	47405-30010	Adjuster Assy, Shoe, Rh(For Rear Brake)
47460	47405-30011	Adjuster Assy, Shoe, Rh(For Rear Brake)
47460	47405-30020	Adjuster Assy, Shoe, Rh(For Rear Brake)
47470	47406-30010	Adjuster Assy, Shoe, Lh(For Rear Brake)
47470	47406-30011	Adjuster Assy, Shoe, Lh(For Rear Brake)
47470	47406-30020	Adjuster Assy, Shoe, Lh(For Rear Brake)
47496	47491-35040	Plug, Hole(For Rear Brake)
47536	47531-20071	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47531-26070	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47531-31011	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47531-26080	Piston, Wheel Brake Cylinder(For Rear Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47547	47547-26010	Plug, Bleeder (For Deceleration Sensing Proportionin)
47548	31478-30010	Bleeder Plug Cap
47550	47550-29175	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-26100	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	91611-60814	Bolt
47550	47550-29265	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-26090	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-29275	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-39115	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47509-20010	Spring Sub-Assy, Rear Wheel Cylinder Piston
47550	47509-22010	Spring, Compression(For Rear Wheel Brake Cylinder)
47601	47601-35011	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90213-07010	Washer, Type C(For Parking Brake Shoe)
47601	90206-10059	Washer, Wave(For Rear Brake)
47602	47602-35011	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47613	47613-35011	Strut, Parking Brake Shoe (For Rear Brake)
47613	47614-35011	Strut, Parking Brake Shoe (For Rear Brake)
47661	47607-30010	Cable Sub-Assy, Rear Beake Automatic Adjust
47662	47642-20010	Guide, Rear Brake Automatic Adjust Cable
47663	47643-20011	Lever, Rear Brake Automatic Adjust, Rh
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04495-26020	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
04495-26200	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
04495-35051	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
04495-35180	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
04906-31010	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
04906-35080	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47043-35041	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47043-35042	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47043-35050	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47043-35051	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47044-35031	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47044-35032	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47044-35040	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47044-35041	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47405-30010	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47405-30011	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47405-30020	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47406-30010	Adjuster Assy, Shoe, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47406-30011	Adjuster Assy, Shoe, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47406-30020	Adjuster Assy, Shoe, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47449-20011	Cup, Brake Shoe Hold Down	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47456-20010	Plate, Rear Brake Shoe Guide	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47457-35010	Bracket, Rear Brake Shoe Return Spring	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47457-35020	Bracket, Rear Brake Shoe Return Spring, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47458-35010	Bracket, Rear Brake Shoe Return Spring	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47458-35020	Bracket, Rear Brake Shoe Return Spring	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47491-35040	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47509-20010	Spring Sub-Assy, Rear Wheel Cylinder Piston	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47509-22010	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47531-20071	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47531-26070	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47531-26080	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47531-31011	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47538-35010	Rod, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47547-26010	Plug, Bleeder (For Deceleration Sensing Proportionin)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47550-26090	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47550-26100	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47550-29175	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47550-29265	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47550-29275	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47550-39115	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47601-35011	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47602-35011	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47607-30010	Cable Sub-Assy, Rear Beake Automatic Adjust	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47613-35011	Strut, Parking Brake Shoe (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47614-35011	Strut, Parking Brake Shoe (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47642-20010	Guide, Rear Brake Automatic Adjust Cable	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
47643-20011	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90114-10002	Bolt, Serration (For Rear Axle Flange)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90114-10016	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90170-10172	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90179-10067	Nut (For Rear Axle Shaft)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90206-10059	Washer, Wave(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90213-07010	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90501-20225	Spring(For Rear Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90501-20604	Spring(For Rear Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90504-18012	Spring, Compression(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90506-12412	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90506-16343	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90506-26002	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90506-26331	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90506-26394	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90508-20261	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
90508-20262	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
91611-60814	Bolt	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (8108- )LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA)
