LN30

Toyota HILUX-4RUNNER-TRUCK · 1979 · 3,764 parts · 156 categories

3,764 items

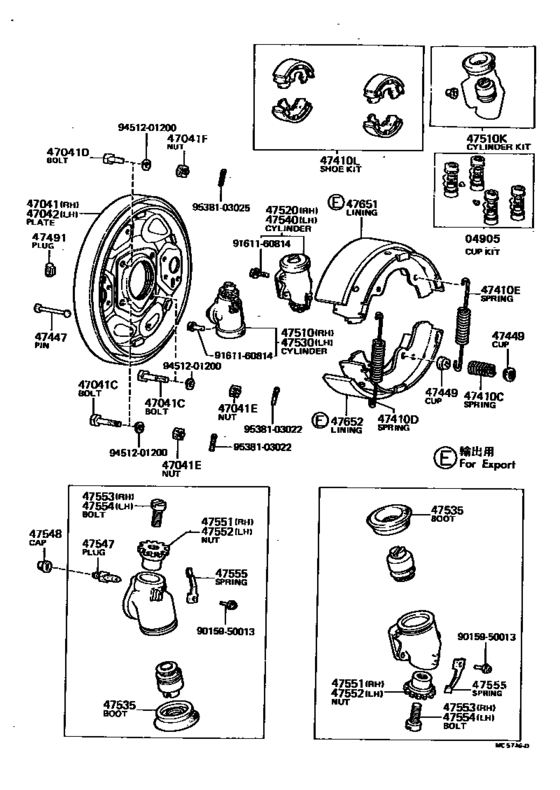

Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA) 36

#	OEM	Part name
4905	04905-35050	Cup Kit, Front Wheel Cylinder
47041	47041-35040	Plate Sub-Assy, Brake Backing, Front Rh
47041	90102-12004	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47041	90102-12058	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47041	94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)
47042	47042-35030	Plate Sub-Assy, Brake Backing, Front Lh
47410	90501-20756	Spring(For Front Brake Shoe Hold Down)
47410	90506-23301	Spring, Tension(For Front Brake Shoe Return)
47410	04494-26030	Shoe Kit, Front Brake
47410	04494-26070	Shoe Kit, Front Brake
47447	47447-20020	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47491	47491-20020	Plug, Hole(For Front Brake)
47510	47520-29065	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47520-26010	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) - FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47510	04473-26010	Cylinder Kit, Front Wheel
47520	47510-29145	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47510-26030	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) - FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47530	47540-29065	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47540-26010	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) - FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47535	47535-30010	Boot, Wheel Cylinder(For Front Brake)
47540	47530-29145	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47530-26030	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) - FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47551	47551-26020	Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47552	47552-26020	Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47553	47553-30051	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47554	47554-30051	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47555	47555-26030	Spring, Adjuster Lock(For Front Brake)
47651	47651-26020	Lining, Front Brake Shoe(For Front Or Upper)
9015950013	90159-50013	New Genuine Part
9161160814	91611-60814	Bolt
9451201200	94512-01200	Washer
9538103022	95381-03022	Cotter pin
9538103025	95381-03025	PIN

OEM	Part name	Category
04473-26010	Cylinder Kit, Front Wheel	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
04494-26030	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
04494-26070	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
04905-35050	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47041-35040	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47042-35030	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47447-20020	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47491-20020	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47510-26030	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) - FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47510-29145	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47520-26010	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) - FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47520-29065	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47530-26030	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) - FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47530-29145	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47535-30010	Boot, Wheel Cylinder(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47540-26010	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) - FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47540-29065	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47551-26020	Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47552-26020	Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47553-30051	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47554-30051	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47555-26030	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
47651-26020	Lining, Front Brake Shoe(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
90102-12004	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
90102-12058	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
90159-50013	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
90501-20756	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
90506-23301	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
91611-60814	Bolt	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
94512-01200	Washer	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
95381-03022	Cotter pin	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
95381-03025	PIN	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1981 - ] (7808-8108)LN30,40,RN30,31,40,41 ; (8108- )RN 31..LHD ; (8108- )RN41..SR5..GEN ..ECB ; (8108- )LN30,40,RN30,40,41..DLX,STD..EUR,GEN,ME,PHL,SA)
