Search › Model › LN107
LN107

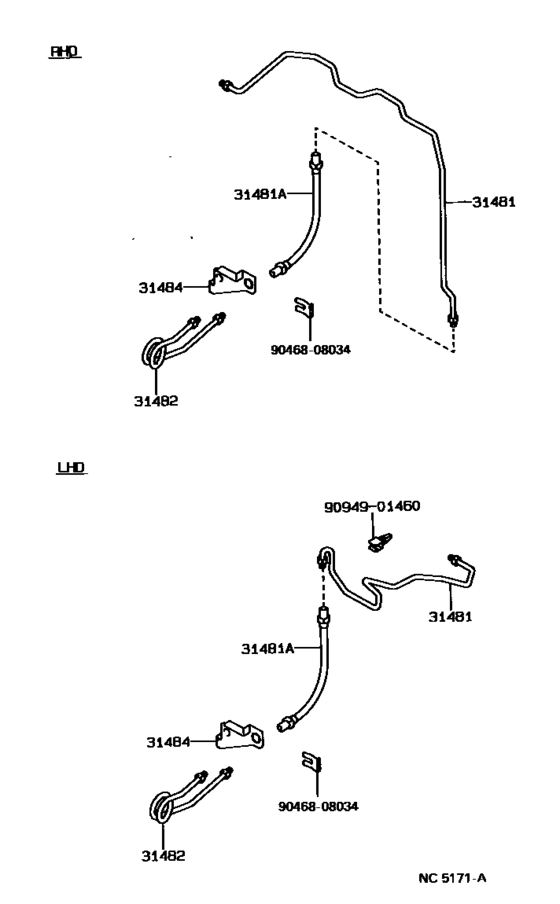

Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) 6
| # | OEM | Part name |
|---|---|---|
| 31481 | 31481-35300 | Tube, Clutch Master Cylinder To Flexible Hose |
| 31481 | 96814-50260 | Hose, Clutch, No.1 |
| 31482 | 31482-35150 | Tube, Clutch Release Cylinder To Flexible Hose |
| 31484 | 31484-35121 | Bracket, Flexible Hose(For Clutch) |
| 9046808034 | 90468-08034 | CLIP |
| 9094901460 | 90949-01460 | Clamp |
| OEM | Part name | Category |
|---|---|---|
| 31481-35300 | Tube, Clutch Master Cylinder To Flexible Hose | Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) |
| 31482-35150 | Tube, Clutch Release Cylinder To Flexible Hose | Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) |
| 31484-35121 | Bracket, Flexible Hose(For Clutch) | Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) |
| 90468-08034 | CLIP | Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) |
| 90949-01460 | Clamp | Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) |
| 96814-50260 | Hose, Clutch, No.1 | Clutch Pedal & Flexible Hose ([08.1988 - 06.2001] (8808-0106)LN10#,111,13#) |
