Search › Model › LN107

LN107

Toyota HILUX-4RUNNER-TRUCK · 1991 · 3,781 parts · 196 categories

3,781 items

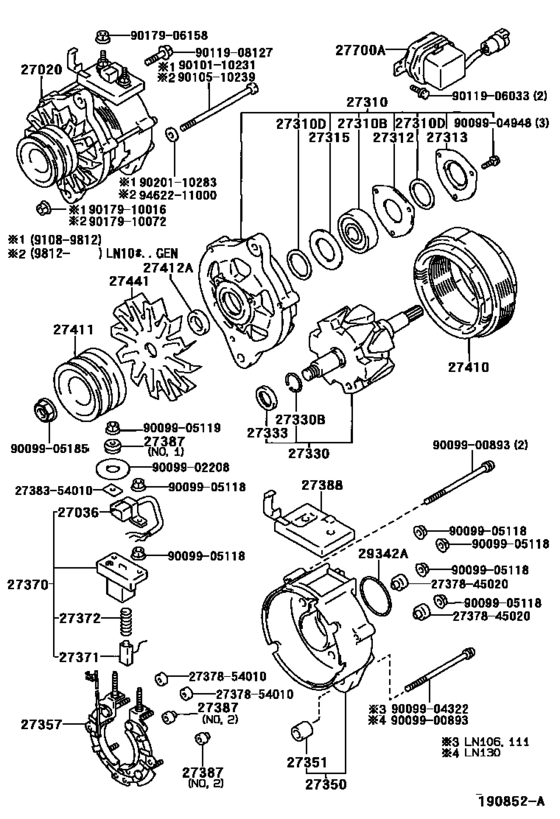

Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135) 48

#	OEM	Part name
27020	27020-54344	Alternator Assy
27036	27036-54250	Terminal Sub-Assy, Lead Wire, Alternator
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27310	90099-02209	Felt(For Alternator Drive End Frame)
27312	27312-57060	Plate, Bearing Retainer, Alternator
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-56141	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27333	27333-57060	Ring, Space(For Alternator Rotor)
27350	27350-54190	Frame Assy, Rectifier End
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27357	27357-54190	Holder, Alternator, W/rectifier
27370	27370-54250	Holder Assy, Alternator Brush
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27387	27387-54010	Insulator, Terminal
27387	27387-54310	Insulator, Terminal
27388	27388-54342	Cover, Alternator Brush
27410	27410-54190	Stator Assy, Alternator
27410	27410-54340	Stator Assy, Alternator
27411	27411-54350	Pulley, Alternator
27412	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27441	27441-56090	Fan, Alternator
27700	27700-54090	Regulator Assy, Generator
27700	27700-63010	Regulator Assy, Generator
29342	90099-14055	Packing, Vacuum Pump
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
9009900893	90099-00893	BOLT
9009902208	90099-02208	New Genuine Part
9009904322	90099-04322	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905185	90099-05185	NUT
9010110231	90101-10231	Bolt(For Alternator)
9010510239	90105-10239	Bolt(For Alternator)
9011906033	90119-06033	Bolt
9011906033	90119-06157	Bolt
9011908127	90119-08127	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9017910072	90179-10072	Nut (For Differential Side Gear Shaft)
9020110283	90201-10283	Washer, Plate(For Steering Tilt Lever)
9462211000	94622-11000	WASHER

OEM	Part name	Category
27020-54344	Alternator Assy	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27036-54250	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27330-56141	Rotor Assy, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27350-54190	Frame Assy, Rectifier End	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27357-54190	Holder, Alternator, W/rectifier	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27370-54250	Holder Assy, Alternator Brush	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27371-54412	Brush, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27372-56070	Spring, Alternator Brush	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27378-45020	Insulator, Alternator, No.1	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27378-54010	Insulator, Alternator, No.2	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27387-54010	Insulator, Terminal	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27387-54310	Insulator, Terminal	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27388-54342	Cover, Alternator Brush	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27410-54190	Stator Assy, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27410-54340	Stator Assy, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27411-54350	Pulley, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27441-56090	Fan, Alternator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27700-54090	Regulator Assy, Generator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
27700-63010	Regulator Assy, Generator	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-00893	BOLT	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-02208	New Genuine Part	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-04322	New Genuine Part	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-04948	New Genuine Part	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-05118	New Genuine Part	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-05119	New Genuine Part	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-05185	NUT	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90099-14055	Packing, Vacuum Pump	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90101-10231	Bolt(For Alternator)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90105-10239	Bolt(For Alternator)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90119-06033	Bolt	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90119-06157	Bolt	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90119-08127	BOLT	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90179-10072	Nut (For Differential Side Gear Shaft)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90179-10132	Nut	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
90201-10283	Washer, Plate(For Steering Tilt Lever)	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
94622-11000	WASHER	Alternator ([08.1991 - ] 12V 40A,55A (9108- )3L..LN130..GEN ; (9108- )3L..LN10# ,111,135)
