LH60

Toyota HIACE · 1982 · 4,095 parts · 151 categories

4,095 items

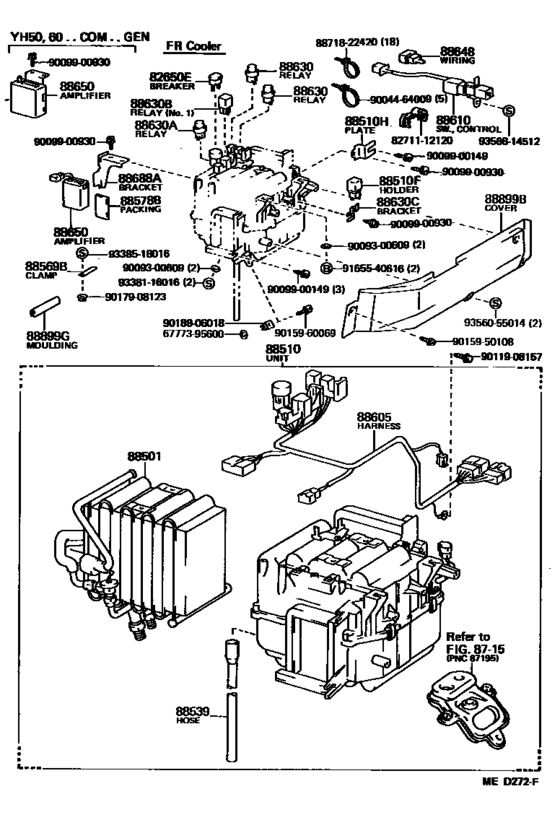

Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN) 39

#	OEM	Part name
88510	88510-95J12	Unit Assy, Cooler
88510	88510-95J18	Unit Assy, Cooler
88510	82630-95J02	Holder, Fuse
88510	88688-95J23	Plate, Cooler Unit, No.1
88539	88539-95A03	Hose, Cooler Unit Drain, No.1
88539	88539-95701	Hose, Cooler Unit Drain, No.1
88569	88569-12030	Clamp (For Cooler Wiring Harness), No.1
88578	88578-95703	Packing, Cooler Stabilizer Amplifier
88605	88605-95J07	Harness Sub-Assy, Cooler Wiring, No.1
88605	88605-95J29	Harness Sub-Assy, Cooler Wiring, No.1
88610	84660-95J00	Switch Assy, Cooler Control
88630	90987-02004	Relay Assy, Starter
88630	90987-03001	Relay
88630	88688-95J31	Bracket, Cooler Relay
88648	88648-95J08	Wiring, Cooler, No.1
88650	88650-14030	Amplifier Assy, Cooler Stabilizer
88688	88688-95J22	Bracket, Cooler Stabilizer Amplifier
88899	88899-95J03	Cover, Cooler Control
88899	88899-95J10	Moulding, Protector
6777395600	67773-95600	New Genuine Part
8271112120	82711-12120	Clamp(Rear Seat)
8871822420	88718-22420	Pipe, Cooler Refrigerant Suction, No.2
9004464009	90044-64009	CLAMP
9009300609	90093-00609	New Genuine Part
9009900149	90099-00149	New Genuine Part
9009900930	90099-00930	New Genuine Part
9011908157	90119-08157	New Genuine Part
9011908157	90119-08718	BOLT WWASHER
9015950108	90159-50108	New Genuine Part
9015960069	90159-60069	New Genuine Part
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9018906018	90189-06018	GROMMET
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9338116016	93381-16016	SCREWWWASHER
9338518016	93385-18016	New Genuine Part
9356055014	93560-55014	SCREW
9356614512	93566-14512	SCREW
9356614512	93568-54512	SCREW

OEM	Part name	Category
67773-95600	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
82630-95J02	Holder, Fuse	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
82711-12120	Clamp(Rear Seat)	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
84660-95J00	Switch Assy, Cooler Control	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88510-95J12	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88510-95J18	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88539-95701	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88539-95A03	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88569-12030	Clamp (For Cooler Wiring Harness), No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88578-95703	Packing, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88605-95J07	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88605-95J29	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88648-95J08	Wiring, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88650-14030	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88688-95J22	Bracket, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88688-95J23	Plate, Cooler Unit, No.1	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88688-95J31	Bracket, Cooler Relay	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88718-22420	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88899-95J03	Cover, Cooler Control	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
88899-95J10	Moulding, Protector	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90044-64009	CLAMP	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90093-00609	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90099-00149	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90099-00930	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90119-08157	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90119-08718	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90159-50108	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90159-60069	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90189-06018	GROMMET	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90987-02004	Relay Assy, Starter	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
90987-03001	Relay	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
91651-60614	Bolt	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
91655-40616	Bolt	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
93381-16016	SCREWWWASHER	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
93385-18016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
93560-55014	SCREW	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
93566-14512	SCREW	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
93568-54512	SCREW	Heating & Air Conditioning - Cooler Unit ([12.1982 - ] (8212- )YH63..GEN ; (8212- )YH61..4HC..GEN ; (8212- )LH50,51,60,61,YH50,51 ,53,60,61..MTM..A RL,GEN)
