KZN205

Toyota HILUX-4RUNNER-TRUCK · 2001 · 2,919 parts · 177 categories
KZN205 ×
2,919 items
Abs & Vsc ([08.2001 - ] (0108- )KZN205) 22
#OEMPart name
85999 85999-35090 Bracket, Relay
88263 88263-24020 Relay, Skid Control
88263 88263-24030 Relay, Skid Control
88266 88266-35710 Clamp, Skid Control Sensor, No.1
89411 96723-19021 Ring, O (For Speed Sensor)
89441 89440-35060 Sensor, Deceleration
89516 89516-35060 Wire, Skid Control Sensor
89540 89540-35310 Computer Assy, Skid Control
89542 89542-35070 Sensor, Speed, Front Rh
89543 89543-35090 Sensor, Speed, Front Lh
89545 89545-35020 Sensor, Speed
89546 89546-35020 Sensor, Speed
89771 89771-21010 Cover, Abs Relay Block, Upper
91645 91645-H0818 New Genuine Part
91645 91641-H0816 New Genuine Part
91651 91651-B0618 BOLT WWASHER
91651 91651-B0625 New Genuine Part
9011906801 90119-06801 New Genuine Part
9011908983 90119-08983 New Genuine Part
9016850041 90168-50041 New Genuine Part
9162660616 91626-60616 New Genuine Part
9162660616 91621-J0612 BOLT W-WASHER
Accelerator Link ([08.2001 - ] (0108- )KZN205) 6
#OEMPart name
78010 90386-08063 Bush (For Accelerator Pedal Rod)
78111 78111-16010 Pedal, Accelerator
78111 90254-04019 Pin (For Accelerator Pedal)
78120 78010-35050 Rod Assy, Accelerator Pedal
9011906198 90119-06198 New Genuine Part
9163160622 91631-60622 Screw
Air Bag ([06.2001 - ] (0106- )) 2
#OEMPart name
89170 89170-35140 Sensor Assy, Air Bag
9014980026 90149-80026 New Genuine Part
Air Cleaner ([08.2001 - ] (0108- )1KZTE) 14
#OEMPart name
17700 17700-67210 Cleaner Assy, Air
17705 17705-67180 Cap Sub-Assy, Air Cleaner
17801 17801-67070 Element Sub-Assy, Air Cleaner Filter
17881 96111-10830 Clamp, Hose(For Air Connector)
17881 96111-10850 Clamp, Hose(For Air Connector)
17882 17882-67020 Hose, Air Cleaner, No.2
17882 96111-10730 Clamp(For Air Cleaner Inlet, No.1)
17882 96111-10880 Clamp(For Air Intake Rubber Seal)
17885 17885-67011 Pipe, Air Cleaner
9011910907 90119-10907 Bolt
9162660818 91626-60818 Bolt (For Transmission Control Cable Bracket)
9162660818 91621-J0814 Bolt (For Transmission Control Cable Bracket)
9164380814 91643-80814 New Genuine Part
9164380814 91641-80812 New Genuine Part

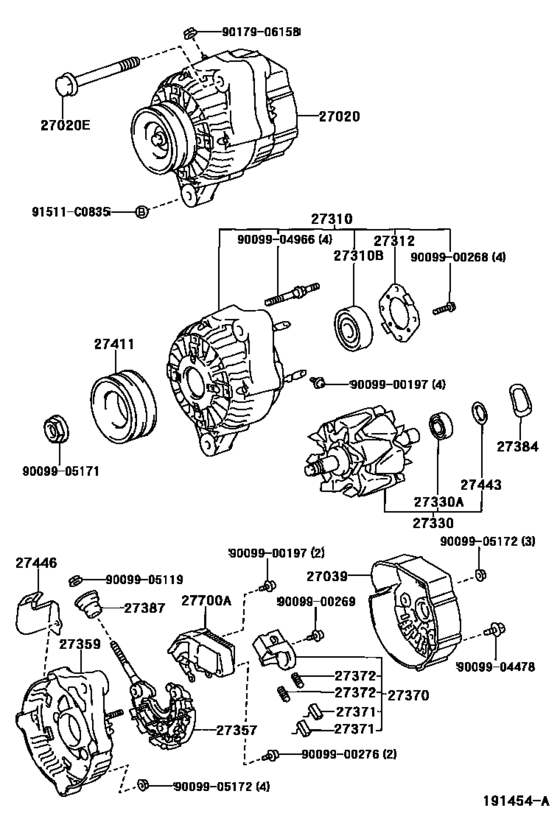

Alternator ([08.2001 - ] 12V 70A (0108- )1KZTE) 30
#OEMPart name
27020 27060-67110 Alternator Assy
27020 90105-10092 Bolt(For Alternator)
27039 27039-67100 Cover, Alternator Rear End
27310 27310-67100 Frame Assy, Drive End, Alternator
27310 90099-10199 Bearing(For Alternator Drive End Frame)
27312 27312-72100 Plate, Bearing Retainer, Alternator
27330 27330-67100 Rotor Assy, Alternator
27330 90099-10216 Bearing(For Alternator Rotor)
27357 27357-67100 Holder, Alternator, W/rectifier
27359 27359-67100 Frame, Alternator Rectifier End
27370 27370-58320 Holder Assy, Alternator Brush
27371 27371-70300 Brush, Alternator
27372 27372-87501 Spring, Alternator Brush
27384 27384-16380 Washer
27387 27387-70171 Insulator, Terminal
27411 27411-67020 Pulley, Alternator
27443 27443-63020 Cover, Alternator Bearing
27446 27446-46230 Clip, Alternator Cord
27700 27700-50030 Regulator Assy, Generator
91511 91511-C0835 Bolt(For Transaxle Case & Engine Setting)
9009900197 90099-00197 Screw
9009900268 90099-00268 Screw(For Alternator Drive End Frame)
9009900269 90099-00269 New Genuine Part
9009900276 90099-00276 New Genuine Part
9009904478 90099-04478 New Genuine Part
9009904966 90099-04966 Bearing(for Alternator Rotor)
9009905119 90099-05119 New Genuine Part
9009905171 90099-05171 Nut(For Alternator Pulley)
9009905172 90099-05172 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
Antenna ([06.2001 - ] (0106- )) 2
#OEMPart name
8271114450 82711-14450 Wire, Fuse To Fuse(for Combustion Heater)
9011906390 90119-06390 BOLT WWASHER
Armrest & Visor ([08.1988 - ] (8808- )KZN205,LN10#,111,205,RN10#,110,YN106) 29
#OEMPart name
74210 74210-89107-03 Armrest Assy, Front, Rh
74220 74220-89103-03 Armrest Assy, Front, Lh
74230 74210-89108-03 Armrest Assy, Rear, Rh
74231 74231-89106-03 Panel, Front Armrest Base, Upper Rh
74232 74232-89106-03 Panel, Front Armrest Base, Upper Lh
74233 74233-89102-03 Panel, Front Door Armrest Base, Lower Rh
74234 74234-89102-03 Panel, Front Door Armrest Base, Lower Lh
74237 74237-89101-03 Cap, Door Armrest Base
74240 74220-89104-03 Armrest Assy, Rear, Lh
74271 74271-89101-03 Panel, Rear Door Armrest Base, Upper Rh
74272 74272-89101-03 Panel, Rear Door Armrest Base, Upper Lh
74273 74273-89101-03 Panel, Rear Door Armrest Base, Lower Rh
74274 74274-89101-03 Panel, Rear Door Armrest Base, Lower Lh
74348 74348-35010-B0 Holder, Visor
74348 74348-30010-01 Holder, Visor (BLACK)
74610 74610-16010-B1 Grip Sub-Assy, Assist
74610 74610-12030-B4 Grip Sub-Assy, Assist (Lt.Gray)
74617 74617-16010-B1 Plug, Assist Grip
74617 74617-16010-B4 Plug, Assist Grip
9015260046 90152-60046 New Genuine Part
9015960254 90159-60254 New Genuine Part
9016460021 90164-60021 SCREW BINDING
9016840025 90168-40025 SCREW
9018906045 90189-06045 Grommet
9018906045 67771-37020 RETAINER, DOOR TRIM
9046804134 90468-04134 New Genuine Part
9353025016 93530-25016 New Genuine Part
9353045016 93530-45016 New Genuine Part
9354014012 93540-14012 Screw
Ash Receptacle ([08.1988 - ] (8808- )) 6
#OEMPart name
74102 74102-89107-B0 Box Sub-Assy, Front Ash Receptacle
74102 74102-89108 Box Sub-Assy, Front Ash Receptacle
74104 74104-89107 Retainer Sub-Assy, Front Ash Receptacle
74130 74109-32010-B0 Receptacle Assy, Rear Ash
74130 74109-20080-22 Receptacle Assy, Rear Ash (Black)
9356055014 93560-55014 SCREW

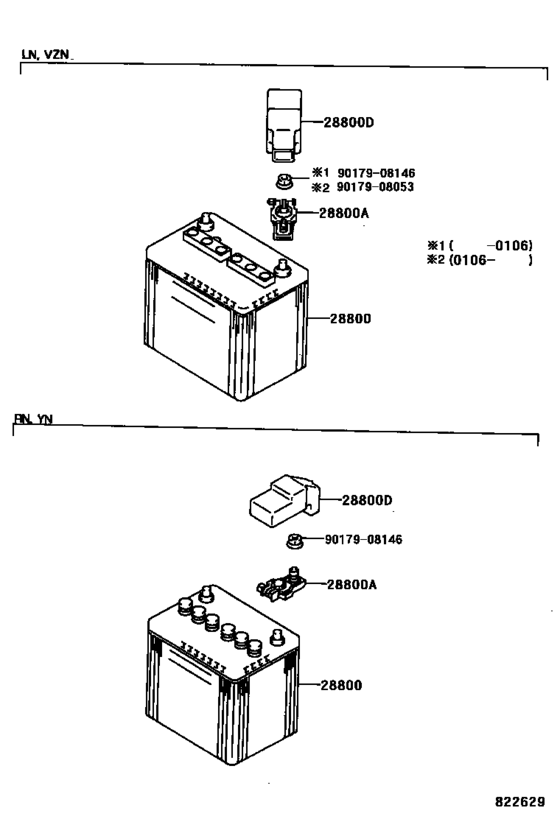

Battery & Battery Cable ([08.1988 - ] (8808- )) 5
#OEMPart name
28800 90982-05035 Terminal, Battery Positive
28800 82821-35020 Cover, Connector(For Battery Terminal)
9017908053 90179-08053 Nut (For Differential Side Gear Shaft)
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
Battery Carrier ([08.1988 - ] (8808- )) 2
#OEMPart name
9011908974 90119-08974 BOLT W-WASHER
9017908220 90179-08220 NUT
Brake Booster & Vacuum Tube ([08.2001 - ] (0108- )KZN205) 12
#OEMPart name
44610 44610-3G020 Booster Assy, Brake
44730 44730-35010 Valve Assy, Vacuum Check(For Brake)
44730 96133-41500 Clamp Or Clip(For Air Hose, No.5)
44730 90405-09175 Union, Vacuum Hose(For Manifold Side)
44763 44763-35180 Tube, Booster Vacuum
44771 44771-04040 Hose, Vacuum Tube Connector
44772 44772-04020 Hose, Check Valve To Connector Tube
44774 44774-04020 Hose, Union To Connector Tube
44785 44785-35020 Gasket, Brake Booster Bracket
9017908038 90179-08038 Nut
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET

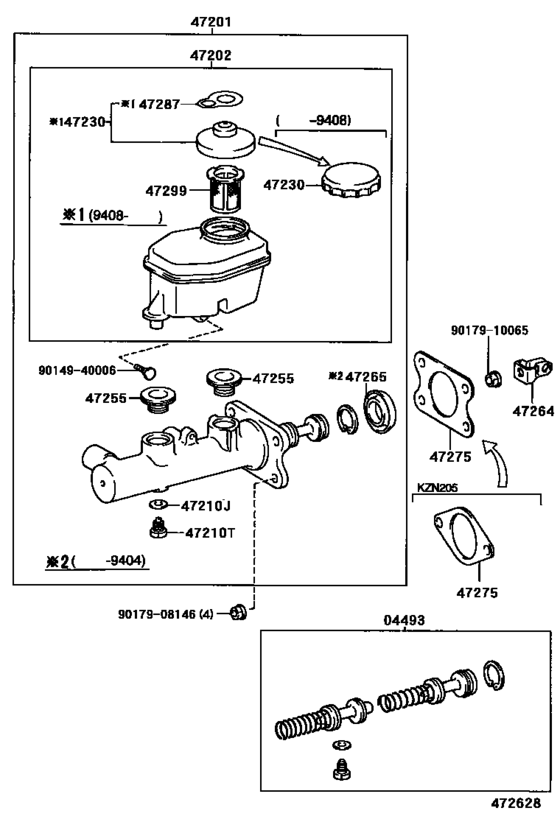

Brake Master Cylinder ([08.1988 - ] (8808- )KZN205,LN10#,111,13#,RN10#,110,13#,VZ N130,YN106,13#) 18
#OEMPart name
4493 04493-60290 Cylinder Kit, Brake Master
4493 04493-60300 Cylinder Kit, Brake Master
47201 47201-3D510 Cylinder Sub-Assy, Brake Master
47201 47201-3D500 Cylinder Sub-Assy, Brake Master
47202 47220-60080 Reservoir Sub-Assy, Brake Master Cylinder
47210 90029-43001 Gasket(For Master Cylinder)
47210 90109-06077 Bolt(For Brake Master Cylinder)
47210 90430-06104 Gasket(For Brake Actuator)
47230 47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 47255-16010 Grommet, Master Cylinder Reservoir
47264 47264-28010 Clevis, Master Cylinder Push Rod
47275 47275-12020 Gasket, Brake Master Cylinder
47287 47287-20010 Label, Brake Fluid Information
47299 47299-24010 Strainer, Brake Master Cylinder Reservoir
9014940006 90149-40006 Bolt
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
Brake Pedal & Bracket ([08.1988 - ] (8808- )) 13
#OEMPart name
47101 90507-18026 Spring(For Brake Pedal Return)
47101 90386-13007 Bush(For Clutch Pedal)
47124 90101-10480 Shaft, Brake Pedal
47124 91552-81090 Bolt, No.1(For Alternator)
47124 47144-35030 Collar(For Brake Pedal Shaft)
47264 47148-35010 Pin(For Brake Master Cylinder Push Rod)
55106 55106-35150 Support Sub-Assy, Brake Pedal
9012908009 90129-08009 Bolt
9012908009 91661-60816 Bolt
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
Brake Tube & Clamp ([08.1988 - ] (8808- )) 25
#OEMPart name
4477 04477-26010 Bush & Boot Kit, Load Sensing Spring
4477 04477-26050 Bush & Boot Kit, Load Sensing Spring
31478 31478-30010 Bleeder Plug Cap
47910 47910-35470 Valve Assy, Load Sensing Proportioning
47910 47547-27030 Plug, Bleeder(For Front Disc Brake)
47920 47920-35080 Spring Assy, Load Sensing
47920 90387-08099 Collar(For Load Sensing Spring)
47920 90467-31110 Clip(For Load Sensing Valve Boot)
47920 90202-10103 Washer(For Load Sensing Spring)
47931 47931-35080 Bracket, Load Sensing Valve
47933 47933-35071 Bracket, Load Sensing Shackle, No.1
47935 47935-35020 Shackle, Load Sensing Spring, No.1
47935 90385-10064 Bush(For Load Sensing Spring Shackle)
47935 90201-08062 Retainer(For Load Sensing Spring Shackle)
47936 47936-35030 Shackle, Load Sensing Spring, No.2
47937 47937-60010 Plate, Load Sensing Valve Set
91611 91611-G0820 Bolt
9011908744 90119-08744 New Genuine Part
9017910132 90179-10132 Nut
9020123360 90201-23360 WASHER
9113150840 91131-50840 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9538102020 95381-02020 PIN
Brake Tube & Clamp ([08.2001 - ] BRAKE ACTUATER (0108- )KZN205) 6
#OEMPart name
44510 44050-35020 Actuator Assy, Brake
44545 44545-35080 Holder, Brake Actuator Bolt
44546 44546-35090 Cushion, Brake Actuator Bolt
44590 44590-35050 Bracket Assy, Brake Actuator
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9163160814 91631-60814 New Genuine Part
Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KZN205) 41
#OEMPart name
47311 47311-35500 Tube, Front Brake, No.1
47311 90904-13021 Way(For Front Brake Tube)
47311 47311-35440 Tube, Front Brake, No.1
47312 90904-12027 Way, No.2(For Front Brake Tube)
47312 90413-10233 Way, No.2(For Front Brake Tube)
47313 90947-02957 Hose, Flexible, No.1(For Front)
47315 47315-35140 Tube, Front Brake, No.5
47316 90947-02958 Hose, Flexible(For Rear Brake Tube)
47321 90904-13036 Way, No.1(For Rear Brake Tube)
47322 47322-35450 Tube, Rear Brake, No.2
47323 47323-35190 Tube, Rear Brake, No.3
47324 47324-35250 Tube, Rear Brake, No.4
47325 47325-35290 Tube, Rear Brake, No.5
47341 47341-35170 Tube, Wheel Cylinder, Front Rh No.1
47343 47343-35170 Tube, Wheel Cylinder, Front Lh No.1
47351 47351-35310 Bracket, Flexible Hose(For Front Rh)
47351 47351-35300 Bracket, Flexible Hose(For Front Rh)
47352 47352-35360 Bracket, Flexible Hose(For Front Lh)
47352 47352-35350 Bracket, Flexible Hose(For Front Lh)
47371 47371-35080 Clamp, Brake Tube, No.1
47371 47371-35230 Clamp, Brake Tube, No.1
47371 47371-35130 Clamp, Brake Tube, No.4
47371 47372-35080 Clamp, Brake Tube, No.8
47372 47372-35030 Clamp, Brake Tube, No.2
47373 47372-35100 Clamp, Brake Tube, No.3
47374 47373-35050 Clamp, Brake Tube, No.4
47383 47383-35010 Bracket, Connector
47393 47393-35200 Insulator, Brake Tube Heat
91611 91611-F0812 New Genuine Part
91611 90119-08846 BOLT WWASHER
91641 91641-H0820 Bolt
9010514043 90105-14043 Bolt(For Steering Knuckle Arm Rh)
9011908744 90119-08744 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901457 90949-01457 Clamp, Brake Tube, No.5
9094901459 90949-01459 New Genuine Part
9094901477 90949-01477 New Genuine Part
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9622134905 96221-34905 Clamp
Brake Tube & Clamp ([08.2001 - ] W/O(ABS) (0108- )KZN205) 41
#OEMPart name
47311 47311-35500 Tube, Front Brake, No.1
47311 90904-13021 Way(For Front Brake Tube)
47311 47311-35440 Tube, Front Brake, No.1
47312 90904-12027 Way, No.2(For Front Brake Tube)
47312 90413-10233 Way, No.2(For Front Brake Tube)
47313 90947-02957 Hose, Flexible, No.1(For Front)
47315 47315-35140 Tube, Front Brake, No.5
47316 90947-02958 Hose, Flexible(For Rear Brake Tube)
47321 90904-13036 Way, No.1(For Rear Brake Tube)
47322 47322-35450 Tube, Rear Brake, No.2
47323 47323-35190 Tube, Rear Brake, No.3
47324 47324-35250 Tube, Rear Brake, No.4
47325 47325-35290 Tube, Rear Brake, No.5
47341 47341-35170 Tube, Wheel Cylinder, Front Rh No.1
47343 47343-35170 Tube, Wheel Cylinder, Front Lh No.1
47351 47351-35310 Bracket, Flexible Hose(For Front Rh)
47351 47351-35300 Bracket, Flexible Hose(For Front Rh)
47352 47352-35360 Bracket, Flexible Hose(For Front Lh)
47352 47352-35350 Bracket, Flexible Hose(For Front Lh)
47371 47371-35080 Clamp, Brake Tube, No.1
47371 47371-35230 Clamp, Brake Tube, No.1
47371 47371-35130 Clamp, Brake Tube, No.4
47371 47372-35080 Clamp, Brake Tube, No.8
47372 47372-35030 Clamp, Brake Tube, No.2
47373 47372-35100 Clamp, Brake Tube, No.3
47374 47373-35050 Clamp, Brake Tube, No.4
47383 47383-35010 Bracket, Connector
47393 47393-35200 Insulator, Brake Tube Heat
91611 91611-F0812 New Genuine Part
91611 90119-08846 BOLT WWASHER
91641 91641-H0820 Bolt
9010514043 90105-14043 Bolt(For Steering Knuckle Arm Rh)
9011908744 90119-08744 New Genuine Part
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901457 90949-01457 Clamp, Brake Tube, No.5
9094901459 90949-01459 New Genuine Part
9094901477 90949-01477 New Genuine Part
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9622134905 96221-34905 Clamp

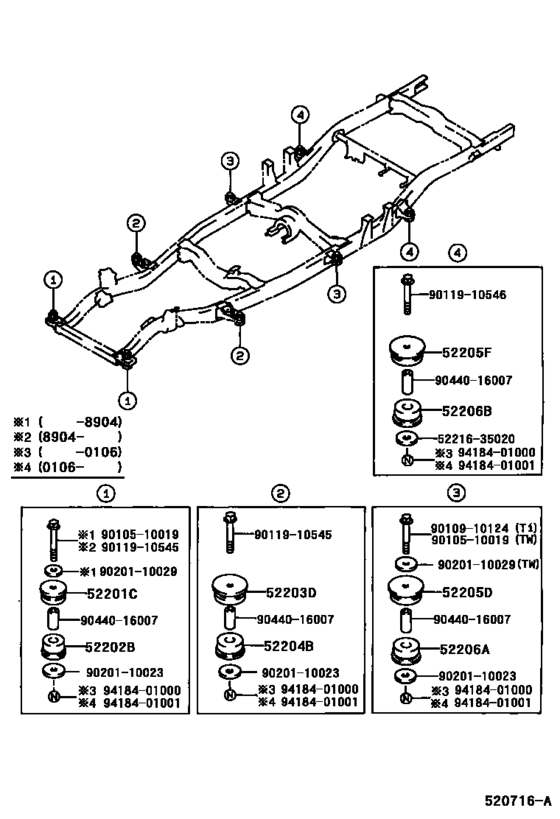

Cab Mounting & Body Mounting ([08.1988 - ] (8808- )KZN205,LN10#,111,205,RN10#,110,YN106) 16
#OEMPart name
52201 52201-35021 Cushiion Sub-Assy, Cab Mounting, No.1 Upper
52202 52202-35021 Cushiion Sub-Assy, Cab Mounting, No.1 Lower
52203 52203-35100 Cushion Sub-Assy, Cab Mounting, No.2 Upper
52204 52204-35100 Cushion Sub-Assy, Cab Mounting, No.2 Lower
52205 52205-35020 Cushiion Sub-Assy, Cab Mounting, No.3 Upper
52206 52206-35010 Cushion Sub-Assy, Cab Mounting, No.3 Lower
5221635020 52216-35020 Stopper, Cab Mounting Cushion
9010510019 90105-10019 Bolt Or Ring, Exhaust Pipe Front (For Front)
9010910124 90109-10124 Bolt(For Body Mount No.3 Cushion)
9011910545 90119-10545 Bolt(For Body Mounting No.1 Cushion)
9011910546 90119-10546 BOLT WWASHER
9020110023 90201-10023 WASHER
9020110029 90201-10029 WASHER
9044016007 90440-16007 Spacer(For Body Mounting No.1 Cushion)
9418401000 94184-01000 Nut
9418401001 94184-01001 Nut

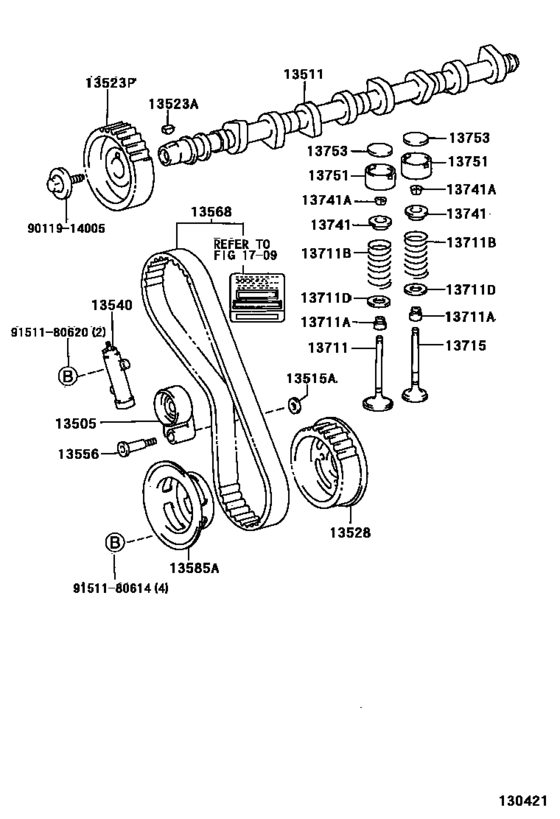

Camshaft & Valve ([08.2001 - ] (0108- )1KZTE) 40
#OEMPart name
13505 13505-67040 Idler Sub-Assy, Timing Belt, No.1
13505 13505-67042 Idler Sub-Assy, Timing Belt, No.1
13505 13505-67041 Idler Sub-Assy, Timing Belt, No.1
13511 13501-67010 Camshaft
13515 90201-10124 Washer, Plate(For Distributor Drive Gear)
13523 90280-05004 Key, Woodruff(For Timing Gear)
13523 13523-17010 Pulley, Camshaft Timing
13528 13528-67010 Gear, Camshaft Drive
13540 13540-67020 Tensioner Assy, No.1
13556 13556-67010 Shaft, Timing Belt Idler
13568 13568-69085 Timing Belt
13585 13585-67010 Flange, Camshaft Timing Pulley, No.1
13711 13711-54040 Valve, Intake
13711 90913-02118 Seal Or Ring, O(For Valve Stem Oil)
13711 90504-49001 Spring, Compression(For Inner)
13711 90201-23003 Washer, Plate(For Valve Spring Seat)
13715 13715-67040 Valve, Exhaust
13741 13741-54020 Retainer, Valve Spring
13741 90913-03014 Lock, Valve Spring Retainer
13751 13751-54010 Lifter, Valve
13753 13753-54010 Shim, Valve Adjusting
13753 13753-54060 Shim, Valve Adjusting
13753 13753-54110 Shim, Valve Adjusting
13753 13753-54160 Shim, Valve Adjusting
13753 13753-54210 Shim, Valve Adjusting
13753 13753-54260 Shim, Valve Adjusting
13753 13753-54310 Shim, Valve Adjusting
13753 13753-54360 Shim, Valve Adjusting
13753 13753-54410 Shim, Valve Adjusting
13753 13753-54420 Shim, Valve Adjusting
13753 13753-54430 Shim, Valve Adjusting
13753 13753-54440 Shim, Valve Adjusting
13753 13753-54450 Shim, Valve Adjusting
13753 13753-54460 Shim, Valve Adjusting
13753 13753-54470 Shim, Valve Adjusting
13753 13753-54480 Shim, Valve Adjusting
13753 13753-54490 Shim, Valve Adjusting
9011914005 90119-14005 Washer, Plate(For Crankshaft Pulley Set)
9151180614 91511-80614 BOLT FLANGE
9151180620 91511-80620 Direct
Caution Plate & Name Plate (Engine) ([08.1988 - ] (8808- )) 4
#OEMPart name
11291 11291-67010 Plate, Engine Name
11296 11296-0K010 Label, Engine Service Information
11296 11296-27020 Plate, Engine service information
1356410010 13564-10010 Plate, Timing Belt Caution
Caution Plate ([08.1988 - ] (8808- )) 4
#OEMPart name
74529 69339-12010 Plate, Child Protector Lock Caution
74529 69339-AA020 Plate, Child Protector Lock Caution
74559 74559-89101 Plate, Fuel Caution (DIESEL)
88723 88723-20040 Label, Cooler Service Caution
Clutch & Release Fork ([08.2001 - ] (0108- )KZN205) 17
#OEMPart name
31126 31126-60081 Boot, Clutch Release Fork
31204 31204-35070 Fork Sub-Assy, Clutch Release
31204 31204-35071 Fork Sub-Assy, Clutch Release
31204 31204-60090 Fork Sub-Assy, Clutch Release
31210 31210-35260 Cover Assy, Clutch
31210 31210-35270 Cover Assy, Clutch
31230 31230-60170 Bearing Assy, Clutch Release
31232 31232-36030 Clip Or Spring, Release Bearing Hub
31232 31232-60030 Clip, Release Bearing Hub
31236 31236-60060 Support, Release Fork
31237 31237-60010 Boot, Clutch Release Fork Support
31250 31250-26171 Disc Assy, Clutch
31250 31250-26241 Disc Assy, Clutch
33311 90363-12002 Bearing (For Input Shaft)
33311 90363-12024 Bearing, Radial Ball
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9052122003 90521-22003 Ring, Snap(For Clutch Release Hub)

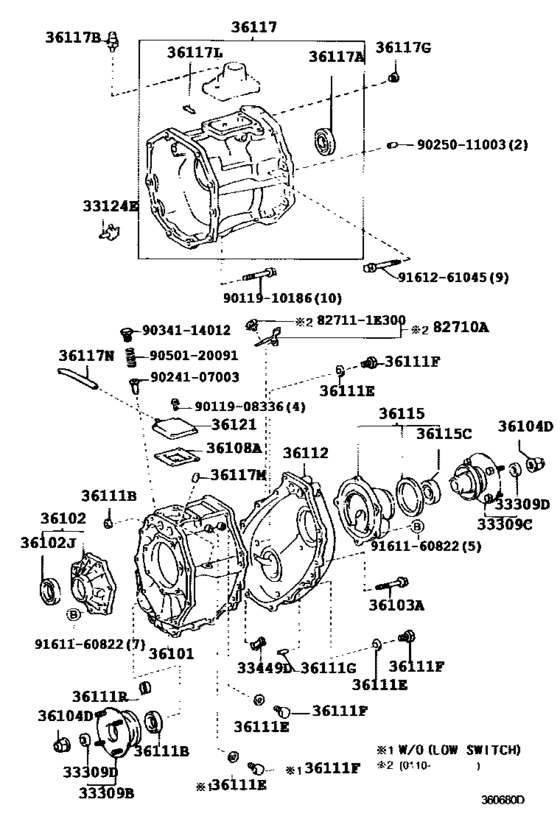

Clutch Housing & Transmission Case (Mtm) ([08.2001 - ] R151 (0108- )KZN205) 21
#OEMPart name
31111 31111-35101 Housing, Clutch
31111 31111-35102 Housing, Clutch
33101 90341-18006 Plug (No magnet)
33101 90430-18008 Gasket
33101 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33111 33101-35080 Case, Manual Transmission
33111 33101-60051 Case, Manual Transmission
33111 33101-60050 Case, Manual Transmission
33111 90331-14004 Plug, Manual Transmission Case
33111 96411-41800 Plug, Tight, No.1
33111 90250-12002 Pin, Straight(For Manual Transmission Case)
33111 90253-15001 Pin, Straight(For Clutch Housing Set)
33131 33131-35031 Retainer, Bearing, Front(Mtm)
33131 33131-35032 RETAINER BEARING
33131 90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)
33151 33151-35020 Retainer, Output Shaft Rear Bearing(Mtm)
33449 33449-35030 Magnet, Transmission
91611 91611-G0820 Bolt
9011908332 90119-08332 Bolt(For Manual Transmission Oil Pump Cover)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161961250 91619-61250 Bolt

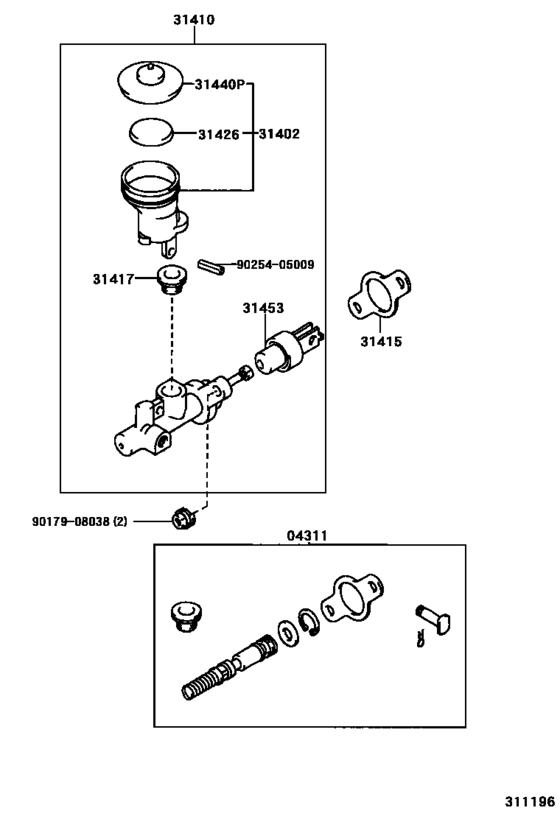

Clutch Master Cylinder ([06.2001 - ] (0106- )) 10
#OEMPart name
4311 04311-12110 Cylinder Kit, Clutch Master
31402 31402-35110 Reservoir Sub-Assy, Clutch Master Cylinder
31402 31402-35060 Reservoir Sub-Assy, Clutch Master Cylinder
31410 31410-35420 Cylinder Assy, Clutch Master
31415 31415-10010 Gasket, Clutch Master Cylinder
31417 31417-35010 Grommet
31426 31426-30011 Float, Clutch Master Cylinder Reservoir
31440 47230-20040 Cap, Clutch Master Cylinder Reservoir Filler
9017908038 90179-08038 Nut
9025405009 90254-05009 New Genuine Part
Clutch Master Cylinder ([06.2003 - ] (0306- )KZN205) 11
#OEMPart name
4311 04311-12110 Cylinder Kit, Clutch Master
31402 31402-35110 Reservoir Sub-Assy, Clutch Master Cylinder
31402 31402-35060 Reservoir Sub-Assy, Clutch Master Cylinder
31410 31410-35420 Cylinder Assy, Clutch Master
31415 31415-10010 Gasket, Clutch Master Cylinder
31417 31417-35010 Grommet
31426 31426-30011 Float, Clutch Master Cylinder Reservoir
31440 47230-20040 Cap, Clutch Master Cylinder Reservoir Filler
31453 31404-35013 Clevis, Clutch Master Cylinder Push Rod
9017908038 90179-08038 Nut
9025405009 90254-05009 New Genuine Part
Clutch Pedal & Flexible Hose ([08.2001 - ] (0108- )KZN205) 30
#OEMPart name
31301 31310-35070 Pedal Sub-Assy, Clutch
31301 90949-03116 Spring(For Clutch Pedal)
31301 90541-06036 Cushion, No.1(For Clutch Pedal)
31301 90386-13007 Bush(For Clutch Pedal)
31301 90101-10369 Bolt(For Clutch Pedal Stopper)
31301 90101-10480 Shaft, Brake Pedal
31301 91552-81090 Bolt, No.1(For Alternator)
31301 90389-05017 Bush(For Clutch Pedal Turnover)
31301 90386-05018 Bush(For Clutch Pedal Spring)
31321 31321-14020 Pad, Clutch Pedal
31453 47148-34010 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)
31481 96814-50190 Hose, Clutch, No.1
31484 31484-35211 Bracket, Flexible Hose(For Clutch)
31484 31484-35260 Bracket, Clutch Tube, No.1
31485 31485-35150 Tube, Clutch Master Cylinder To Accumulator
31490 31490-35070 Accumulator Assy, Clutch
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
91611 91611-B0616 Bolt(For Transaxle Case Receiver)
4714435030 47144-35030 Collar(For Brake Pedal Shaft)
4737160130 47371-60130 Bracket, Connector
9046106902 90461-06902 Clamp, Brake Tube, No.3
9046808034 90468-08034 CLIP
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9094901460 90949-01460 Clamp
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9413061000 94130-61000 Nut(For Clutch Pedal Stopper)
9451201000 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)

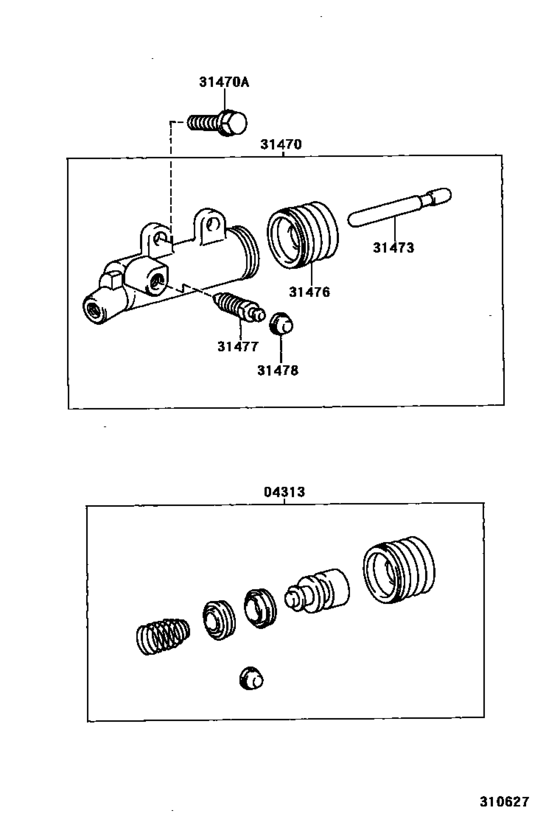

Clutch Release Cylinder ([08.2001 - ] (0108- )KZN205) 7
#OEMPart name
4313 04313-35060 Cylinder Kit, Clutch Release
31470 31470-35140 Cylinder Assy, Clutch Release
31470 91611-G0820 Bolt
31473 31473-32010 Rod, Clutch Release Cylinder Push, No.1
31476 31476-22010 Boot, Clutch Release Cylinder
31477 47547-12010 Plug, Bleeder(For Release Cylinder)
31478 31478-30010 Bleeder Plug Cap
Console Box & Bracket ([06.2001 - ] (8808-0106)5F ; (0106- )SR5,SRV) 7
#OEMPart name
55539 55539-20020-B0 Box, Instrument Panel Coin
55539 55539-20020-C0 Cover, Spare Switch Hole (Black)
58991 58991-89103 Bracket, Console Box Mounting, Upper
9015960397 90159-60397 New Genuine Part
9016750020 90167-50020 SCREW PAN TAPPING
9018905039 90189-05039 New Genuine Part
9018906029 90189-06029 GROMMET
Console Box & Bracket ([06.2001 - ] (8908-0106)DLX,SR5 ; (0106- )SR5,SRV) 15
#OEMPart name
55539 55539-20020-B0 Box, Instrument Panel Coin
55539 55539-20020-C0 Cover, Spare Switch Hole (Black)
58804 58804-35010-B0 Panel Sub-Assy, Console, Upper
58907 58907-89102 Hinge Sub-Assy, Console Compartment Door
58919 58919-89102 Plate, Console Box
58964 58964-16010 Stopper, Console Compartment Door, No.1
58964 58965-16010 Stopper, Console Compartment Door, No.1
58976 58976-22020 Lock Sub-Assy, Console Compartment Door
9011906428 90119-06428 New Genuine Part
9017604015 90176-04015 New Genuine Part
9020104317 90201-04317 New Genuine Part
9356714512 93567-14512 SCREW
9356754512 93567-54512 SCREW
9356754512 93568-54512 SCREW
9616000500 96160-00500 Ring, E(For Over Center Lever)
Cowl Panel & Windshield Glass ([08.1988 - ] (8808- )) 14
#OEMPart name
53383 53383-89106 Seal, Hood To Cowl Top
55713 55713-89105 Panel, Cowl Top Side, Rh
55714 55714-89106 Panel, Cowl Top Side, Lh
55735 55735-89101 Seal, Front Air Shutter
55756 55756-89108 Screen, Heater Air Duct
55756 55756-89109 Screen, Heater Air Duct
55756 55756-89111 Screen, Heater Air Duct
55781 55781-89103 Louver, Cowl Top Ventilator
1144489101 11444-89101 Plug, Hole
5587935010 55879-35010 Packing, Front Ventilator
9015950110 90159-50110 SCREW
9015950324 90159-50324 SCREW, W/WASHER TAPP
9018905082 90189-05082 Screw Grommet Nut Clip
9046706005 90467-06005 Clip, Radiator Support To Frame
Crankshaft & Piston ([08.2001 - ] (0108- )1KZTE) 80
#OEMPart name
11011 11011-30010 Washer Set, Crankshaft Thrust
11011 11011-67020 Washer Set, Crankshaft Thrust
11011 11012-30010 Washer Set, Crankshaft Thrust
11011 11012-67020 Washer Set, Crankshaft Thrust
11011 11013-30010 Washer Set, Crankshaft Thrust
11011 11013-67020 Washer Set, Crankshaft Thrust
11702 11704-30020 Bearing Set, Crankshaft (0.25)
11702 11704-67021 Bearing Set, Crankshaft (0.25)
11702 11705-30020 Bearing Set, Crankshaft (0.50)
11702 11705-67021 Bearing Set, Crankshaft
11711 11701-30020-02 Bearing, Crankshaft
11711 11701-30020-03 Bearing, Crankshaft
11711 11701-30020-04 Bearing, Crankshaft
11711 11701-30020-05 Bearing, Crankshaft
11711 11701-30020-06 Bearing, Crankshaft
11711 11701-67021-02 Bearing, Crankshaft
11711 11701-67021-03 Bearing, Crankshaft
11711 11701-67021-04 Bearing, Crankshaft
11711 11701-67021-05 Bearing, Crankshaft
11711 11701-67021-06 Bearing, Crankshaft
11991 11991-67010 Washer, Balanceshaft Thrust
13011 13011-67030 Ring Set, Piston (STD)
13011 13013-67030 Ring Set, Piston (OS 0.50)
13011 13014-67030 Ring Set, Piston
13011 13015-67030 Ring Set, Piston (OS 1.00)
13041 13041-30020-02 Bearing, Connecting Rod
13041 13041-30020-03 Bearing, Connecting Rod
13041 13041-30020-04 Bearing, Connecting Rod
13041 13041-30020-05 Bearing, Connecting Rod
13041 13041-30020-06 Bearing, Connecting Rod
13041 13041-67031-02 Bearing, Connecting Rod
13041 13041-67031-03 Bearing, Connecting Rod
13041 13041-67031-04 Bearing, Connecting Rod
13041 13041-67031-05 Bearing, Connecting Rod
13041 13041-67031-06 Bearing, Connecting Rod
13101 13101-67050-01 Piston Sub-Assy, W/pin
13101 13101-67050-02 Piston Sub-Assy, W/pin
13101 13101-67050-03 Piston Sub-Assy, W/pin
13101 13103-67050 Piston Sub-Assy, W/pin
13101 13104-67050 Piston Sub-Assy, W/pin
13101 13105-67050 Piston Sub-Assy, W/pin
13101 90520-37014 Ring, Hole Snap(For Piston Pin)
13201 13201-67021 Rod Sub-Assy, Connecting
13201 90999-73136 Bush(For Connecting Rod Small End)
13202 13204-30020 Bearing Set, Connecting Rod (0.25)
13202 13204-67031 Bearing Set, Connecting Rod (0.25)
13202 13205-30020 Bearing Set, Connecting Rod (0.50)
13202 13205-67031 Bearing Set, Connecting Rod
13265 13265-67021 Bolt, Connecting Rod
13405 13405-67070 Flywheel Sub-Assy
13405 90105-13010 Bolt, Flywheel Setting
13411 13401-30010 Crankshaft
13453 13453-67030 Gear, Flywheel Ring
13471 13408-67020 Pulley, Crankshaft
13471 95161-30516 Key(For Oil Pump Drive Spline)
13471 90119-18003 Bolt(For Crankshaft Pulley Set)
13508 90250-05027 Pin, Straight
13521 13521-67020 Gear Or Sprocket, Crankshaft Timing
13525 13508-67011 Gear, Idle, No.1
13537 13537-67900 Gear, Idle Sub, No.1
13538 13538-67900 Gear, Idle Sub, No.2
13538 90206-69001 Washer, Wave
13538 90520-58002 Ring, Shaft Snap
13572 13572-67041 Plate, Idle Gear Thrust
13578 13578-67010 Spring, Idle Gear
13581 13581-67041 Shaft, Idle Gear, No.1
13601 13601-67020 Balanceshaft Sub-Assy, No.1
13602 13602-67020 Balanceshaft Sub-Assy, No.2
13602 13602-0L020 Balanceshaft Sub-Assy, No.2
13613 13613-67902 Gear, Injection
13613 90363-60004 Bearing, Radial Ball
13632 13632-67010 Gear, Balanceshaft Driven, No.1
13633 13633-67010 Gear, Balanceshaft Driven, No.2
32117 32117-60050 Spacer, Drive Plate, Rear
9010510398 90105-10398 BOLT WASHER BASED
9017614003 90176-14003 NUT CAP
9030123005 90301-23005 O-RING
9151180612 91511-80612 New Genuine Part
9155110820 91551-10820 New Genuine Part
9161160628 91611-60628 Bolt, Hexagon
Cylinder Block ([08.2001 - ] (0108- )1KZTE) 40
#OEMPart name
11401 11401-69837 Block Sub-Assy, Cylinder
11401 11401-80766 Block Sub-Assy, Cylinder
11401 15708-30011 Nozzle Sub-Assy, Oil, No.1
11401 11401-69838 Block Sub-Assy, Cylinder
11401 11401-69839 Block Sub-Assy, Cylinder
11401 11401-80737 Block Sub-Assy, Cylinder
11401 90919-05005 Sensor, Crank Position
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11416 90910-02113 Bolt(For Crankshaft Bearing Cap Set)
11425 90116-06171 Bolt, Stud(For Oil Filter)
11431 96411-64500 Plug, Tight
11431 96411-63500 Plug, Tight
11431 96411-64000 Plug, Tight, No.2
11431 90331-35004 Plug, Tight, No.4(For Cylinder Block)
11431 96411-62000 Plug, Tight
11431 96411-61800 Tight Plug(For Oil Seal Retainer)
11431 90331-14006 Plug, Tight, No.1
11434 90250-08120 Pin, Straight, No.1
11434 90250-06068 Pin, Straight
11434 90250-10192 Pin, Straight(For Timing Gear Cover Set)
11434 90253-15016 Pin, Straight(For End Plate)
11448 11448-67010 Orifice, Cylinder Block Oil
11452 11452-67020 Guide, Oil Level Gage
12101 12101-67080 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-T0004 Plug(For Oil Pan Drain)
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
12582 12582-67010 Insulator, Cylinder Block, No.2
12584 12584-67020 Insulator, Cylinder Brock, No.4
15301 15301-67020 Gage Sub-Assy, Oil Level
15605 15605-54010 Valve Sub-Assy, Oil Check
15708 15708-30010 Nozzle Sub-Assy, Oil, No.1
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
9011606138 90116-06138 New Genuine Part
9011606140 90116-06140 Bolt, Stud(For Oil Strainer)
9011906754 90119-06754 BOLT WWASHER
9017906298 90179-06298 NUT
9030109018 90301-09018 Ring, O(For Timing Gear Case, Lower)
9212260614 92122-60614 Bolt, Stud(For Oil Strainer)
Cylinder Head ([08.2001 - ] (0108- )1KZTE) 26
#OEMPart name
11101 11101-69175 Head Sub-Assy, Cylinder
11101 90910-02112 Bolt(For Cylinder Head Set)
11101 90560-13023 Spacer(For Cylinder Head Set Bolt)
11115 11115-67040-01 Gasket, Cylinder Head
11115 11115-67050-01 Gasket, Cylinder Head
11115 11115-67040-05 Gasket, Cylinder Head
11115 11115-67050-05 Gasket, Cylinder Head
11115 11115-67050-03 Gasket, Cylinder Head
11116 96411-63000 Plug, Tight
11116 96411-62000 Plug, Tight
11116 96411-63500 Plug, Tight
11117 90341-22008 Plug, W/head Straight Screw, No.1
11122 11122-67020 Bush, Intake Valve Guide
11122 11123-67020 Bush, Intake Valve Guide
11151 90253-11021 Pin, Ring
11155 90253-10004 Pin, Ring W/head
11158 90116-06149 Bolt, Stud(For Head To Cylinder Head Cover)
11183 11183-67020 Plug, Semicircular
11201 11210-67010 Cover Sub-Assy, Cylinder Head
11213 11213-67010 Gasket, Cylinder Head Cover
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37004 Gasket(For Oil Filler Cap)
91511 91511-G0628 BOLT, FLANGE
9010508342 90105-08342 BOLT WASHER BASED
9017906208 90179-06208 NUT
9034552001 90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)
Disc Wheel & Wheel Cap ([08.1988 - ] (8808- )) 55
#OEMPart name
42601 90942-01075 Nut, Hub (For Axle)
42611 90942-05009 Valve (For Tubeless Tire)
42611 90080-94031 Valve (For Tubeless Tire)
9094203045 90942-03045 Weight, Balance (For Disc Wheel)
9094203045 90942-03362 Weight, Balance (For Disc Wheel)
9094203047 90942-03047 Weight, Balance (For Disc Wheel)
9094203047 90942-03366 Weight, Balance (For Disc Wheel)
9094203049 90942-03049 Weight, Balance (For Disc Wheel)
9094203049 90942-03083 Weight, Balance (For Disc Wheel)
9094203050 90942-03050 Weight, Balance (For Disc Wheel)
9094203050 90942-03364 Weight, Balance (For Disc Wheel)
9094203051 90942-03051 Weight, Balance (For Disc Wheel)
9094203051 90942-03085 Weight, Balance (For Disc Wheel)
9094203052 90942-03052 Weight, Balance (For Disc Wheel)
9094203052 90942-03368 Weight, Balance (For Disc Wheel)
9094203053 90942-03053 Weight, Balance (For Disc Wheel)
9094203064 90942-03064 Weight, Balance (For Disc Wheel)
9094203064 90942-03084 Weight, Balance (For Disc Wheel)
9094203079 90942-03079 Weight, Balance (For Disc Wheel)
9094203080 90942-03080 Weight, Balance (For Disc Wheel)
9094203081 90942-03081 Weight, Balance (For Disc Wheel)
9094203082 90942-03082 Weight, Balance (For Disc Wheel)
9094203086 90942-03086 Weight, Balance (For Disc Wheel)
9094203106 90942-03106 Weight, Balance (For Disc Wheel)
9094203106 90942-03360 Weight, Balance (For Disc Wheel)
9094203107 90942-03107 Weight, Balance (For Disc Wheel)
9094203146 90942-03146 Weight, Balance (For Disc Wheel)
9094203147 90942-03147 Weight, Balance (For Disc Wheel)
9094203148 90942-03148 Weight, Balance (For Disc Wheel)
9094203149 90942-03149 Weight, Balance (For Disc Wheel)
9094203150 90942-03150 Weight, Balance (For Disc Wheel)
9094203151 90942-03151 Weight, Balance (For Disc Wheel)
9094203152 90942-03152 Weight, Balance (For Disc Wheel)
9094203153 90942-03153 Weight, Balance (For Disc Wheel)
9094203154 90942-03154 Weight, Balance (For Disc Wheel)
9094203155 90942-03155 Weight, Balance (For Disc Wheel)
9094203156 90942-03156 Weight, Balance (For Disc Wheel)
9094203157 90942-03157 Weight, Balance (For Disc Wheel)
9094203158 90942-03158 Weight, Balance (For Disc Wheel)
9094203159 90942-03159 Weight, Balance (For Disc Wheel)
9094203160 90942-03160 Weight, Balance (For Disc Wheel)
9094203167 90942-03167 Weight, Balance (For Disc Wheel)
9094203218 90942-03218 Weight, Balance (For Disc Wheel)
9094203218 90942-03369 Weight, Balance (For Disc Wheel)
9094203219 90942-03219 Weight, Balance (For Disc Wheel)
9094203219 90942-03361 Weight, Balance (For Disc Wheel)
9094203220 90942-03220 Weight, Balance (For Disc Wheel)
9094203220 90942-03363 Weight, Balance (For Disc Wheel)
9094203221 90942-03221 Weight, Balance (For Disc Wheel)
9094203221 90942-03365 Weight, Balance (For Disc Wheel)
9094203222 90942-03222 Weight, Balance (For Disc Wheel)
9094203222 90942-03367 Weight, Balance (For Disc Wheel)
9094203223 90942-03223 Weight, Balance (For Disc Wheel)
9094203224 90942-03224 Weight, Balance (For Disc Wheel)
9094203225 90942-03225 Weight, Balance (For Disc Wheel)
Door Motor & Door Solenoid ([04.1989 - ] (8904- )KZN205,LN10#,13#,205,RN106,13#,VZN130 ,YN106,135) 7
#OEMPart name
85710 85710-35070 Motor Assy, Power Window Regulator, Front Rh
85710 85710-35031 Motor Assy, Power Window Regulator, Rear Rh
85720 85720-35070 Motor Assy, Power Window Regulator, Front Lh
85720 85720-35031 Motor Assy, Power Window Regulator, Rear Lh
9015960329 90159-60329 New Genuine Part
9016850024 90168-50024 New Genuine Part
9016850024 90168-50013 SCREW
Electronic Controled Diesel (Ecd) ([08.2001 - ] (0108- )KZN205) 15
#OEMPart name
85915 85915-26010 Relay Assy, Circuit Opening
89421 89421-60030 Sensor, Turbo Pressure (For Diesel Turbo)
89421 89421-60040 Sensor, Turbo Pressure (For Diesel Turbo)
89422 89422-35010 Sensor, Water Temperature (For E.f.i.)
89424 89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)
89454 89454-60010 Sensor, Fuel Temperature
89661 89666-35600 Computer, Engine Control
89661 89666-35601 Computer, Engine Control
89667 89667-35030 Bracket, Engine Control Computer
89668 89668-35040 Bracket, Engine Control Computer, No.2
89669 89669-35030 Bracket, Engine Control Computer, No.3
91631 91631-G0614 BOT WWASHER
9043012221 90430-12221 Gasket
9162640616 91626-40616 New Genuine Part
9331915010 93319-15010 SCREW

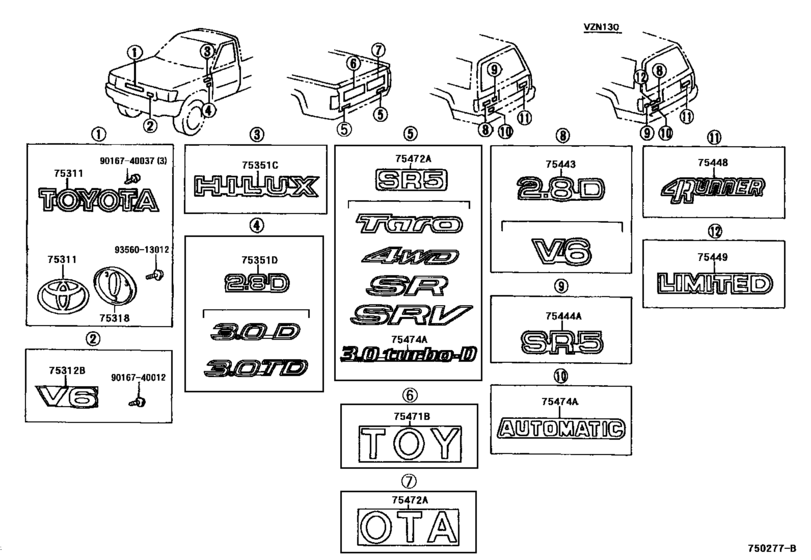

Emblem & Name Plate ([08.1988 - ] (8808- )) 10
#OEMPart name
75311 75311-35090 Emblem, Radiator Grille (Silver)
75351 75361-35010 Plate, Door Name
75351 75362-35060 Mark, Fender, No.2
75472 75444-21220 Plate, Back Door Name, No.4
75472 75472-35110 Plate, Rear Body Name, No.2
75472 75472-35100 Plate, Rear Body Name, No.2
75474 75443-35050 Plate, Back Door Name, No.3
9016740012 90167-40012 New Genuine Part
9016740037 90167-40037 New Genuine Part
9356013012 93560-13012 New Genuine Part
Engine Oil Cooler ([08.2001 - ] (0108- )1KZTE) 3
#OEMPart name
15710 15710-67040 Cooler Assy, Oil
15785 15785-30010 Gasket, Oil Cooler
9017908150 90179-08150 NUT
Engine Oil Pump ([08.2001 - ] (0108- )1KZTE) 11
#OEMPart name
15104 15104-67050 Strainer Sub-Assy, Oil
15104 90116-06140 Bolt, Stud(For Oil Strainer)
15104 92122-60650 Bolt, Stud(For Oil Strainer)
15131 15131-46040 Valve, Oil Pump Relief
15132 15132-17010 Spring, Oil Pump Relief Valve
15133 15133-17010 Plug, Oil Pump Relief Valve
15134 15134-67020 Gasket, Oil Pump Relief Valve
15149 15149-67010 Gasket, Oil Strainer Flange
15193 15193-67011 Gasket, Oil Pump
9011906754 90119-06754 BOLT WWASHER
9017906298 90179-06298 NUT
Engine Overhaul Gasket Kit ([01.2004 - ] (0401- )1KZTE) 4
#OEMPart name
4111 04111-67041 Gasket Kit, Engine Overhaul
4111 04111-67080 Gasket Kit, Engine Overhaul
4112 04112-67041 Gasket Kit, Engine Valve Grind
4112 04112-67080 Gasket Kit, Engine Valve Grind
Engine Overhaul Gasket Kit ([08.2001 - 01.2004] (0108-0401)1KZTE) 4
#OEMPart name
4111 04111-67041 Gasket Kit, Engine Overhaul
4111 04111-67080 Gasket Kit, Engine Overhaul
4112 04112-67041 Gasket Kit, Engine Valve Grind
4112 04112-67080 Gasket Kit, Engine Valve Grind
Exhaust Pipe ([08.2001 - ] (0108- )1KZTE) 14
#OEMPart name
17410 90179-10070 Nut, Exhaust Pipe Set Stud Bolt
17410 90080-17187 Nut, Exhaust Pipe Set Stud Bolt
17410 90917-06067 Gasket, Exhaust Pipe
17451 90917-06046 Gasket, Exhaust Pipe
17562 17565-74290 Support, Exhaust Pipe, No.2
17565 17566-35030 Bolt Or Ring, Exhaust Tail Pipe (For Rear)
17565 17565-35010 Bolt Or Ring, Exhaust Tail Pipe(For Center)
17571 17571-54430 Bracket, Exhaust Pipe Front (For Front)
9010510388 90105-10388 BOLT
9017910133 90179-10133 NUT
9151281045 91512-81045 New Genuine Part
9161261035 91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate

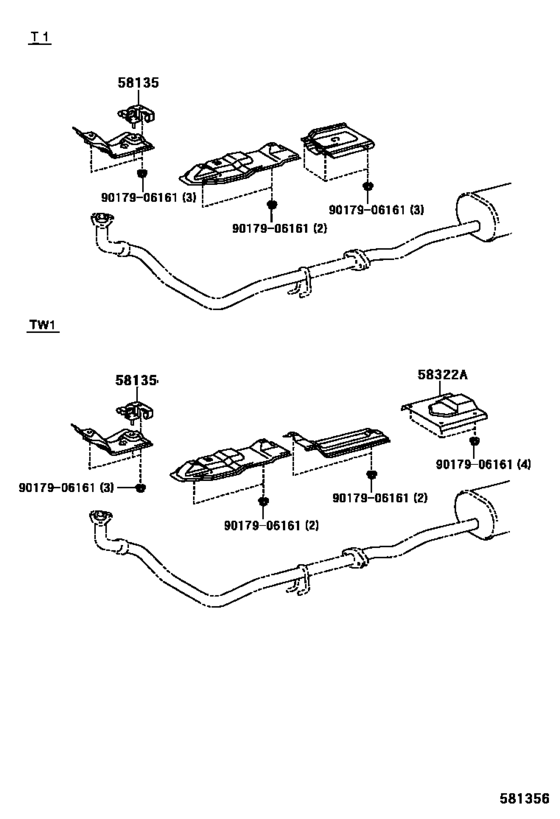

Floor Insulator ([06.2001 - ] (0106- )) 3
#OEMPart name
58135 58135-35010 Bracket, Floor Insulator Support
58322 58322-89103 Insulator, Rear Floor Heat, Rear
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
Frame ([06.2001 - ] (0106- )) 40
#OEMPart name
51047 51047-35080 Bracket Sub-Assy, Engine Mounting & Upper Arm, Rh
51048 51048-35080 Bracket Sub-Assy, Engine Mounting & Upper Arm, Lh
51112 51112-35070 Extension, Side Rail, Rh
51201 51201-35320 Crossmember Sub-Assy, Frame, Front
51203 51203-35270 Crossmember Sub-Assy, Frame, No.2
51204 51202-35420 Crossmember Sub-Assy, Frame, No.3
51207 51207-35010 Bracket Sub-Assy, Differential Support, Rh
51254 51254-35010 Bracket, Differential Support, Lh
51296 51296-35010 Reinforcement, Differential Bracket, Lh
51321 51321-35050 Bracket, Frame No.2 Crossmember, Rh
51431 51431-35141 Bracket, Engine Rear Mounting
51501 51501-35130 Support Sub-Assy, Suspension Arm, Rh
51502 51502-35130 Support Sub-Assy, Suspension Arm, Lh
51505 51505-35090 Support Sub-Assy, Anchor Arm, Rh
51506 51506-35020 Support Sub-Assy, Anchor Arm, Lh
51631 51061-35010 Stopper, Front Suspension Rebound, Rh
51631 51631-35040 Stopper, Front Suspension Rebound, Rh
51701 51701-35130 Bracket Sub-Assy, Cab Mounting, No.1 Rh
51702 51702-35110 Bracket Sub-Assy, Cab Mounting, No.1 Lh
51703 51703-35090 Bracket Sub-Assy, Cab Mounting, No.2, Rh
51704 51704-35110 Bracket Sub-Assy, Cab Mounting, No.2 Lh
51705 51705-35090 Bracket Sub-Assy, Cab Mounting, No.3 Rh
51707 51707-35030 Bracket Sub-Assy, Cab Mounting, No.4 Rh
51708 51708-35030 Bracket Sub-Assy, Cab Mounting, No.4 Lh
51741 51741-35050 Bracket, Rear Body Mounting, No.1
51751 51751-35070 Bracket, Body Support, No.1 Rh
51752 51752-35040 Bracket, Body Support, No.1 Lh
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9010512016 90105-12016 New Genuine Part
9010512160 90105-12160 New Genuine Part
9011910536 90119-10536 BOLT WWASHER
9011910566 90119-10566 New Genuine Part
9011910566 90119-10393 New Genuine Part
9017012014 90170-12014 New Genuine Part
9095001642 90950-01642 Plug, Hole(For Frame)
9095001643 90950-01643 New Genuine Part
9095001653 90950-01653 New Genuine Part
9116281240 91162-81240 New Genuine Part
9165161025 91651-61025 Bolt with washer
9462211200 94622-11200 WASHER
Front Axle Arm & Steering Knuckle ([06.2001 - ] (0106- )) 29
#OEMPart name
4485 04485-35040 Shaft Kit, Upper Suspension Arm
43211 90106-12012 Bolt, Round Hexagon (For Steering Knuckle Stopper)
43211 90316-60004 Seal, Oil (For Steering Knuckle)
43211 90381-30003 Bush (For Steering Knuckle)
43211 90381-32001 Bush (For Steering Knuckle Rh)
43330 43330-39315 Joint Assy, Lower Ball, Front Rh
43330 43330-39835 Joint Assy, Lower Ball, Front Rh
43350 43350-39085 Joint Assy, Front Upper Ball, Rh
43360 43360-39085 Joint Assy, Front Upper Ball, Lh
43511 90313-98001 Seal, Dust(For Front Axle Hub Rh)
43511 90313-98002 Seal, Dust(For Front Axle Hub Lh)
43511 90313-92001 Seal, Dust(For Front Axle Hub Rh)
48068 48068-35090 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069 48069-35090 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48190 48190-35020 Cam Assy, Camber Adjust
48198 48198-35010 Cam, Camber Adjust, No.2
48654 48061-35011 Bush, Lower Arm
9010512112 90105-12112 Bolt(For Torque Arm Setting)
9010514064 90105-14064 BOLT, WASHER BASED
9011910832 90119-10832 Bolt
9017008204 90170-08204 Nut (For Propeller Shaft)
9017912021 90179-12021 NUT
9017916013 90179-16013 NUT
9025204002 90252-04002 PIN
9034506014 90345-06014 Plug (For Ball Joint)
9036430011 90364-30011 Bearing, Needle Roller(For Steering Knuckle Rh)
9413061200 94130-61200 Nut
9414641600 94146-41600 New Genuine Part
9462210800 94622-10800 WASHER PLATE
Front Axle Housing & Differential ([08.2001 - ] (0106- )LN205 ; (0108- )KZN205) 112
#OEMPart name
41039 41039-34030 Gear Kit, Differential, Rear
41101 41101-35060 Carrier Sub-Assy, Differential, Front
41110 41110-3D300 Carrier Assy, Differential, Front
41114 90105-12053 Bolt (For Rear Differential Carrier)
41148 41148-35010 Retainer, Differential Bearing
41181 41108-35020 Cover, Front Differential Carrier
41181 90930-03031 Plug, Breather(For Parking Cover)
41181 90930-03077 Plug, Breather (For Automatic Transmission Case)
41181 90341-18006 Plug (No magnet)
41181 90341-18030 Plug (For Rear Differential Carrier Cover)
41181 12157-10010 Gasket (For Drain Plug)
41201 41201-30151 Final Gear Kit, Differential, Rear
41201 41201-80107 Final Gear Kit, Differential, Rear
41204 41204-35050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41211 90366-30022 Bearing (For Rear Drive Pinion Front)
41211 90366-30078 Bearing (For Rear Drive Pinion Front)
41211 90366-35023 Bearing (For Rear Drive Pinion Rear)
41214 41214-35020 Slinger, Rear Differential Drive Pinion Oil
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41222 41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock
41231 41231-22010 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-30010 Deflector, Dust (For Rear Differential)
41304 41304-35020 Shaft Sub-Assy, Differential Side Gear, Rh
41304 90114-12011 Bolt, Serration (For Differential Side Gear Shaft)
41304 90521-29002 Ring, Hole Snap (For Differential Side Gear Shaft)
41304 90311-35032 Seal, Oil (For Differential Side Gear Shaft)
41306 41306-35021 Shaft Sub-Assy, Differential Side Gear Inter
41309 41309-35021 Shaft Sub-Assy, Differential Side Gear, Lh
41309 90369-36009 Bearing (For Front Differntial Side Gear Shaft Rh)
41309 90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)
41309 96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)
41311 90201-50003 Washer, Plate (For Front Differential Case)
41311 90201-50004 Washer, Plate (For Front Differential Case)
41311 90201-50005 Washer, Plate (For Front Differential Case)
41311 90201-50006 Washer, Plate (For Front Differential Case)
41311 90201-50007 Washer, Plate (For Front Differential Case)
41311 90201-50008 Washer, Plate (For Front Differential Case)
41311 90201-50009 Washer, Plate (For Front Differential Case)
41311 90201-50010 Washer, Plate (For Front Differential Case)
41311 90201-50011 Washer, Plate (For Front Differential Case)
41311 90201-50012 Washer, Plate (For Front Differential Case)
41311 90201-50013 Washer, Plate (For Front Differential Case)
41311 90201-50014 Washer, Plate (For Front Differential Case)
41311 90201-50015 Washer, Plate (For Front Differential Case)
41311 90201-50016 Washer, Plate (For Front Differential Case)
41311 90201-50017 Washer, Plate (For Front Differential Case)
41311 90201-50018 Washer, Plate (For Front Differential Case)
41311 90201-50019 Washer, Plate (For Front Differential Case)
41311 90201-50020 Washer, Plate (For Front Differential Case)
41311 90201-50021 Washer, Plate (For Front Differential Case)
41311 90201-50022 Washer, Plate (For Front Differential Case)
41311 90201-50023 Washer, Plate (For Front Differential Case)
41311 90201-50024 Washer, Plate (For Front Differential Case)
41311 90201-50025 Washer, Plate (For Front Differential Case)
41320 41320-35020 Tube Assy, Front Differential
41320 90301-68003 Ring, O (For Front Differential Tube)
41336 41336-22010 Cover, Dust(For Rear Differential Side Gear Shaft)
41336 41336-35010 Cover, Dust(For Front Differential Side Gear Shaft)
41342 90250-06058 Pin, Straight(For Timing Gear Case)
41342 41342-22021 Shaft, Rear Differential Pinion
41351 41351-30060 Washer, Rear Differential Pinion Thrust
41361 41361-30040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30050 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30060 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30070 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30080 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30090 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30100 Washer, Rear Differential Side Gear Thrust, No.1
41400 41400-35010 Actuator Assy, Differential Vacuum
41400 90301-29008 Ring, O (For Differential Vacuum Actuator)
41433 41433-35010 Sleeve, Differential Clutch
41434 41434-35020 Hub, Differential Clutch
41434 41434-35021 Hub, Differential Clutch
41435 41435-35010 Case, Differential Clutch
41435 41035-35010 Case, Differential Clutch
41435 90109-12028 Bolt (For Differential Clutch Case Setting)
41435 90109-12029 Bolt (For Differential Clutch Case Setting)
41436 41436-35010 Cover, Front Differential Clutch Case
41436 90341-10065 Plug, Straight, No.1
41441 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
41441 41441-35010 Fork, Differential Shift
41993 41993-35010 Label, Differential Oil Information
43631 41311-35060 Case, Front Differential
43631 41311-34020 Case, Front Differential
43631 90364-33009 Bearing, Needle Roller(For Front Differential Side Gear)
43631 90368-50006 Bearing(For Rear Differential Case)
43637 90179-18020 Nut (For Transfer Gear)
43640 90201-35396 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35397 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35398 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35399 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35400 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35401 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35402 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35403 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35404 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35438 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35439 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35440 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35441 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
43640 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
43640 90311-38047 Seal, Oil (For Differential Carrier)
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
91611 91611-B0816 Bolt
9010114036 90101-14036 New Genuine Part
9010510361 90105-10361 Bolt (For Rear Differential Carrier Cover Setting)
9017914033 90179-14033 NUT
9151160820 91511-60820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9462311400 94623-11400 New Genuine Part
Front Axle Housing & Differential ([08.2001 - ] (0108- )KZN205) 13
#OEMPart name
41531 41531-04010 Tube, Front Differential Vacuum
41531 41531-35010 Tube, Front Differential Vacuum
41531 90413-04001 Way, 3(For Transfer Breather Hose)
41531 90999-92002 Air Hose (300 mm)
41531 90447-08029 Hose, Front Differential Vacuum, No.2
41531 90447-08030 Hose, Front Differential Vacuum, No.2
41531 90445-08358 Hose, Front Differential Vacuum, No.2
42599 42599-35160 Hose, Vacuum Disconnecting Differential
9046400083 90464-00083 New Genuine Part
9046400314 90464-00314 Clip(For Water By-Pass Hose)
9046400514 90464-00514 New Genuine Part
9094901731 90949-01731 New Genuine Part
9166160816 91661-60816 Bolt
Front Axle Hub ([08.1988 - ] (8808- )KZN205,LN107,111,13#,205,RN106,110,13 #,VZN130,YN13#) 25
#OEMPart name
42323 42323-60010 Washer, Cone (For Axle Shaft)
43410 90520-27023 Ring, Snap (For Front Drive Shaft)
43410 90560-27005 Spacer (For Drive Shaft)
43410 90560-27010 Spacer (For Drive Shaft)
43410 90560-27011 Spacer (For Drive Shaft)
43421 43421-35010 Flange, Front Axle Outer Shaft
43421 90116-08325 Bolt, Stud (For Axle Hub)
43421 90250-07057 Pin, Straight (For Axle Hub)
43422 43422-60010 Gasket, Axle Shaft
43501 43503-29015 Hub Sub-Assy, Front Axle
43501 43503-29085 Hub Sub-Assy, Front Axle (For ABS)
43501 90311-66003 Seal, Oil (For Front Axle Hub )
43501 90214-42030 Washer, Claw (For Rear Axle Shaft)
43501 43511-39015 Hub Sub-Assy, Front Axle
43501 43502-29095 Hub Sub-Assy, Front Axle
43514 43423-35010 Cap, Front Axle Outer Shaft Flange
43521 43521-60011 Nut, Front Wheel Adjusting
43523 90215-42025 Washer, Front Wheel Adjusting Lock
9011906024 90119-06024 BOLTWWASHER
9011906024 91641-80616 BOLT W-WASHER
9011908466 90119-08466 BOLT
9011910396 90119-10396 Bolt(For Backing Plate To Rear Axle Housing Setting)
9017008204 90170-08204 Nut (For Propeller Shaft)
9017608035 90176-08035 Nut
9020108042 90201-08042 WASHER
Front Bumper & Bumper Stay ([06.2001 - ] (9108-9511)LN13#,RN13#,VZN130 ; (0106- )) 13
#OEMPart name
52011 52011-35050 Arm Sub-Assy, Front Bumper, Rh
52012 52012-35050 Arm Sub-Assy, Front Bumper, Lh
52145 52145-89102 Bracket, Front Bumper Side Mounting
52211 52211-89101 Cushion(For Front Bumper Arm)
9011910608 90119-10608 New Genuine Part
9011910608 90119-10530 BOLT WWASHER
9015960431 90159-60431 SCREW
9017908063 90179-08063 NUT
9017908096 90179-08096 NUT
9017908096 90080-18061 New Genuine Part
9017908142 90179-08142 NUT
9018906154 90189-06154 GROMMET SCREW
9054008018 90540-08018 CUSHION
Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- )KZN205,LN107,111,13#,205,RN106,110,13 #,VZN130,YN13#) 5
#OEMPart name
47703 47703-35062 Cover Sub-Assy, Disc Brake Dust, Front Rh
47704 47704-35062 Cover Sub-Assy, Disc Brake Dust, Front Lh
47710 90101-12144 Bolt, Hexagon(For Front Disc Brake Caliper)
9161160814 91611-60814 Bolt
9451201200 94512-01200 Washer
Front Door Lock & Handle ([08.1988 - ] (8808- )) 36
#OEMPart name
69110 69110-35020 Actuator Assy, Front Door Lock, Rh
69120 69120-35030 Actuator Assy, Front Door Lock, Lh
69205 69205-89107-B0 Handle Sub-Assy, Rear Door Inside, Rh
69206 69206-89107-B0 Handle Sub-Assy, Rear Door Inside, Lh
69210 69210-89111 Handle Assy, Front Door, Outside Rh
69210 90541-04014 Cushion, Console Box
69220 69220-89111 Handle Assy, Front Door Outside, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69293 69293-12040 Snap, Front Door Outside Handle
69310 69310-35180 Lock Assy, Front Door, Rh
69320 69320-35170 Lock Assy, Front Door, Lh
69410 69410-87001 Plate Assy, Front Door Lock Striker
69410 69410-AA020 Plate Assy, Front Door Lock Striker
69711 69711-89105 Link, Front Door Lock Remote Control, Rh
69712 69712-89105 Link, Front Door Lock Remote Control, Lh
69741 69741-89104-B1 Knob, Front Door Lock Control (Gray)
69749 69749-89101 Clamp, Front Door Lock Link
69751 69751-89106 Holder, Front Door Lock Control Knob
69751 69752-89103 Holder, Front Door Lock Control Knob
69759 69759-20040 Snap, Auxiliary Catch Release Lever Control Link
69759 69759-20050 Snap(For Rear Door Lock)
69759 69759-20100 Snap, Tail Gate Handle
69759 69759-20110 Snap, Auxiliary Catch Release Lever Control Link
69759 69759-24010 Snap(For Rear Door Inside Handle)
69759 69759-24020 Snap(For Rear Door Inside Handle)
69759 69759-20060 Snap(For Rear Door Inside Handle)
69759 69759-20070 Snap(For Rear Door Inside Handle)
9014860022 90148-60022 BOLT
9014860023 90148-60023 New Genuine Part
9014880027 90148-80027 Screw Hex Lobular
9016250008 90162-50008 SCREW
9016460015 90164-60015 SCREW
9018905003 90189-05003 CLIP
9018906018 90189-06018 GROMMET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Front Door Panel & Glass ([08.1988 - ] (8808- )) 39
#OEMPart name
67111 67111-35080 Panel, Front Door, Outer Rh
67112 67112-35080 Panel, Front Door, Outer Lh
67401 67401-35020 Frame Sub-Assy, Front Door, Front Lower Rh
67402 67402-35020 Frame Sub-Assy, Front Door, Front Lower Lh
67433 67403-35030 Frame, Front Door Window, Rear Lower Rh
67434 67404-35030 Frame, Front Door Window, Rear Lower Lh
67491 67491-89101 Garnish, Front Door Lower Frame Bracket, Rh
67492 67492-89101 Garnish, Front Door Lower Frame Bracket, Lh
67499 67499-89101 Retainer, Front Door Lower Frame Bracket Garnish
67601 67771-16080 Retainer (For Quarter Inside Trim Board)
67601 67771-30090 Retainer (For Quarter Inside Trim Board)
67601 67771-89105-03 Retainer(For Front Door Trim Board)
67601 67771-89106 Retainer(For Front Door Trim Board)
67601 67771-89109 Clip(For Step Plate)
67601 90467-07085-B0 Clip(For Front Door Trim Board)
67772 67772-16020 Cap, Front Door Trim Retainer
67777 67777-89104-B0 Pocket, Front Door Trim, Rh
67778 67778-89101-B0 Pocket, Front Door Trim, Lh
67831 67831-35020 Cover, Front Door Service Hole, Rh
67861 67861-35020 Weatherstrip, Front Door, Rh
67862 67862-35020 Weatherstrip, Front Door, Lh
67867 67867-89108 Retainer, Front Door Weatherstrip, Rh
67868 67868-89106 Retainer, Front Door Weatherstrip, Lh
68141 68141-89117 Run, Front Door Glass, Rh
68151 68151-89109 Run, Front Door Glass, Lh
68160 68160-89122 Weatherstrip Assy, Front Door Glass, Outer Rh
68161 68212-89101 Clip(For Front Door Glass Outer Weatherstrip)
68210 68210-89106 Weatherstrip Assy, Front Door Glass, Outer Lh
68610 68610-35030 Check Assy, Front Door
68617 68617-20011 Pin(For Door Check)
69751 69751-12030-B0 Holder, Front Door Lock Control Knob
9011906430 90119-06430 BOLT WWASHER
9016740028 90167-40028 New Genuine Part
9016840025 90168-40025 SCREW
9054109062 90541-09062 Cushion(For Back Door Panel)
9090119029 90901-19029 New Genuine Part
9095001620 90950-01620 PLUG HOLE
9162140612 91621-40612 BOLT W-WASHER
9351074020 93510-74020 New Genuine Part
Front Door Window Regulator & Hinge ([08.1988 - ] (8808- )) 10
#OEMPart name
68710 68710-35010 Hinge Assy, Front Door, Upper Rh
68720 68720-35010 Hinge Assy, Front Door, Upper Lh
68730 68730-35010 Hinge Assy, Front Door, Lower Rh
68740 68740-35010 Hinge Assy, Front Door, Lower Lh
69801 69801-35040 Regulator Sub-Assy, Front Door Window, Rh
69802 69802-35040 Regulator Sub-Assy, Front Door Window, Lh
9011908093 90119-08093 BOLT
9016250008 90162-50008 SCREW
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Front Drive Shaft ([08.1988 - ] (8808- )KZN205,LN107,111,13#,205,RN106,110,13 #,VZN130,YN13#) 2
#OEMPart name
43501 90304-76005 Seal, Dust(For Front Axle Outer Shaft)
9017912047 90179-12047 Nut(For Front Stabilizer Link)
Front Fender Apron & Dash Panel ([08.1988 - ] (8808- )) 29
#OEMPart name
53211 53202-35080 Support, Radiator, Rh
53212 53203-35090 Support, Radiator, Lh
53285 53285-35040 Seal, Radiator Side Air, No.1
53705 53705-89103 Brace Sub-Assy, Fender Apron, Rh
53706 53706-89103 Brace Sub-Assy, Fender Apron, Lh
53713 53707-89102 Extension, Front Fender Apron, Front Rh
53714 53708-89101 Extension, Front Fender Apron, Front Lh
53731 53731-89108 Patch, Front Fender Apron
53736 64479-35010 Clip(For Front Fender Apron Seal)
53736 90467-10107 Clip(For Front Fender Apron Seal)
53736 53734-35020 Seal, Fender Apron
53736 53736-35090 Seal, Fender Apron
53736 53738-35050 Seal, Fender Apron
55223 55225-35020 Insulator, Dash Panel Heat, No.1
91651 91651-F0610 New Genuine Part
91651 91651-G0614 BOLT,W/WASHER
91651 90119-06482 New Genuine Part
1144489103 11444-89103 Plug, Hole
1144489106 11444-89106 Plug, Hole
9011906346 90119-06346 New Genuine Part
9011906416 90119-06416 New Genuine Part
9011906445 90119-06445 New Genuine Part
9017906060 90179-06060 Nut, Wing(For Air Cleaner)
9046710075 90467-10075 New Genuine Part
9046710095 90467-10095 New Genuine Part
9095001826 90950-01826 Plug, Hole(For Floor Panel)
9095001872 90950-01872 Plug, Hole, No.3(For Dash Panel)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
Front Fender Apron & Dash Panel ([12.1989 - ] (8912- )LHD) 7
#OEMPart name
55113 55113-35040 Plate, Clutch Pedal Support Mounting
8739889108 87398-89108 Band Assy (for Combustion Heater)
9046308154 90463-08154 New Genuine Part
9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)
9095001060 90950-01866 Plug, Hole(For Front Door Panel)
9095001354 90950-01354 Cushion(For Luggage Compartment Door Panel)
9095001872 90950-01872 Plug, Hole, No.3(For Dash Panel)
Front Floor Panel & Front Floor Member ([08.1988 - ] (8808- )TW1) 27
#OEMPart name
57411 57411-35010 Member, Floor Side, Inner Rh
57412 57412-35010 Member, Floor Side, Inner Lh
57486 57486-89104 Reinforcement, Floor Side Member, No.1 Rh
57487 57487-89102 Reinforcement, Floor Side Member, No.1 Lh
58191 58192-89101 Footrest, Front Floor
58198 58198-89101 Clip, Footrest
9011506144 90115-06144 New Genuine Part
9011908454 90119-08454 Bolt, Winch, No.1
9011908454 91651-A0816 Bolt, Winch, No.1
9015950298 90159-50298 New Genuine Part
9016050004 90160-50004 New Genuine Part
9016850054 90168-50054 SCREW TAPPING
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
9017908096 90179-08096 NUT
9017908096 90080-18061 New Genuine Part
9018906029 90189-06029 GROMMET
9033301008 90333-01008 New Genuine Part
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9095001061 90950-01061 Plug, Hole, No.3(For Dash Panel)
9095001061 90950-01872 Plug, Hole, No.3(For Dash Panel)
9095001086 90950-01086 PLUG
9095001234 90950-01234 Cover, Rear Floor Hole
9095006060 90950-06060 New Genuine Part
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9356056020 93560-56020 SCREW
Front Floor Panel & Front Floor Member ([12.1989 - ] (8912- )) 12
#OEMPart name
57023 57023-89103 Bracket Sub-Assy, Body Mounting, No.2 Rh
57024 57024-89103 Bracket Sub-Assy, Body Mounting, No.2 Lh
57451 57451-89108 Member, Front Floor Cross
57452 57452-35010 Member, Front Floor Cross, Lh
57453 57453-89101 Reinforcement, Front Floor Cross Member, Rh
57454 57454-89101 Reinforcement, Front Floor Cross Member, Lh
57512 57512-89105 Reinforcement, Front Floor, Rh
57513 57513-89104 Reinforcement, Front Floor, Lh
58163 58163-89101 Retainer, Console Box Mounting, No.1
58193 58109-35020 Bracket, Instrument Panel Brace Mounting
58995 58995-89104 Bracket, Console Box Mounting, No.1
9422381000 94223-81000 New Genuine Part
Front Spring & Shock Absorber ([06.2001 - ] (0106- )) 34
#OEMPart name
48107 48107-35050 Arm Sub-Assy, Anchor, Rh
48108 48108-35050 Arm Sub-Assy, Anchor, Lh
48161 48161-35130 Spring, Torsion Bar, Rh
48162 48162-35130 Spring, Torsion Bar, Lh
48173 48173-35010 Swivel, Anchor Arm
48173 48173-35020 Seat, Anchor Arm Adjuster
48173 90101-12159 Bolt, Hexagon(For Anchor Arm Adjusting)
48174 48174-26010 Cover, Torsion Bar Dust
48179 48179-35030 Protector, Torsion Bar Dust Cover, Lh
48304 48304-35170 Bumper Sub-Assy, Front Spring, No.1
48305 48305-35020 Bumper Sub-Assy, Front Spring, No.2
48510 48511-80065 Absorber Assy, Shock, Front Rh
48510 48511-80111 Absorber Assy, Shock, Front Rh
48510 48511-80066 Absorber Assy, Shock, Front Rh
48510 90948-01003 Rubber Cushion
48510 90948-01045 Cushion, Front Shock Absorber
48510 90948-02131 Retainer, Cushion, No.1
48510 90948-02119 Retainer, Cushion, No.2(For Front Shock Absorber)
48815 48815-14160 Bush, Front Stabilizer Bar, No.1
48817 90948-01002 Cushion
48817 90948-02004 Cushion Retainer
48817 90948-02034 Retainer, Cushion, No.2(For Front Stabilizer Bar)
48817 90440-14003 Collar(For Stabilizer Bar)
48824 48824-35080 Bracket, Stabilizer, Front
48829 48829-35050 Bracket, Stabilizer
9010110140 90101-10140 Bolt(For Front Stabilizer)
9010516027 90105-16027 BOLT
9011908671 90119-08671 Bolt
9011908686 90119-08686 BOLT
9017016011 90170-16011 NUT HEXAGON
9017912074 90179-12074 NUT
9418041000 94180-41000 Nut
9418461001 94184-61001 Nut(For Front Stabilizer Bar)
9462231600 94622-31600 WASHER PLAIN
Front Steering Gear & Link ([06.2001 - ] (0106- )) 32
#OEMPart name
45046 45046-39385 End Sub-Assy, Tie Rod
45046 90171-14042 Nut, Castle(For Pitman Arm)
45406 45406-39185 Rod Sub-Assy, Tie
45409 90201-14010 Washer, Plate(For Idler Arm Rubber Bush)
45409 90389-21004 Bush(For Idler Arm)
45409 90304-31012 Seal, Dust(For Idler Arm Support)
45450 45451-39605 Rod Assy, Steering Relay
45460 45460-39505 Rod Assy, Tie, Rh
45461 45465-35040 Rod, Steering Tie
45466 45466-30020 Clamp, Tie Rod End
45490 45490-39455 Arm Assy, Steering Idler
45490 45490-39456 Arm Assy, Steering Idler
45490 45490-39515 Arm Assy, Steering Idler
45490 90171-12028 Nut, Castle(For Pitman Arm)
45497 45497-28010 Cap, Idler Arm Bracket
45611 45611-35130 Arm, Steering Knuckle, Rh
45611 90105-14043 Bolt(For Steering Knuckle Arm Rh)
45612 45612-35150 Arm, Steering Knuckle, Lh
45700 45700-39046 Damper Assy, Steering
45700 45700-39085 Damper Assy, Steering
9010108057 90101-08057 BOLT
9010512110 90105-12110 BOLT
9010512113 90105-12113 New Genuine Part
9010612014 90106-12014 New Genuine Part
9017912020 90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9411041000 94110-41000 Nut(For Steering Damper)
9411050800 94110-50800 Nut(For Repair Actuator Set)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9462211200 94622-11200 WASHER
9538103022 95381-03022 Cotter pin
9538103225 95381-03225 PIN COTTER
Front Steering Gear & Link ([08.1988 - ] POWER STEERING (8808- )KZN205,LN107,111,13#,205,RN106,110,13 #,VZN130,YN13#) 37
#OEMPart name
4445 04445-35130 Gasket Kit, Power Steering Gear(For Recirculating Ball)
4455 04455-35100 Gasket Kit, Power Steering Control Valve Overhole
44105 90410-06005 Seat, Union(Pressure Control Valve Assy)
44107 44107-35160 Housing Sub-Assy, Power Steering Gear
44107 90364-36006 Bearing, Needle Roller(For Power Steering Gear Housing)
44107 90301-37006 Ring, O(For Power Steering Gear Housing)
44107 90301-69002 Ring, O(For Power Steering Gear Housing)
44107 96711-19010 Ring, O(For Oil Level Gage Guide)
44107 90562-35001 Ring(For Power Steering Gear Housing)
44107 90562-36002 Ring(For Power Steering Gear Housing)
44107 90521-48002 Ring, Hole Snap(For Power Steering Gear Housing)
44107 90311-36005 Seal, Oil(For Power Steering Gear Housing)
44108 44108-60030 Cover Sub-Assy, Side
44108 90301-64002 Ring, O(For Side Cover)
44110 44110-35360 Gear Assy, Power Steering
44111 44111-60030 Shaft, Cross
44114 90562-71001 Ring(For Power Piston Nut)
44114 90301-68002 Ring, O(For Power Piston Nut)
44120 44120-35220 Valve Assy, W/ball Nut
44142 44142-60020 Nut, Lock
44152 44152-30020 Plunger, Power Piston
44152 90501-20095 Spring, Compression(For Power Piston Plunger)
44153 44153-30020 Guide, Power Piston Plunger
44154 44154-30020 Nut, Power Piston Plunger Guide
44154 96711-19014 O-Ring
44257 90210-10001 Washer, Seal(For Cross Shaft Adjusting Screw)
44447 44447-35020 Bracket, Hose Support, No.1
45351 90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45357 45357-60030 Screw, Cross Shaft Adjusting
45401 45401-35270 Arm Sub-Assy, Pitman
9010512110 90105-12110 BOLT
9010512113 90105-12113 New Genuine Part
9011910582 90119-10582 New Genuine Part
9017010208 90170-10208 NUT
9017912020 90179-12020 Nut(For Parking Brake Plate To Rear Axle Housing)
9451102200 94511-02200 WASHER
9462211200 94622-11200 WASHER
Fuel Filter ([08.2001 - ] (0108- )1KZTE) 12
#OEMPart name
23301 23380-67360 Cap Assy, Fuel Filter
23301 23380-67361 Cap Assy, Fuel Filter
23303 23390-64480 Element Sub-Assy, Fuel Filter
23322 23388-64470 Plug, Drain(For Fuel Filter)
23322 23344-54010 O-Ring (For Drain Plug)
23338 23344-64010 O-Ring (For Level Warning Switch)
23921 23921-67070 Support, Fuel Filter
84461 84461-26090 Switch, Level Warning
84461 84461-26093 SWITCH LEVEL
9017908150 90179-08150 NUT
9162660818 91626-60818 Bolt (For Transmission Control Cable Bracket)
9162660818 91621-J0814 Bolt (For Transmission Control Cable Bracket)
Fuel Tank & Tube ([06.2001 - ] (0106- )TW1) 16
#OEMPart name
77023 77023-22040 Filter Sub-Assy, Fuel Suction Tube
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77169 77169-14020 Gasket, Fuel Tank Vent
77201 77201-35340 Pipe Sub-Assy, Fuel Tank Inlet
77203 77203-35240 Tube Sub-Assy, Fuel Suction
77295 77295-35270 Grommet, Fuel Tube
77305 77305-89107 Lid Sub-Assy, Fuel Filler Opening
9011908667 90119-08667 BOLT
9011908668 90119-08668 New Genuine Part
9015950173 90159-50173 Screw
9015960032 90159-60032 Screw W Washer
9017008204 90170-08204 Nut (For Propeller Shaft)
9046022001 90460-22001 CLAMP
9046065002 90460-65002 Clamp Or Clip(For Air Hose, No.1)
9054108014 90541-08014 Cushion(For Fuel Inlet Box Cover)
Fuel Tank & Tube ([08.2001 - ] (0108- )KZN205) 26
#OEMPart name
77249 77249-35140 Hose, Fuel Emission
77251 77259-35360 Hose, Fuel, No.2(For Fuel Main Tube)
77255 77259-35370 Hose, Fuel, No.2 (For Fuel Return Tube)
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77433-35060 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77261 95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)
77277 95333-08020 Hose, Lpg Injector
77277 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77433 77433-35050 Hose, Fuel Main, No.1
77701 90917-10091 Valve, Check (For Main Fuel Tank)
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
7728535470 77285-35470 Bracket, Fuel Tube
7728535480 77285-35480 Bracket, Fuel Tube
7728535490 77285-35490 Bracket, Fuel Tube
7728535500 77285-35500 Bracket, Fuel Tube
7728535510 77285-35510 Bracket, Fuel Tube
7728535530 77285-35530 Bracket, Fuel Tube
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046013081 90460-13081 New Genuine Part
9046400108 90464-00108 New Genuine Part
9046715022 90467-15022 Clip Or Clamp(For Ventilation Hose)
9048028006 90480-28006 New Genuine Part
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
Gear Shift Fork & Lever Shaft (Mtm) ([08.2001 - ] R151 (0108- )KZN205) 33
#OEMPart name
33211 33211-35050 Fork, Reverse Shift
33211 90501-12166 Spring, Compression(For Reverse Shift Fork Return)
33211 90360-10003 Ball(For Transmission Oil Pump Cover)
33212 33212-35032 Fork, Gear Shift, No.1
33213 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33213 90105-06077 Bolt(For Shift Fork Set)
33213 33213-35040 Fork, Gear Shift, No.2
33214 33230-35010 Fork, Gear Shift, No.3
33214 33230-35012 Fork, Gear Shift, No.3
33214 33230-35011 Fork, Gear Shift, No.3
33221 33221-35050 Arm, Reverse Shift
33221 96160-01000 Ring, E(For Clutch Booster Air Valve)
33228 33228-35030 Bracket, Reverse Shift Arm
33241 33244-35060 Shaft, Reverse Shift Fork
33242 33242-35050 Shaft, Gear Shift Fork, No.1
33242 90520-12003 Ring(For Reverse Shift Head)
33243 33243-60120 Shaft, Gear Shift Fork, No.2
33245 33245-35090 Shaft, Gear Shift Fork, No.4
33261 33261-35130 Shaft, Shift & Select Lever
33261 33261-35131 Shaft, Shift & Select Lever
33264 90250-05029 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-10003 Pin, Or Ball, Shift Inter Lock, No.1
33275 90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)
33275 90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33275 90501-16143 Spring, Compression (For Shift Detent Ball Low Side)
33280 33280-27011 Pin Assy, Reverse Restrict
33280 33280-35021 Pin Assy, Reverse Restrict
33283 33280-35100 Pin Assy, Reverse Restrict
33283 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
33521 33521-35330 Housing, Shift Lever
33521 33521-35331 Housing, Shift Lever
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
Headlamp ([08.1991 - ] (9108- )KZN205,LN13#,205,RN13#,VZN130) 5
#OEMPart name
9010906221 90109-06221 BOLTFOLDING SEAT
9010906221 90109-06293 BOLTFOLDING SEAT
9011906615 90119-06615 BOLT, WWASHER
9015960412 90159-60412 New Genuine Part
9018906074 90189-06074 GROMMET
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )) 6
#OEMPart name
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009904370 90099-04370 Bolt, Compressor, No.1
9009904924 90099-04924 Bolt, Service Valve
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9009907125 90099-07125 Ring, Snap
9009908058 90099-08058 Pin, Cylinder Block
Heating & Air Conditioning - Compressor ([08.2001 - ] (0108- )KZN205) 7
#OEMPart name
88431 88431-26370 Bracket, Compressor Mounting, No.1
88446 88446-60040 Bolt, Idle Pulley
88545 88440-60050 Pulley Assy, Idle
91511 91511-C0822 New Genuine Part
9011908 90119-08B42 BOLT WWASHER
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] AIR DUCTS (8808- )) 7
#OEMPart name
9015960195 90159-60195 New Genuine Part
9015960213 90159-60213 New Genuine Part
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9018904138 90189-04138 New Genuine Part
9356014014 93560-14014 SCREW
9356055014 93560-55014 SCREW
Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] CONTROL PANEL & CABLE (8808- )) 12
#OEMPart name
55519 55519-35040 Plate, Heater Control Name
55905 55905-89115 Knob, Heater Control
55906 55906-35040 Cable Sub-Assy, Defroster Damper Control
55907 55907-35100 Cable Sub-Assy, Water Valve Control
55908 55908-35030 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-35030 Cable Sub-Assy, Airmix Damper Control
55910 55910-35090 Control Assy, Heater Or Boost Ventilator
55910 90480-13024 Grommet(For Heater Control Cable)
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9356614512 93566-14512 SCREW
9356614512 93568-54512 SCREW
Heating & Air Conditioning - Cooler Piping ([08.2001 - ] HOSE & PIPE (0108- )KZN205) 20
#OEMPart name
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88711 88711-04150 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-04150 Hose, Cooler Refrigerant Suction, No.1
88716 88706-04030 Pipe, Cooler Refrigerant Liquid, A
88891 88578-89112 Packing E (For Cooler)
88891 88578-35120 Packing B (For Cooler)
88891 88578-89111 Packing B (For Cooler)
91651 91651-F0616 BOLT
91651 91651-F0625 BOLT WWASHER
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914122 90099-14122 O-RING
9011906477 90119-06477 New Genuine Part
9011906674 90119-06674 New Genuine Part
9011906674 91651-G0645 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906293 90179-06293 NUT
Heating & Air Conditioning - Cooler Unit ([08.1988 - ] O-RING (8808- )) 9
#OEMPart name
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009914046 90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)
9009914056 90099-14056 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
Heating & Air Conditioning - Cooler Unit ([08.2001 - ] (0108- )KZN205) 12
#OEMPart name
88501 88501-34010 Evaporator Sub-Assy, Cooler, No.1
88510 90480-26027 Grommet (For Cooler Unit)
88510 90480-36019 Grommet (For Cooler Unit)
88515 88515-34010 Valve, Cooler Expansion
88539 88539-89108 Hose, Cooler Unit Drain, No.1
88625 88625-34010 Thermistor, Cooler, No.1
88650 88650-35060 Amplifier Assy, Cooler Stabilizer
88716 88716-34010 Pipe, Cooler Refrigerant Liquid, F
88894 88894-04130 Connector, Drain Hose
9015960195 90159-60195 New Genuine Part
9017906069 90179-06069 Direct
9017906069 90179-06274 Nut
Heating & Air Conditioning - Heater Unit & Blower ([08.1988 - ] BLOWER (8808- )) 4
#OEMPart name
9011906446 90119-06446 New Genuine Part
9011906446 90119-06074 Bolt
9017906069 90179-06069 Direct
9017906069 90179-06274 Nut
Heating & Air Conditioning - Heater Unit & Blower ([08.1988 - ] RADIATOR (8808- )) 10
#OEMPart name
8712410010 87124-10010 Clamp, Heater
8739835010 87398-35010 Band Assy (for Combustion Heater)
8739889104 87398-89104 Band Assy (For Combustion Heater)
8739889105 87398-89105 Band Assy (for Combustion Heater)
9011906446 90119-06446 New Genuine Part
9011906446 90119-06074 Bolt
9017906069 90179-06069 Direct
9017906069 90179-06274 Nut
9046707041 90467-07041-C0 Clip(For Steering Column Cover)
9676119016 96761-19016 RING
Heating & Air Conditioning - Water Piping ([08.2001 - ] (0108- )KZN205) 13
#OEMPart name
87019 90480-36005 Grommet, Heater Hose
87208 87208-35250 Pipe Sub-Assy, Heater Water
87208 87208-35260 Pipe Sub-Assy, Heater Water, A
87245 87245-04260 Hose, Heater Water, Inlet
87245 87245-04270 Hose, Heater Water, Inlet
91631 91631-J0612 BRACKET
1625867010 16258-67010 Gasket(For Heater Return)
9017906080 90179-06080 NUT
9046400232 90464-00232 New Genuine Part
9046400410 90464-00410 New Genuine Part
9046621001 90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046723009 90467-23009 Clip Or Clamp(For Ventilation Hose)
9165160616 91651-60616 BOLT
Hood & Front Fender ([06.2001 - ] (0106- )) 27
#OEMPart name
53341 90467-09118 Clip(For Hood Insulator)
53381 53381-35050 Seal, Hood To Radiator Support
53381 90467-08011 Clip(For Headlamp Cover Seal)
53381 90467-08011-TH CLIP
53381 90467-08011-83 Clip(For Headlamp Cover Seal)
53384 53384-89103 Bumper, Fender To Hood
53385 53386-20020 Bracket, Fender To Hood Bumper, Rh
53386 53382-89102 Bumper, Hood, Front
53386 53385-20020 Bracket, Fender To Hood Bumper, Rh
53736 53736-89117 Seal, Front Fender Apron, Rh
53737 53737-89108 Seal, Front Fender Apron, Lh
53801 53811-35140 Fender Sub-Assy, Front Rh
53802 53812-35150 Fender Sub-Assy, Front Lh
53875 53875-89106 Liner, Front Fender, Rh
53876 53876-89106 Liner, Front Fender, Lh
53878 53878-89102 Spacer, Front Fender
53879 53879-14020 Retainer, Front Fender Liner
53879 53879-22010 Retainer(For Front Mudguard)
9010906231 90109-06231 BOLT
9011906445 90119-06445 New Genuine Part
9015960500 90159-60500 SCREW WWASHER
9015960519 90159-60519 SCREW WWASHER
9017906255 90179-06255 New Genuine Part
9018906027 90189-06027 Grommet
9018906028 90189-06028 CLIP
9054109071 90541-09071 New Genuine Part
9165140614 91651-40614 Bolt
Hood Lock & Hinge ([08.1988 - ] (8808- )) 18
#OEMPart name
53403 53403-89102 Bracket Sub-Assy, Hood Hinge, Rh
53404 53404-89102 Bracket Sub-Assy, Hood Hinge, Lh
53414 53414-89103 Seal, Hood Hinge
53421 53421-89103 Arm, Hood Hinge, Rh
53422 53422-89102 Arm, Hood Hinge, Lh
53452 53452-90351 Clamp, Hood Support
53601 53601-89103-B0 Lever Sub-Assy, Hood Lock Control
53630 53630-89114 Cable Assy, Hood Lock Control
9010506093 90105-06093 New Genuine Part
9010506093 90105-06192 New Genuine Part
9010506114 90105-06114 New Genuine Part
9010508031 90105-08031 Bolt
9010508196 90105-08196 New Genuine Part
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9046711061 90467-11061 CLIP
9048015012 90480-15012 Grommet(For Hood Support)
9048015020 90480-15020 Grommet(For Hood Support Rod)
Horn ([08.1988 - ] (8808- )) 4
#OEMPart name
86520 86520-26130 Horn Assy, Low Pitched
9011908125 90119-08125 New Genuine Part
9011908125 90119-08707 New Genuine Part
9011908718 90119-08718 BOLT WWASHER
Ignition Coil & Spark Plug ([08.2001 - ] (0108- )1KZTE) 3
#OEMPart name
19850 19850-67030 Plug Assy, Glow
19850 90189-04024 Grommet, Screw(For Glow Plug)
19871 19871-67030 Connector, Glow Plug No.1
Injection Nozzle ([08.2001 - ] (0108- )1KZTE) 41
#OEMPart name
11106 11106-67052 Chamber Sub-Assy, Combustion
11106 11165-67030 Shim(For Combustion Chamber)
11106 11166-67030 Shim(For Combustion Chamber)
11161 90250-02046 Pin, Straight(For Combustion Chamber)
11176 11176-67011 Seat, Injection Nozzle
11177 11177-64010 Gasket, Injection Nozzle Seat
23600 23600-69165 Holder & Nozzle Set, Nozzle
23618 23618-64080 Spring, Nozzle Holder Pressure
23619 23619-64010 Pin, Nozzle Holder Pressure
23620 23620-69105 Nozzle Assy
23624 23624-64040 Nut, Nozzle Retaining
23624 23624-64041 Nut, Nozzle Retaining
23628 23628-64010 Nut(For Ring Packing Setting)
23629 23629-54080 Piece, Distance(For Nozzle)
23631 23631-64010 Washer(For Nozzle Holder Pressure Spring)
23631 23631-64012 Washer(For Nozzle Holder Pressure Spring)
23631 23631-64014 Washer(For Nozzle Holder Pressure Spring)
23631 23631-64016 Washer(For Nozzle Holder Pressure Spring)
23631 23631-64018 Washer(For Nozzle Holder Pressure Spring)
23631 23632-64010 Washer(For Nozzle Holder Pressure Spring)
23631 23632-64012 Washer(For Nozzle Holder Pressure Spring)
23631 23632-64014 Washer(For Nozzle Holder Pressure Spring)
23631 23632-64016 Washer(For Nozzle Holder Pressure Spring)
23631 23632-64018 Washer(For Nozzle Holder Pressure Spring)
23631 23633-64010 Washer(For Nozzle Holder Pressure Spring)
23631 23633-64012 Washer(For Nozzle Holder Pressure Spring)
23631 23633-64014 Washer(For Nozzle Holder Pressure Spring)
23631 23633-64016 Washer(For Nozzle Holder Pressure Spring)
23631 23633-64018 Washer(For Nozzle Holder Pressure Spring)
23631 23634-64010 Washer(For Nozzle Holder Pressure Spring)
23631 23634-64012 Washer(For Nozzle Holder Pressure Spring)
23631 23634-64014 Washer(For Nozzle Holder Pressure Spring)
23631 23634-64016 Washer(For Nozzle Holder Pressure Spring)
23631 23634-64018 Washer(For Nozzle Holder Pressure Spring)
23631 23635-64010 Washer(For Nozzle Holder Pressure Spring)
23631 23635-64012 Washer(For Nozzle Holder Pressure Spring)
23654 23654-64010 Washer(For Ring Packing)
23760 23760-67030 Pipe Assy, Nozzle Leakage
23764 23764-67010 Pipe, Nozzle Leakage, No.4
23770 95333-04020 Hose, Lpg Injector
23770 90467-10149 Clip, No.2(For Idle-Up Hose)
Injection Pump Assembly ([08.2001 - ] (0108- )1KZTE) 21
#OEMPart name
22100 22100-67120 Pump Assy, Injection Or Supply
22811 22811-67010 Stay, Injection Pump, No.1
23701 23701-67021 Pipe Sub-Assy, Injection, No.1
23702 23702-67021 Pipe Sub-Assy, Injection, No.2
23703 23703-67031 Pipe Sub-Assy, Injection, No.3
23704 23704-67020 Pipe Sub-Assy, Injection, No.4
23741 23741-64030 Clamp, Injection Pipe, No.1
23742 23742-67010 Clamp, Injection Pipe, No.2
23811 23811-67050 Pipe, Fuel(For Fuel Filter To Injection Pump)
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9011908 90119-08A08 New Genuine Part
9011910699 90119-10699 BOLT WWASHER
9017906080 90179-06080 NUT
9017908022 90179-08022 NUT
9030149003 90301-49003 Gasket, Injection Pump
9092901205 90929-01205 CLAMP
9092901428 90929-01428 New Genuine Part
9092901429 90929-01429 New Genuine Part
9092901430 90929-01430 New Genuine Part
9613551100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9613551300 96135-51300 Clamp, Hose
Injection Pump Body ([08.2001 - ] (0108- )1KZTE) 12
#OEMPart name
22104 22104-67100 Valve Sub-Assy, Injection Pump Delivery
22119 90201-12109 Washer, Air Bleeder Nipple
22148 22148-54010 Spring, Delivery Valve
22149 22149-56351 Gasket, Delivery Valve
22160 22160-67100 Screw Sub-Assy, Overflow
22176 22176-54640 Plug, Distributive Head
22176 22193-54772 Ring, O(For Distributive Head Plug)
22190 22190-6A680 Holder, Delivery Valve
23010 23010-67010 Valve Assy, Timing Control
2239556351 22395-56351 Bolt, Socket(for Injection Pump Governor Cover)
9009905161 90099-05161 Nut, Timer Round
9009918022 90099-18022 SCREW
Inside Trim Board ([08.1988 - ] (8808- )TW1) 11
#OEMPart name
62111 90467-05051-B0 Clip(For Cowl Side Trim)
62111 62111-89119-B0 Board, Cowl Side Trim, Rh
62112 62112-89117-B0 Board, Cowl Side Trim, Lh
62313 62313-89114 Trim, Front Door Opening, Rh
62333 62333-89105 Trim, Rear Door Opening, Rh
62511 62511-35010-B0 Board, Quarter Inside Trim, Rh
62512 62512-35010-B0 Board, Quarter Inside Trim, Lh
64261 64261-35010-B0 Garnish, Back Panel, Upper
6777132010 67771-32010 Retainer (For Quarter Inside Trim Board)
6777132010 67771-14040 Retainer, Door Trim
9046804046 90468-04046 Clip
Instrument Panel & Glove Compartment ([08.1988 - ] (8808- )KZN205,LN10#,111,205,RN10#,YN106..LHD) 30
#OEMPart name
55306 55306-35110 Brace Sub-Assy, Instrument Panel, No.1
55307 55307-35010 Brace Sub-Assy, Instrument Panel, No.2
55325 55325-35020 Bracket, Instrument Panel, No.5
55327 55327-89104 Stay, Instrument Panel, No.2
55328 55328-35020 Stay, Instrument Panel, No.3
55331 55330-35020 Reinforcement, Instrument Panel
55341 55341-89103 Brace, Instrument Panel To Cowl, Upper
55343 55343-89101 Brace, Instrument Panel To Cowl, Center
55378 55378-89102 Bracket, Glove Compartment Door Lock Mounting
55539 55539-89105 Cover, Spare Switch Hole
9011906022 90119-06022 BOLT
9011906022 90080-11127 New Genuine Part
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9017906069 90179-06069 Direct
9017906069 90179-06274 Nut
9017908102 90179-08102 NUT
9018305046 90183-05046 New Genuine Part
9024904029 90249-04029 Pin, Instrument Panel, No.1
9046715015 90467-15015 CLIP
9046715020 90467-15020 CLIP
9046804147 90468-04147 Clip(For Back Door Trim Board)
9046804157 90468-04157 Clip (Metal)
9162640818 91626-40818 New Genuine Part
9162640818 91621-40816 BOLTWWASHER
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
9356055014 93560-55014 SCREW
9356654512 93566-54512 SCREW
9356654512 93568-54512 SCREW
Instrument Panel & Glove Compartment ([08.1988 - ] (8808- )LHD) 32
#OEMPart name
55477 55477-89105 Bezel, Cigarette Lighter Hole
55479 90467-07041-B2 Clip(For Instrument Lower Cover)
55479 90467-07041-B0 Clip(For Console Box)
55479 90467-07076-P3 Clip(For Console Box)
55479 90467-07076-B7 Clip(For Console Box)
55521 55521-89102 Cover, Stereo Opening
55521 55521-37030 Cover, Stereo Opening
55531 55531-89105-B0 Cover, Choke Knob Hole
55561 55561-89104 Striker, Glove Compartment Door Lock
55565 55565-89101-S4 Handle, Glove Compartment Door Lock
55565 55565-89101-C0 Handle, Glove Compartment Door Lock
55569 55569-89101-S4 Cover, Glove Compartment Door Lock
55569 55569-89101-C0 Cover, Glove Compartment Door Lock
55574 55574-10010 Shaft, Glove Compartment Door Hinge
55619 55619-89101 Cover, Cup Holder Hole
9011906022 90119-06022 BOLT
9011906022 90080-11127 New Genuine Part
9015140004 90151-40004 New Genuine Part
9015350010 90153-50010 BOLT
9016126007 90161-26007 SCREW
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9016850041 90168-50041 New Genuine Part
9018305094 90183-05094 NUT
9018905032 90189-05032 New Genuine Part
9046804157 90468-04157 Clip (Metal)
9046804160 90468-04160 Clip, Instrument Panel, No.2
9046805088 90468-05088 New Genuine Part
9054103015 90541-03015 Cushion, Instrument Panel Box
9356055016 93560-55016 Screw(For Mat Set Plate)
9356714512 93567-14512 SCREW
9356815014 93568-15014 Direct
Interior Lamp ([08.1988 - ] (8808- )) 10
#OEMPart name
81230 81230-89104 Lamp Assy, Courtesy
81230 90981-11006 Bulb, Transmission Indicator Lamp
81231 81231-89104 Lens, Courtesy Lamp
81240 81240-89103-S7 Lamp Assy, Room, No.1 (MEDIUM GRAY)
81240 99132-12100 Bulb, Room Lamp, No.1
81241 81241-20060 Lens, Room Lamp, No.1
9016445005 90164-45005 SCREW
9351074020 93510-74020 New Genuine Part
9356814512 93568-14512 New Genuine Part
9356814512 93568-54512 SCREW
Lock Cylinder Set ([08.1988 - ] (8808- )) 21
#OEMPart name
69051 69051-35030 Cylinder & Key Set, Door Lock, Rh
69051 69051-35050 Cylinder & Key Set, Door Lock, Rh
69052 69052-35030 Cylinder & Key Set, Door Lock, Lh
69052 69052-35031 Cylinder & Key Set, Door Lock, Lh
69057 69057-35030 Cylinder & Key Set, Ignition Switch Lock
69057 69057-35031 Cylinder & Key Set, Ignition Switch Lock
69058 69058-35080 Cylinder & Key Set, Fuel Filler Lid
69058 69058-35130 Cylinder & Key Set, Fuel Filler Lid
69058 69058-35081 Cylinder & Key Set, Fuel Filler Lid
69062 69056-35030 Cylinder & Key Set, Glove Compartment Lock
69062 69056-35070 Cylinder & Key Set, Glove Compartment Lock
69062 69056-35031 Cylinder & Key Set, Glove Compartment Lock
69503 69005-35240 Cylinder Set, Lock
69503 69005-35340 Cylinder Set, Lock
69503 69005-35241 Cylinder Set, Lock
69503 90999-00130 Key, Blank
69503 90999-00153 Key, Blank
69503 90999-00132 Key, Blank
69503 90999-00174 Key, Blank
69503 90999-00165 Key, Blank
69503 90999-00175 Key, Blank
Manifold ([08.2001 - ] (0108- )1KZTE) 63
#OEMPart name
4175 04175-67011 Gasket Kit, Turbocharger
15407 15407-67010 Pipe Sub-Assy, Turbo Oil Inlet
15407 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
15407 90904-30004 Gasket(For Turbo Oil Inlet Pipe)
15471 15471-58010 Gasket, Turbo Oil Inlet
15472 15472-67010 Gasket, Turbo Oil Outlet, No.1
15472 15472-30010 Gasket, Turbo Oil Outlet, No.1
16347 16347-67010 Gasket(For Turbo Water Pipe)
17021 90116-08158 Bolt, Stud(For Bearing Housing)
17021 90116-06048 Bolt, Stud(For Oil Pan)
17025 90116-10175 Bolt, Stud(For Turbine Housing)
17025 90126-08009 Bolt, Stud(For Turbine Housing)
17111 17101-67041 Manifold, Intake
17113 17113-67030 Pipe, Intake
17114 17116-67030 Gasket, Intake Flange
17141 17104-67020 Manifold, Exhaust
17152 90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)
17159 90126-10017 Bolt, Stud(For Exhaust Manifold, Rh)
17159 92122-80822 Bolt, Stud(For Water Outlet)
17167 17167-67040 Insulator, Exhaust Manifold Heat, No.1
17173 17173-30020 Gasket, Exhaust Manifold To Head
17177 17177-67011 Gasket, Intake Manifold To Head, No.1
17201 17201-67040 Turbocharger Sub-Assy
17230 17230-69145 Repair Actuaor Assy, W/bracket
17230 90201-08081 Washer, Plate(For Repair Actuator Set)
17230 90201-08082 Washer, Plate(For Repair Actuator Set)
17230 90201-08086 Washer, Plate(For Repair Actuator Set)
17230 90201-08087 Washer, Plate(For Repair Actuator Set)
17230 91621-60822 Bolt, W/washer(For Repair Actuator Set)
17271 17271-67021 Insulator, Turbo, No.1
17274 17274-67011 Elbow, Compressor Inlet
17276 17276-67010 Gasket, Compressor Inlet
17278 17278-67010 Gasket, Turbo To Exhaust Manifold
17279 17279-67010 Gasket, Turbine Outlet Elbow
17291 17291-67030 Elbow, Turbine Outlet
17293 17293-67010 Stay, Turbocharger
17293 17293-67011 Stay, Turbocharger
17294 90445-12265 Hose, Actuator
17294 96132-51100 Clip (For Hose)
17296 17296-28010 Plate, Bearing Housing, Side
17342 17342-67030 Hose, Air, No.2
17342 90467-53002 Clamp, Hose
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9011606070 90116-06070 BOLT
9011608260 90116-08260 Bolt, Stud(For Turbine Housing)
9011608348 90116-08348 Bolt, Stud(For Water Outlet)
9011906747 90119-06747 BOLT WWASHER
9011906748 90119-06748 BOLT WWASHER
9011910778 90119-10778 BOLT W-WASHER
9017906018 90179-06018 New Genuine Part
9017906080 90179-06080 NUT
9017908054 90179-08054 Nut (For Connecting Rod Swivel)
9017908150 90179-08150 NUT
9017908229 90179-08229 NUT
9017910094 90179-10094 NUT
9020110109 90201-10109 WASHER PLATE
9021008039 90210-08039 WASHER SEAL
9052304002 90523-04002 RING
9164180814 91641-80814 BOLTWWASHER
9212260610 92122-60610 Bolt, Stud(For Oil Pan)
9212260614 92122-60614 Bolt, Stud(For Oil Strainer)
9418401041 94184-01041 Nut
Meter ([08.1988 - ] CLOCK,DETECTOR,SENSOR & CLINOMETER (8808- )) 7
#OEMPart name
83181 83181-12020 Sensor, Speedometer
83181 96711-24030 Ring,o (For Speedometer Driven Hole Cover)
8389116010 83891-16010 Knob, Clinometer
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9017906144 90179-06144 NUT
9356015014 93560-15014 SCREW
Meter ([08.1988 - ] COMBINATION METER, W(TACHOMETER) (8808- )) 25
#OEMPart name
83100 83120-60020 Bulb, Combination Meter, No.1
83100 90010-06007 Bulb, Combination Meter, No.1
83100 90010-06057 Bulb, Combination Meter, No.1
83110 83220-35770 Speedometer Assy
83132 83132-35040 Case, Combination Meter
83138 83138-89514 Glass, Speedometer
83145 83145-89546 Lens, Meter, No.1
83145 83831-3D590 Lens, Meter, No.4
83145 83145-89560 Lens, Meter, No.2
83145 83831-3D690 Lens, Meter, No.3
83145 83831-3D710 Lens, Meter, No.5
83146 83145-89318 Grommet, Meter Glass
83242 83881-3D590 Tachometer Assy, Engine
83243 83882-3D690 Gauge Sub-Assy, Fuel Receiver
83244 83883-3D690 Gauge Sub-Assy, Water Temperature Receiver
83247 83861-3D590 Plate, Meter Circuit
86650 83248-20010 Chime, Speed Warning
8316120080 83161-20080 Case, Combination Meter Mirror, No.1
8316120100 83161-20100 Case, Combination Meter Mirror, No.1
8316120380 83161-20380 Case, Combination Meter Mirror, No.1
8316120820 83161-20820 Case, Combination Meter Mirror, No.1
9007600005 90076-00005 New Genuine Part
9007600029 90076-00029 New Genuine Part
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
Meter ([08.2001 - ] SPEEDOMETER DRAIVE CABLE (0108- )KZN205) 2
#OEMPart name
83181 83181-12020 Sensor, Speedometer
83181 96711-24030 Ring,o (For Speedometer Driven Hole Cover)
Mirror ([08.1988 - ] INNER MIRROR (8808- )) 4
#OEMPart name
87834 87834-89105-S7 Cover, Inner Rear View Mirror Stay Holder
87834 87834-89105-B1 Cover, Inner Rear View Mirror Stay Holder
9015760010 90157-60010 New Genuine Part
9351016020 93510-16020 New Genuine Part
Mirror ([08.1988 - ] OUTER MIRROR (8808- )) 3
#OEMPart name
9015950236 90159-50236 New Genuine Part
9331315012 93313-15012 New Genuine Part
9331515014 93315-15014 New Genuine Part
Moulding ([08.1988 - ] (8808- )TW1) 13
#OEMPart name
75533 75533-89108 Moulding, Windshield, Outside Rh
75534 75534-89106 Moulding, Windshield, Outside Lh
75541 75541-89103 Cover, Windshield Moulding Joint, Upper Rh
75612 75612-89110 Moulding, Side Panel, No.2 Rh
75615 75615-89109 Moulding, Front Fender, Rear Rh
75616 75616-89109 Moulding, Front Fender, Rear Lh
75622 75622-89109 Moulding, Side Panel, No.2 Lh
75651 75651-89117 Moulding, Quarter, Outside Rh
75652 75652-89111 Moulding, Quarter, Outside Lh
75731 75731-89108 Moulding, Front Door, Outside Rh
75732 75732-89108 Moulding, Front Door, Outside Lh
75741 75741-89107 Moulding, Rear Door, Outside Rh
75742 75742-89107 Moulding, Rear Door, Outside Lh
Mounting ([08.2001 - ] (0108- )1KZTE) 17
#OEMPart name
12311 12311-67021 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-67011 Bracket, Engine Mounting, Front No.1 Lh
12361 12361-67020 Insulator, Engine Mounting, Front
12371 12371-65010 Insulator, Engine Mounting, Rear No.1
12381 12381-67010 Stabilizer, Engine Mounting
12511 12511-67020 Bracket, Alternator, No.1
12511 90389-10039 Bush, Alternator Bracket
91511 91511-B0850 Bolt
91511 91511-C0835 Bolt(For Transaxle Case & Engine Setting)
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9011910521 90119-10521 New Genuine Part
9011910777 90119-10777 New Genuine Part
9017910201 90179-10201 NUT
9017912051 90179-12051 Nut(For Front Stabilizer Link)
9151281025 91512-81025 Bolt(For Torque Arm Setting)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
Oil Filter ([08.2001 - ] (0108- )1KZTE) 16
#OEMPart name
15600 15116-54021 Union(For Oil Filter)
15601 90915-30002 Filter Sub-Assy, Oil
15601 90915-30002-8T Oil Filter (Thailand)
15609 90341-20002 Plug, W/head Taper Screw, No.1
15609 15134-67020 Gasket, Oil Pump Relief Valve
15690 15690-64010 Valve Assy, Oil Cooler Relief
15690 15690-64011 Valve Assy, Oil Cooler Relief
15701 15701-67030 Cover Sub-Assy, Oil Cooler
15701 15701-67031 Cover Sub-Assy, Oil Cooler
15701 95420-06052 New Genuine Part
15701 95421-06060 New Genuine Part
15725 15725-67010 Gasket, Oil Cooler Cover
9011906749 90119-06749 BOLT WWASHER
9017906298 90179-06298 NUT
9043022003 90430-22003 Gasket, Straight Screw Plug No.3(For Cylinder Block)
9542075052 95420-75052 New Genuine Part
Parking Brake & Cable ([06.2001 - ] (0106- )) 28
#OEMPart name
46301 90506-25003 Spring, Tension(For Intermediate Lever)
46304 90385-12029 Bush(For Parking Brake Equalizer)
46304 90240-08040 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
46410 46410-3D040 Cable Assy, Parking Brake, No.1
46420 46420-35720 Cable Assy, Parking Brake, No.2
46420 90240-08059 Pin, W/hole(For Intermediate Lever)
46441 46441-30030 Nut, Wire Adjusting, No.1
9010908102 90109-08102 NUT
9011908667 90119-08667 BOLT
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9020608016 90206-08016 Washer, Wave (For Low Speed Connecting Rod)
9046112339 90461-12339 New Genuine Part
9046112409 90461-12409 New Genuine Part
9046806063 90468-06063 CLIP
9046814004 90468-14004 Union, Auxiliary Fuel Band
9046814024 90468-14024 New Genuine Part
9094901492 90949-01492 New Genuine Part
9161160818 91611-60818 Bolt(For Oil Receiver Pipe)
9161160818 90119-08830 Bolt(For Oil Receiver Pipe)
9163560620 91635-60620 New Genuine Part
9163560620 91631-B0616 BOLT WWASHER
9163560820 91635-60820 BOLTWWASHER
9163560820 91631-B0818 BOLTWWASHER
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
Partial Engine Assembly ([08.1988 - ] (8808- )) 2
#OEMPart name
11000 19000-67171 Engine Assy, Partial
11000 19000-67300 Engine Assy, Partial
Power Steering Tube ([08.2001 - ] (0108- )KZN205) 17
#OEMPart name
44348 44348-35270 Hose, Oil Reservoir To Pump, No.1
44410 44410-35660 Tube Assy, Pressure Feed
44411 44411-35660 Hose, Pressure Feed
44412 44412-35290 Hose, Return, No.1
44416 44416-35020 Tube, Return(For Steering Gear Outlet)
44420 44420-35230 Cooler Assy, Oil
44428 44428-35110 Hose, Return, No.2
44447 44447-35040 Bracket, Hose Support, No.1
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91626 91626-G0622 New Genuine Part
91626 91651-G0618 New Genuine Part
91641 91641-H0820 Bolt
9017910087 90179-10087 Nut (For Front Lower Ball Joint Setting)
9046716019 90467-16019 Clip(For Return No.1)
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
Propeller Shaft & Universal Joint ([08.1988 - ] FRONT (8808- )KZN205,LN10#,111,205,RN10#,110,YN106) 73
#OEMPart name
4371 04371-35051 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60070 Spider Kit, Propeller Shaft Universal Joint
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01201 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01202 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01203 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01204 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01205 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01206 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01207 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01208 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01209 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01210 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01211 Piece, Balance, No.1 (For Propeller Shaft)
37140 37140-35071 Shaft Assy, Propeller, Front
37140 90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37140 90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37140 90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)
37140 90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)
37140 90204-10002 Washer, No.1 (For Propeller Shaft & Differential Setting)
37140 90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)
37302 37302-35050 Yoke Sub-Assy, Universal Joint Sleeve
37315 37315-35070 Yoke, Universal Joint Flange
37331 37305-35020 Cover Sub-Assy, Sliding Shaft Dust
37401 90520-25039 Ring, Hole Snap (For Spider Bearing)
37401 90520-25040 Ring, Hole Snap (For Spider Bearing)
37401 90520-25041 Ring, Hole Snap (For Spider Bearing)
37401 90520-25042 Ring, Hole Snap (For Spider Bearing)
37401 90520-25043 Ring, Hole Snap (For Spider Bearing)
37401 90520-25044 Ring, Hole Snap (For Spider Bearing)
37401 90520-25045 Ring, Hole Snap (For Spider Bearing)
37401 90520-25046 Ring, Hole Snap (For Spider Bearing)
37401 90520-25047 Ring, Hole Snap (For Spider Bearing)
37401 90520-25048 Ring, Hole Snap (For Spider Bearing)
37401 90520-25049 Ring, Hole Snap (For Spider Bearing)
37401 90520-25050 Ring, Hole Snap (For Spider Bearing)
37401 90520-25051 Ring, Hole Snap (For Spider Bearing)
37401 90520-25052 Ring, Hole Snap (For Spider Bearing)
37401 90520-25053 Ring, Hole Snap (For Spider Bearing)
37401 90520-25054 Ring, Hole Snap (For Spider Bearing)
37401 90520-25055 Ring, Hole Snap (For Spider Bearing)
37401 90520-25056 Ring, Hole Snap (For Spider Bearing)
37401 90520-25057 Ring, Hole Snap (For Spider Bearing)
37401 90520-25058 Ring, Hole Snap (For Spider Bearing)
37402 37402-30011 Bearing Sub-Assy, Universal Joint Spider
37402 04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)
37402 37402-30021 Bearing Sub-Assy, Universal Joint Spider
37701 37701-35110 Cover Sub-Assy, Propeller Shaft Dust
37714 37714-35051 Stay, Propeller Shaft Dust Cover
91511 91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front)
9011908167 90119-08167 New Genuine Part
9011910046 90119-10046 Bolt, No.1 (For Center Support Bearing)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9041606004 90416-06004 FITTING
9041606007 90416-06007 New Genuine Part
9041606008 90416-06008 New Genuine Part
9041606011 90416-06011 New Genuine Part
9151160810 91511-60810 BOLT
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
Propeller Shaft & Universal Joint ([08.2001 - ] REAR (0108- )KZN205) 86
#OEMPart name
4371 04371-35051 Spider Kit, Universal Joint(For Propeller Shaft)
4371 04371-60070 Spider Kit, Propeller Shaft Universal Joint
37100 37100-3D280 Shaft Assy, Propeller W/center Bearing
37100 90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)
37100 90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)
37100 90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)
37100 90204-10002 Washer, No.1 (For Propeller Shaft & Differential Setting)
37100 90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)
37101 90937-01132 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01136 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01147 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01148 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01149 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01150 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01151 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01152 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01153 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01154 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01155 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01156 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01157 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01158 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01201 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01202 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01203 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01204 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01205 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01206 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01207 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01208 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01209 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01210 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01211 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01184 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01191 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01192 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01193 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01194 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01198 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01199 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01200 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01268 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01269 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01270 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01271 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01272 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01273 Piece, Balance, No.1 (For Propeller Shaft)
37101 90937-01274 Piece, Balance, No.1 (For Propeller Shaft)
37110 37110-3D380 Shaft Assy, Propeller
37120 37120-35710 Shaft Assy, Propeller Intermediate
37120 90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)
37120 90179-18009 Nut (For Propeller Intermediate Shaft Setting)
37230 37230-35100 Bearing Assy, Center Support, No.1
37230 90201-26005 Washer, Plate (For Propeller Intermediate Shaft Set)
37230 90119-10316 Bolt, No.1 (For Center Support Bearing)
37302 37302-35050 Yoke Sub-Assy, Universal Joint Sleeve
37304 37304-35041 Flange Sub-Assy, Universal Joint
37315 37315-35070 Yoke, Universal Joint Flange
37331 37305-35020 Cover Sub-Assy, Sliding Shaft Dust
37401 90520-25039 Ring, Hole Snap (For Spider Bearing)
37401 90520-25040 Ring, Hole Snap (For Spider Bearing)
37401 90520-25041 Ring, Hole Snap (For Spider Bearing)
37401 90520-25042 Ring, Hole Snap (For Spider Bearing)
37401 90520-25043 Ring, Hole Snap (For Spider Bearing)
37401 90520-25044 Ring, Hole Snap (For Spider Bearing)
37401 90520-25045 Ring, Hole Snap (For Spider Bearing)
37401 90520-25046 Ring, Hole Snap (For Spider Bearing)
37401 90520-25047 Ring, Hole Snap (For Spider Bearing)
37401 90520-25048 Ring, Hole Snap (For Spider Bearing)
37401 90520-25049 Ring, Hole Snap (For Spider Bearing)
37401 90520-25050 Ring, Hole Snap (For Spider Bearing)
37401 90520-25051 Ring, Hole Snap (For Spider Bearing)
37401 90520-25052 Ring, Hole Snap (For Spider Bearing)
37401 90520-25053 Ring, Hole Snap (For Spider Bearing)
37401 90520-25054 Ring, Hole Snap (For Spider Bearing)
37401 90520-25055 Ring, Hole Snap (For Spider Bearing)
37401 90520-25056 Ring, Hole Snap (For Spider Bearing)
37401 90520-25057 Ring, Hole Snap (For Spider Bearing)
37401 90520-25058 Ring, Hole Snap (For Spider Bearing)
37402 37402-30011 Bearing Sub-Assy, Universal Joint Spider
37402 04371-60100 Spider Kit, Universal Joint(For Propeller Shaft)
37402 37402-30021 Bearing Sub-Assy, Universal Joint Spider
9041606004 90416-06004 FITTING
9041606011 90416-06011 New Genuine Part
9645100600 96451-00600 Fitting, Grease Small(For Tail Gate Lock Link)
Radiator & Water Outlet ([02.2003 - ] (0302- )1KZTE) 13
#OEMPart name
16400 16410-67190 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 16444-75180 Bushing(For Radiator)
16400 16445-75180 Collar(For Radiator)
16403 16403-67250 Core Sub-Assy, Radiator
16441 16441-67250 Tank, Radiator, Upper
16442 16442-5B580 Ring, O(For Radiator Upper Tank)
16453 16453-67250 Plate, Radiator Side
16454 16454-67250 Plate, Radiator Side
16455 91651-B0820 Bolt, Radiator Side Support Plate
16455 90080-11347 New Genuine Part
16461 16461-67190 Tank, Radiator, Lower
Radiator & Water Outlet ([08.2001 - ] (0108- )1KZTE) 48
#OEMPart name
16027 16027-67011 Pipe Sub-Assy, Turbo Water, No.1
16278 16278-67010 Pipe, Water By-Pass, No.2
16278 96761-24010 Ring, O(For Water By-Pass No.2 Pipe)
16285 16285-67010 Hose, Turbo Water, No.2
16285 90467-15022 Clip Or Clamp(For Ventilation Hose)
16285 90405-10044 Union(For Turbo Water Hose No.2)
16286 16284-67020 Hose, Turbo Water, No.3
16321 16321-0K010 Inlet, Water
16321 16321-67011 Inlet, Water
16331 16331-67020 Outlet, Water
16331 90916-03119 Thermostat
16331 90916-03121 Thermostat
16341 16341-67020 Gasket, Water Outlet
16346 16346-67010 Gasket, Thermostat
16346 16346-30010 Gasket, Thermostat
16347 16347-67010 Gasket(For Turbo Water Pipe)
16361 16361-67040 Fan
16381 16381-67020 Bar, Fan Belt Adjusting
16385 16385-67010 Slider, Fan Belt Adjusting
16400 16410-67190 Radiator Assy
16470 16470-67040 Tank Assy, Radiator Reserve
16470 16470-67050 Tank Assy, Radiator Reserve
16470 96135-51300 Clamp, Hose
16470 90480-25025 Grommet, Radiator Reserve Tank Hose
16471 16401-53010 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-51010 Cap Sub-Assy, Radiator Reserve Tank
16471 16475-28140 Cap Sub-Assy, Radiator Reserve Tank
16561 16561-54030 Seal, Radiator To Support, No.1
16562 16562-67010 Seal, Radiator To Support, No.2
16567 16567-67010 Hose(For Radiator Reserve Tank)
16571 16571-67120 Hose, Radiator, Inlet
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16571 90467-41002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-67120 Hose, Radiator, Outlet
16712 90468-06092 Clip(For Fan Shroud No.2)
91511 91511-B0610 BOLT FLANGE
91511 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91631 91631-B0616 BOLT WWASHER
9010506220 90105-06220 BOLT WASHER BASED
9011606145 90116-06145 Bolt, Stud(For Oil Pan)
9011906419 90119-06419 BOLT WWASHER
9017906080 90179-06080 NUT
9017906293 90179-06293 NUT
9017906298 90179-06298 NUT
9095901527 90959-01527 New Genuine Part
9151180614 91511-80614 BOLT FLANGE
9164380635 91643-80635 New Genuine Part
Radiator Grille ([06.2001 - ] (0106- )) 3
#OEMPart name
53145 53145-12010 Clip, Radiator Grille Garnish
93567 93567-A5014 SCREW TAPPING
9046712040 90467-12040 CLIP
Radio Receiver & Amplifier & Condenser ([08.1988 - ] RECEIVER,KNOB,BRACKET & WIRE (8808- )) 4
#OEMPart name
86211 86211-35020 Bracket, Radio, No.1
86212 86212-35020 Bracket, Radio, No.2
9014950032 90149-50032 Screw
9015350010 90153-50010 BOLT
Radio Receiver & Amplifier & Condenser ([08.1988 - ] TAPE PLAYER,CONDENSER & FILTER (8808- )) 5
#OEMPart name
9015350010 90153-50010 BOLT
9046400095 90464-00095 New Genuine Part
9046400190 90464-00190 CLAMP
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
Rear Axle Housing & Differential ([08.1988 - ] (8808- )) 13
#OEMPart name
4412 04412-35200 Gasket Kit, Rear Differential Carrier
4412 04412-35220 Gasket Kit, Rear Differential Carrier
41110 90116-08233 Bolt, No.1 (For Rear Differential Carrier Set)
41110 90116-08329 Bolt, No.1 (For Rear Differential Carrier Set)
42110 90341-18006 Plug (No magnet)
42110 12157-10010 Gasket (For Drain Plug)
42110 90930-03031 Plug, Breather(For Parking Cover)
42110 90341-18057 Drain Plug (with Magnet)
42139 42139-40010 Deflector, Rear Axle Housing Oil
42181 42181-60020 Gasket, Rear Differential Carrier
42181 42181-0K030 Gasket, Rear Differential Carrier
9017008204 90170-08204 Nut (For Propeller Shaft)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
Rear Axle Housing & Differential ([08.2001 - ] (0108- )KZN205) 62
#OEMPart name
41039 41039-34080 Gear Kit, Differential, Rear
41101 41101-35170 Carrier Sub-Assy, Differential, Rear
41101 41101-35172 Carrier Sub-Assy, Differential, Rear
41101 41115-35010 Ring, Differential Oil Storage
41110 41110-35870 Carrier Assy, Differential, Rear
41110 41110-35871 Carrier Assy, Differential, Rear
41114 90105-12053 Bolt (For Rear Differential Carrier)
41201 41201-80099 Final Gear Kit, Differential, Rear
41201 41201-80189 Final Gear Kit, Differential, Rear
41201 41204-35082 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41201 41214-26011 Slinger, Rear Differential Drive Pinion Oil
41201 41201-80174 Final Gear Kit, Differential, Rear
41201 90366-35087 Bearing , Tapered Roller (for front drive pinion)
41201 90366-30067 Bearing (For Rear Drive Pinion Front)
41201 90311-38047 Seal, Oil (For Differential Carrier)
41201 90311-41009 Seal, Oil (For Front Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-35080 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-35081 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90177-22003 Nut (For Rear Drive Pinion)
41204 90179-20018 Nut (For Rear Drive Pinion)
41214 41214-26010 Slinger, Rear Differential Drive Pinion Oil
41222 41222-35020 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-24010 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-35040 Deflector, Dust (For Rear Differential)
41252 41252-35041 Deflector, Dust (For Rear Differential)
41301 90366-50007 Bearing(For Rear Differential Case)
41302 41302-35020 Case Sub-Assy, Rear Differential
41302 90105-10084 Bolt(For Rear Differential Case)
41302 90105-10570 Bolt(For Rear Differential Case)
41315 41315-35020 Nut, Rear Differential Bearing Adjusting
41316 41316-35010 Lock, Rear Differential Bearing Adjusting Nut
41351 41351-30060 Washer, Rear Differential Pinion Thrust
41361 41361-35310 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35320 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35330 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35340 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-35350 Washer, Rear Differential Side Gear Thrust, No.1
41371 41371-35020 Spider, Rear Differential
9161160814 91611-60814 Bolt
Rear Axle Shaft & Hub ([08.1988 - 12.2004] (8808-0412)) 12
#OEMPart name
42311 90310-50001 Seal, Oil (For Rear Axle Shaft)
42311 90310-50006 Seal, Oil (For Rear Axle Shaft)
42311 90520-36045 Ring, Snap (For Rear Axle Shaft)
42311 90313-54001 Seal, Oil (For Rear Axle Shaft Outer)
42403 42431-35180 Drum Sub-Assy, Rear Brake
42423 42423-20010 Retainer, Rear Axle Bearing, Inner
42424 90301-88077 Ring, O (For Rear Axle Bearing Case)
42441 42441-35020 Deflector, Brake Drum Oil
42443 42443-55020 Gasket, Brake Drum Oil Deflector
42444 42444-35050 Gasket, Brake Drum (For Rear Axle)
42611 90942-02052 Bolt, Hub (For Rear Axle)
43517 43517-35010 Rotor, Skid Control, Rear
Rear Body Floor & Fender ([08.1988 - ] (8808- )) 17
#OEMPart name
65225 65225-89102 Reinforcement, Floor Panel, Rear Rh
65226 65226-89101 Reinforcement, Floor Panel, Rear Lh
65635 65635-89111 Plate, Rear Wheel House, Rear Rh
65636 65636-89110 Plate, Rear Wheel House, Rear Lh
76645 76645-89101 Bracket, Rear Body Mudguard, Rh
76646 76646-89101 Bracket, Rear Body Mudguard, Lh
76647 76647-89106 Support, Rear Body Mudguard, Rh
76648 76648-89106 Support, Rear Body Mudguard, Lh
9011906126 90119-06126 BOLT
9011906126 90080-11157 Bolt with Washer
9011906699 90119-06699 BOLT WWASHER
9015950188 90159-50188 New Genuine Part
9046708056 90467-08056-C0 Clip
9046710018 90467-10018 Clip, Radiator Support To Frame
9095001086 90950-01086 PLUG
9163140614 91631-40614 БОЛТ BOLT
9165140614 91651-40614 Bolt
Rear Body Guard Frame & Tail Gate ([08.1988 - ] (8808- )KZN205,LN111,205,RN110..CBU) 25
#OEMPart name
65700 65700-89151 Gate Assy, Rear Body Tail
65737 65737-35020 Stop, Tail Gate
65759 65759-89105 Cover, Tail Gate Service Hole
65768 65768-35010 Striker, Tail Gate Lock
65778 65778-89105 Stopper, Tail Gate Stay
66110 66110-89108 Hinge Assy, Tail Gate
66110 66120-89102 Hinge Assy, Tail Gate
66321 66321-89109 Bumper, Gate Rubber
69090 69090-89101 Handle Assy, Tail Gate
69090 69090-0K060 Handle Assy, Tail Gate (Chrome plated)
69759 69759-89108 Silencer, Tail Gate Lock Link
69759 69759-20100 Snap, Tail Gate Handle
69759 69759-20110 Snap, Auxiliary Catch Release Lever Control Link
91511 91511-B0814 BOLT
9011910510 90119-10510 BOLT
9014980020 90149-80020 SCREW
9015960298 90159-60298 New Genuine Part
9015960535 90159-60535 SCREW WWASHER
9018906010 90189-06010 Clip(For Front Door Inside Handle)
9038910032 90389-10032 New Genuine Part
9090107002 90901-07002 BOLT HEX LOBULAR
9165540820 91655-40820 New Genuine Part
9165540820 91653-40820 BOLT, W/WASHER
9326056010 93260-56010 SCREW
9333018016 93330-18016 New Genuine Part
Rear Body Mounting ([08.1988 - ] (8808- )) 10
#OEMPart name
64189 64189-35010 Bolt, Rear Body Mounting
64189 64189-35020 Bolt, Rear Body Mounting
66441 90950-04028 Shim, Mounting, No.1
66441 90950-04029 Shim, Mounting, No.1
9011912105 90119-12105 Bolt, Mounting
9020112061 90201-12061 Washer
9020113004 90201-13004 New Genuine Part
9054013006 90540-13006 Shim, Mounting, No.2
9418461200 94184-61200 Nut, Lock(For Power Steering Control Valve)
9418461201 94184-61201 Nut, Lock(For Power Steering Control Valve)
Rear Body Side Panel ([06.2001 - ] (8808-0106)TW1..GEN,V..CBU ; (0106- )TW1) 31
#OEMPart name
65525 65525-89101 Plate, Side Panel Frame, No.1
65573 65547-35010 Frame, Side Panel, Rear Rh
65587 65587-89101 Frame, Side Panel, B Rr Rh
65588 65588-89101 Frame, Side Panel, B Rr Lh
65593 65593-89101 Plate, Side Panel Rear End Post Inside, Rh
65594 65594-89101 Plate, Side Panel Rear End Post Inside, Lh
65631 65631-89113 Plate, Rear Wheel House, Front Rh
65632 65632-89112 Plate, Rear Wheel House, Front Lh
65637 65637-89103 Liner, Rear Wheel House, Rh
65638 65638-89103 Liner, Rear Wheel House, Lh
65685 65685-89101 Brace, Wheel House, Rh
65686 65686-89101 Brace, Wheel House, Lh
65687 65687-89101 Bracket, Wheel House Brace, Rh
65688 65688-89101 Bracket, Wheel House Brace, Lh
65695 65695-89102 Bracket, Wheel House Brace, No.2
65816 65816-35020 Panel, Rear Body Side, Rh
65817 65817-35020 Panel, Rear Body Side, Lh
65826 65826-35020 Panel, Rear Body Side, Inner Rh
65827 65827-35020 Panel, Rear Body Side, Inner Lh
66301 66312-34010 Hook Sub-Assy, Rope
5387914020 53879-14020 Retainer, Front Fender Liner
9015960500 90159-60500 SCREW WWASHER
9015980060 90159-80060 SCREW WWASHER
9018906028 90189-06028 CLIP
9046710018 90467-10018 Clip, Radiator Support To Frame
9095001311 90950-01311 PLUG
9163140614 91631-40614 БОЛТ BOLT
9165540820 91655-40820 New Genuine Part
9165540820 91653-40820 BOLT, W/WASHER
9327018016 93270-18016 SCREW
9327018016 93240-18016 SCREW
Rear Bumper & Bumper Stay ([06.2001 - ] (0106- )) 4
#OEMPart name
52159 52159-35030 Plate, Rear Bumper (Center)
52163 52163-35030 Plate, Rear Bumper, Rh
52164 52164-35030 Plate, Rear Bumper, Lh
9011912038 90119-12038 BOLT
Rear Door Lock & Handle ([06.2001 - ] (8808- )LN10#,111,RN10#,110,YN106 ; (0106- )TW1) 32
#OEMPart name
67836 67836-14010 Cover, Rear Door Lock Child Protection, Rh
69130 69130-35040 Actuator Assy, Rear Door Lock, Rh
69140 69140-35040 Actuator Assy, Rear Door Lock, Lh
69230 69230-89103 Handle Assy, Rear Door Outside, Rh
69230 90541-04014 Cushion, Console Box
69240 69240-89102 Handle Assy, Rear Door Outside, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69293 69293-12040 Snap, Front Door Outside Handle
69330 69330-35110 Lock Assy, Rear Door, Rh
69340 69340-35110 Lock Assy, Rear Door, Lh
69420 69410-87001 Plate Assy, Front Door Lock Striker
69420 69410-AA020 Plate Assy, Front Door Lock Striker
69703 69703-35020 Link Sub-Assy, Rear Door Locking Control, Rh
69704 69704-35020 Link Sub-Assy, Rear Door Locking Control, Lh
69713 69713-89105 Link, Rear Door Lock Remote Control, Rh
69714 69714-89105 Link, Rear Door Lock Remote Control, Lh
69725 69725-89102 Protector, Door Inside Locking Link
69725 69725-35010 Protecter, Door Inside Locking Link
69741 69741-89104-B1 Knob, Front Door Lock Control (Gray)
69749 69749-89101 Clamp, Front Door Lock Link
69759 69759-20020 Snap, Door Inside Handle Rod
69759 69759-20030 Snap, Door Inside Handle Rod
69759 69759-24030 Snap, Door Inside Handle Link
69759 69759-24040 Snap, Door Inside Handle Link
9014860022 90148-60022 BOLT
9014860023 90148-60023 New Genuine Part
9014880027 90148-80027 Screw Hex Lobular
9016250008 90162-50008 SCREW
9018905003 90189-05003 CLIP
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9356015012 93560-15012 New Genuine Part
Rear Door Panel & Glass ([06.2001 - ] (0106- )TW1) 5
#OEMPart name
67603 67771-16080 Retainer (For Quarter Inside Trim Board)
67603 67771-89109 Clip(For Step Plate)
67653 67653-35010-B0 Grille, Speaker Rear Door, Rh
69751 69751-12030-B0 Holder, Front Door Lock Control Knob
9016840025 90168-40025 SCREW
Rear Door Panel & Glass ([08.1988 - ] (8808- )TW1) 25
#OEMPart name
67113 67113-89104 Panel, Rear Door, Outer Rh
67114 67114-89104 Panel, Rear Door, Outer Lh
67158 67158-89101 Bracket, Rear Door Lower Hole
67407 67407-89104 Frame Sub-Assy, Rear Door Window, Rear Lower Rh
67408 67408-89104 Frame Sub-Assy, Rear Door Window, Rear Lower Lh
67841 67841-35010 Cover, Rear Door Service Hole, Rh
67843 90467-07041-B2 Clip(For Instrument Lower Cover)
67843 90467-07041-B0 Clip(For Console Box)
67867 67867-12150 Clip(For Hood Air Intake Duct Seal)
67871 67871-35010 Weatherstrip, Rear Door, Rh
67872 67872-35010 Weatherstrip, Rear Door, Lh
68142 68142-89103 Run, Rear Door Window, Rh
68152 68152-89101 Run, Rear Door Window, Lh
68162 68212-89101 Clip(For Front Door Glass Outer Weatherstrip)
68180 68180-89103 Weatherstrip Assy, Rear Door Glass, Outer
68617 68617-20011 Pin(For Door Check)
68630 68630-35020 Check Assy, Rear Door
9011906430 90119-06430 BOLT WWASHER
9015950050 90159-50050 New Genuine Part
9017906069 90179-06069 Direct
9017906069 90179-06274 Nut
9018905099 90189-05099 New Genuine Part
9054109062 90541-09062 Cushion(For Back Door Panel)
9162140612 91621-40612 BOLT W-WASHER
9165160614 91651-60614 Bolt
Rear Door Window Regulator & Hinge ([08.1988 - ] (8808- )TW1) 12
#OEMPart name
68750 68750-35011 Hinge Assy, Rear Door, Upper Rh
68760 68760-35011 Hinge Assy, Rear Door, Upper Lh
68770 68770-35010 Hinge Assy, Rear Door, Lower Rh
68780 68780-35010 Hinge Assy, Rear Door, Lower Lh
69803 69803-35010 Regulator Sub-Assy, Rear Door Window, Rh
69804 69804-35010 Regulator Sub-Assy, Rear Door Window, Lh
9011908093 90119-08093 BOLT
9017908132 90179-08132 NUT
9018905003 90189-05003 CLIP
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9356015012 93560-15012 New Genuine Part
Rear Drum Brake Wheel Cylinder & Backing Plate ([06.2001 - ] (0106- )) 45
#OEMPart name
4474 04474-35080 Cylinder Kit, Rear Wheel
4495 04495-35151 Shoe Kit, Rear Brake
4495 04495-35230 Shoe Kit, Rear Brake
4906 04906-35100 Cup Kit, Rear Wheel Cylinder
47043 47043-35170 Plate Sub-Assy, Brake Backing, Rear Rh
47043 90114-10002 Bolt, Serration (For Rear Axle Flange)
47043 90179-10067 Nut (For Rear Axle Shaft)
47044 47044-35160 Plate Sub-Assy, Brake Backing, Rear Lh
47430 90501-20604 Spring(For Rear Brake Shoe Hold Down)
47430 90506-18031 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-26011 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-26014 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-12031 Spring, Tension(For Rear Brake Automatic Adjust Lever)
47447 47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47460 47061-60011 Strut Set, Parking Brake Shoe, Rh
47470 47062-60011 Strut Set, Parking Brake Shoe, Rh
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47496 47491-20011 Plug, Hole(For Rear Brake)
47547 47547-60020 Plug, Bleeder(For Release Cylinder)
47548 31478-30010 Bleeder Plug Cap
47550 47550-35190 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90029-60011 Spring Sub-Assy, Rear Wheel Cylinder Piston
47601 47611-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601 90213-07010 Washer, Type C(For Parking Brake Shoe)
47601 96160-00500 Ring, E(For Over Center Lever)
47602 47612-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47616 47616-35020 Wire, Parking Brake, Rh
47617 46361-35100 Wire, Parking Brake, No.2
47623 90249-08068 Pin, W/hole(For Rear Brake)
47623 90506-20033 Spring, Tension(For Parking Brake Shoe Strut)
47626 47626-35010 Crank, Parking Brake Bell, No.3
47628 47628-35020 Bracket, Rear Brake Bellcrank
47631 47631-35010 Cover, Rear Brake Bellcrank Dust
47633 47633-35020 Boot, Parking Brake Bellcrank
47643 47643-60010 Lever, Rear Brake Automatic Adjust, Rh
47644 47644-60010 Lever, Rear Brake Automatic Adjust, Rh
9011410021 90114-10021 Bolt, No.2(For Rear Brake Backing Plate Rh)
9011906084 90119-06084 Bolt(For Rear Wheel Cylinder)
9014360002 90143-60002 Bolt, Bellcrank Stopper(For Parking Brake)
9020610059 90206-10059 Washer, Wave(For Rear Brake)
9021306013 90213-06013 Washer, Type C(For Parking Brake Shoe)
9161160814 91611-60814 Bolt
9413060600 94130-60600 Nut, Wire Adjusting, No.1
Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )TW1) 13
#OEMPart name
57415 57415-89104 Rail, Floor Side, Rear Rh
57416 57416-89102 Rail, Floor Side, Rear Lh
57601 57601-89104 Member Sub-Assy, Rear Floor Side, Rh
57602 57602-89103 Member Sub-Assy, Rear Floor Side, Lh
58315 58315-89103 Extension Rear Floor Side Panel, Front Rh
58372 58372-89103 Housing, Fuel Inlet Pipe
9033301008 90333-01008 New Genuine Part
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9095001086 90950-01086 PLUG
9095001398 90950-01398 CUSHION
9095001826 90950-01826 Plug, Hole(For Floor Panel)
9095001872 90950-01872 Plug, Hole, No.3(For Dash Panel)
9095006060 90950-06060 New Genuine Part
Rear License Plate Lamp ([06.2001 - ] (8808-0106)LN10#,111,RN10#,110,YN106 ; (0106- )) 7
#OEMPart name
81270 81270-35110 Lamp Assy, License Plate
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81271 81271-35110 Lens, License Plate Lamp
81275 90075-99012 Socket And Wire, License Plate Lamp
8127989118 81279-89118 Washer, Side Turn Signal Lamp
9018904014 90189-04014 CLIP
Rear Spring & Shock Absorber ([05.2001 - ] (0105- )KZN205,LN205) 22
#OEMPart name
4483 04483-35120 Shackle Kit, Rear Spring
48210 90385-18019 Bush(For Rear Spring Shackle Upper)
48210 90385-18020 Bush(For Rear Spring Pin)
48306 48306-35190 Bumper Sub-Assy, Rear Spring
48344 48344-35020 Stopper, Bumper, Rear
48414 48414-35130 Bracket, Spring, No.3 Rh
48415 48415-35060 Bracket, Spring, No.3 Lh
48416 48416-35080 Bracket, Spring, No.4
48516 48505-35070 Bracket, Rear Shock Absorber, Upper Rh
48517 48506-35010 Bracket, Rear Shock Absorber, Upper Lh
48530 48531-80669 Absorber Assy, Shock, Rear
48530 90948-03011 Washer, Front Shock Absorber Cushion, No.1
48530 90948-03020 Washer, Rear Shock Absorber Cushion, No.1
48530 90385-19007 Bush, Rear Shock Absorber
48540 48541-39316 Absorber Assy, Shock, Rear Lh
91619 91619-G1220 New Genuine Part
9010514025 90105-14025 BOLT
9017914019 90179-14019 Nut
9017914039 90179-14039 NUT
9020114005 90201-14005 Washer, Plate
9020115012 90201-15012 Washer(For Rear Spring U Bolt)
9413001432 94130-01432 NUT
Rear Ventilator & Roof Ventilator ([08.1988 - ] (8808- )) 1
#OEMPart name
62905 62906-89108 Louver, Quarter Ventilation
Reflex Reflector ([08.1988 - ] (8808- )) 9
#OEMPart name
81910 81910-35030 Reflector Assy, Reflex, Rh
81911 81911-35030 Lens, Reflex Reflector, Rear Rh
81912 81912-89109 Gasket, Reflex Reflector Lens, Rh
81920 81920-35020 Reflector Assy, Reflex, Lh
81921 81921-35020 Lens, Reflex Reflector, Rear Lh
81922 81922-89106 Gasket, Reflex Reflector Lens, Lh
9017904001 90179-04001 NUT
9017905095 90179-05095 NUT
9017905095 90179-05004 NUT
Roof Headlining & Silencer Pad ([08.1988 - ] (8808- )TW1) 3
#OEMPart name
63310 90467-08122 Clip, Roof Headlining
63310 90467-10018 Clip, Radiator Support To Frame
9046804008 90468-04008 Clip, Roof Headlining
Roof Panel & Back Panel ([08.1988 - ] (8808- )TW1) 8
#OEMPart name
63103 63103-89107 Reinforcement Sub-Assy, Roof Panel
63111 63111-89122 Panel, Roof
64812 64812-35020 Weatherstrip, Back Window Glass
9016140013 90161-40013 SCREW
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9095001506 90950-01506 Plug, Hole(For Luggage Compartment Door Panel)
9352024012 93520-24012 New Genuine Part
9354064012 93540-64012 SCREW
Seat & Seat Track ([06.2001 - ] SEPARATE SEAT (8808-0106) ; (0106- )TW1) 3
#OEMPart name
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9356015025 93560-15025 New Genuine Part
Seat & Seat Track ([08.1988 - ] (8808- )KZN205,LN10#,111,205,RN10#,110,YN106) 22
#OEMPart name
72011 72010-89108 Adjuster Sub-Assy, Front Seat, Outer Rh
72012 72020-89108 Adjuster Sub-Assy, Front Seat, Outer Lh
72130 72130-35020 Track Assy, Front Seat, Inner Rh
72137 72137-89103-S4 Cover, Seat Track, Rh (Gray)
72140 72140-35030 Track Assy, Front Seat,inner Lh
72301 72301-89112 Wire Sub-Assy, Seat Track Equalizing, Rh
9011908335 90119-08335 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908335 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908442 90119-08442 New Genuine Part
9011908442 90119-08336 BOLT
9011910084 90119-10084 New Genuine Part
9011910381 90119-10381 New Genuine Part
9011910381 90119-10493 BOLT W-WASHER
9015480002 90154-80002 New Genuine Part
9016840011 90168-40011 SCREW
9016840043 90168-40043 SCREW
9016840049 90168-40049 SCREW
9017908073 90179-08073 New Genuine Part
9038612053 90386-12053 Bush (For Front Seat Hinge Pin)
9050618036 90506-18036 Spring, Tension (For Front Seat Adjuster Outer)
9324954006 93249-54006 Screw
9356055014 93560-55014 SCREW
Seat & Seat Track ([08.1988 - ] (8808- )TW1) 4
#OEMPart name
9011908511 90119-08511 BOLT
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9356015025 93560-15025 New Genuine Part
Seat Belt ([08.1988 - ] (8808- )) 4
#OEMPart name
73139 73139-89101-S4 Cover, Seat Belt Anchor
73210 73210-35311 Belt Assy, Front Seat Outer, Rh
73220 73220-35231 Belt Assy, Front Seat Outer, Lh
73230 73230-35210 Belt Assy, Front Seat Inner, Rh
Shift Lever & Retainer ([08.2001 - 12.2004] (0108-0412)KZN205) 12
#OEMPart name
33105 33144-35030 Deflector Sub-Assy, Extension Housing Oil(Mtm)
33504 33504-12180-B0 Knob Sub-Assy, Shift Lever
33504 33504-12180-B7 Knob Sub-Assy, Shift Lever
33505 33505-35030 Seat Sub-Assy, Shift Lever
33505 33505-0K010 Seat Sub-Assy, Shift Lever
33506 33506-35140 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
33506 90930-03075 Plug, Breather
33530 33530-35230 Lever Assy, Shift (For Floor Shift)
33530 33530-35610 Lever Assy, Shift (For Floor Shift)
33548 33548-31010 Bush, Shift Lever
33555 33555-60030 Boot, Shift Lever
91611 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
Short Block Assembly ([08.1988 - ] (8808- )) 1
#OEMPart name
11400 11400-67051 Block Assy, Short
Side Member ([08.1988 - ] (8808- )TW1) 44
#OEMPart name
61027 61027-89115 Pillar Sub-Assy, Front Body, Outer Rh
61028 61028-89115 Pillar Sub-Assy, Front Body, Outer Lh
61035 61035-89101 Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh
61127 61127-89102 Reinforcement, Cowl Side Panel, No.2 Rh
61128 61128-89101 Reinforcement, Cowl Side Panel, No.2 Lh
61161 61161-89108 Pillar, Front Body, Upper Inner Rh
61162 61162-89108 Pillar, Front Body, Upper Inner Lh
61173 61173-89103 Reinforcement, Front Body Pillar, Upper Inner
61174 61174-89102 Reinforcement, Front Body Pillar, Upper Inner Lh
61211 61211-89108 Rail, Roof Side, Outer Rh
61212 61212-89108 Rail, Roof Side, Outer Lh
61231 61231-89114 Rail, Roof Side, Inner Rh
61232 61232-89114 Rail, Roof Side, Inner Lh
61267 61267-89102 Channel, Roof Drip Side, Rear Rh
61268 61268-89102 Channel, Roof Drip Side, Rear Lh
61301 61301-35010 Pillar Sub-Assy, Center Body, Outer Rh
61302 61302-35010 Pillar Sub-Assy, Center Body, Outer Lh
61341 61341-89102 Pillar, Center Body, Inner Upper Rh
61342 61342-89102 Pillar, Center Body, Inner Upper Lh
61343 61307-35010 Pillar, Center Body, Inner Rh
61344 61308-35010 Pillar, Center Body, Inner Lh
61411 61411-35020 Panel, Rocker, Outer Rh
61412 61412-35020 Panel, Rocker, Outer Lh
61418 61418-35010 Reinforcement, Rocker Panel, Rh
61419 61419-35010 Reinforcement, Rocker Panel, Lh
61425 61425-35010 Reinforcement, Rocker Panel, No.4 Rh
61426 61426-35010 Reinforcement, Rocker Panel, No.4 Lh
61503 61503-89112 Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
61504 61504-89113 Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
61511 61501-89125 Pillar, Quarter Lock, Rh
61512 61502-89129 Pillar, Quarter Lock, Lh
61531 61531-89125 Panel, Cab Rear Pillar, Inner Rh
61532 61532-89128 Panel, Cab Rear Pillar, Inside Lh
62381 62381-89102 Weatherstrip, Roof Side Rail, Rh
62382 62382-89102 Weatherstrip, Roof Side Rail, Lh
64144 64144-89103 Reinforcement, Back Corner Panel, Lh
9011908432 90119-08432 New Genuine Part
9011908432 91651-B0814 Bolt with washer
9017908102 90179-08102 NUT
9033335002 90333-35002 Plug, Hole(For Rear Door Panel)
9095001353 90950-01353 Plug, Hole(For Rocker Inner Panel)
9095001398 90950-01398 CUSHION
9095006060 90950-06060 New Genuine Part
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
Side Turn Signal Lamp & Outer Mirror Lamp ([08.1991 - ] (9108- )KZN205,LN13#,205,RN13#,VZN130) 7
#OEMPart name
81730 81730-20191 Lamp Assy, Side Turn Signal, Rh
81730 81730-20192 Lamp Assy, Side Turn Signal
81731 81731-20191 Lens, Side Turn Signal Lamp, Rh
81731 81731-20192 Lens, Side Turn Signal Lamp
81732 81732-20190 Gasket, Side Turn Signal Lamp Lens
81735 90075-99012 Socket And Wire, License Plate Lamp
9018904014 90189-04014 CLIP
Spare Wheel Carrier ([08.1988 - ] (8808- )) 5
#OEMPart name
51900 51900-35121 Carrier Assy, Spare Wheel
51900 51900-35390 Carrier Assy, Spare Wheel
51933 51933-34010 Stopper, Spare Wheel Carrier, Rh
9161160814 91611-60814 Bolt
9165140818 91651-40818 BOLT, W-WASHER
Speaker ([08.1991 - ] (9108- )) 7
#OEMPart name
9016750028 90167-50028 Direct
9016750028 93568-55014 Screw
9018905097 90189-05097 GROMMET SCREW
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
Speedometer Driven Gear (Mtm) ([08.2001 - ] R151 (9108-9408)5F ; (0108- )KZN205) 4
#OEMPart name
33403 33403-39515 Gear Sub-Assy, Speedometer Driven (Mtm) - N=29, mark 29:11
33404 90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9165140828 91651-40828 New Genuine Part
Standard Tool ([08.1988 - ] (8808- )) 1
#OEMPart name
9110 09110-35210 Jack Assy
Starter ([08.2001 - ] 12V 2.2KW (0108- )1KZTE) 35
#OEMPart name
28011 28011-67030 Clutch Sub-Assy, Starter
28100 28100-67050 Starter Assy
28100 28100-67052 Starter Assy
28110 28110-67050 Housing Assy, Starter Drive
28120 28120-64040 Yoke Assy, Starter
28120 90099-64040 Rubber(For Starter Yoke)
28140 28140-64040 Holder Assy, Starter Brush
28143 90099-17115 Spring, Starter Brush
28150 28150-67050 Switch Assy, Magnet Starter
28159 28159-10040 Cover, Magnet Switch
28160 28160-64041 Armature Assy, Starter
28160 28253-54070 Bearing, Starter Armature
28160 90099-10143 Bearing, Starter Armature
28165 28165-26040 Spring, Starter Magnet Switch Return
28175 28175-10040 Gasket, Magnet Switch Cover
28199 28199-46080 Cover, Starter End Frame
28226 28226-54330 Starter Kit, Battery Terminal
28226 28226-72010 Starter Kit, Motor Terminal
28228 28228-26040 Roller, Starter Idle Gear Clutch
28229 28229-26040 Retainer, Starter Idle Gear
28235 28235-35080 Plunger, Magnet Switch
28251 28251-54070 Plate, Lead, Switch Connecting
28252 28254-64040 Pinion, Starter Drive
2817187702 28171-87702 Bolt, Starter
2936287701 29362-87701 Bolt, Starter
9009904473 90099-04473 New Genuine Part
9009912009 90099-12009 Ball, Starter Clutch
9010512135 90105-12135 Bolt(For Rear Transaxle Case Cover)
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017912047 90179-12047 Nut(For Front Stabilizer Link)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100800 94511-00800 WASHERSPRING
9671119006 96711-19006 Packing(For Radiator Drain Cock)
Steering Column & Shaft ([08.2001 - ] TILT STEERING (0108- )KZN205) 33
#OEMPart name
45025 45025-35200 Cover Sub-Assy, Steering Column Hole, No.1
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45206 45206-35020 Yoke Sub-Assy, Steering Sliding W/shaft
45209 45209-35030 Yoke Sub-Assy, Steering Sliding
45210 45210-35170 Shaft Assy, Steering Main
45231 90521-01005 Ring, Hole Snap(For Steering Main Shaft)
45250 45250-3D840 Column Assy, Steering
45250 45250-3D520 Column Assy, Steering
45254 45254-35110 Shield, Steering Column Hole
45273 45273-16010 Bush, Steering Main Shaft
45286 45286-35470-B0 Cover, Steering Column
45286 45287-35360-B0 Cover, Steering Column
45286 45286-04020 Cover, Steering Column
45286 45286-04020-B0 Cover, Steering Column
45286 45287-04020 Cover, Steering Column
45286 45287-04020-B0 Cover, Steering Column
45292 45292-35050 Seal, Main Shaft Lower Dust
45636 45636-35040 Protector, Intermediate Link Joint
45860 45860-35280 Shaft Assy, Steering Intermediate, No.2
45860 45860-35281 Shaft Assy, Steering Intermediate, No.2
8271135240 82711-35240 Wire, Fuse To Fuse(for Combustion Heater)
9011906477 90119-06477 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011910292 90119-10292 Bolt(For Transaxle & Engine Setting)
9011910292 91651-41022 Bolt(For Transaxle & Engine Setting)
9016450048 90164-50048 SCREW
9017910055 90179-10055 NUT
9165160616 91651-60616 BOLT
9331514010 93315-14010 SCREW
9331514012 93315-14012 Screw with washer
9331915012 93319-15012 Screw
9356855014 93568-55014 Screw
Steering Wheel ([06.2001 - ] 3-SPOKE (0106- )) 14
#OEMPart name
45100 45100-26290-B2 Wheel Assy, Steering
45100 45100-26290-C0 Wheel Assy, Steering
45100 45100-35281-B0 Wheel Assy, Steering
45105 45105-35041 Plate Sub-Assy, Horn Button Contact, No.1
45105 90540-08014 Cushion(For Horn Button Contact Plate)
45130 45130-35380-B0 Button Assy, Horn
45130 45130-35380-C0 Button Assy, Horn
45130 45130-35242-B0 Button Assy, Horn
45147 90561-04010 Spacer(For Horn Button Contact Plate)
45180 45180-35051-B0 Cover Sub-Assy, Steering Wheel
45201 90179-12071 Nut, Steering Wheel Set
9016741001 90167-41001 New Genuine Part
9331515010 93315-15010 New Genuine Part
9331515014 93315-15014 New Genuine Part
Steering Wheel ([06.2001 - ] 4-SPOKE (0106- )) 10
#OEMPart name
45100 45100-26290-B2 Wheel Assy, Steering
45100 45100-26290-C0 Wheel Assy, Steering
45100 45100-35281-B0 Wheel Assy, Steering
45130 45130-35380-B0 Button Assy, Horn
45130 45130-35380-C0 Button Assy, Horn
45130 45130-35242-B0 Button Assy, Horn
45186 45186-33050-B5 Cover, Steering Wheel, Lower No.2
45186 45186-33050-B0 Cover, Steering Wheel, Lower No.2
45188 45188-60010 Screw, Steering Wheel Pad Attaching
45201 90179-12071 Nut, Steering Wheel Set
Suspension Crossmember & Under Cover ([06.2001 - ] (0106- )) 20
#OEMPart name
51276 51250-35011 Bracket, Differential Support
51277 51260-35021 Bracket Assy, Differential Support, Lh
51405 51405-35062 Cover Sub-Assy, Engine Under, No.1
51445 51445-35080 Bracket, Engine Under Cover
51447 51447-35040 Protector, Transfer Case
51963 51963-35080 Stopper, Hook Wire
51963 51963-35070 Hook, Transport, Front Rh
51964 51964-35050 Hook, Transport, Front Lh
52283 52283-35011 Stopper, Differential Support Member, Lower
9010112176 90101-12176 New Genuine Part
9010114026 90101-14026 New Genuine Part
9011908671 90119-08671 Bolt
9011908941 90119-08941 BOLT, W/WASHER
9011910349 90119-10349 BOLT
9011910349 91651-G1020 BOLT
9011912140 90119-12140 New Genuine Part
9017914018 90179-14018 New Genuine Part
9136281245 91362-81245 New Genuine Part
9462211200 94622-11200 WASHER
9462311400 94623-11400 New Genuine Part
Switch & Relay & Computer ([06.2001 - ] ENGINE & TRASMISSION (0106- )KZN205) 28
#OEMPart name
28300 28300-46010 Relay Assy, Starter
82600 90080-82012 Fuse, Fuse Block
82600 90080-82013 Fuse, Fuse Block
82600 90080-82015 Fuse, Fuse Block
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82616 82616-89102 Puller, Fuse
82660 82660-35030 Block Assy, Relay
82661 82662-35780 Cover, Relay Block, No.1
82661 82663-35010 Cover, Relay Block, No.1
83420 83420-16040 Gage Assy, Water Temperature Sender
83530 83530-60010 Switch Assy, Oil Pressure (For Engine)
84210 84210-12040 Switch Assy, Back-Up Lamp
84210 84210-52050 Switch Assy, Back-Up Lamp
84222 84222-35060 Switch, Transfer Indicator, No.1
84222 84222-35080 Switch, Transfer Indicator, No.1
84222 84222-35070 Switch, Transfer Indicator, No.3
84225 84225-35010 Switch, Shift Position
85440 85440-35090 Solenoid Assy, Four Wheel Drive Control
85916 90987-02006 Relay
89491 89491-35040 Sensor, Engine Oil Level
89491 89493-60010 Gasket, Engine Oil Level Sensor
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
9046400154 90464-00154 New Genuine Part
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165160614 91651-60614 Bolt
Switch & Relay & Computer ([06.2001 - ] ENGINE ROOM (0106- )) 12
#OEMPart name
28300 28300-46010 Relay Assy, Starter
28610 28610-54360 Relay Assy, Glow Plug
82600 90080-82012 Fuse, Fuse Block
82600 90080-82013 Fuse, Fuse Block
82600 90080-82015 Fuse, Fuse Block
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82616 82616-89102 Puller, Fuse
82661 82662-35780 Cover, Relay Block, No.1
82661 82663-35010 Cover, Relay Block, No.1
83390 83390-30100 Switch Assy, Vacuum Warning
85916 90987-02006 Relay
Switch & Relay & Computer ([06.2001 - ] INSTRUMENT PANEL & COMBINATION SW. (0106- )) 26
#OEMPart name
84118 84118-20011 Knob, Light Control Rheostat
84119 84119-20082 Rheostat, Light Control
84119 90170-09002 Nut, Tunnel Mode Select Switch
84140 84140-44010 Switch Assy, Headlamp Dimmer
84140 84140-35100 Switch Assy, Headlamp Dimmer
84306 84306-12070 Cable Sub-Assy, Spiral
84306 84306-35020 Cable Sub-Assy, Spiral
84310 84310-35730 Switch Assy, Turn Signal
84310 84310-35470 Switch Assy, Turn Signal
84330 84332-89110 Switch Assy, Hazard Warning Signal
84330 84999-10320 Bulb, Satellite Switch
84450 84450-35130 Switch Assy, Ignition Or Starter
84650 84652-1A630 Switch Assy, Windshield Wiper
84650 84652-1A750 Switch Assy, Windshield Wiper
84650 84652-35370 Switch Assy, Windshield Wiper
84660 84660-35010 Switch, Cooler
84730 84732-35030 Switch Assy, Heater Blower
85500 85500-89106 Lighter Assy, Cigarette
85500 85500-12240 Lighter Assy, Cigarette
85520 85520-89101 Knob And Element Assy, Cigarette Lighter
85533 85533-10010 Lens, Cigarette Lighter Indicator
85533 85533-16020 Lens, Cigarette Lighter Indicator
88607 88607-16010 Bulb(For Cooler Switch)
8271135130 82711-35130 Wire, Fuse To Fuse(for Combustion Heater)
9014940013 90149-40013 New Genuine Part
9331915012 93319-15012 Screw
Switch & Relay & Computer ([06.2001 - ] INSTRUMENT PANEL & COWL RELAY (0106- )) 9
#OEMPart name
81980 81980-32010 Flasher Assy, Turn Signal
85910 90987-04002 Relay, Ignition, No.1
85916 90987-01003 Relay, Fuel Lid Opener
85980 85980-35010 Relay Assy, Door Control
86530 86530-20070 Relay Assy, Horn
9015950098 90159-50098 SCREW
9162640616 91626-40616 New Genuine Part
9163360625 91633-60625 Screw(For Steering Column Tube)
9163360625 91631-60622 Screw
Switch & Relay & Computer ([08.1988 - ] INSTRUMENT PANEL & COMBINATION SW. (8808- )) 29
#OEMPart name
84110 84112-39625 Switch Assy, Light Control, No.1
84118 84118-20011 Knob, Light Control Rheostat
84119 84119-20082 Rheostat, Light Control
84119 90170-09002 Nut, Tunnel Mode Select Switch
84140 84140-44010 Switch Assy, Headlamp Dimmer
84140 84140-35100 Switch Assy, Headlamp Dimmer
84310 84310-35730 Switch Assy, Turn Signal
84310 84310-35470 Switch Assy, Turn Signal
84312 84312-12040 Plate, Horn Contact
84330 84332-89110 Switch Assy, Hazard Warning Signal
84330 84999-10320 Bulb, Satellite Switch
84450 84450-35130 Switch Assy, Ignition Or Starter
84650 84652-1A630 Switch Assy, Windshield Wiper
84650 84652-1A750 Switch Assy, Windshield Wiper
84650 84652-35370 Switch Assy, Windshield Wiper
84660 84660-35010 Switch, Cooler
84730 84732-35030 Switch Assy, Heater Blower
85500 85500-89106 Lighter Assy, Cigarette
85500 85500-12240 Lighter Assy, Cigarette
85520 85520-89101 Knob And Element Assy, Cigarette Lighter
85533 85533-10010 Lens, Cigarette Lighter Indicator
85533 85533-16020 Lens, Cigarette Lighter Indicator
88607 88607-16010 Bulb(For Cooler Switch)
827112 82711-2A540 Wire, Fuse To Fuse(for Combustion Heater)
8271135130 82711-35130 Wire, Fuse To Fuse(for Combustion Heater)
9014940013 90149-40013 New Genuine Part
9046315402 90463-15402 New Genuine Part
9331514010 93315-14010 SCREW
9331915012 93319-15012 Screw
Switch & Relay & Computer ([08.2001 - ] ROOF,CONSOLE,DOOR & FLOOR (0108- )KZN205) 13
#OEMPart name
83320 83320-80119 Gage Assy, Fuel Sender
83361 83361-20030 Gasket, Fuel Tank Vent
84233 84230-12120 Switch Assy, Courtesy Lamp (For Front Door)
84233 84231-22060 Switch Assy, Courtesy Lamp (For Front Door)
84340 84340-32050 Switch Assy, Stop Lamp
84550 84550-35010 Switch Assy, Parking Brake
84810 84810-32070 Switch Assy, Power Window Regulator
84820 84820-35010 Master Switch Assy, Power Window Regulator
84870 84870-89101 Switch Assy, Outer Mirror
84931 84931-35060 Switch, Door Control
93319 93319-A4010 SCREW WWASHER
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1KZTE) 45
#OEMPart name
11301 90250-08120 Pin, Straight, No.1
11301 90311-50017 Seal, Oil(For Timing Chain Or Belt Cover)
11301 90311-50051 Seal, Oil(For Crankshaft Front)
11301 90301-22007 Ring, O(For Timing Gear Case, Upper)
11301 90301-09018 Ring, O(For Timing Gear Case, Lower)
11301 90341-18015 Plug, W/head Straight Screw(For Timing Gear Case)
11302 11302-67020 Cover Sub-Assy, Timing Chain Or Belt
11302 90311-58006 Seal, Type T Oil(For Injection Pump)
11302 90116-08376 Bolt, Stud(For Timing Gear Cover)
11302 90116-08377 Bolt, Stud(For Timing Gear Cover)
11305 90311-32019 Seal, Oil(For Camshaft Setting)
11320 11320-67010 Timing Gear Case Assy (Oil Pump)
11321 11321-67032 Case, Timing Gear
11328 11328-67020 Gasket, Timing Gear Or Chain Cover
11355 11355-67010 Plate, Rear End
11356 11356-67030 Plate, Rear End, No.2
11381 11381-67020 Retainer, Engine Rear Oil Seal
11381 90311-95008 Seal, Engine Rear Oil
11385 11382-67010 Retainer, Camshaft Oil Seal
11391 11391-67010 Pointer, Timing
12281 12281-67070 Hanger, Engine, No.1
12282 12282-67030 Hanger, Engine, No.2
15134 15134-67010 Gasket, Oil Pump Relief Valve
91511 91511-B0610 BOLT FLANGE
9010506231 90105-06231 BOLT WASHER BASED
9010906017 90109-06017 BOLT
9011608374 90116-08374 Bolt, Stud(For Timing Gear Cover)
9011610160 90116-10160 Bolt,stud(For Timing Gear Case)
9011906748 90119-06748 BOLT WWASHER
9011906749 90119-06749 BOLT WWASHER
9011906750 90119-06750 New Genuine Part
9011906750 91551-80660 BOLT FLANGE
9017906298 90179-06298 NUT
9021008019 90210-08019 WASHER
9021008019 90080-21002 WASHER
9030108010 90301-08010 RING
9040110057 90401-10057 BOLT UNION
9046805034 90468-05034 Timing cover clip
9095001848 90950-01848 New Genuine Part
9151281025 91512-81025 Bolt(For Torque Arm Setting)
9161961235 91619-61235 BOLT
9161961250 91619-61250 Bolt
9164281030 91642-81030 Bolt
9211260614 92112-60614 Bolt, Stud(For Vacuum Transmitting Pipe)
9211260614 90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)
Tool Box & License Plate Bracket ([08.1988 - ] (8808- )) 2
#OEMPart name
58793 58792-89105 Bracket, Jack Carrier
9165140614 91651-40614 Bolt
Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([08.2001 - ] R151 (0108- )KZN205) 2
#OEMPart name
4331 04331-35250 Gasket Kit, Manual Transmission Overhaul
33030 33030-3G050 Transmission Unit Assy, Manual
Transfer Assembly & Gasket Kit ([08.2001 - ] (0108- )SR5,SRV) 4
#OEMPart name
4362 04362-35061 Gasket Kit, Transfer Overhaul
4362 04362-35062 GASKET KIT, TRANSFER
36100 36100-3D310 Transfer Assy
36100 36100-3D330 Transfer Assy
Transfer Case & Extension Housing ([08.2001 - ] (0108- )KZN205) 47
#OEMPart name
33124 33124-35100 Pipe, Oil Receiver(For Transfer)
33309 33309-35061 Flange Sub-Assy, Output Shaft Companion
33309 33309-35063 Flange Sub-assy, Transfer Output Shaft Companion
33309 90311-41013 Seal, Oil (For Transfer Case)
33309 90311-41017 Seal, Oil (For Transfer Case)
33309 33309-35100 Flange Sub-Assy, Output Shaft Companion
33309 90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)
33449 33449-32020 Magnet, Transmission
36101 36101-35120 Case Sub-Assy, Transfer
36101 36101-35121 Case Sub-assy, Transfer
36102 36102-35051 Cover Sub-Assy, Transfer Case
36102 90311-40021 Seal, Type T Oil (For Transfer Cover)
36103 90119-08A28 Bolt (For Transfer Case)
36104 90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)
36108 36108-35031 Deflector Sub-Assy, Breather Oil
36108 36128-35060 Deflector Sub-Assy, Breather Oil
36111 90311-15008 Seal, Oil (For Transfer Case)
36111 90311-41008 Seal, Oil (For Transfer Case)
36111 90311-41012 Seal, Oil (For Transfer Case)
36111 90311-41011 Seal, Oil (For Transfer Case)
36111 90311-41010 Seal, Oil (For Transfer Case)
36111 90430-18008 Gasket
36111 90430-T0021 Gasket(For Manual Transmission Filler Plug)
36111 90341-18006 Plug (No magnet)
36111 90250-10214 Pin, Straight(For End Plate)
36112 36112-35070 Case, Transfer, Rear
36115 36105-35040 Housing Sub-Assy, Transfer Extension, Front
36115 90311-41007 Seal, Oil (Transfer Extension Front Housing Sub-Assy)
36115 90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)
36117 36107-35190 Adapter, Transfer
36117 90311-40007 Seal, Oil(For Transfer Case Adapter Rear)
36117 90930-03075 Plug, Breather
36117 90341-24006 Plug, W/head Straight Screw, No.3
36117 90441-05001 Tube (For Transfer Case)
36117 90339-04024 Cap, Transfer, Rear Case
36117 90904-45005 Hose(For Transfer Adapter)
36121 36102-35040 Cover Sub-Assy, Transfer Case
82710 82710-35040 Clamp Assy, Wiring Harness
9011908336 90119-08336 BOLT
9011910186 90119-10186 BOLT
9024107003 90241-07003 Pin, Slotted Spring (For Transfer Case)
9025011003 90250-11003 Pin, Ring(For Transfer Case)
9034114012 90341-14012 Plug (For Transfer Case)
9050120091 90501-20091 Spring, Compression (For Transfer Case)
9161160822 91611-60822 Bolt
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9223372036854775807 82711-1E300 Clamp, Wiring Harness
Transfer Gear ([08.2001 - ] (0108- )SR5,SRV) 82
#OEMPart name
33368 33367-14010 Ring, Synchronizer, No.1
33371 33371-14010 Spring, Synchromesh Shifting Key, No.1
33371 33371-36030 Spring, Synchromesh Shifting Key, No.1
33385 33385-35010 Retainer, Shifting Key (For Transfer Front Drive Clutch)
33481 33481-35200 Gear, Speedometer Drive (For Transfer)
33481 90360-05012 Ball, Reverse Shift Restrict
36205 36205-35090 Sprocket Sub-Assy, Transfer Drive
36205 36205-35081 Sprocket Sub-Assy, Transfer Drive
36210 90363-75001 Bearing (For Transfer Input Shaft)
36211 36201-35040 Shaft, Transfer Input
36212 90520-72001 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72002 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72003 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72004 Ring, Hole Snap (For Transfer Input Shaft)
36212 90520-72005 Ring, Hole Snap (For Transfer Input Shaft)
36213 36213-35020 Stopper, Transfer Input Gear
36213 90520-44003 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44004 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44005 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44006 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44007 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44008 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44009 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44010 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44011 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44012 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44013 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44014 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44015 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44016 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44017 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44018 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44019 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44020 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213 90520-44021 Ring, Shaft Snap (For Transfer Input Gear Stopper)
36216 36216-35011 Ring, Transfer Input Shaft Seal, No.1
36216 36216-35012 Ring, Transfer Input Shaft Seal, No.1
36231 36202-35030 Shaft, Transfer Output, Rear
36231 90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)
36231 90520-71221 Ring, Shaft Snap (For Front Bearing)
36231 90363-32006 Bearing (For Transfer Counter Gear)
36235 36235-35021 Sleeve, Transfer High & Low Clutch
36235 36235-35H00 Piece, Transfer Low Planetary Gear Spline
36235 36235-35H01 Piece, Transfer Low Planetary Gear Spline
36236 36236-35050 Sleeve, Front Drive Clutch
36237 36237-35030 Hub, Transfer Clutch
36237 90520-39004 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39005 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39006 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39007 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39008 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39009 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39010 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39011 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39012 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39013 Ring, Shaft Snap (For Transfer Clutch Hub)
36237 90520-39014 Ring, Shaft Snap (For Transfer Clutch Hub)
36246 36246-35060 Ring, Transfer Front Drive Synchronizer
36248 36248-35030 Key, Synchromesh Shifting, Transfer Drive, No.1
36249 36249-35030 Key, Synchromesh Shifting, Transfer Drive, No.2
36255 36255-35020 Spacer, Transfer Output Shaft, No.1
36270 36270-35900 Gear Assy, Transfer Low Planetary
36270 90364-47001 Bearing (For Transfer Input Shaft)
36270 90364-47013 Bearing (For Transfer Input Shaft)
36270 90374-49001 Bearing, Thrust (For Transfer Input Shaft)
36270 90521-99056 Ring, Shaft Snap (For Transfer Low Planetary Gear)
36270 90520-99001 Ring, Shaft Snap (For Transfer Input Shaft)
36270 90520-99072 Ring, Shaft Snap(For Transfer Low Planetary Gear Bearing)
36273 36273-35030 Gear, Transfer Low Planetary Ring
36273 90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)
36273 90521-99052 Ring, Hole Snap (For Transfer Low Planetary Ring Gear)
36278 36278-35010 Washer, Manual Transfer Planetary Carrier
36278 36278-35020 Washer, Manual Transfer Planetary Carrier
36284 36284-35021 Piece, Transfer Low Planetary Gear Spline
36288 36288-28010 Race, Transfer Thrust Bearing, No.1
36291 90364-37009 Bearing (For Transfer Drive Sprocket)
36291 90364-37013 Bearing (For Transfer Drive Sprocket)
36292 36292-35020 Sprocket, Transfer Driven
36292 90363-28004 Bearing, Radial Ball (For Transfer Input Gear)
36292 90363-32030 Bearing (For Transfer Driven Sprocket)
36293 36293-35031 Chain, Transfer Front Drive
36293 36293-35040 Chain, Transfer Front Drive
Transfer Lever & Shift Rod ([06.2001 - ] (0106- )SR5,SRV) 24
#OEMPart name
36264 90250-10020 Pin Or Roller, Shift Inter-Lock
36275 90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)
36275 90501-16116 Spring, Compression (For Shift Detent Ball)
36275 90360-10003 Ball(For Transmission Oil Pump Cover)
36303 36303-35140-B3 Knob Sub-Assy, Shift Lever
36303 36303-35140-C0 Knob Sub-Assy, Shift Lever
36304 36304-35051 Retainer Sub-Assy, Transfer Control Shift Lever
36311 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
36311 90501-20088 Spring, Compresion (For Shift Fork)
36311 36311-35030 Fork, Transfer Gear Shift, No.1
36311 90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)
36312 36312-35040 Fork, Transfer Gear Shift, No.2
36313 36313-35080 Shaft, Transfer Front Drive Shift Fork
36314 36314-35110 Shaft, Transfer High And Low Shift Fork
36315 36315-35010 Pin, Transfer Gear Shift Fork Shaft
36316 36316-35020 Head, Transfer Gear Shift, No.2
36317 36317-35020 Stopper, Transfer Shift Shaft
36317 36317-35030 Stopper, Transfer Shift Shaft
36318 33555-35190 Boot, Transfer Front Drive Shift
36321 90521-49003 Ring, Snap (For Shift Lever Spring Sheet)
36345 36345-35040 Gasket, Transfer Control Shift Lever Retainer
36349 36349-35020 Spring, Transfer Select Return
36360 36360-35181 Lever Assy, Transfer High & Low Shift
9161160830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
Transfer Oil Pump ([08.2001 - ] (0108- )SR5,SRV) 9
#OEMPart name
36104 36104-35040 Separator Sub-Assy, Transfer Oil
36104 96721-19009 Ring, O(For Oil Level Gage)
36106 36106-35040 Body Sub-Assy, Transfer Oil Pump
36227 36227-35020 Gear, Transfer Oil Pump
36227 36227-35021 GEAR TRANSFER OIL
9011906821 90119-06821 New Genuine Part
9011906821 91631-B0618 BOLT WWASHER
9163160628 91631-60628 New Genuine Part
9163160628 90119-06775 BOLT WWASHER
Transmission Gear (Mtm) ([08.2001 - ] R151 (0108- )KZN205) 122
#OEMPart name
33037 33037-60040 Ring Set, Synchronizer, No.1
33037 33037-35030 Ring Set, Synchronizer, No.1
33311 33301-35110 Shaft, Input
33311 33301-26060 Shaft, Input
33311 33301-60050 Shaft, Input
33311 90363-40050 Bearing (For Input Shaft Front)
33311 90363-40092 Bearing (For Input Shaft Front)
33311 90520-38008 Ring, Shaft Snap (For Front Bearing)
33311 90520-38009 Ring, Shaft Snap (For Front Bearing)
33311 90520-38010 Ring, Shaft Snap (For Front Bearing)
33311 90520-38011 Ring, Shaft Snap (For Front Bearing)
33311 90520-38012 Ring, Shaft Snap (For Front Bearing)
33311 90520-38013 Ring, Shaft Snap (For Front Bearing)
33311 90520-38014 Ring, Shaft Snap (For Front Bearing)
33311 90364-25012 Bearing, Input Shaft
33311 90520-88001 Ring, Shaft Snap (For Front Bearing)
33318 33318-35040 Piece, Gear Spline, No.5
33321 33321-35140 Shaft, Output
33321 33321-35141 Shaft, Output
33321 90363-30075 Bearing (For Output Shaft Rear)
33321 90520-28031 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28032 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28033 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28034 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28035 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28037 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28039 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28042 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28043 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28045 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28046 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28047 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28048 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28049 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28050 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28051 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-28052 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-81001 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-30014 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-30015 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-30016 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30017 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30018 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30019 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-30020 Ring, Shaft Snap (For Clutch Hub Set)
33321 90520-36007 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36008 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36009 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36010 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36011 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36012 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90520-36013 Ring, Shaft Snap (For Output Shaft Bearing)
33321 90561-30005 Spacer (For Output Shaft)
33321 90363-35039 Bearing (For Output Shaft Center)
33321 90363-35078 Bearing (For Output Shaft Center)
33331 33331-60040 Gear, Reverse
33331 33331-60H00 Gear, Reverse
33331 33331-60H01 Gear, Reverse
33332 33033-26030 Gear, 2Nd
33332 33033-60050 Gear, 2Nd
33332 90364-47003 Bearing, Needle Roller (For 2Nd Gear)
33332 90364-47014 Bearing, Needle Roller (For 2Nd Gear)
33333 33034-35090 Gear, 3Rd
33333 33034-60090 Gear, 3Rd
33333 33034-60030 Gear, 3Rd
33333 90364-38011 Bearing, Needle Roller (For 3Rd Gear)
33335 33032-35041 Gear, 1St
33335 33032-60081 Gear, 1St
33335 33032-60080 Gear, 1St
33335 90560-39002 Spacer(For 1St Gear Bearing)
33335 90364-39005 Bearing, Needle Roller(For 1St Gear)
33335 90364-39016 Bearing, Needle Roller(For 1St Gear)
33336 33336-35100 Gear, 5Th
33336 33336-26020 Gear, 5Th
33348 33348-35010 Washer, 1St Gear Thrust
33348 90250-05026 Pin, Straight (For Gear Thrust Washer)
33349 33346-35020 Washer, 5Th Gear Thrust
33349 33346-71010 Washer, 5Th Gear Thrust
33361 33361-35040 Hub, Transmission Clutch, No.1
33361 33361-71010 Hub, Transmission Clutch, No.1
33362 33362-35030 Hub, Transmission Clutch, No.2
33364 33364-35050 Sleeve, Transmission Hub, No.2
33365 33365-35040 Key, Synchromesh Shifting, No.1
33365 33365-35060 Key, Synchromesh Shifting, No.1
33365 90501-08212 Spring, Compression
33366 33366-35030 Key, Synchromesh Shifting, No.2
33367 33367-35080 Ring, Synchronizer, No.1
33368 33368-35030 Ring, Synchronizer, No.2
33368 33368-35040 Ring, Synchronizer, No.2
33384 33384-35011 Ring, Synchronizer, Outer No.3
33387 33387-34010 Ring, Reverse Synchronizer
33388 33388-60010 Ring, Reverse Synchronizer Pull
33389 33389-60010 Ring, Synchronizer Cone
33391 33391-25030 Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)
33394 33394-35030 Key, Synchromesh Shifting, No.3
33394 90501-07104 Spring, Compression
33395 33395-35031 Sleeve, Transmission Hub, No.3
33402 33402-35060 Gear Sub-Assy, Reverse Idler
33411 90365-25019 Bearing Or Roller(For Counter Gear Front)
33411 90520-23057 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-56002 Ring, Counter Gear Front Bearing Snap, No.1
33411 90365-34005 Bearing Or Roller(For Counter Gear Rear)
33411 90520-23058 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23059 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23060 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23061 Ring, Counter Gear Front Bearing Snap, No.2
33411 90520-23062 Ring, Counter Gear Front Bearing Snap, No.2
33421 33421-35220 Gear, Counter
33421 33421-26110 Gear, Counter
33421 33421-60170 Gear, Counter
33421 90520-22016 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22017 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22018 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22019 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22020 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22021 Ring, Shaft Snap(For Counter Gear Rear)
33421 90520-22022 Ring, Shaft Snap(For Counter Gear Rear)
33428 33046-35090 Gear, Countershaft 5Th
33428 33428-60031 Gear, Countershaft 5Th
33428 33428-60030 Gear, Countershaft 5Th
33428 90364-30009 Bearing (For Counter 5Th Gear)
33451 33451-35030 Shaft, Reverse Idler Gear
V-Belt ([08.1988 - ] (8808- )22RE,1KZTE,3VZE) 2
#OEMPart name
16361 90916-02385 Belt, V(For Fan & Alternator)
88310 90916-02390 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
Vacuum Piping ([08.2001 - ] (0108- )1KZTE) 6
#OEMPart name
23265 90917-11044 Filter, Gas, No.1
91631 91631-G0614 BOT WWASHER
9033903005 90339-03005 Plug, No.1
9044708085 90447-08085 New Genuine Part
9092901372 90929-01372 Bracket
9099992002 90999-92002 Air Hose (300 mm)
Vacuum Pump ([08.2001 - ] (0108- )1KZTE) 20
#OEMPart name
29300 29300-67020 Pump Assy, Vacuum
29303 29303-67020 Rotor Sub-Assy, Vacuum Pump
29311 29311-76010 Pin, Vacuum Pump Dowel, No.1
29322 90099-10185 Bearing, Ball
29331 29331-67020 Blade, Vacuum Pump, A
29336 29336-58050 Shaft, Vacuum Pump
29342 29342-67020 Packing, Vacuum Pump
29342 29342-68010 Packing, Vacuum Pump
29342 29342-58010 Packing, Vacuum Pump
29351 29351-67020 Gear, Vacuum Pump
29364 29364-66010 Washer, Vacuum Pump
29369 29369-64030 Valve Sub-Assy, Check
9009690031 90096-90031 RING HOLE SNAP
9009904577 90099-04577 New Genuine Part
9009905185 90099-05185 NUT
9017908184 90179-08184 NUT
9020114099 90201-14099 Gasket(For Vacuum Pump Union)
9040109001 90401-09001 Bolt, Union(For Vacuum Pump Union)
9040109001 90401-09003 Bolt, Union(For Vacuum Pump Union)
9516110413 95161-10413 Key(For Alternator Pulley)
Vane Pump & Reservoir (Power Steering) ([08.2001 - ] (0108- )KZN205) 25
#OEMPart name
44305 44305-24030 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-24050 Cap Sub-Assy, Vane Pump Oil Reservoir
44310 90301-60002 Ring, O(For Vane Pump)
44313 44313-26060 Rotor, Vane Pump
44313 44313-26070 Rotor, Vane Pump
44313 44313-26080 Rotor, Vane Pump
44313 44313-26090 Rotor, Vane Pump
44313 44313-26100 Rotor, Vane Pump
44316 44316-60030 Gear, Vane Pump
44320 44310-35620 Pump Assy, Vane
44326 44325-12270 Ring, Vane Pump Cam
44326 44325-12280 Ring, Vane Pump Cam
44326 44325-12290 Ring, Vane Pump Cam
44326 44325-12300 Ring, Vane Pump Cam
44326 44325-12310 Ring, Vane Pump Cam
44326 44325-35060 Ring, Cam(For Vane Pump)
44326 44325-35070 Ring, Cam(For Vane Pump)
44326 44325-35090 Ring, Cam(For Vane Pump)
44326 44325-35100 Ring, Cam(For Vane Pump)
44345 44345-60010 Plate, Vane Pump
44345 44345-60020 Plate, Vane Pump
44345 44345-60030 Plate, Vane Pump
44345 44345-60040 Plate, Vane Pump
44345 44345-60050 Plate, Vane Pump
44360 44360-35130 Reservoir Assy, Vane Pump Oil
Ventilation Hose ([08.2001 - ] (0108- )1KZTE) 7
#OEMPart name
12229 12229-67011 Pipe, Ventilation
12261 12261-67010 Hose, Ventilation
12261 90467-22010 Clip Or Clamp(For Ventilation Hose)
12262 12262-67010 Hose, Ventilation, No.2
9017906298 90179-06298 NUT
9151180610 91511-80610 New Genuine Part
9212260610 92122-60610 Bolt, Stud(For Oil Pan)
Venturi ([08.2001 - ] (0108- )1KZTE) 5
#OEMPart name
26100 26100-67110 Venturi Assy
26171 26171-67030 Gasket, Venturi
9010908286 90109-08286 New Genuine Part
9010908287 90109-08287 New Genuine Part
9033903005 90339-03005 Plug, No.1
Water Pump ([08.2001 - ] (0108- )1KZTE) 14
#OEMPart name
16100 16100-69356 Pump Assy, Engine Water
16100 16100-69357 Pump Assy, Engine Water
16100 16159-70040 Pin, Ring(For Oil Pump Set)
16110 16110-69045 Pump Assy, Water, W/o Cover
16124 16124-67010 Gasket, Water Pump Cover
16210 16210-67050 Coupling Assy, Fluid
16271 16271-67020 Gasket, Water Pump
16371 16371-67020 Pulley, Fan
1619388460 16193-88460 Bolt, Stud(for Water Pump Cover)
9011608112 90116-08112 Bolt, Stud(For Water Pump Coupling)
9011906749 90119-06749 BOLT WWASHER
9011906751 90119-06751 BOLT WWASHER
9017906298 90179-06298 NUT
9017908150 90179-08150 NUT
Windshield Washer ([04.1989 - ] JAR & HOSE, W(REAR WINDOW WIPER) (8904- )) 5
#OEMPart name
8537389101 85373-89101 Hose, Windshield Washer (from Joint To Nozzle)
9011906419 90119-06419 BOLT WWASHER
9048025025 90480-25025 Grommet, Radiator Reserve Tank Hose
9331535012 93315-35012 New Genuine Part
9411540530 94115-40530 New Genuine Part
Windshield Washer ([06.2001 - ] NOZZLE & HOSE (0106- )) 6
#OEMPart name
85035 85381-35060 Nozzle Sub-Assy, Washer
85348 85348-12250 Joint, Windshield Washer Hose, No.1
85348 85377-32220 Joint, Windshield Washer Elbow, No.1
85372 90099-33080 Hose, Windshield Washer (From Motor To Joint)
9095901136 90959-01136 BRACKET
9095901346 90959-01346 CLAMP
Windshield Washer ([08.1988 - ] JAR & HOSE, W/O(REAR WINDOW WIPER) (8808- )) 3
#OEMPart name
8537335010 85373-35010 Hose, Windshield Washer (from Joint To Nozzle)
9011906419 90119-06419 BOLT WWASHER
9048025025 90480-25025 Grommet, Radiator Reserve Tank Hose
Windshield Wiper ([02.1995 - ] (9502- )) 17
#OEMPart name
85110 85110-35120 Motor Assy, Windshield Wiper
85160 85150-35070 Link Assy, Windshield Wiper
85178 90179-08113 Nut (For Front Wiper Arm Setting)
85190 85211-35032 Arm Assy, Windshield Wiper
85190 85221-35021 Arm Assy, Windshield Wiper
85192 85192-12800 Cover, Windshield Wiper Arm
85192 85292-12020 Cover, Windshield Wiper Arm
85214 85214-35020 Rubber, Wiper, Rh
85214 85214-35010 Rubber, Wiper, Rh
85220 85212-35021 Blade, Fr Wiper, Rh - WINDSHIELD WIPER
85220 85222-35071 Blade Assy, Windshield Wiper
85220 85222-60061 Blade Assy, Windshield Wiper
85224 85224-35020 Plate, Wiper Rubber Backing, No.3
85224 85224-35030 Plate, Wiper Rubber Backing, No.1
9009900925 90099-00925 SCREW
9011906187 90119-06187 New Genuine Part
9011906187 90119-06490 BOLT W-WASHER
Wiring & Clamp ([04.1989 - ] ROOF,FLOOR,FRAME & DOOR WIRE (8904- )RN106..STD..CBR ; (8904- )KZN205,L N13#,RN13#,VZN130,YN13#) 2
#OEMPart name
82151 82151-35060 Wire, Front Door, Rh
9011906390 90119-06390 BOLT WWASHER
Wiring & Clamp ([08.1988 - ] ENGINE ROOM & INSTRUMENT PANEL WIRE (8808- )KZN205,LN10#,111,13#,205) 34
#OEMPart name
82210 90982-08188 Fusible Link
82210 90982-08189 Fusible Link
82210 90982-08203 Fusible Link
82210 90982-08246 Fusible Link
82210 90982-08277 Fusible Link
82210 90982-08282 Fusible Link
82620 82620-89101 Block Assy, Fusible Link
82817 82817-89123 Protector, Wiring Harness, No.1
82817 82817-89130 Protector, Wiring Harness, No.2
82823 82823-22050 Cap, Terminal, No.1
82823 82823-35060 Cap, Terminal, No.1
91666 91666-F0618 Bolt
91666 90119-06072 Bolt
2862257010 28622-57010 Insulator, Glow Plug Resistor, No.1
2862354010 28623-54010 Insulator, Glow Plug Resistor, No.2
8281735850 82817-35850 Protector, Wiring Harness, No.1
9011606275 90116-06275 Bolt, Stud(For Injection Pipe Clamp)
9011606275 90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)
9011906390 90119-06390 BOLT WWASHER
9015950304 90159-50304 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9018904138 90189-04138 New Genuine Part
9161161014 91611-61014 New Genuine Part
9161161014 91612-B1014 BOLT WWASHER
9161261016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9162140814 91621-40814 Bolt
9163560618 91635-60618 New Genuine Part
9163560618 91631-B0614 BOLT WWASHER
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9338516010 93385-16010 New Genuine Part
9356014014 93560-14014 SCREW
9461310601 94613-10601 Washer (For Primary Regulator Valve)
Wiring & Clamp ([08.1988 - ] ENGINE ROOM WIRE CLAMPS & BRACKETS (8808- )) 10
#OEMPart name
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
827153 82715-3D180 Bracket,wiring Harness Clamp
8271135060 82711-35060 Clamp, Wiring Harness
8271535030 82715-35030 Bracket,wiring Harness Clamp
8271538150 82715-38150 Bracket,wiring Harness Clamp
8271589104 82715-89104 Bracket,wiring Harness Clamp
8271589106 82715-89106 Bracket,wiring Harness Clamp
8272935090 82729-35090 New Genuine Part
9011906431 90119-06431 New Genuine Part
9011908671 90119-08671 Bolt
Wiring & Clamp ([08.1988 - ] ENGINE WIRE CLAMPS & BRACKETS (8808- )) 43
#OEMPart name
91621 91621-F0812 New Genuine Part
91651 91651-F0814 New Genuine Part
91656 91656-F0616 New Genuine Part
91656 90119-06482 New Genuine Part
827112 82711-2A190 Wire, Fuse To Fuse(for Combustion Heater)
8271195 82711-95J26 Wire, Fuse To Fuse(for Combustion Heater)
9011908 90119-08A96 BOLT WWASHER
8271112120 82711-12120 Clamp(Rear Seat)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271112290 82711-12290 Wire, Fuse To Fuse(for Combustion Heater)
8271114110 82711-14110 Clamp(For Hood Lock Control Cable)
8271130800 82711-30800 New Genuine Part
8271130800 90461-08312 New Genuine Part
8271135060 82711-35060 Clamp, Wiring Harness
8271189123 82711-89123 Wire, Fuse To Fuse(for Combustion Heater)
8271189157 82711-89157 Wire, Fuse To Fuse(for Combustion Heater)
8271195024 82711-95024 Wire, Fuse To Fuse(for Combustion Heater)
8271522180 82715-22180 Bracket,wiring Harness Clamp
8271534100 82715-34100 Bracket,wiring Harness Clamp
8271589102 82715-89102 Bracket,wiring Harness Clamp
8271589107 82715-89107 Bracket,wiring Harness Clamp
8271589108 82715-89108 Bracket,wiring Harness Clamp
8271589109 82715-89109 Bracket,wiring Harness Clamp
8271589110 82715-89110 Bracket,wiring Harness Clamp
8271589111 82715-89111 Bracket,wiring Harness Clamp
8271589112 82715-89112 Bracket,wiring Harness Clamp
8271589114 82715-89114 Bracket,wiring Harness Clamp
8271589116 82715-89116 Bracket,wiring Harness Clamp
8271589118 82715-89118 Bracket,wiring Harness Clamp
8271589119 82715-89119 Bracket,wiring Harness Clamp
8271589120 82715-89120 Bracket,wiring Harness Clamp
8271589126 82715-89126 Bracket,wiring Harness Clamp
8271595010 82715-95010 Bracket,wiring Harness Clamp
8761622010 87616-22010 Clamp, Cooling Unit Case
9016860010 90168-60010 New Genuine Part
9046106152 90461-06152 New Genuine Part
9046108365 90461-08365 New Genuine Part
9046208008 90462-08008 New Genuine Part
9046400176 90464-00176 Clamp(For Clutch Booster Vacuum)
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9162140812 91621-40812 BOLT
9165141016 91651-41016 Bolt(For Transaxle & Engine Setting)
Wiring & Clamp ([08.1988 - ] ENGINE WIRE NO.2,NO.3 CLAMPS & BKTS (8808- )KZN205,LN10#,111,13#,RN10#,110,13#,VZ N130,YN106,13#) 14
#OEMPart name
0 82711-1E350 Clamp, Wiring Harness
0 82711-06050 Clamp, Door Scuff Plate, No.2
91611 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
827153 82715-3D010 Bracket,wiring Harness Clamp
8271535080 82715-35080 Bracket,wiring Harness Clamp
8271535120 82715-35120 Bracket,wiring Harness Clamp
8271589103 82715-89103 Bracket,wiring Harness Clamp
8271589104 82715-89104 Bracket,wiring Harness Clamp
8271589105 82715-89105 Bracket,wiring Harness Clamp
8271589106 82715-89106 Bracket,wiring Harness Clamp
8271589131 82715-89131 Bracket,wiring Harness Clamp
8272935070 82729-35070 New Genuine Part
8761622010 87616-22010 Clamp, Cooling Unit Case
9011908671 90119-08671 Bolt
Wiring & Clamp ([08.1988 - ] FUSIBLE LINK REPAIR WIRE (8808- )KZN205,LN10#,111,13#,RN10#,110,13#,VZ N130,YN106,13#) 6
#OEMPart name
8299135010 82991-35010 Wire, Fusible Link Repair
8299135020 82991-35020 Wire, Fusible Link Repair
8299135030 82991-35030 Wire, Fusible Link Repair
8299189104 82991-89104 Wire, Fusible Link Repair
8299189105 82991-89105 Wire, Fusible Link Repair
8299189106 82991-89106 Wire, Fusible Link Repair
Wiring & Clamp ([08.2001 - ] ENGINE WIRE CLAMPS & BRACKETS (0108- )KZN205) 14
#OEMPart name
91511 91511-B0610 BOLT FLANGE
827153 82715-3D350 Bracket,wiring Harness Clamp
8271520770 82715-20770 Bracket,wiring Harness Clamp
8271535670 82715-35670 Bracket,wiring Harness Clamp
8271535820 82715-35820 Bracket,wiring Harness Clamp
8271535830 82715-35830 Bracket,wiring Harness Clamp
8271560190 82715-60190 Bracket,wiring Harness Clamp
8272935170 82729-35170 New Genuine Part
8272935180 82729-35180 New Genuine Part
8272935190 82729-35190 New Genuine Part
8272935200 82729-35200 New Genuine Part
8272935210 82729-35210 New Genuine Part
8272935220 82729-35220 New Genuine Part
9162140814 91621-40814 Bolt
Source
Public OEM parts-catalog data
Variants
2 / 2
Category
177
Collected
2026-08-03
