Search › Model › KZJ90

KZJ90

Toyota LAND-CRUISER-PRADO · 1996 · 6,497 parts · 365 categories

6,497 items

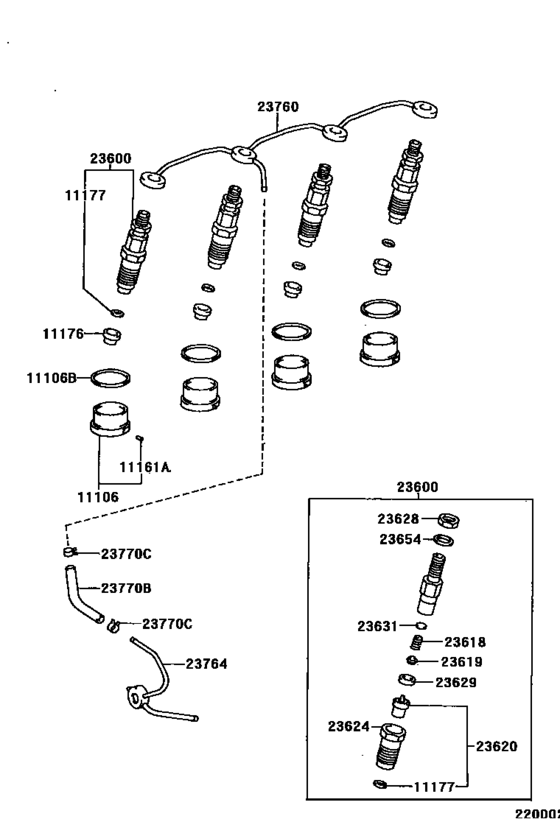

Injection Nozzle ([04.1996 - ] (9604- )1KZ#) 46

#	OEM	Part name
11106	11106-67020	Chamber Sub-Assy, Combustion
11106	11106-67021	Chamber Sub-Assy, Combustion
11106	11165-67020	Shim(For Combustion Chamber)
11106	11165-67030	Shim(For Combustion Chamber)
11106	11166-67020	Shim(For Combustion Chamber)
11106	11166-67030	Shim(For Combustion Chamber)
11161	90250-02046	Pin, Straight(For Combustion Chamber)
11176	11176-67010	Seat, Injection Nozzle
11176	11176-67011	Seat, Injection Nozzle
11177	11177-64010	Gasket, Injection Nozzle Seat
23600	23600-69105	Holder & Nozzle Set, Nozzle
23618	23618-54730	Spring, Nozzle Holder Pressure
23619	23619-64010	Pin, Nozzle Holder Pressure
23620	23620-69075	Nozzle Assy
23624	23624-64041	Nut, Nozzle Retaining
23628	23628-64010	Nut(For Ring Packing Setting)
23629	23629-54080	Piece, Distance(For Nozzle)
23631	23631-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23631-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23632-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23633-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64012	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64014	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64016	Washer(For Nozzle Holder Pressure Spring)
23631	23634-64018	Washer(For Nozzle Holder Pressure Spring)
23631	23635-64010	Washer(For Nozzle Holder Pressure Spring)
23631	23635-64012	Washer(For Nozzle Holder Pressure Spring)
23654	23654-64010	Washer(For Ring Packing)
23760	23760-67020	Pipe Assy, Nozzle Leakage
23760	23760-67030	Pipe Assy, Nozzle Leakage
23764	23764-67030	Pipe, Nozzle Leakage, No.4
23770	95333-04020	Hose, Lpg Injector
23770	90467-10049	Clamp Or Clip(For Fuel Hose Set)
23770	90467-10149	Clip, No.2(For Idle-Up Hose)

OEM	Part name	Category
11106-67020	Chamber Sub-Assy, Combustion	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11106-67021	Chamber Sub-Assy, Combustion	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11165-67020	Shim(For Combustion Chamber)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11165-67030	Shim(For Combustion Chamber)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11166-67020	Shim(For Combustion Chamber)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11166-67030	Shim(For Combustion Chamber)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11176-67010	Seat, Injection Nozzle	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11176-67011	Seat, Injection Nozzle	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
11177-64010	Gasket, Injection Nozzle Seat	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23600-69105	Holder & Nozzle Set, Nozzle	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23618-54730	Spring, Nozzle Holder Pressure	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23619-64010	Pin, Nozzle Holder Pressure	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23620-69075	Nozzle Assy	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23624-64041	Nut, Nozzle Retaining	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23628-64010	Nut(For Ring Packing Setting)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23629-54080	Piece, Distance(For Nozzle)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23631-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23631-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23631-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23631-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23631-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23632-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23632-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23632-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23632-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23632-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23633-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23633-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23633-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23633-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23633-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23634-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23634-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23634-64014	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23634-64016	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23634-64018	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23635-64010	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23635-64012	Washer(For Nozzle Holder Pressure Spring)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23654-64010	Washer(For Ring Packing)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23760-67020	Pipe Assy, Nozzle Leakage	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23760-67030	Pipe Assy, Nozzle Leakage	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
23764-67030	Pipe, Nozzle Leakage, No.4	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
90250-02046	Pin, Straight(For Combustion Chamber)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
90467-10049	Clamp Or Clip(For Fuel Hose Set)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
90467-10149	Clip, No.2(For Idle-Up Hose)	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
95333-04020	Hose, Lpg Injector	Injection Nozzle ([04.1996 - ] (9604- )1KZ#)
