Search › Model › KZJ90

KZJ90

Toyota LAND-CRUISER-PRADO · 1996 · 6,497 parts · 365 categories

6,497 items

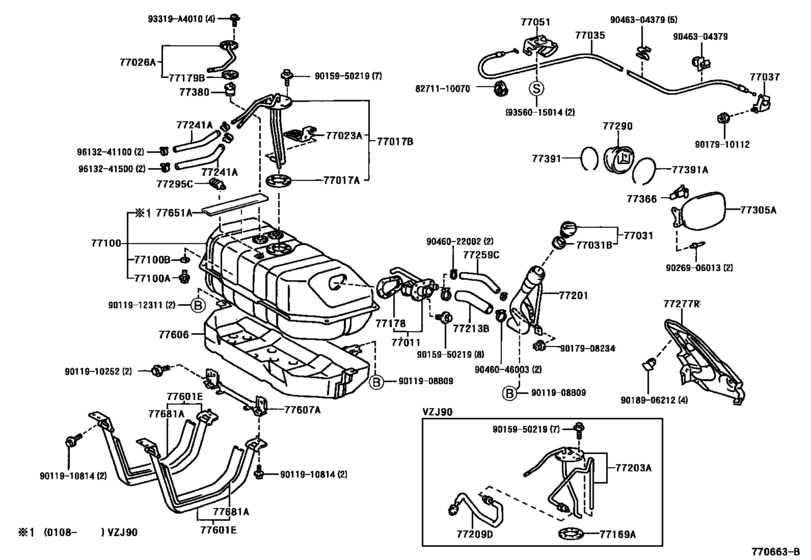

Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90) 60

#	OEM	Part name
77011	77011-60050	Pipe Sub-Assy, Fuel Tank Filler, Lower
77017	77169-14010	Gasket, Fuel Pump Bracket
77017	77017-60350	Tube Sub-Assy, Fuel Tank Vent
77017	77017-60351	Tube Sub-Assy, Fuel Tank Vent
77023	77023-26010	Filter Sub-Assy, Fuel Suction Tube
77026	77026-60100	Tube Sub-Assy, Fuel Evaporation, No.1
77031	77300-60020	Cap Assy, Fuel Tank
77031	77310-12150	Cap Assy, Fuel Tank
77031	77310-35110	Cap Assy, Fuel Tank
77031	77316-16010	Gasket (For Fuel Tank Cap)
77035	77035-60080	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-12050	Lock Sub-Assy, Fuel Filler Opening Lid
77051	77051-30060-B1	Lever Sub-Assy, Fuel Lid Open
77051	77051-30060-C0	Lever Sub-Assy, Fuel Lid Open
77100	77001-60380	Tank Assy, Fuel
77100	77001-60710	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77178	77178-34010	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-26010	Gasket, Fuel Tank Evap/vent Tube
77179	77179-26011	Gasket, Fuel Suction Tube Set, No.1
77201	77201-60480	Pipe Sub-Assy, Fuel Tank Inlet
77213	77213-60120	Hose, Fuel Tank To Filler Pipe
77241	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77241	95337-06020	Hose, Differential Pressure Control
77259	77259-60190	Hose, Fuel
77277	77277-60040	Protector, Fuel Tank Filler Pipe
77290	77291-60050	Shield Assy, Fuel Tank Filler Pipe
77295	77295-35150	Grommet, Fuel Tube
77305	77350-60040	Lid Sub-Assy, Fuel Filler Opening
77366	77360-35010	Spring, Fuel Filler Opening Lid Hinge
77380	77380-26010	Valve Assy, Fuel Cut Off
77391	77391-14020	Ring, Fuel Inlet Box
77391	77391-60030	Ring, Fuel Inlet Box
77601	77601-60170	Band Sub-Assy, Fuel Tank
77606	77606-60080	Protector Sub-Assy, Fuel Tank, No.1
77607	77607-60040	Buckle Sub-Assy, Fuel Tank Band
77681	77681-32060	Seat, Fuel Tank Band, Rh
93319	93319-A4010	SCREW WWASHER
9011908	90119-08B09	New Genuine Part
8271110070	82711-10070	Clamp, Wiring Harness
9011910252	90119-10252	BOLT
9011910814	90119-10814	Bolt, Fuel Tank Band Set
9011912311	90119-12311	BOLT WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9017908234	90179-08234	NUT
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9018906212	90189-06212	GROMMET SCREW
9026906013	90269-06013	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046304379	90463-04379	New Genuine Part
9356015014	93560-15014	SCREW
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)
9613241500	96132-41500	Clip(For Ventilation Tube)

OEM	Part name	Category
77001-60380	Tank Assy, Fuel	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77001-60710	Tank Assy, Fuel	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77011-60050	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77017-60350	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77017-60351	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77023-26010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77026-60100	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77035-60080	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77037-12050	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77051-30060-B1	Lever Sub-Assy, Fuel Lid Open	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77051-30060-C0	Lever Sub-Assy, Fuel Lid Open	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77178-34010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77179-26010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77179-26011	Gasket, Fuel Suction Tube Set, No.1	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77201-60480	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77213-60120	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77259-60190	Hose, Fuel	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77277-60040	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77291-60050	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77295-35150	Grommet, Fuel Tube	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77300-60020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77310-12150	Cap Assy, Fuel Tank	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77310-35110	Cap Assy, Fuel Tank	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77350-60040	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77360-35010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77391-14020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77391-60030	Ring, Fuel Inlet Box	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77601-60170	Band Sub-Assy, Fuel Tank	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77606-60080	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77607-60040	Buckle Sub-Assy, Fuel Tank Band	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
82711-10070	Clamp, Wiring Harness	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90119-08B09	New Genuine Part	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90119-10252	BOLT	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90119-10814	Bolt, Fuel Tank Band Set	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90119-12311	BOLT WWASHER	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90159-50219	BOLT	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90179-08234	NUT	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90179-10112	New Genuine Part	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90179-10186	New Genuine Part	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90189-06212	GROMMET SCREW	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90269-06013	RIVET	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90460-22001	CLAMP	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90460-22002	CLAMP	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
90463-04379	New Genuine Part	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
93560-15014	SCREW	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
96132-41500	Clip(For Ventilation Tube)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([04.1996 - ] FUEL TANK (9604- )KDJ90,KZJ90,VZJ90)
