KZJ90

Toyota LAND-CRUISER-PRADO · 1996 · 6,497 parts · 365 categories

← Back to categories

6,497 items

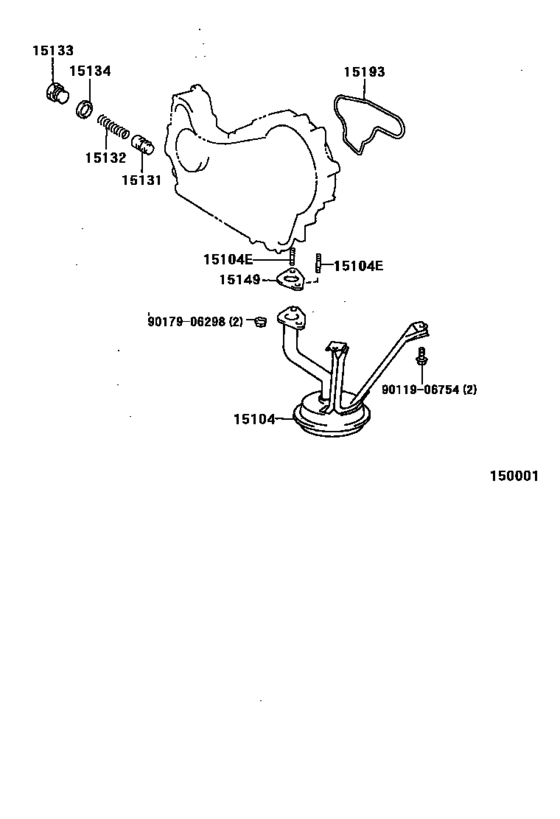

Engine Oil Pump ([04.1996 - ] (9604- )1KZ#) 11

#	OEM	Part name
15104	15104-67080	Strainer Sub-Assy, Oil
15104	90116-06140	Bolt, Stud(For Oil Strainer)
15131	15131-46040	Valve, Oil Pump Relief
15132	15132-17010	Spring, Oil Pump Relief Valve
15133	15133-17010	Plug, Oil Pump Relief Valve
15134	15134-67020	Gasket, Oil Pump Relief Valve
15149	15149-67010	Gasket, Oil Strainer Flange
15193	15193-67010	Gasket, Oil Pump
15193	15193-67011	Gasket, Oil Pump
9011906754	90119-06754	BOLT WWASHER
9017906298	90179-06298	NUT

OEM	Part name	Category
15104-67080	Strainer Sub-Assy, Oil	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15131-46040	Valve, Oil Pump Relief	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15132-17010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15133-17010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15134-67020	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15149-67010	Gasket, Oil Strainer Flange	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15193-67010	Gasket, Oil Pump	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
15193-67011	Gasket, Oil Pump	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
90116-06140	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
90119-06754	BOLT WWASHER	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
90179-06298	NUT	Engine Oil Pump ([04.1996 - ] (9604- )1KZ#)
