KP36

Toyota PUBLICA · 1969 · 4,914 parts · 200 categories

4,914 items

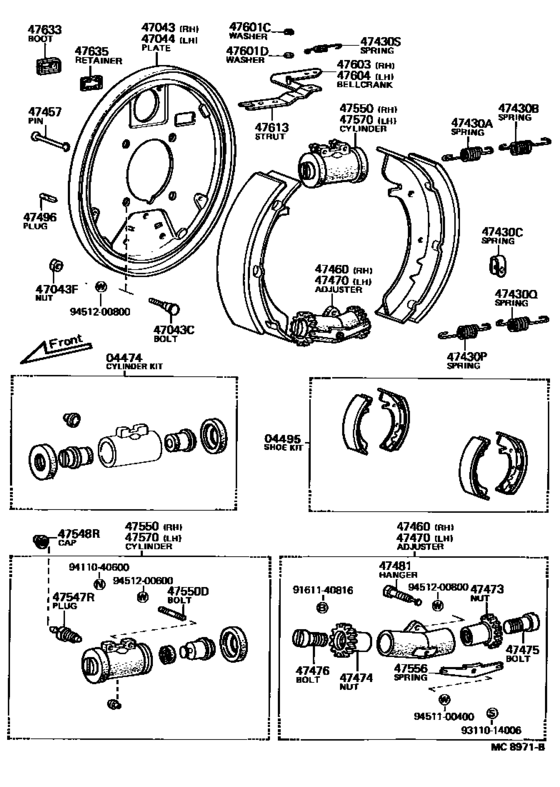

Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V) 61

#	OEM	Part name
4474	04474-11020	Cylinder Kit, Rear Wheel
4495	04495-10010	Shoe Kit, Rear Brake
4495	04495-10012	Shoe Kit, Rear Brake
4495	04495-10030	Shoe Kit, Rear Brake
4495	04495-16032	Shoe Kit, Rear Brake
4495	04497-10010	Shoe Kit, Rear Brake
4495	04497-10030	Shoe Kit, Rear Brake
47043	47043-10011	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-12010	Plate Sub-Assy, Brake Backing, Rear Rh
47043	42184-22020	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90114-08005	Bolt, Serration (For Power Take-Off Shaft)
47043	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
47043	94130-00802	Nut, No.1 (For Center Support Bearing)
47043	94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)
47044	47044-10011	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-12010	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90506-14049	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-14146	Spring, Tension(For Rear Brake Shoe Return)
47430	47446-10010	Spring(For Front Brake Shoe Hold Down)
47430	90506-20056	Spring, Tension(For Front Brake Shoe Return)
47430	90506-20057	Spring, Tension(For Front Brake Shoe Return)
47430	90506-12129	Spring, Tension(For Parking Brake Shoe Strut)
47430	90506-12130	Spring, Tension(For Parking Brake Shoe Strut)
47457	47447-10010	Pin, Shoe Hold Down Spring(For Front Brake)
47460	47061-12020	Strut Set, Parking Brake Shoe, Rh
47460	47405-19025	Adjuster Assy, Shoe, Rh(For Rear Brake)
47470	47062-12020	Strut Set, Parking Brake Shoe, Lh
47473	47551-10010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47474	47552-10010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47475	47553-10010	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476	47554-10010	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47481	47481-10011	Hanger, Shoe Retracting Spring(For Front Brake)
47496	47491-20011	Plug, Hole(For Rear Brake)
47496	47491-20020	Plug, Hole(For Front Brake)
47496	47491-30020	Plug, Hole(For Front Brake)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47550	47550-19025	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-11012	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-19055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-14010	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47750-19055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	90116-06035	Bolt, Stud(For Timing Gear Cover)
47556	47555-10030	Spring, Adjuster Lock(For Rear Brake)
47570	47570-19025	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47601	90213-06013	Washer, Type C(For Parking Brake Shoe)
47601	90206-08016	Washer, Wave (For Low Speed Connecting Rod)
47603	47603-12011	Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)
47604	47604-12011	Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)
47613	47613-10012	Strut, Parking Brake Shoe (For Rear Brake)
47633	47633-10010	Boot, Parking Brake Bellcrank
47635	47635-10010	Retainer, Bellcrank Boot(For Rear Brake)
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9311014006	93110-14006	New Genuine Part
9311014006	93210-14006	New Genuine Part
9411040600	94110-40600	Nut, Rock
9451100400	94511-00400	WASHERSPRING
9451200600	94512-00600	Washer, Seal(For Head Cover Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04474-11020	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
04495-10010	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
04495-10012	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
04495-10030	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
04495-16032	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
04497-10010	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
04497-10030	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
42184-22020	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47043-10011	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47043-12010	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47044-10011	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47044-12010	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47061-12020	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47062-12020	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47405-19025	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47446-10010	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47447-10010	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47481-10011	Hanger, Shoe Retracting Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47491-20020	Plug, Hole(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47491-30020	Plug, Hole(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47547-12010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47550-11012	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47550-14010	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47550-19025	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47550-19055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47551-10010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47552-10010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47553-10010	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47554-10010	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47555-10030	Spring, Adjuster Lock(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47570-19025	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47603-12011	Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47604-12011	Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47613-10012	Strut, Parking Brake Shoe (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47633-10010	Boot, Parking Brake Bellcrank	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47635-10010	Retainer, Bellcrank Boot(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
47750-19055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90114-08005	Bolt, Serration (For Power Take-Off Shaft)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90116-06035	Bolt, Stud(For Timing Gear Cover)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90206-08016	Washer, Wave (For Low Speed Connecting Rod)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90506-12129	Spring, Tension(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90506-12130	Spring, Tension(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90506-14049	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90506-14146	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90506-20056	Spring, Tension(For Front Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
90506-20057	Spring, Tension(For Front Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
91611-B0816	Bolt	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
93110-14006	New Genuine Part	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
93210-14006	New Genuine Part	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
94110-40600	Nut, Rock	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
94511-00400	WASHERSPRING	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
94512-00600	Washer, Seal(For Head Cover Set)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([04.1970 - 10.1973] (6904-7004) ; (7004-7310)SED,V)
