KP30

Toyota PUBLICA · 1969 · 4,048 parts · 185 categories
KP30 ×

← Back to categories

4,048 items

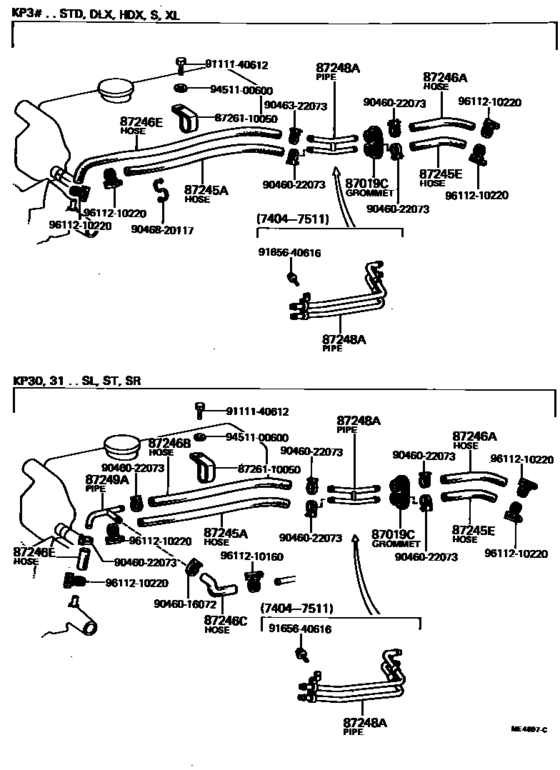

Heating & Air Conditioning - Water Piping ([04.1969 - 11.1975] (6904-7511)KP3#) 33
#OEMPart name
87019 90480-01195 Grommet, Heater Hose
87019 90480-01412 Grommet, Heater Hose
87245 99551-20450 Hose, Heater Water, Inlet A
87245 99556-20500 Hose, Rear Heater Water Inlet, B
87245 99552-20450 Hose, Heater Water, Inlet A
87245 99552-20500 Hose, Sub Radiator, No.2
87245 99551-20155 Hose, Heater Water, Inlet E
87245 99556-20200 Hose, Water(For Lpg Regulator Outlet)
87245 99551-20210 Hose, Heater Water, Inlet E
87245 99556-20300 Hose, Water(For Lpg Regulator Inlet)
87245 99552-20155 Hose, Heater Water, Inlet E
87245 99552-20210 Hose, Heater Water, Inlet A - HEATER WATER, INLET E
87246 99551-20180 Hose, Heater Water, Outlet A
87246 99551-20230 Hose, Heater Water, Outlet A
87246 99552-20180 Hose, Heater Water, Outlet A
87246 99552-20190 Hose, Heater Water, Outlet A - REAR HEATER WATER OUTLET, B
87246 99552-20230 Hose, Heater Water, Outlet A
87246 99552-20240 Hose, Heater Water, Outlet A
87246 99551-20500 Hose, Heater Water, Outlet E
87248 87248-10050 Pipe, Heater Water Inlet, A
87248 87248-10070 Pipe, Heater Water Inlet, A
8726110050 87261-10050 Bracket, Heater Pump
9046016072 90460-16072 New Genuine Part
9046022073 90460-22073 Clip(For Ventilation Hose No.2)
9046022073 90467-19022 Clip(For Ventilation Hose No.2)
9046322073 90463-22073 New Genuine Part
9046820117 90468-20117 New Genuine Part
9111140612 91111-40612 New Genuine Part
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9451100600 94511-00600 Washer, Lock, No.2
9611210160 96112-10160 Clamp Or Clip, Hose(For Water By-Pass Hose)
9611210220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
