Search › Model › KP30

KP30

Toyota PUBLICA · 1969 · 4,048 parts · 185 categories

4,048 items

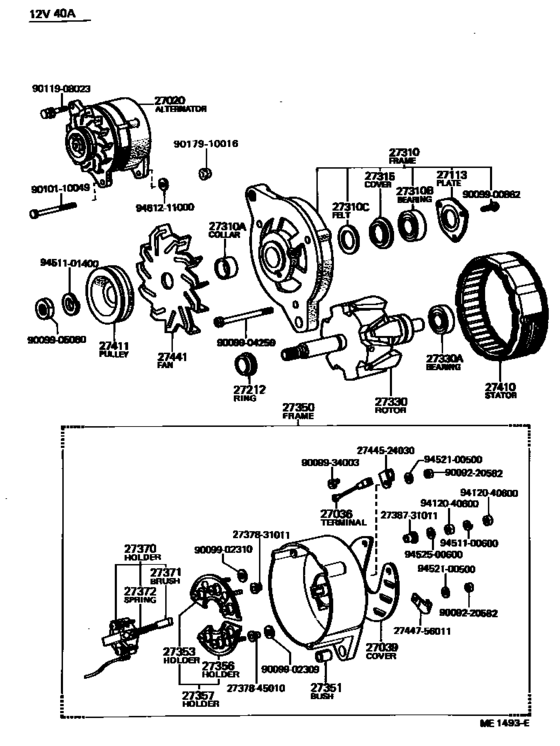

Alternator ([01.1972 - 12.1972] (7201-7212)) 113

#	OEM	Part name
27020	27020-12011	Alternator Assy
27020	27020-12012	Alternator Assy
27020	27020-24020	Alternator Assy
27020	27020-24021	Alternator Assy
27020	27020-24030	Alternator Assy
27020	27020-13060	Alternator Assy
27020	27036-24030	Terminal Sub-Assy, Lead Wire, Alternator
27020	27020-24031	Alternator Assy
27020	27020-24050	Alternator Assy
27020	27020-24061	Alternator Assy
27020	27020-24062	Alternator Assy
27039	27039-11014	Cover, Alternator Rear End
27039	27039-12030	Cover, Alternator Rear End
27039	27039-22012	Cover, Alternator Rear End
27039	27039-22013	Cover, Alternator Rear End
27039	27039-24030	Cover, Alternator Rear End
27039	27039-26020	Cover, Alternator Rear End
27113	27113-10012	Plate, Bearing Retainer, Alternator
27113	27312-31011	Plate, Bearing Retainer, Alternator
27212	27212-39050	Ring, Space(For Alternator Rotor)
27212	90099-19068	Ring, Space(For Alternator Rotor)
27310	27310-22012	Frame Assy, Drive End, Alternator
27310	27310-24030	Frame Assy, Drive End, Alternator
27310	27310-24070	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	27412-56040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-19191	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-19203	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10012	Bearing(For Alternator Drive End Frame)
27310	90099-10013	Bearing(For Alternator Drive End Frame)
27310	90099-02004	Felt(For Alternator Drive End Frame)
27310	90099-02009	Felt(For Alternator Drive End Frame)
27315	27313-31011	Cover, Alternator Felt, Inner No.1
27315	27313-39010	Cover, Alternator Felt, Inner No.1
27330	27330-22012	Rotor Assy, Alternator
27330	27330-33010	Rotor Assy, Alternator
27330	97110-06201	Bearing(For Alternator Rotor)
27350	27350-12011	Frame Assy, Rectifier End
27350	27350-12030	Frame Assy, Rectifier End
27350	27350-12012	Frame Assy, Rectifier End
27350	27350-22013	Frame Assy, Rectifier End
27350	27350-22022	Frame Assy, Rectifier End
27350	27350-24030	Frame Assy, Rectifier End
27350	27350-24080	Frame Assy, Rectifier End
27350	27350-24031	Frame Assy, Rectifier End
27350	27350-13010	Frame Assy, Rectifier End
27350	27350-24061	Frame Assy, Rectifier End
27350	27350-24062	Frame Assy, Rectifier End
27351	27351-22010	Bush(For Alternator Rectifier End Frame)
27351	27351-24020	Bush(For Alternator Rectifier End Frame)
27351	27351-25010	Bush(For Alternator Rectifier End Frame)
27353	27353-22012	Holder, W/rectifier Positive, Alternator
27353	27353-24030	Holder, W/rectifier Positive, Alternator
27353	27353-24031	Holder, W/rectifier Positive, Alternator
27353	27353-26020	Holder, W/rectifier Positive, Alternator
27353	27353-26030	Holder, W/rectifier Positive, Alternator
27356	27356-22011	Holder, W/rectifier Negative, Alternator
27356	27356-24030	Holder, W/rectifier Negative, Alternator
27356	27356-26020	Holder, W/rectifier Negative, Alternator
27356	27356-26030	Holder, W/rectifier Negative, Alternator
27357	27357-11014	Holder, Alternator, W/rectifier
27357	27357-22012	Holder, Alternator, W/rectifier
27357	27357-24030	Holder, Alternator, W/rectifier
27357	27357-24031	Holder, Alternator, W/rectifier
27357	27357-26020	Holder, Alternator, W/rectifier
27357	27357-26030	Holder, Alternator, W/rectifier
27370	27370-22011	Holder Assy, Alternator Brush
27370	27370-24030	Holder Assy, Alternator Brush
27370	27370-24060	Holder Assy, Alternator Brush
27370	27370-26020	Holder Assy, Alternator Brush
27370	27370-31090	Holder Assy, Alternator Brush
27370	27370-40061	Holder Assy, Alternator Brush
27370	27370-45061	Holder Assy, Alternator Brush
27370	27370-44070	Holder Assy, Alternator Brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-11014	Stator Assy, Alternator
27410	27410-22010	Stator Assy, Alternator
27410	27410-24030	Stator Assy, Alternator
27410	27410-26030	Stator Assy, Alternator
27410	27410-26020	Stator Assy, Alternator
27411	27411-12010	Pulley, Alternator
27411	27411-12012	Pulley, Alternator
27411	27411-24010	Pulley, Alternator
27411	27411-24030	Pulley, Alternator
27411	27411-31042	Pulley, Alternator
27441	27441-22010	Fan, Alternator
27441	27441-31011	Fan, Alternator
27441	27441-34030	Fan, Alternator
27441	27441-31090	Fan, Alternator
2737831011	27378-31011	Insulator, Alternator, No.1
2737845010	27378-45010	Insulator, Alternator, No.1
2738731011	27387-31011	Insulator, Terminal
2744524030	27445-24030	New Genuine Part
2744756011	27447-56011	Clip, Alternator Cord
9009220582	90092-20582	New Genuine Part
9009900862	90099-00862	New Genuine Part
9009902309	90099-02309	New Genuine Part
9009902310	90099-02310	New Genuine Part
9009904259	90099-04259	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009934003	90099-34003	New Genuine Part
9010110049	90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)
9010110049	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9011908023	90119-08023	BOLT
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9412040600	94120-40600	Nut, Wire Adjusting, No.1
9451100600	94511-00600	Washer, Lock, No.2
9451101400	94511-01400	WASHER
9452100500	94521-00500	New Genuine Part
9452500600	94525-00600	New Genuine Part
9461211000	94612-11000	Plate, Spring Set

OEM	Part name	Category
27020-12011	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-12012	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-13060	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24020	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24021	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24030	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24031	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24050	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24061	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27020-24062	Alternator Assy	Alternator ([01.1972 - 12.1972] (7201-7212))
27036-24030	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27039-11014	Cover, Alternator Rear End	Alternator ([01.1972 - 12.1972] (7201-7212))
27039-12030	Cover, Alternator Rear End	Alternator ([01.1972 - 12.1972] (7201-7212))
27039-22012	Cover, Alternator Rear End	Alternator ([01.1972 - 12.1972] (7201-7212))
27039-22013	Cover, Alternator Rear End	Alternator ([01.1972 - 12.1972] (7201-7212))
27039-24030	Cover, Alternator Rear End	Alternator ([01.1972 - 12.1972] (7201-7212))
27039-26020	Cover, Alternator Rear End	Alternator ([01.1972 - 12.1972] (7201-7212))
27113-10012	Plate, Bearing Retainer, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27212-39050	Ring, Space(For Alternator Rotor)	Alternator ([01.1972 - 12.1972] (7201-7212))
27310-22012	Frame Assy, Drive End, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27310-24030	Frame Assy, Drive End, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27310-24070	Frame Assy, Drive End, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27312-31011	Plate, Bearing Retainer, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27313-31011	Cover, Alternator Felt, Inner No.1	Alternator ([01.1972 - 12.1972] (7201-7212))
27313-39010	Cover, Alternator Felt, Inner No.1	Alternator ([01.1972 - 12.1972] (7201-7212))
27330-22012	Rotor Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27330-33010	Rotor Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-12011	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-12012	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-12030	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-13010	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-22013	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-22022	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-24030	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-24031	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-24061	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-24062	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27350-24080	Frame Assy, Rectifier End	Alternator ([01.1972 - 12.1972] (7201-7212))
27351-22010	Bush(For Alternator Rectifier End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
27351-24020	Bush(For Alternator Rectifier End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
27351-25010	Bush(For Alternator Rectifier End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
27353-22012	Holder, W/rectifier Positive, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27353-24030	Holder, W/rectifier Positive, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27353-24031	Holder, W/rectifier Positive, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27353-26020	Holder, W/rectifier Positive, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27353-26030	Holder, W/rectifier Positive, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27356-22011	Holder, W/rectifier Negative, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27356-24030	Holder, W/rectifier Negative, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27356-26020	Holder, W/rectifier Negative, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27356-26030	Holder, W/rectifier Negative, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27357-11014	Holder, Alternator, W/rectifier	Alternator ([01.1972 - 12.1972] (7201-7212))
27357-22012	Holder, Alternator, W/rectifier	Alternator ([01.1972 - 12.1972] (7201-7212))
27357-24030	Holder, Alternator, W/rectifier	Alternator ([01.1972 - 12.1972] (7201-7212))
27357-24031	Holder, Alternator, W/rectifier	Alternator ([01.1972 - 12.1972] (7201-7212))
27357-26020	Holder, Alternator, W/rectifier	Alternator ([01.1972 - 12.1972] (7201-7212))
27357-26030	Holder, Alternator, W/rectifier	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-22011	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-24030	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-24060	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-26020	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-31090	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-40061	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-44070	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27370-45061	Holder Assy, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27371-31011	Brush, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27372-31011	Spring, Alternator Brush	Alternator ([01.1972 - 12.1972] (7201-7212))
27378-31011	Insulator, Alternator, No.1	Alternator ([01.1972 - 12.1972] (7201-7212))
27378-45010	Insulator, Alternator, No.1	Alternator ([01.1972 - 12.1972] (7201-7212))
27387-31011	Insulator, Terminal	Alternator ([01.1972 - 12.1972] (7201-7212))
27410-11014	Stator Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27410-22010	Stator Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27410-24030	Stator Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27410-26020	Stator Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27410-26030	Stator Assy, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27411-12010	Pulley, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27411-12012	Pulley, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27411-24010	Pulley, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27411-24030	Pulley, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27411-31042	Pulley, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
27412-56040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
27441-22010	Fan, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27441-31011	Fan, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27441-31090	Fan, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27441-34030	Fan, Alternator	Alternator ([01.1972 - 12.1972] (7201-7212))
27445-24030	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
27447-56011	Clip, Alternator Cord	Alternator ([01.1972 - 12.1972] (7201-7212))
90092-20582	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-00862	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-02004	Felt(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-02009	Felt(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-02309	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-02310	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-04259	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-10012	Bearing(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-10013	Bearing(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-19068	Ring, Space(For Alternator Rotor)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-19191	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-19203	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([01.1972 - 12.1972] (7201-7212))
90099-34003	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
90101-10049	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([01.1972 - 12.1972] (7201-7212))
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([01.1972 - 12.1972] (7201-7212))
90119-08023	BOLT	Alternator ([01.1972 - 12.1972] (7201-7212))
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([01.1972 - 12.1972] (7201-7212))
90179-10132	Nut	Alternator ([01.1972 - 12.1972] (7201-7212))
94120-40600	Nut, Wire Adjusting, No.1	Alternator ([01.1972 - 12.1972] (7201-7212))
94511-00600	Washer, Lock, No.2	Alternator ([01.1972 - 12.1972] (7201-7212))
94511-01400	WASHER	Alternator ([01.1972 - 12.1972] (7201-7212))
94521-00500	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
94525-00600	New Genuine Part	Alternator ([01.1972 - 12.1972] (7201-7212))
94612-11000	Plate, Spring Set	Alternator ([01.1972 - 12.1972] (7201-7212))
97110-06201	Bearing(For Alternator Rotor)	Alternator ([01.1972 - 12.1972] (7201-7212))

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 185
Collected: 2026-08-04
