Search › Model › KM51

KM51

Toyota LITE-TOWNACE · 1986 · 4,060 parts · 193 categories

4,060 items

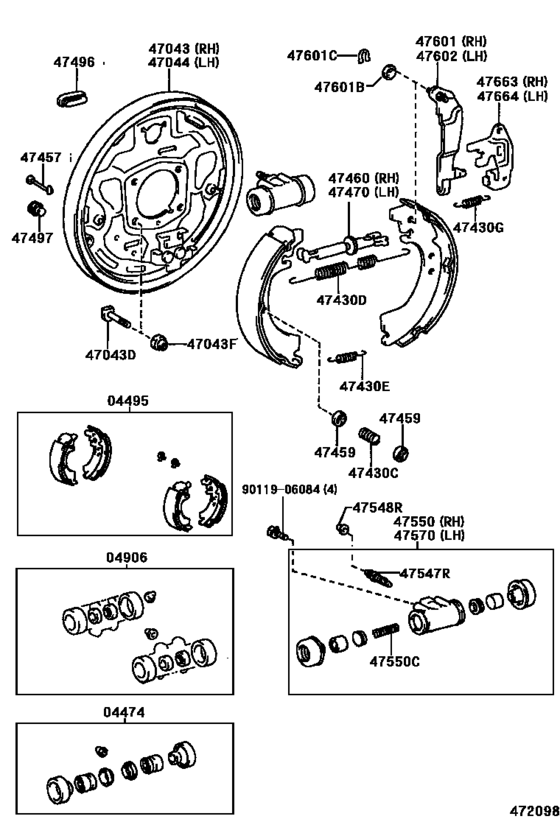

Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#) 55

#	OEM	Part name
4474	04474-22030	Cylinder Kit, Rear Wheel
4474	04474-22040	Cylinder Kit, Rear Wheel
4495	04495-27041	Shoe Kit, Rear Brake
4495	04495-44010	Shoe Kit, Rear Brake
4495	04495-44020	Shoe Kit, Rear Brake
4495	04497-27030	Shoe Kit, Rear Brake
4906	04906-14020	Cup Kit, Rear Wheel Cylinder
4906	04906-22040	Cup Kit, Rear Wheel Cylinder
47043	47043-27100	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-28130	Plate Sub-Assy, Brake Backing, Rear Rh
47043	42184-22011	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	42184-28010	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90179-10150	Nut(For Parking Brake Plate To Rear Axle Housing)
47043	94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)
47043	94184-01001	Nut
47044	47044-27100	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-28130	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90501-18017	Spring(For Front Brake Shoe Hold Down)
47430	90501-20604	Spring(For Rear Brake Shoe Hold Down)
47430	90506-23375	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-29008	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-29009	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-18076	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-23346	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-12011	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47457	47447-20030	Pin, Shoe Hold Down Spring
47459	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47460	47061-14040	Strut Set, Parking Brake Shoe, Rh
47460	47061-43010	Strut Set, Parking Brake Shoe, Rh
47470	47062-14040	Strut Set, Parking Brake Shoe, Lh
47470	47062-43010	Strut Set, Parking Brake Shoe, Lh
47496	47491-20011	Plug, Hole(For Rear Brake)
47497	47492-28010	Plug, Shoe Inspection(For Rear Brake)
47497	47492-06010	Plug, Shoe Inspection(For Rear Brake)
47547	47547-27030	Plug, Bleeder(For Front Disc Brake)
47548	31478-30010	Bleeder Plug Cap
47550	47550-22100	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-27030	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47509-20010	Spring Sub-Assy, Rear Wheel Cylinder Piston
47601	47601-14010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	47611-43010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90564-08150	Shim, Rear Parking Brake Shoe Lever
47601	90564-08151	Shim, Rear Parking Brake Shoe Lever
47601	90564-08152	Shim, Rear Parking Brake Shoe Lever
47601	90564-08172	Shim, Rear Parking Brake Shoe Lever
47601	90564-08173	Shim, Rear Parking Brake Shoe Lever
47601	90564-08174	Shim, Rear Parking Brake Shoe Lever
47601	90213-06013	Washer, Type C(For Parking Brake Shoe)
47602	47602-14010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47602	47612-43010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47663	47643-20020	Lever, Rear Brake Automatic Adjust, Rh
47663	47643-33010	Lever, Rear Brake Automatic Adjust, Rh
47664	47644-20020	Lever, Rear Brake Automatic Adjust, Lh
47664	47644-33010	Lever, Rear Brake Automatic Adjust, Lh
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)

OEM	Part name	Category
04474-22030	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04474-22040	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04495-27041	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04495-44010	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04495-44020	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04497-27030	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04906-14020	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
04906-22040	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
42184-22011	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
42184-28010	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47043-27100	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47043-28130	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47044-27100	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47044-28130	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47061-14040	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47061-43010	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47062-14040	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47062-43010	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47447-20030	Pin, Shoe Hold Down Spring	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47492-06010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47492-28010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47509-20010	Spring Sub-Assy, Rear Wheel Cylinder Piston	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47547-27030	Plug, Bleeder(For Front Disc Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47550-22100	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47550-27030	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47601-14010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47602-14010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47611-43010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47612-43010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47643-20020	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47643-33010	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47644-20020	Lever, Rear Brake Automatic Adjust, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
47644-33010	Lever, Rear Brake Automatic Adjust, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90119-06084	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90179-10150	Nut(For Parking Brake Plate To Rear Axle Housing)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90501-18017	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90501-20604	Spring(For Rear Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90506-12011	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90506-18076	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90506-23346	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90506-23375	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90506-29008	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90506-29009	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90564-08150	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90564-08151	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90564-08152	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90564-08172	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90564-08173	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
90564-08174	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
94184-01001	Nut	Rear Drum Brake Wheel Cylinder & Backing Plate ([02.1999 - ] (9902- )CM51,55,60,65,KM51,YM55,6#)
