Search › Model › KM36

KM36

Toyota LITEACE · 1985 · 4,078 parts · 259 categories

4,078 items

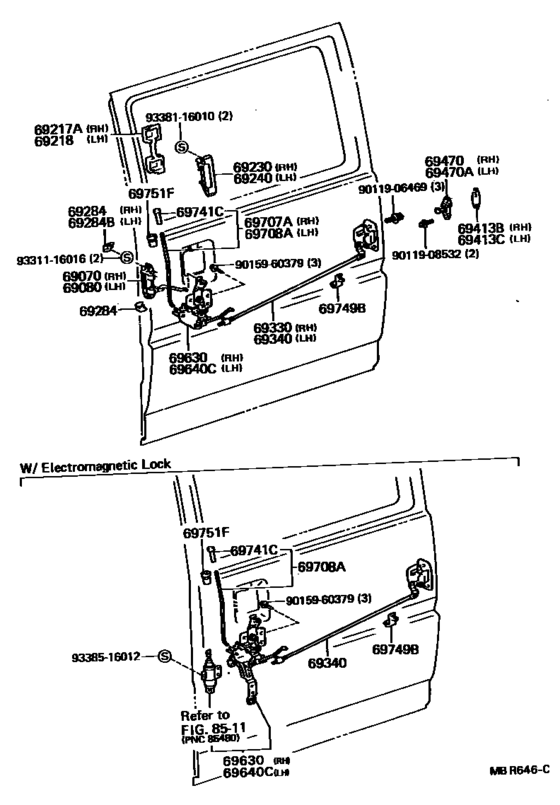

Rear Door Lock & Handle ([08.1988 - ] (8808- )) 32

#	OEM	Part name
69070	69070-95700-03	Handle Assy, Slide Door, Inside, Rh
69080	69080-95700-03	Handle Assy, Slide Door, Inside, Lh
69218	69218-95J00	Cover, Slide Door Outside Handle, Lh
69230	69230-95J00	Handle Assy, Rear Door Outside, Rh
69240	69240-95J00	Handle Assy, Rear Door Outside, Lh
69267	69267-87001	Seal, Slide Door Inside Handle, No.1
69284	69284-87001-23	Plug, Slide Door Inside Handle
69330	69330-95702	Lock Assy, Rear Door, Rh
69340	69340-95702	Lock Assy, Slide Door, Lh
69413	69413-87002	Shim, Door Lock Striker
69413	69413-28020	Shim, Door Lock Striker
69470	69470-95701	Plate Assy, Slide Door Lock Striker
69630	69630-95706	Control Assy, Slide Door Lock Remote
69630	69630-95707	Control Assy, Slide Door Lock Remote
69640	69640-95707	Control Assy, Slide Door Lock Remote
69640	69640-95706	Control Assy, Slide Door Lock Remote
69707	69707-95700-03	Rod Sub-Assy, Slide Door Locking Control Push, Rh
69708	69708-95701-03	Rod Sub-Assy, Slide Door Locking Control Push, Lh
69708	69708-95700-03	Rod Sub-Assy, Slide Door Locking Control Push, Lh
69741	69741-28010-B1	Knob, Back Door Lock Control - REAR DOOR LOCK CONTROL
69741	69741-28010-C1	Knob, Back Door Lock Control (Black)
69741	69741-95703-03	Knob, Back Door Lock Control
69749	69749-95700	Clamp, Rear Door Lock Link
69751	69751-95701-03	Holder, Door Lock Control Knob
69751	69751-95701-B0	Holder, Door Lock Control Knob
9011906469	90119-06469	New Genuine Part
9011908532	90119-08532	Bolt(For Intake Manifold To Exhaust Manifold)
9011908532	91611-60822	Bolt
9015960379	90159-60379	New Genuine Part
9331116016	93311-16016	SCREW
9338116010	93381-16010	New Genuine Part
9338516012	93385-16012	New Genuine Part

OEM	Part name	Category
69070-95700-03	Handle Assy, Slide Door, Inside, Rh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69080-95700-03	Handle Assy, Slide Door, Inside, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69218-95J00	Cover, Slide Door Outside Handle, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69230-95J00	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69240-95J00	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69267-87001	Seal, Slide Door Inside Handle, No.1	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69284-87001-23	Plug, Slide Door Inside Handle	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69330-95702	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69340-95702	Lock Assy, Slide Door, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69413-28020	Shim, Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69413-87002	Shim, Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69470-95701	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69630-95706	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69630-95707	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69640-95706	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69640-95707	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69707-95700-03	Rod Sub-Assy, Slide Door Locking Control Push, Rh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69708-95700-03	Rod Sub-Assy, Slide Door Locking Control Push, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69708-95701-03	Rod Sub-Assy, Slide Door Locking Control Push, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69741-28010-B1	Knob, Back Door Lock Control - REAR DOOR LOCK CONTROL	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69741-28010-C1	Knob, Back Door Lock Control (Black)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69741-95703-03	Knob, Back Door Lock Control	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69749-95700	Clamp, Rear Door Lock Link	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69751-95701-03	Holder, Door Lock Control Knob	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69751-95701-B0	Holder, Door Lock Control Knob	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90119-06469	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90119-08532	Bolt(For Intake Manifold To Exhaust Manifold)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90159-60379	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
91611-60822	Bolt	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
93311-16016	SCREW	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
93381-16010	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
93385-16012	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
