KM36

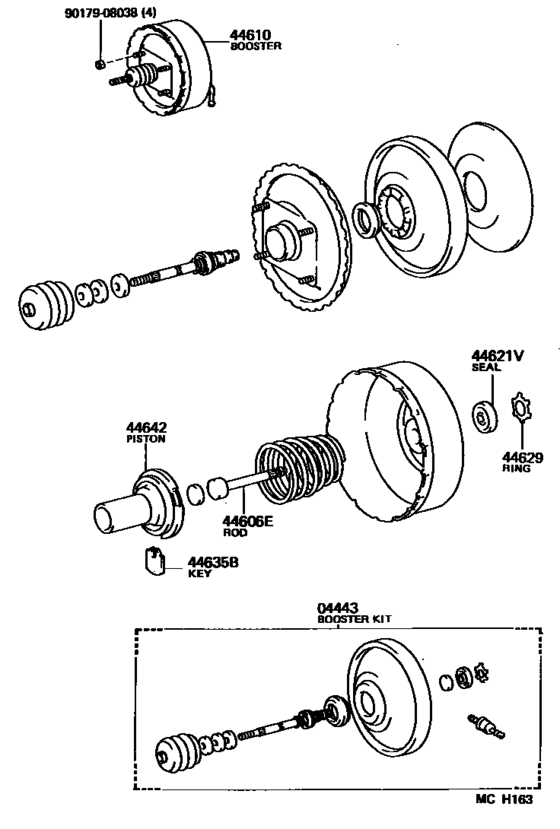

Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) 7
| # | OEM | Part name |
|---|---|---|
| 44606 | 44606-12520 | Rod Sub-Assy, Booster Piston(For Clutch Booster) |
| 44610 | 44610-27340 | Booster Assy, Brake |
| 44621 | 44621-28120 | Seal, Booster Body No.1(For Clutch Booster) |
| 44629 | 44628-28120 | Ring, Circular Internal(For Clutch Booster) |
| 44635 | 44635-12630 | Key, Valve Stopper |
| 44642 | 44642-32010 | Piston, Brake Booster |
| 9017908038 | 90179-08038 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 44606-12520 | Rod Sub-Assy, Booster Piston(For Clutch Booster) | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
| 44610-27340 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
| 44621-28120 | Seal, Booster Body No.1(For Clutch Booster) | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
| 44628-28120 | Ring, Circular Internal(For Clutch Booster) | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
| 44635-12630 | Key, Valve Stopper | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
| 44642-32010 | Piston, Brake Booster | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
| 90179-08038 | Nut | Brake Booster & Vacuum Tube ([08.1988 - ] (8808- )) |
