Search › Model › KDN151

KDN151

Toyota HILUX-4RUNNER-TRUCK · 2002 · 2,737 parts · 187 categories

2,737 items

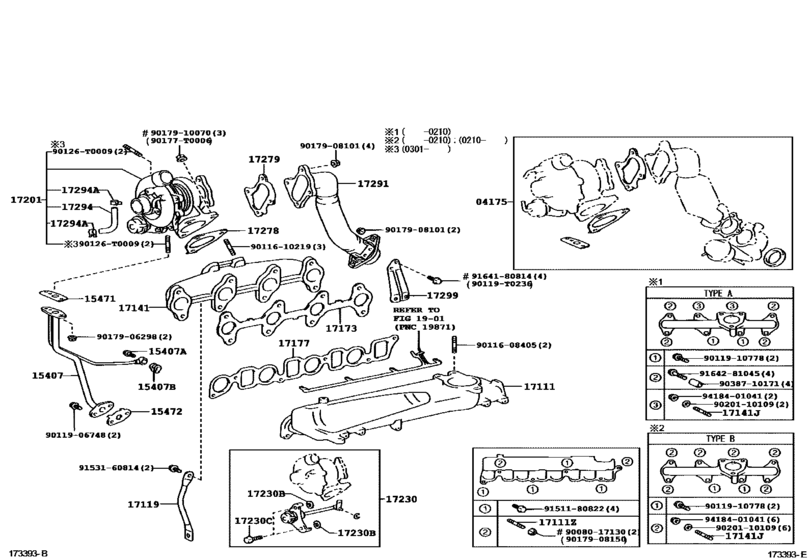

Manifold ([08.2002 - ] (0208- )1KDFTV) 74

#	OEM	Part name
4175	04175-0L050	Gasket Kit, Turbocharger
4175	04175-0L113	Gasket Kit, Turbocharger
4175	04175-30030	Gasket Kit, Turbocharger
15407	15407-0L010	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-0L012	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30030	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30033	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30031	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90401-T0004	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90430-T0006	Gasket(For Turbo Oil Inlet Pipe)
15407	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-0L010	Gasket, Turbo Oil Inlet
15471	15471-0L011	Gasket, Turbo Oil Inlet
15471	15471-30010	Gasket, Turbo Oil Inlet
15471	15471-30011	Gasket, Turbo Oil Inlet
15472	15472-0L010	Gasket, Turbo Oil Outlet, No.1
15472	15472-67010	Gasket, Turbo Oil Outlet, No.1
15472	15472-30010	Gasket, Turbo Oil Outlet, No.1
17111	17111-0L011	Manifold, Intake
17111	17111-30071	Manifold, Intake
17111	90116-T0011	Bolt, Stud(For Intake Manifold To Cylinder Head)
17111	92122-80822	Bolt, Stud(For Water Outlet)
17119	17118-0L010	Stay, Manifold, No.2
17119	17118-30020	Stay, Manifold, No.2
17141	17141-0L010	Manifold, Exhaust
17141	17141-30030	Manifold, Exhaust
17141	17141-30031	Manifold, Exhaust
17141	90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)
17141	90201-10109	WASHER PLATE
17141	94184-01041	Nut
17173	17173-0L010	Gasket, Exhaust Manifold To Head
17173	17173-0L011	Gasket, Exhaust Manifold To Head
17173	17173-30020	Gasket, Exhaust Manifold To Head
17177	17177-0L010	Gasket, Intake Manifold To Head, No.1
17177	17177-30010	Gasket, Intake Manifold To Head, No.1
17177	17177-30011	Gasket, Intake Manifold To Head, No.1
17201	17201-0L010	Turbocharger Sub-Assy
17201	17201-30050	Turbocharger Sub-Assy
17230	17230-09020	Actuator Assy, W/bracket
17230	17230-39035	Actuator Assy, W/bracket
17230	90201-06042	Washer, Plate(For Repair Actuator Set)
17230	90201-06043	Washer, Plate(For Repair Actuator Set)
17230	90201-06044	Washer, Plate(For Repair Actuator Set)
17230	90201-06045	Washer, Plate(For Repair Actuator Set)
17230	91621-60620	Bolt, W/washer(For Repair Actuator Set)
17278	17278-67010	Gasket, Turbo To Exhaust Manifold
17279	17279-30020	Gasket, Turbine Outlet Elbow
17291	17291-30020	Elbow, Turbine Outlet
17294	90445-12151	Hose, Actuator
17294	90445-T0001	Hose, Actuator
17294	90445-T0010	Hose, Actuator
17294	90466-T0001	Clip(For Actuator Hose)
17294	90466-T0008	Clip(For Actuator Hose)
17294	96132-51100	Clip (For Hose)
17299	17299-0L010	Stay, Turbine Outlet Elbow
17299	17299-30030	Stay, Turbine Outlet Elbow
90119	90119-T0236	New Genuine Part
90126	90126-T0009	STUD HEXALOBULAR
90177	90177-T0006	Nut, Exhaust Pipe Set Stud Bolt
90177	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9008017130	90080-17130	Nut (For Transmission Control Cable)
9011608405	90116-08405	New Genuine Part
9011610219	90116-10219	Bolt, Stud(For Turbocharger)
9011906748	90119-06748	BOLT WWASHER
9011910778	90119-10778	BOLT W-WASHER
9017906298	90179-06298	NUT
9017908101	90179-08101	NUT
9017908150	90179-08150	NUT
9038710171	90387-10171	Collar(For Exhaust Manifold)
9151180822	91511-80822	New Genuine Part
9153160814	91531-60814	New Genuine Part
9164180814	91641-80814	BOLTWWASHER
9164281045	91642-81045	BOLT WWASHER

OEM	Part name	Category
04175-0L050	Gasket Kit, Turbocharger	Manifold ([08.2002 - ] (0208- )1KDFTV)
04175-0L113	Gasket Kit, Turbocharger	Manifold ([08.2002 - ] (0208- )1KDFTV)
04175-30030	Gasket Kit, Turbocharger	Manifold ([08.2002 - ] (0208- )1KDFTV)
15407-0L010	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15407-0L012	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15407-30030	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15407-30031	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15407-30033	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15471-0L010	Gasket, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15471-0L011	Gasket, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15471-30010	Gasket, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15471-30011	Gasket, Turbo Oil Inlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
15472-0L010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2002 - ] (0208- )1KDFTV)
15472-30010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2002 - ] (0208- )1KDFTV)
15472-67010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2002 - ] (0208- )1KDFTV)
17111-0L011	Manifold, Intake	Manifold ([08.2002 - ] (0208- )1KDFTV)
17111-30071	Manifold, Intake	Manifold ([08.2002 - ] (0208- )1KDFTV)
17118-0L010	Stay, Manifold, No.2	Manifold ([08.2002 - ] (0208- )1KDFTV)
17118-30020	Stay, Manifold, No.2	Manifold ([08.2002 - ] (0208- )1KDFTV)
17141-0L010	Manifold, Exhaust	Manifold ([08.2002 - ] (0208- )1KDFTV)
17141-30030	Manifold, Exhaust	Manifold ([08.2002 - ] (0208- )1KDFTV)
17141-30031	Manifold, Exhaust	Manifold ([08.2002 - ] (0208- )1KDFTV)
17173-0L010	Gasket, Exhaust Manifold To Head	Manifold ([08.2002 - ] (0208- )1KDFTV)
17173-0L011	Gasket, Exhaust Manifold To Head	Manifold ([08.2002 - ] (0208- )1KDFTV)
17173-30020	Gasket, Exhaust Manifold To Head	Manifold ([08.2002 - ] (0208- )1KDFTV)
17177-0L010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2002 - ] (0208- )1KDFTV)
17177-30010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2002 - ] (0208- )1KDFTV)
17177-30011	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2002 - ] (0208- )1KDFTV)
17201-0L010	Turbocharger Sub-Assy	Manifold ([08.2002 - ] (0208- )1KDFTV)
17201-30050	Turbocharger Sub-Assy	Manifold ([08.2002 - ] (0208- )1KDFTV)
17230-09020	Actuator Assy, W/bracket	Manifold ([08.2002 - ] (0208- )1KDFTV)
17230-39035	Actuator Assy, W/bracket	Manifold ([08.2002 - ] (0208- )1KDFTV)
17278-67010	Gasket, Turbo To Exhaust Manifold	Manifold ([08.2002 - ] (0208- )1KDFTV)
17279-30020	Gasket, Turbine Outlet Elbow	Manifold ([08.2002 - ] (0208- )1KDFTV)
17291-30020	Elbow, Turbine Outlet	Manifold ([08.2002 - ] (0208- )1KDFTV)
17299-0L010	Stay, Turbine Outlet Elbow	Manifold ([08.2002 - ] (0208- )1KDFTV)
17299-30030	Stay, Turbine Outlet Elbow	Manifold ([08.2002 - ] (0208- )1KDFTV)
90080-17130	Nut (For Transmission Control Cable)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90116-08405	New Genuine Part	Manifold ([08.2002 - ] (0208- )1KDFTV)
90116-10219	Bolt, Stud(For Turbocharger)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90116-T0011	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90119-06748	BOLT WWASHER	Manifold ([08.2002 - ] (0208- )1KDFTV)
90119-10778	BOLT W-WASHER	Manifold ([08.2002 - ] (0208- )1KDFTV)
90119-T0236	New Genuine Part	Manifold ([08.2002 - ] (0208- )1KDFTV)
90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90126-T0009	STUD HEXALOBULAR	Manifold ([08.2002 - ] (0208- )1KDFTV)
90177-T0006	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2002 - ] (0208- )1KDFTV)
90179-06298	NUT	Manifold ([08.2002 - ] (0208- )1KDFTV)
90179-08101	NUT	Manifold ([08.2002 - ] (0208- )1KDFTV)
90179-08150	NUT	Manifold ([08.2002 - ] (0208- )1KDFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2002 - ] (0208- )1KDFTV)
90201-06042	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90201-06043	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90201-06044	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90201-06045	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90201-10109	WASHER PLATE	Manifold ([08.2002 - ] (0208- )1KDFTV)
90387-10171	Collar(For Exhaust Manifold)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90401-T0004	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90430-T0006	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90445-12151	Hose, Actuator	Manifold ([08.2002 - ] (0208- )1KDFTV)
90445-T0001	Hose, Actuator	Manifold ([08.2002 - ] (0208- )1KDFTV)
90445-T0010	Hose, Actuator	Manifold ([08.2002 - ] (0208- )1KDFTV)
90466-T0001	Clip(For Actuator Hose)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90466-T0008	Clip(For Actuator Hose)	Manifold ([08.2002 - ] (0208- )1KDFTV)
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([08.2002 - ] (0208- )1KDFTV)
91511-80822	New Genuine Part	Manifold ([08.2002 - ] (0208- )1KDFTV)
91531-60814	New Genuine Part	Manifold ([08.2002 - ] (0208- )1KDFTV)
91621-60620	Bolt, W/washer(For Repair Actuator Set)	Manifold ([08.2002 - ] (0208- )1KDFTV)
91641-80814	BOLTWWASHER	Manifold ([08.2002 - ] (0208- )1KDFTV)
91642-81045	BOLT WWASHER	Manifold ([08.2002 - ] (0208- )1KDFTV)
92122-80822	Bolt, Stud(For Water Outlet)	Manifold ([08.2002 - ] (0208- )1KDFTV)
94184-01041	Nut	Manifold ([08.2002 - ] (0208- )1KDFTV)
96132-51100	Clip (For Hose)	Manifold ([08.2002 - ] (0208- )1KDFTV)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 187
Collected: 2026-08-03
