KDN151

Toyota HILUX-4RUNNER-TRUCK · 2002 · 2,737 parts · 187 categories
KDN151 ×

← Back to categories

2,737 items

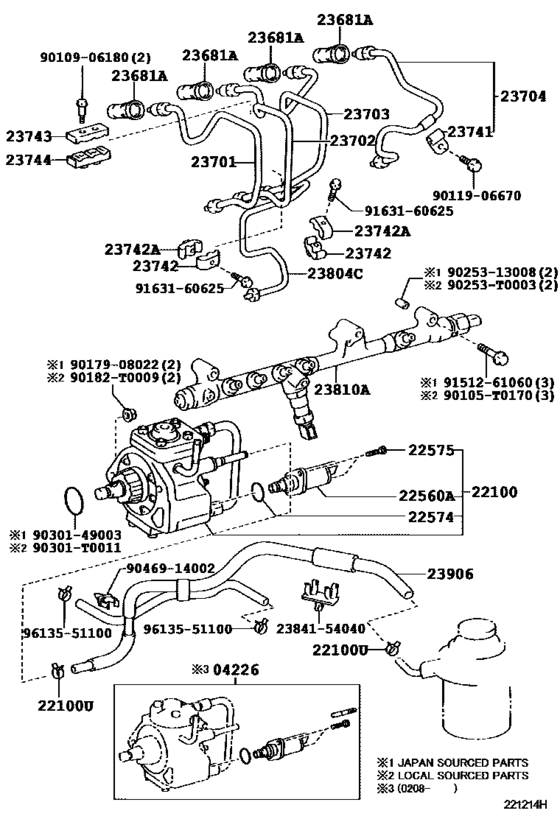

Injection Pump Assembly ([10.2001 - ] (0110- )1KDFTV,2KDFTV..KDN145,15#) 49
#OEMPart name
4226 04226-0L020 Valve Kit, Suction Control
4226 04226-30020 Valve Kit, Suction Control
22100 22100-0L010 Pump Assy, Injection Or Supply
22100 22100-30021 Pump Assy, Injection Or Supply
22100 96135-51300 Clamp, Hose
22560 22560-30020 Valve Assy, Suction Control
22574 22574-30040 Gasket, Suction Control Valve Solenoid
22575 22395-54270 Bolt, Suction Control Valve
23681 23681-0L010 Seal, Nozzle Holder
23681 23681-30010 Seal, Nozzle Holder
23701 23701-30010 Pipe Sub-Assy, Injection, No.1
23702 23702-30010 Pipe Sub-Assy, Injection, No.2
23703 23703-30010 Pipe Sub-Assy, Injection, No.3
23704 23704-09020 Pipe Sub-Assy, Injection, No.4
23704 23704-39015 Pipe Sub-Assy, Injection, No.4
23741 23741-0L010 Clamp, Injection Pipe, No.1
23741 23741-30010 Clamp, Injection Pipe, No.1
23742 23742-0L010 Clamp, Injection Pipe, No.2
23742 23742-0L011 Clamp, Injection Pipe, No.2
23742 23742-0L090 Clamp, Injection Pipe, No.2
23742 23742-27010 Clamp, Injection Pipe, No.2
23742 23742-0L020 Clamp, Injection Pipe, No.3
23742 23742-0L021 Clamp, Injection Pipe, No.3
23742 23742-58020 Clamp, Injection Pipe, No.2
23743 23743-0L010 Clamp, Injection Pipe, No.3
23743 23743-0L040 Clamp, Injection Pipe, No.3
23743 23743-0L011 Clamp, Injection Pipe, No.3
23743 23743-0L012 Clamp, Injection Pipe, No.3
23743 23743-30011 Clamp, Injection Pipe, No.3
23744 23743-0L020 Clamp, Injection Pipe, No.4
23744 23743-0L021 Clamp, Injection Pipe, No.4
23744 23743-30021 Clamp, Injection Pipe, No.4
23804 23804-30020 Pipe Sub-Assy, Fuel Inlet
23810 23810-30071 Rail Assy, Common
23906 23906-30050 Hose Sub-Assy, Fuel
90105 90105-T0170 New Genuine Part
90182 90182-T0009 New Genuine Part
90253 90253-T0003 New Genuine Part
90301 90301-T0011 Ring, O(For Injection Pump)
2384154040 23841-54040 Clamp, Fuel Pipe(hose), No.1
9010906180 90109-06180 New Genuine Part
9011906670 90119-06670 BOLT (FOR HEAD TO C
9017908022 90179-08022 NUT
9025313008 90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set)
9030149003 90301-49003 Gasket, Injection Pump
9046914002 90469-14002 New Genuine Part
9151261060 91512-61060 Bolt(For Transaxle Case & Engine Setting)
9163160625 91631-60625 BOLT WWASHER
9613551100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
