Search › Model › KCH46

KCH46

Toyota HIACE-REGIUS · 1997 · 5,301 parts · 243 categories

5,301 items

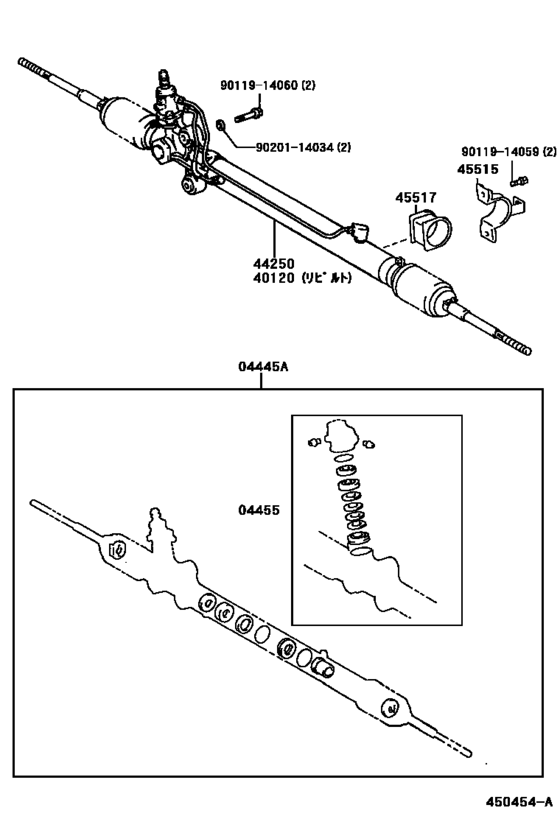

Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47) 52

#	OEM	Part name
4445	04445-26050	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-26030	Gasket Kit, Power Steering Control Valve Overhole
40120	40120-26391	Gear Assy,power Steering,rebuilt
44015	44015-22020	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25004	Seal, Oil(For Bearing Guide Nut)
44201	44201-26161	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44203	44203-26260	Housing Sub-Assy, Power Steering Rack
44204	44204-26190	Rack Sub-Assy, Power Steering
44204	90301-41007	Ring(For Rack Steering Piston)
44204	90562-45001	Ring(For Rack Steering Piston)
44210	44210-26180	Valve Assy, Power Steering Control
44210	90410-06005	Seat, Union(Pressure Control Valve Assy)
44210	90301-51001	Ring, O(For Adjuster Plug)
44210	90311-19002	Seal, Oil(For Adjuster Plug)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44211-60010	Housing, Control Valve
44250	44250-26391	Gear Assy, Power Steering(For Rack & Pinion)
44253	90310-30012	Seal, Oil(For Power Steering Rack Housing)
44253	90410-04002	Seat, Union(For Power Steering Rack Housing)
44253	90364-13003	Bearing(For Power Steering Control Valve Lower)
44253	90560-30011	Spacer(For Power Steering Rack Housing)
44275	44275-26040	Stopper, Cylinder End
44275	90386-30001	Bush(For Power Steering Cylinder Tube)
44275	90301-43007	Ring, O(For Cylinder End Stopper)
44418	44418-26190	Tube, Steering Right Turn Pressure
44419	44419-26200	Tube, Steering Left Turn Pressure
44535	90467-19018	Clip(For Power Steering Rack Boot)
44535	90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45046	45046-29325	Tie Rod End Sub-Assy
45046	90171-14002	Nut (For Rear Steering Knuckle Arm)
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45503	45503-29575	End Sub-Assy, Steering Rack
45503	90214-14005	Washer, Claw(For Power Steering Rack End)
45515	45515-26051	Bracket, Steering Rack Housing, No.2
45517	45517-26040	Grommet, Steering Rack Housing, No.2
45523	45504-28020	Guide, Rack(For Steering Gear)
45523	90501-30019	Spring(For Steering Gear Rack Guide)
45524	45524-28020	Cap, Steering Rack Guide Spring
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-26030	Boot, Steering Rack, No.1
45535	90460-55016	Clamp(For Power Steering Rack Boot)
45611	45611-26080	Arm, Steering Knuckle, Rh
45612	45612-26080	Arm, Steering Knuckle, Lh
9011914059	90119-14059	New Genuine Part
9011914060	90119-14060	New Genuine Part
9017015001	90170-15001	Nut, Rack End Lock
9020114034	90201-14034	Retainer, Cushion, No.1(For Rear Shock Absorber)
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9538103022	95381-03022	Cotter pin

OEM	Part name	Category
04445-26050	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
04455-26030	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
40120-26391	Gear Assy,power Steering,rebuilt	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44015-22020	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44201-26161	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44203-26260	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44204-26190	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44210-26180	Valve Assy, Power Steering Control	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44211-60010	Housing, Control Valve	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44250-26391	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44275-26040	Stopper, Cylinder End	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44418-26190	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
44419-26200	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45046-29325	Tie Rod End Sub-Assy	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45503-29575	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45504-28020	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45515-26051	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45517-26040	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45524-28020	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45535-26030	Boot, Steering Rack, No.1	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45611-26080	Arm, Steering Knuckle, Rh	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
45612-26080	Arm, Steering Knuckle, Lh	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-14059	New Genuine Part	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90119-14060	New Genuine Part	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90170-15001	Nut, Rack End Lock	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90171-14002	Nut (For Rear Steering Knuckle Arm)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90201-14034	Retainer, Cushion, No.1(For Rear Shock Absorber)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90214-14005	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90301-41007	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90301-43007	Ring, O(For Cylinder End Stopper)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90310-25004	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90310-30012	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90311-19002	Seal, Oil(For Adjuster Plug)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90364-13003	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90386-30001	Bush(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90410-04002	Seat, Union(For Power Steering Rack Housing)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90460-55016	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90467-19018	Clip(For Power Steering Rack Boot)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90467-19021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90501-30019	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90560-30011	Spacer(For Power Steering Rack Housing)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
90562-45001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
91511-60825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)
95381-03022	Cotter pin	Front Steering Gear & Link ([04.1997 - ] (9704- )KCH46,LXH49,RCH47)

Source: Public OEM parts-catalog data
Variants: 1 / 8
Category: 243
Collected: 2026-08-03
