Search › Model › KCH46

KCH46

Toyota HIACE-REGIUS · 1997 · 5,301 parts · 243 categories

5,301 items

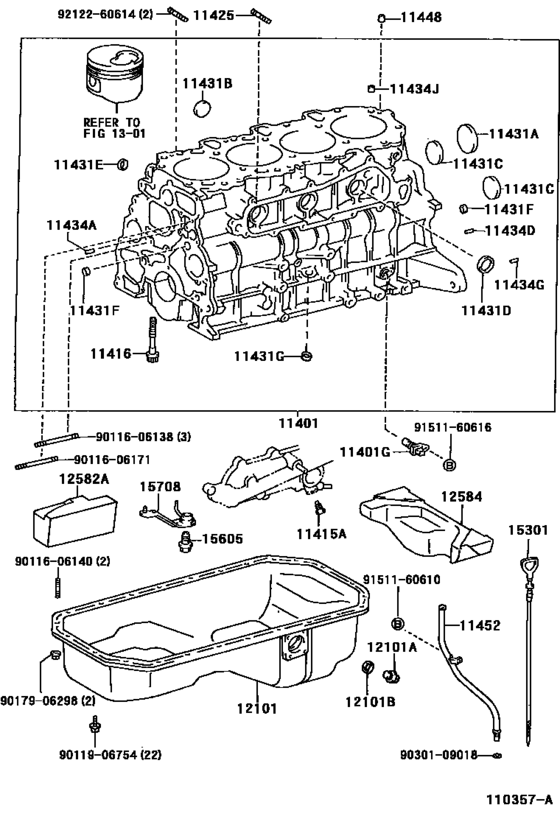

Cylinder Block ([04.1997 - ] (9704- )1KZTE) 57

#	OEM	Part name
11401	11401-69835	Block Sub-Assy, Cylinder
11401	11401-80766	Block Sub-Assy, Cylinder
11401	32909-26150	Clamp, Oil Cooler Tube, No.2
11401	32921-26300	Tube, Oil Cooler Inlet, No.1
11401	32921-26310	Tube, Oil Cooler Inlet, No.1
11401	32922-26290	Tube, Oil Cooler Outlet, No.1
11401	32922-26300	Tube, Oil Cooler Outlet, No.1
11401	82715-26161	Bracket,wiring Harness Clamp
11401	82729-26080	New Genuine Part
11401	91162-61216	New Genuine Part
11401	91162-61220	New Genuine Part
11401	91619-61216	New Genuine Part
11401	91619-61250	Bolt
11401	94130-61200	Nut
11401	15708-30011	Nozzle Sub-Assy, Oil, No.1
11401	11401-69836	Block Sub-Assy, Cylinder
11401	11401-69837	Block Sub-Assy, Cylinder
11401	11401-69838	Block Sub-Assy, Cylinder
11401	11401-69839	Block Sub-Assy, Cylinder
11401	90919-05005	Sensor, Crank Position
11415	90910-09087	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02113	Bolt(For Crankshaft Bearing Cap Set)
11425	90116-06171	Bolt, Stud(For Oil Filter)
11431	96411-64500	Plug, Tight
11431	96411-63500	Plug, Tight
11431	96411-64000	Plug, Tight, No.2
11431	90331-35004	Plug, Tight, No.4(For Cylinder Block)
11431	96411-62000	Plug, Tight
11431	96411-61800	Tight Plug(For Oil Seal Retainer)
11431	90331-14006	Plug, Tight, No.1
11434	90250-08120	Pin, Straight, No.1
11434	90250-06068	Pin, Straight
11434	90250-10192	Pin, Straight(For Timing Gear Cover Set)
11434	90253-15016	Pin, Straight(For End Plate)
11448	11448-67010	Orifice, Cylinder Block Oil
11452	11452-67040	Guide, Oil Level Gage
12101	12101-67100	Pan Sub-Assy, Oil
12101	12101-67101	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12582	12582-67010	Insulator, Cylinder Block, No.2
12584	12584-67030	Insulator, Cylinder Brock, No.4
15301	15301-67031	Gage Sub-Assy, Oil Level
15605	15605-54010	Valve Sub-Assy, Oil Check
15708	15708-30010	Nozzle Sub-Assy, Oil, No.1
15708	15708-67010	Nozzle Sub-Assy, Oil, No.1
9011606138	90116-06138	New Genuine Part
9011606140	90116-06140	Bolt, Stud(For Oil Strainer)
9011906754	90119-06754	BOLT WWASHER
9017906298	90179-06298	NUT
9030109018	90301-09018	Ring, O(For Timing Gear Case, Lower)
9151160610	91511-60610	New Genuine Part
9151160610	91511-B0610	BOLT FLANGE
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9212260614	92122-60614	Bolt, Stud(For Oil Strainer)

OEM	Part name	Category
11401-69835	Block Sub-Assy, Cylinder	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11401-69836	Block Sub-Assy, Cylinder	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11401-69837	Block Sub-Assy, Cylinder	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11401-69838	Block Sub-Assy, Cylinder	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11401-69839	Block Sub-Assy, Cylinder	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11401-80766	Block Sub-Assy, Cylinder	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11448-67010	Orifice, Cylinder Block Oil	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
11452-67040	Guide, Oil Level Gage	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
12101-67100	Pan Sub-Assy, Oil	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
12101-67101	Pan Sub-Assy, Oil	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
12582-67010	Insulator, Cylinder Block, No.2	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
12584-67030	Insulator, Cylinder Brock, No.4	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
15301-67031	Gage Sub-Assy, Oil Level	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
15605-54010	Valve Sub-Assy, Oil Check	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
15708-30010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
15708-30011	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
15708-67010	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
32909-26150	Clamp, Oil Cooler Tube, No.2	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
32921-26300	Tube, Oil Cooler Inlet, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
32921-26310	Tube, Oil Cooler Inlet, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
32922-26290	Tube, Oil Cooler Outlet, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
32922-26300	Tube, Oil Cooler Outlet, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
82715-26161	Bracket,wiring Harness Clamp	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
82729-26080	New Genuine Part	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90116-06138	New Genuine Part	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90116-06140	Bolt, Stud(For Oil Strainer)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90116-06171	Bolt, Stud(For Oil Filter)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90119-06754	BOLT WWASHER	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90179-06298	NUT	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90250-06068	Pin, Straight	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90253-15016	Pin, Straight(For End Plate)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90301-09018	Ring, O(For Timing Gear Case, Lower)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90331-14006	Plug, Tight, No.1	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90331-35004	Plug, Tight, No.4(For Cylinder Block)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90910-02113	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90910-09087	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
90919-05005	Sensor, Crank Position	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91162-61216	New Genuine Part	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91162-61220	New Genuine Part	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91511-60610	New Genuine Part	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91511-60616	BOLTFLANGE	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91511-B0610	BOLT FLANGE	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91511-B0616	BOLT, FLANGE	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91619-61216	New Genuine Part	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
91619-61250	Bolt	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
92122-60614	Bolt, Stud(For Oil Strainer)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
94130-61200	Nut	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
96411-61800	Tight Plug(For Oil Seal Retainer)	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
96411-62000	Plug, Tight	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
96411-63500	Plug, Tight	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
96411-64000	Plug, Tight, No.2	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
96411-64500	Plug, Tight	Cylinder Block ([04.1997 - ] (9704- )1KZTE)
