Search › Model › KCH46

KCH46

Toyota HIACE-REGIUS · 1997 · 5,301 parts · 243 categories

5,301 items

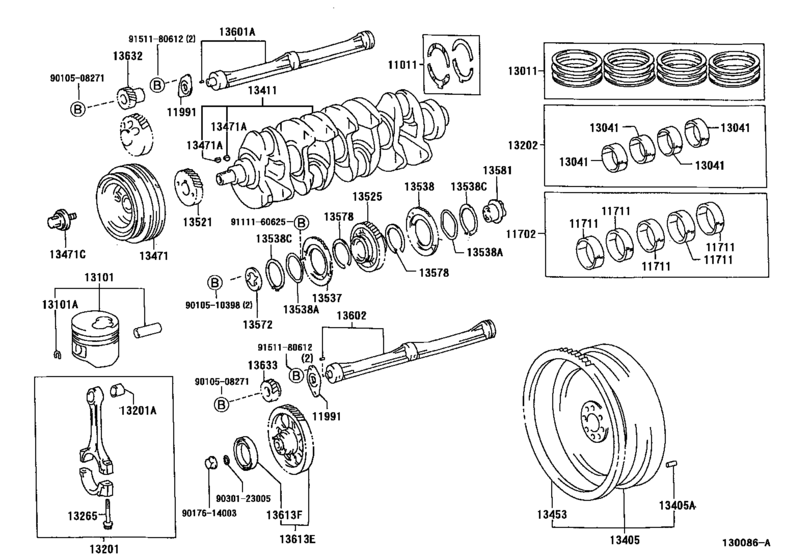

Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE) 97

#	OEM	Part name
11011	11011-67020	Washer Set, Crankshaft Thrust
11011	11012-67020	Washer Set, Crankshaft Thrust
11011	11012-30010	Washer Set, Crankshaft Thrust
11011	11013-67020	Washer Set, Crankshaft Thrust
11011	11013-30010	Washer Set, Crankshaft Thrust
11702	11704-67020	Bearing Set, Crankshaft
11702	11704-30020	Bearing Set, Crankshaft (0.25)
11702	11704-67021	Bearing Set, Crankshaft (0.25)
11702	11705-67020	Bearing Set, Crankshaft
11702	11705-30020	Bearing Set, Crankshaft (0.50)
11702	11705-67021	Bearing Set, Crankshaft
11711	11701-67020-02	Bearing, Crankshaft
11711	11701-30020-02	Bearing, Crankshaft
11711	11701-67020-03	Bearing, Crankshaft
11711	11701-30020-03	Bearing, Crankshaft
11711	11701-67020-04	Bearing, Crankshaft
11711	11701-30020-04	Bearing, Crankshaft
11711	11701-67020-05	Bearing, Crankshaft
11711	11701-30020-05	Bearing, Crankshaft
11711	11701-67020-06	Bearing, Crankshaft
11711	11701-30020-06	Bearing, Crankshaft
11711	11701-67021-02	Bearing, Crankshaft
11711	11701-67021-03	Bearing, Crankshaft
11711	11701-67021-04	Bearing, Crankshaft
11711	11701-67021-05	Bearing, Crankshaft
11711	11701-67021-06	Bearing, Crankshaft
11991	11991-67010	Washer, Balanceshaft Thrust
13011	13011-67030	Ring Set, Piston (STD)
13011	13013-67030	Ring Set, Piston (OS 0.50)
13011	13014-67030	Ring Set, Piston
13011	13015-67030	Ring Set, Piston (OS 1.00)
13041	13041-67030-02	Bearing, Connecting Rod
13041	13041-30020-02	Bearing, Connecting Rod
13041	13041-67030-03	Bearing, Connecting Rod
13041	13041-30020-03	Bearing, Connecting Rod
13041	13041-67030-04	Bearing, Connecting Rod
13041	13041-30020-04	Bearing, Connecting Rod
13041	13041-67030-05	Bearing, Connecting Rod
13041	13041-30020-05	Bearing, Connecting Rod
13041	13041-67030-06	Bearing, Connecting Rod
13041	13041-30020-06	Bearing, Connecting Rod
13041	13041-67031-02	Bearing, Connecting Rod
13041	13041-67031-03	Bearing, Connecting Rod
13041	13041-67031-04	Bearing, Connecting Rod
13041	13041-67031-05	Bearing, Connecting Rod
13041	13041-67031-06	Bearing, Connecting Rod
13101	13101-67050-01	Piston Sub-Assy, W/pin
13101	13101-67050-02	Piston Sub-Assy, W/pin
13101	13101-67050-03	Piston Sub-Assy, W/pin
13101	13103-67050	Piston Sub-Assy, W/pin
13101	13104-67050	Piston Sub-Assy, W/pin
13101	13105-67050	Piston Sub-Assy, W/pin
13101	90520-37014	Ring, Hole Snap(For Piston Pin)
13201	13201-67020	Rod Sub-Assy, Connecting
13201	13201-67021	Rod Sub-Assy, Connecting
13201	90999-73136	Bush(For Connecting Rod Small End)
13202	13204-67030	Bearing Set, Connecting Rod
13202	13204-30020	Bearing Set, Connecting Rod (0.25)
13202	13204-67031	Bearing Set, Connecting Rod (0.25)
13202	13205-67030	Bearing Set, Connecting Rod
13202	13205-30020	Bearing Set, Connecting Rod (0.50)
13202	13205-67031	Bearing Set, Connecting Rod
13265	13265-67020	Bolt, Connecting Rod
13265	13265-67021	Bolt, Connecting Rod
13405	13405-67030	Flywheel Sub-Assy
13405	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13411	13401-30010	Crankshaft
13411	13401-67010	Crankshaft
13453	13453-67030	Gear, Flywheel Ring
13471	13408-67020	Pulley, Crankshaft
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90119-18003	Bolt(For Crankshaft Pulley Set)
13521	13521-67020	Gear Or Sprocket, Crankshaft Timing
13525	13508-67900	Gear, Idle, No.1
13525	13508-67011	Gear, Idle, No.1
13537	13537-67900	Gear, Idle Sub, No.1
13538	13538-67900	Gear, Idle Sub, No.2
13538	90206-69001	Washer, Wave
13538	90520-58002	Ring, Shaft Snap
13572	13572-67041	Plate, Idle Gear Thrust
13578	13578-67010	Spring, Idle Gear
13581	13581-67041	Shaft, Idle Gear, No.1
13601	13601-67020	Balanceshaft Sub-Assy, No.1
13602	13602-67020	Balanceshaft Sub-Assy, No.2
13602	13602-0L020	Balanceshaft Sub-Assy, No.2
13613	13613-67900	Gear, Injection
13613	13613-67902	Gear, Injection
13613	90363-60004	Bearing, Radial Ball
13632	13632-67010	Gear, Balanceshaft Driven, No.1
13633	13633-67010	Gear, Balanceshaft Driven, No.2
9010508271	90105-08271	Bolt
9010510398	90105-10398	BOLT WASHER BASED
9017614003	90176-14003	NUT CAP
9030123005	90301-23005	O-RING
9111160625	91111-60625	Bolt, Hexagon
9111160625	91611-60628	Bolt, Hexagon
9151180612	91511-80612	New Genuine Part

OEM	Part name	Category
11011-67020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11012-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11012-67020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11013-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11013-67020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-30020-02	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-30020-03	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-30020-04	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-30020-05	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-30020-06	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67020-02	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67020-03	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67020-04	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67020-05	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67020-06	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67021-02	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67021-03	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67021-04	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67021-05	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11701-67021-06	Bearing, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11704-30020	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11704-67020	Bearing Set, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11704-67021	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11705-30020	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11705-67020	Bearing Set, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11705-67021	Bearing Set, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
11991-67010	Washer, Balanceshaft Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13011-67030	Ring Set, Piston (STD)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13013-67030	Ring Set, Piston (OS 0.50)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13014-67030	Ring Set, Piston	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13015-67030	Ring Set, Piston (OS 1.00)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-30020-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-30020-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-30020-04	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-30020-05	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-30020-06	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67030-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67030-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67030-04	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67030-05	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67030-06	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67031-02	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67031-03	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67031-04	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67031-05	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13041-67031-06	Bearing, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13101-67050-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13101-67050-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13101-67050-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13103-67050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13104-67050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13105-67050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13201-67020	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13201-67021	Rod Sub-Assy, Connecting	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13204-30020	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13204-67030	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13204-67031	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13205-30020	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13205-67030	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13205-67031	Bearing Set, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13265-67020	Bolt, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13265-67021	Bolt, Connecting Rod	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13401-30010	Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13401-67010	Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13405-67030	Flywheel Sub-Assy	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13408-67020	Pulley, Crankshaft	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13453-67030	Gear, Flywheel Ring	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13508-67011	Gear, Idle, No.1	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13508-67900	Gear, Idle, No.1	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13521-67020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13537-67900	Gear, Idle Sub, No.1	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13538-67900	Gear, Idle Sub, No.2	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13572-67041	Plate, Idle Gear Thrust	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13578-67010	Spring, Idle Gear	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13581-67041	Shaft, Idle Gear, No.1	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13601-67020	Balanceshaft Sub-Assy, No.1	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13602-0L020	Balanceshaft Sub-Assy, No.2	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13602-67020	Balanceshaft Sub-Assy, No.2	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13613-67900	Gear, Injection	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13613-67902	Gear, Injection	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13632-67010	Gear, Balanceshaft Driven, No.1	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
13633-67010	Gear, Balanceshaft Driven, No.2	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90105-08271	Bolt	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90105-10398	BOLT WASHER BASED	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90119-18003	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90176-14003	NUT CAP	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90206-69001	Washer, Wave	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90301-23005	O-RING	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90363-60004	Bearing, Radial Ball	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90520-37014	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90520-58002	Ring, Shaft Snap	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
90999-73136	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
91111-60625	Bolt, Hexagon	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
91511-80612	New Genuine Part	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
91611-60628	Bolt, Hexagon	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([04.1997 - ] (9704- )1KZTE)
