Search › Model › JPD10

JPD10

Toyota MIRAI · 2014 · 2,497 parts · 172 categories

2,497 items

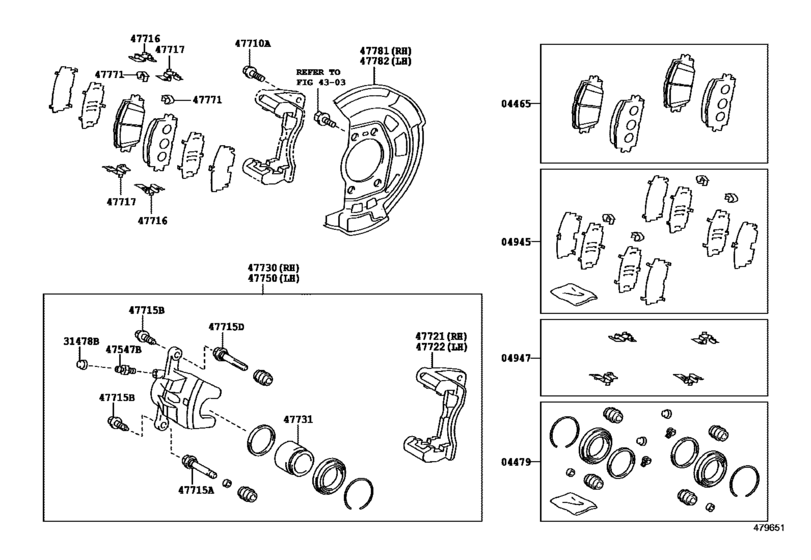

Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- )) 20

#	OEM	Part name
4465	04465-42180	Pad Kit, Disc Brake, Front
4479	04478-33130	Cylinder Kit, Disc Brake, Front
4945	04945-42060	Shim Kit, Anti Squeal, Front
4947	04947-42050	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-12A10	Pin, Main(For Front Disc Brake Cylinder Slide)
47715	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47715	47715-52190	Pin, Main(For Front Disc Brake Cylinder Slide)
47716	47716-52191	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-52191	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-42091	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-42091	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-42091	Cylinder Assy, Front Disc Brake, Rh
47731	47731-12A70	Piston, Front Disc Brake
47750	47750-42091	Cylinder Assy, Disc Brake, Lh
47771	47771-52191	Plate, Pad Wear Indicator, No.1
47781	47781-42040	Cover, Disc Brake Dust, Front Rh
47782	47782-42040	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-42180	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
04478-33130	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
04945-42060	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
04947-42050	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47715-12A10	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47715-52190	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47716-52191	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47717-52191	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47721-42091	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47722-42091	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47730-42091	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47731-12A70	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47750-42091	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47771-52191	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47781-42040	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
47782-42040	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([06.2015 - ] (1506- ))
