Search › Model › GZ20

GZ20

Toyota SOARER · 1986 · 4,814 parts · 176 categories

4,814 items

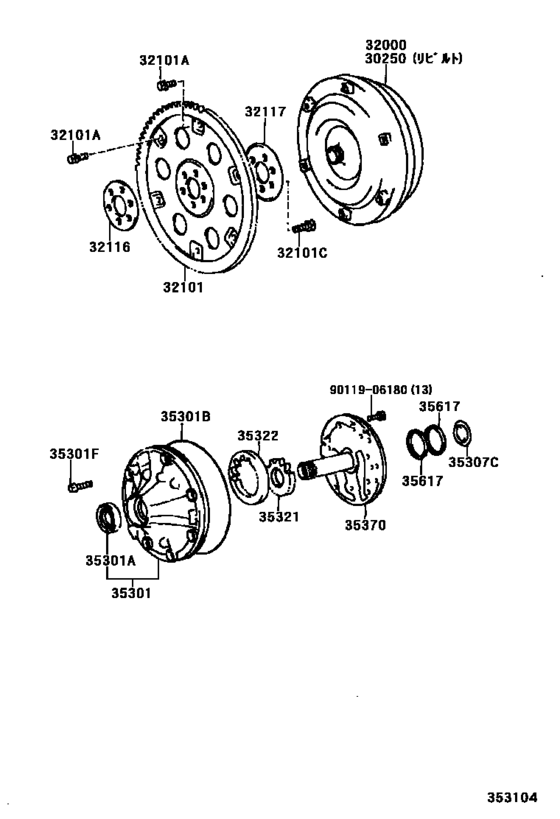

Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC) 27

#	OEM	Part name
30250	30250-22090	Converter Assy, Torque, Rebuilt
32000	32000-22090	Converter Assy, Torque
32101	32101-24012	Gear Sub-Assy, Drive Plate & Ring
32101	90119-09009	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09010	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10046	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-14011	Spacer, Drive Plate, Front
32117	32117-14011	Spacer, Drive Plate, Rear
35301	35301-14010	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99010	Ring, O (For Front Oil Pump Body)
35301	90105-08137	Bolt (For Front Oil Pump Setting)
35321	35321-14010	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22020	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22030	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22040	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22050	Gear Sub-Assy, Front Oil Pump Drive
35321	35321-22060	Gear Sub-Assy, Front Oil Pump Drive
35322	35322-14010	Gear, Front Oil Pump Driven
35322	35322-22020	Gear, Front Oil Pump Driven
35322	35322-22030	Gear, Front Oil Pump Driven
35322	35322-22040	Gear, Front Oil Pump Driven
35322	35322-22050	Gear, Front Oil Pump Driven
35322	35322-22060	Gear, Front Oil Pump Driven
35370	35370-14012	Shaft Sub-Assy, Stator
35617	35617-16010	Ring, Oil Seal (For Overdrive Case)
9011906180	90119-06180	Bolt (For Stator Shaft)

OEM	Part name	Category
30250-22090	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
32000-22090	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
32101-24012	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
32116-14011	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
32117-14011	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35301-14010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35321-14010	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35321-22020	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35321-22030	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35321-22040	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35321-22050	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35321-22060	Gear Sub-Assy, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35322-14010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35322-22020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35322-22030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35322-22040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35322-22050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35322-22060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35370-14012	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
35617-16010	Ring, Oil Seal (For Overdrive Case)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90105-08137	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90105-10046	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90119-06180	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90119-09009	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90119-09010	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90301-99010	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.1988 - ] A340E (8801- )GZ20..4FC ; (8808- )MZ2#..4FC)
