Search › Model › GZ20
GZ20

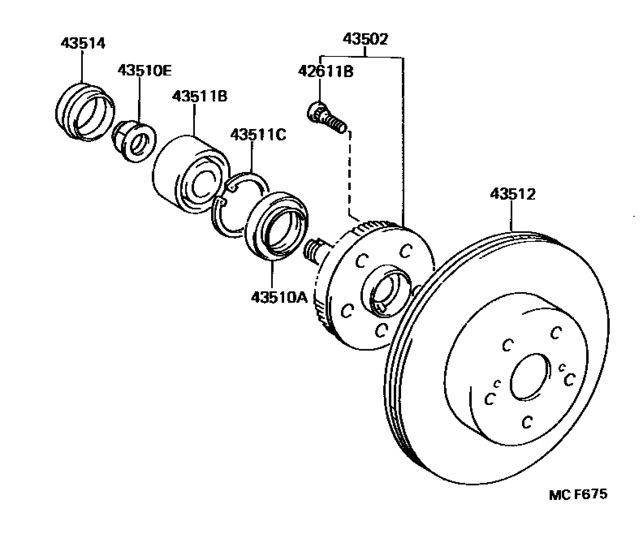

Front Axle Hub ([01.1988 - ] (8801- )) 11
| # | OEM | Part name |
|---|---|---|
| 42611 | 90942-02049 | Bolt, Hub |
| 42611 | 90942-02082 | Bolt, Hub |
| 43502 | 43502-14040 | Hub Sub-Assy, Front Axle |
| 43502 | 43503-14020 | Hub Sub-Assy, Front Axle |
| 43510 | 90311-50008 | Seal, Oil (For Front Axle Hub) |
| 43510 | 90179-24005 | Nut (For Front Axle Shaft) |
| 43511 | 90369-35034 | Bearing (For Front Axle Hub Rh) |
| 43511 | 90903-63006 | Bearing (For Front Axle Hub) |
| 43511 | 90521-82001 | Ring, Hole Snap (For Front Axle Hub) |
| 43512 | 43512-14100 | Disc, Front |
| 43514 | 43514-14020 | Cap, Front Hub Grease |
| OEM | Part name | Category |
|---|---|---|
| 43502-14040 | Hub Sub-Assy, Front Axle | Front Axle Hub ([01.1988 - ] (8801- )) |
| 43503-14020 | Hub Sub-Assy, Front Axle | Front Axle Hub ([01.1988 - ] (8801- )) |
| 43512-14100 | Disc, Front | Front Axle Hub ([01.1988 - ] (8801- )) |
| 43514-14020 | Cap, Front Hub Grease | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90179-24005 | Nut (For Front Axle Shaft) | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90311-50008 | Seal, Oil (For Front Axle Hub) | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90369-35034 | Bearing (For Front Axle Hub Rh) | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90521-82001 | Ring, Hole Snap (For Front Axle Hub) | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90903-63006 | Bearing (For Front Axle Hub) | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([01.1988 - ] (8801- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([01.1988 - ] (8801- )) |
