GUN142

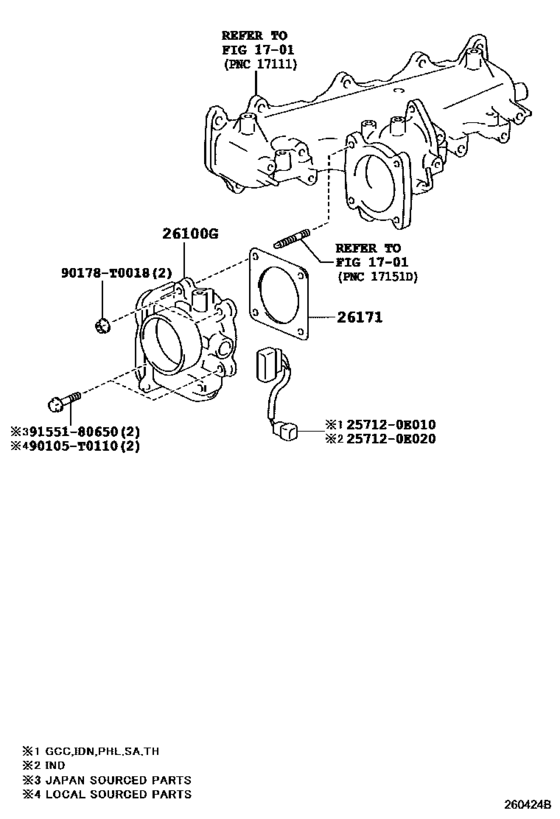

Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) 6
| # | OEM | Part name |
|---|---|---|
| 26100 | 26100-0E030 | Body Assy, Diesel Throttle |
| 26171 | 26171-0E010 | Gasket, Venturi |
| 26171 | 26171-0E020 | Gasket, Venturi |
| 90105 | 90105-T0110 | BOLT FLANGE |
| 90178 | 90178-T0018 | NUT FLANGE |
| 9155180650 | 91551-80650 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 26100-0E030 | Body Assy, Diesel Throttle | Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) |
| 26171-0E010 | Gasket, Venturi | Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) |
| 26171-0E020 | Gasket, Venturi | Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) |
| 90105-T0110 | BOLT FLANGE | Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) |
| 90178-T0018 | NUT FLANGE | Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) |
| 91551-80650 | BOLT FLANGE | Venturi ([11.2015 - ] (1511- )1GDFTV,2GDFTV) |
