GUN142

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2015 · 3,151 parts · 197 categories

3,151 items

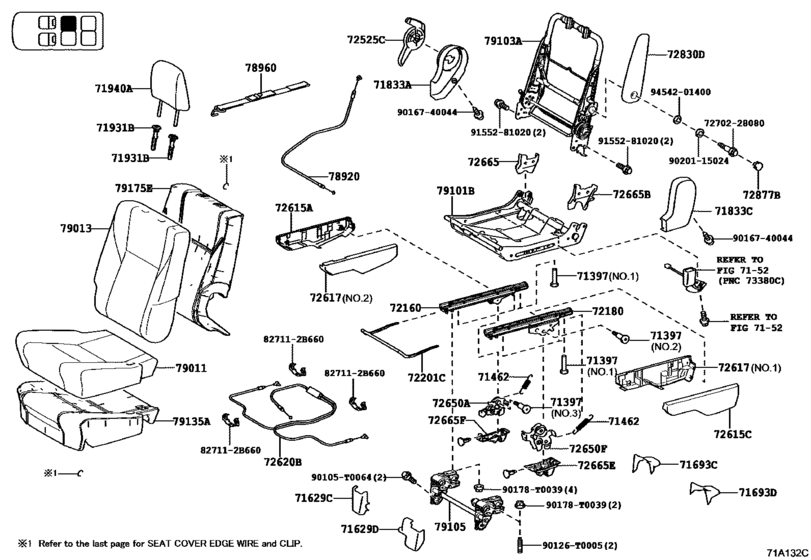

Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP) 59

#	OEM	Part name
71397	71397-0K050	Stopper, Rear Seat
71397	71397-0K060	Stopper, Rear Seat
71397	71397-0K100	Stopper, Rear Seat
71462	71462-0K020	Spring, Rear Seat Cushion, No.2
71629	71629-0K210-C0	Cover, Rear Seat Cushion Hinge, Outer Rh
71629	71629-0K210-C1	Cover, Rear Seat Cushion Hinge, Rh
71629	71629-0K220-C0	Cover, Rear Seat Cushion Hinge, Inner Rh
71629	71629-0K220-C1	Cover, Rear Seat Cushion Hinge, Rh
71693	71693-0K130-C0	Cover, Rear Seat Cushion Hinge, Outer Rh
71693	71693-0K130-C1	Cover, Rear Seat Cushion Hinge, Outer Rh
71693	71693-0K140-C0	Cover, Rear Seat Cushion Hinge, Inner Rh
71693	71693-0K140-C1	Cover, Rear Seat Cushion Hinge, Inner Rh
71833	71833-0K120-C0	Cover, Rear Seat Reclining, No.1 Rh
71833	71833-0K140-C0	Cover, Rear Seat Reclining, No.2 Rh
71833	71833-0K320-C0	Cover, Rear Seat Reclining, No.2 Rh
71931	71930-02370-C0	Support, Front Seat Headrest
71931	71931-02130-C0	Support, Front Seat Headrest
71940	71940-0KD60-C1	Headrest Assy, Rear Seat
72160	72160-0K150	Track Assy, Rear Seat, Outer Rh
72180	72180-0K030	Track Assy, Rear Seat, Inner Rh
72201	72211-0K040	Handle Sub-Assy, Seat Track, Rh - SEAT TRACK ADJUSTING
72525	72525-0K060-C0	Handle, Reclining Adjuster Release, No.1 Rh
72615	72615-0K070-C0	Cover, Rear Seat Back Lock Striker, Rh
72615	72615-0K050-C0	Cover, Rear Seat Back Lock Striker
72617	72617-0K020-C0	Retainer, Seat Back Lock Striker Cover
72617	72617-0K040-C0	Retainer, Seat Back Lock Striker Cover
72620	72620-0K020	Cable Assy, Rear No.1 Seat Lock
72650	72650-0K090	Lock Assy, Rear Seat, Rh
72650	72650-0K100	Lock Assy, Rear Seat, Rh
72665	72665-0K140-C0	Cover, Rear Seat Back Lock, Rh
72665	72665-0K300-C0	Cover, Rear Seat Back Lock
72665	72665-0K590-C0	Cover, Rear Seat Back Lock
72665	72665-0K130-C0	Cover, Rear Seat Lock, No.2 Rh
72665	72665-0K120-C0	Cover, Rear Seat Lock, Rh(For Rh Seat)
72830	72880-0K080-C0	Armrest Assy, Rear Seat, Rh
72877	71877-0K020-C0	Cover, Seat Armrest, Rh
78920	78920-0K020	Cable Assy, Fold Seat Lock Control, No.1 Rh
78960	78950-0K080-C1	Band Assy, Fold Seat Stopper, No.1
79011	79011-0KA50-C1	Cover Sub-Assy, No.1 Seat Cushion, Rh
79011	79011-0KB20-C2	Cover Sub-Assy, No.1 Seat Cushion, Rh
79013	79013-0KB10-C1	Cover Sub-Assy, No.1 Seat Back, Rh
79013	79013-0KB80-C1	Cover Sub-Assy, No.1 Seat Back, Rh
79101	79101-0K170	Frame Sub-Assy, No.1 Seat Cushion, Rh
79103	79103-0K160	Frame Sub-Assy, No.1 Seat Back, Rh
79103	79103-0K200	Frame Sub-Assy, No.1 Seat Back, Rh
79105	79105-0K060	Leg Sub-Assy, No.1 Seat, Rh
79135	79135-0K150	Pad, No.1 Seat Cushion, Rh
79135	79135-0K180	Pad, No.1 Seat Cushion, Rh
79175	79175-0K140	Pad, No.1 Seat Back, Rh
79175	79175-0K170	Pad, No.1 Seat Back, Rh
90105	90105-T0064	BOLT FLANGE
90126	90126-T0005	STUD HEX LOBULAR
90178	90178-T0039	NUT FLANGE
827112	82711-2B660	Clamp, Wiring Harness
7270228080	72702-28080	Bolt, Front Seat
9016740044	90167-40044	BOLT
9020115024	90201-15024	WASHER PLATE
9155281020	91552-81020	Bolt(For Alternator)
9454201400	94542-01400	Spacer, Center Seat Hinge

OEM	Part name	Category
71397-0K050	Stopper, Rear Seat	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71397-0K060	Stopper, Rear Seat	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71397-0K100	Stopper, Rear Seat	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71462-0K020	Spring, Rear Seat Cushion, No.2	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71629-0K210-C0	Cover, Rear Seat Cushion Hinge, Outer Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71629-0K210-C1	Cover, Rear Seat Cushion Hinge, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71629-0K220-C0	Cover, Rear Seat Cushion Hinge, Inner Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71629-0K220-C1	Cover, Rear Seat Cushion Hinge, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71693-0K130-C0	Cover, Rear Seat Cushion Hinge, Outer Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71693-0K130-C1	Cover, Rear Seat Cushion Hinge, Outer Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71693-0K140-C0	Cover, Rear Seat Cushion Hinge, Inner Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71693-0K140-C1	Cover, Rear Seat Cushion Hinge, Inner Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71833-0K120-C0	Cover, Rear Seat Reclining, No.1 Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71833-0K140-C0	Cover, Rear Seat Reclining, No.2 Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71833-0K320-C0	Cover, Rear Seat Reclining, No.2 Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71877-0K020-C0	Cover, Seat Armrest, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71930-02370-C0	Support, Front Seat Headrest	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71931-02130-C0	Support, Front Seat Headrest	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
71940-0KD60-C1	Headrest Assy, Rear Seat	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72160-0K150	Track Assy, Rear Seat, Outer Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72180-0K030	Track Assy, Rear Seat, Inner Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72211-0K040	Handle Sub-Assy, Seat Track, Rh - SEAT TRACK ADJUSTING	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72525-0K060-C0	Handle, Reclining Adjuster Release, No.1 Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72615-0K050-C0	Cover, Rear Seat Back Lock Striker	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72615-0K070-C0	Cover, Rear Seat Back Lock Striker, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72617-0K020-C0	Retainer, Seat Back Lock Striker Cover	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72617-0K040-C0	Retainer, Seat Back Lock Striker Cover	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72620-0K020	Cable Assy, Rear No.1 Seat Lock	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72650-0K090	Lock Assy, Rear Seat, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72650-0K100	Lock Assy, Rear Seat, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72665-0K120-C0	Cover, Rear Seat Lock, Rh(For Rh Seat)	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72665-0K130-C0	Cover, Rear Seat Lock, No.2 Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72665-0K140-C0	Cover, Rear Seat Back Lock, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72665-0K300-C0	Cover, Rear Seat Back Lock	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72665-0K590-C0	Cover, Rear Seat Back Lock	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72702-28080	Bolt, Front Seat	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
72880-0K080-C0	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
78920-0K020	Cable Assy, Fold Seat Lock Control, No.1 Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
78950-0K080-C1	Band Assy, Fold Seat Stopper, No.1	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79011-0KA50-C1	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79011-0KB20-C2	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79013-0KB10-C1	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79013-0KB80-C1	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79101-0K170	Frame Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79103-0K160	Frame Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79103-0K200	Frame Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79105-0K060	Leg Sub-Assy, No.1 Seat, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79135-0K150	Pad, No.1 Seat Cushion, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79135-0K180	Pad, No.1 Seat Cushion, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79175-0K140	Pad, No.1 Seat Back, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
79175-0K170	Pad, No.1 Seat Back, Rh	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
82711-2B660	Clamp, Wiring Harness	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
90105-T0064	BOLT FLANGE	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
90126-T0005	STUD HEX LOBULAR	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
90167-40044	BOLT	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
90178-T0039	NUT FLANGE	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
90201-15024	WASHER PLATE	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
91552-81020	Bolt(For Alternator)	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
94542-01400	Spacer, Center Seat Hinge	Seat & Seat Track ([11.2015 - ] REAR NO.1 SEAT(RH), CAPTAIN SEAT (1511- )VN ; (1511- )GUN142,TGN141 ; (1511 - )GUN143,TGN140..IDNP,INDP,PHLP)
