GUN135

Toyota HILUX-4RUNNER-TRUCK · 2015 · 3,926 parts · 259 categories

3,926 items

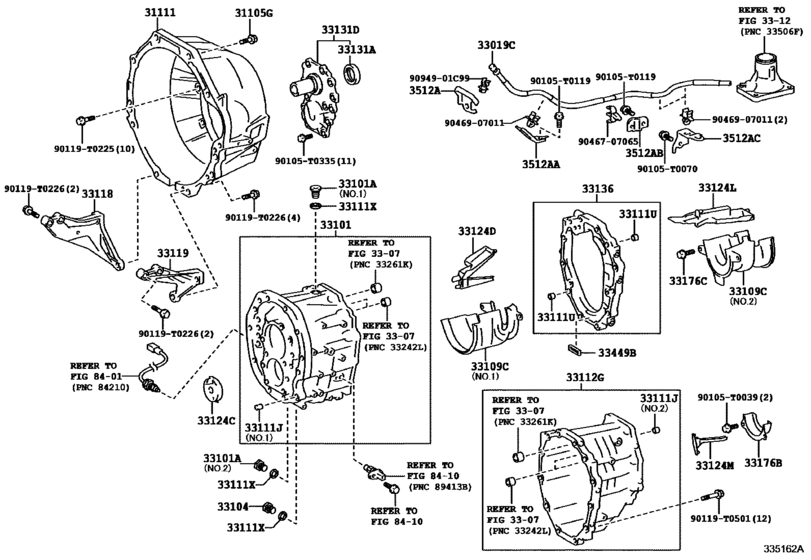

Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F) 47

#	OEM	Part name
31105	90119-T0227	Bolt(For Transaxle Case & Engine Setting)
31111	31111-0K140	Housing, Clutch
31111	31111-0K150	Housing, Clutch
33019	33019-0K090	Breather Sub-Assy, Transmission
33101	33101-0K070	Case Sub-Assy, Manual Transmission
33101	33101-0K080	Case Sub-Assy, Manual Transmission
33101	90341-18032	Plug Sub-Assy, Drain(Mtm) - No magnet
33101	90341-18033	Plug(For Manual Transmission Filler)
33104	90341-18006	Plug (No magnet)
33104	90341-18034	Plug, No.1 (For Transfer Case)
33109	33109-0K010	Separator Sub-Assy, Manual Transmission Oil
33109	33109-0K020	Separator Sub-Assy, Manual Transmission Oil
33109	33109-0K030	Separator Sub-Assy, Manual Transmission Oil
33109	33109-0K040	Separator Sub-Assy, Manual Transmission Oil
33111	90250-11003	Pin, Ring(For Transfer Case)
33111	90250-12002	Pin, Straight(For Manual Transmission Case)
33111	90250-T0020	Pin, Straight(For Manual Transmission Case)
33111	90250-T0029	Pin, Straight(For Manual Transmission Case)
33111	90253-15001	Pin, Straight(For Clutch Housing Set)
33111	90253-T0011	Pin, Ring(For Transmission Case)
33111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33111	90430-T0025	Gasket, Transmission Case Plug
33112	33102-0K050	Case, Transmission, Rear
33112	33102-0K060	Case, Transmission, Rear
33118	33118-0K040	Plate, Stiffener, Rh(Mtm)
33119	33119-0K020	Plate, Stiffener, Lh(Mtm)
33124	33124-0K070	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-0K080	Pipe, Oil Receiver, No.2(Mtm)
33124	33124-0K090	Pipe, Oil Receiver, N0.3(Mtm)
33124	33124-0K100	Pipe, Oil Receiver, N0.4(Mtm)
33131	90311-T0066	Seal, Oil(For Transmission Front Bearing Retainer)
33131	33108-0K010	Retainer, Bearing, Front
33131	33108-0K020	Retainer, Bearing, Front
33136	33106-0K010	Plate, Transmission Intermediate
33136	33106-0K020	Plate, Transmission Intermediate
33176	33176-0K050	Separator, Transmission Oil(Mtm)
33176	33176-0K060	Separator, Transmission Oil(Mtm)
33176	90105-T0334	Bolt(For Transmission Oil Separator)
33449	33449-60010	Magnet, Transmission
90105	90105-T0039	New Genuine Part
90105	90105-T0070	New Genuine Part
90105	90105-T0119	BOLT FLANGE
90119	90119-T0225	Bolt(For Transaxle & Engine Setting)
90119	90119-T0226	BOLT WWASHER
9094901	90949-01C99	Clip, Radiator Hose, No.5
9046707065	90467-07065	New Genuine Part
9046907011	90469-07011	Clamp No.1 (For Windseield Washer)

OEM	Part name	Category
31111-0K140	Housing, Clutch	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
31111-0K150	Housing, Clutch	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33019-0K090	Breather Sub-Assy, Transmission	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33101-0K070	Case Sub-Assy, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33101-0K080	Case Sub-Assy, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33102-0K050	Case, Transmission, Rear	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33102-0K060	Case, Transmission, Rear	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33106-0K010	Plate, Transmission Intermediate	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33106-0K020	Plate, Transmission Intermediate	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33108-0K010	Retainer, Bearing, Front	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33108-0K020	Retainer, Bearing, Front	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33109-0K010	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33109-0K020	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33109-0K030	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33109-0K040	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33118-0K040	Plate, Stiffener, Rh(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33119-0K020	Plate, Stiffener, Lh(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33124-0K070	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33124-0K080	Pipe, Oil Receiver, No.2(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33124-0K090	Pipe, Oil Receiver, N0.3(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33124-0K100	Pipe, Oil Receiver, N0.4(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33176-0K050	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33176-0K060	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
33449-60010	Magnet, Transmission	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90105-T0039	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90105-T0070	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90105-T0119	BOLT FLANGE	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90105-T0334	Bolt(For Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90119-T0225	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90119-T0226	BOLT WWASHER	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90119-T0227	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90250-11003	Pin, Ring(For Transfer Case)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90250-12002	Pin, Straight(For Manual Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90250-T0020	Pin, Straight(For Manual Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90250-T0029	Pin, Straight(For Manual Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90253-15001	Pin, Straight(For Clutch Housing Set)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90253-T0011	Pin, Ring(For Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90311-T0066	Seal, Oil(For Transmission Front Bearing Retainer)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90341-18032	Plug Sub-Assy, Drain(Mtm) - No magnet	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90341-18034	Plug, No.1 (For Transfer Case)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90430-T0025	Gasket, Transmission Case Plug	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90467-07065	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90469-07011	Clamp No.1 (For Windseield Washer)	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
90949-01C99	Clip, Radiator Hose, No.5	Clutch Housing & Transmission Case (Mtm) ([05.2015 - ] RC60,RC61 (1505- )GUN13#..6F)
